Keg Lift
1 / 5

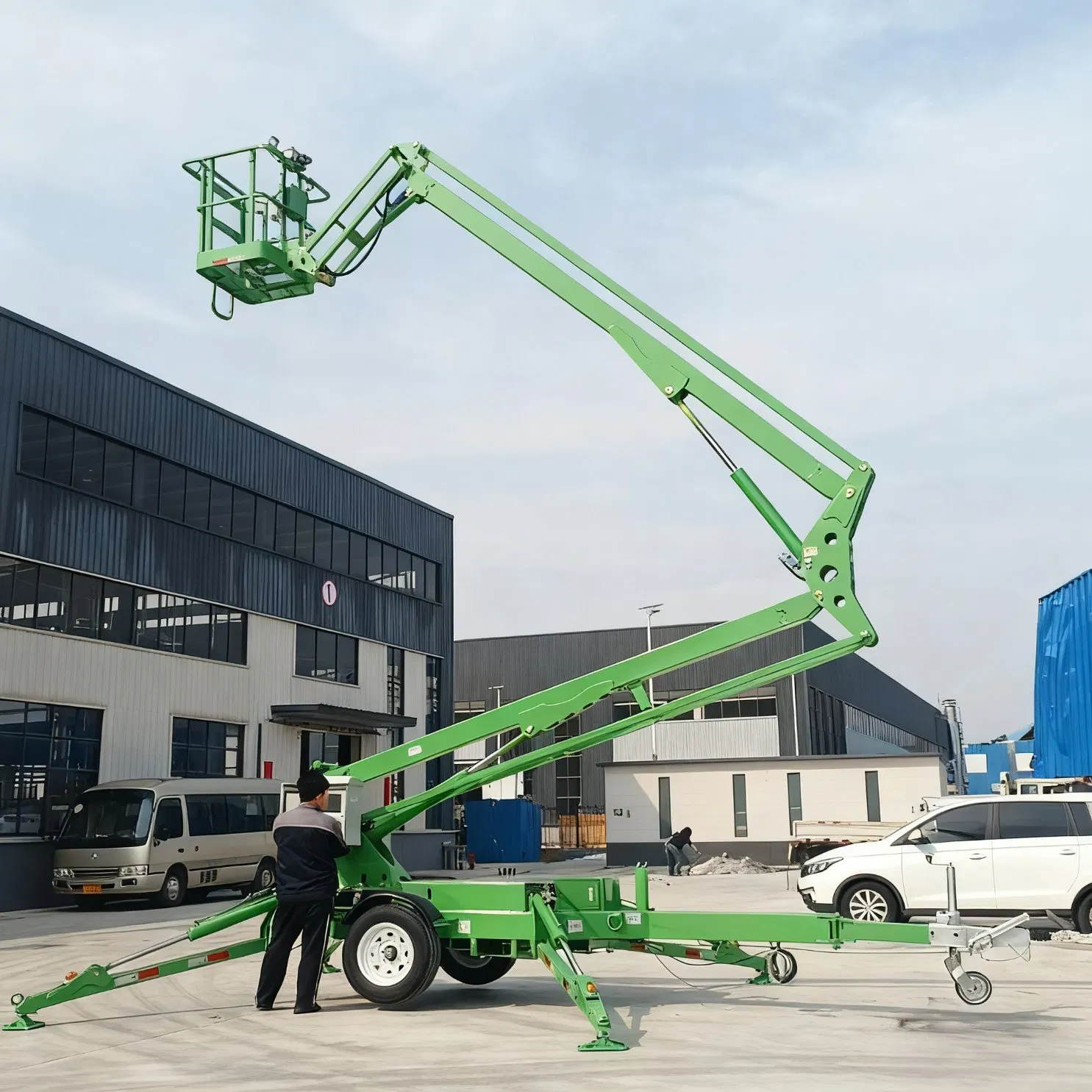

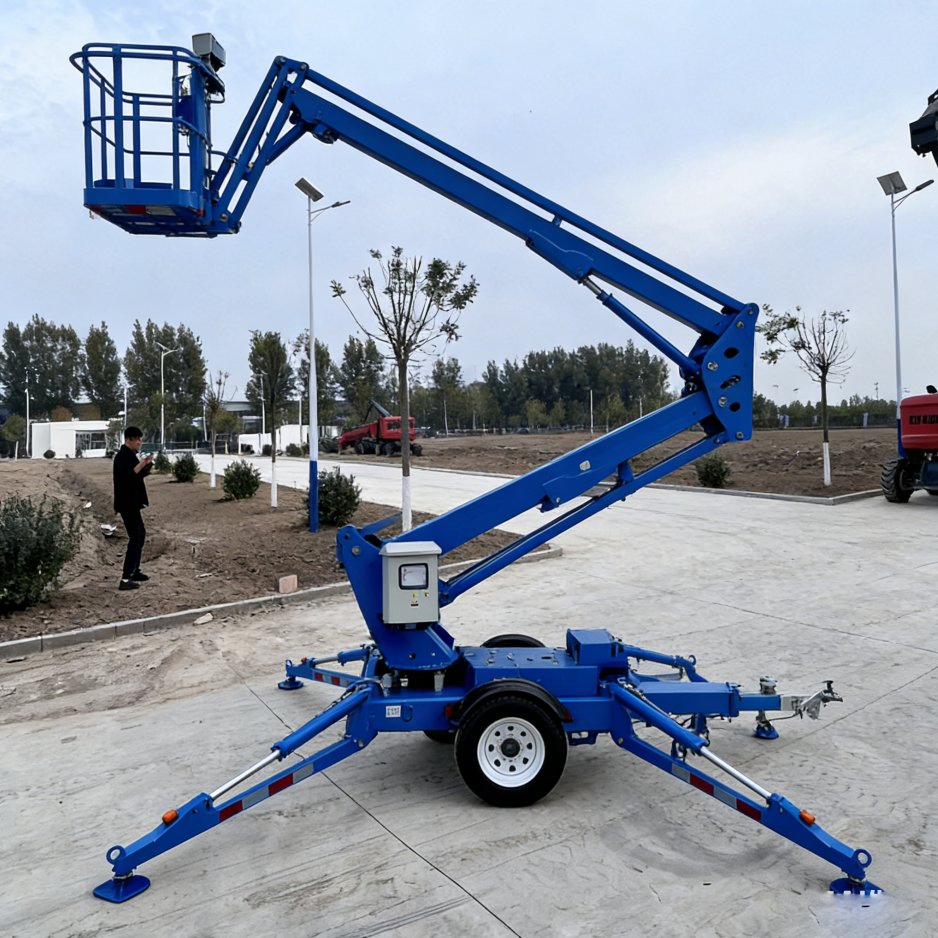

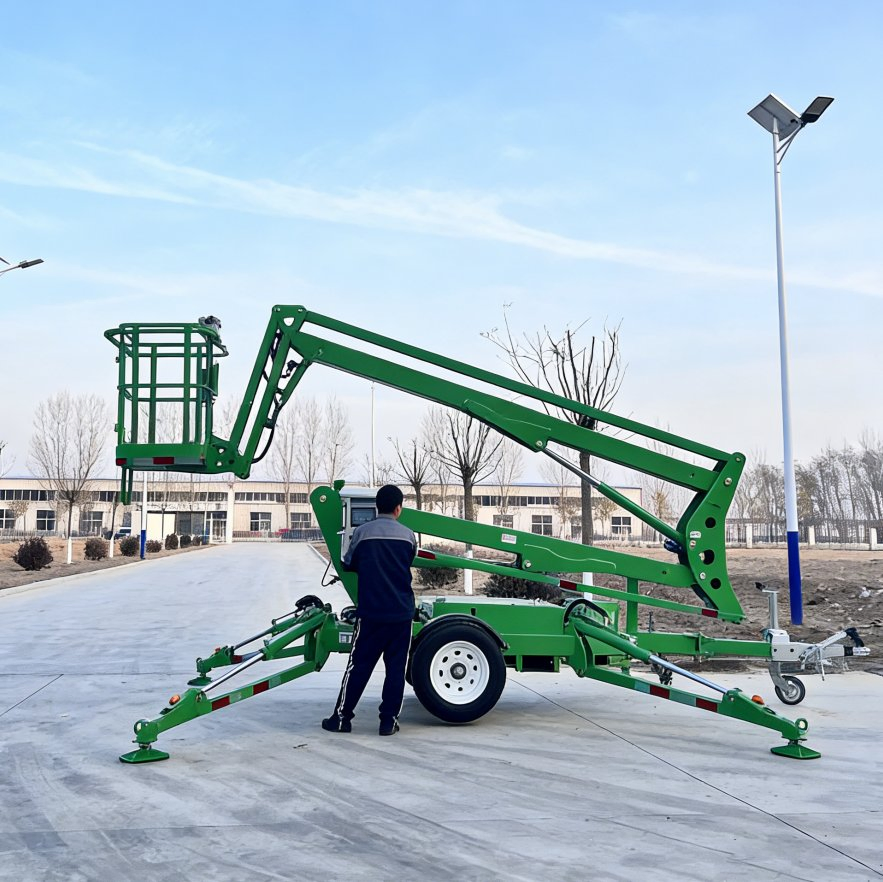

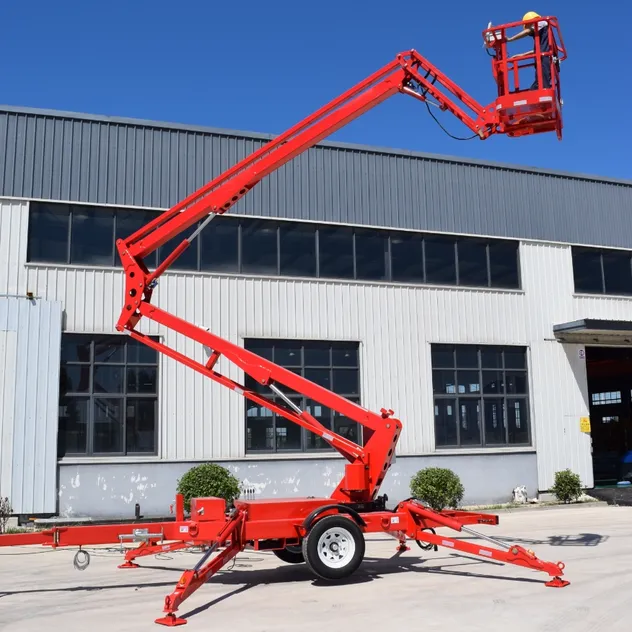

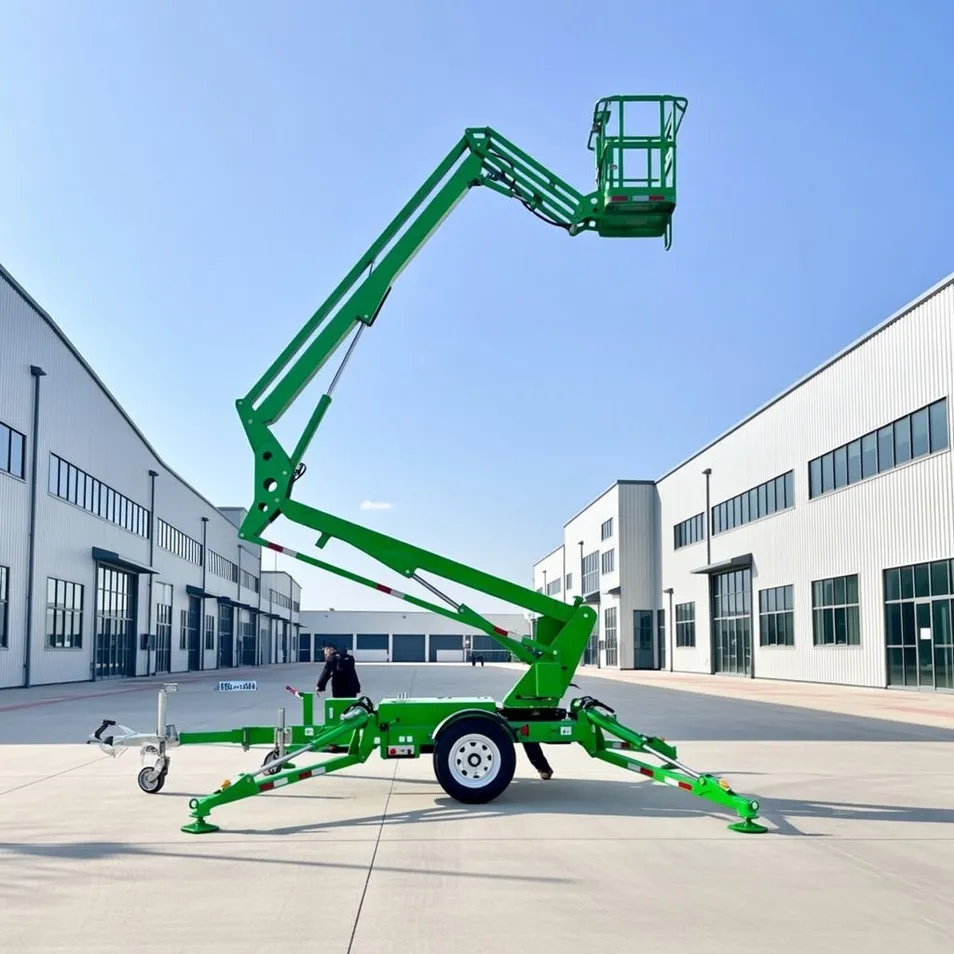

Adopts a trailer-mounted design, allowing for easy towing using ordinary vehicles like pickup trucks or SUVs. Its lightweight structure (1500-3000kg) enables single-person operation for hookup and transport, significantly saving logistics costs. With one-touch hydraulic outriggers for automatic leveling, the equipment is ready for operation within 5-10 minutes.

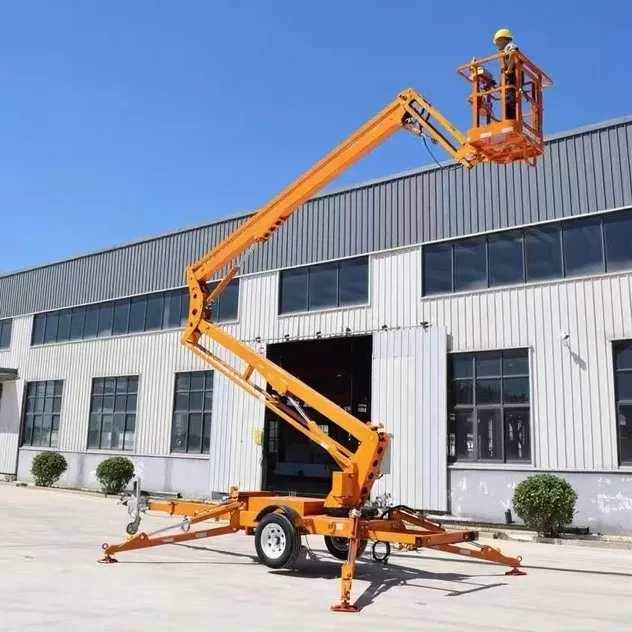

Articulated boom design bypasses obstacles like trees and walls, reaching areas that traditional lifts cannot access.
Purchase and rental prices are 30-50% lower than self-propelled platforms, with simple maintenance and universal parts.

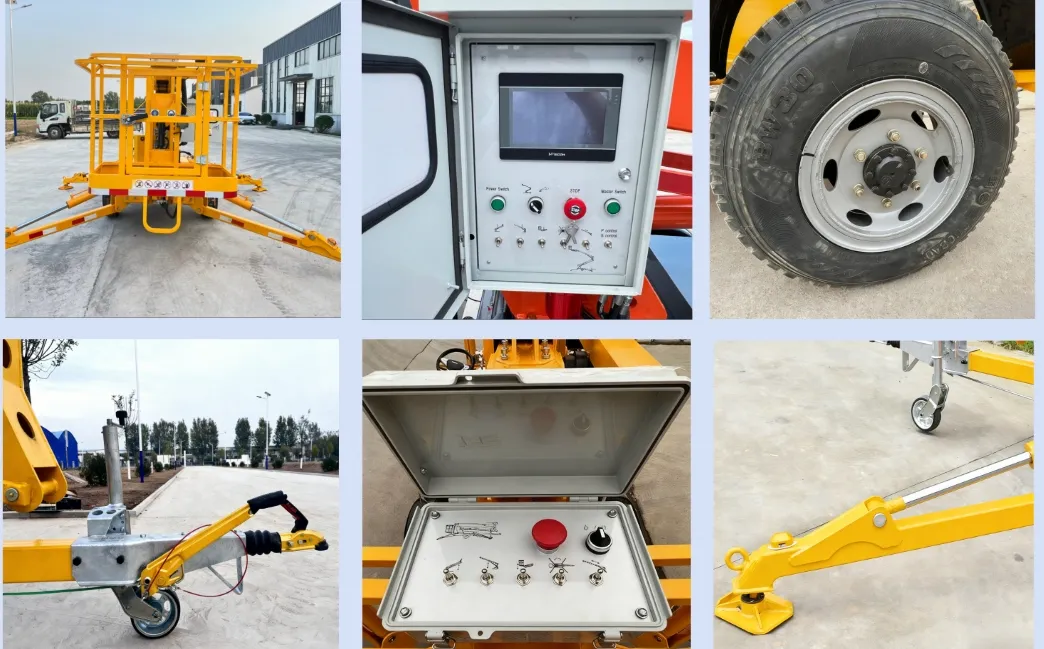

Work Platform: High-resistance Q235 steel guardrails provide stable protection.

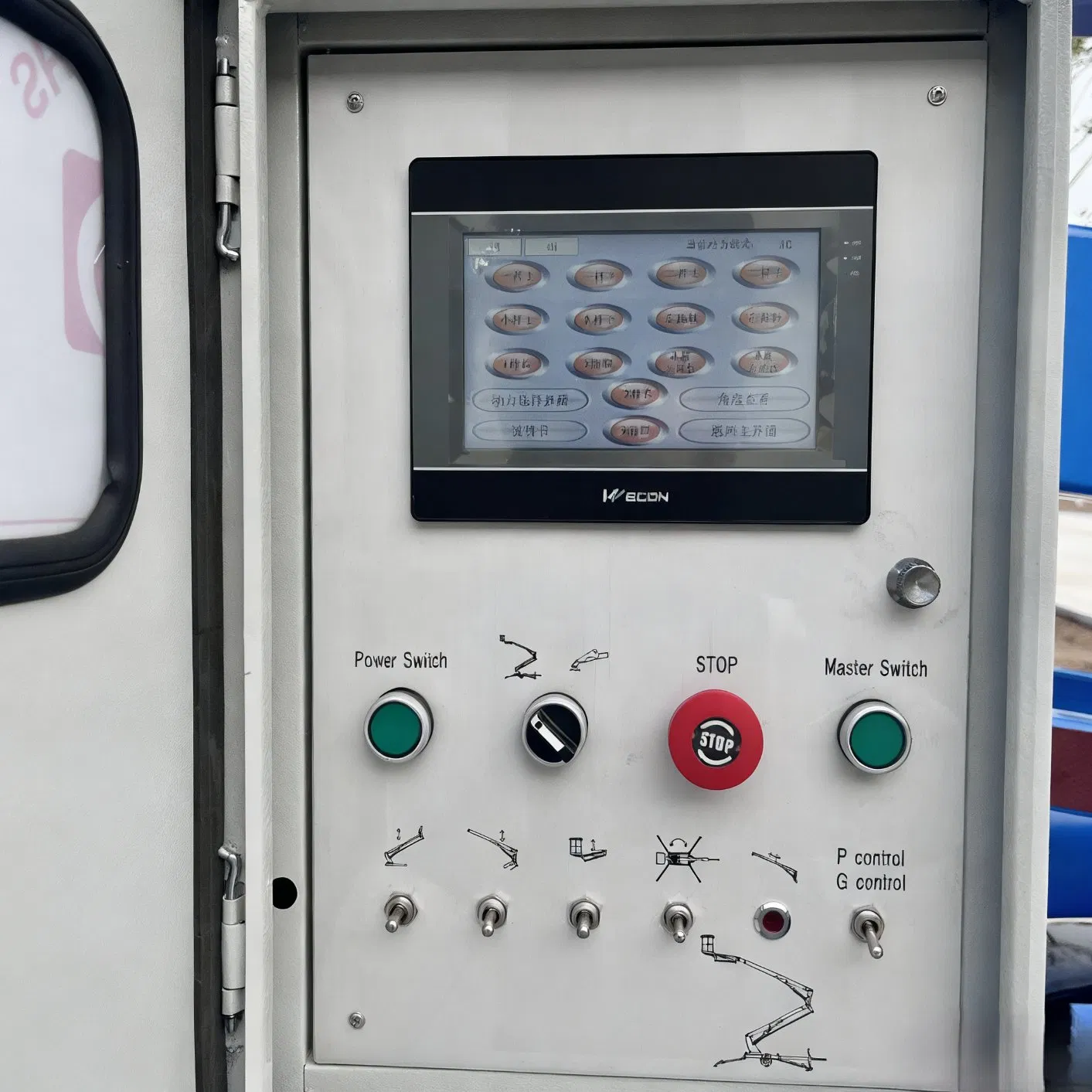

Controller: Supports 360° rotation for multi-directional flexible operations.
Support Legs: Manganese steel construction with automatic leveling capability for uneven terrains.

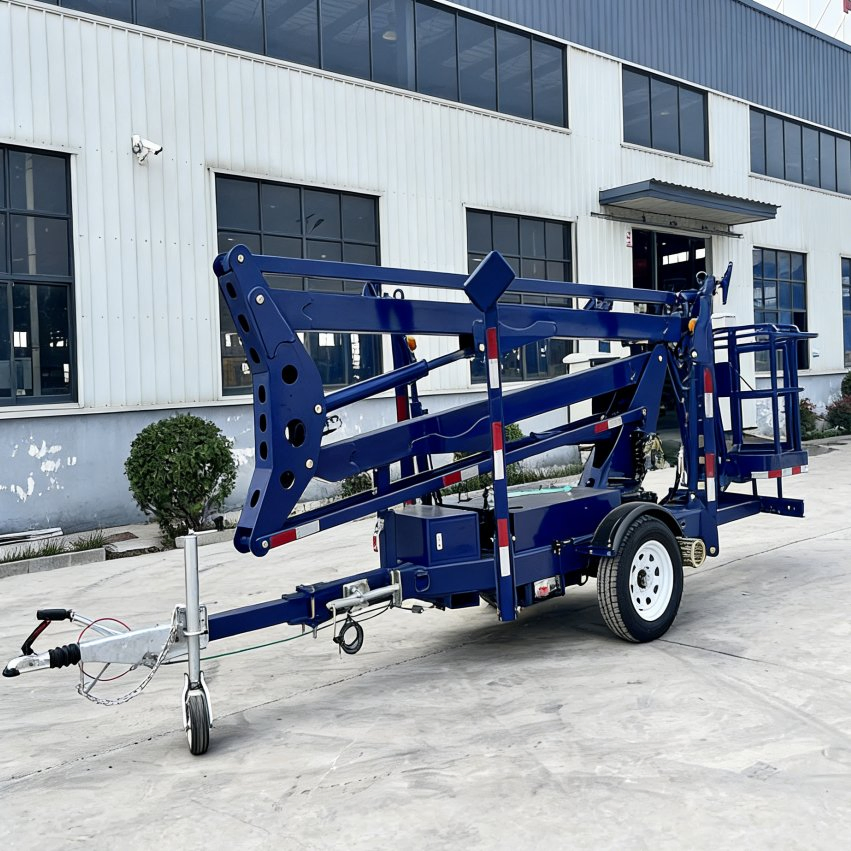

Towbar: International standard design, foldable and compatible with most vehicles.
| Model | ETBL-10A | ETBL-12 | ETBL-14 | ETBL-16 | ETBL-18 | ETBL-20 |
|---|---|---|---|---|---|---|
| Max Working Height | 12M | 14M | 16M | 18M | 20M | 22M |
| Max Platform Height | 10M | 12M | 14M | 16M | 18M | 20M |
| Load Capacity | 200KG | 200KG | 200KG | 200KG | 200KG | 200KG |
| Working Radius | 5.8M | 6.5M | 8.5M | 10.5M | 12.0M | 12.0M |
| Total Weight | 1900KG | 1900KG | 2300KG | 2600KG | 3500KG | 3800KG |
| Drive System | Diesel / Gasoline / DC / AC (Optional) | |||||
Our production process adheres to strict international quality standards, ensuring the safety and durability of every lift. We have over 15 years of industry experience, providing high-performance aerial work solutions.
