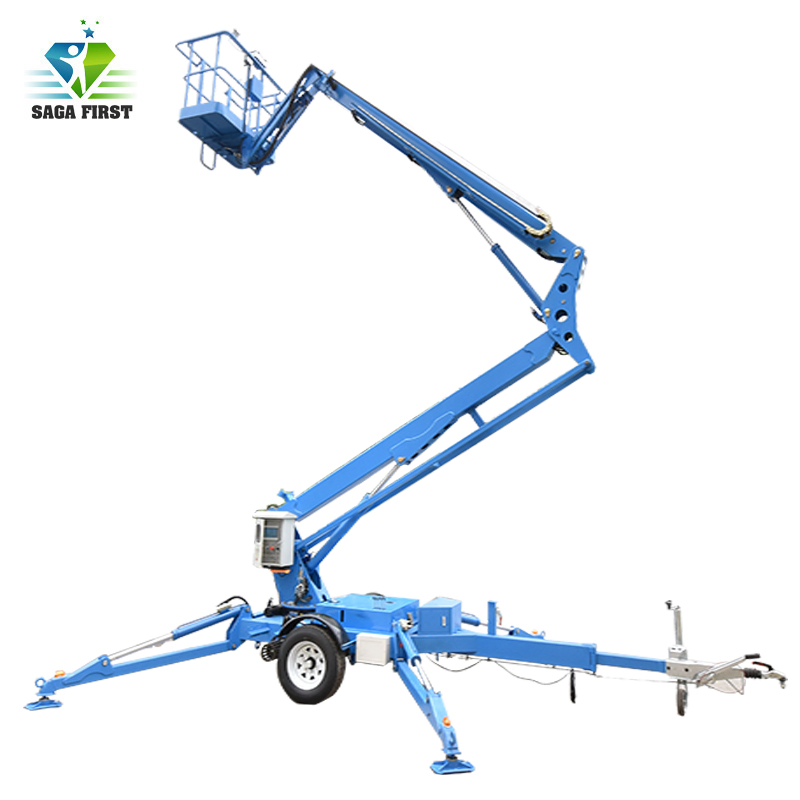

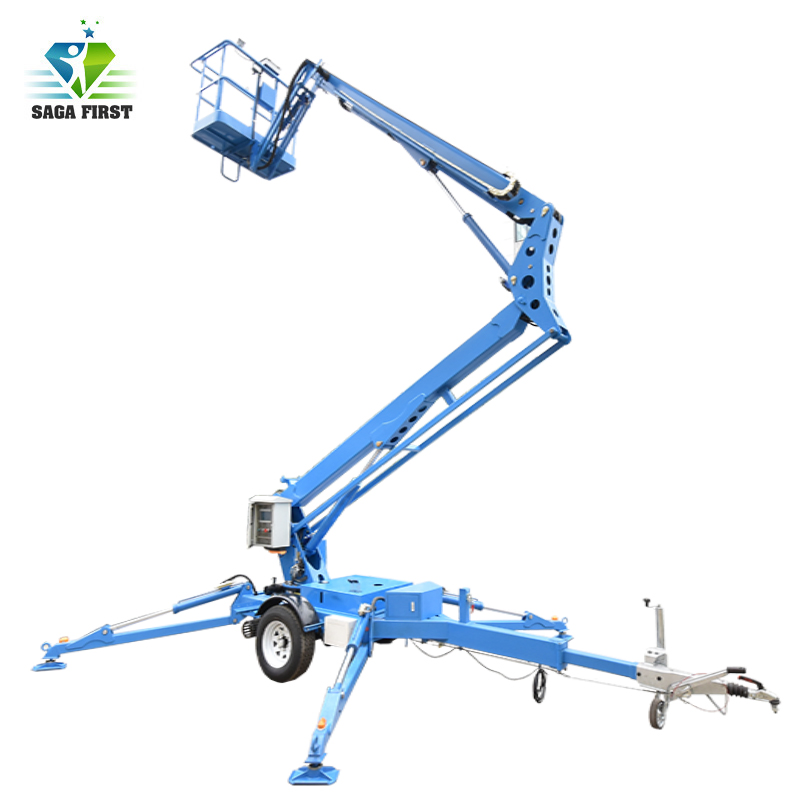

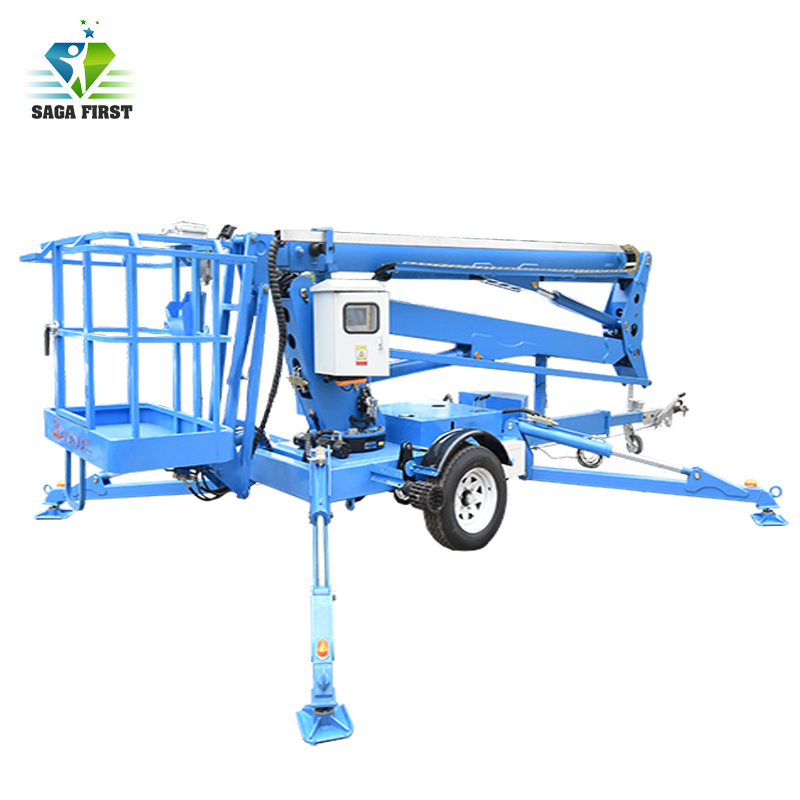

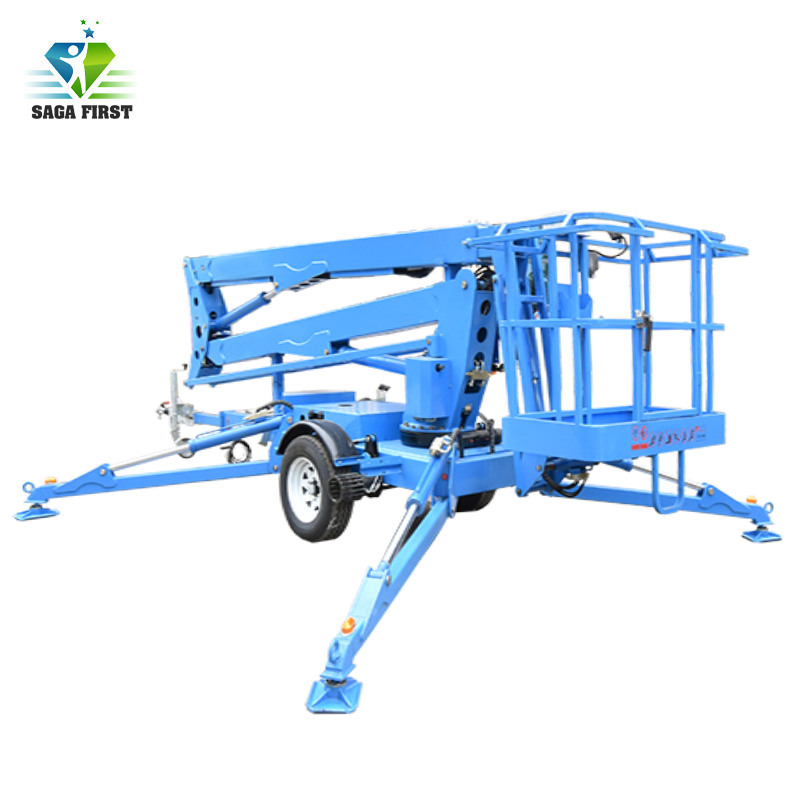

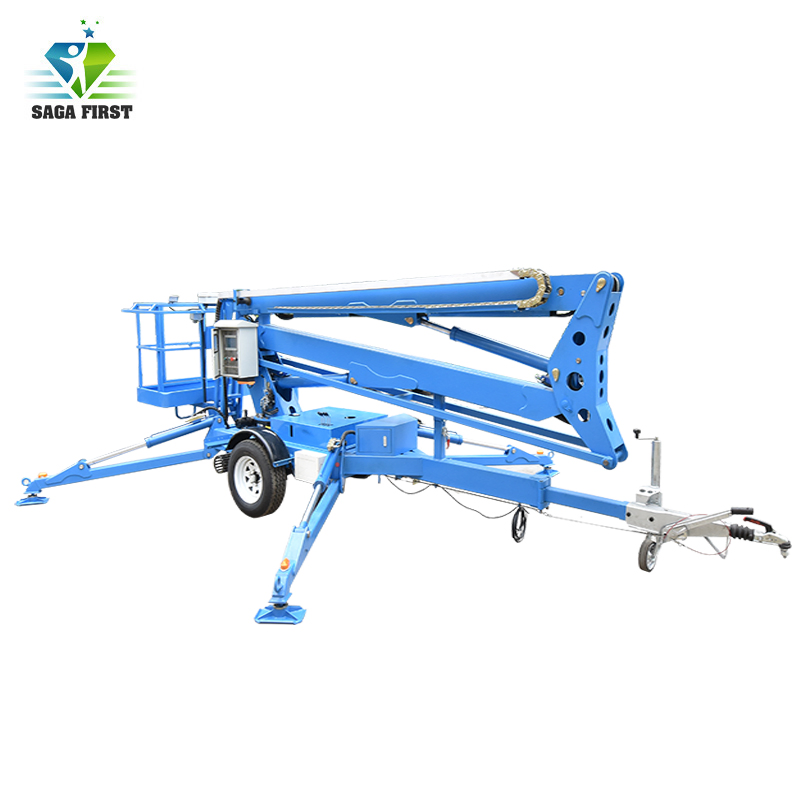

CE Certificated 10m 20m Hydraulic Lifter Articulated Towable Boom Lift

1 / 5

CE Certificated 10m 20m Hydraulic Lifter Articulated Towable Boom Lift

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Technical Specifications

Model NO.

TBL

Application

Workshop, Shipboard, Warehouse, Building Construction

Lift Mechanism

Articulated Lift

Driven Type

Hydraulic

Load Capacity

200kg

Lifting Height

10-16m

Platform Size

900*700mm

Turning Degree

360 Degree Automatic

Safety Belt

Included

Certification

GS, CE, RoHS, ISO 9001, SGS

Product Description

200kg Articulated Boom Lift Hydraulic Lifter with CE Certificate (10m-20m)

The Articulated Boom Lift moves by tractor tow and lifts via various power options including AC electricity, diesel, gasoline, DC battery, or hybrid power. These series meet high configurations and European/USA standards. Operators can control the platform movement from both the platform and the ground level.

Lifting Power Options:

AC electricity / DC battery power
Gasoline / Diesel power
Hybrid power (Battery + Diesel, Battery + AC, etc.)

Model Type	TBL-10A	TBL-12A	TBL-14A	TBL-16A	TBL-18A	TBL-20A
Lifting height	10M	12M	14M	16M	18M	20M
Working height	12M	14M	16M	18M	20M	22M
Load capacity	200KG
Working radius	5.5M	6.5M	8.5M	10.5M	11M	11M
Net Weight	1855KG	2050KG	2500KG	2800KG	2800KG	2800KG

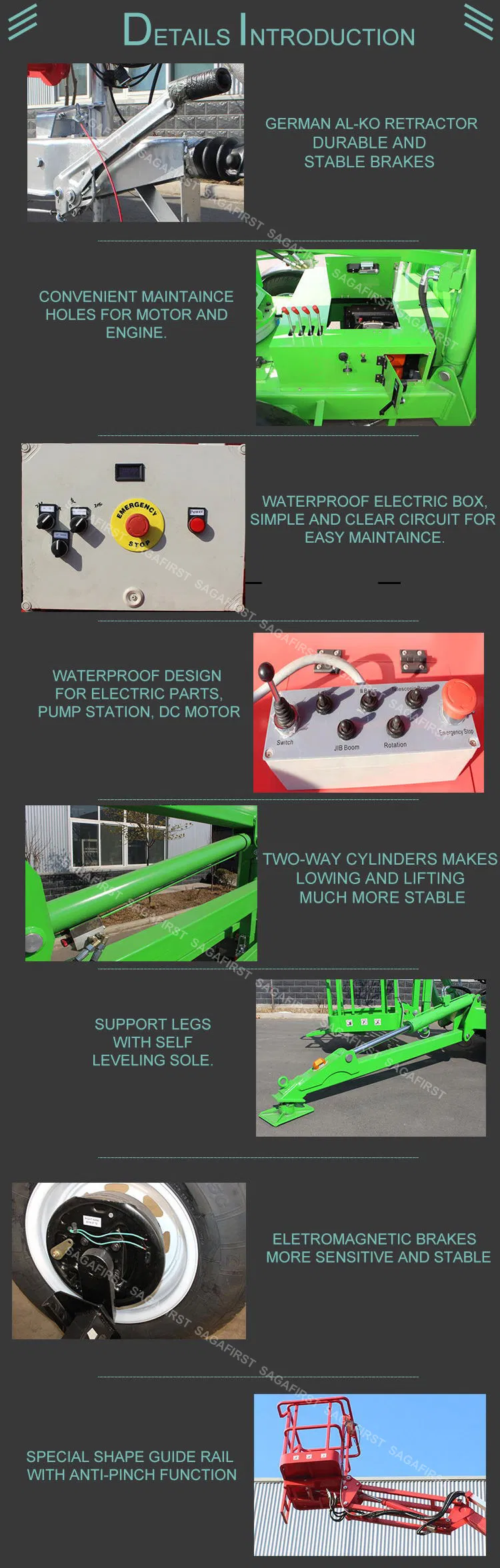

Key Features & Advantages

High-quality ALKO brand brakes from Germany
Swiss Bucher brand DC pump station
Japanese Honda brand Gas pump station
Waterproof and dustproof electrical box for outdoor use
Self-Leveling sole for safe operation
Two-way cylinders with balance valve and emergency decline switch
360° stable rotary motor rotation
Hydraulic oil filtration alarm system
Anti-pinch hand basket design
Safety harness equipped to protect operators

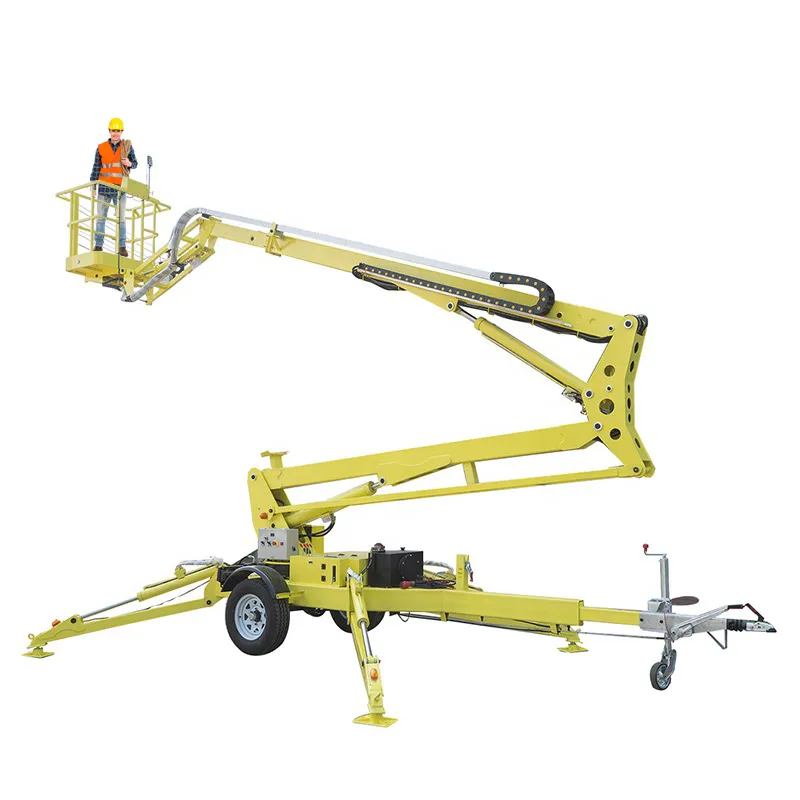

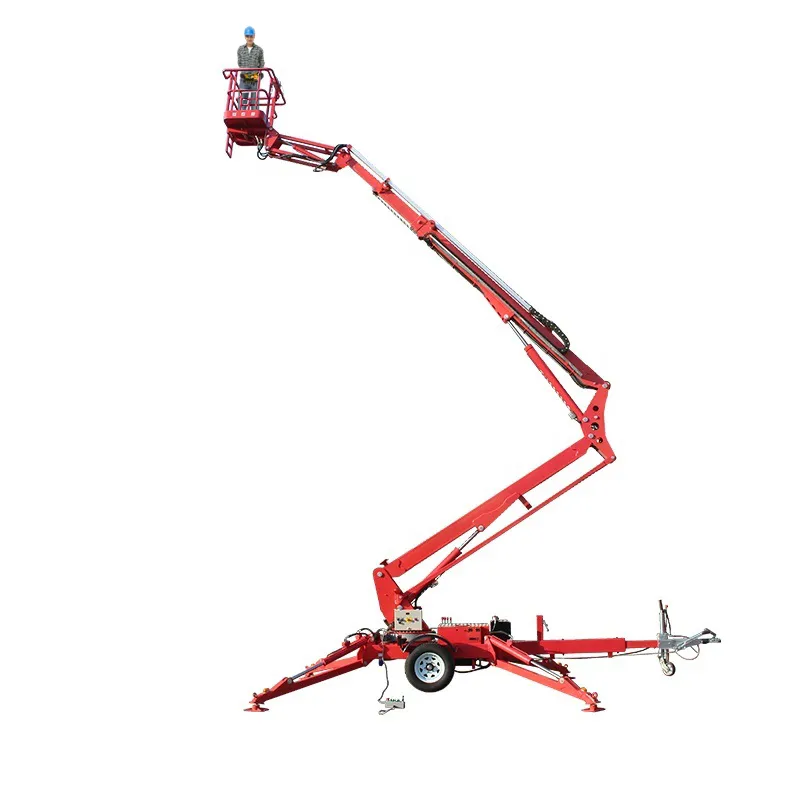

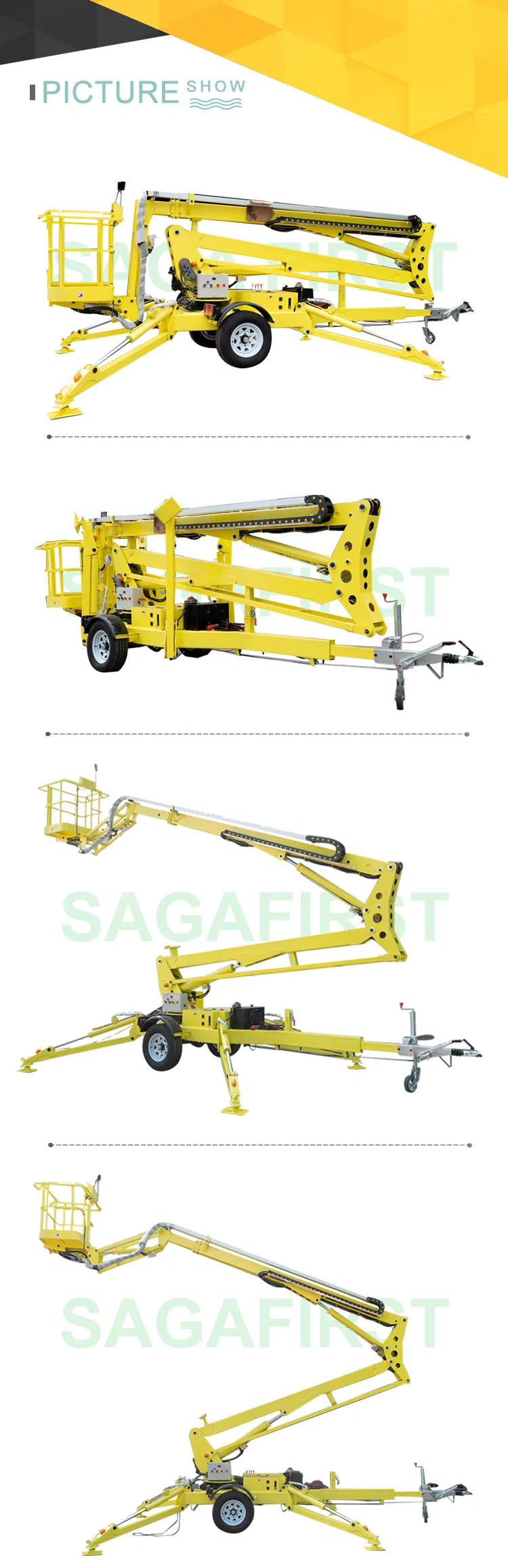

Product Gallery

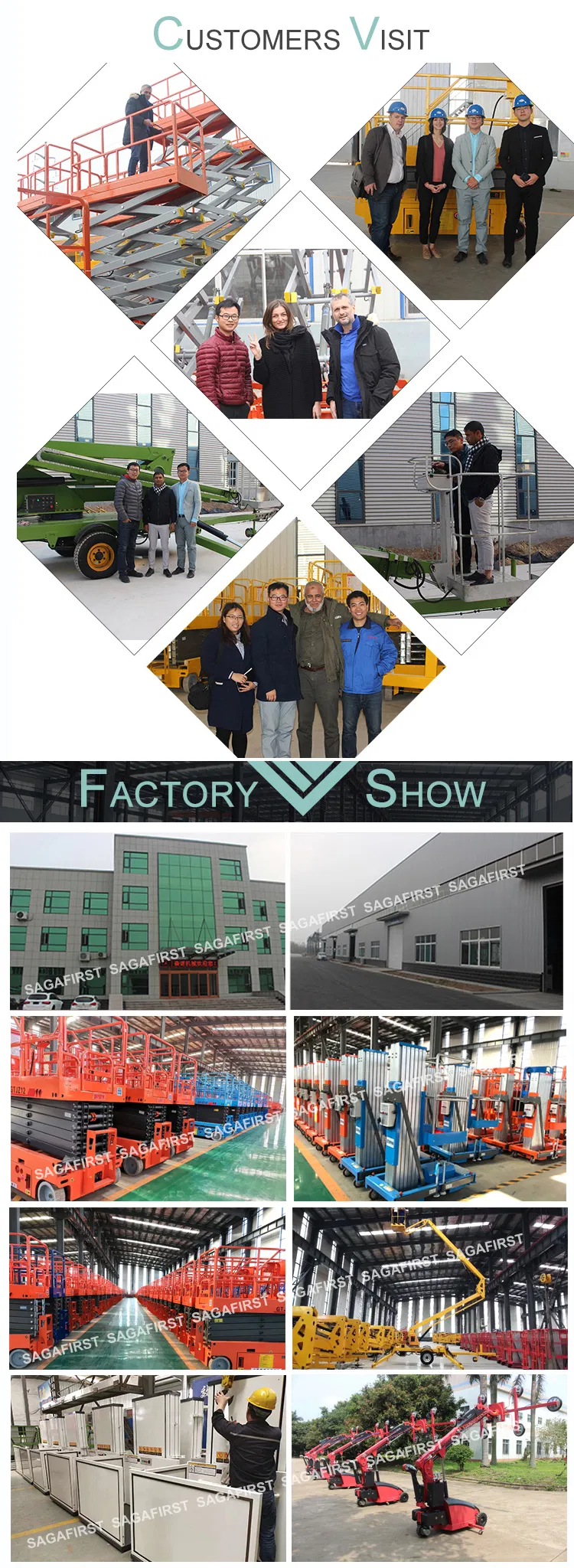

Manufacturing & Service

Our factory has over 12 years of exporting experience. We provide customized lifting solutions based on specific requirements, including lifting capacity, height, and platform size.

Frequently Asked Questions

How can I buy replacement parts if they break down?

The lift uses common hardware parts available in local hardware markets or forklift parts shops. We also provide free quick-wear parts with the machine.

What is the quality warranty period?

We offer a 24-month quality warranty and provide free parts for replacement during this period.

What are the available payment terms?

For orders under USD 4,999, 100% TT in advance. For larger orders, 30% TT in advance with the balance before shipment or Irrevocable L/C at sight.

What is the typical delivery time?

Usually 15 to 20 days after the down payment is received.

Do you offer OEM and ODM services?

Yes, we can customize lifting capacity, lifting height, platform size, color, logo, and manuals to meet your needs.

What is your quality control policy?

We perform a 100% inspection three times before shipping to ensure the highest quality standards.
