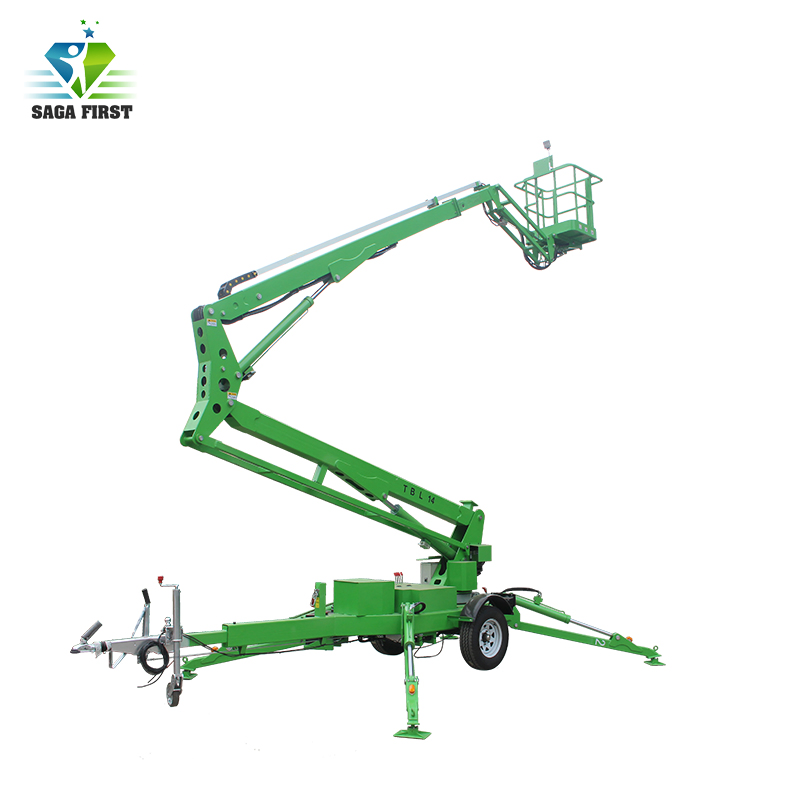

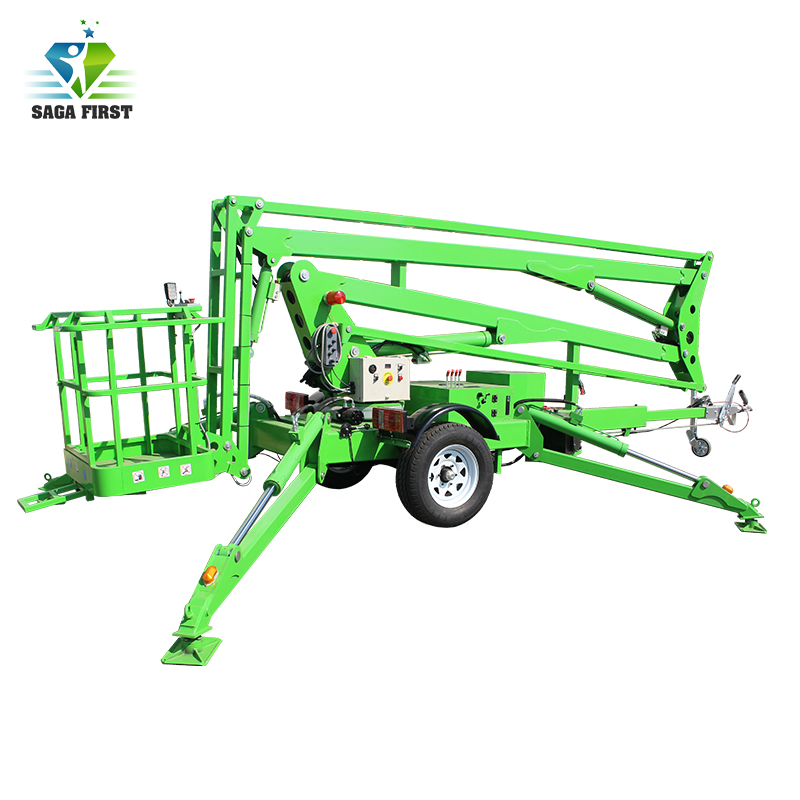

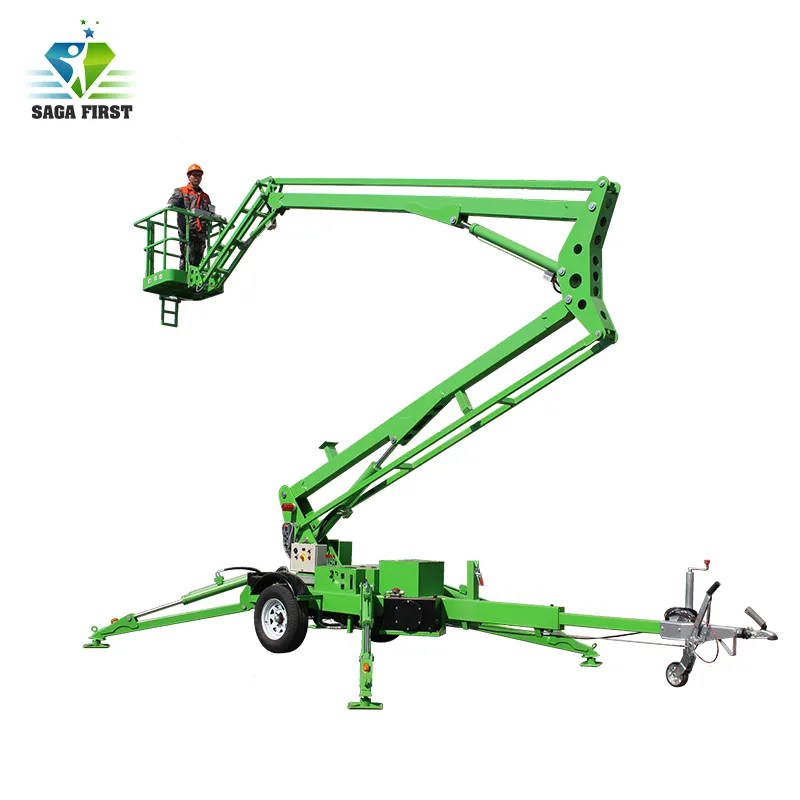

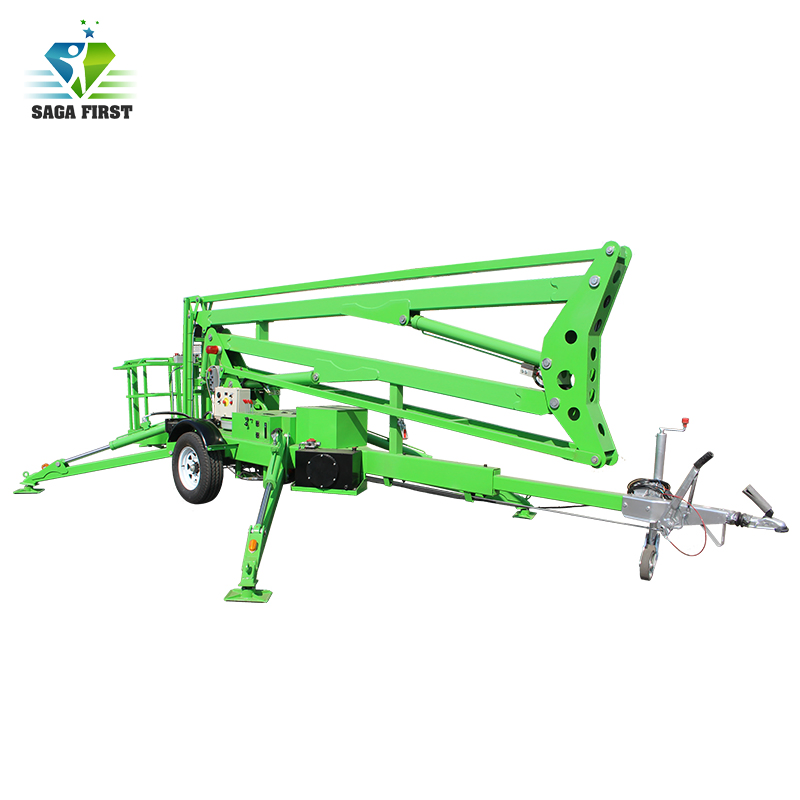

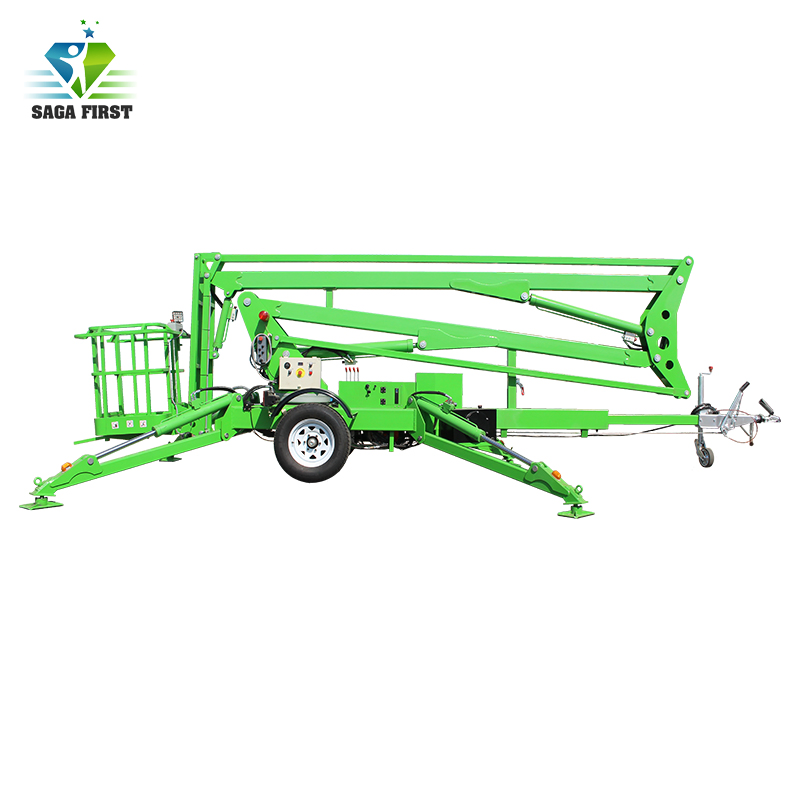

16m China Small Towable Spider Articulated Cherry Picker Trailer Mounted Boom Lifts with Jlg Genie Design

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO.
TBL-22A
Lift Mechanism
Articulated Lift
Driven Type
Hydraulic
Load Capacity
200kg
Lifting Height
10-16m
Platform Size
900*700mm
Turning Degree
360 Degree Automatic
Certification
GS, CE, RoHS, ISO 9001, SGS

Product Description

Construction Towable Spider Articulated Boom Lift offers high-standard European quality for versatile aerial access. This equipment is moves by tractor tow and lifts via various power sources, making it an ideal choice for both indoor and outdoor maintenance tasks.

⚡ Available Lifting Power Options:
AC Electricity DC Battery Gasoline Power Diesel Power Hybrid (DC+Diesel / AC+Diesel)
🛡️ Integrated Safety Precautions:
  • Explosion-proof valves & Spillover valve
  • Emergency decline valve & Check valve
  • Adjustment valve & Gradienter
  • Basket leveling switch & Torsion Shaft for shock absorption

Technical Specifications

Model Type TBL-10A TBL-12A TBL-14A+ TBL-16A+ TBL-18A+ TBL-20A+
Lifting Height 10M 12M 14M 16M 18M 20M
Working Height 12M 14M 16M 18M 20M 22M
Load Capacity 200KG
Working Radius 5.5M 6.5M 8.5M 10.5M 11M 11M
Net Weight 1855KG 2050KG 2300KG 2500KG 3000KG 4600KG

Product Showcase

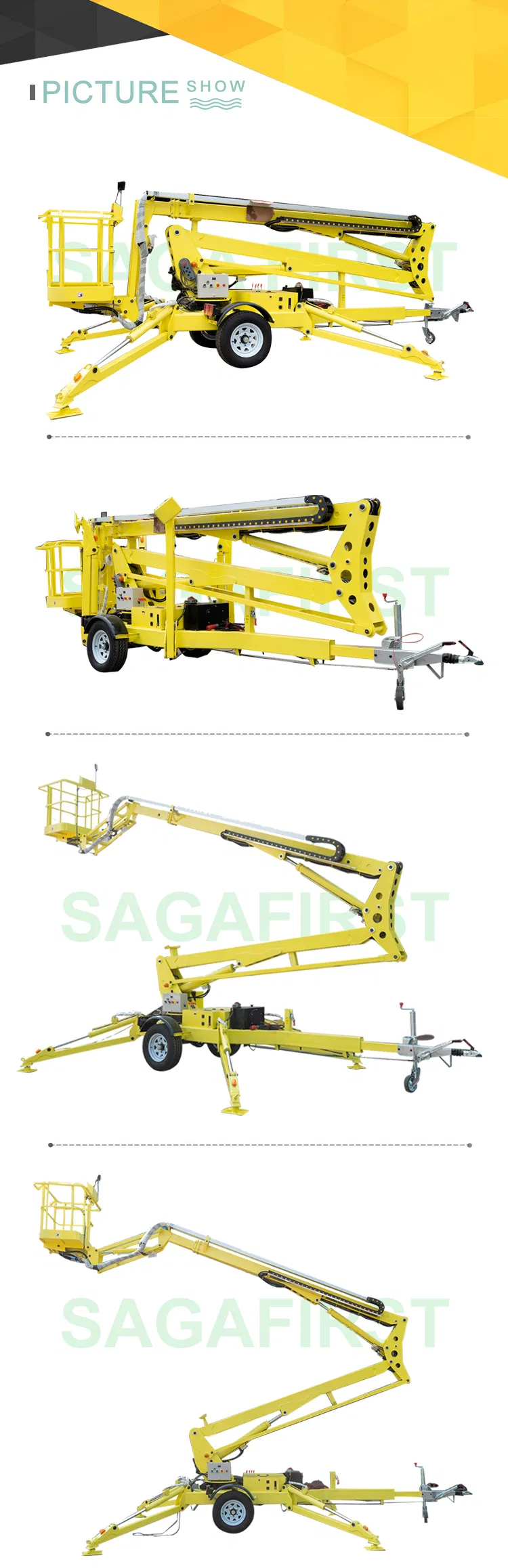

Boom Lift View 1

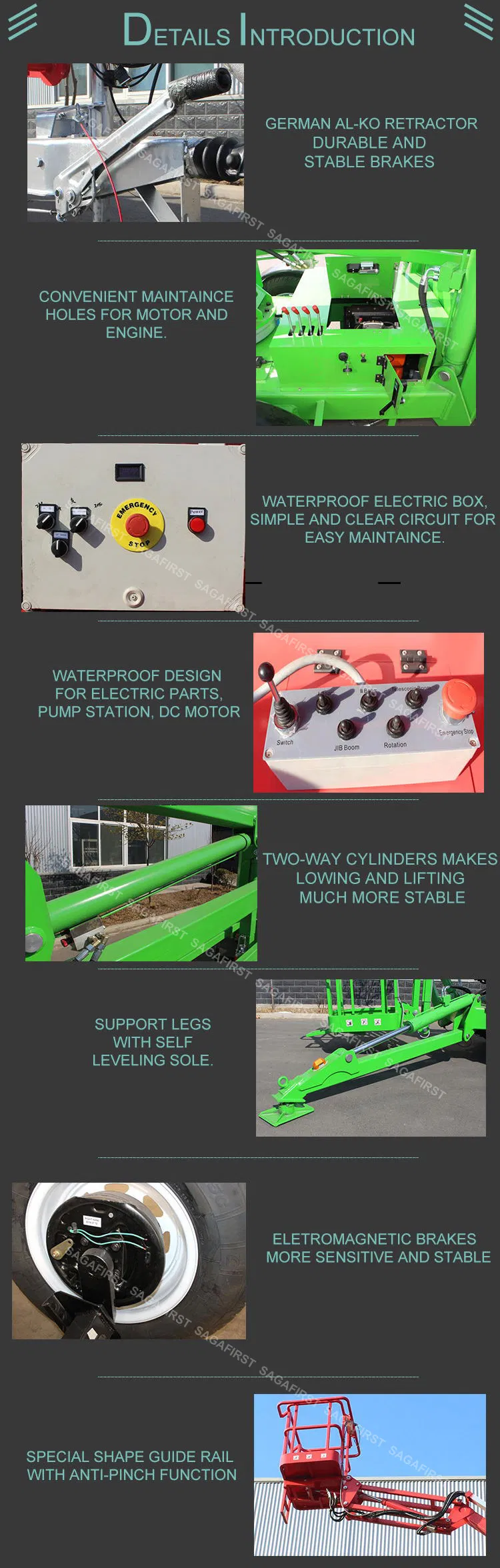

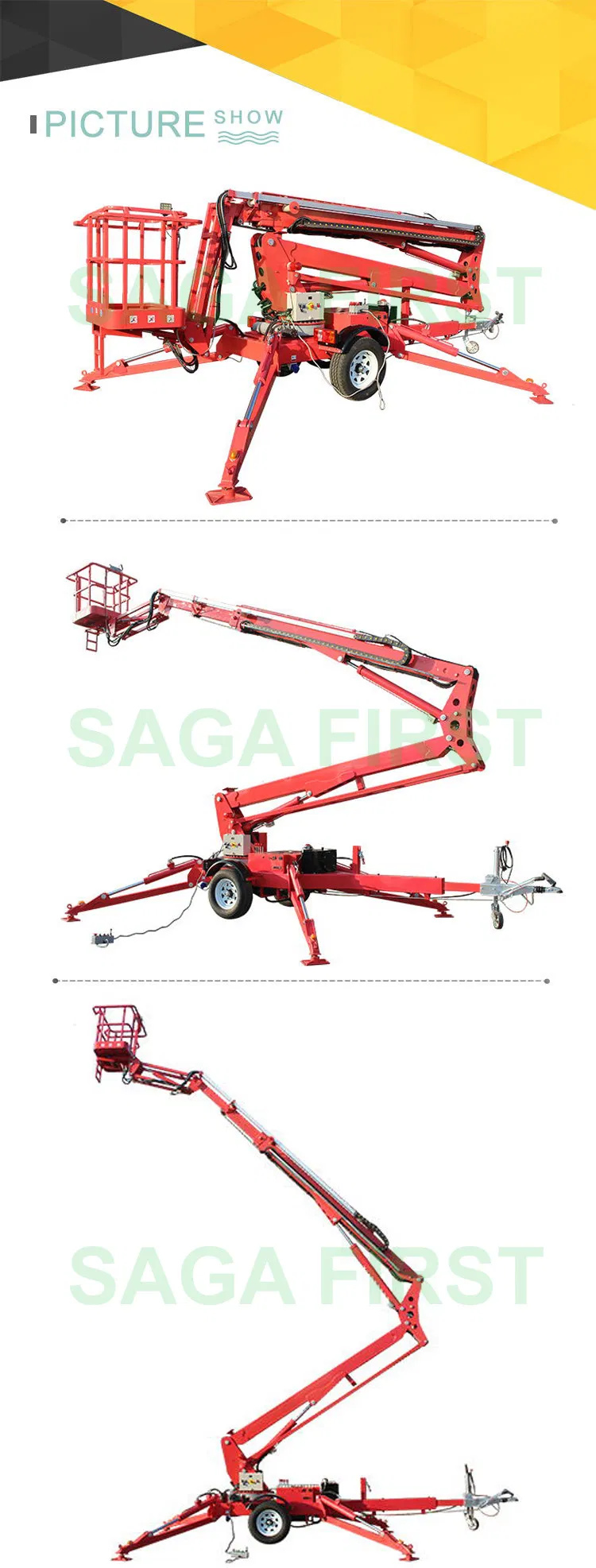

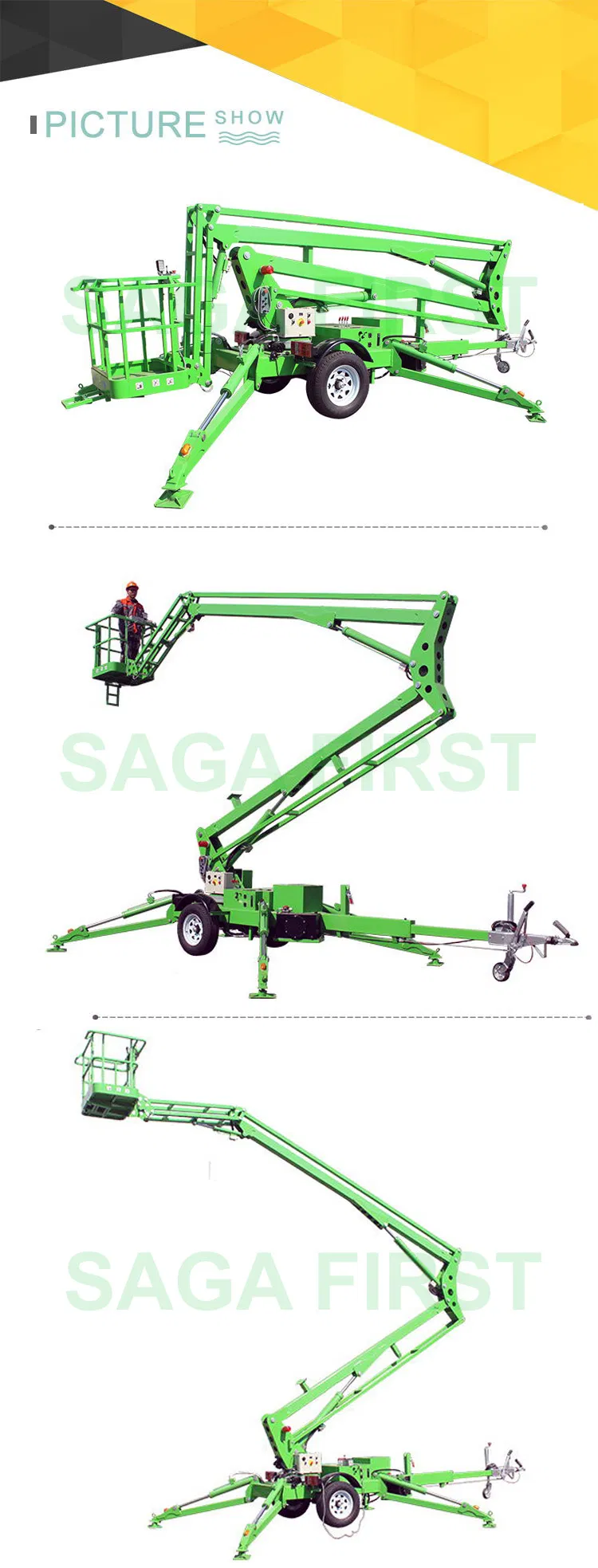

Boom Lift View 2 Boom Lift View 3 Boom Lift View 4

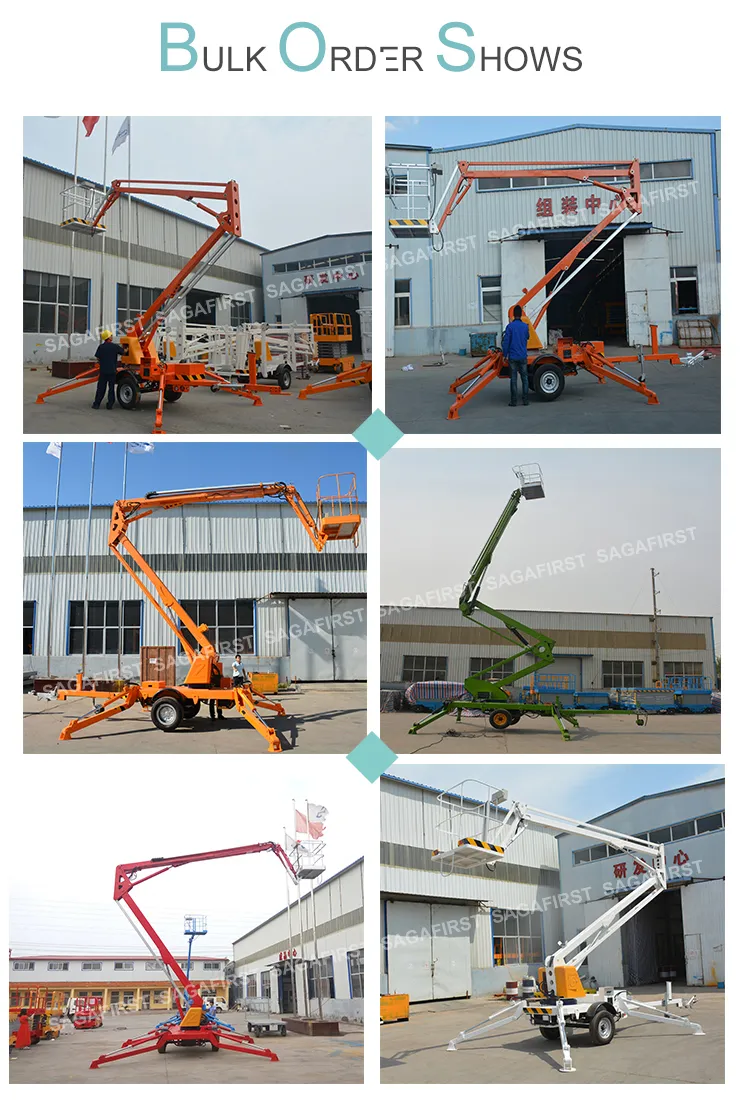

Boom Lift Operation

Key Features

  • High-quality braking systems (ALKO Brand).
  • Reliable pump stations (Bucher/Honda/YSD options).
  • Waterproof and dustproof electrical boxes for outdoor durability.
  • Self-leveling sole for efficient and safe operation.
  • Hydraulic hose rupture protection with balance valves and emergency decline switches.
  • 360° stable rotary motor for complete aerial coverage.
  • Equipped with caution lights on each leg and safety harness for operators.

Frequently Asked Questions

How can I replace parts if the lift breaks down?
The lift is designed with common hardware parts. You can easily find replacements at local hardware markets or forklift parts shops.
What is the quality guarantee period?
We offer a 24-month quality warranty and provide free parts for replacement during this period.
Can the equipment be customized?
Yes, we offer OEM & ODM services for lifting capacity, height, platform size, color, and more.
What are the available payment terms?
We accept 100% TT in advance for small orders, or 30% deposit with balance before shipment for larger orders. Irrevocable L/C at sight is also available for high-value orders.
How do you handle after-sales repairs?
The equipment has a very low failure rate. If an issue occurs, we provide immediate technical guidance through videos and instruction manuals.
What is the typical delivery time?
Standard delivery time is between 15 to 20 days after the initial down payment is received.
