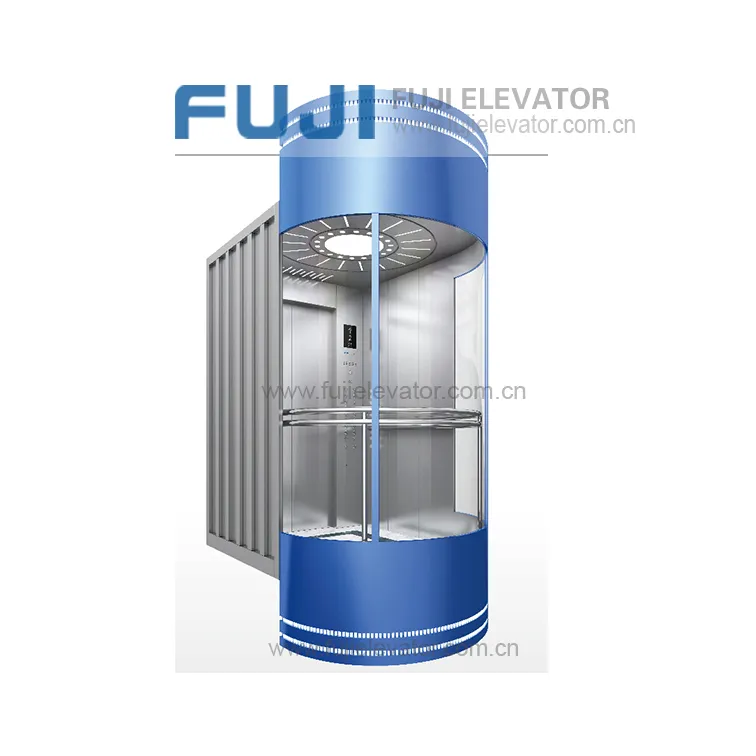

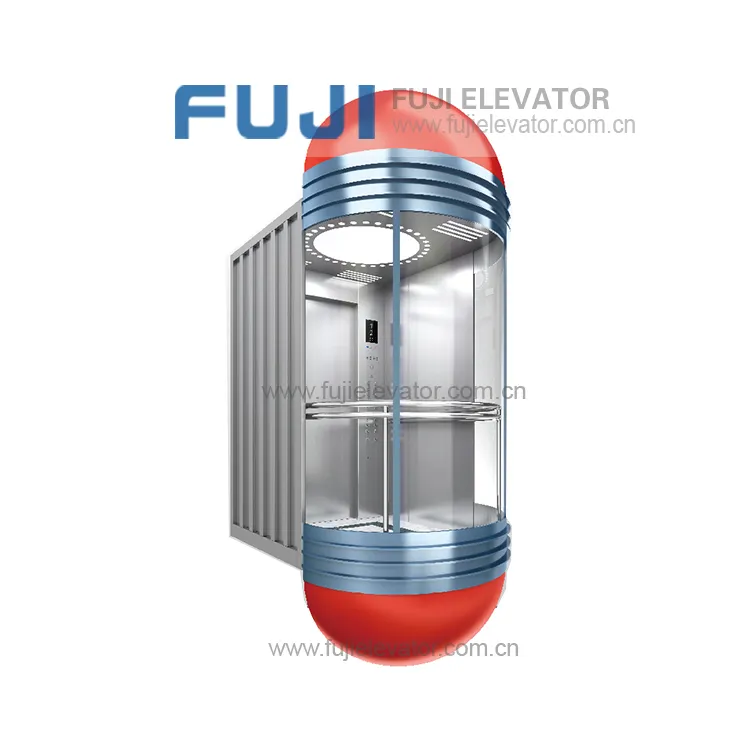

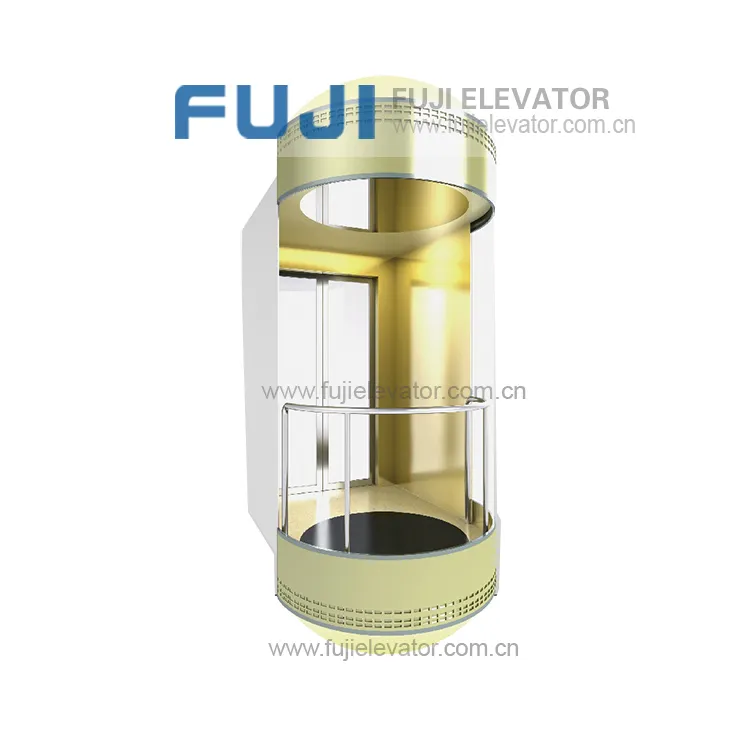

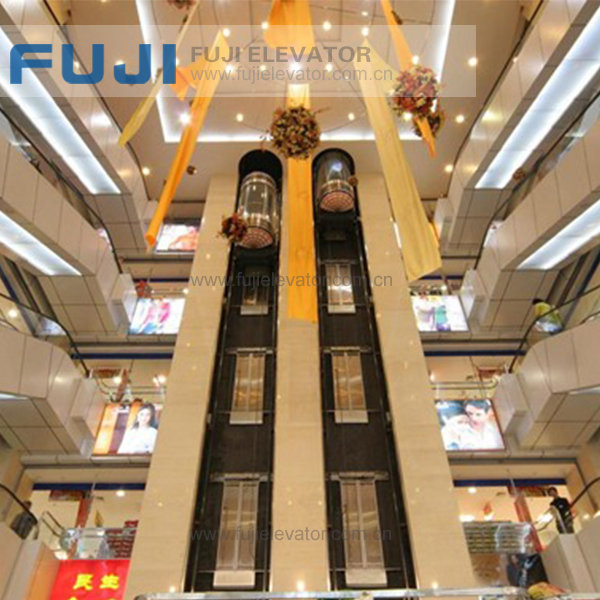

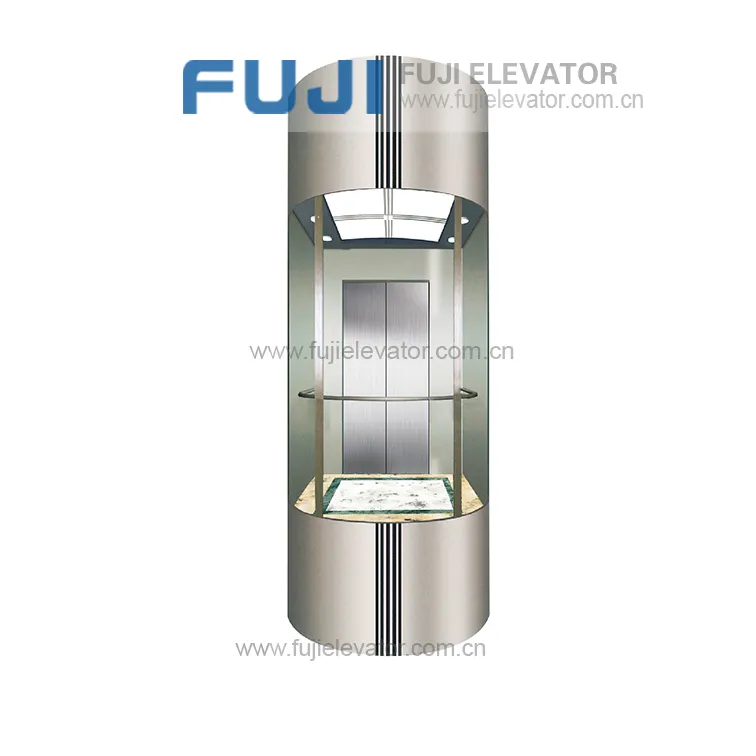

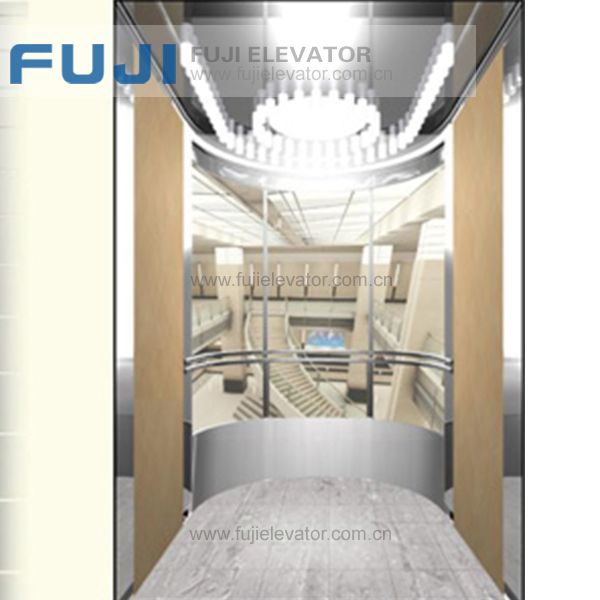

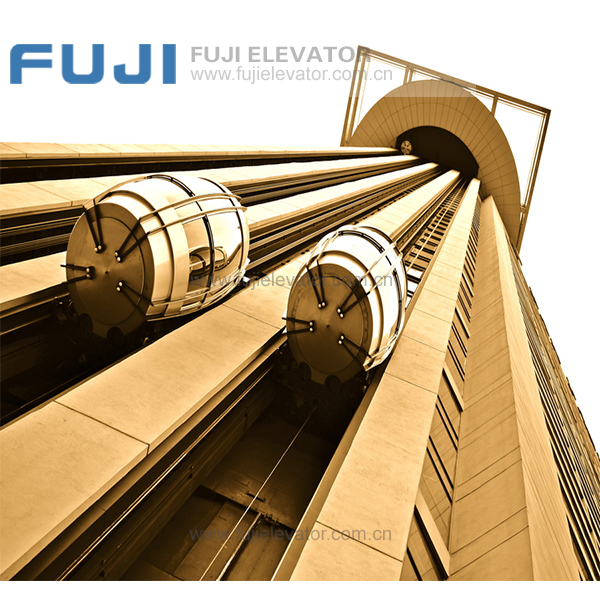

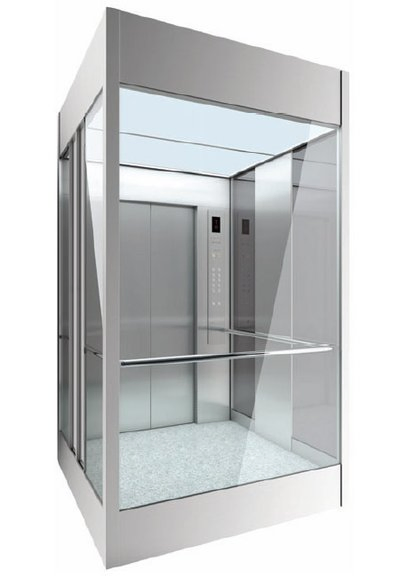

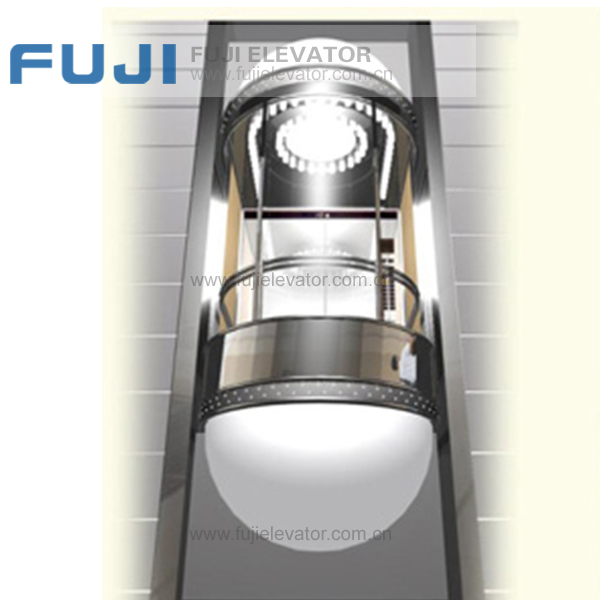

Customizable Panoramic Passenger Elevator Advanced Round Glass Lift

1 / 5

Customizable Panoramic Passenger Elevator Advanced Round Glass Lift

After-sales Service:	Free Spare Parts
Warranty:	18 Months
Driving Type:	AC Elevator

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

FHSO/FHNO

Capacity

500-1000kg

Persons

6 - 10

Speed

1.00 - 2.00m/s

Control Mode

Parallel Control

Computer Room

Elevator Door

Center Opening Door

Material

Hairline Stainless Steel 304

Product Name

Home Elevator

Certification

CE Certificate

Transport Package

Wooden Box

Production Capacity

300, 000 PCS/Year

💎 Product Description

High Technology Passenger Elevator

Smooth start, Quick and quiet Moving

VVVF drive ensures Passenger Elevator operate more smoothly. Nice noise control brings passenger peaceful riding experience. The start, acceleration, brake curves are designed according to the ergonomic theory in order to get the finest coziness. It is a genuine current vector control variable frequency drive system. The permanent magnetic synchronous drive saves up to 48% in energy consumption.

High Precision Positioning Control System: Car displacement tracking technology ensures the leveling safety. Car-displacement-detection technology with high accuracy makes almost perfect leveling between the car and the landing level.

Advanced Door Operator System

Applies advanced VVVF variable voltage and variable frequency control technology to the elevator door operator system so as to ensure the smooth elevator door and quiet switch. The self-learning door load detector increases the sensitivity of the elevator door switching on/off, monitoring variation on every floor to guarantee security and reliability.

Product Specifications:

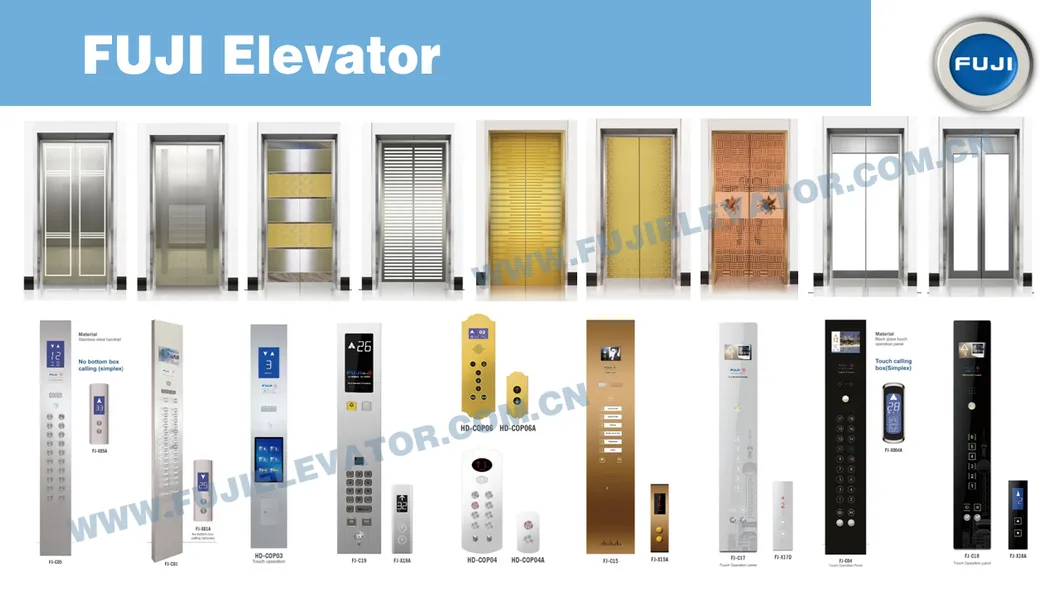

Material: Painted, Hairline stainless steel, mirror, etched, Titanium gold, rose gold, golden recess, glass;
Capacity: 450KG, 630kg, 800kg, 1000kg, 1250kg, 1350kg, 1600kg, 1800kg, 2000kg;
Speed: 1.0m/s, 1.5m/s, 1.75m/s, 2.0m/s, 2.5m/s, 3.0m/s, 4.0m/s, 6.0m/s;
Machine Room: Machine Room (MR) or Machine Roomless (MRL)

⚙️ Standard Functions

1	Collective control	Yes	32	Protection for door lock short circuit	Yes
2	VVVF drive	Yes	33	Door lock failure for brake switches	Yes
3	VVVF drive for door operator	Yes	34	Over speed protection	Yes
4	Inspection operation	Yes	35	Contact protection for brake switches	Yes
5	Slow speed running	Yes	36	Interphone communication	Yes
6	Automatic door opening time adjustment	Yes	37	Wheeling protection	Yes
7	Full load bypass	Yes	38	Alarm bell	Yes
8	Automatic turn off lighting and fan	Yes	39	Emergency lighting	Yes

🛠️ Professional Service

Installation: Professional project managers are responsible for internal planning, coordination, and quality management. We use advanced installation workmanship without scaffolds to shorten the installation period and improve quality.

Maintenance: We have developed unique maintenance procedures using special presumptive diagnostic technology. Periodic inspections protect against possible troubles and maximize operation time.

Renewal and Reconstruction: We apply new technology and materials to in-service elevators to expand functions and improve traveling comfort.

❓ Frequently Asked Questions

What is the maximum capacity of these passenger elevators?

The elevators come in various capacities ranging from 450kg up to 2000kg to suit different building requirements.

Does the elevator support energy-saving technology?

Yes, our permanent magnetic synchronous drive system can save up to 48% in energy consumption compared to traditional drives.

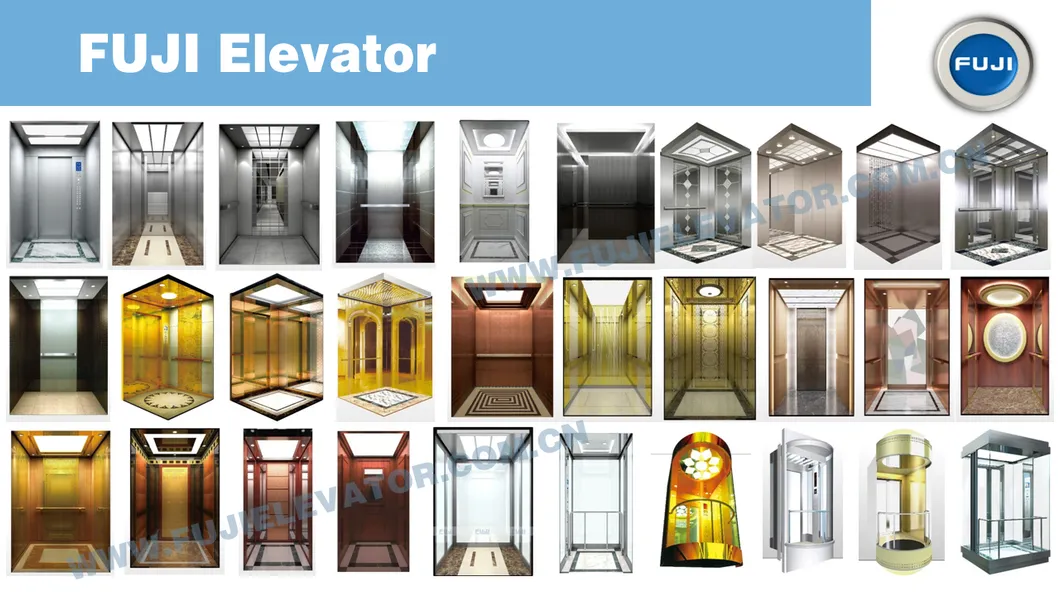

What materials are available for the car design?

We offer a variety of materials including hairline stainless steel, mirror, etched designs, Titanium gold, rose gold, and glass.

Can these elevators be installed in buildings without a machine room?

Yes, we provide both Machine Room (MR) and Machine Roomless (MRL) configurations depending on your architectural design.

How is the safety of the door system ensured?

The system uses an advanced VVVF variable frequency control and a self-learning door load detector that monitors each floor's variations to guarantee reliable opening and closing.

What safety certifications do these elevators have?

All our elevators are compliant with international standards and hold CE and ISO certifications.
