Passenger Elevator Lift with FUJI Brand Small Sightseeing Home Elevator Lift or Panoramic Glass Elevators in China Own Factory

Customization: Available
Driving Type: AC Elevator
Capacity: 260kg-1600kg

Product Description

Basic Info.

Model NO.
PREMIUM-A
Persons
6
Speed
0.4m/S-1.75m/S
Control Mode
Collective Selective Control
Position
Without Computer Room
Elevator Door
Center Opening Door
Door Knife
Single
Product Price
$8000-11500/Unit
Production Time
Within 25-30 Days
H.S Code
8428101090
Machine Room
With and Without
Origin
China

Product Showcase

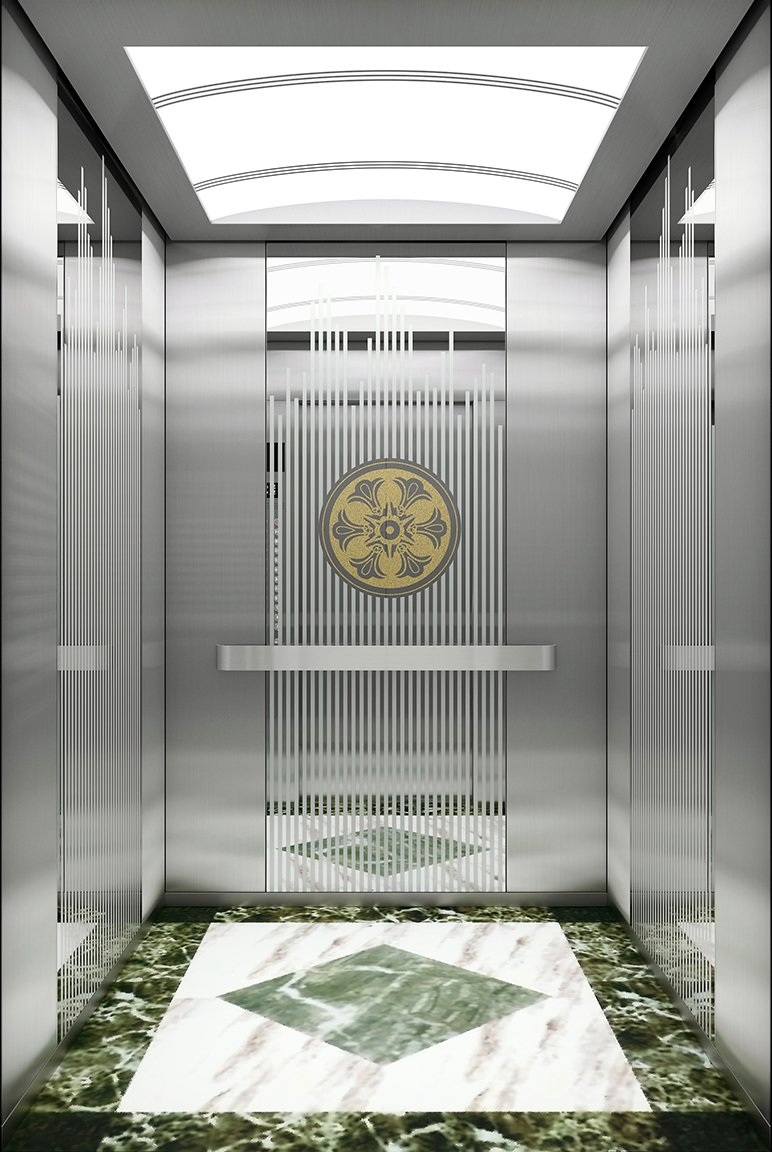

Passenger Elevator Lift
Standard Decoration Optional
Component Material / Design
WallHairline stainless steel
CeilingAccording to the car design
Car bottomPVC
Jamb materialHairline stainless steel
Hall doorHairline stainless steel

Passenger Elevator Parameter

Load (Kg) Rated Speed (m/s) Car Size (mm) Door Opening (mm) Shaft Size (mm) Top Floor H (mm) Pit Depth (mm)
45011100×1100800×21002050×185045001500
6301 / 1.5 / 1.751400×1100800×21002250×19004500-47001500-1600
8001 / 1.5 / 1.751400×1350800×21002200×19504000-47001500-1600
10001 / 1.5 / 1.751500×1550900×21002350×21504000-47001600
16001 / 1.5 / 1.751800×20001100×21002900×22004350-45001500-1600

Elevator Decoration & Functions

Elevator decoration
No. Function Name Description
1Static electricity protectionEliminate static electricity raised from running steps.
2Emergency stop buttonStops the escalator immediately in case of emergency.
3Skirting protectionPrevents foreign bodies from being jammed between steps and skirting.
4Over-speed protectionProtection if speed exceeds 20% of rated speed.
11Over-load protectionProtects motor against continuous over-load risk.
20Phase protectionProtection against risk of phase failure.
Elevator Feature 1
Elevator Feature 2

Manufacturing & Design

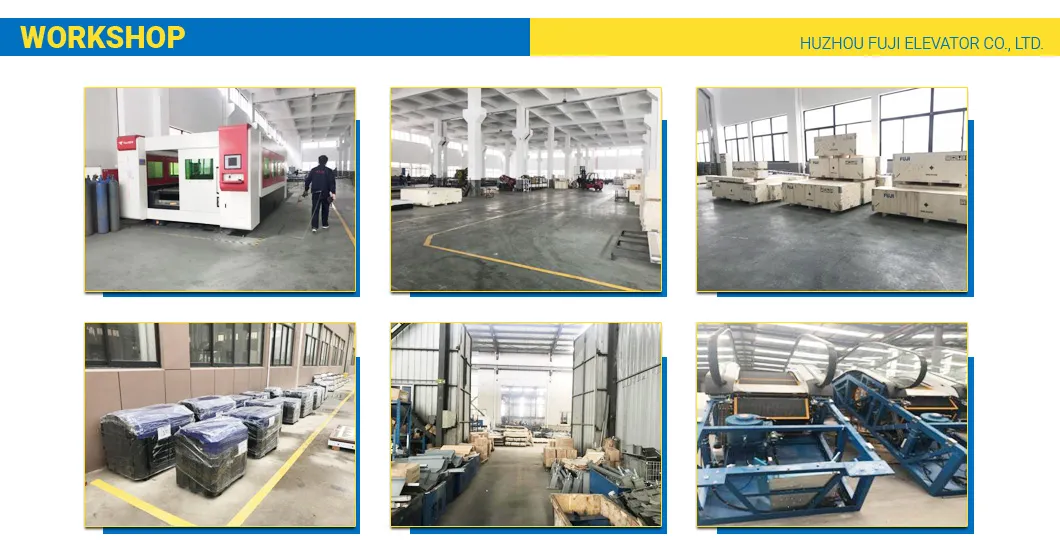

Production View 1
Production View 2
Production View 3

Frequently Asked Questions

What is the standard production time for these elevators?
The typical production time is within 25 to 30 days after order confirmation and technical specification approval.
Are both Machine Room and Machine Roomless options available?
Yes, we provide both Machine Room (MR) and Machine Roomless (MRL) configurations to suit different architectural requirements.
What safety features are included in the standard package?
Standard safety features include over-speed protection, emergency stop buttons, skirting protection, phase failure protection, and static electricity protection.
Can the car decoration be customized?
Absolutely. While hairline stainless steel and PVC flooring are standard, we offer various optional ceilings, wall finishes, and flooring materials to match your design.
What is the load capacity range for passenger elevators?
Our models range from 450kg (approx. 6 persons) up to 1600kg, depending on the shaft size and specific application needs.
How is the product packaged for international shipping?
All elevator components are packed in high-quality export wooden cases to ensure maximum protection during long-distance sea transport.
