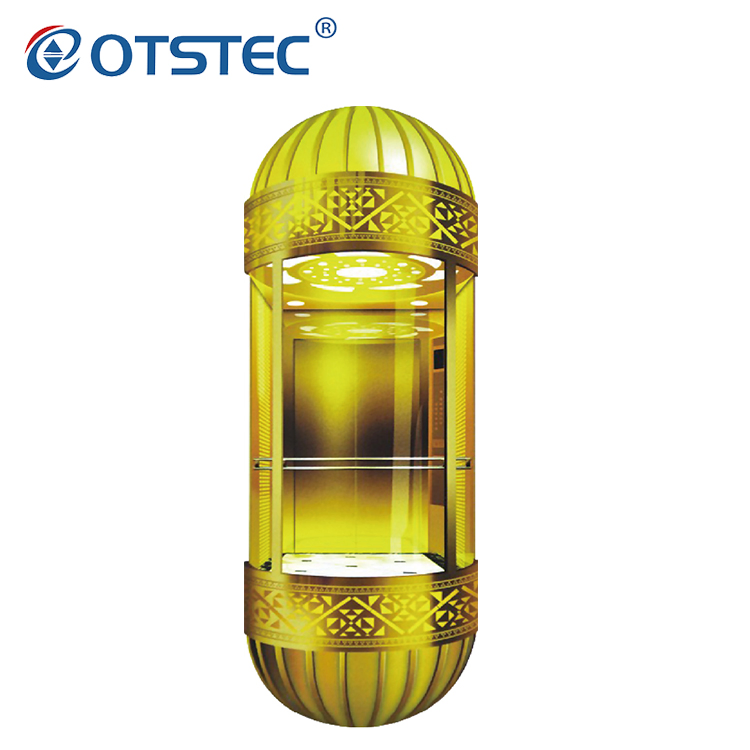

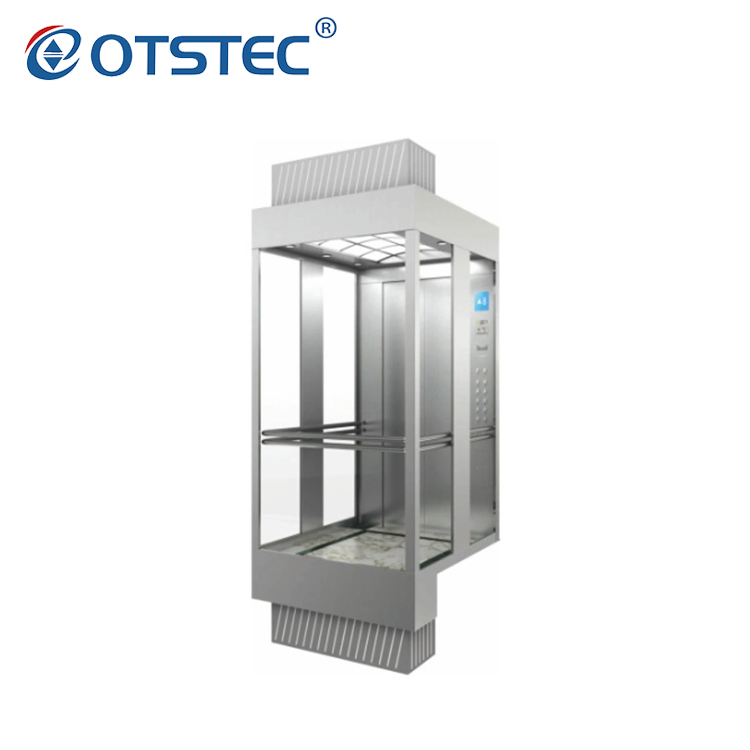

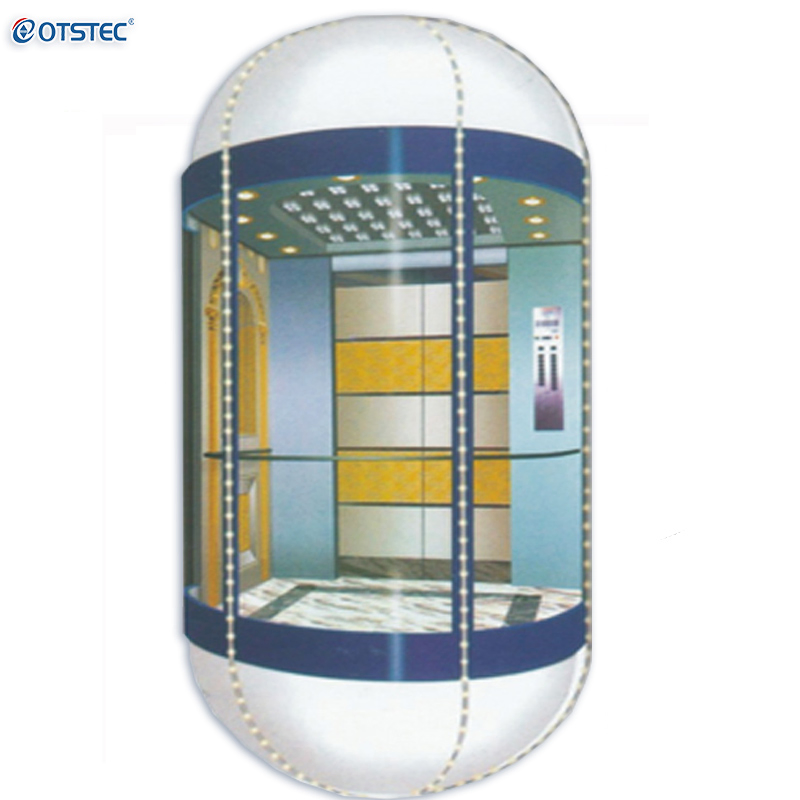

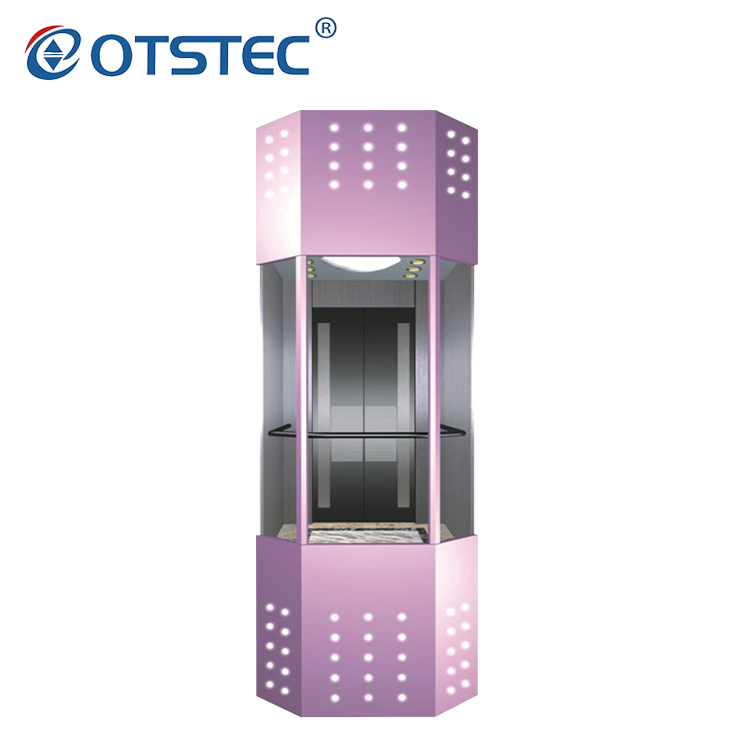

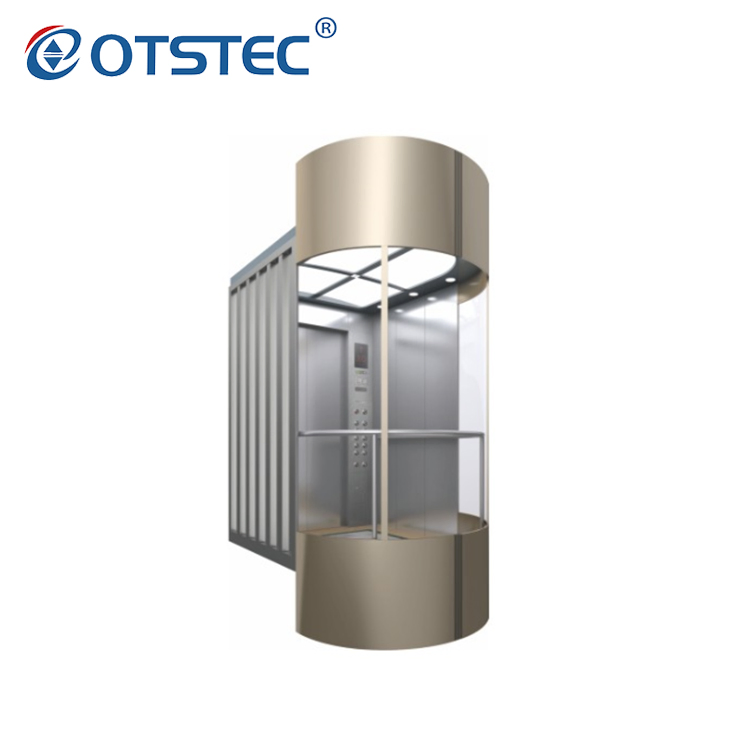

Customized Circle Type Panoramic Villa Elevator Passenger Elevator Lift

1 / 5

Customized Circle Type Panoramic Villa Elevator Passenger Elevator Lift

Customization:	Available
After-sales Service:	Online Technical Support ,Onsite Installation
Warranty:	2 Years

Send Inquiry

Product Description

📋

Basic Information

Model NO.

OT-N30

Driving Type

Gearless Motor

Capacity

>1000kg

Persons

11 - 19

Speed

1.00 - 2.00m/s

Control Mode

Signal /Group Control

Position of Computer Room

Without Computer Room

Elevator Door

Center Opening /Side Opening

Certifications

ISO/CE/Bi/TUV/SGS

Drive

Vvvf Inverter Driving System

Control System

Monarch System

Car Wall

Stainless Steel Pair Tube

Floor

PVC /Marble

Origin

China

Production Capacity

10000 Sets/Year

🏙️

Product Description

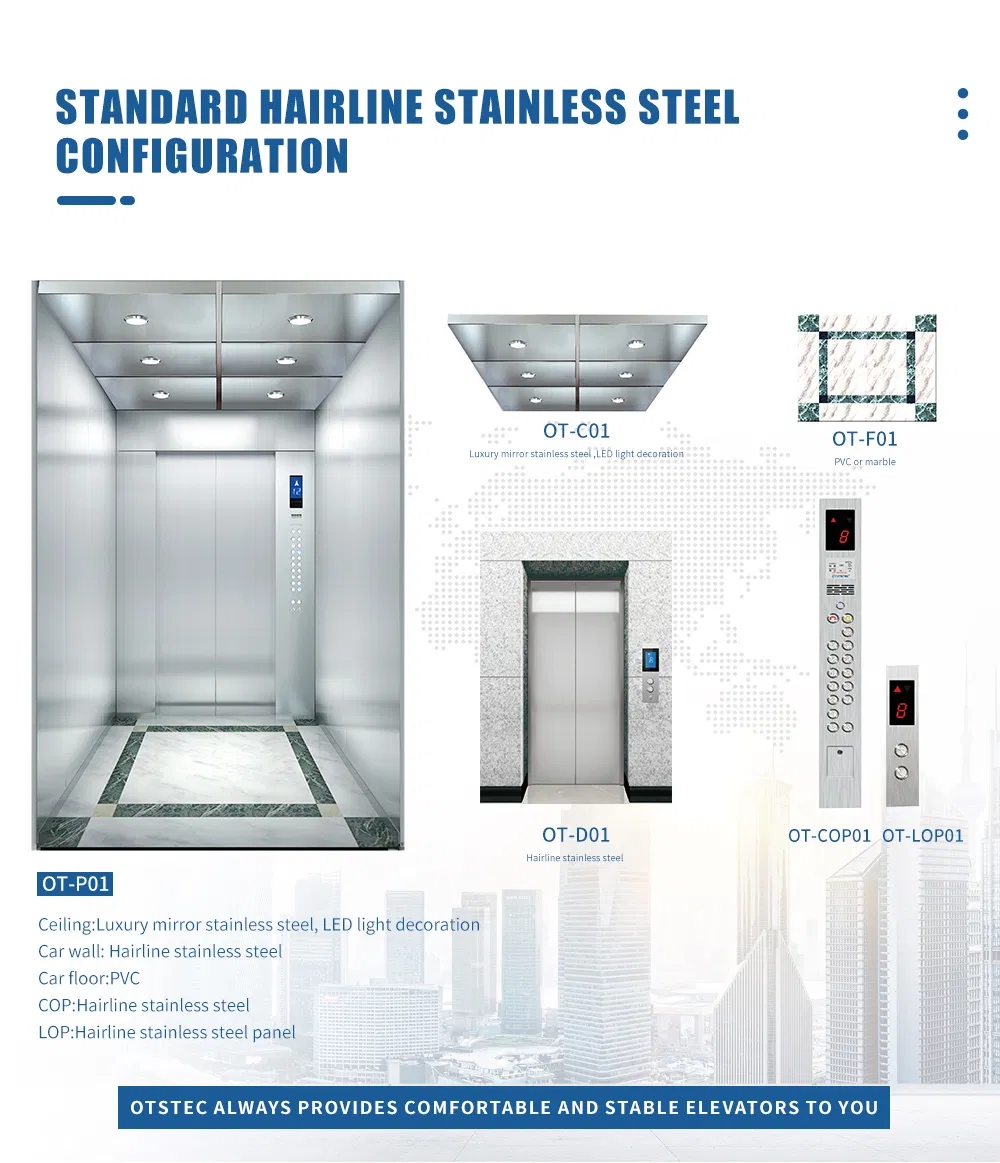

Material: Painted, Hairline stainless steel, mirror, etched, Titanium gold, rose gold, golden recess, glass;

Capacity: 250KG, 320kg, 400kg;

Speed: 0.4m/s, 1.0m/s, 1.5m/s, 1.75m/s, 2.0m/s;

Type: Traction home elevator, Strong drive home elevator, Steel belt home elevator, Knapsack frame structure home elevator;

Machine Room: Machine Roomless (MRL);

Control system: Monarch;

📊

Product Parameters

Passenger	Loading (Kg)	Speed (m/s)	Car Size WDH(mm)	Shaft(Min.) W*D(mm)	Overhead Height (mm)	Rise(Max.) (m)

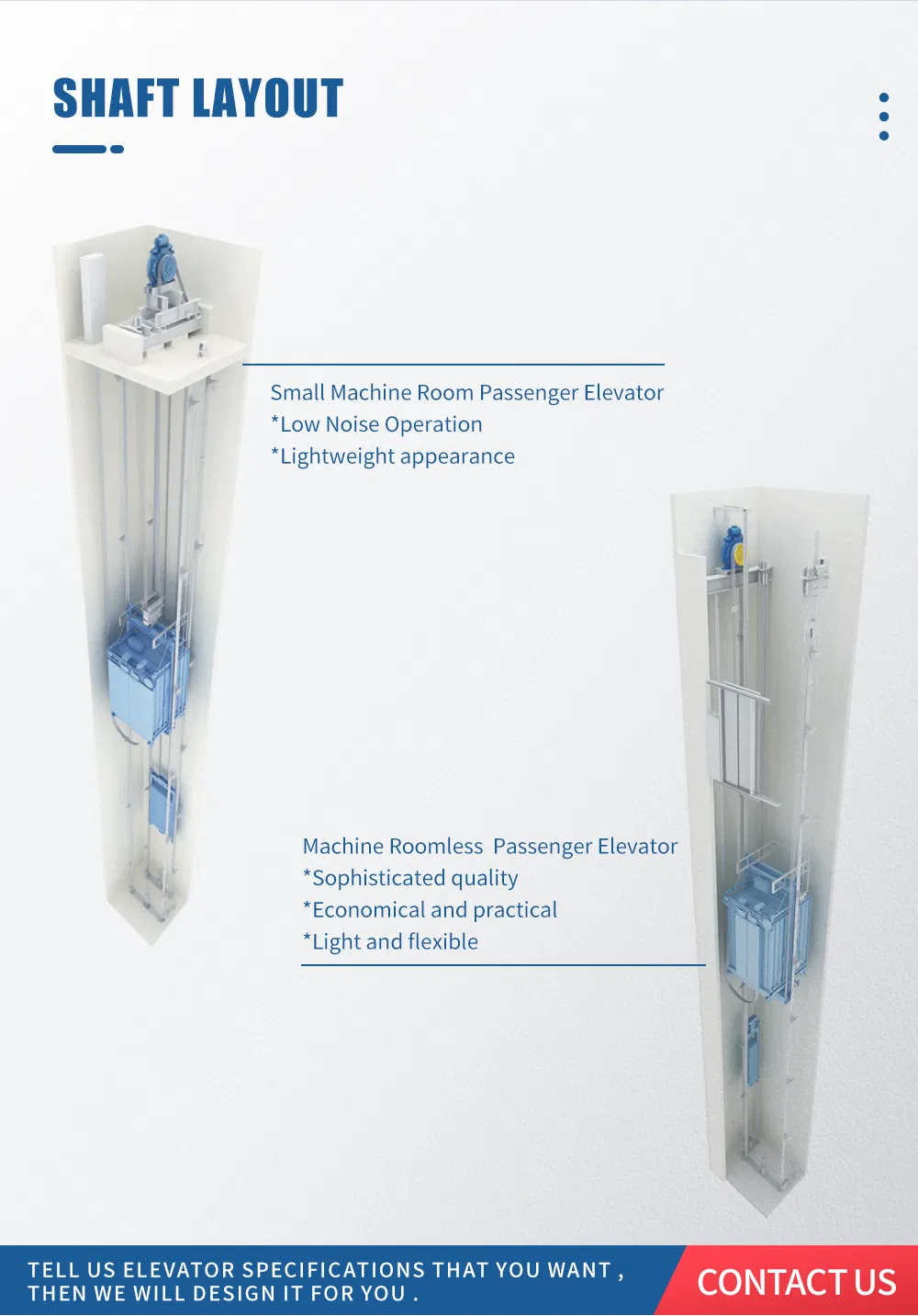

Small Machine Room Specifications
8	630	1.0-1.75	140011002400	2200*1650	4500	95
10	800	1.0-2.5	140013502400	2250*1850	4600	150
13	1000	1.0-2.5	160015002400	2400*1950	4800	150
16	1250	1.0-4.0	195014002400	2800*1900	4800	150
Machine Roomless Specifications
8	630	1.0-1.75	140011002400	2250*1700	4800	90
13	1000	1.0-2.5	160015002400	2450*2000	4800	150

🛠️

Production & Quality Control

📦

Packaging & Shipping

🏆

Certifications & Exhibitions

❓

Frequently Asked Questions

Q1 What are your terms of packing?

Generally, we pack our goods in solid wood cases. If you have a legally registered patent, we can pack the goods in your branded boxes after receiving your authorization letters.

Q2 What are your terms of delivery?

We offer flexible delivery terms including EXW, FOB, CFR, and CIF to meet different customer requirements.

Q3 How about your delivery time?

Generally, it will take 25 to 30 days after you confirm the elevator (or escalator) specifications and drawings, and upon receipt of your advance payment.

Q4 Do you test all your goods before delivery?

Yes. For elevators, we assemble the cabin, frame, and door operator. For escalators, we perform a 72-hour test run before delivery. We will also provide test pictures for your review.

Q5 How do you ensure a long-term business relationship?

We maintain high quality and competitive pricing to ensure our customers benefit. We respect every customer as a friend and sincerely conduct business regardless of their origin.

Q6 Are there optional functions available for the elevators?

Yes, we provide several optional functions such as ARD (Automatic Rescue Device), IC Card access control, and Remote Monitoring systems for enhanced safety and convenience.
