Highly efficient operation: Designed with a high working efficiency that minimizes downtime and maximizes productivity, ensuring construction projects progress smoothly.
🚜
Vehicle mounting compatibility: Easily mount the platform on a variety of construction vehicles to increase reach and versatility.
⚙️
Robust components: Engineered with core components such as a premium engine, bearing, gearbox, and pump for reliable performance.
🛡️
Comprehensive warranty: Backed by a 1-year warranty, ensuring industry-leading support and protection for your investment.
📜
CE certified: Compliant with CE standards, meeting the highest safety and quality requirements for aerial work platforms.
📋 Technical Specifications
Max. Working Height
44.06m / 144ft 7in
Max. Platform Height
42.06m / 138ft
Max. Operating Range(+0.6m)
22.97m / 75ft 4in
Max. Up And Over Clearance
18.80m / 61ft 8in
Max. Down Probing Depth
9.65m / 31ft 8in
Flatbed Transport Dimensions (L×W×H)
11.97m×2.44×3.10m
Platform Size (Length×Width)
2.44m×0.91m / 8ft×2ft 12in
Wheelbase
4.07m / 13ft 4in
S.W.L (Unrestricted/Restricted)
272kg / 600lb
Diesel Engine
TD2.9 L4 / 55.4kW
Diesel Tank Capacity
135L / 35gal
Hydraulic Tank Capacity
230L / 61gal
❓ Frequently Asked Questions

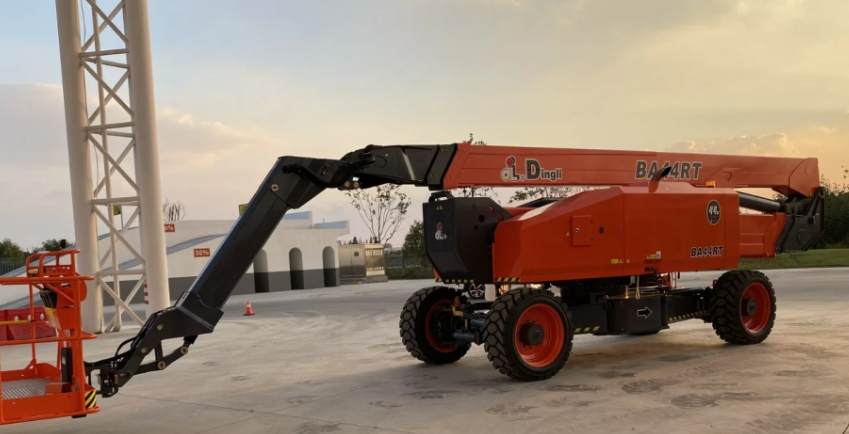

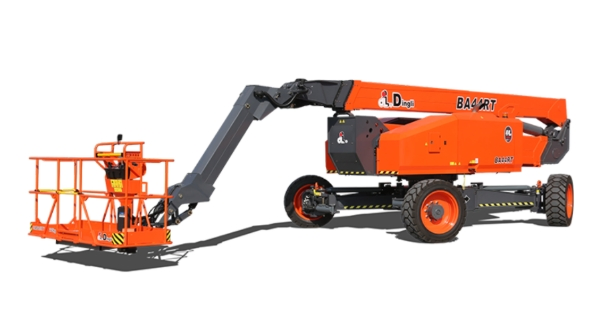

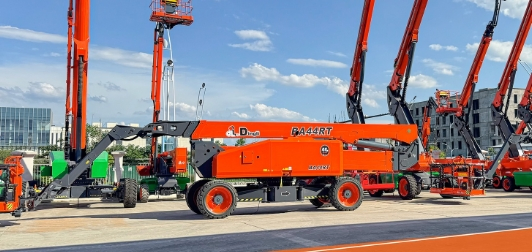

What is the maximum reach of the BA44RT?

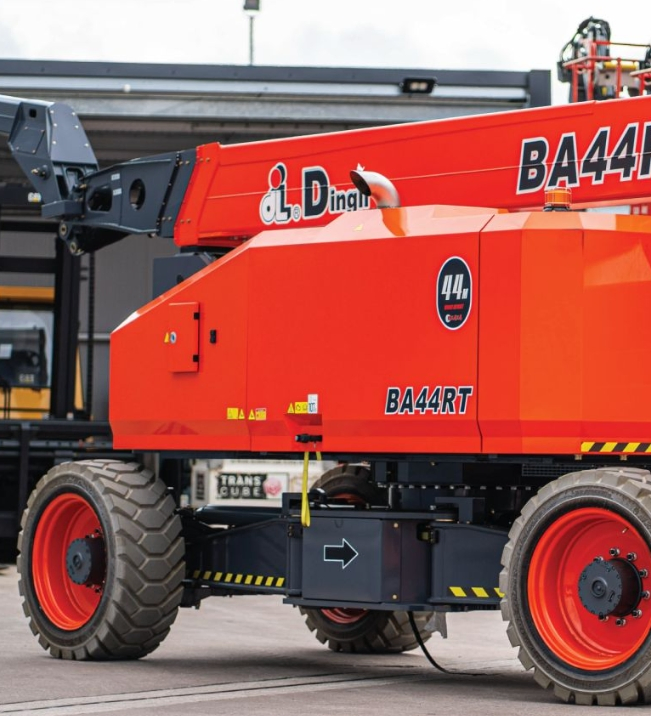

The BA44RT articulated boom lift offers a maximum working height of 44.06m (144ft 7in) and a horizontal outreach of 22.97m (75ft 4in).
What is the load capacity for the aerial platform?
The Safe Working Load (S.W.L) for the platform is 272kg (600lb), suitable for workers and their necessary equipment.
What engine powers this construction lift?
It is equipped with a robust TD2.9 L4 diesel engine providing 55.4kW of power for demanding site conditions.
Is this equipment suitable for hazardous environments?
Yes, the BA44RT features explosion-proof and insulating properties, making it versatile for various industrial and construction applications.
What certifications does the machine have?
The equipment is fully certified with GS, CE, RoHS, and ISO 9001 standards, ensuring high safety and quality benchmarks.
