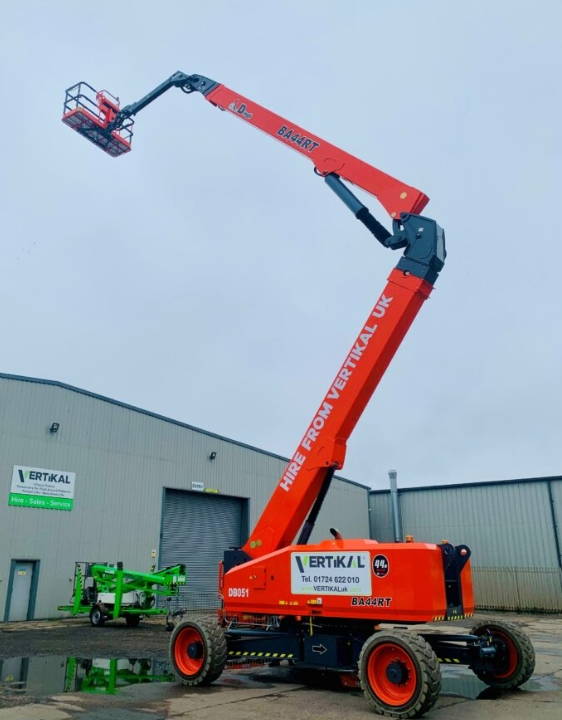

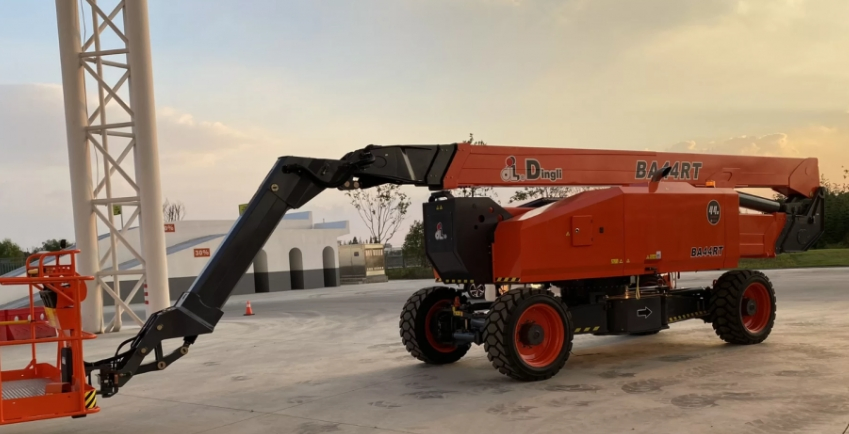

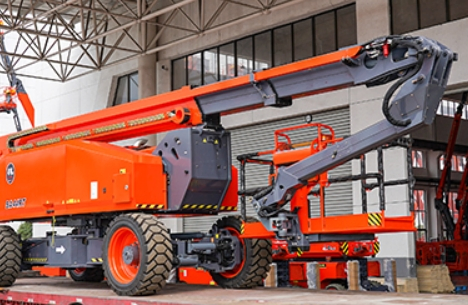

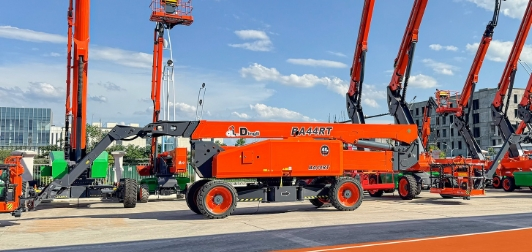

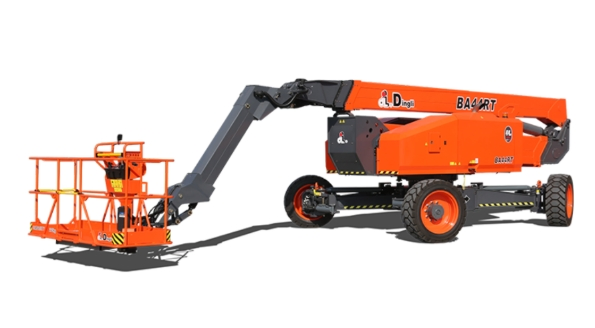

Dingli Man Lift Ba44rt Articulated Boom Lift Construction Equipment Boom Lift

Customization:	Available
After-sales Service:	Support
Warranty:	Support

ⓘ Basic Information

Model NO.

BA44RT

Application

Lifting

Lift Mechanism

Articulated Lift

Carrying Capacity

Middle-Level

Moves

Self-propelled

Driven Type

Hydraulic

Running Mode

Moving

Feature

Explosion-Proof, Insulating

Certification

GS, CE, RoHS, ISO 9001

Platform Height

42.06m / 138FT

Horizontal Outreach

22.97m / 75FT 4in

Platform Capacity

272kg / 600lb

Diesel Engine

Td2.9 L4/55.4kw

Origin

China

★ Product Description

Highly Efficient Operation

Designed with a high working efficiency that minimizes downtime and maximizes productivity, ensuring that construction projects progress smoothly.

Vehicle Mounting Compatibility

Easily mount the platform on a variety of construction vehicles to increase reach and versatility, allowing access to hard-to-reach areas with ease.

Robust Components

Engineered with core components such as a high-performance engine, heavy-duty bearings, gearbox, and pump for reliable performance under challenging conditions.

Safety & Quality

CE certified and compliant with the highest safety requirements for aerial work platforms, ensuring top-notch product quality for construction needs.

⚙ Technical Specifications

Max. Working Height	44.06m / 144ft 7in
Max. Platform Height	42.06m / 138ft
Max. Operating Range	22.97m / 75ft 4in
Max. Up And Over Clearance	18.80m / 61ft 8in
Max. Down Probing Depth	9.65m / 31ft 8in
Flatbed Transport Dimensions	11.97m×2.44×3.10m
Platform Size (L×W)	2.44m×0.91m / 8ft×2ft 12in
Ground Clearance	0.40m / 1ft 4in
Tyres	445/50/D710
S.W.L (Unrestricted)	272kg / 600lb
Overall Weight	23900kg / 52690lb
Diesel Engine	TD2.9 L4 / 55.4kW
Diesel Tank Capacity	135L / 35gal
Hydraulic Tank Capacity	230L / 61gal

? Frequently Asked Questions

What is the maximum working height of the BA44RT?

The BA44RT articulated boom lift offers a maximum working height of 44.06 meters (144ft 7in).

What is the lifting capacity of the platform?

The platform has a Safe Working Load (S.W.L) of 272kg (600lb).

What type of engine powers this machine?

It is powered by a robust TD2.9 L4 diesel engine with a power output of 55.4kW.

Does this lift mechanism support articulated movement?

Yes, it features an articulated lift mechanism, providing excellent up-and-over clearance of 18.80 meters.

What certifications does this equipment hold?

The equipment is fully certified with CE, GS, RoHS, and ISO 9001 standards.

Is the machine suitable for rough construction terrain?

Yes, it is a self-propelled hydraulic unit equipped with 445/50/D710 tires designed for construction environment mobility.
