Keg Lift
1 / 5

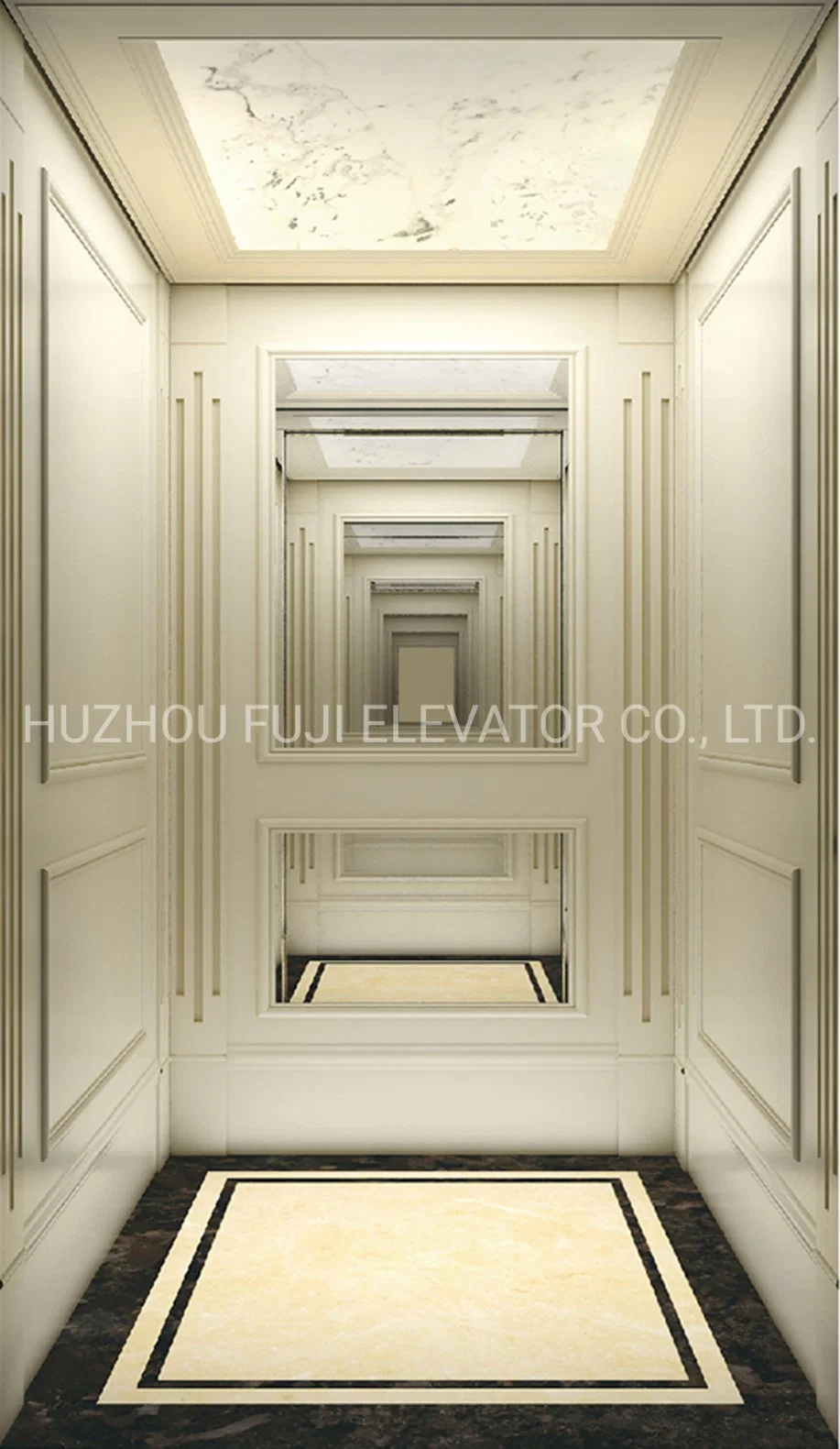

| Component | Standard Specification |
|---|---|
| Wall | Hairline stainless steel |
| Ceiling | LED Fluorescent, according to the car design |
| Car bottom | PVC |
| Jamb material | First layer hairline, remaining steel plate spraying |
| Hall door | First layer hairline, remaining steel plate spraying |
| Load (Kg) | Rated Speed (m/s) | Car Size (mm) | Door Opening (mm) | Shaft Size (mm) | Pit Depth (mm) |
|---|---|---|---|---|---|
| 450 | 1 | 1100×1100 | 800×2100 | 2050×1850 | 1500 |
| 630 | 1-1.75 | 1400×1100 | 800×2100 | 2250×1900 | 1500-1600 |
| 800 | 1-1.75 | 1400×1350 | 800×2100 | 2200×1950 | 1500-1600 |
| 1000 | 1-1.75 | 1500×1550 | 900×2100 | 2350×2150 | 1600 |
| 1600 | 1-1.75 | 1800×2000 | 1100×2100 | 2900×2200 | 1500-1600 |

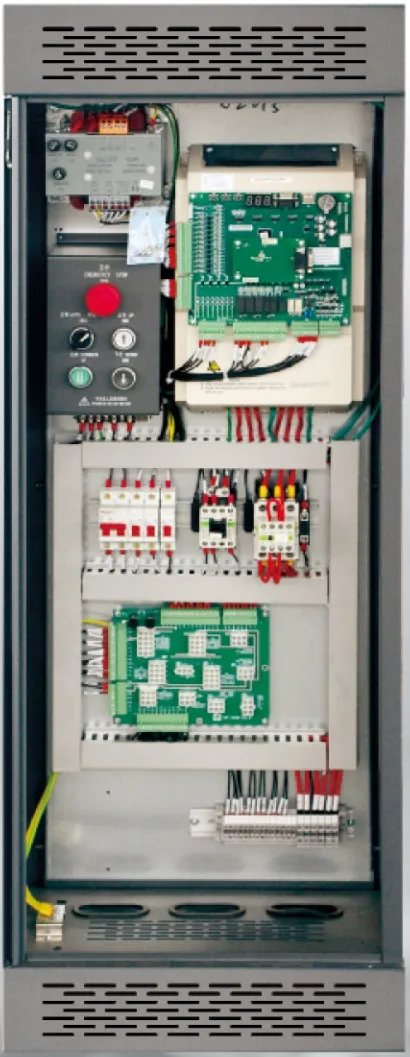

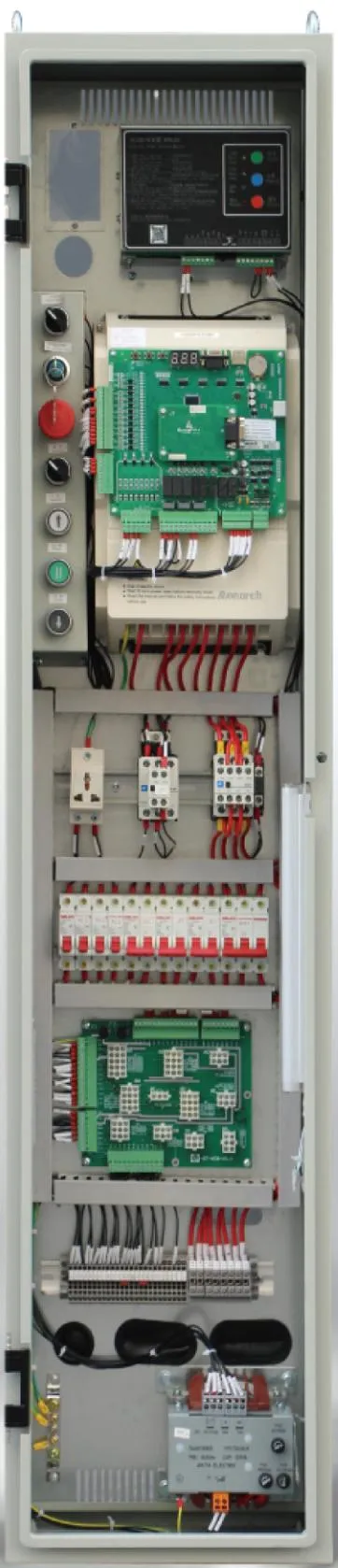

Prioritizing effectiveness in vertical transport, the system fully optimizes service efficacy through modular network control and multi-computer intellectual management. It provides instant feedback on running conditions for efficient service.

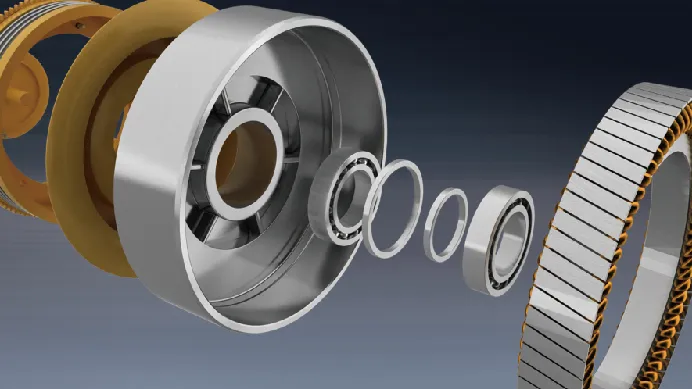

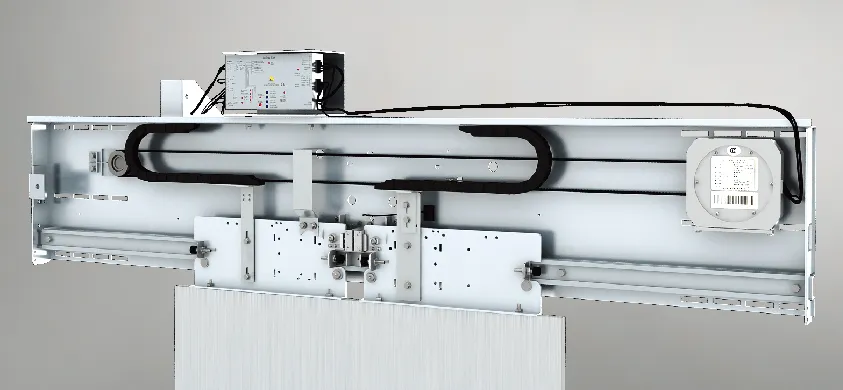

Featuring a new generation permanent magnet synchronous traction machine and a top advanced door operator system for smooth and energy-efficient operation.
| No. | Safety Feature | Description |
|---|---|---|
| 1 | Emergency Stop Button | Stops the elevator immediately in case of emergency. |
| 2 | Over-load Protection | Prevents motor strain by monitoring load capacity. |
| 3 | Over-speed Protection | Protection against risk of speed exceeding 20% of rated speed. |
| 4 | Short Circuit Protection | Safeguards the electrical system against short circuits. |
| 5 | Lack of Phase Protection | Protects motor against phase failure or error phase. |
| 6 | Door Safety Protection | Ensures safe operation during door opening and closing. |
