300kg Commercial Dumbwaiters Kitchen Lift Residential Dumb Waiter for Restaurants

Customization:	Available
After-sales Service:	by Factory or Local Agent
Warranty:	18 Months After Shipment

📦 Basic Info.

Model NO.

ZW001

Type

Wellhole

Load Capacity

300kg

Speed

0.40m/s

Drive Mode

AC

Open & Close Type

Automatic

Lift Mechanism

Telescoping Lift

Elevator Door

Straight Fractional Door

Main Power

AC 380V, 3 Phase 50Hz

Production Time

30 Days

Packing

Plywood Box

Specification

EN81, GB7588-2003

🍴 Product Description

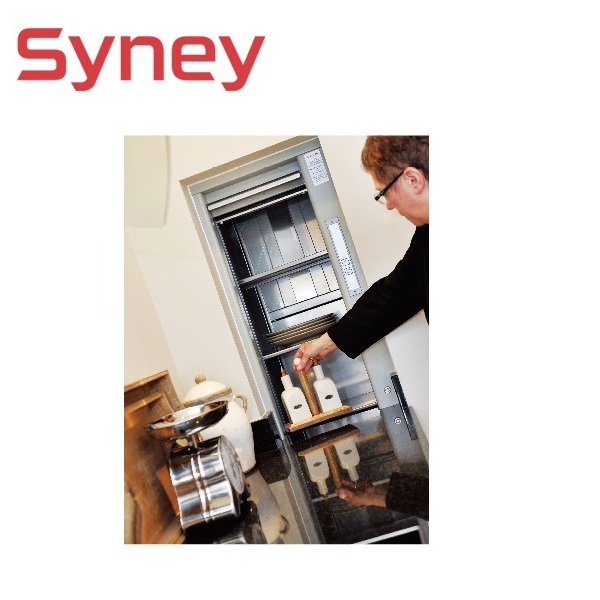

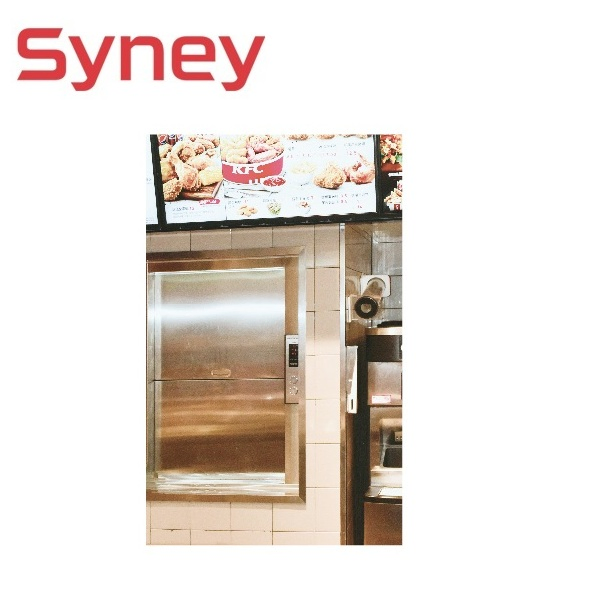

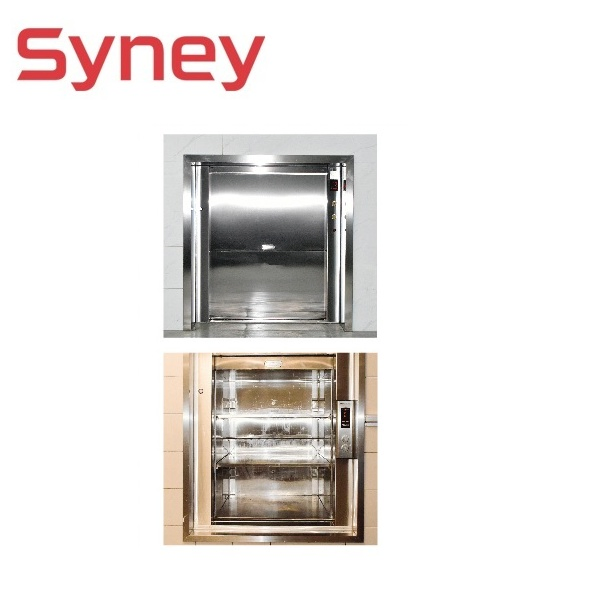

300kg Commercial Dumbwaiters Kitchen Lift Residential Dumb Waiter for Restaurants

Model: ZW001

Our company is dedicated to manufacturing high quality and superior performance elevators and escalators in accordance with international and professional standards. The dumbwaiter is the smallest member of the elevator family. According to different use occasions, it is also called the food elevator, the food dumbwaiter, or the kitchen lift.

We redefine the dumb waiter and give it a new image. At present, it has formed a complete product series. Floor type and window type elevators are equipped with two different door opening methods. Leading technology and perfect quality make it the most suitable choice.

✨ Key Advantages

Space Efficient: It occupies a small space and does not require strong civil engineering bearing capacity.
Advanced Control: Use advanced PC control module to make the elevator run smoothly and leveling accurately.
Humanized Design: Makes the operation more flexible and user-friendly.
Versatile Types: Available in window type and floor type based on load capacity.
Easy Maintenance: Safe, practical, elegant, quiet, and easy to maintain.

📊 Product Parameters

Load (kg)	Speed (m/s)	Cabin size (WXDXH)mm	Door size (WxH)mm	Shaft size (WxD)mm	OH (mm)	Working mode

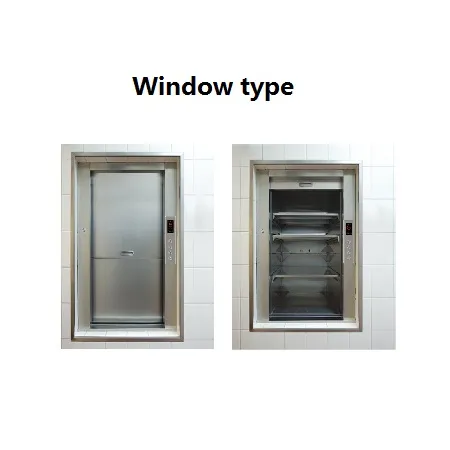

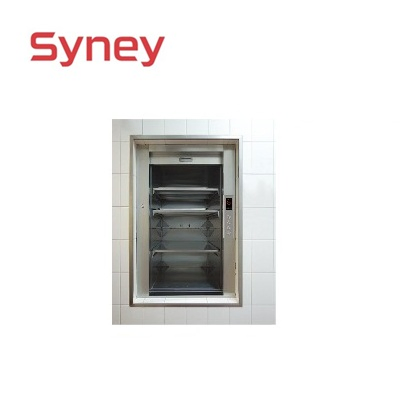

100	0.4	500x500x900	500x900	1000x800	4500	Window type
200	0.4	600x600x900	600x900	1100x900	4500	Window type
300	0.4	900x900x900	900x900	1400x1200	4500	Window type

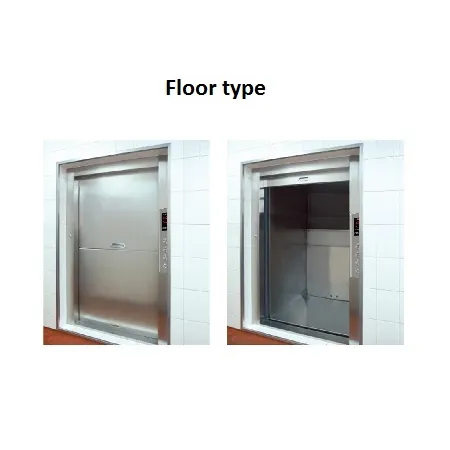

100	0.4	500x500x1000	500x1000	1000x800	4000	Floor type
300	0.4	900x900x1000	900x1000	1400x1200	4000	Floor type

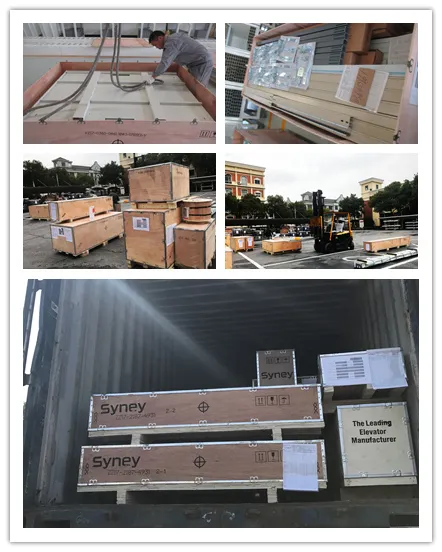

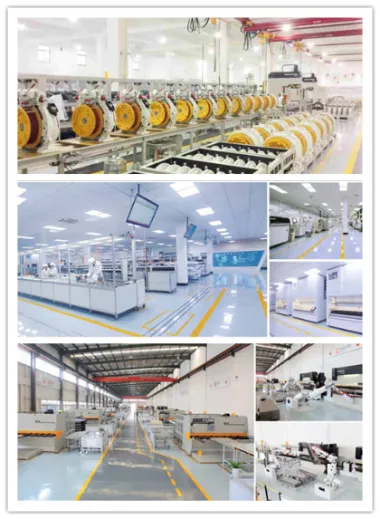

🏭 Manufacturing & Packing

📜 Certifications

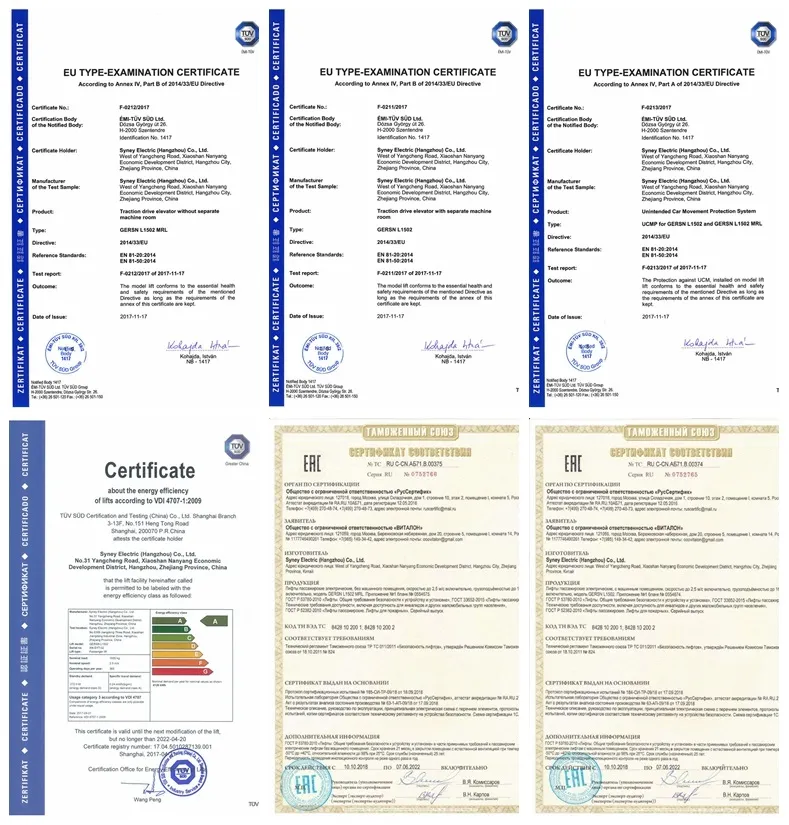

Germany TÜV SÜD is one of the strictest certificates worldwide. Our products meet international requirements, having moved our quality certification system to a new stage. We hold CE certificates for elevators with and without machine rooms, as well as EAC certifications.

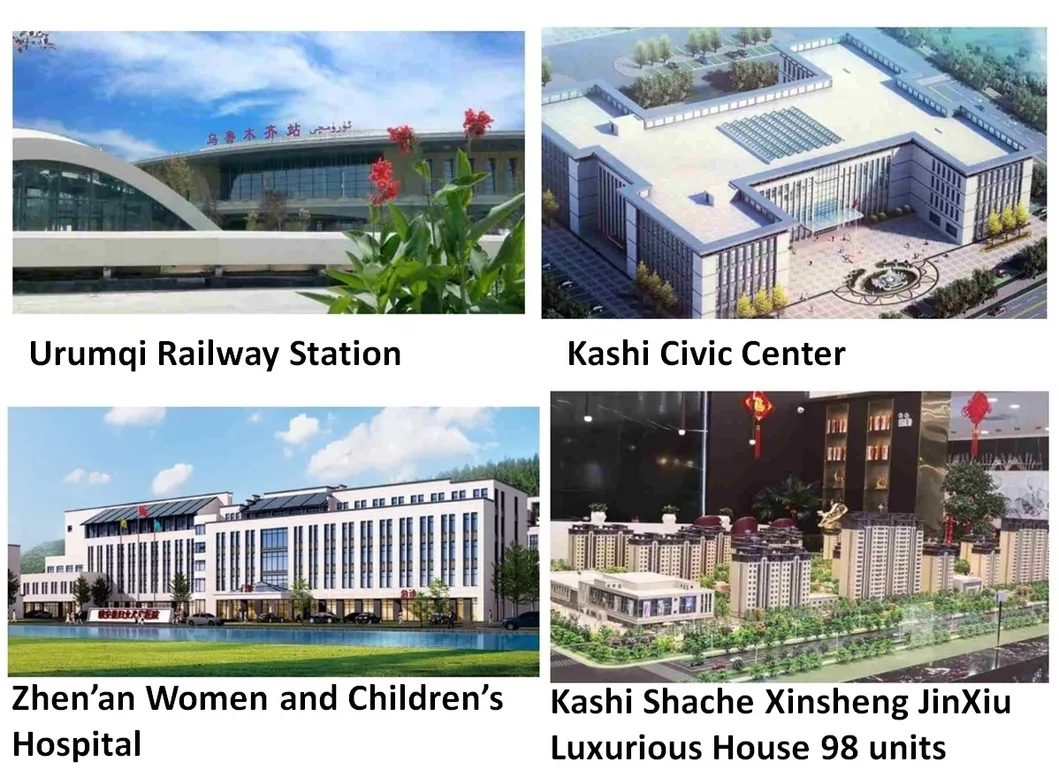

🏗️ Global Projects

❓ FAQ

Q1: What information is needed for a fast dumbwaiter inquiry?

Please provide the required capacity (e.g., 100kg, 300kg), the number of floors/stops, shaft size, and whether you prefer window or floor type installation.

Q2: What is the typical delivery time for a kitchen lift?

Usually, production takes 30 days after the deposit is received. We can also accommodate urgent orders for specific projects depending on our production schedule.

Q3: Do you provide installation support?

Yes, we provide a complete installation manual and remote technical guidance. For special projects, we can arrange for engineers to assist at the site.

Q4: What is the warranty period for the dumbwaiter?

All our elevator products come with a standard 18-month warranty starting from the date of delivery.

Q5: Is it possible to customize the cabin size?

Absolutely. While we have standard specifications, our factory can design a customized cabin size based on your specific job site parameters and shaft dimensions.

Q6: Are the dumbwaiters noisy during operation?

No, our dumbwaiters are designed to be elegant and quiet, using advanced PC control modules to ensure smooth running and accurate leveling with minimal noise.
