Residential and Commercial Dumbwaiters for Home Restaurant Kitchen Food Use

Customization:	Available
After-sales Service:	by Factory or Local Agent
Warranty:	18 Months After Shipment

Send Inquiry

Product Description

Basic Specifications

Model NO.ZW002

TypeWellhole

Load Capacity200kg

Speed0.40m/s

Drive ModeAC

Open & Close TypeAutomatic

Lift MechanismTelescoping Lift

Deceleration DeviceWith Deceleration Device

Guide RailHollow Guide

Elevator DoorStraight Fractional Door

Door KnifeSingle

Main PowerAC 380V, 3 Phase 50Hz

Production Time30 Days

PackingPlywood Box

SpecificationEN81, GB7588-2003

Production Capacity11000 Sets Per Year

Product Description

Residential and Commercial Dumbwaiters for Home Restaurant Kitchen Food Use

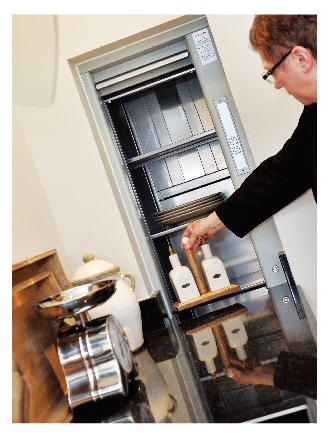

Dumbwaiters are the smallest members of the elevator family, designed to serve various industries with maximum efficiency in the smallest space. Whether for hotels, guesthouses, or residential kitchens, these lifts redefine convenience by handling food and small cargo transport silently and reliably.

Key Advantages

Small Footprint: Requires minimal civil engineering bearing capacity.
Advanced Control: Uses advanced PC control modules for smooth operation and accurate leveling.
Flexible Operation: Humanized design makes the interface intuitive and flexible.

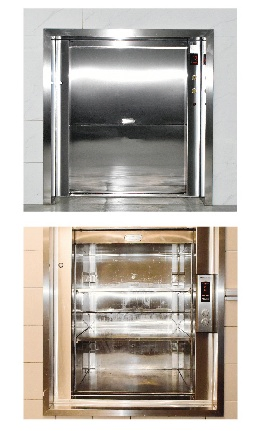

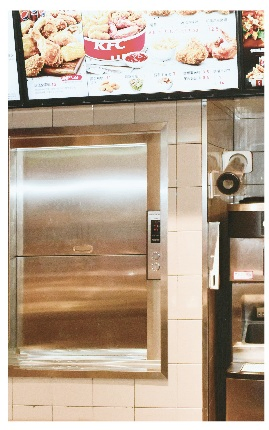

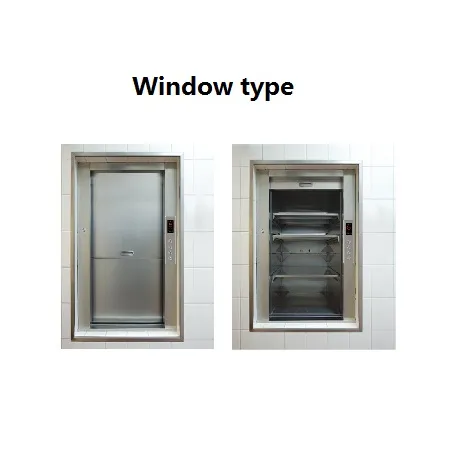

Versatile Types: Available in both window type and floor type configurations.
Easy Maintenance: Safe, practical, elegant, and quiet operation with simple maintenance protocols.

Technical Parameters

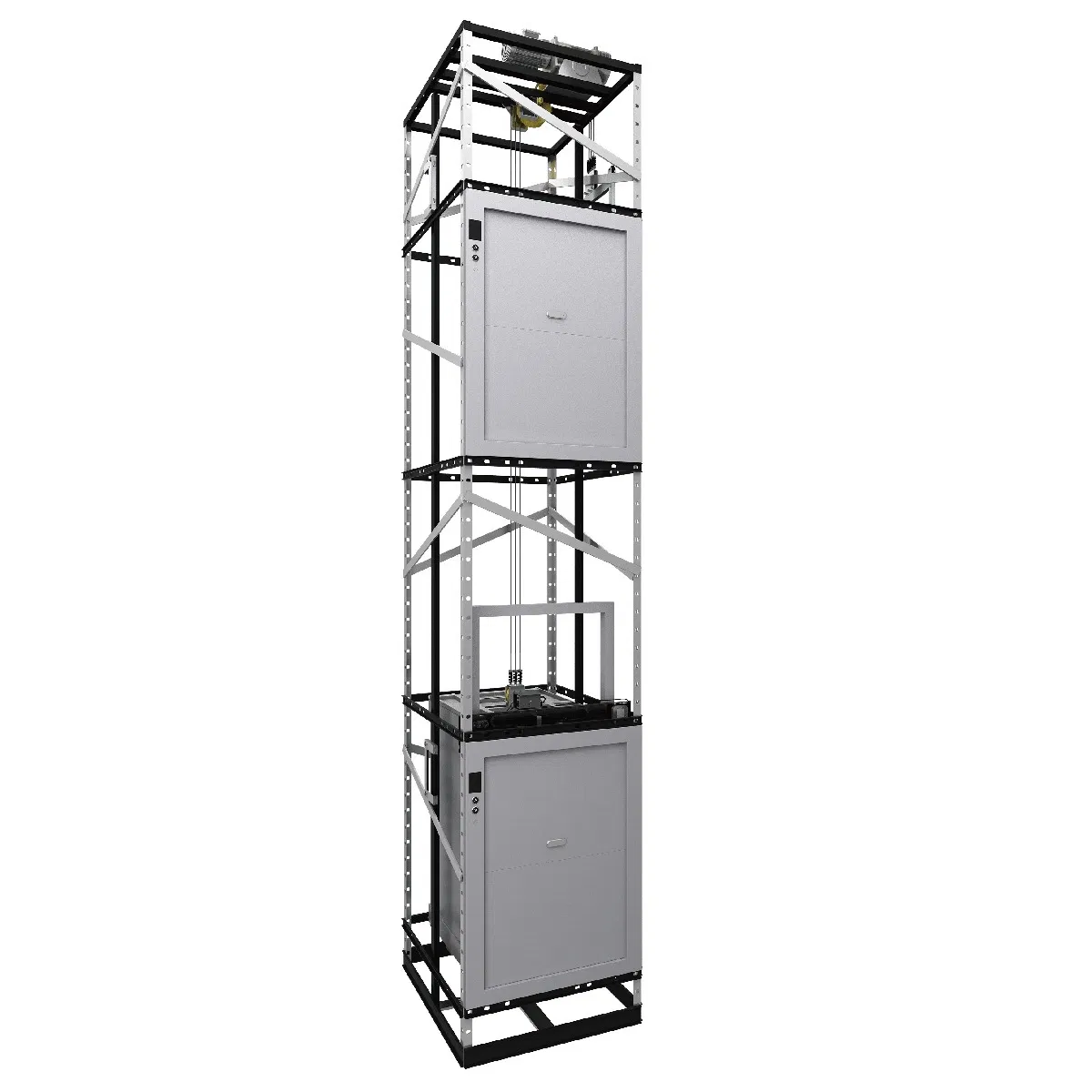

Dumbwaiter Elevators (Without Machine Room)

Load (kg)	Speed (m/s)	Cabin Size (WXDXH)mm	Door Size (WxH)mm	Shaft Size (WxD)mm	Pit/Window Height	Working Mode
100	0.4	500x500x900	500x900	1000x800	700mm	Window Type
200	0.4	600x600x900	600x900	1100x900	700mm	Window Type
250	0.4	800x800x900	800x900	1300x1100	700mm	Window Type
300	0.4	900x900x900	900x900	1400x1200	700mm	Window Type

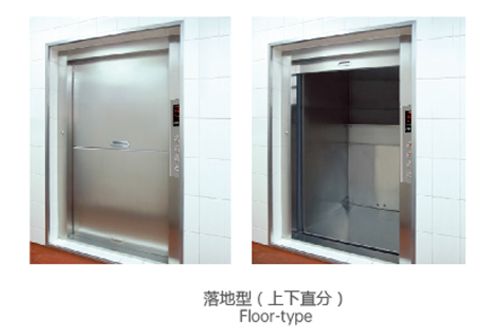

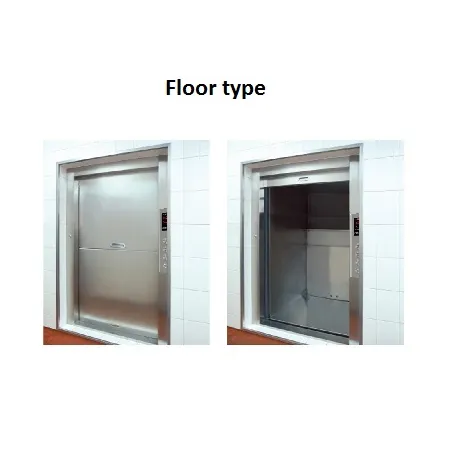

100	0.4	500x500x1000	500x1000	1000x800	1000mm Pit	Floor Type
300	0.4	900x900x1000	900x1000	1400x1200	1000mm Pit	Floor Type

Safety Functions

1. Motor overheat protect	9. Safety gear contact
2. Power phase fault detect	10. Main fuse (controller)
3. Drive running time detect	11. Main power switch
4. Inspection running	12. Car lighting switch
5. Emergency door opening key	13. Hall calling register display
6. Car door contact	14. Car position indicator
7. Shaft emergency stop switch	15. Running direction indicator
8. Car top emergency stop switch	16. Cabin position indicator in controller

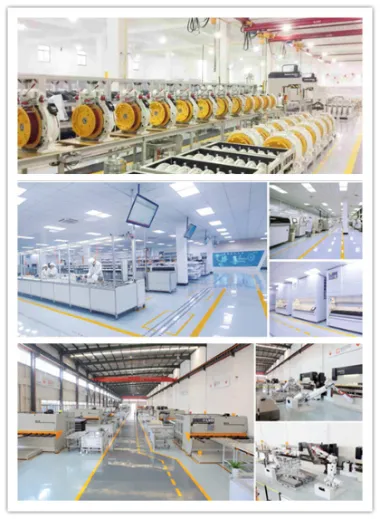

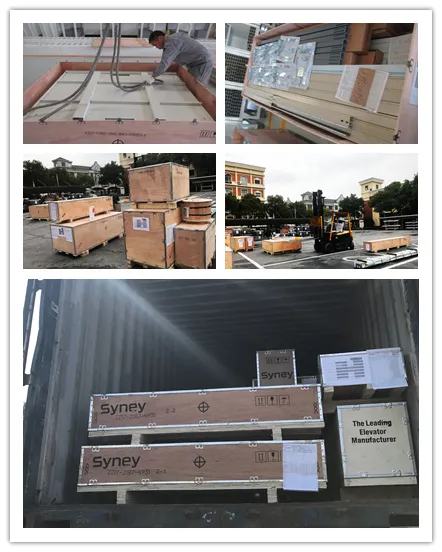

Manufacturing & Packing

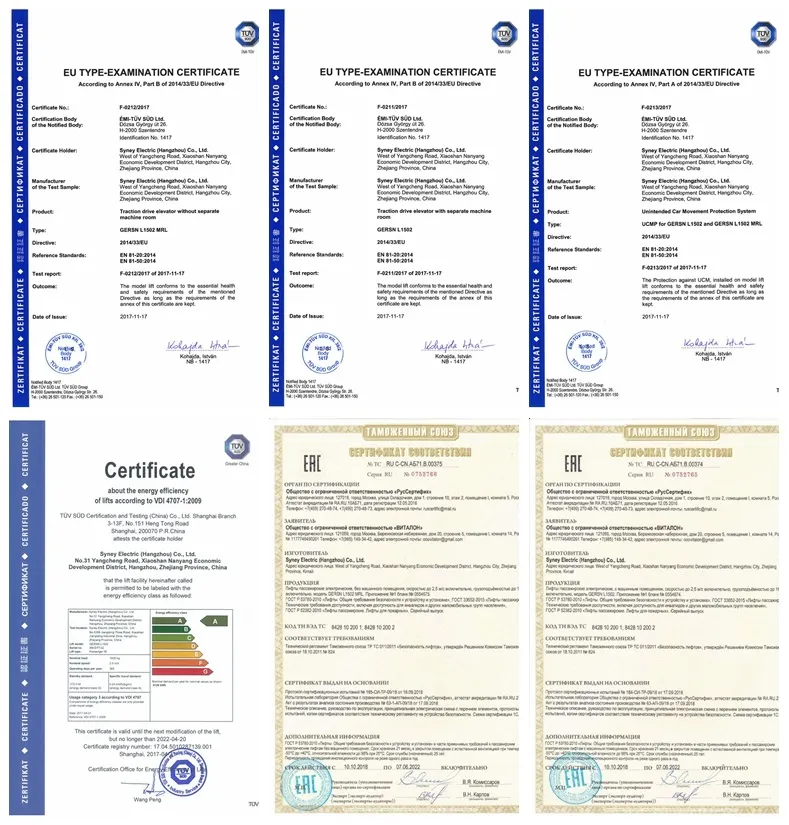

Global Certifications

Germany TÜV SÜD is one of the strictest certificates worldwide. Our elevators have met these international standards, moving our quality certification system to a global stage.

CE Certificate for Elevator (With/Without Machine Room)
CE Certificate of Energy-Efficiency: Grade A
EAC Certificate of Compliance

Project Showcase

Frequently Asked Questions

How to get a fast reply for an inquiry?

Please send complete information including elevator type (Kitchen/Food), machine room preference, capacity needed (e.g., 100kg), number of floors/stops, and shaft size.

What is the standard delivery time?

Usually, the delivery time is 30 days after the arrival of the deposit. However, urgent production options are also available for time-sensitive projects.

What is the product warranty period?

The standard warranty for elevators and dumbwaiters is 18 months after the date of delivery.

How are installation and commissioning handled?

We provide a complete set of installation manuals. For commissioning, remote guidance is available. For special projects, engineers can be dispatched to the site to assist.

Do you provide training for technicians?

Yes, we welcome agents to send technicians to our facility for professional training. We cover local accommodation and transportation during the training period.

How to resolve after-sale problems?

Simply provide the contract number or product serial number. Our factory can verify all technical specifications and provide targeted solutions based on that code.
