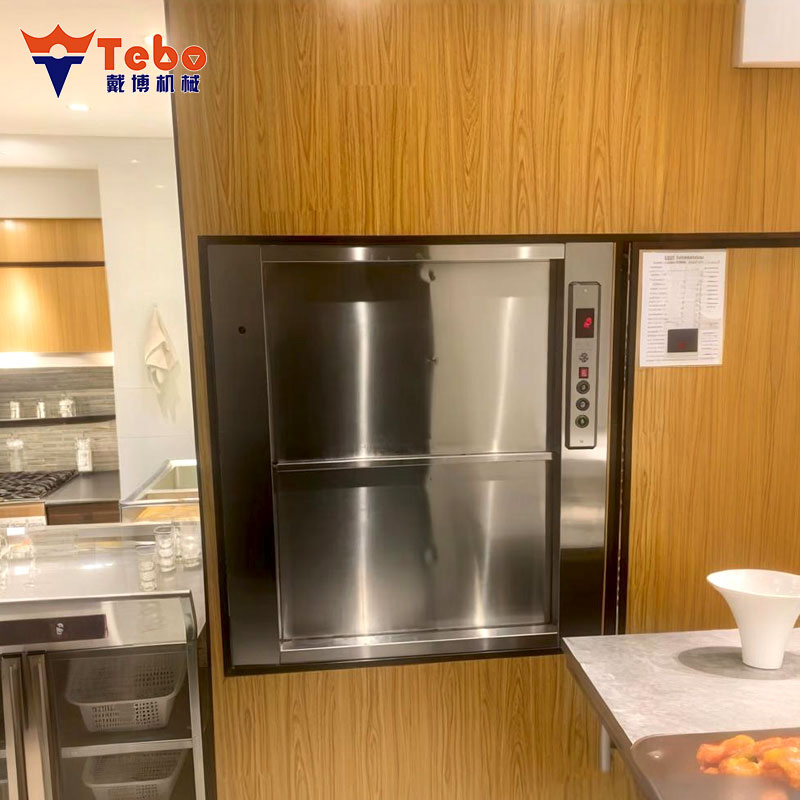

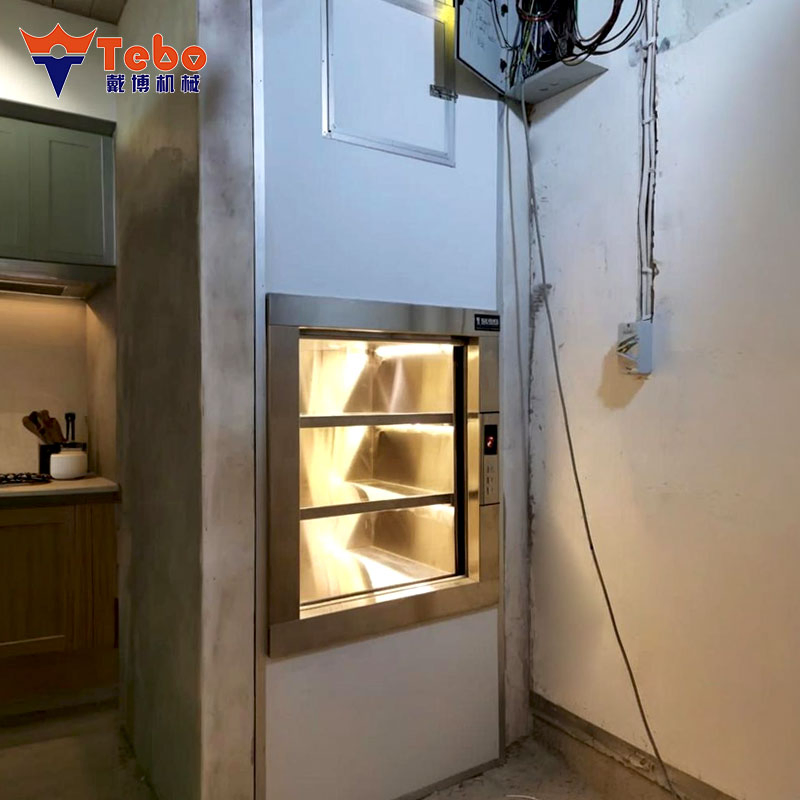

Dumbwaiter Foods Lift Elevator for Heavy Duty Kitchen Tasks

Still deciding? Get samples of $ !
Request Sample

Product Description

Overview & Basic Specifications
Model NO.
TBD-44
Type
Wellhole
Load Capacity
50kg-300kg
Speed
0.40m/s
Drive Mode
AC
Open & Close Type
Manual
Lift Mechanism
Telescoping Lift
Guide Rail
T Guide
Elevator Door
Center Opening Door
Production Capacity
1000 Sets/Year
Dumbwaiter Foods Lift Elevator
Product Description

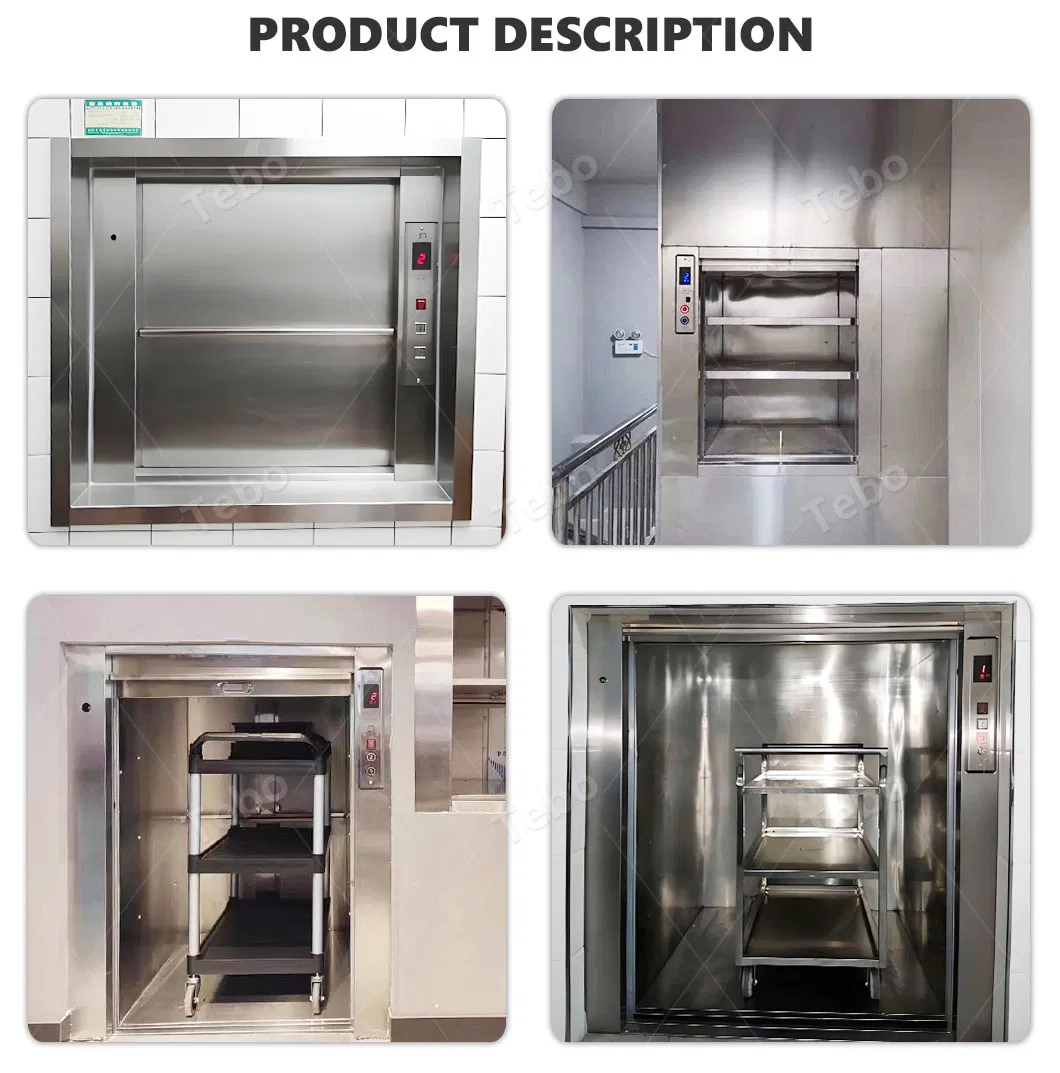

Dumbwaiter Features

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel cabin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning. The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings.

Its control system enables floor calling, one-touch operation, and multiple safety functions, including door locks, anti-fall devices, limit switches, and overload protection to ensure safe and reliable transportation of meals. The lift significantly improves operational efficiency by quickly transferring dishes, beverages, and tableware between floors, reducing staff workload and minimizing physical strain.

Technical Parameters
Window Type Parameters
Load(kg) Cabin Dimension (W*D*H) Landing Door Cabin Door Door Size (W*H) Sill Height Overhead Height
100600*400*800StandardOptional600*8008002800
100600*600*800StandardOptional600*8008002800
200800*800*800StandardOptional800*8008002800
2001000*1000*1000StandardOptional1000*10008003200
Floor Type Parameters
Load(kg) Cabin Dimension (W*D*H) Landing Door Cabin Door Door Size (W*H) Min Pit Depth Overhead Height
200800*800*1000StandardOptional800*10006002800
3001000*1000*1200StandardOptional1000*12007003200
4001000*1200*1400StandardOptional1200*14008003600
Product Details

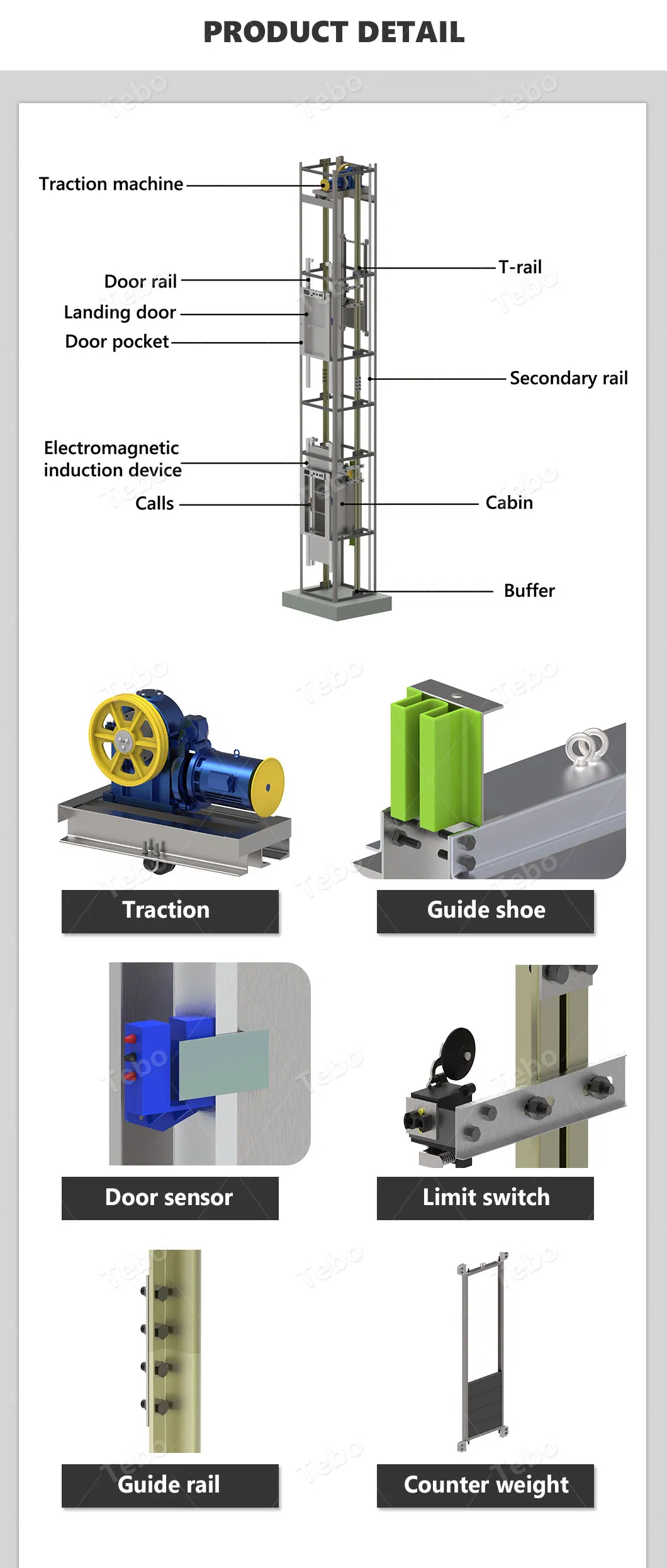

Detail 1

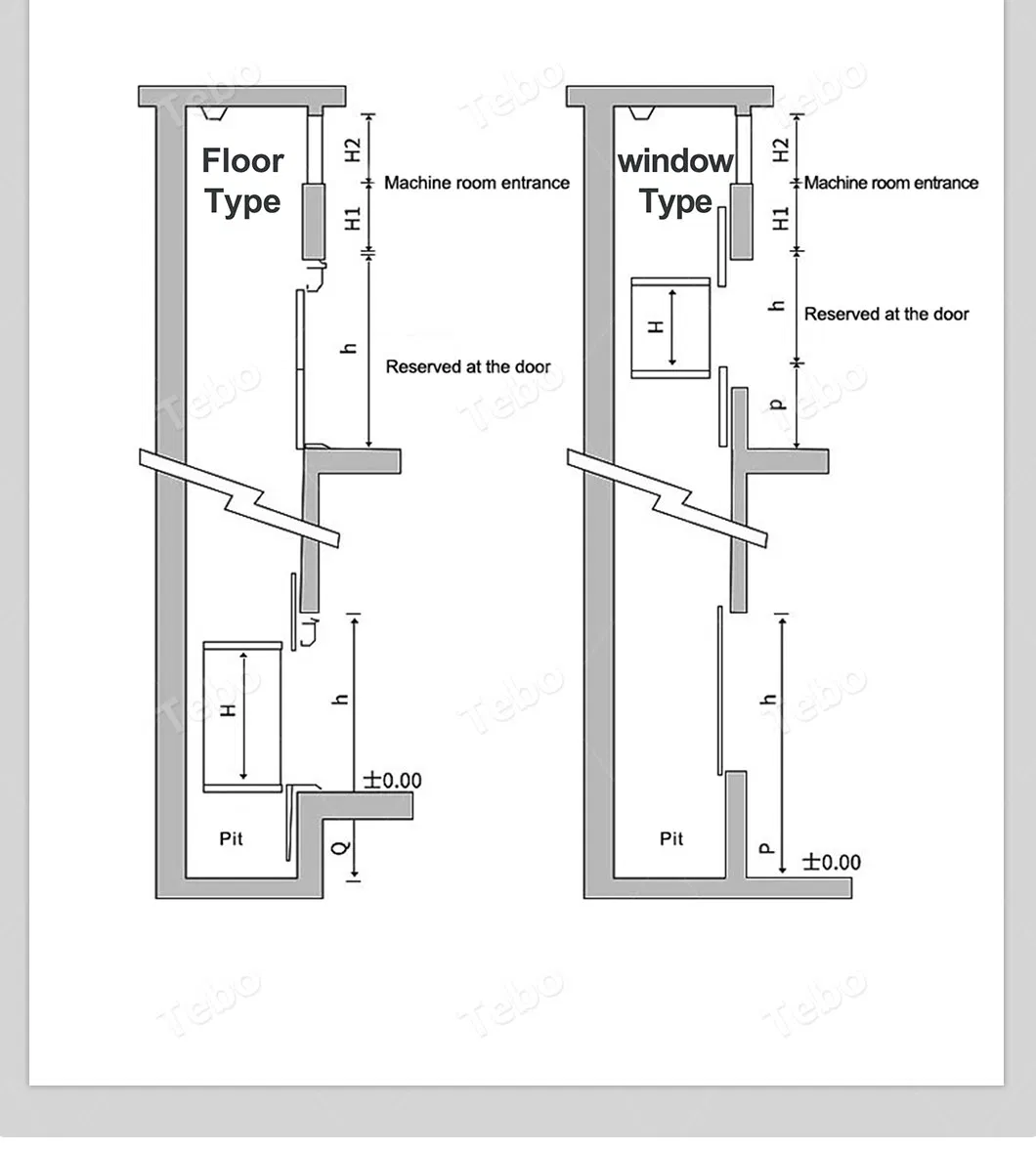

Detail 2

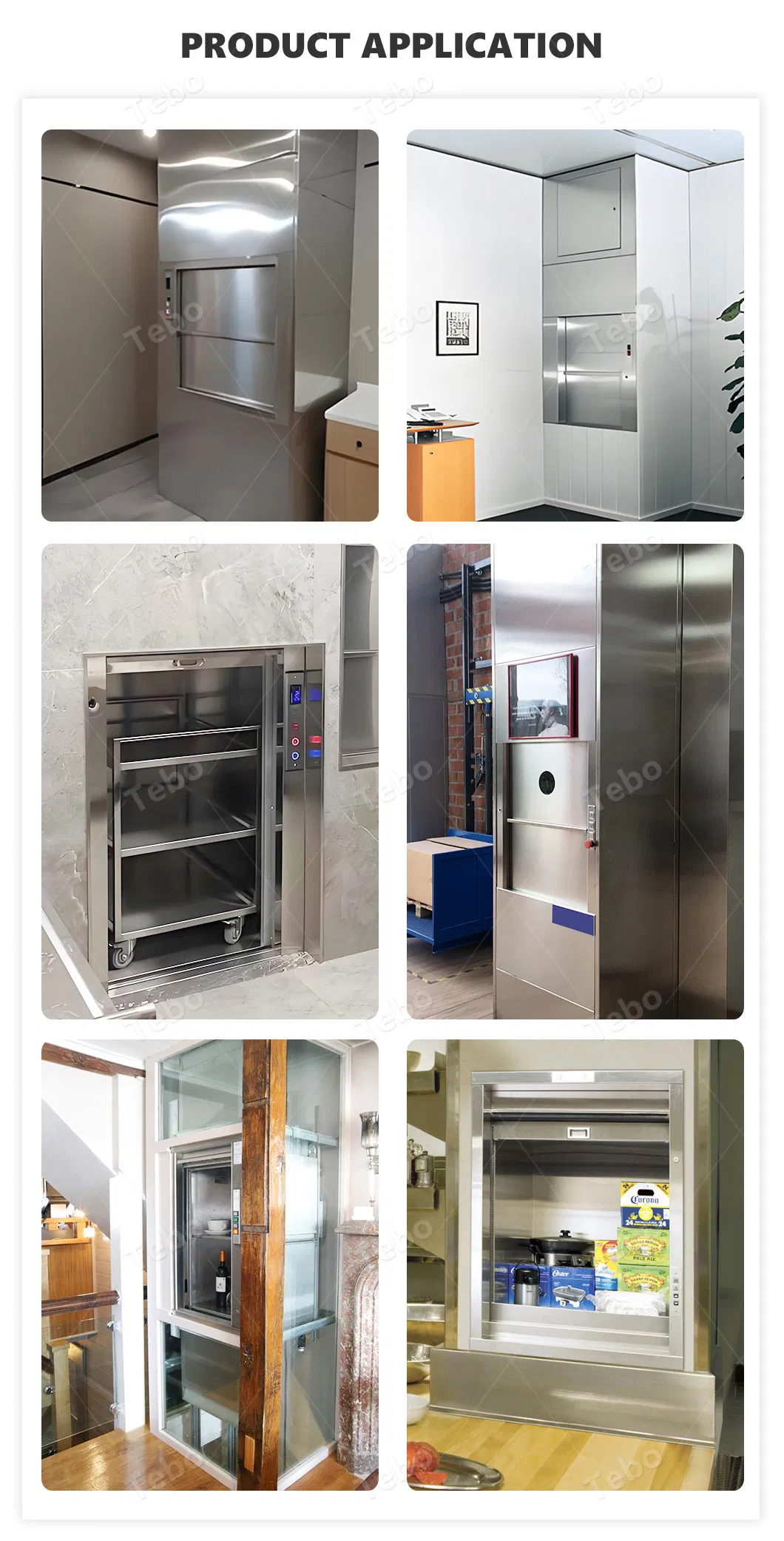

Detail 3
Manufacturing Excellence
Factory Overview

Our operational and production base is located in a well-connected industrial city. We have assembled an experienced and highly innovative technical team, continuously developing and optimizing multiple product series. We possess significant advantages in structural design, operational efficiency, and stability, securing numerous independent intellectual property rights and patent technologies.

Our core product range includes hydraulic home elevators, hydraulic freight lifts, and hydraulic scissor lift platforms. We utilize modern CNC machining centers, automated welding equipment, and precision inspection instruments to ensure efficient production and reliability.

Certifications & Shipping
Certification 1
Certification 2
Packaging & Shipping
Frequently Asked Questions
1. What are the main advantages of your lift equipment?
We are among the leading manufacturers in China with a dedicated lift platform base. This allows us to provide high-quality equipment at competitive market prices. We offer a 12-month warranty for the entire unit (excluding man-made faults) and provide professional on-site installation guidance.
2. Do you provide customization and pre-sales consultation?
Yes. Our team offers expert recommendations and consultation before any order is placed. If you require modifications, our engineers can provide detailed blueprints and customized designs to meet your specific space and load requirements.
3. What kind of after-sales support is available?
Once the product arrives, our after-sales department provides follow-up services. For custom models, we send detailed assembly and installation manuals along with machine drawings. Most customers find our instructions clear enough to handle installation independently. Any technical inquiries are typically addressed within 2 hours.
4. How is the equipment packaged for international shipping?
We standardly use robust plywood cases to protect the equipment during transit. We can also accommodate special shipping marks or specific packaging requirements based on your request.
5. What is the typical lead time for production and shipping?
The timeline depends on the specific product and customization levels. Generally, shipping occurs within 10 working days after payment is received. We guarantee the fastest possible dispatch for all orders.
6. What are the accepted payment and trade terms?
We support standard trade terms including EXW, FOB, CFR, and CIF. Typically, payment is required before production starts, with the remaining balance settled prior to delivery.
