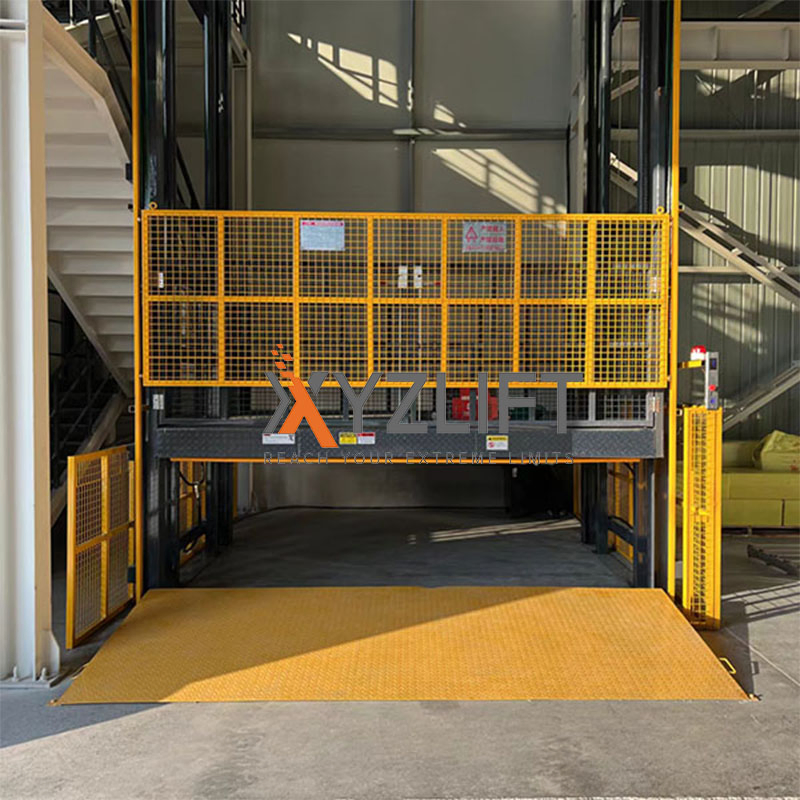

CE Approved Hydraulic Goods Lift Cargo Lift Freight Elevator Warehouse Material Lifting Equipment
CE Approved Hydraulic Goods Lift Cargo Lift Freight Elevator Warehouse Material Lifting Equipment
CE Approved Hydraulic Goods Lift Cargo Lift Freight Elevator Warehouse Material Lifting Equipment
CE Approved Hydraulic Goods Lift Cargo Lift Freight Elevator Warehouse Material Lifting Equipment
CE Approved Hydraulic Goods Lift Cargo Lift Freight Elevator Warehouse Material Lifting Equipment
1 / 5
CE Approved Hydraulic Goods Lift Cargo Lift Freight Elevator Warehouse Material Lifting Equipment
CE Approved Hydraulic Goods Lift Cargo Lift Freight Elevator Warehouse Material Lifting Equipment
CE Approved Hydraulic Goods Lift Cargo Lift Freight Elevator Warehouse Material Lifting Equipment
CE Approved Hydraulic Goods Lift Cargo Lift Freight Elevator Warehouse Material Lifting Equipment
CE Approved Hydraulic Goods Lift Cargo Lift Freight Elevator Warehouse Material Lifting Equipment

CE Approved Hydraulic Goods Lift Cargo Lift Freight Elevator Warehouse Material Lifting Equipment

Customization: Available
After-sales Service: Door to Door Service
Warranty: 2 Years
Send Inquiry

Product Description

Basic Information
Model
XYZGL-6
Mechanism
Hydraulic
Capacity
Customized per Requirements
Lift Height
3m or Customized
Certification
GS, CE, RoHS, ISO 9001
Operation
Push Button (Elevator Style)
Safety
Emergency Stop, Interlocks
Lead Time
Within 2 Weeks
Product Description
🏗️

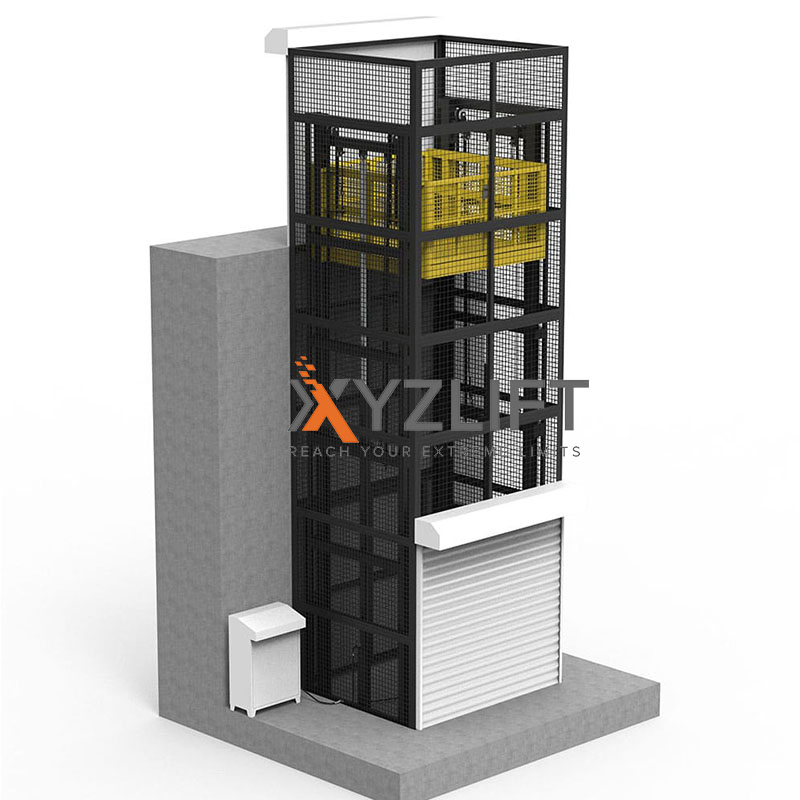

CE Approved Hydraulic Goods Lift / Freight Elevator

Our cargo lifts provide a robust solution for vertical material movement in warehouses, factories, and mezzanines. These hydraulic lifts are highly customizable to meet your specific space and load requirements.

  • Weight capacity from 300kgs to 50,000kgs
  • Lifting height up to 18 meters
  • Platform size up to 10m x 10m
  • Lifting speed: 4 to 15 meters per minute

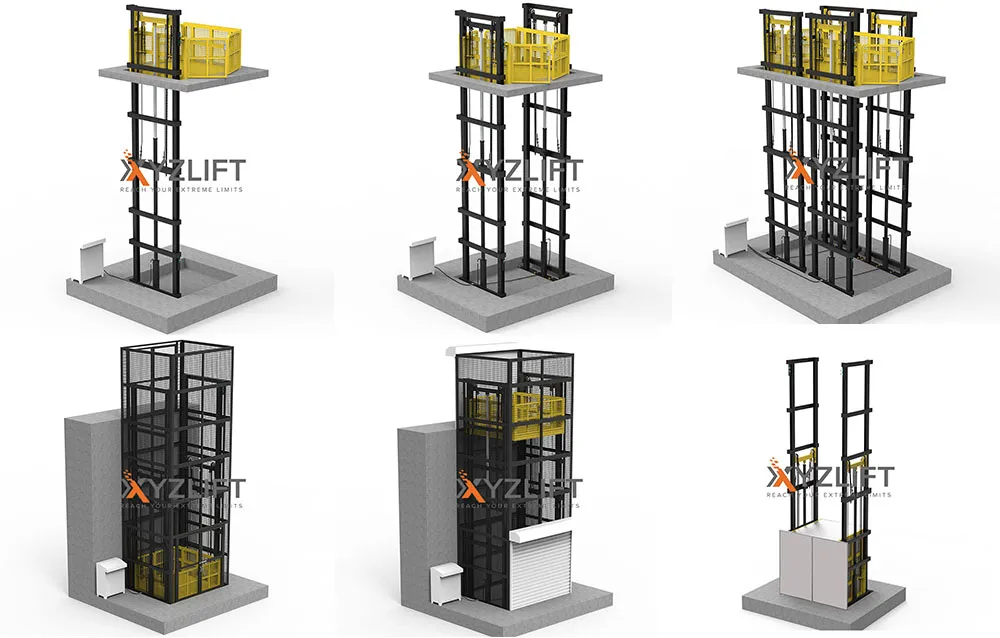

Goods Lift Models
Goods Lift Parameters
MODEL LOAD CAPACITY LIFTING HEIGHT PLATFORM SIZE
XYZGL1-2.71000KG2700MM1600*1600MM
XYZGL1-31000KG3000MM2000*1500MM
XYZGL2-32000KG3000MM2500*2500MM
XYZGL3-33000KG3000MM2800*3000MM
XYZGL5-75000KG7000MM4000*3500MM
CustomizedTell us your requirements--
Safety Features

Adhering to EN81-31 and ISO9001 standards, our lifts prioritize user safety through rigorous engineering.

🛡️

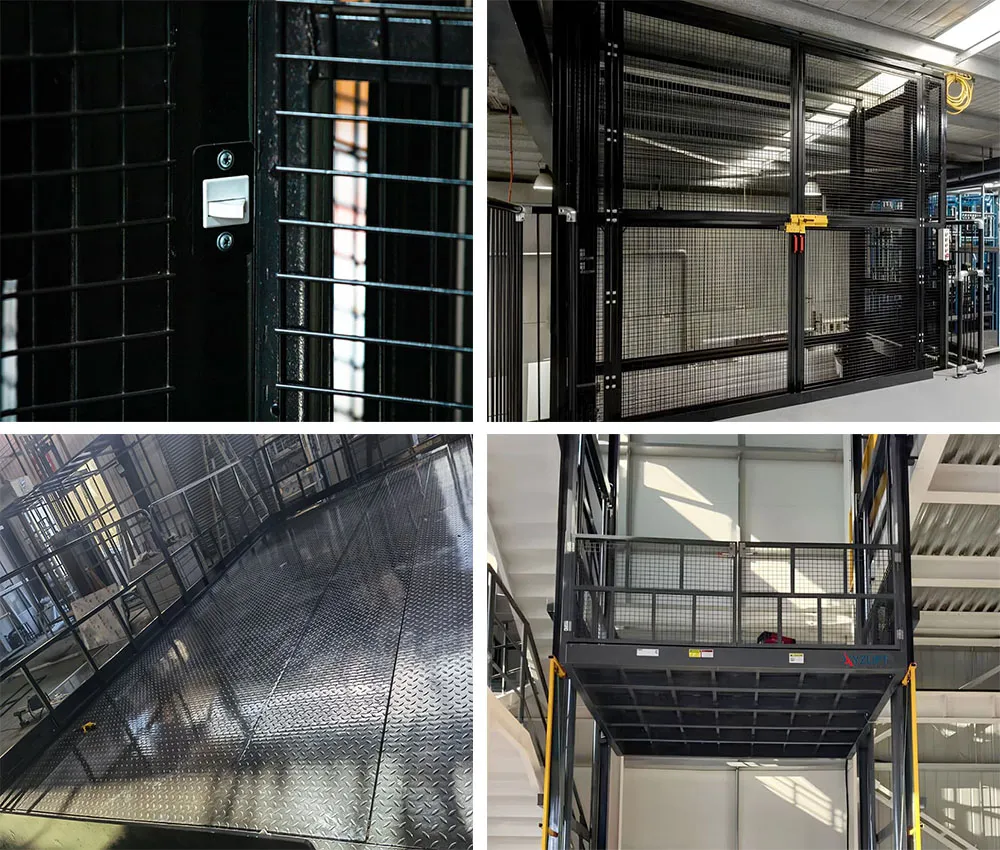

Platform & Door Safety

Doors are equipped with electric and mechanical interlocks; the lift will not move unless all doors are fully closed. The platform features an anti-skid steel floor and standard 1.2m high guardrails (upgradable to 2.2m).

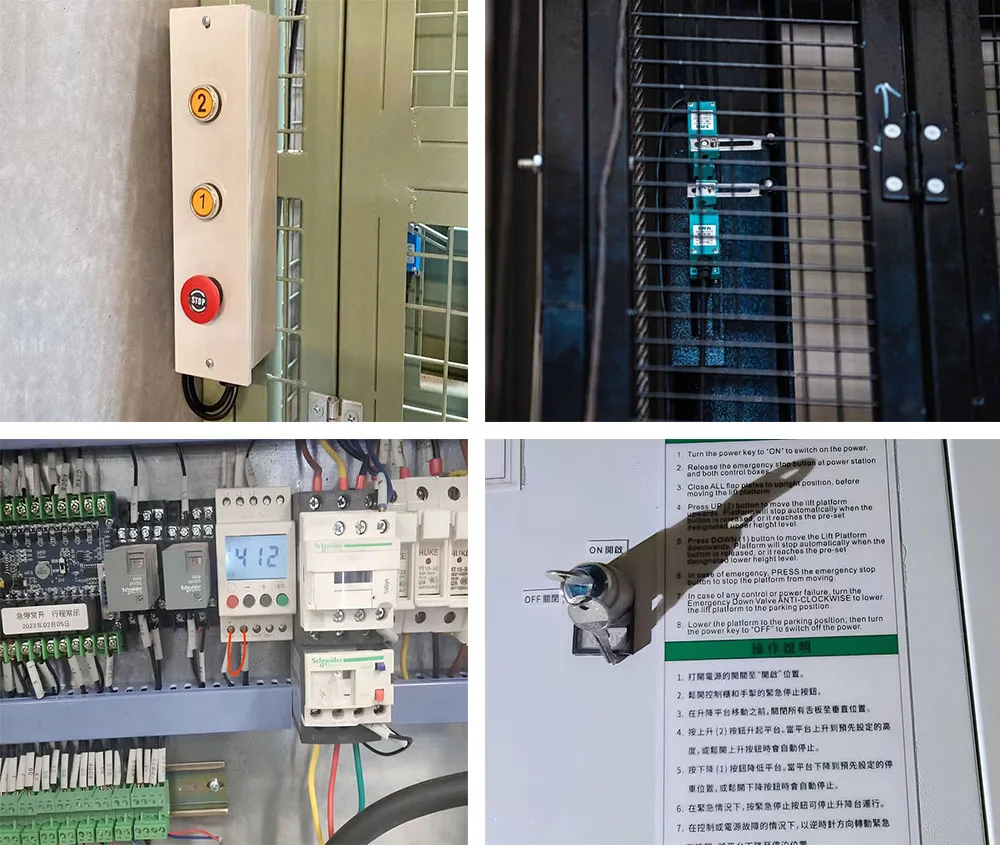

Platform Safety Control Safety
⚙️

Hydraulic & Electrical Safety

  • Overload Protection: Sensors stop operation if weight limits are exceeded.
  • Emergency Descent: Manual valve allows safe lowering during power outages.
  • Explosion-proof Valves: Prevents sudden platform drops in case of hose failure.
  • Limit Switches: Redundant switches prevent overtravel at top levels.

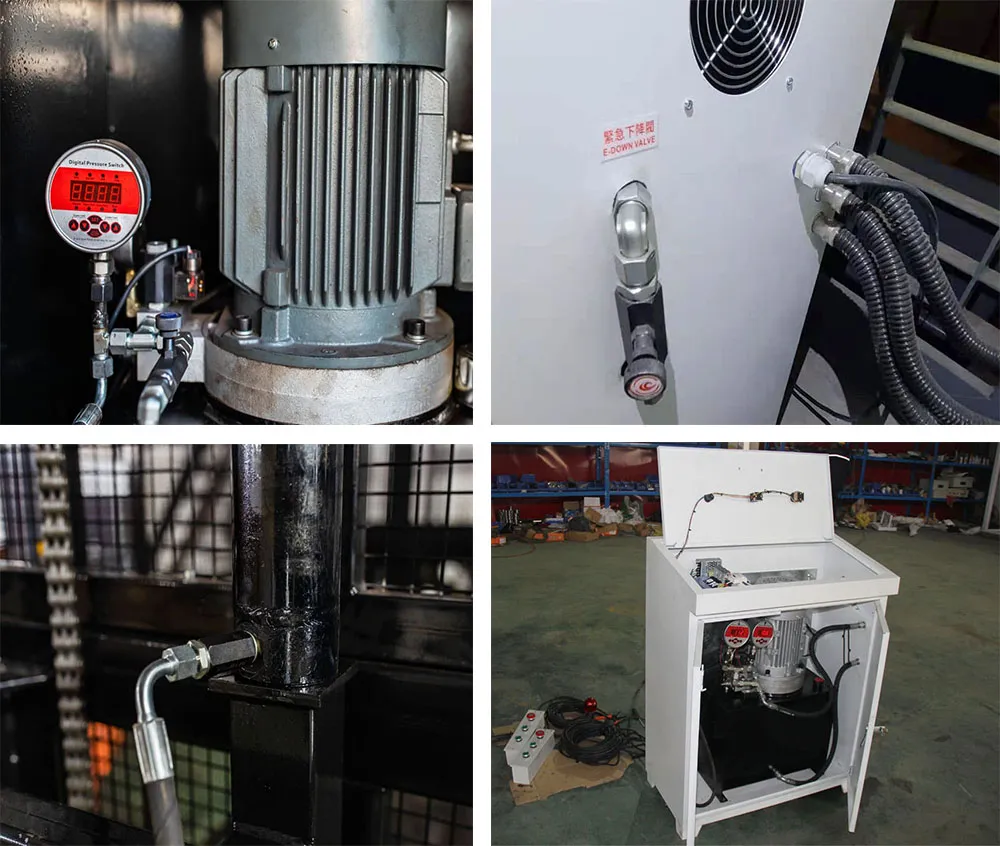

Hydraulic System

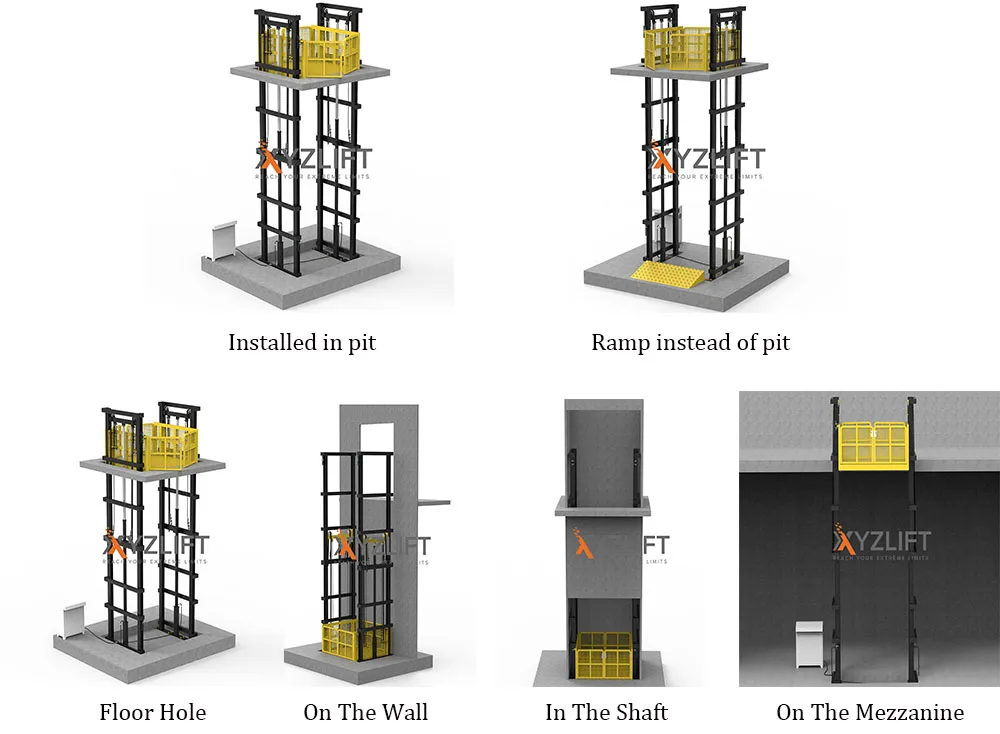

Installation Versatility

Suitable for various environments: indoor/outdoor, through-floor, with or without a pit, and wall-mounted installations.

Installation Sites

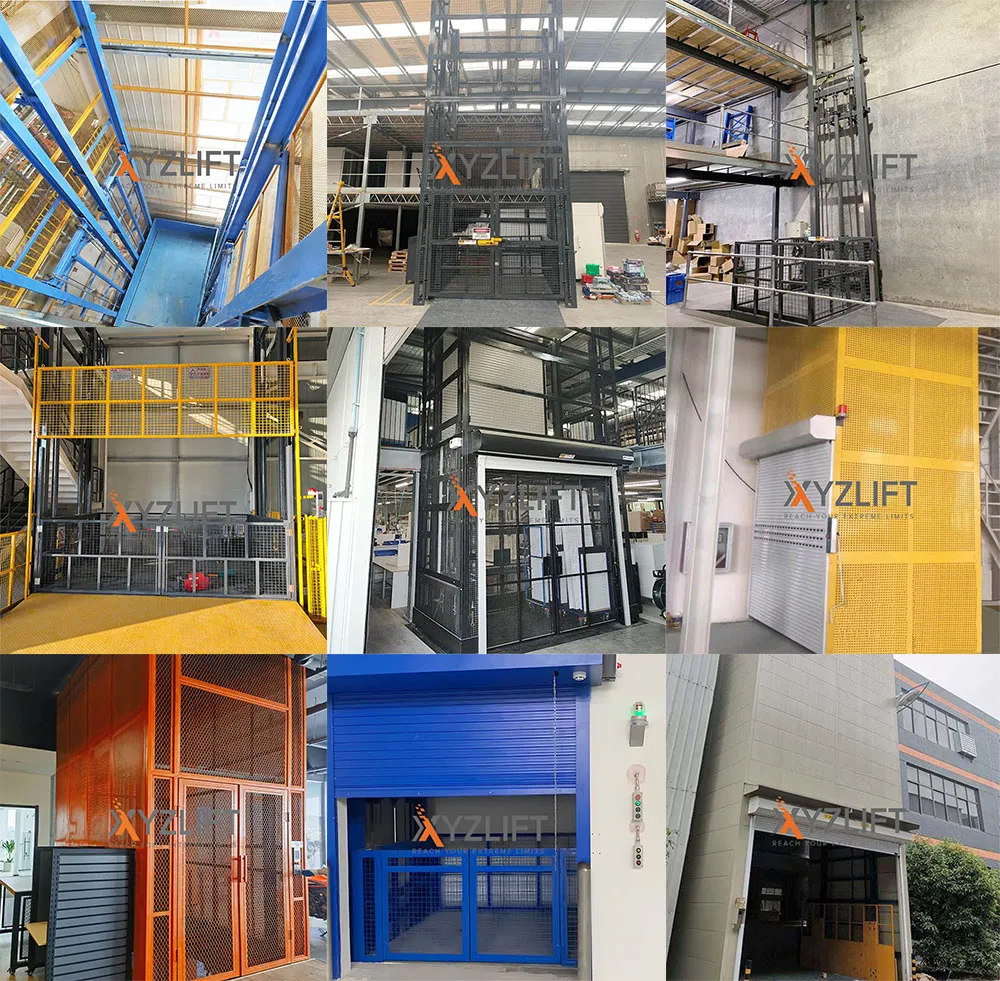

Project Show & Packaging

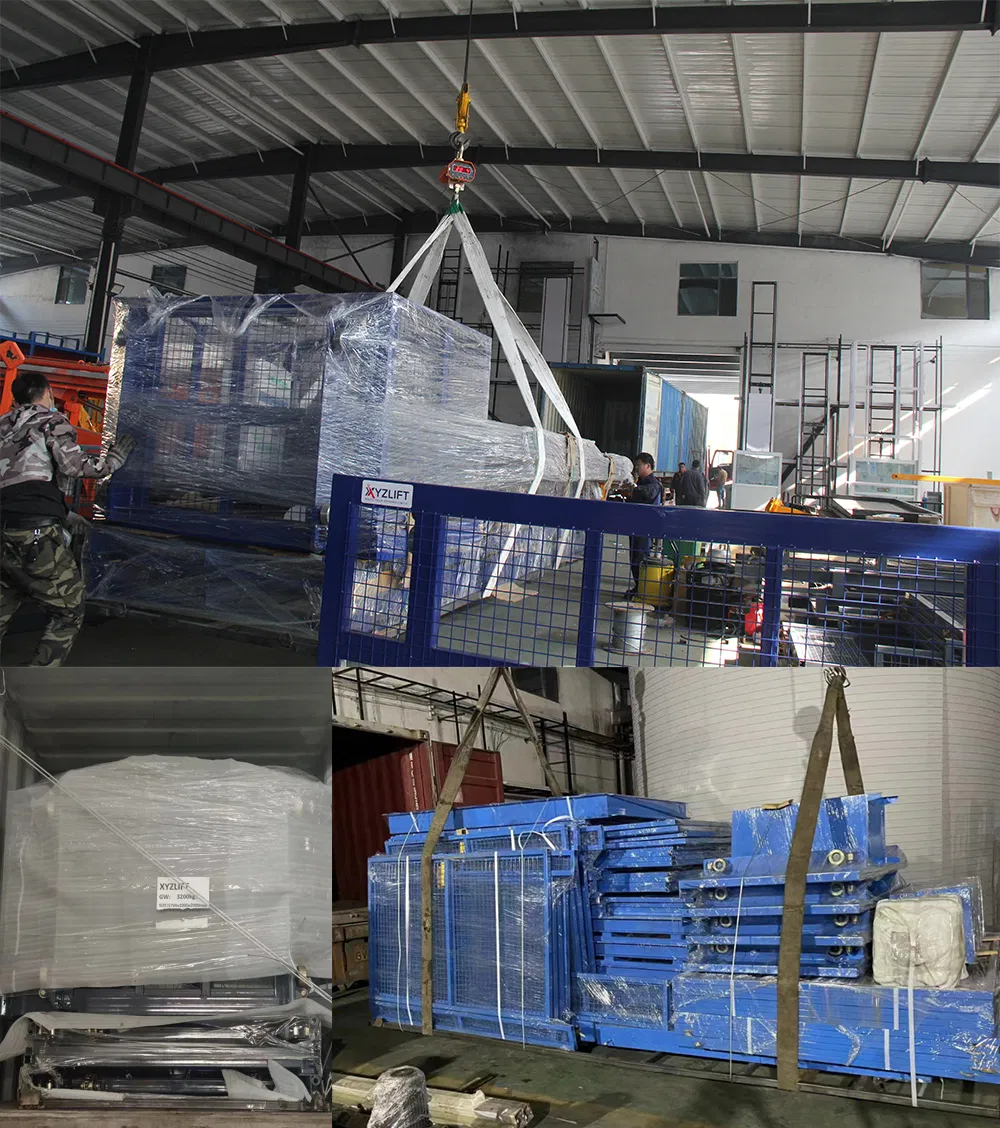

Project Show Packaging
Frequently Asked Questions
Q1: What is the maximum weight capacity of the cargo lift?
A: Our standard models handle up to 5,000kg, but we can customize hydraulic systems to support up to 50,000kg depending on your needs.
Q2: Can the lift be installed without a pit?
A: Yes, if a pit is not possible, the lift can be fixed directly on the ground with an included ramp for easy loading.
Q3: What happens if there is a power failure while the lift is in use?
A: The system includes an emergency descent valve that allows you to lower the platform manually and safely to the nearest floor level.
Q4: Are the safety gates locked during operation?
A: Yes, all landing doors feature electric and mechanical interlocks. They cannot be opened while the lift is moving, and the lift will not start if any door is open.
Q5: Is the lift suitable for outdoor installation?
A: Absolutely. We can provide a protective case for the pump station and weather-resistant finishes to ensure durability in outdoor environments.
Q6: How long does the installation process take?
A: The lift is designed for easy installation. We provide a comprehensive manual, and most standard units can be set up quickly by a local technician.
