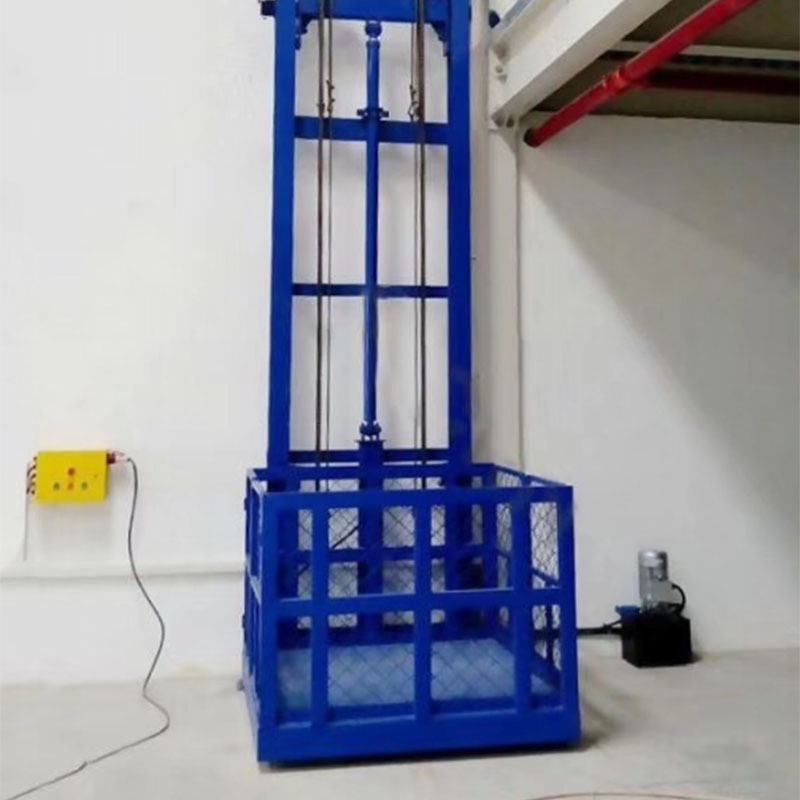

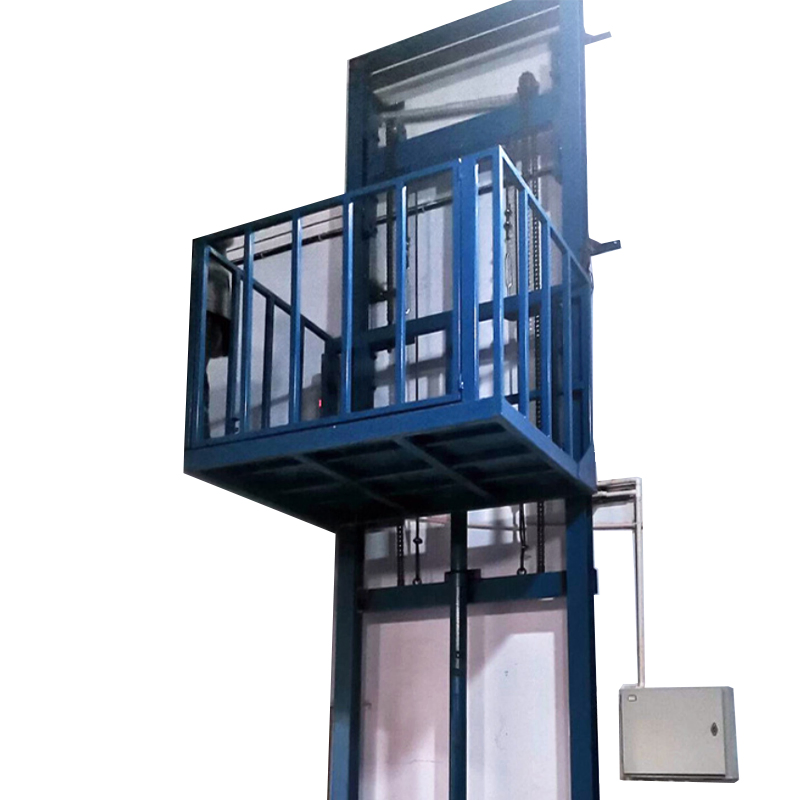

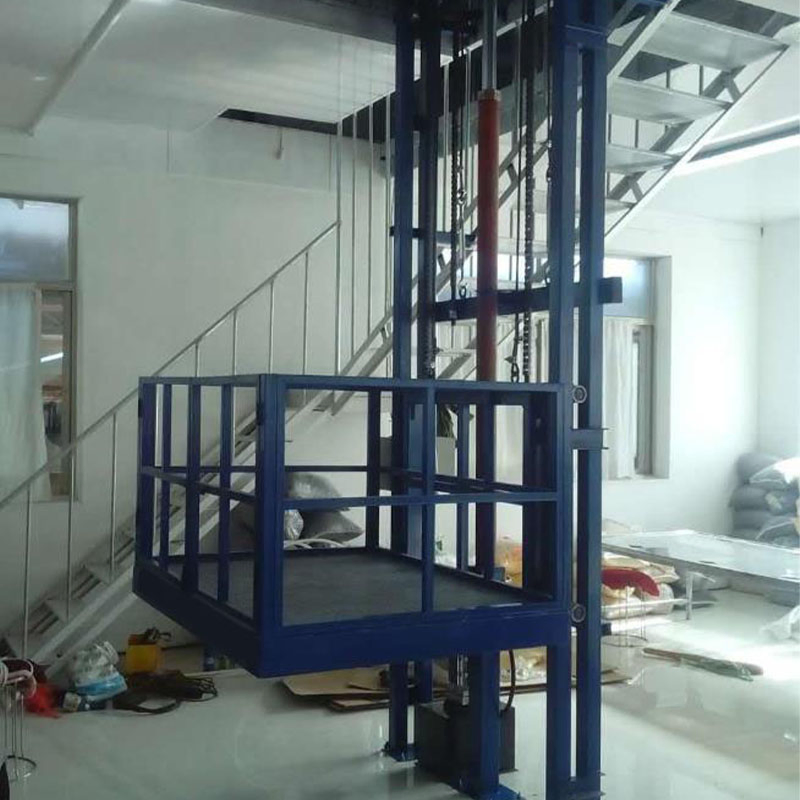

Warehouse Customized Steel Material Hydraulic Electric Heavy Duty Small Vertical Freight Elevator Platform Goods Lifter Guide Rail Floor Cargo Lift with CE

Customization: Available
After-sales Service: Online
Warranty: 1 Year

Product Description

Hydraulic Goods Lifter
Basic Specifications
Model NO.CL0.5-1
ApplicationWorkshop, Shipboard, Warehouse, Building
Lift MechanismLift Chain
Driven TypeHydraulic
FeatureExplosion-Proof
CertificationCE
Transport PackageWooden Box
OriginChina
Technical Parameters
ModelCL0.5-2200
Load capacity100kg - 10 ton
Platform size1500*1500mm (customized)
Max Lifting height10000mm (customized)
Self height≤120mm
Platform Material100*50*4mm rectangular tube + 3mm checkered plate Q345B
Guardrail Height1000mm (customized)
Pump Motor2.2kw - 5kw
Lifting Chains16A
Safety RopeDiameter 10mm
Product Display

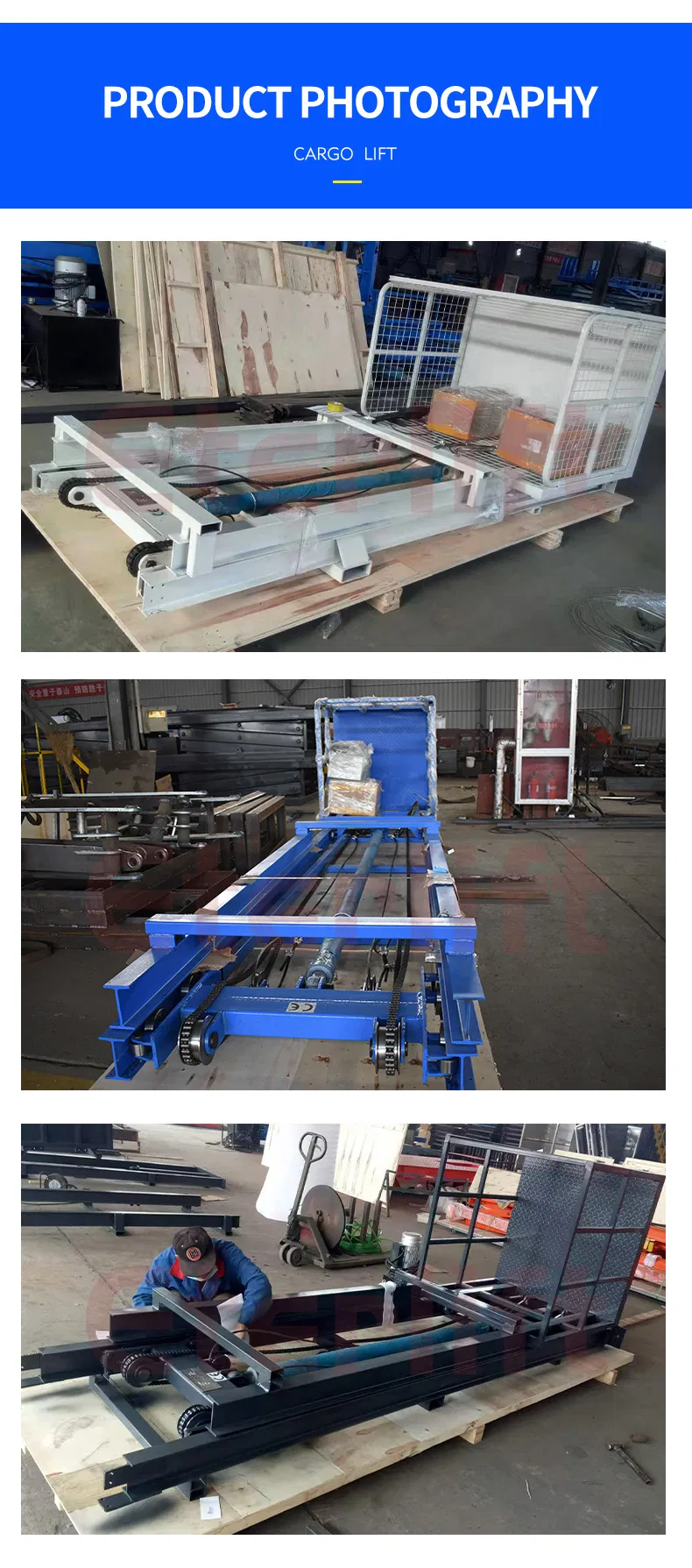

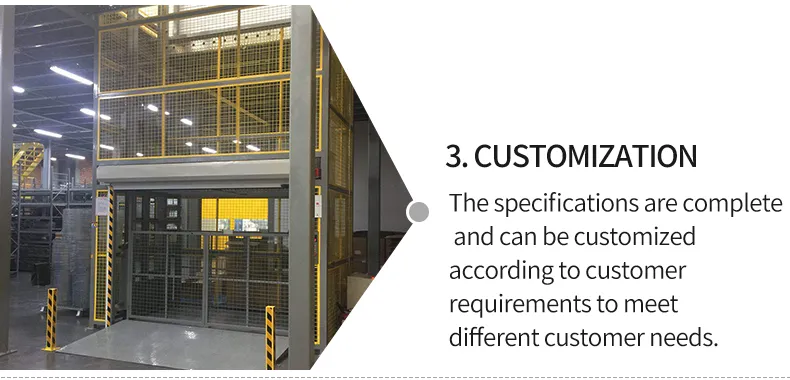

Lift Detail 1 Lift Detail 2 Lift Detail 3 Lift Detail 4 Lift Detail 5 Lift Detail 6
Mezzanine Lift Door Options

The doors of a mezzanine lift can be fixed to the platform in several ways to suit safety and usage requirements:

  • Hinged Doors: Fixed with heavy-duty hinges, available in single or double-leaf styles, equipped with safety interlocks.
  • Vertical Lift Doors: Operates using a counterweight or motorized mechanism, similar to roller shutters.
  • Folding Doors: Multi-panel design ideal for tight spaces where swinging is restricted.
  • Guillotine-Style Doors: Sections that counterbalance each other for high-security or dust-controlled environments.
Mounting & Safety Mechanisms
Frame Mounting: Attached directly to the main lift structure.
Guide Tracks: Used specifically for sliding and vertical movement.
Spring-Loaded: Ensures automatic closure for enhanced operator safety.
Safety Locks: Electromagnetic or pneumatic locks keep doors secured during operation.
Installation View Structure View Safety Components
Frequently Asked Questions
What is the maximum weight capacity of the cargo lift?
Our hydraulic cargo lifts can be customized to handle loads ranging from 100kg up to 10 tons, depending on your specific warehouse requirements.
Can the platform size be customized?
Yes, the platform dimensions (such as the standard 1500*1500mm) and lifting heights (up to 10,000mm) are fully customizable to fit your workspace.
What safety features are included in the design?
The system includes high-strength 16A lifting chains, 10mm diameter safety ropes, explosion-proof components, and optional interlocked guardrail doors.
What kind of power supply is required?
The lift operates on a hydraulic system powered by a 2.2kw to 5kw pump motor, suitable for heavy-duty industrial environments.
Is the lift suitable for outdoor use?
The lift is designed with high-quality Q345B steel and can be adapted for various environments, including warehouses, workshops, and building sites.
How is the product shipped?
To ensure maximum protection during transit, all components are securely packed in heavy-duty wooden boxes.
