Keg Lift
1 / 5

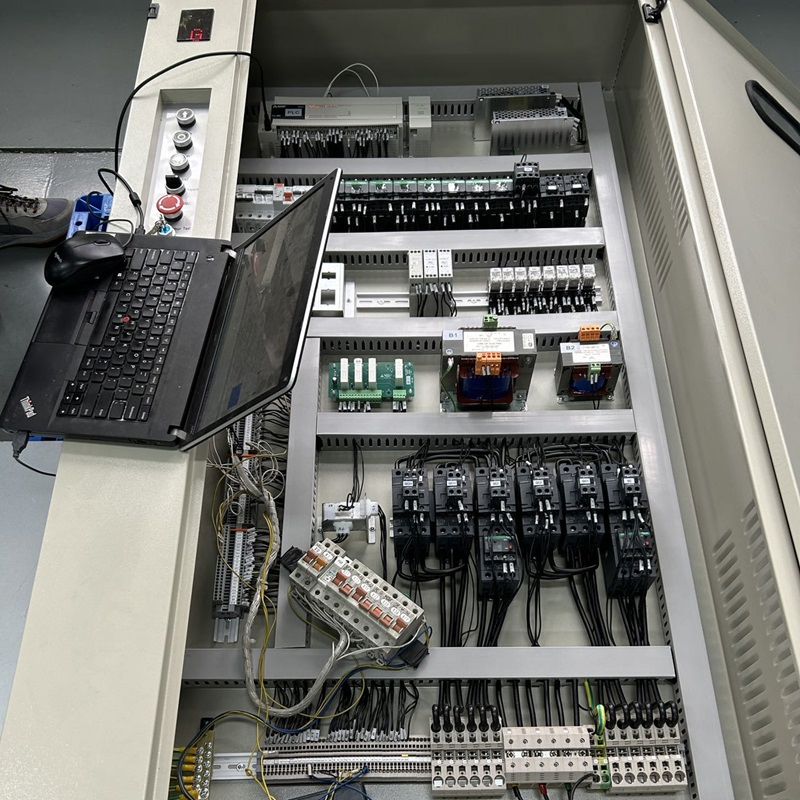

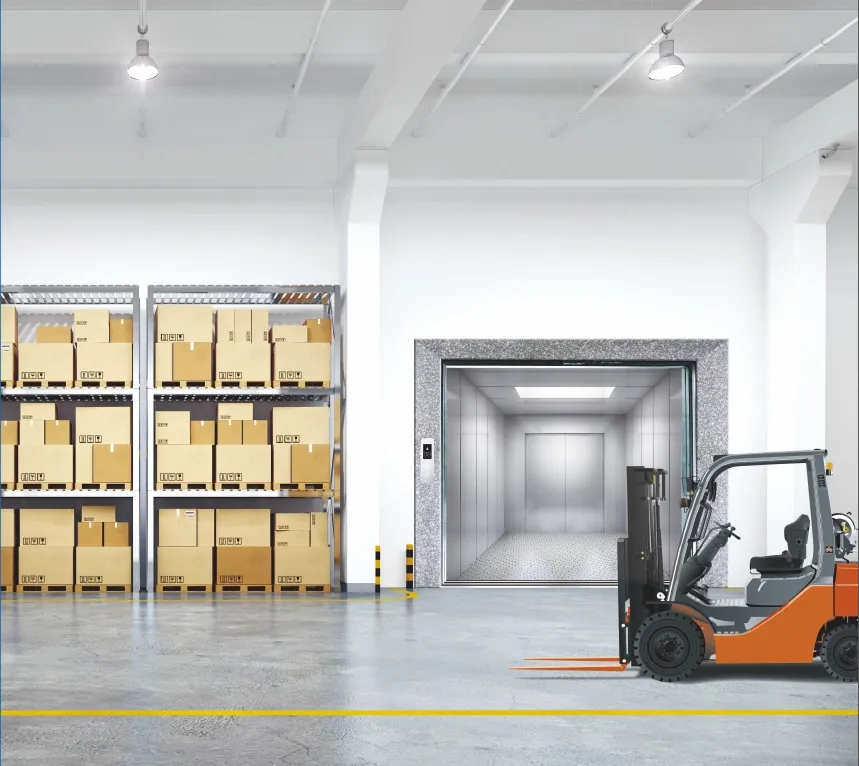

The freight elevator uses advanced microcomputer control technology and technology integration to greatly improve performance and quality while significantly reducing failure rates. Utilizing variable frequency electric drive technology, the elevator structure is simplified, making maintenance more convenient.
The optimized car design is spacious, economical, and practical, ensuring safe and reliable cargo transportation with large load capacity. It is ideal for factories, warehouses, shopping malls, and libraries.

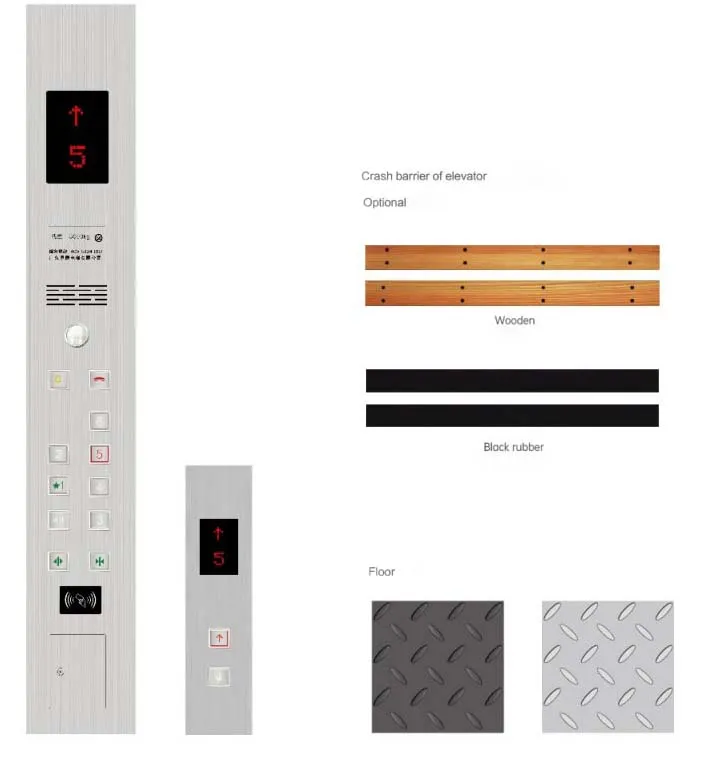

COP/ LOP

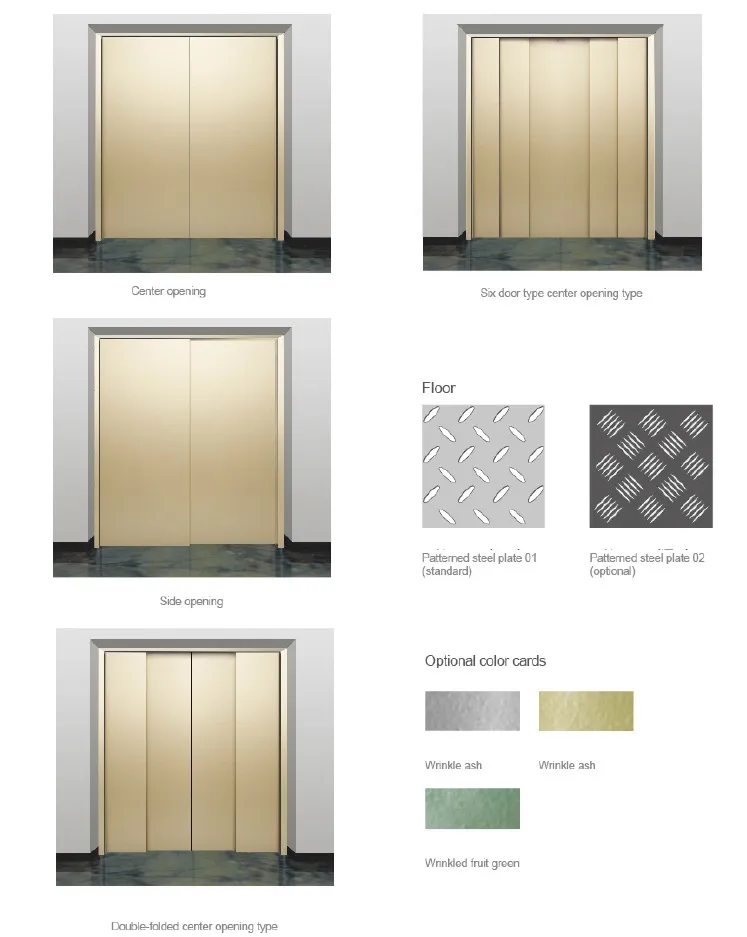

Landing Door

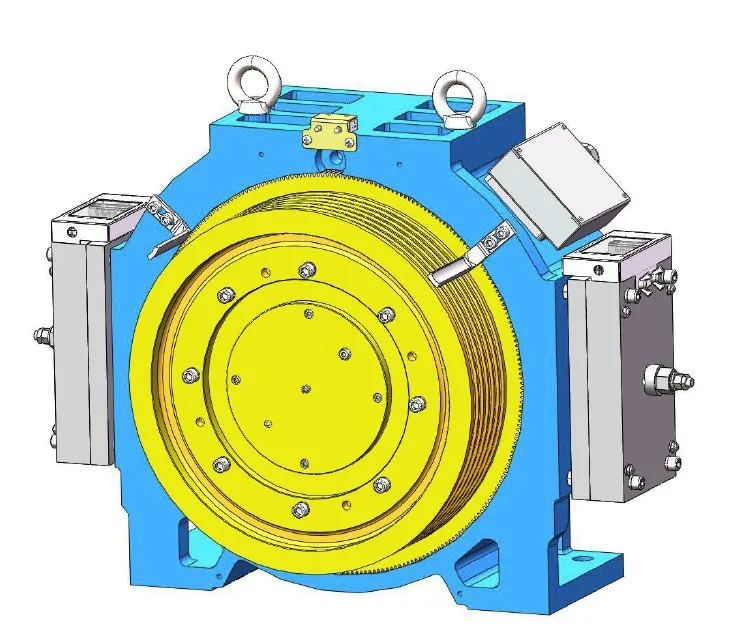

Traction System
The traction host of the TF1000 series freight elevator is designed for vertical logistics requirements. Vector closed-loop control technology ensures dynamic adjustment, smooth operation, and fast response speeds.
Energy Saving & Comfort
VVVF speed regulation technology saves nearly 40% energy compared to traditional AC technology. It provides constant torque characteristics, improving leveling accuracy and reducing operating noise regardless of the load.

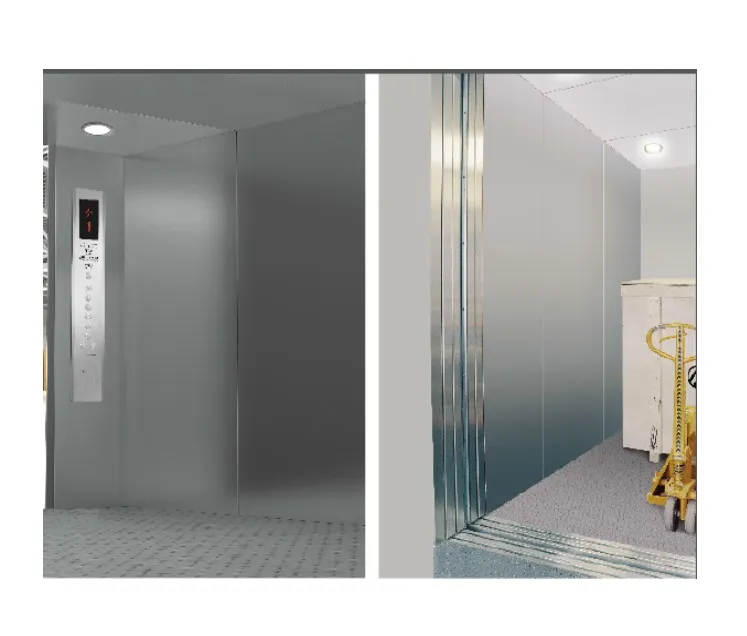

Sturdy Structure & Large Door Spacing

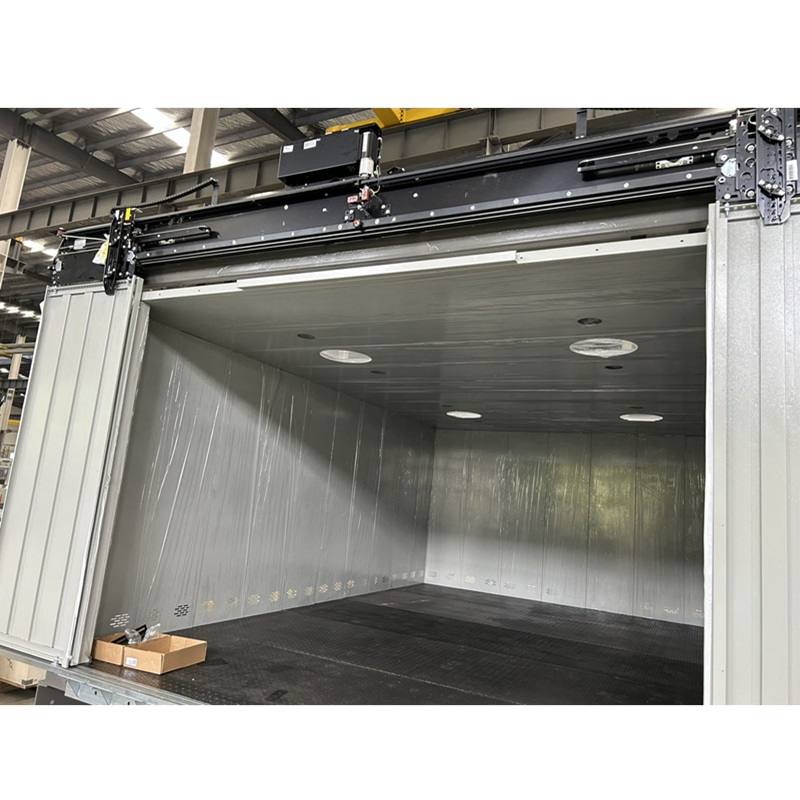

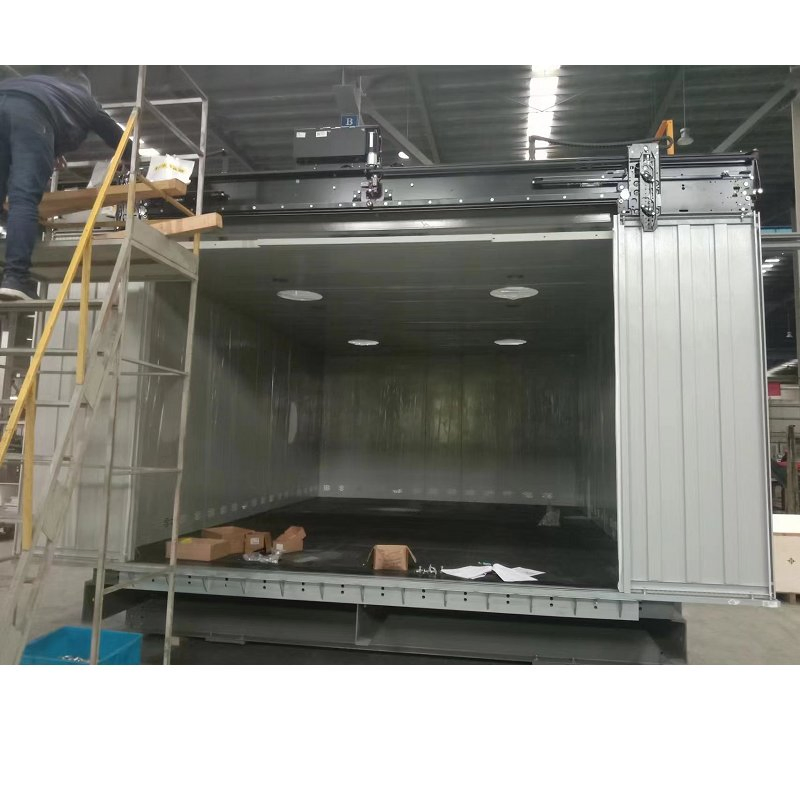

Multi-folding car doors achieve maximum opening width for large goods. The reinforced car bottom reliably bears heavy loads, supported by accurate weighing devices to prevent overloading.
Ideal for: Factories, museums, exhibition halls, auto shops, warehouses, and parking garages.
| Model | Capacity (kg) | Speed (m/s) | Car Size (CW*CD*CH mm) | Door Opening Size | Shaft Size | OH (mm) | PT (mm) | Power (kw) |
|---|---|---|---|---|---|---|---|---|
| F3000 | 1000 | 0.5-1.0 | 1400*1600*2200 | 1200*2100 | 2300*2200 | 4500 | 1500 | 7.5-11 |
| 2000 | 0.5-2.0 | 1900*2100*2200 | 1600*2100 | 2900*2700 | 4500-4800 | 1500-1800 | 11-18.5 | |
| 3000 | 0.5-2.0 | 2200*2500*2200 | 1700*2100 | 3300*3200 | 4500-4800 | 1500-1800 | 15-22 | |
| 4000 | 0.5-2.0 | 2500*2800*2200 | 2000*2100 | 4000*3500 | 4500-4800 | 1500-1800 | 18-35 | |
| TF3000 | 2000 | 0.5-1.0 | 1900*2100*2200 | 1600*2100 | 2900*2700 | 4500 | 1500 | 11-18.5 |
| 3000 | 0.5-1.0 | 2200*2500*2200 | 1700*2100 | 3300*3200 | 4500 | 1600 | 15-22 | |
| 5000 | 0.5-1.0 | 2800*3100*2200 | 2400*2100 | 4200*3800 | 4500 | 1800 | 18-35 | |
| F5000 | 8000 | 0.25-0.5 | 2800*4500*2200 | 2600*2100 | 4400*5200 | 4800 | 1800 | 30-45 |
| 10000 | 0.25-0.5 | 3000*5300*2200 | 2700*2100 | 4600*6000 | 4800 | 1800 | 30-45 |
