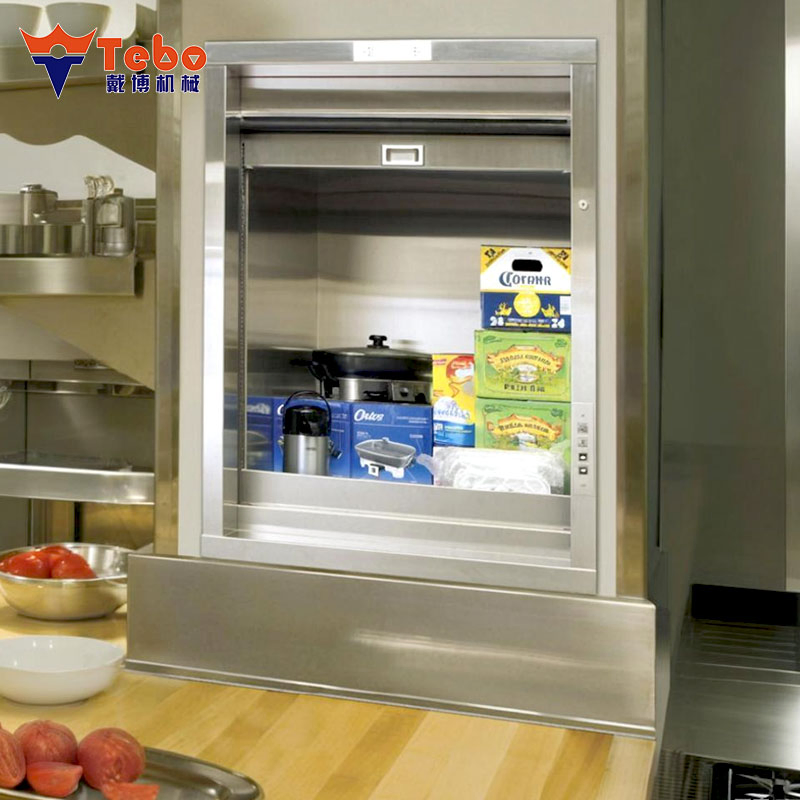

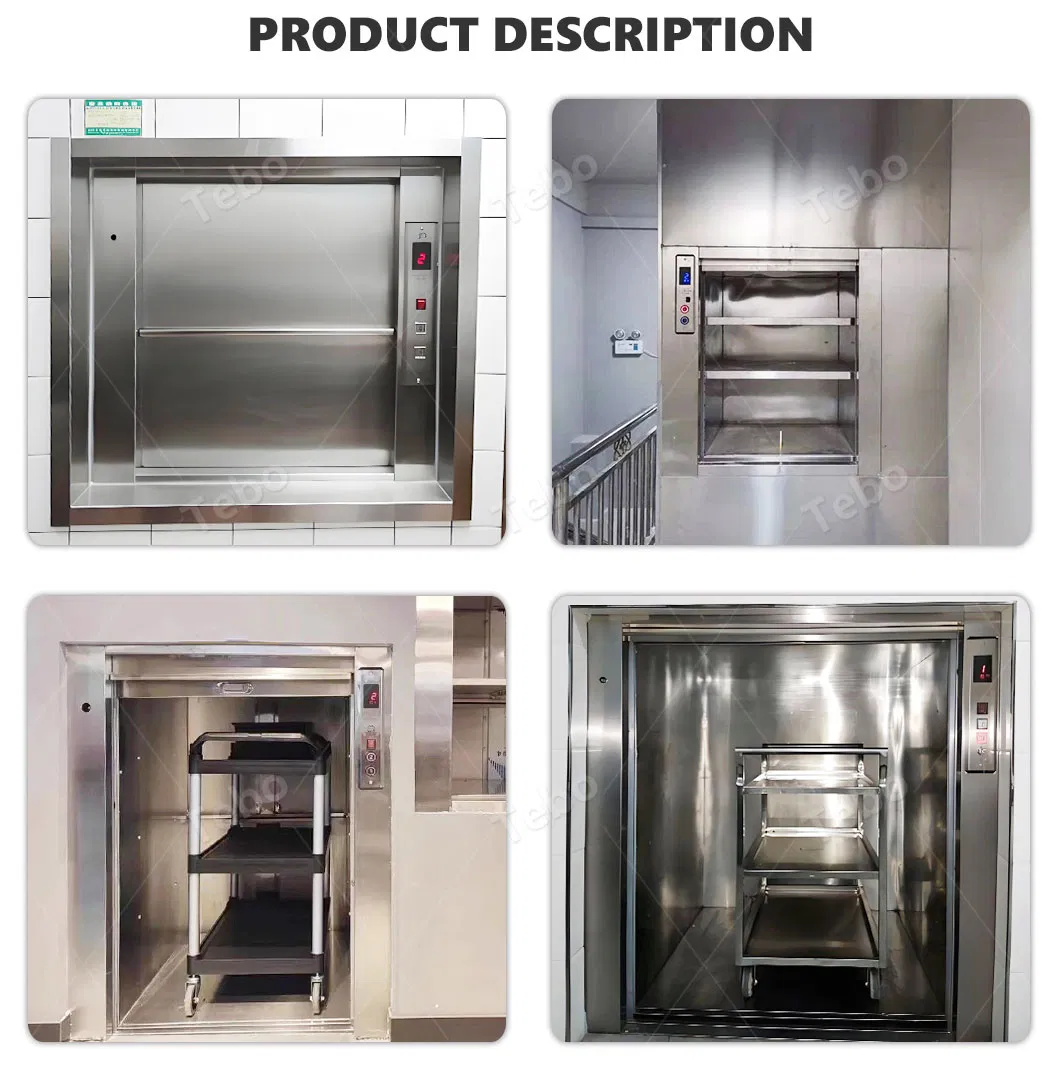

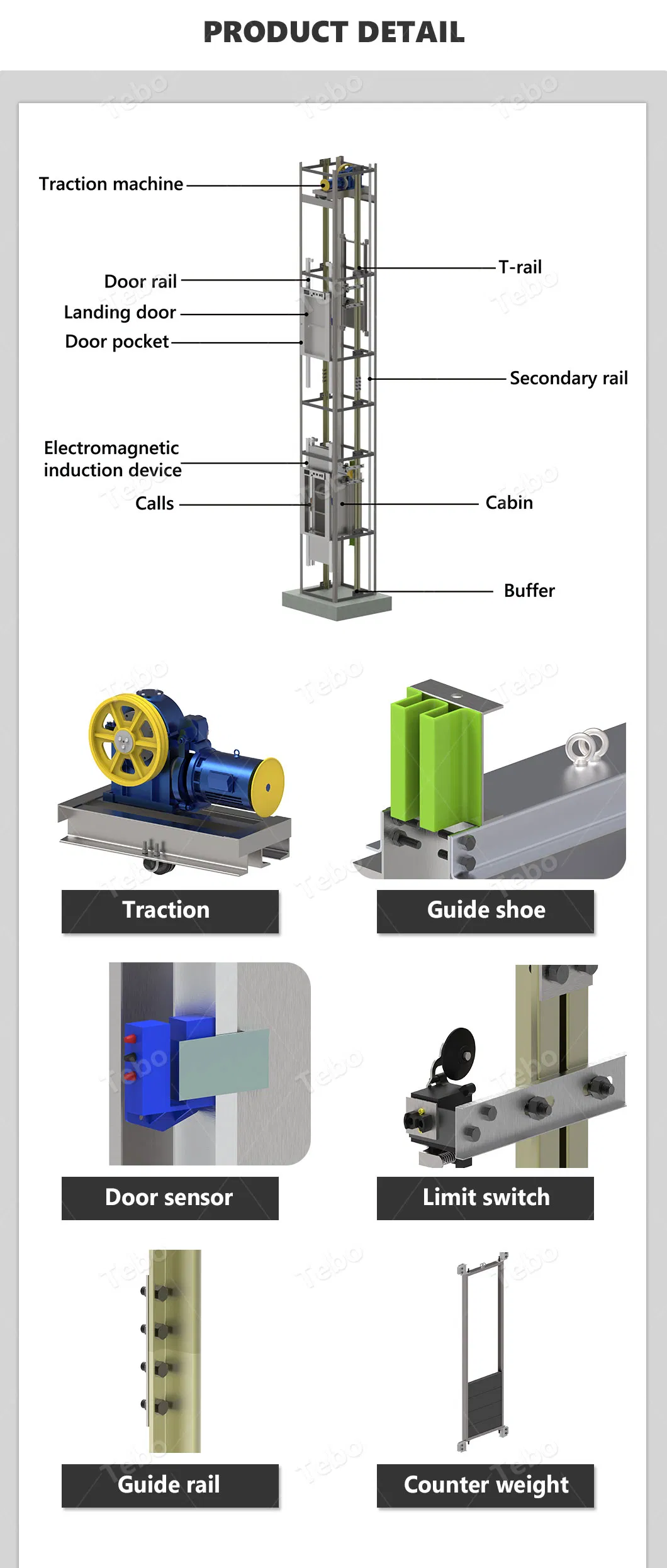

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel cabin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning. The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings.
Primary Advantage: A dumbwaiter significantly improves the efficiency of food delivery between floors, making service flow smoother during peak hours. Driven by a traction motor, it provides stable vertical transportation and quickly delivers dishes, drinks, and supplies, reducing staff workload and preventing manual spills or contamination.

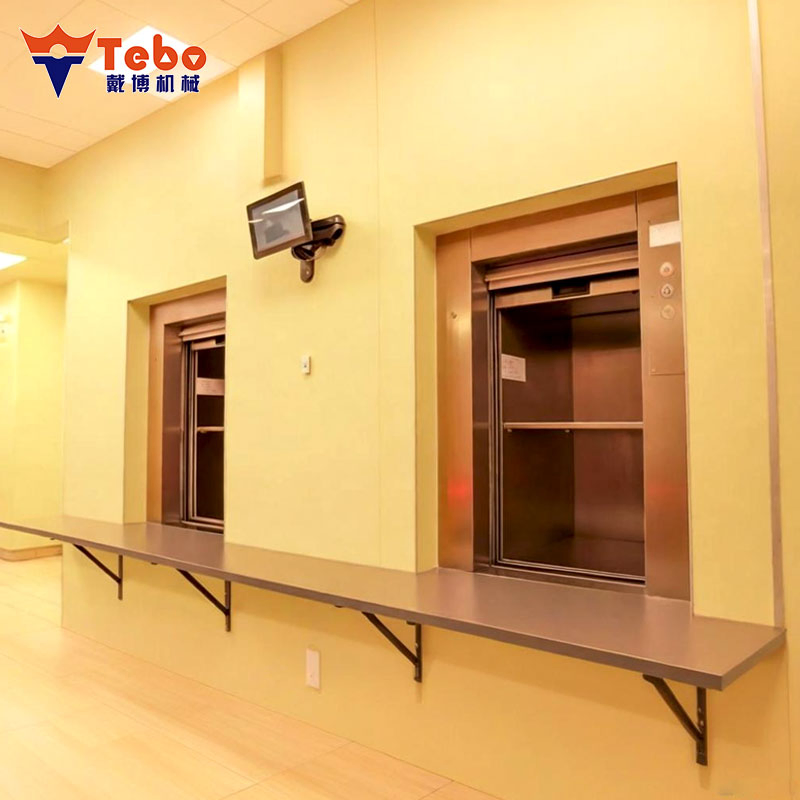

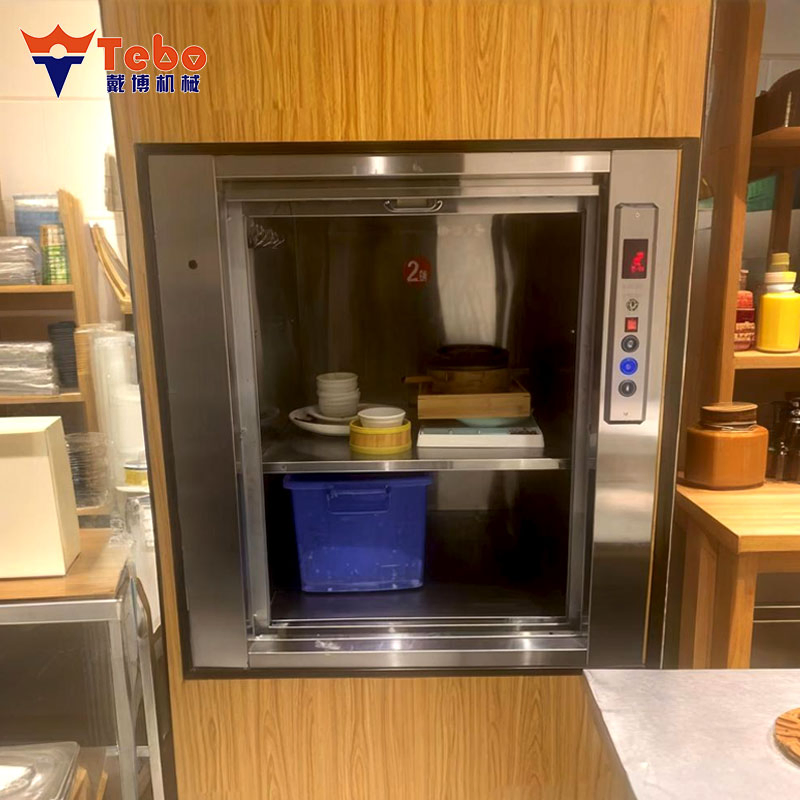

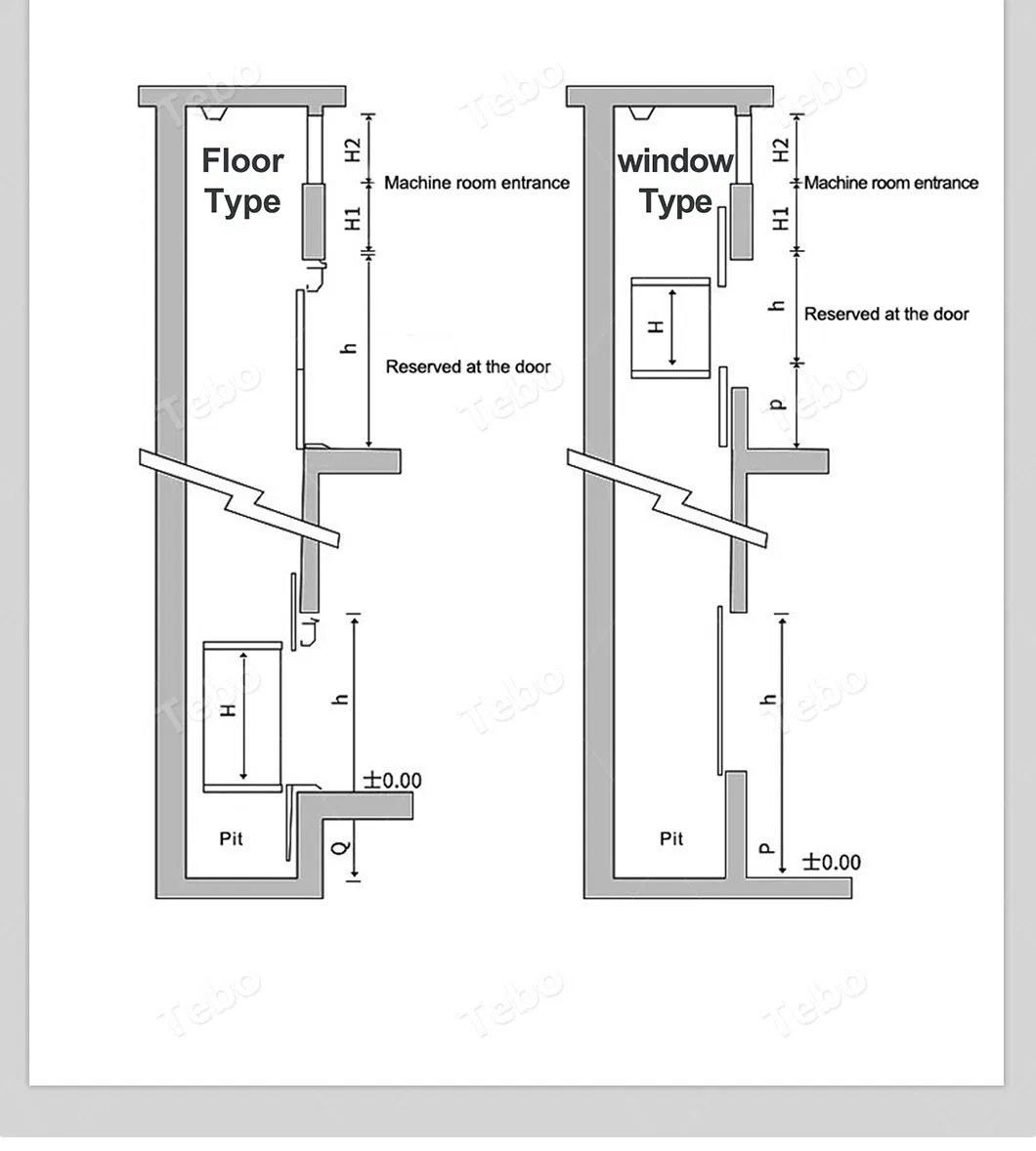

| Window Type Configuration | |||||||
|---|---|---|---|---|---|---|---|
| Type | Load (kg) | Cabin Size W*D*H (mm) | Landing Door | Cabin Door | Door Size W*H (mm) | Sill Height | Overhead Height |
| Window Type | 100 | 600*400*800 | Standard | Optional | 600*800 | 800 | 2800 |
| Window Type | 100 | 600*600*800 | Standard | Optional | 600*800 | 800 | 2800 |
| Window Type | 200 | 800*800*1000 | Standard | Optional | 800*1000 | 800 | 3000 |

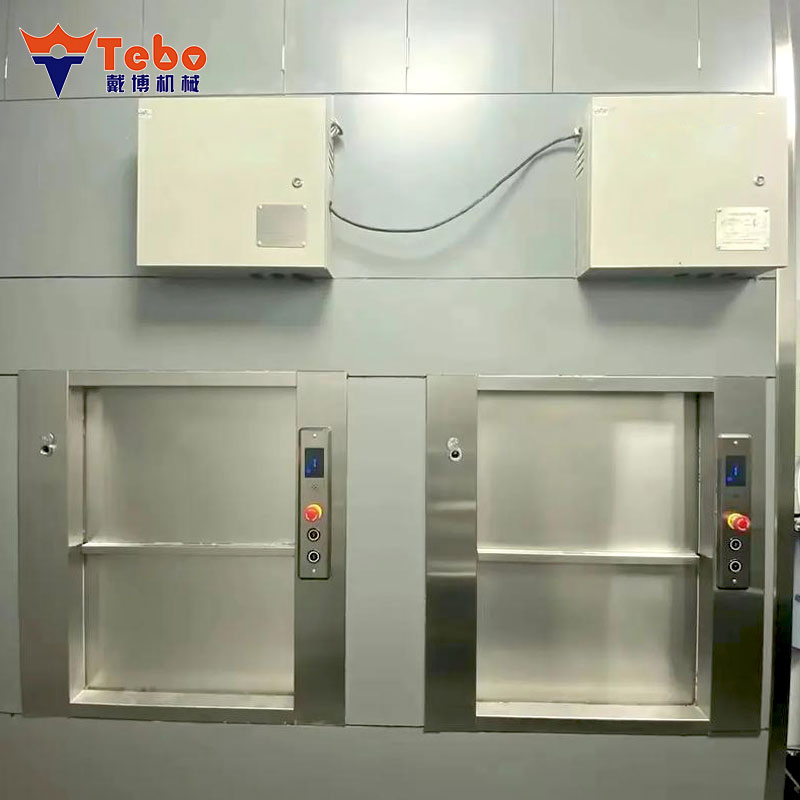

| Floor Type Configuration | |||||||
|---|---|---|---|---|---|---|---|
| Type | Load (kg) | Cabin Size W*D*H (mm) | Landing Door | Cabin Door | Door Size W*H (mm) | Min Pit Depth | Overhead Height |
| Floor Type | 200 | 800*800*1000 | Standard | Optional | 800*1000 | 600 | 2800 |
| Floor Type | 300 | 1000*1000*1200 | Standard | Optional | 1000*1200 | 700 | 3200 |
| Floor Type | 400 | 1000*1200*1400 | Standard | Optional | 1200*1400 | 800 | 3600 |
Our enterprise specializes in the R&D and manufacturing of mechanical equipment. Our operational and production base is located in a well-connected industrial cluster. With an experienced and highly innovative technical team, we continuously optimize multiple product series, securing numerous independent intellectual property rights and patent technologies.
Equipped with advanced production facilities, including modern CNC machining centers and automated welding equipment, we ensure efficient production and rigorous quality control. We offer a comprehensive service system encompassing market analysis, product design, and customized manufacturing to deliver integrated lifting solutions.
