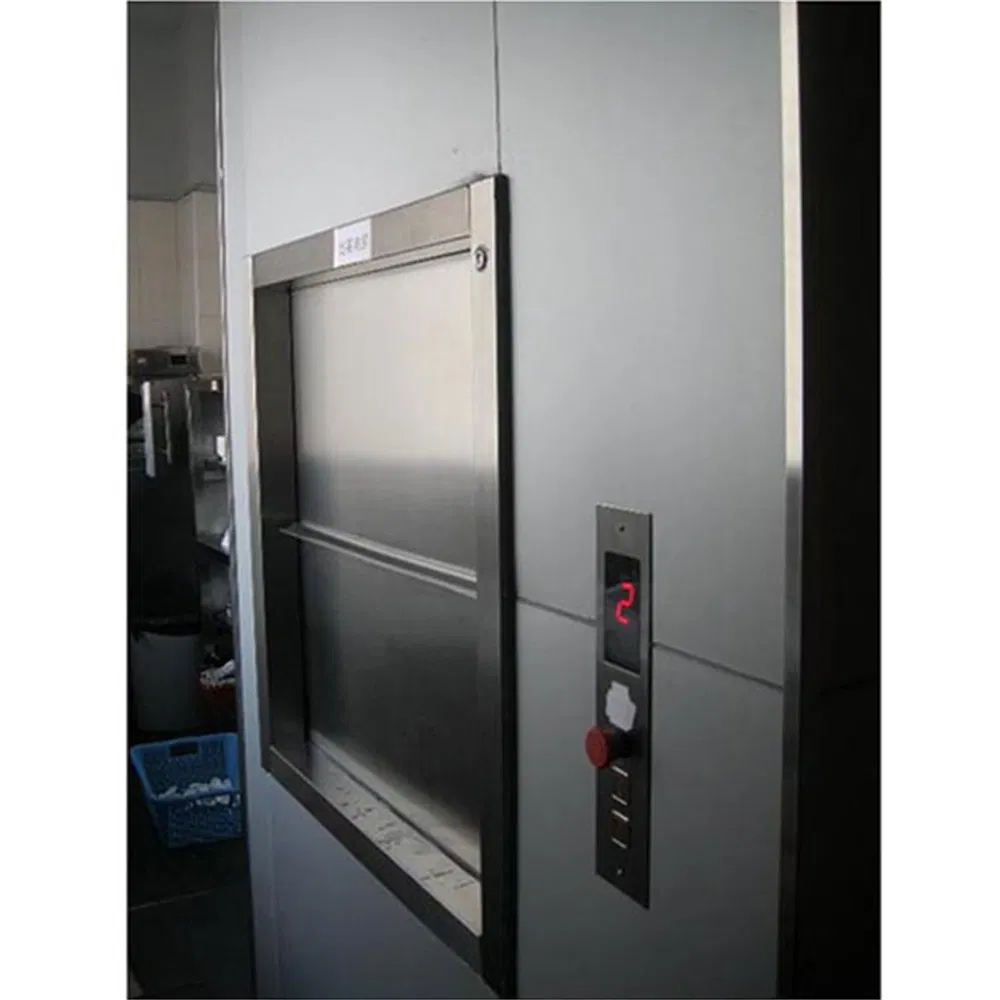

Dumbwaiter Elevator Lift 0.4m/S 50kgs Load

1 / 5

Dumbwaiter Elevator Lift 0.4m/S 50kgs Load

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	One Year

Send Inquiry

Product Description

Basic Info.

Model NO.

Dumbwaiter

Type

Food Elevator Dumbwaiter

Load Capacity

100kgs-300kgs

Speed

0.25-0.5m/S

Drive Mode

Open & Close Type

Manual

Lift Mechanism

Lift Chain

Guide Rail

T Guide

Shaft

Concrete or Steel Structure

Cabin

Painted, Stainless Steel

Origin

China

Production Capacity

5600 Units Per Year

Product Description

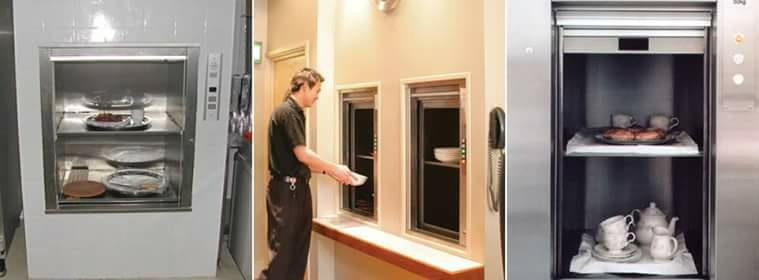

Food Elevator Dumbwaiter, Electric Restaurant Dumbwaiter

Basic Functions

✔Floor display

✔Open or closed state display

✔Key switch

✔Calling response

✔Running direction display

✔Overtime running protection

✔Trouble self diagnosis

✔Emergency stop switch

✔Motor overcurrent protection

✔Inspection operation

Product Parameters

Basic Specification: Capacity 100~300kgs, Speed 0.4m/s

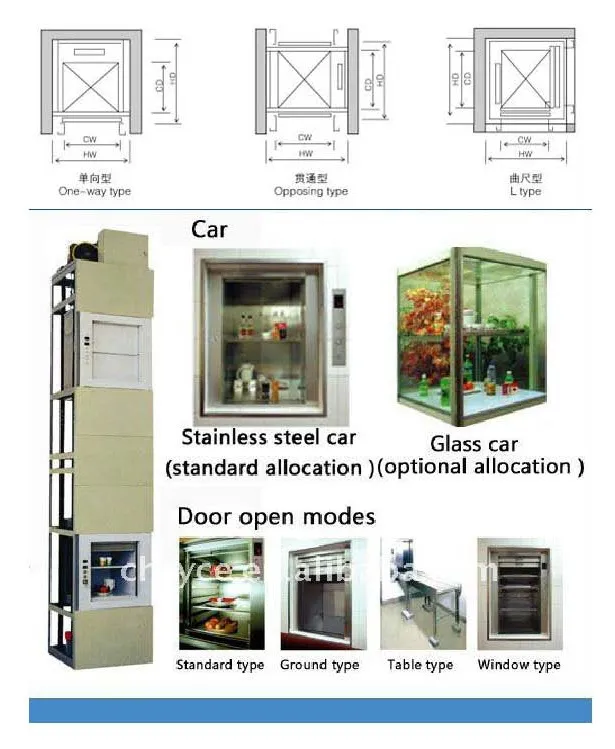

Load (kg)	Traction Power (kw)	Category	Car size (mm) (WDH)	Hoistway size (mm) (W*D)
100	1.1	Workable	700 * 700 * 800	1200 * 1000
200	1.5	Workable	800 * 800 * 900	1350 * 1100
200	1.5	Level ground type	900 * 900 * 1000	1500 * 1250
300	2.2	Level ground type	1000 * 1000 * 1200	1650 * 1350

Gallery & Information

Company Overview

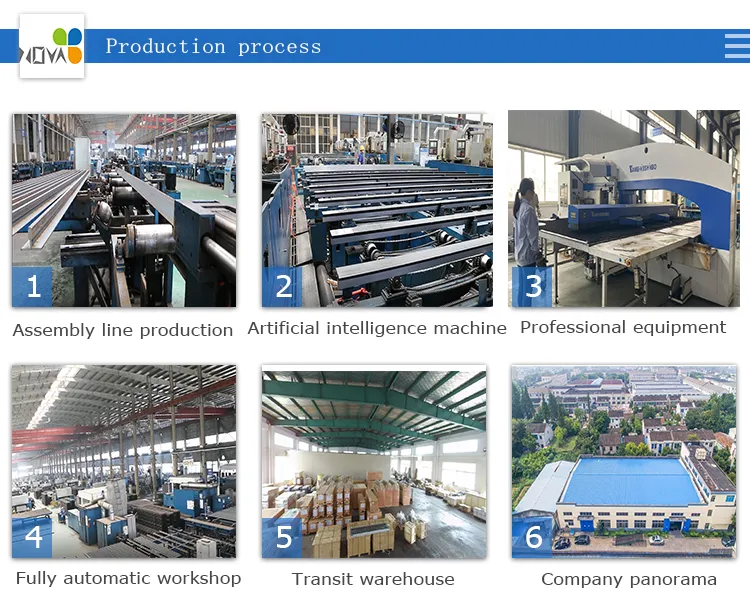

Factory Information

Certifications

Packaging & Shipping

Frequently Asked Questions

Q1: What is the maximum load capacity of your dumbwaiters?

Our standard dumbwaiter models support a load capacity ranging from 100kgs to 300kgs, suitable for various restaurant and hotel needs.

Q2: What materials are used for the cabin and door panels?

The cabins and door panels are available in both painted steel and high-quality stainless steel finishes to ensure durability and hygiene.

Q3: Are there different types of installations available?

Yes, we offer both "Workable" (counter-height) and "Level Ground" types to accommodate different architectural requirements.

Q4: What safety features are included in the food elevator?

Safety is a priority. Features include emergency stop switches, motor overcurrent protection, overtime running protection, and trouble self-diagnosis systems.

Q5: How is the running status of the elevator monitored?

The system includes a floor display, a running direction display, and indicators for the open or closed state of the doors.

Q6: What is the typical lead time and production capacity?

We have a robust production capacity of approximately 5,600 units per year, ensuring steady supply and export-standard packaging.
