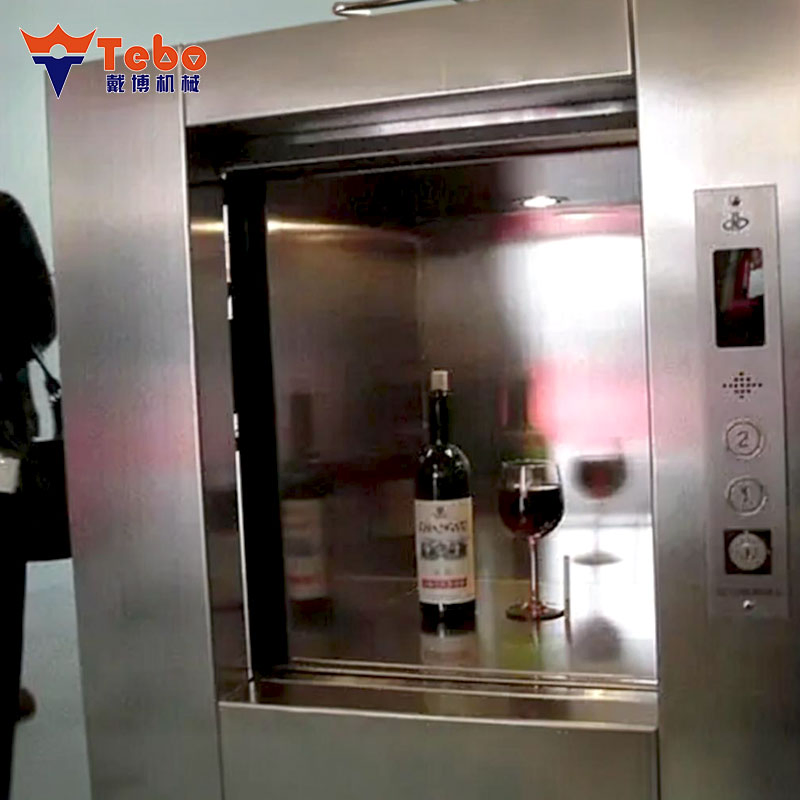

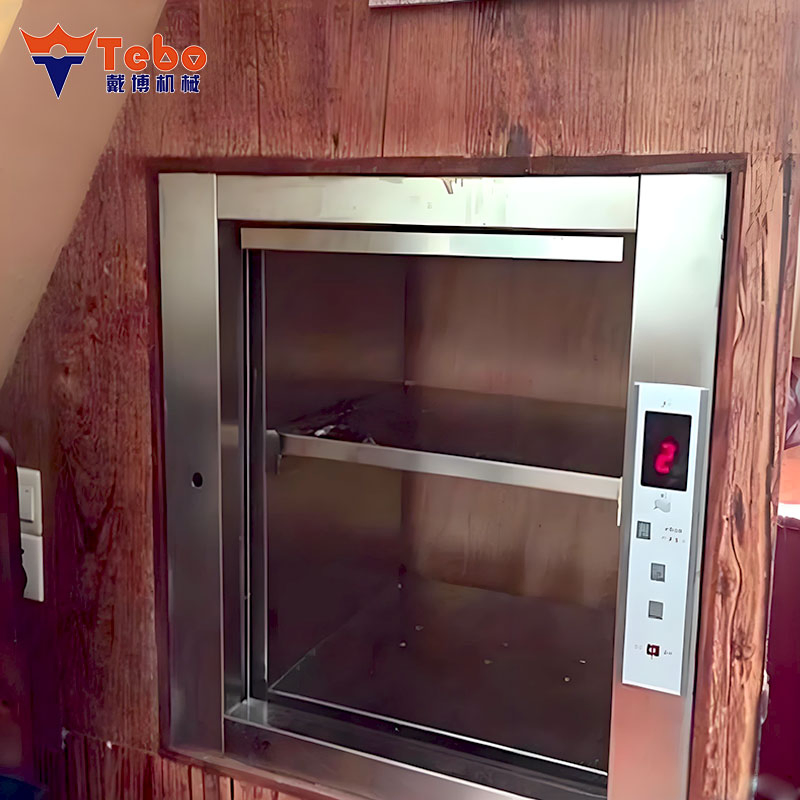

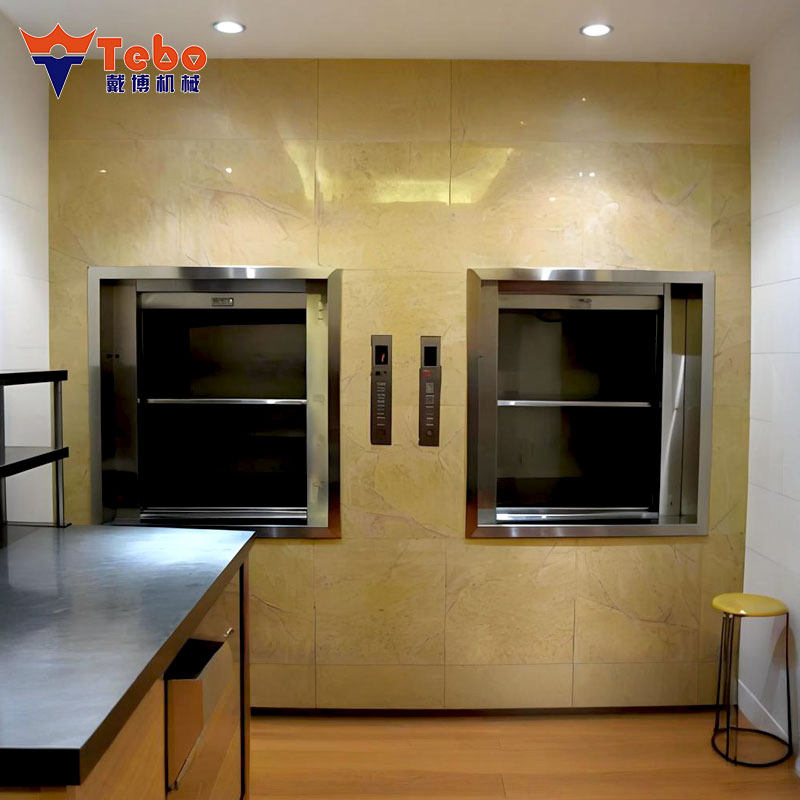

Durable Restaurant Dumbwaiter Lift Made of High Quality Steel for Food Service

📊

Basic Information

Model NO.

TBD-15

Type

Wellhole

Load Capacity

50kg-300kg

Speed

0.40m/s

Drive Mode

AC

Open & Close Type

Manual

Lift Mechanism

Telescoping Lift

Guide Rail

T Guide

Elevator Door

Center Opening Door

Production Capacity

1000 Sets/Year

🍴

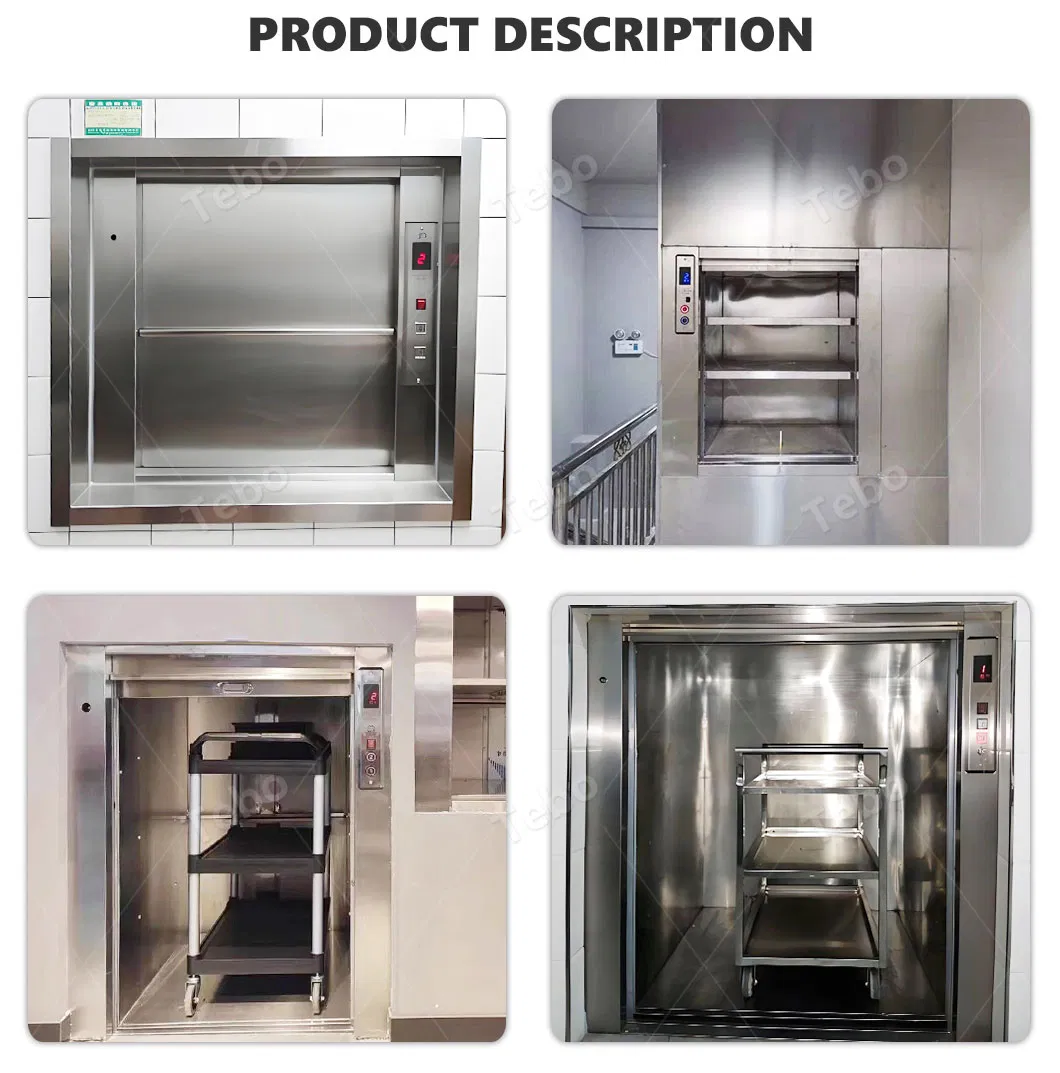

Product Description

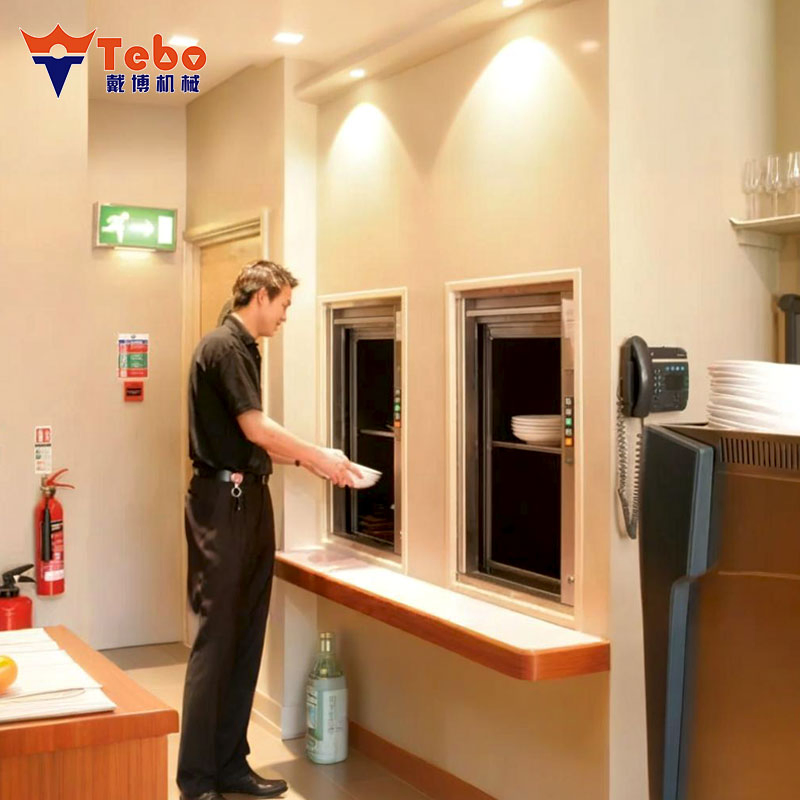

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel carbin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning. The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings.

Key Advantages:

High Efficiency: Quickly transfer dishes and beverages between floors.
Enhanced Hygiene: Enclosed design prevents contamination.
Safety: Includes door locks, anti-fall devices, and overload protection.
Space-Saving: Compact footprint adapts to kitchens with limited layout conditions.

📐

Technical Parameters

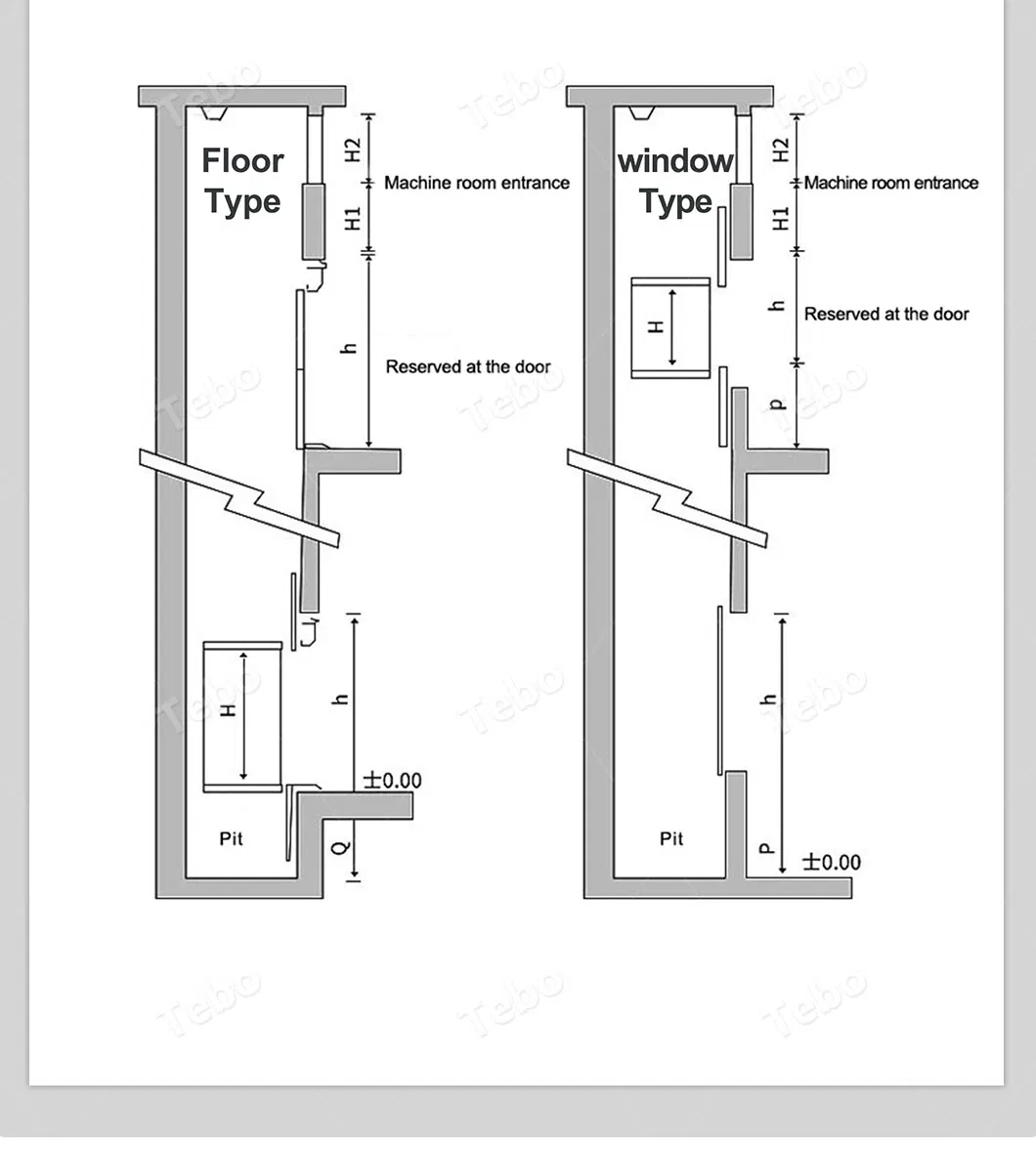

Window Type Parameters
Type	Load(kg)	Cabin Size (WDH mm)	Landing Door	Cabin Door	Door Size (W*H mm)	Sill Height	Overhead
Window	100	600400800	Standard	Optional	600*800	800	2800
Window	100	600600800	Standard	Optional	600*800	800	2800
Window	200	800800800	Standard	Optional	800*800	800	2800
Window	200	8008001000	Standard	Optional	800*1000	800	3000

Floor Type Parameters
Type	Load(kg)	Cabin Size (WDH mm)	Landing Door	Cabin Door	Door Size (W*H mm)	Pit Depth	Overhead
Floor	200	8008001000	Standard	Optional	800*1000	600	2800
Floor	300	100010001200	Standard	Optional	1000*1200	700	3200
Floor	400	100012001400	Standard	Optional	1200*1400	800	3600

🔍

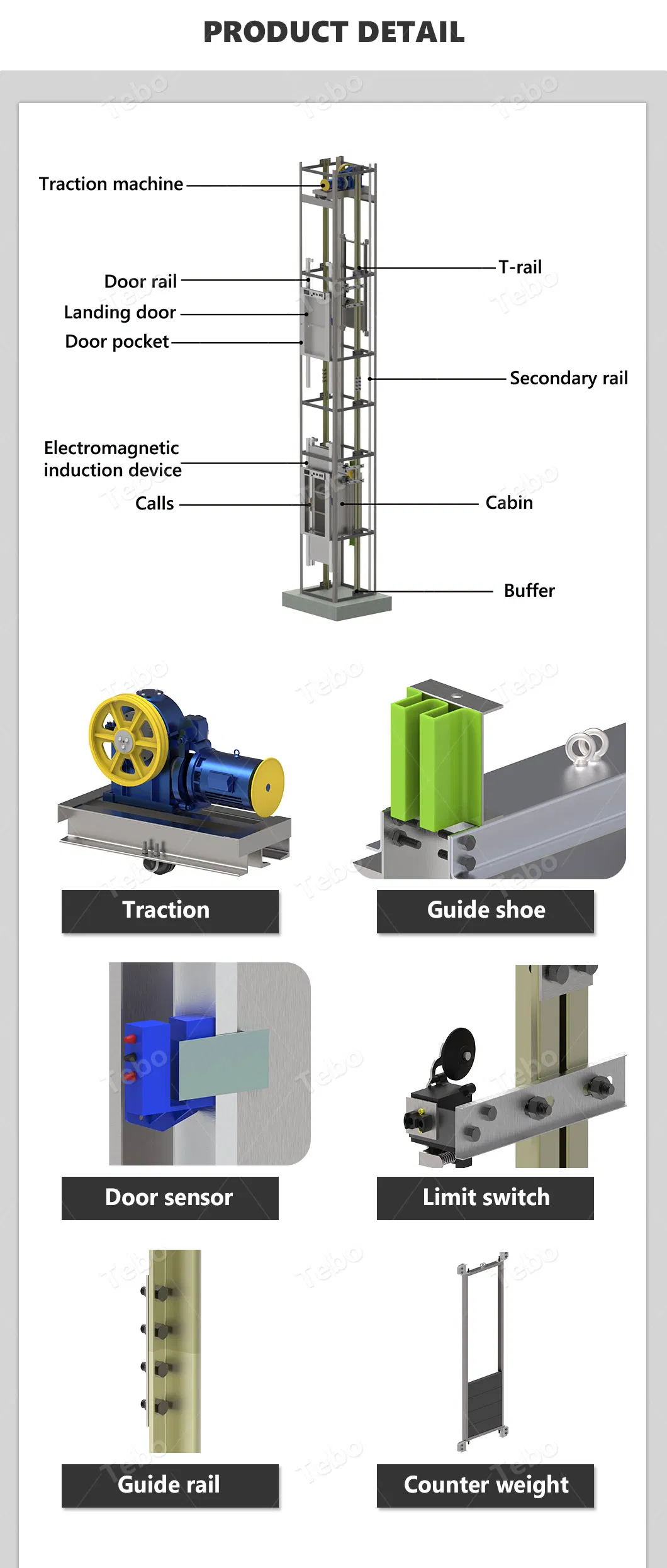

Product Details

🏢

Manufacturing & Quality

Our manufacturing base specializes in the R&D and production of mechanical lifting equipment. With an experienced technical team, we continuously optimize our product series, securing numerous independent intellectual property rights. We leverage advanced CNC machining centers and automated welding equipment to ensure precision and reliability.

📦

Certifications & Packaging

❓

Frequently Asked Questions

1. What are the main applications for this dumbwaiter lift?

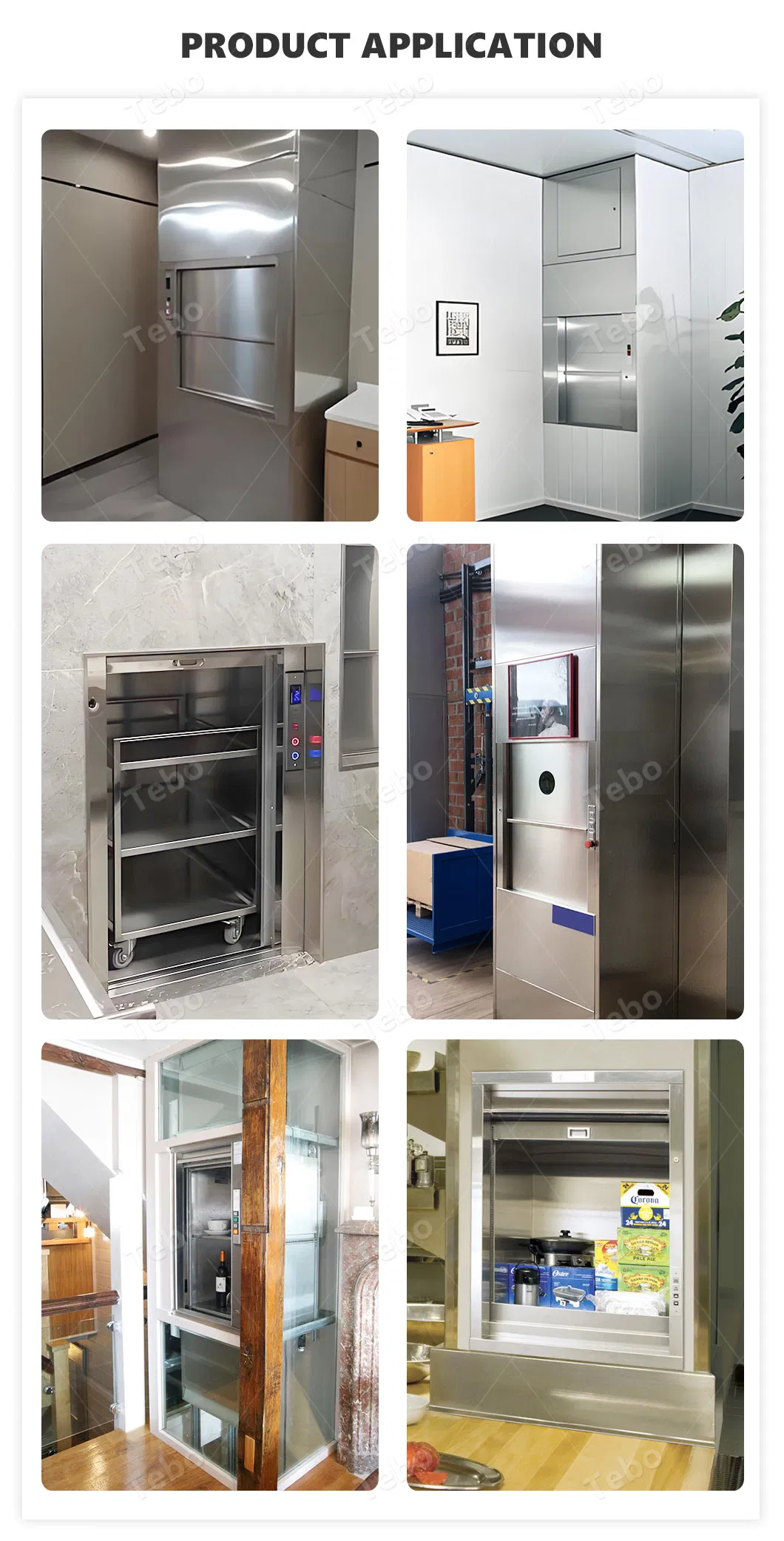

Our lifts are ideal for star-rated hotels, restaurants, cafés, school/corporate canteens, hospitals, and residential villas to transport meals, beverages, or small items.

2. Does the equipment support customization?

Yes, cabin dimensions, load capacity, overhead height, and door types (window or floor) can all be customized to fit your specific shaft size and architectural requirements.

3. What is the standard lead time for shipping?

Normally, production and shipping preparation take approximately 10 working days after receipt of payment, depending on the complexity of the customization.

4. How is the product protected during international transport?

We use standard export plywood cases to ensure maximum protection. Special shipping marks and reinforced packaging can be provided upon request.

5. What kind of after-sales support do you provide?

We offer a 12-month warranty. We also provide detailed assembly and installation manuals with clear drawings, and our technical team is available to answer any operational queries via email within 2 hours.

6. What are the standard payment terms?

Orders require payment before production begins, with the remaining balance due before delivery. We support standard international trade terms including EXW, FOB, CFR, and CIF.
