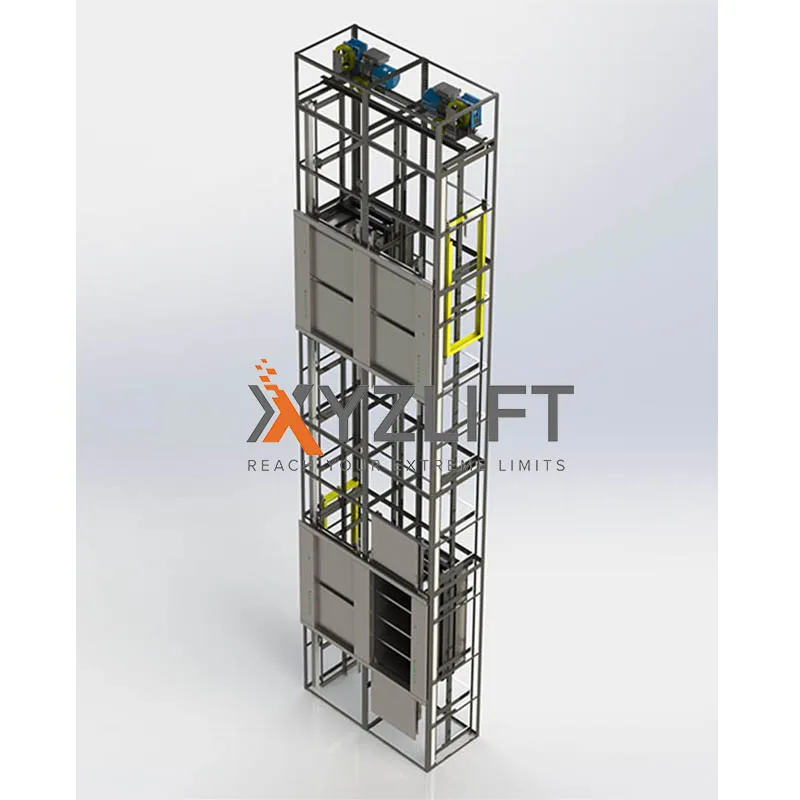

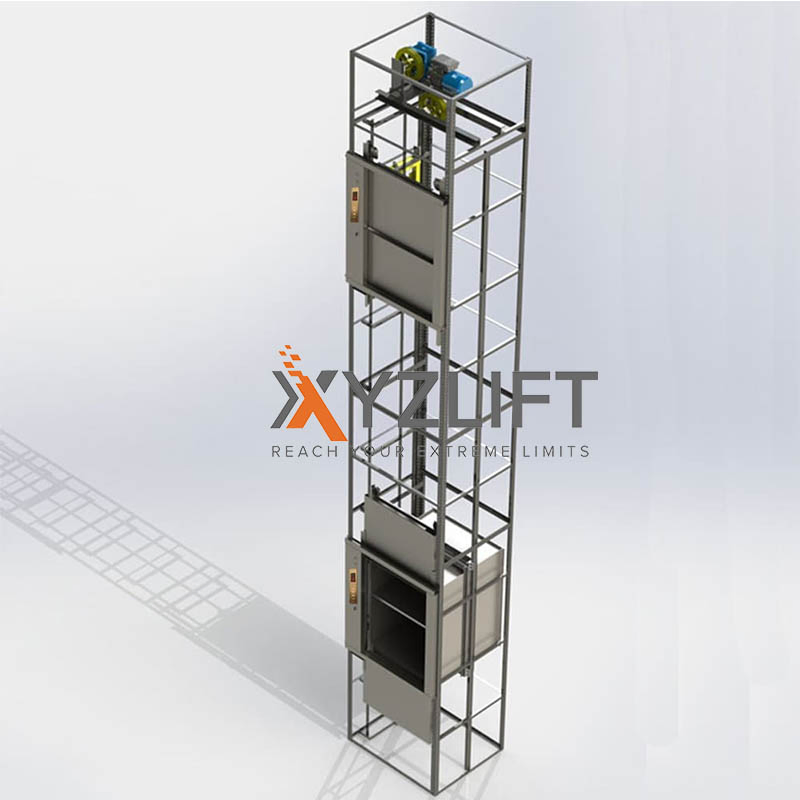

Factory Price Dumbwaiter Make Restaurant More Efficient

1 / 5

Factory Price Dumbwaiter Make Restaurant More Efficient

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.	XYZD-2
Type	Wellhole and Derrick
Load Capacity	200kgs
Speed	0.40m/s
Drive Mode	AC
Open & Close Type	Manual
Lift Mechanism	Traction
Guide Rail	T Guide
Elevator Door	Sider Door
Applicable Industries	Restaurant, Hotels, Warehouse, Bank, Childcenter
Certification	CE, ISO 9001
Tailor-Made Service	Yes
Production Capacity	1000 Units/Year

Product Description

Factory Price Dumbwaiter Make Restaurant More Efficient

The dumbwaiter is the perfect partner for transporting small items between floors safely, easily, and silently. It represents an excellent investment for both commercial and residential properties, being affordable in price and simple to install.

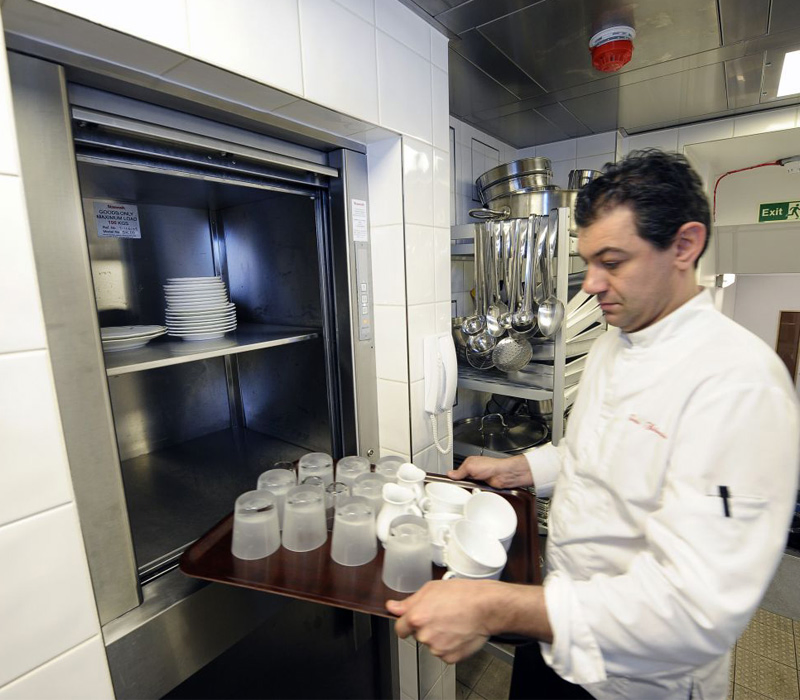

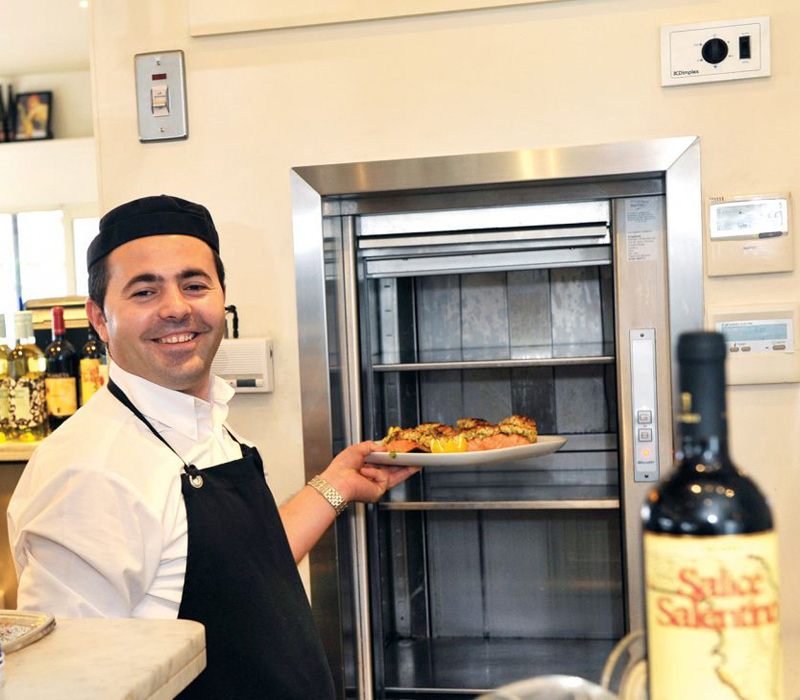

A variety of settings greatly benefit from this type of lift, including hotels, restaurants, pubs, clubs, care homes, hospitals, banks, and educational institutions. Our dumbwaiter lifts are designed to enhance efficiency and service quality across these diverse environments.

Key Features:
• Lifts up to 500 kg.
• Reaches up to 19 floors.
• Speed: 0.4-1.0 m/s.

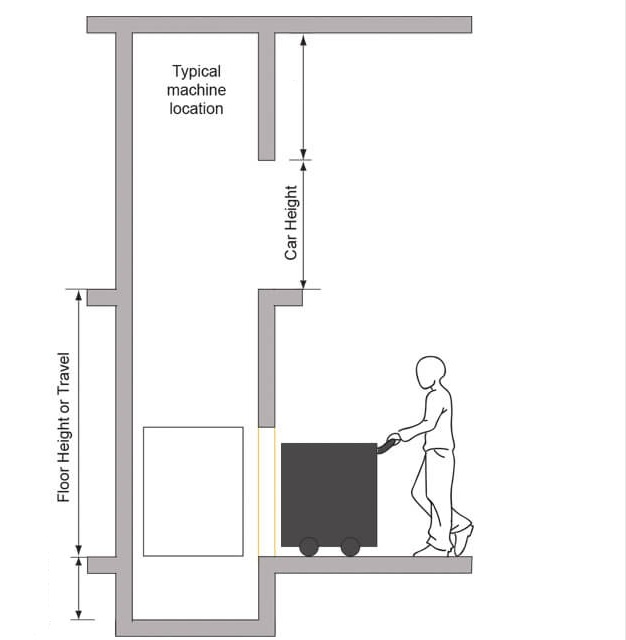

• Reverse and ground load options.
• Designed for tight spaces.
• Customizable to your needs.

Product Parameters

Parameter	Specifications
Installation Site Size	1200*1200mm
Car Size	800800800mm
Door Opening	Single opening
Doors	Bi-parting Stainless Steel
Floor Height	3000mm
Sill Height	800mm
Speed	0.4m/s
Controls	Automatic push buttons, call & send. Car position indicator, in use indicator, door open signal & arrival buzzer

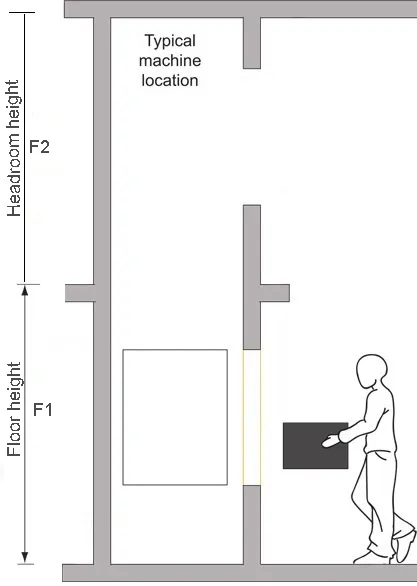

Customize Service	Lifting height, cabin size, and door orientation can be customized.

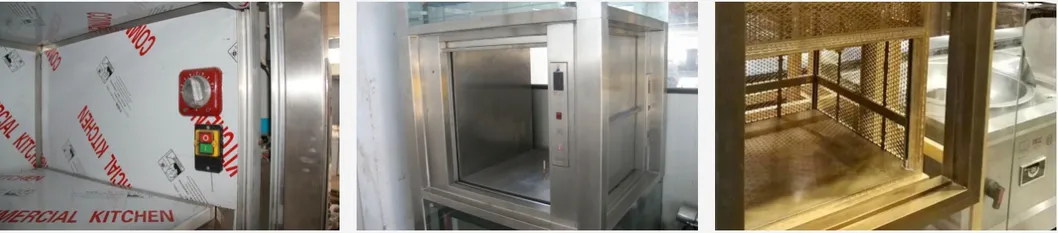

Options for Better Experience

We understand unique requirements for different environments:

1. Thermal Insulation: For food transport in cold environments.
2. Multi-Door Access: Two doors at one floor level for better workflow.
3. Luxury Appearance: Custom finishes such as copper plating.
4. Landing Doors: Automatic landing door, swing door, or roller door options.

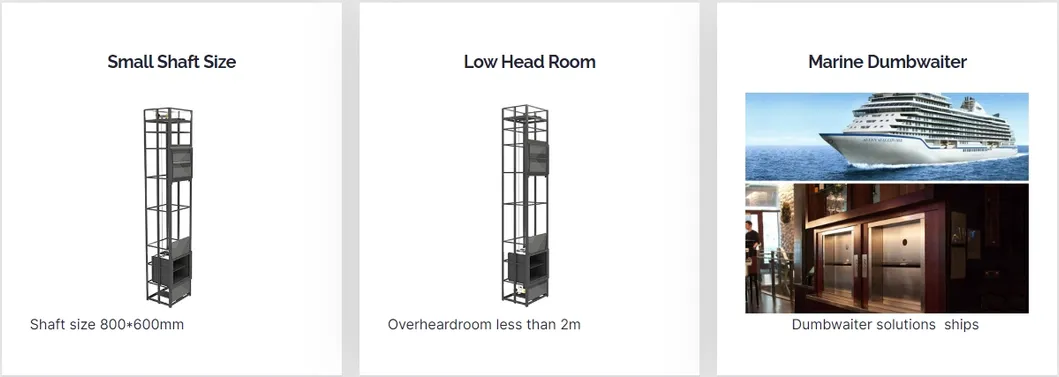

Challenging Issues Encountered

No matter what challenging issues you encounter: no pit, small hoistway, limited overhead space, or the need for highly stable marine dumbwaiters, our experienced technical team provides satisfying solutions.

Installation Instructions

Each unit comes with an installation manual and video. Our technical team is committed to providing resolutions within 2 hours for any installation challenges.

Connect Stand Columns and Shaft Beams: Secure on a level foundation.

Connect Guide Rails: Attach inside shaft beams; ensure vertical alignment.

Motor Installation: Install at the top or in a motor room.

Counterweight Installation: Set up frame and connect to cabin via pulley.

Fix Cabin and Guide Shoes: Align with guide rails for smooth movement.

Fix Cabin Door: Install and align for proper operation.

Fix Landing Doors: Ensure secure locking and alignment.

Buffers Installation: Place at the bottom to absorb impacts.

Fix Leveling Parts: Install limit switches for safety.

Electric Controller: Set up the management system and connections.

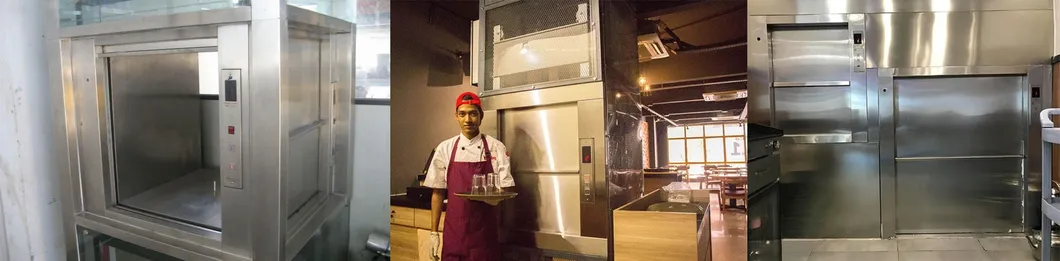

Project Show

Our dumbwaiters are suitable for houses, villas, child centers, banks, factories, or warehouses. Our agents worldwide can provide measurement and planning services.
