Product Description
About car elevator
Intelligent automobile elevator introduced the well-developed international automobile elevation technology. Automobile elevator has been developed and manufactured through absorption, conversion and enhancement. Advanced technology removes bad factors of shaking car, noise out of burdened traction system, and uneven force to elevator car. It optimizes the characteristics of the product series.
After-Sales Service Support
- Factory provides installation manuals for technical staff.
- Remote guidance available for accurate commissioning.
- On-site engineers can be sent for special installation requirements.
- Agents are welcome to send technicians to the factory for inspection.
How to report problems
- Provide the factory number or contract number for quick solutions based on product specifications.
- Contact via email or phone for immediate assistance.
Features of car elevators
- Designed for rapid load changes and non-uniform stress adaptation.
- Dual control button boxes allow operation without leaving the vehicle.
- Rated load capacity over 3 tons with spacious car area for various vehicles.
- Front and rear through-door configuration for easy entry and exit.

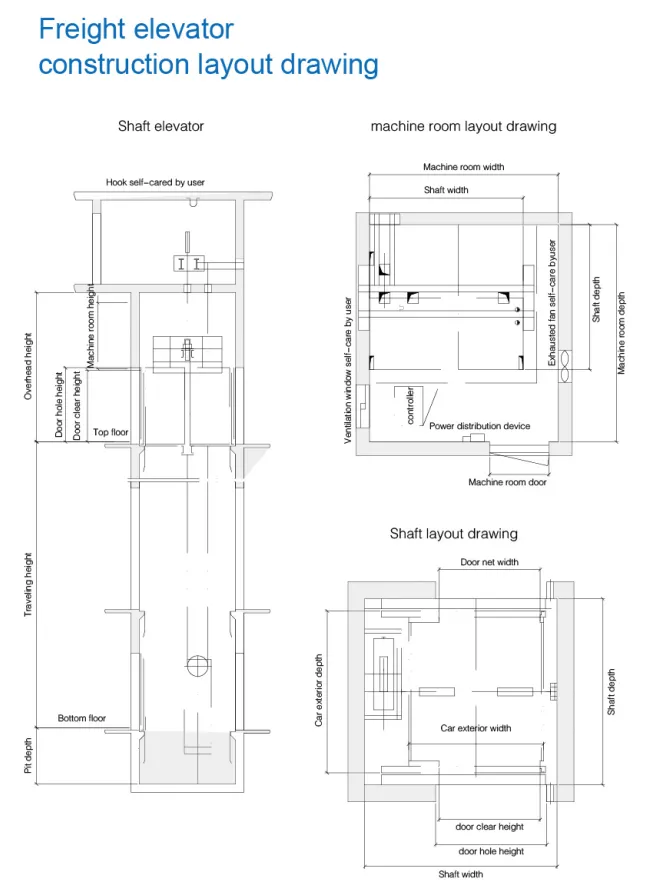

Car elevator parameters
| Capacity(KG) |
Speed(m/s) |
Car Size (WxDxH)mm |
Door Opening(WxD)mm |
Shaft Size(WxD) |
OH(mm) |
Pit Depth(mm) |
| 3000 | 0.25/0.5 | 2700x5800 | 2400x2200 | 4100x6160 | 4800 | 1600 |
| 5000 | 0.25/0.5 | 3500x7200 | 2600x2200 | 4750x7560 | 4800 | 1600 |
Standard Functions
| 1 | Automatic stop | 16 | Anti-mischief function |
| 2 | Self-diagnostic of call button embedding | 17 | Auto-running of full-load |
| 3 | Car ventilation, light shut off automatically | 18 | Press hall button for re-opening |
| 4 | Repeat open/close door | 19 | Door load sensor |
| 5 | Infrared Light curtain protection | 20 | Arrival tip |
| 6 | Fire running function | 21 | Self-diagnostic of elevator fault |
| 7 | Automatic lock/unlock the door | 22 | Current floor automatic opening of call |
| 8 | Terminal landing speed-adjustment | 23 | Terminal landing prevention of offside |
| 9 | With/without driver operate | 24 | Overhaul running operation |
| 10 | Drivers choose orientation function | 25 | Auto- stop and rescue fault |
| 11 | Overload voice-light alarm | 26 | The protection of high speeding |
| 12 | The preventation of no-stopping | 27 | Self-save information data |
| 13 | The record of current floor calls | 28 | Automatic function of directional |
| 14 | Internal auto-response | 29 | Power-fail data protection |
| 15 | Running signal fault protection | 30 | Five-party interphone |

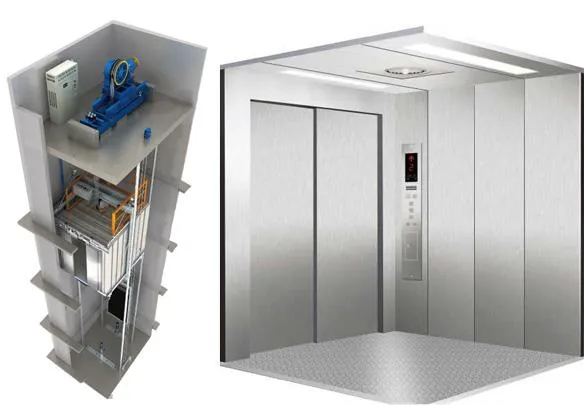

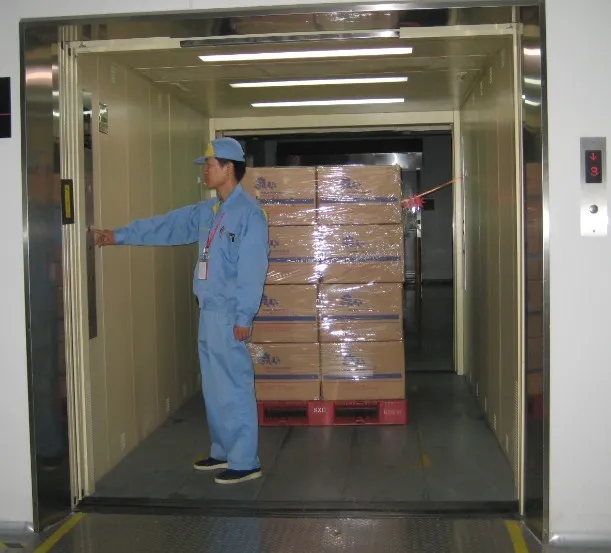

Handles heavy loads with ease
Outstanding structure and high-strength car design make these elevators superiorly applicable for various environments, including factories, production lines, exhibition halls, warehouses, and shopping centers.
Safety guarantee, stable transport
Proper door-closing times are set according to goods category to protect passenger and cargo safety. Equipped with a specially designed shock-absorbing mechanism, the elevator ensures secure and comfortable operation. High-strength materials prevent deformation even under heavy loads, supported by a doubled consolidation car bottom design.
Frequently Asked Questions
What is the maximum load capacity for the car elevator?
The standard load capacity ranges from 1000kg to 5000kg, designed to accommodate various vehicle types and heavy freight.
How long does it take to produce and deliver an elevator?
The standard production time is within 25 to 30 days, ensuring a balance between manufacturing quality and timely delivery.
Can the elevator be installed without a machine room?
Yes, we offer both Machine Room (MR) and Machine Roomless (MRL) configurations to suit different architectural requirements.
What safety features are included as standard?
Standard safety features include infrared light curtain protection, overload voice-light alarms, self-diagnostic fault systems, and terminal landing speed adjustment.
Do you provide technical support for installation?
We provide comprehensive installation manuals, remote technical guidance, and can dispatch engineers to the site for complex installation projects.
How does the elevator handle uneven vehicle weight?
The car structure is engineered with high-strength section materials and a doubled consolidation design at the bottom to bear uneven force without deformation.
