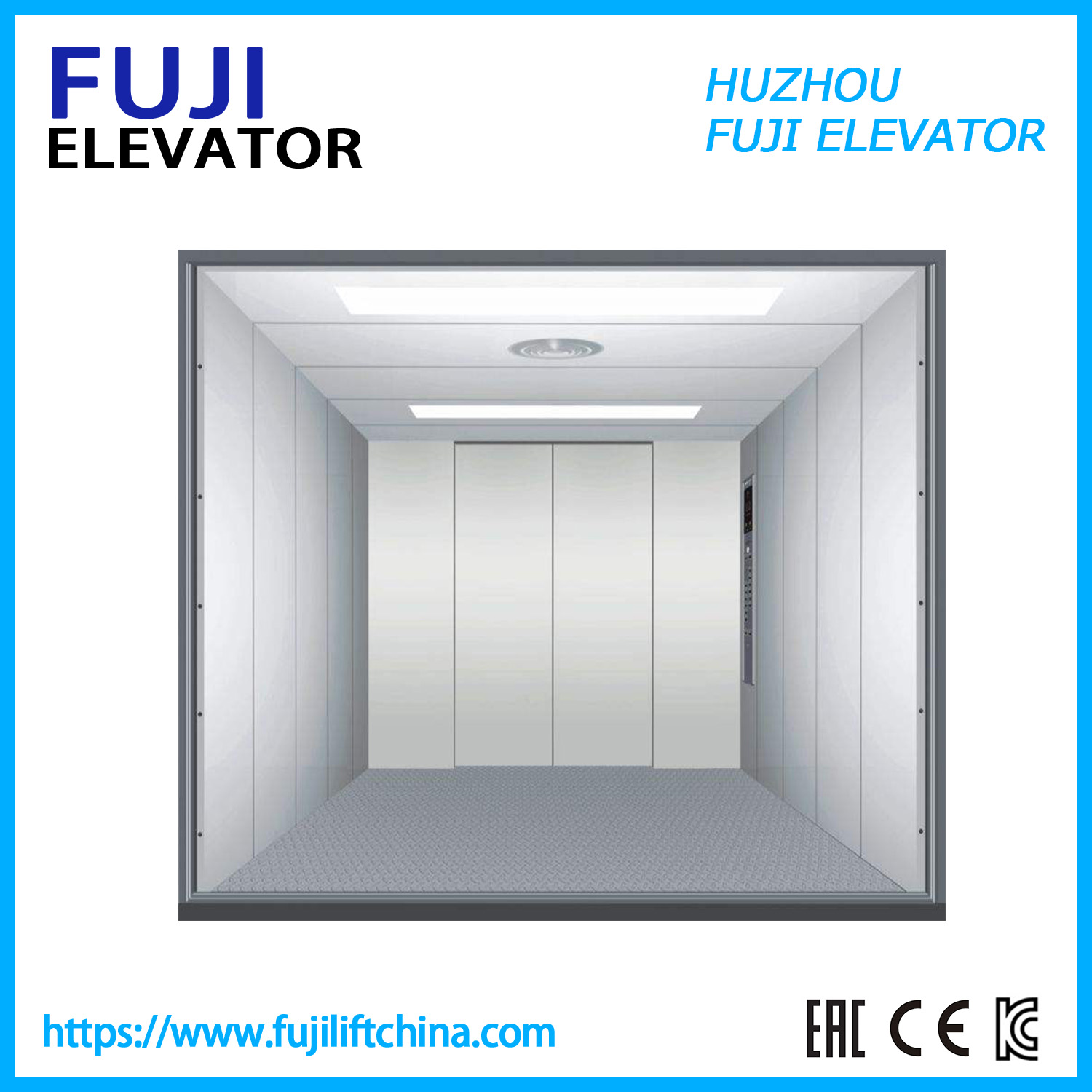

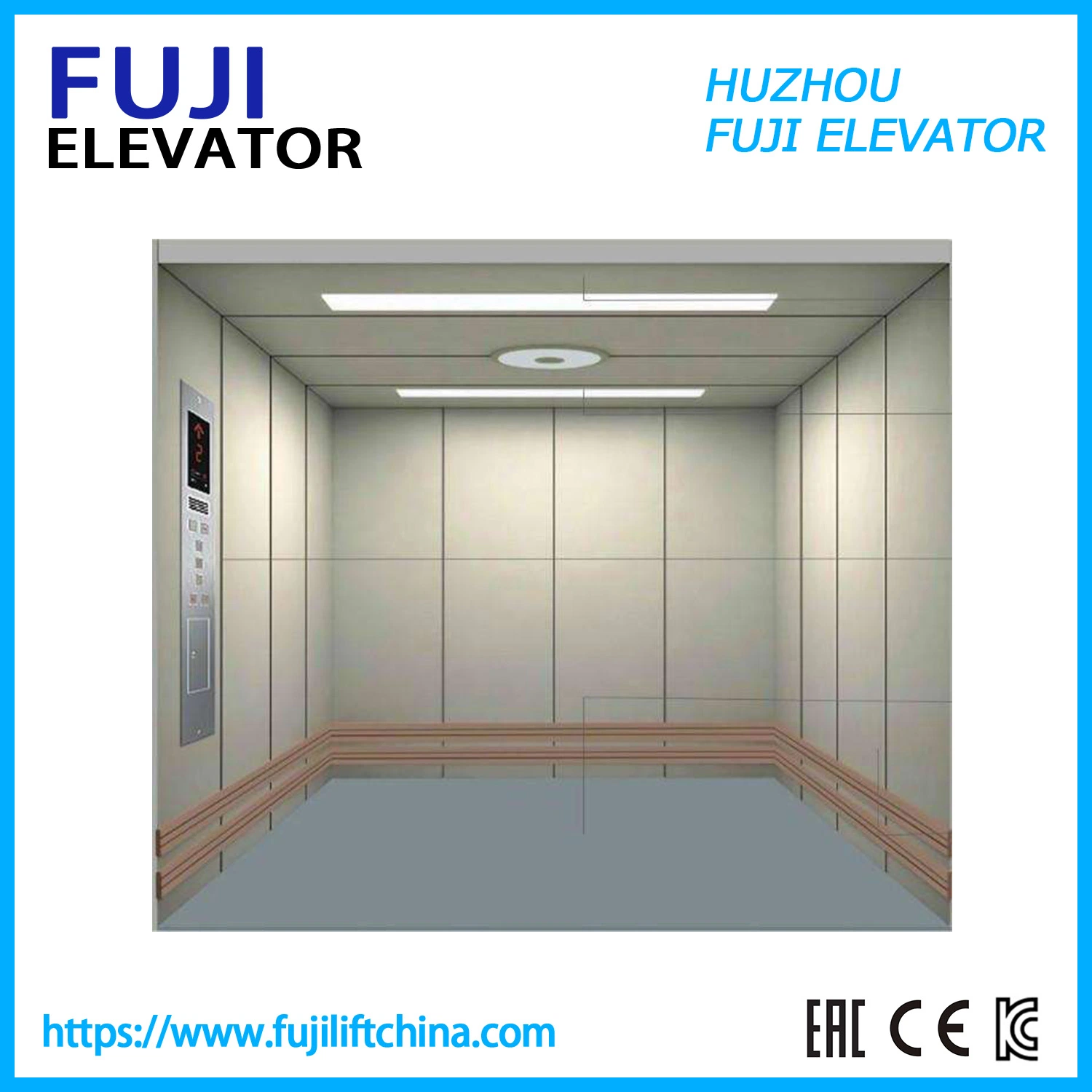

Goods Elevator Lift with Cheap Price Use in Warehouse & Factory Car Elevators Freight Elevator in FUJI China Factory

Customization: Available
Type: Wellhole
Load Capacity: 1000kg-3000kg

Product Description

Basic Information
Model NO.
FUJI-D
Speed
0.5-1.0 M/S
Drive Mode
AC
Open & Close Type
Automatic
Lift Mechanism
Lift Chain
Deceleration Device
With Deceleration Device
Guide Rail
T Guide
Elevator Door
Center Opening Door
Door Knife
Single
Attendant
Without Attendant
Product Price
$9000-30000/Unit
Production Time
Within 25-30 Days
H.S Code
8428109000
Machine Room
With and Without
Transport Package
High Quality Export Wooden Case
Trademark
FUJI
Origin
China

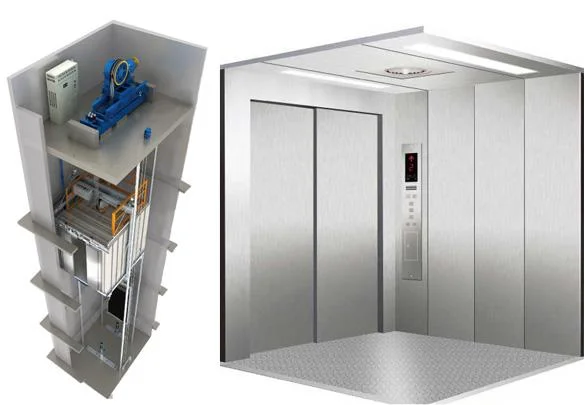

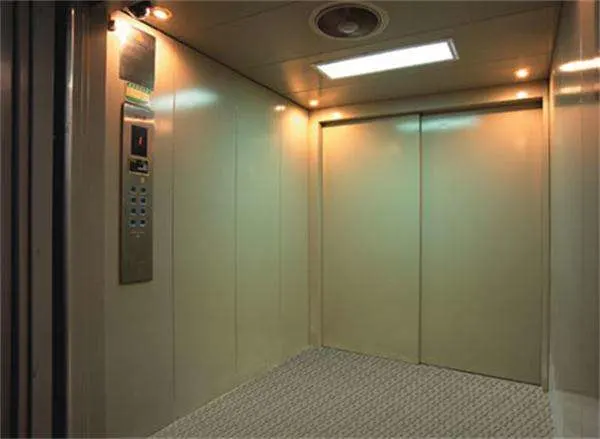

About Car Elevator
Car Elevator Introduction

FUJI intelligent automobile elevator introduced the well-developed international automobile elevation technology. Automobile elevator has been developed and manufactured through absorption, conversion and enhancement. Advanced technology removes bad factor of shaking car. It is due to noise out of burdened traction system, uneven force to elevator car. It optimizes the characteristics of the product series.

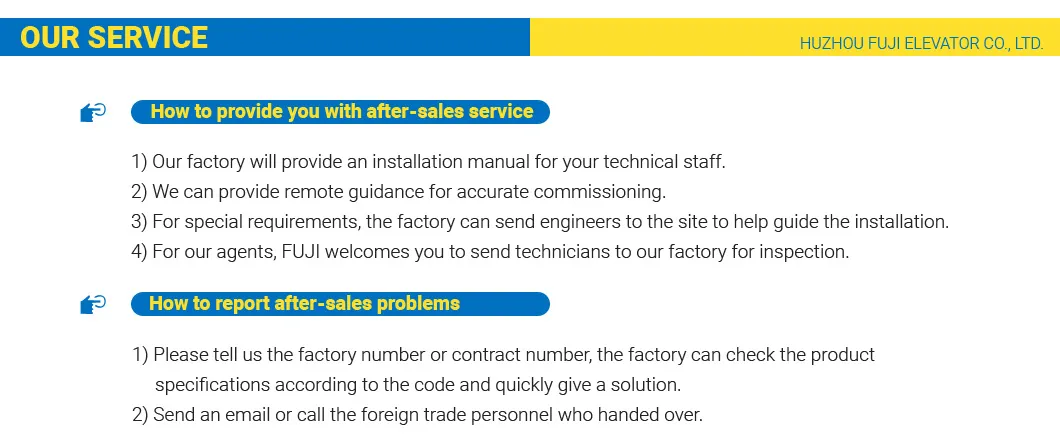

After-Sales Service & Support

Installation Support

1) Factory provided installation manuals for technical staff.
2) Remote guidance for accurate commissioning.
3) Site engineers available for special requirements.

Issue Reporting

1) Provide factory or contract number for quick verification.
2) Fast solutions based on specific product codes.

Features of Car Elevators
  • Dynamic Load Adaptability: Designed to handle rapid load increases/decreases and non-uniform stress unlike ordinary freight ladders.
  • Dual Control: Equipped with two control button boxes, allowing drivers to operate the lift without leaving the vehicle.
  • Large Capacity: Rated load capacity over 3 tons with sufficient area for various small cars.
  • Efficient Entry: Front and rear through-door settings facilitate easy vehicle movement in and out.

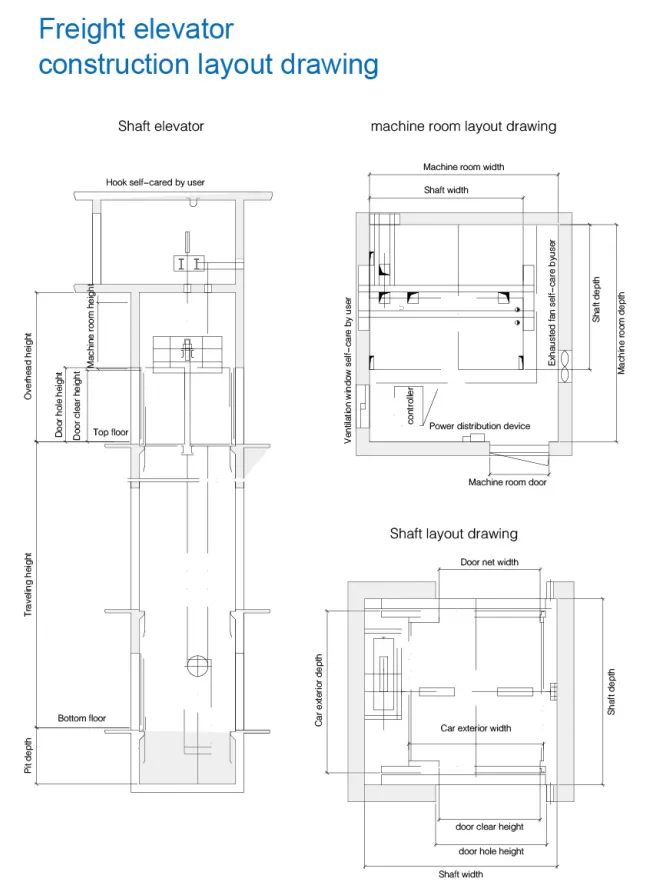

Technical Parameters
Capacity (KG) Speed (m/s) Car Size (WxDxH)mm Door Opening (WxD)mm Shaft Size (WxD) OH (mm) Pit Depth (mm)
3000 0.25/0.5 2700x5800 2400x2200 4100x6160 4800 1600
5000 0.25/0.5 3500x7200 2600x2200 4750x7560 4800 1600
Standard Functions
01 Automatic stop
02 Self-diagnostic of buttons
03 Auto light/ventilation shut off
04 Repeat open/close door
05 Infrared light curtain
06 Fire running function
07 Auto door lock/unlock
08 Landing speed adjustment
09 Driver/No-driver modes
10 Orientation selection
11 Overload voice-light alarm
12 Prevent no-stopping
13 Call record storage
14 Internal auto-response
15 Signal fault protection
16 Anti-mischief function
17 Full-load auto-running
18 Hall button re-opening
19 Door load sensor
20 Arrival tip
21 Fault self-diagnostic
22 Auto floor opening
23 Offside prevention
24 Overhaul operation
25 Auto stop & rescue fault
26 High speed protection
27 Hoist way data saving
28 Directional change auto-function
29 Power-fail data protection
30 Five-party interphone

Properties of FUJI elevators excel in operational environments ranging from factories and production lines to exhibition halls and warehouses. We offer safe and effective transport plans for all heavy-load challenges.

FAQ
What is the maximum load capacity for the car elevator?
The standard models support capacities of 3000KG and 5000KG, specifically designed to accommodate various types of vehicles and heavy goods.

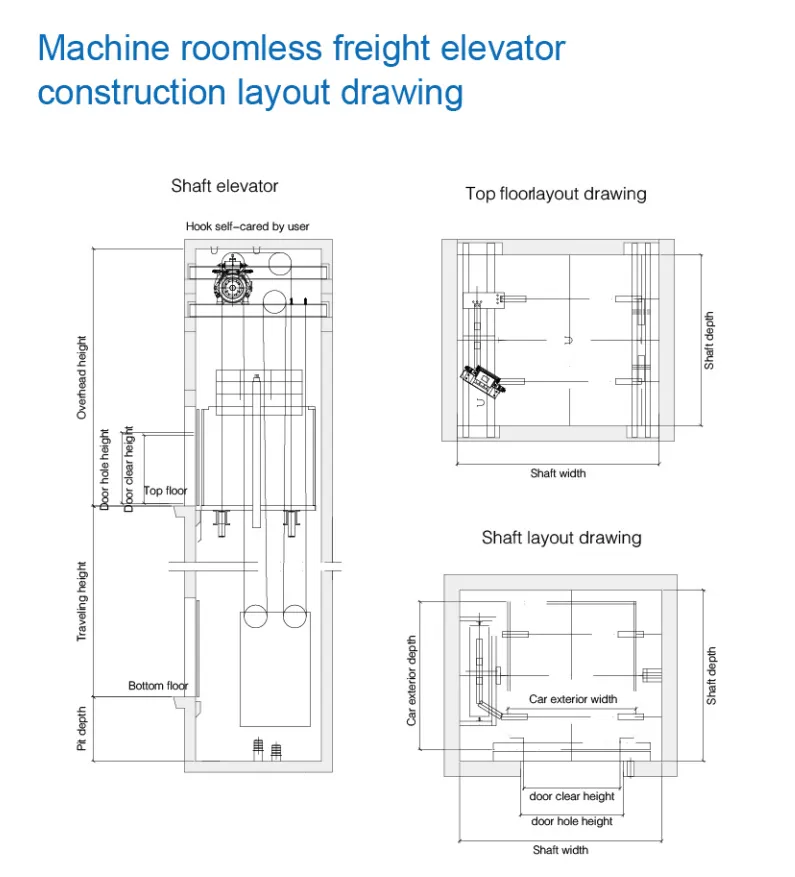

Does the elevator come with a machine room?
We offer flexible configurations both with and without machine rooms to suit different architectural requirements.
How long is the production lead time?
Standard production typically takes between 25 to 30 days after the specifications are confirmed.
What safety features are included as standard?
The elevator includes infrared light curtains, overload voice-light alarms, high-speed protection, and a self-diagnostic system for fault detection.
Can the driver operate the elevator without leaving the vehicle?
Yes, the car is equipped with two control button boxes conveniently located for the driver to operate the lift from inside the vehicle.
What kind of after-sales support is available?
We provide detailed installation manuals, remote technical guidance, and can dispatch engineers to sites for complex installations.
