Big Load Capacity Fcatory Machine Room Freight Elevator Vvvf Goods Elevator Cargo Lift

Customization:	Available
After-sales Service:	7*24
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

TH1000

Type

Wellhole

Load Capacity

1000kg-20000kg

Speed

0.25m/S-1.5m/S

Drive Mode

Open & Close Type

Automatic

Lift Mechanism

Telescoping Lift

Guide Rail

T Guide

Elevator Door

Center Opening Door

Drive Control

Vvvf Control

Customized

Support

Origin

China

Product Description

The freight elevator uses advanced microcomputer control technology and technology integration to greatly improve performance and quality while significantly reducing failure rates. By utilizing variable frequency electric drive technology, the elevator structure is simplified, making maintenance more efficient and convenient.

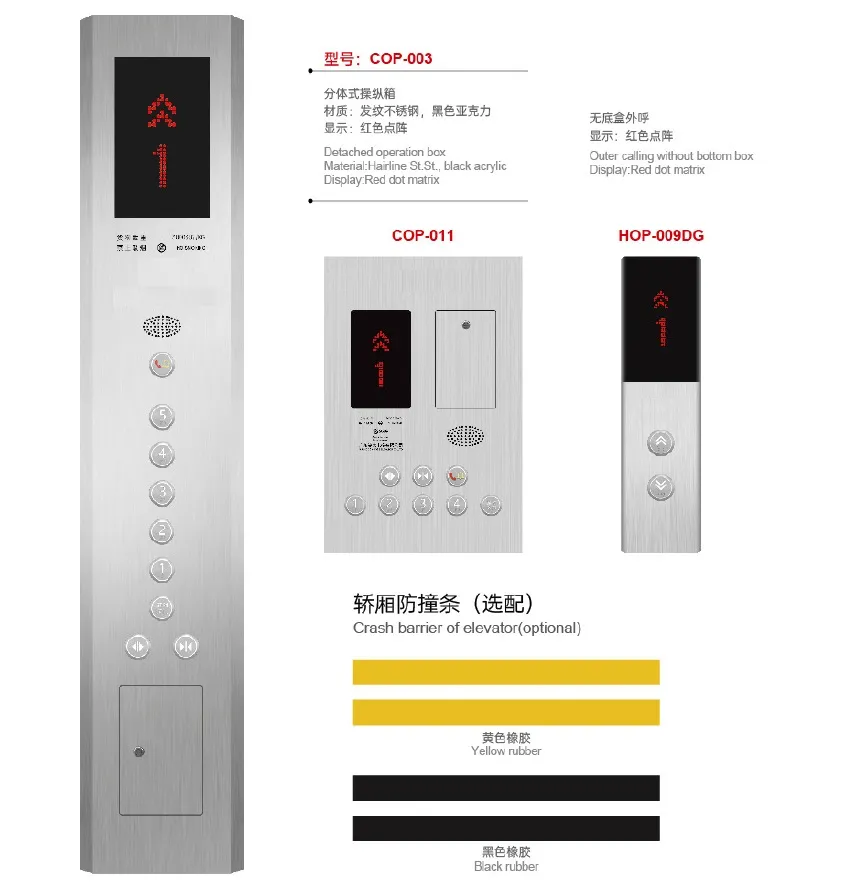

COP/ LOP

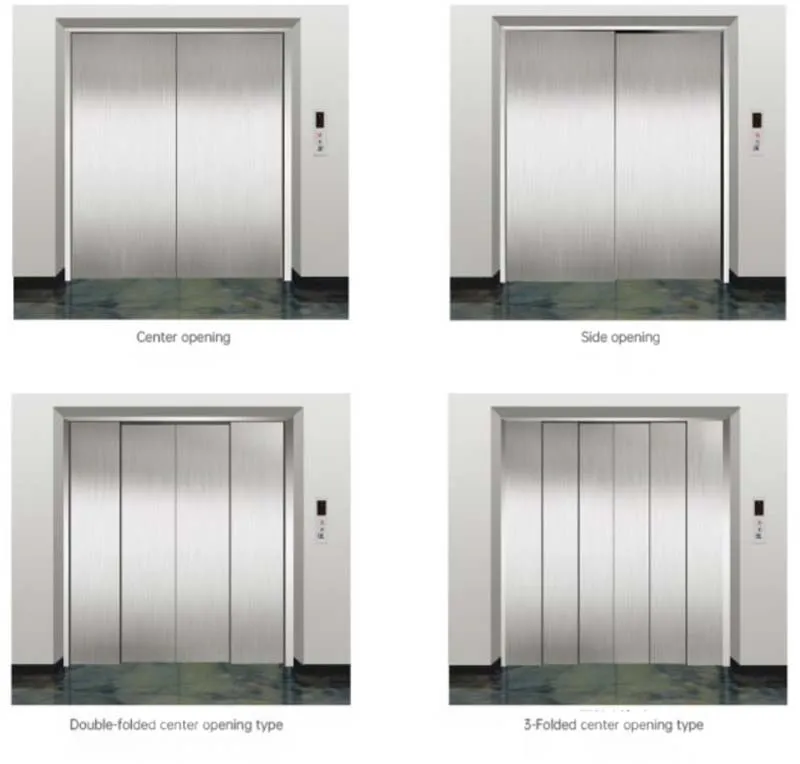

Landing Door

Technical Advantages

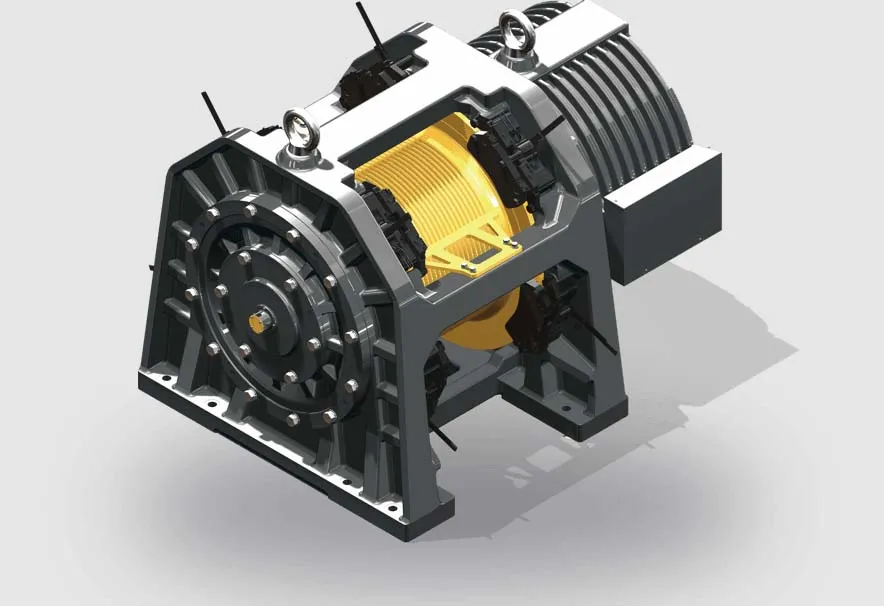

Traction System

The traction host is designed according to vertical logistics requirements and can fully meet various load requirements. Vector closed-loop control technology ensures the elevator runs smoothly and accurately, significantly improving response speed and comprehensive performance.

Energy Saving & Comfort

The use of VVVF speed regulation technology saves nearly 40% energy compared to traditional AC two-speed technology. This technology provides constant torque characteristics regardless of the load, which greatly improves leveling accuracy and reduces operating noise.

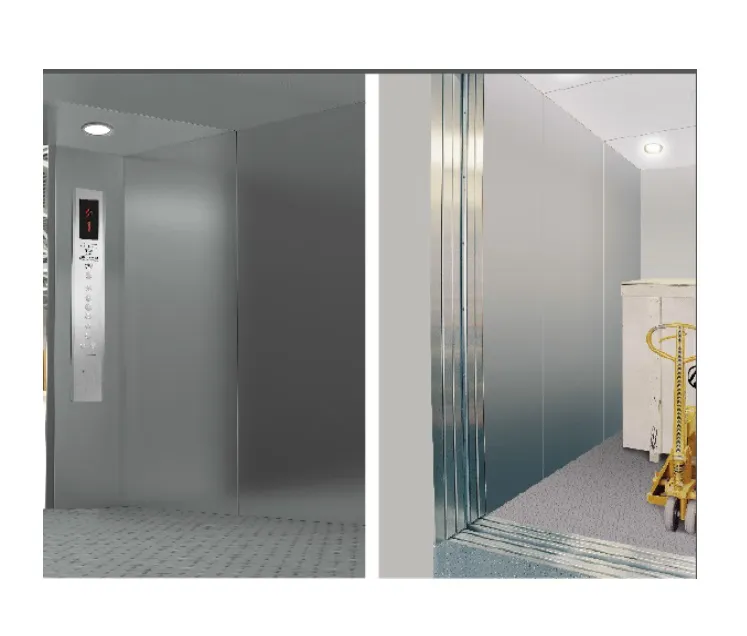

Sturdy Structure

Multi-folding hall car doors achieve maximum opening width for large goods. The reinforced car bottom reliably bears heavy loads, supported by an accurate weighing device to prevent overloading.

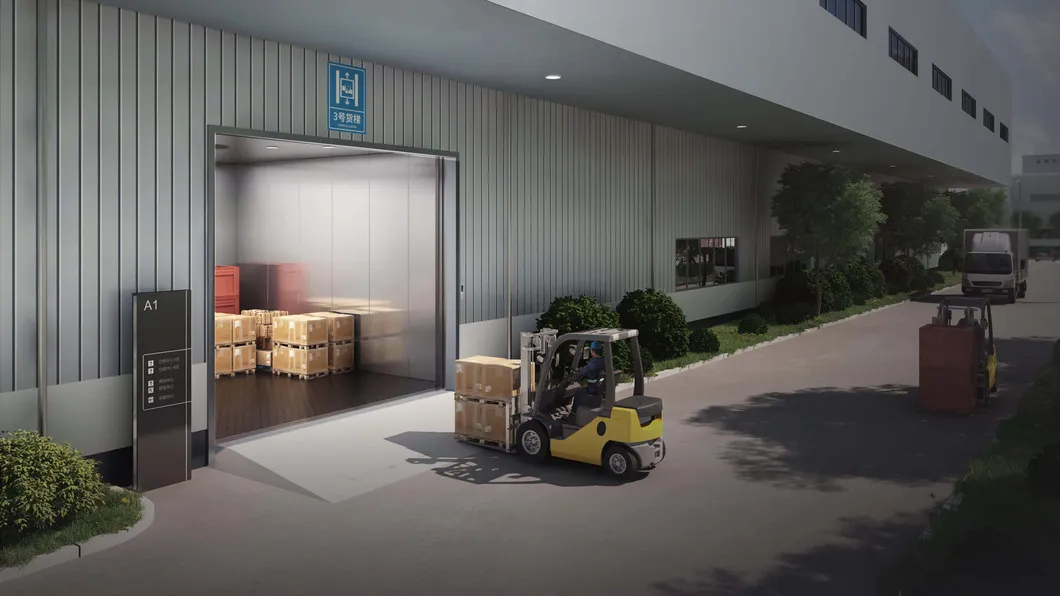

Application Environment

Ideal for: Factories, museums, exhibition halls, auto shops, warehouses, and parking garages.

Technical Parameters (Up to 30,000kg)

Model	Capacity (kg)	Speed (m/s)	Car Size (CWCDCH mm)	Door Opening Size (mm)	Shaft Size (HW*HD mm)	OH (mm)	Pit (mm)	Power (kw)
F3000	1000	0.5-1.0	140016002200	1200*2100	2300*2200	4500	1500	7.5-11
F3000	3000	0.5-2.0	220025002200	1700*2100	3300*3200	4500-4800	1500-1800	15-22
TF3000	5000	0.5-1.0	280031002200	2400*2100	4200*3800	4500	1800	18-35
F5000	10000	0.25-0.5	300053002200	2700*2100	4600*6000	4800	1800	30-45

Frequently Asked Questions

What is the maximum load capacity of these freight elevators?

Our freight elevators are designed for high-capacity industrial use, supporting loads from 1,000kg up to 30,000kg.

How does VVVF technology benefit the elevator's operation?

VVVF (Variable Voltage Variable Frequency) speed regulation reduces energy consumption by nearly 40% and ensures smooth starts, stops, and accurate leveling regardless of the load.

Are the elevator cars customizable for large cargo?

Yes, we support customization. We use multi-folding hall doors to achieve maximum opening widths, facilitating the entry and exit of large-sized goods.

What safety features are included to prevent overloading?

Each unit is equipped with an accurate weighing device that monitors the load in real-time and prevents the elevator from operating if it exceeds the rated capacity.

Is this elevator suitable for harsh industrial environments?

Absolutely. The sturdy structure, reinforced car bottom, and T-guide rails are specifically engineered for factories, warehouses, and other demanding logistics environments.

What is the standard speed range for these cargo lifts?

The speed range typically varies from 0.25m/s for heavy-duty models to 1.5m/s or higher for standard models, depending on your specific vertical transport requirements.
