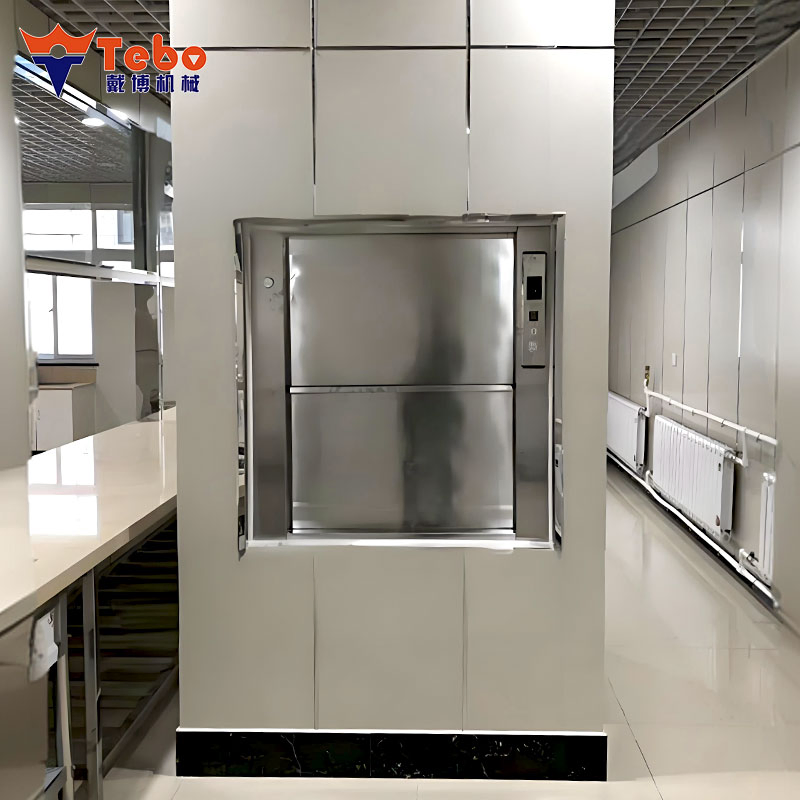

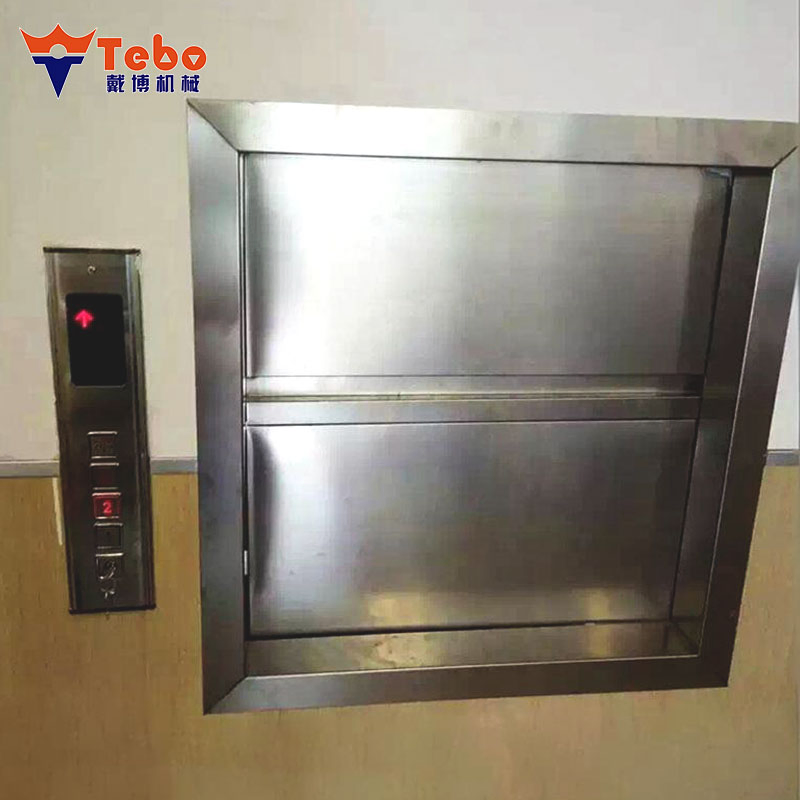

High Quality Food Cargo Dumbwaiter Lift for Hotel and Restaurant

Still deciding? Get samples of $ !
Request Sample

Product Description

📊

Basic Specifications

Model NO.
TBD-20
Type
Wellhole
Load Capacity
50kg-300kg
Speed
0.40m/s
Drive Mode
AC
Open & Close Type
Manual
Lift Mechanism
Telescoping Lift
Guide Rail
T Guide
Elevator Door
Center Opening Door
Origin
China
🍽️

Product Description

Food Cargo Dumbwaiter Lift

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel cabin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning. The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings.

The lift significantly improves operational efficiency by quickly transferring dishes, beverages, and tableware between floors, reducing staff workload and minimizing the physical strain caused by frequent stair use. Its enclosed design prevents contamination and meets food-hygiene standards. Thanks to its compact footprint and flexible installation options, it easily adapts to kitchens, dining areas, private rooms, and other spaces with limited layout conditions.

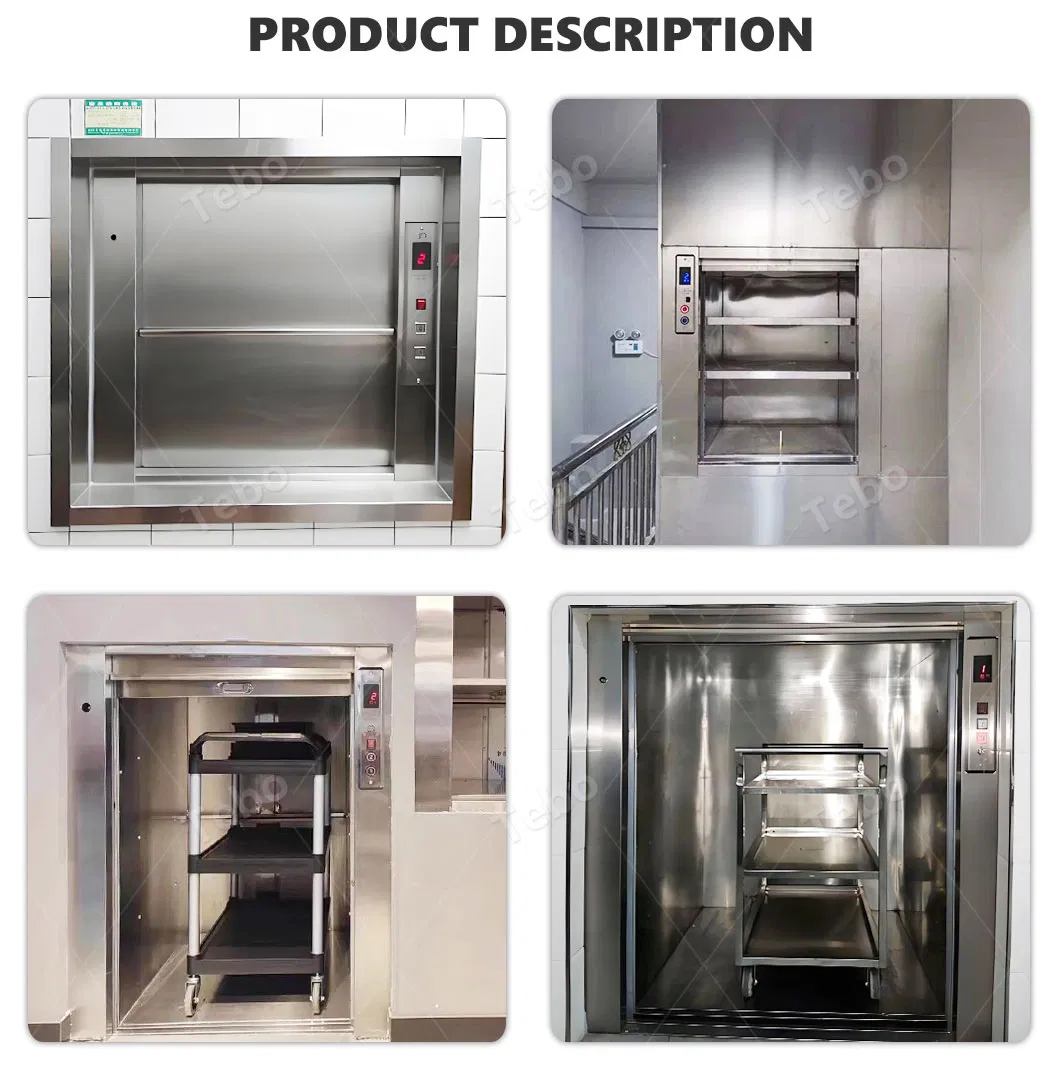

High Quality Dumbwaiter Details
⚙️

Technical Parameters

Window Type Parameters

Load (kg) Cabin Dimension (W*D*H mm) Landing Door Door Size (W*H mm) Window Sill Height Overhead Height
100600*400*800Standard600*8008002800
100600*600*800Standard600*8008002800
200800*800*800Standard800*8008002800
200800*800*1000Standard800*10008003000
2001000*1000*1000Standard1000*10008003200

Floor Type Parameters

Load (kg) Cabin Dimension (W*D*H mm) Landing Door Door Size (W*H mm) Min Pit Depth Overhead Height
200800*800*1000Standard800*10006002800
2001000*1000*1000Standard1000*10006002800
3001000*1000*1200Standard1000*12007003200
4001000*1200*1400Standard1200*14008003600
🔍

Product Details

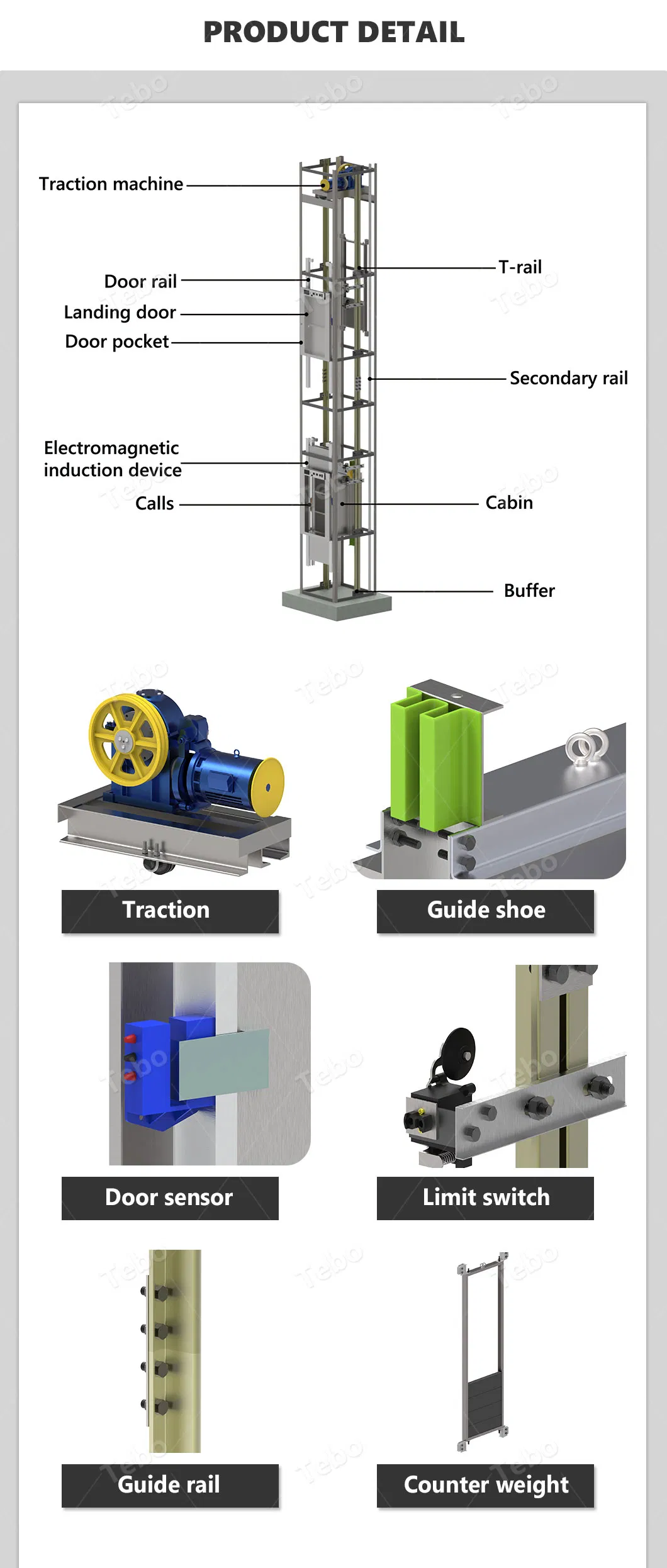

Detail 1

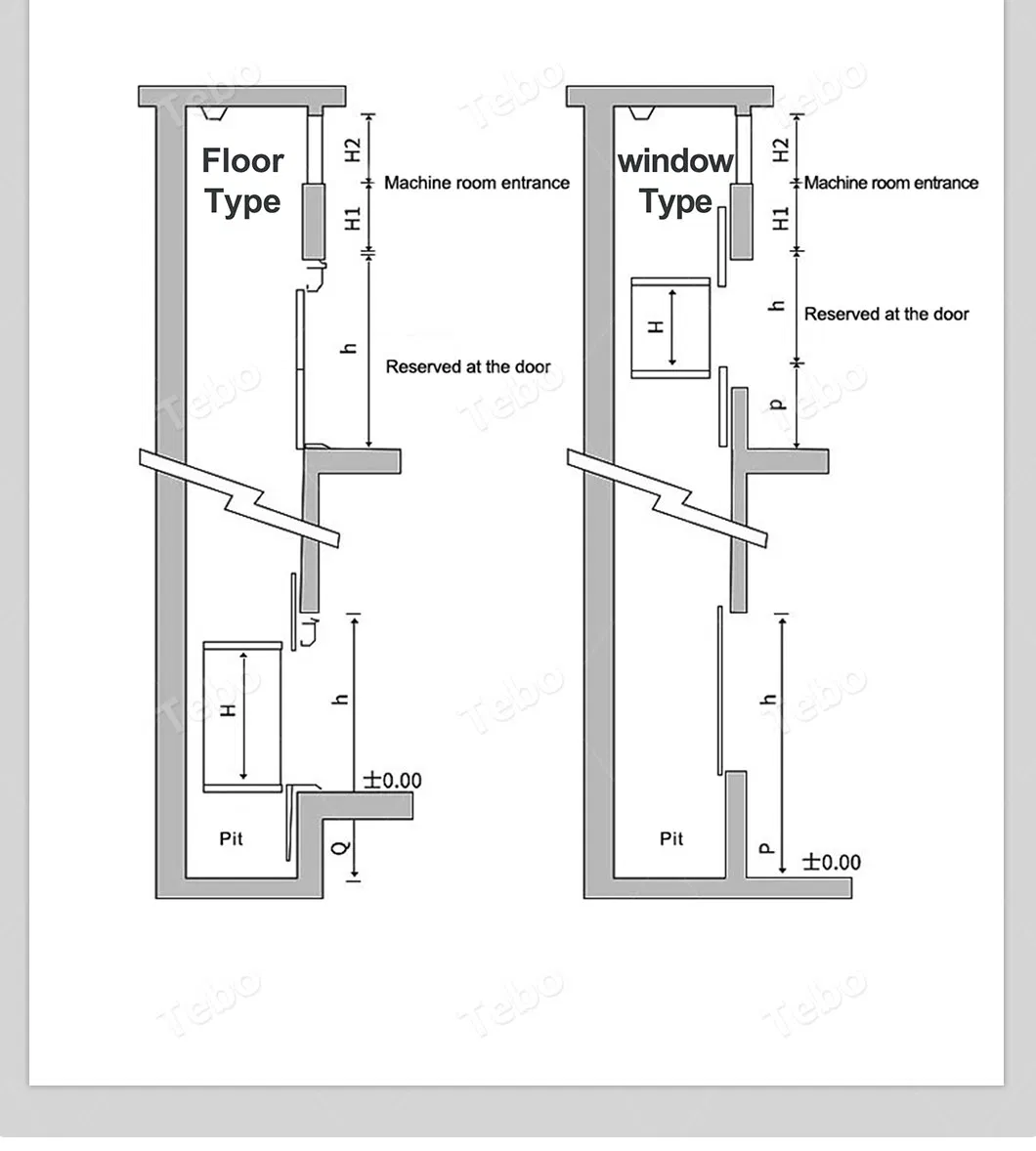

Detail 2

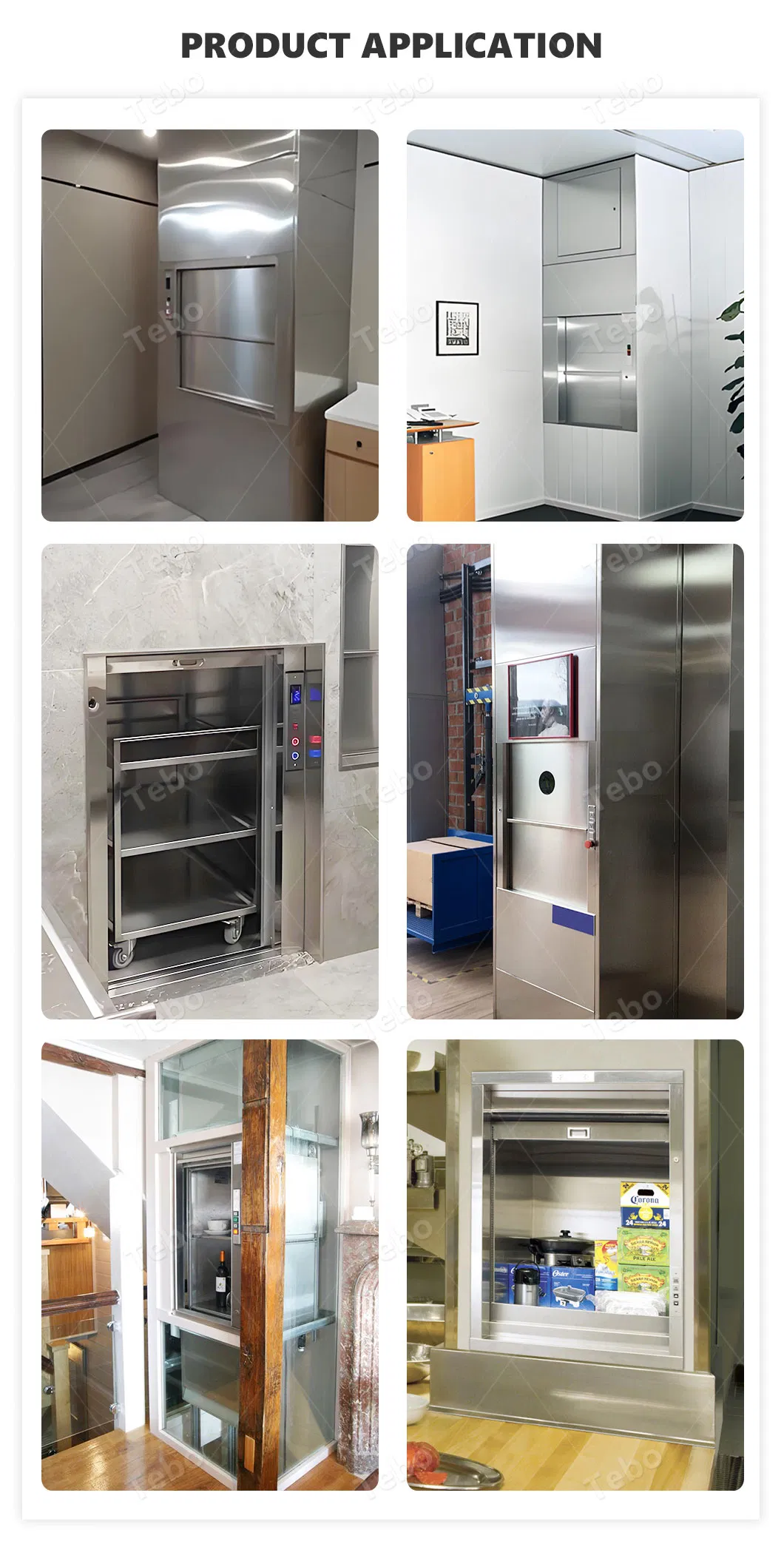

Detail 3
🏢

Manufacturing & Quality

We are a specialized enterprise focusing on the R&D and manufacturing of vertical lifting equipment. With an experienced and innovative technical team, we continuously optimize product series to provide significant advantages in structural design, operational efficiency, and stability. Our core product range includes hydraulic home elevators, freight lifts, and specialized scissor lift platforms.

Equipped with advanced production facilities, including CNC machining centers and automated welding equipment, we ensure rigorous quality control through every stage of production. We have established a comprehensive service system encompassing market analysis, customized manufacturing, and full lifecycle technical support.

Factory View
Production Line
📦

Certifications & Logistics

Certifications
Packaging

Frequently Asked Questions

1. What is the standard load capacity for your food lifts?
Our standard load capacity ranges from 50kg to 300kg, which covers most restaurant and hotel needs for transporting meals, beverages, and tableware.
2. Can the cabin dimensions be customized?
Yes, we provide fully customizable services. Both the cabin inside dimensions (Width*Depth*Height) and the overhead height can be adjusted to fit your specific architectural requirements.
3. What safety features are included in the system?
The system includes multiple safety functions: electronic door locks, anti-fall devices, limit switches, and overload protection to ensure reliable and safe operation.
4. What is the material used for the cabin?
We use high-quality stainless steel for the cabin to ensure excellent corrosion resistance, durability, and compliance with food hygiene standards for easy cleaning.
5. How long is the typical production and shipping time?
Normally, production takes about 10 working days after payment is confirmed. Shipping speed depends on the final destination and product configuration.
6. Do you provide installation guidance?
Yes, we provide detailed assembly drawings and installation manuals. Our equipment is designed for smooth setup, allowing for easy installation by following our step-by-step guides.
