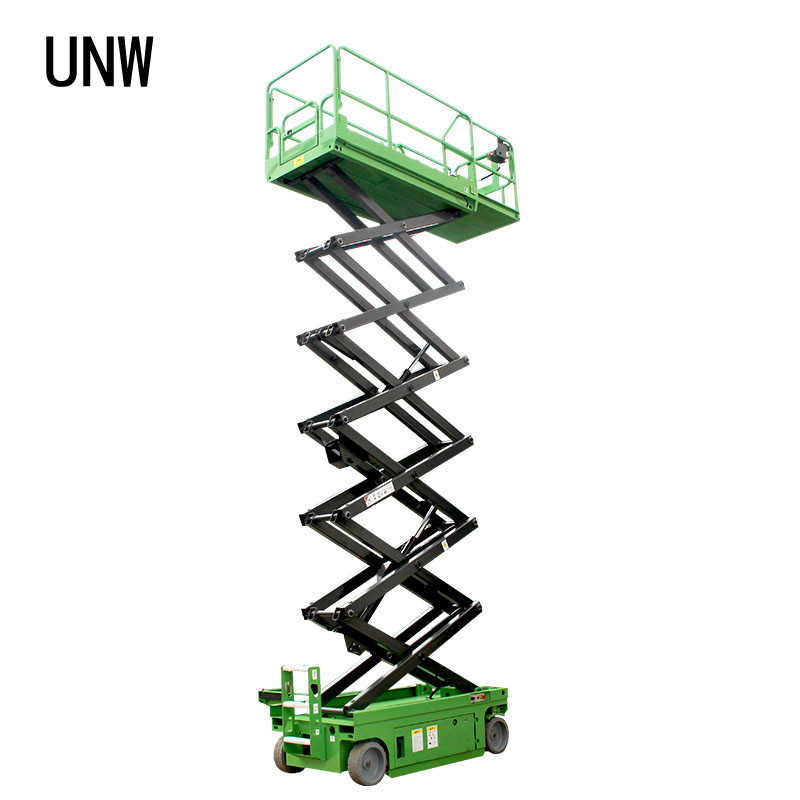

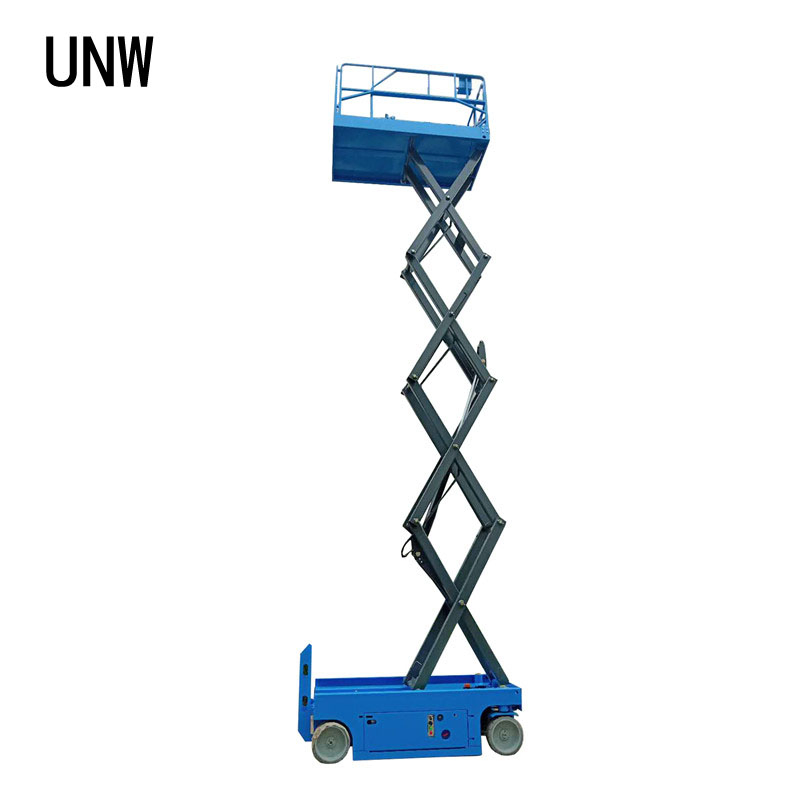

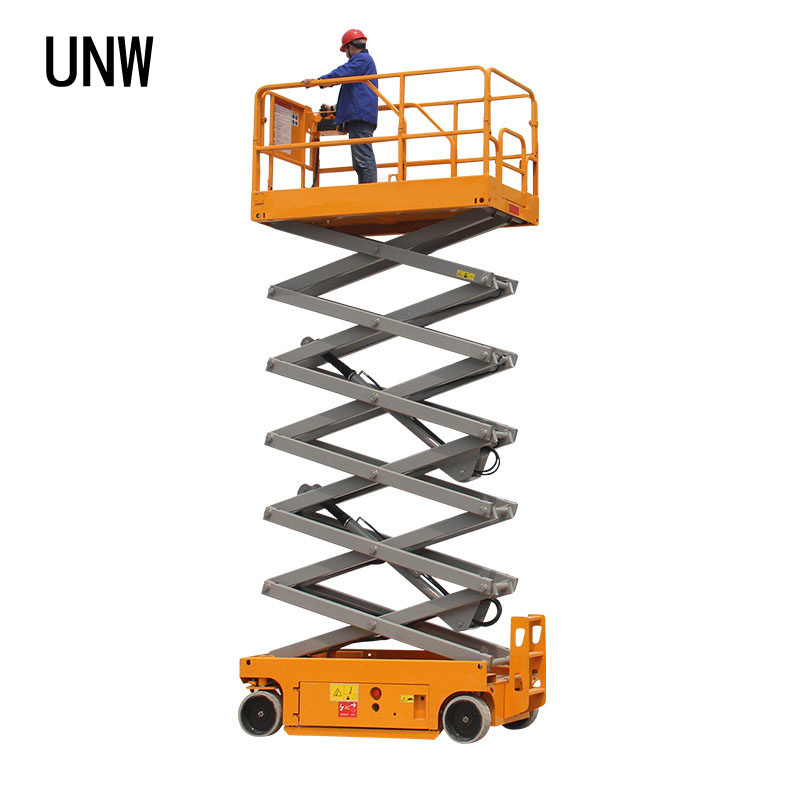

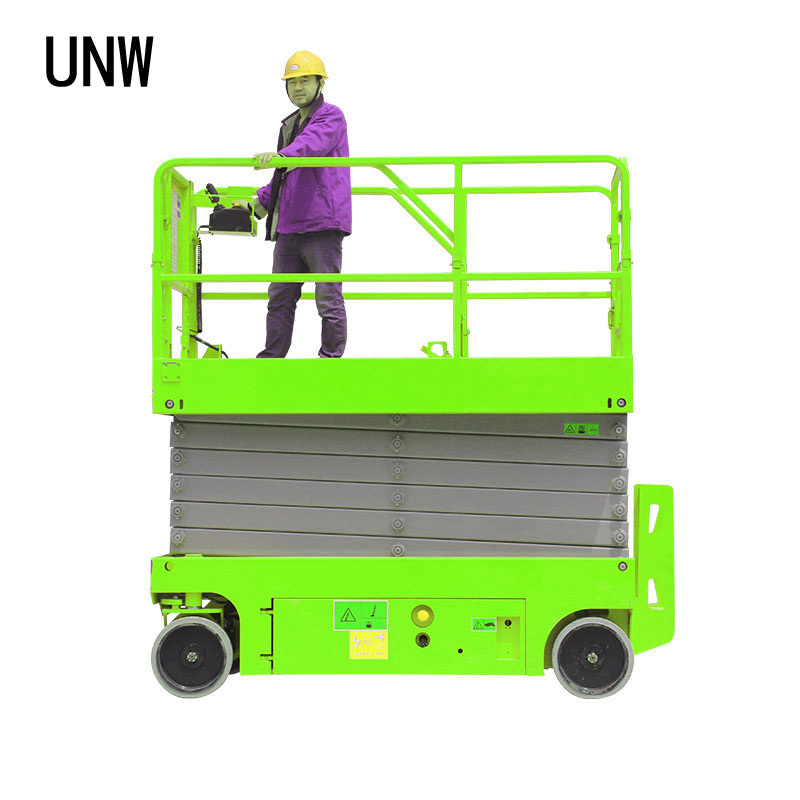

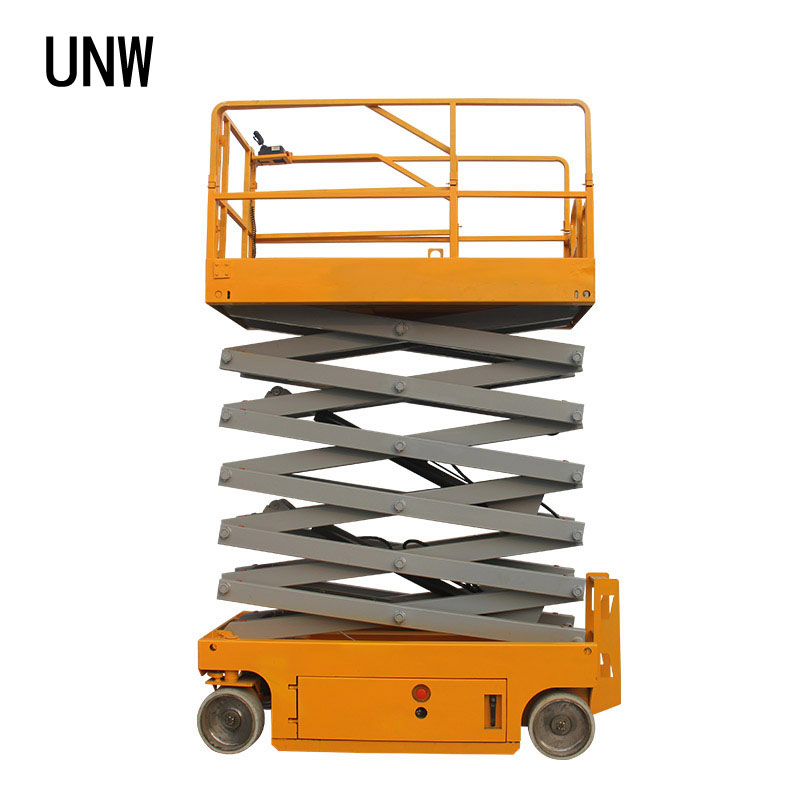

Hydraulic Driven Self Propelled Scissor Lift is an intelligent lift machine operated by automatic walking, moving, turning, and lifting. Equipped with a hydraulic driven system and battery power, its movement and lifting are controlled by high-performance hydraulic motors.
This equipment is characterized by high precision, great sensitivity, lower noise, and a low failure rate. It is widely used in aerial construction work by construction companies, shipyards, theaters, and more.
| Model No. | JCPT08-GS | JCPT10-GS | JCPT12-GS | JCPT14-GS | JCPT16-GS |
|---|---|---|---|---|---|
| Max platform height(mm) | 6000(20ft) | 8000(27ft) | 10000(33ft) | 11800(39ft) | 13800(46ft) |
| Max working height(mm) | 8000(27ft) | 10000(33ft) | 12000(40ft) | 13800(46ft) | 15800(52ft) |
| Lifting capacity (kg) | 300 | 300 | 300 | 300 | 227 |
| Overall Dimension (mm) | 2400x1150x2150 | 2400x1150x2275 | 2400x1150x2400 | 2400x1150x2525 | 2770x1300x2550 |
| Platform Size (mm) | 2270×1150 | 2270×1150 | 2270×1150 | 2270×1150 | 2640x1150 |
| Platform extend size (mm) | 900 | 900 | 900 | 900 | 900 |
| Power source (v/km) | 24/4.0 | 24/4.0 | 24/4.0 | 24/4.0 | 24/4.5 |
| Running speed-folding (km/h) | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 |
| Whole weight (kg) | 1900 | 2080 | 2490 | 2760 | 3400 |
