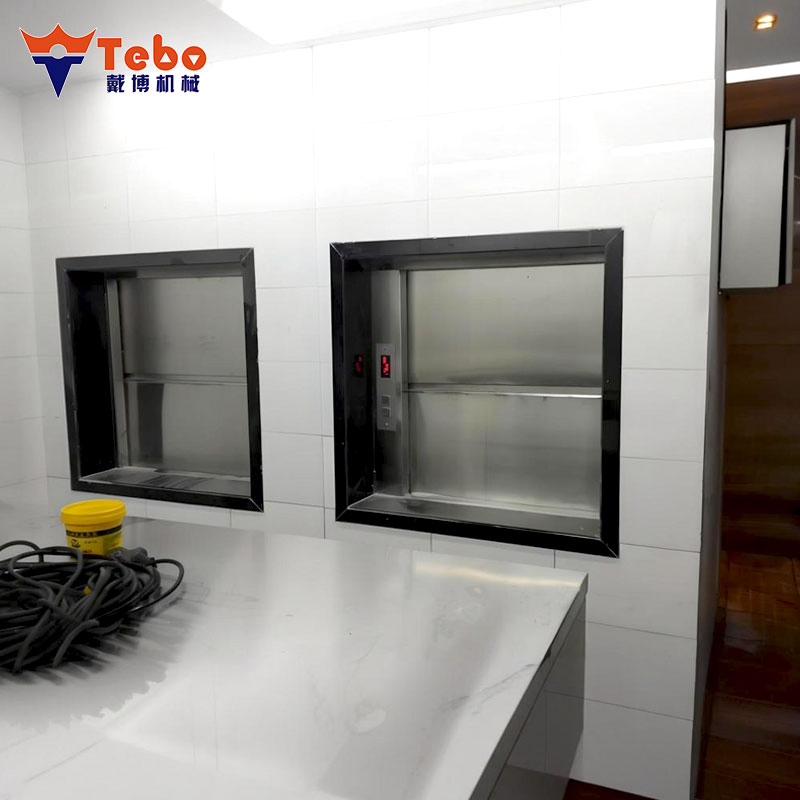

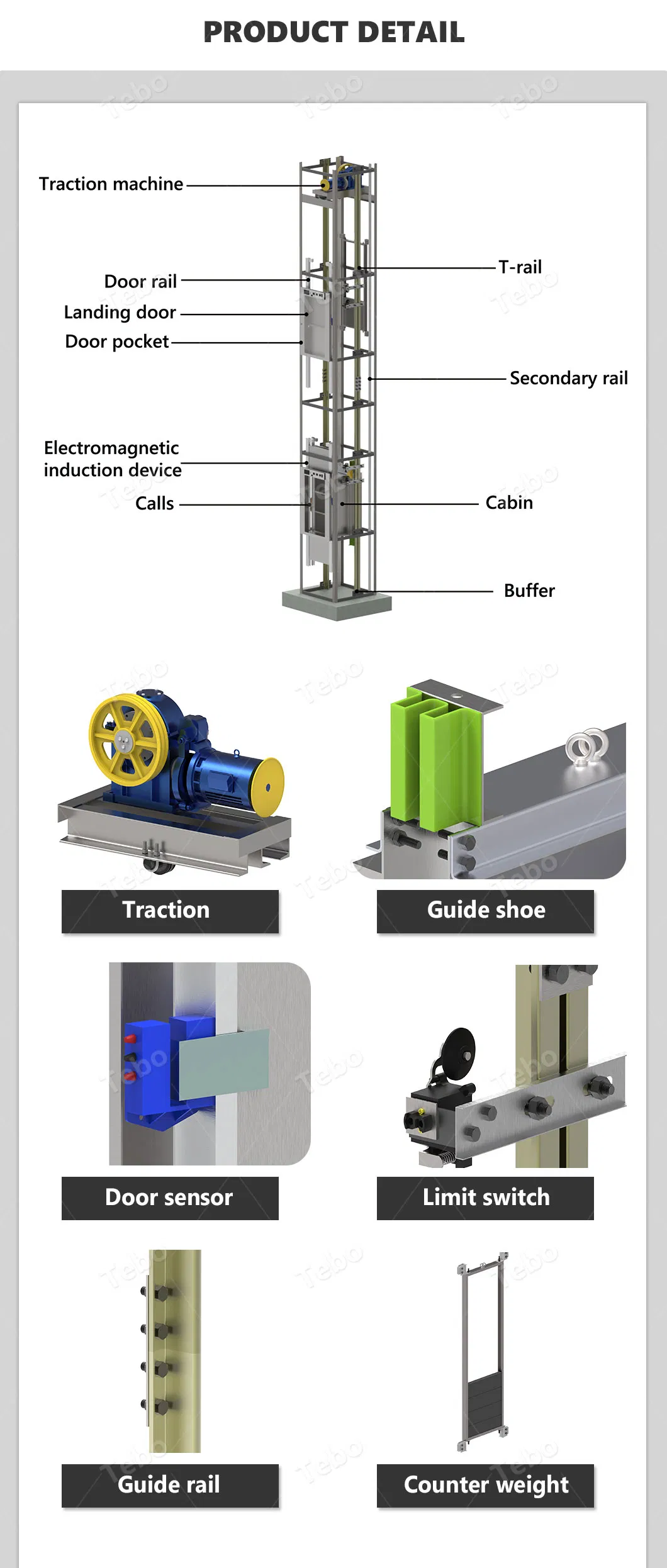

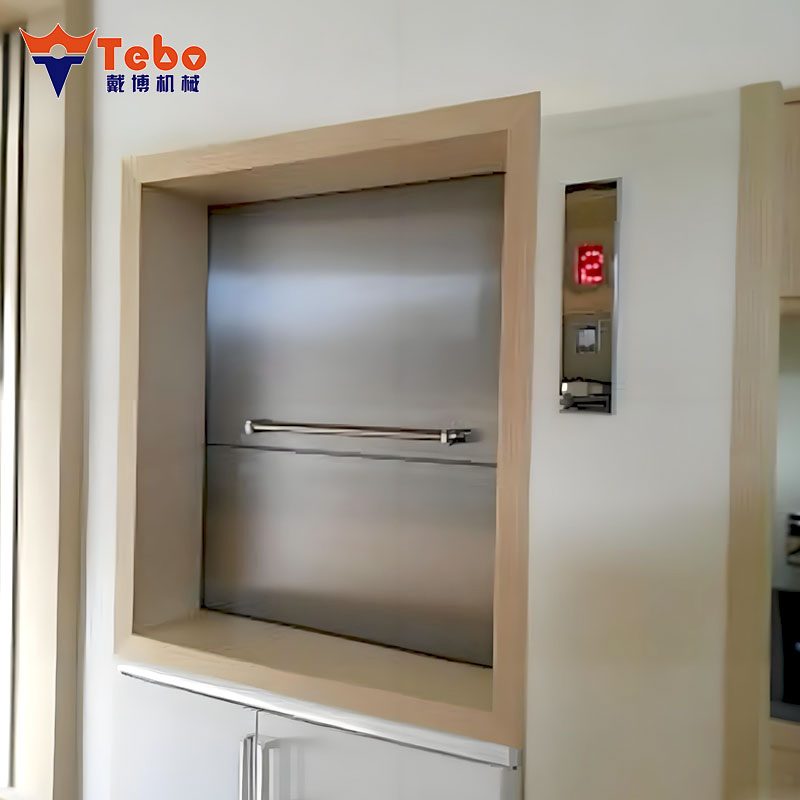

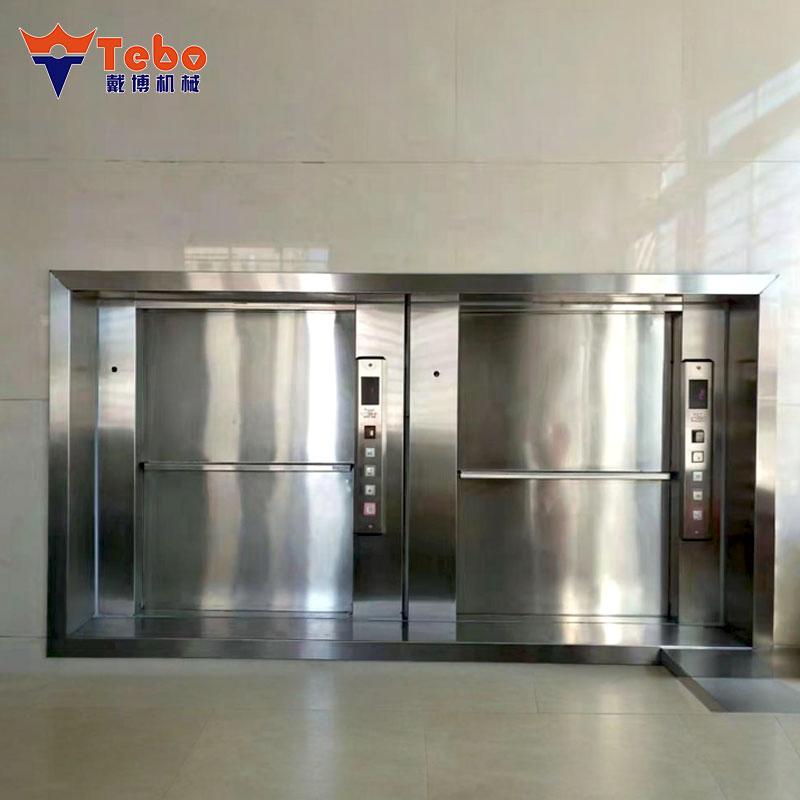

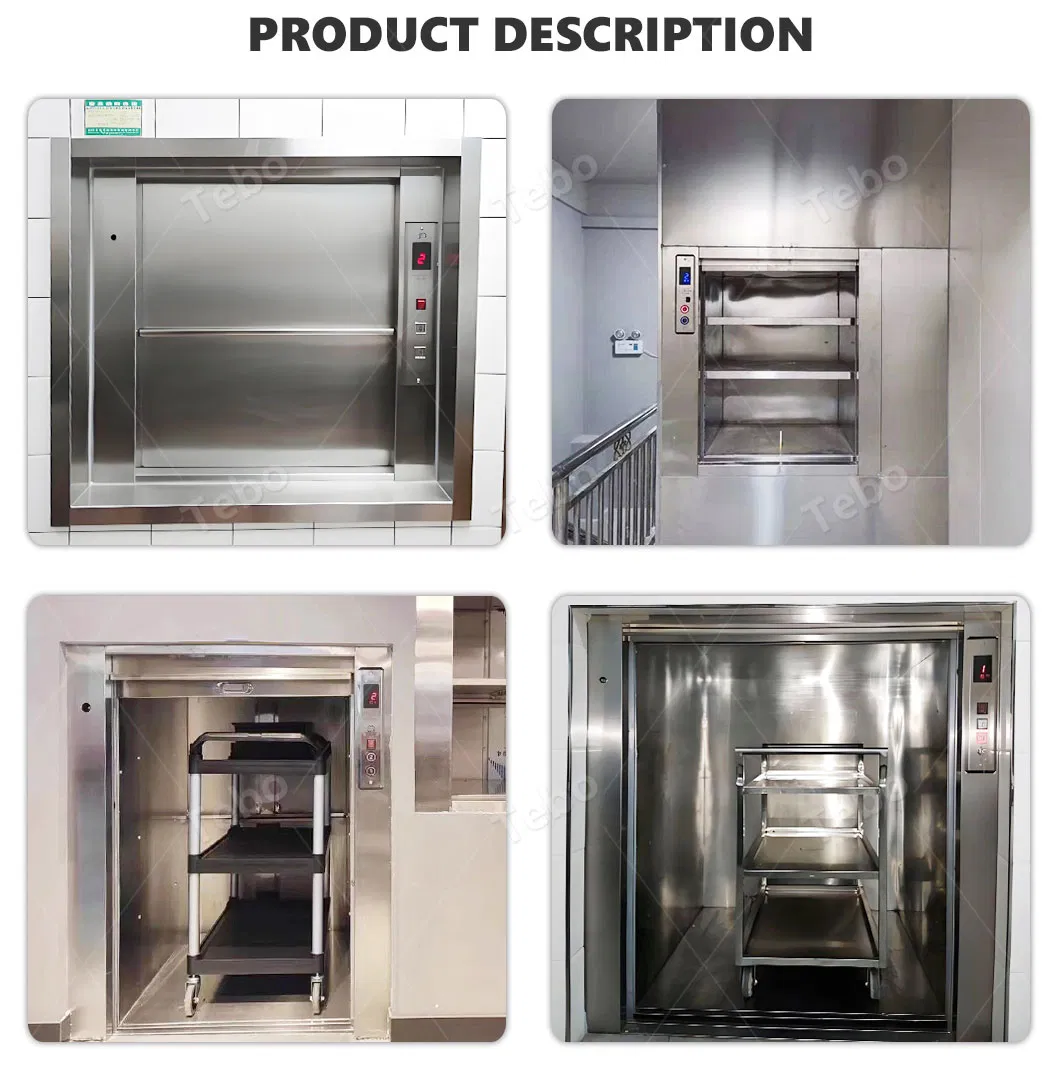

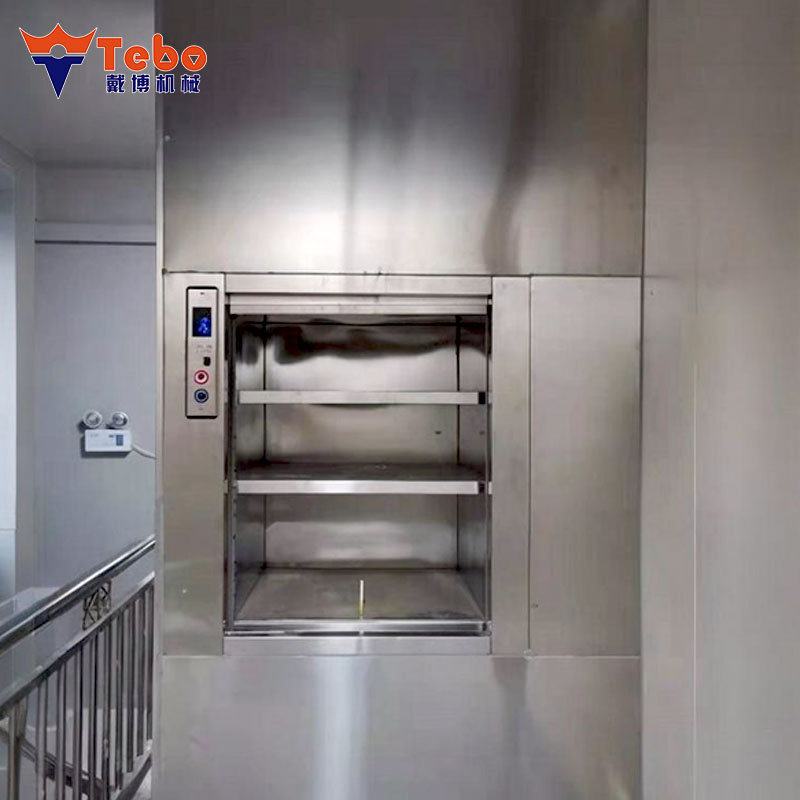

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel cabin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning. The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings.

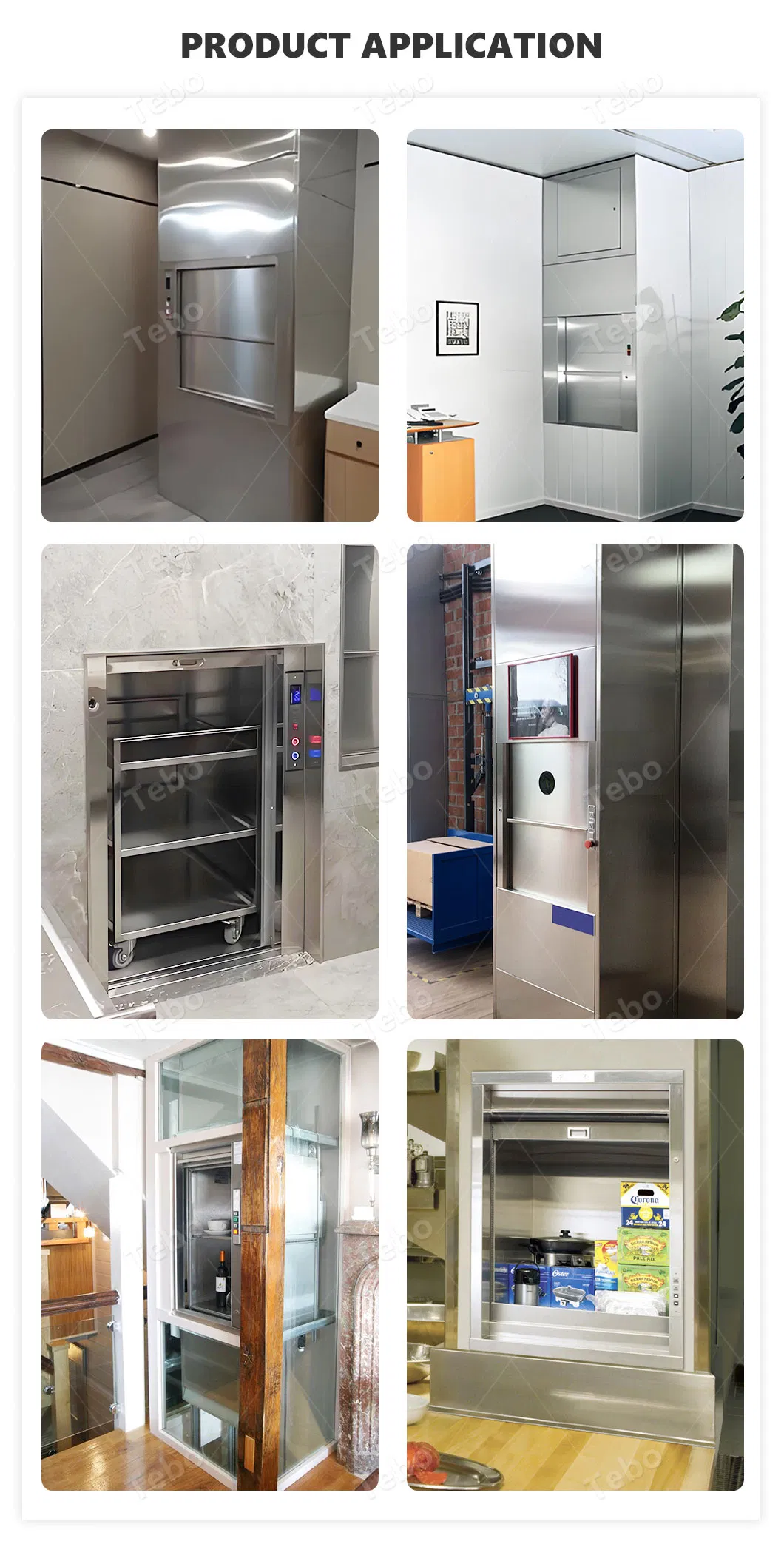

This lift significantly improves operational efficiency by quickly transferring dishes, beverages, and tableware between floors, reducing staff workload and minimizing physical strain. Its enclosed design prevents contamination and meets strict food-hygiene standards. Thanks to its compact footprint and flexible installation options, it easily adapts to kitchens, dining areas, and private rooms with limited layout conditions.

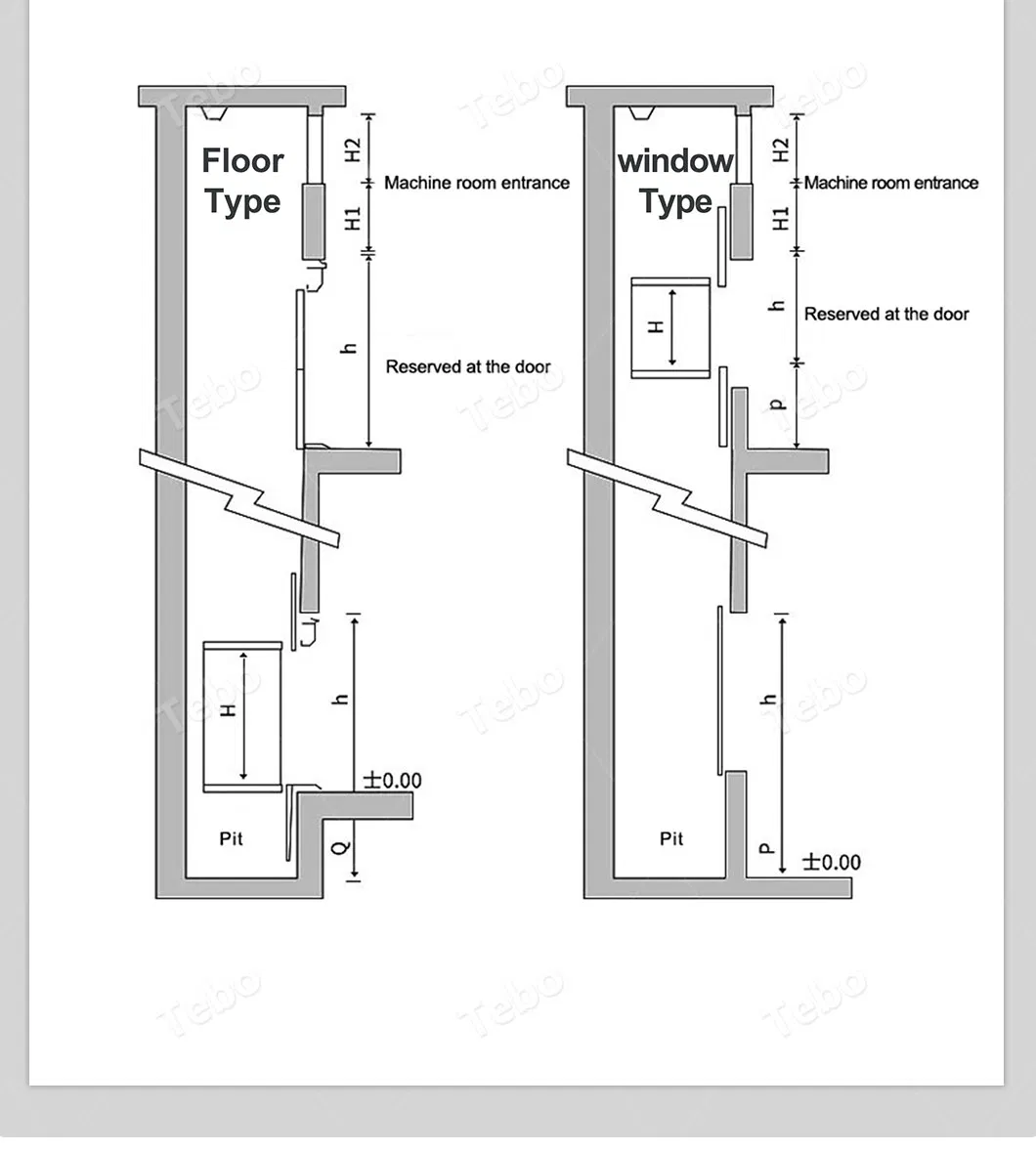

| Window Type Parameters (Customizable) | |||||||
|---|---|---|---|---|---|---|---|
| Type | Load (kg) | Cabin Dimension (W*D*H mm) | Landing Door | Cabin Door | Door Size (W*H mm) | Sill Height (mm) | Overhead Height (mm) |
| Window Type | 100 | 600*400*800 | Standard | Optional | 600*800 | 800 | 2800 |
| Window Type | 100 | 600*600*800 | Standard | Optional | 600*800 | 800 | 2800 |
| Window Type | 200 | 800*800*800 | Standard | Optional | 800*800 | 800 | 2800 |
| Window Type | 200 | 1000*1000*1000 | Standard | Optional | 1000*1000 | 800 | 3200 |
| Floor Type Parameters (Customizable) | |||||||
|---|---|---|---|---|---|---|---|
| Type | Load (kg) | Cabin Dimension (W*D*H mm) | Landing Door | Cabin Door | Door Size (W*H mm) | Pit Depth (mm) | Overhead Height (mm) |
| Floor Type | 200 | 800*800*1000 | Standard | Optional | 800*1000 | 600 | 2800 |
| Floor Type | 300 | 1000*1000*1200 | Standard | Optional | 1000*1200 | 700 | 3200 |
| Floor Type | 400 | 1000*1200*1400 | Standard | Optional | 1200*1400 | 800 | 3600 |
