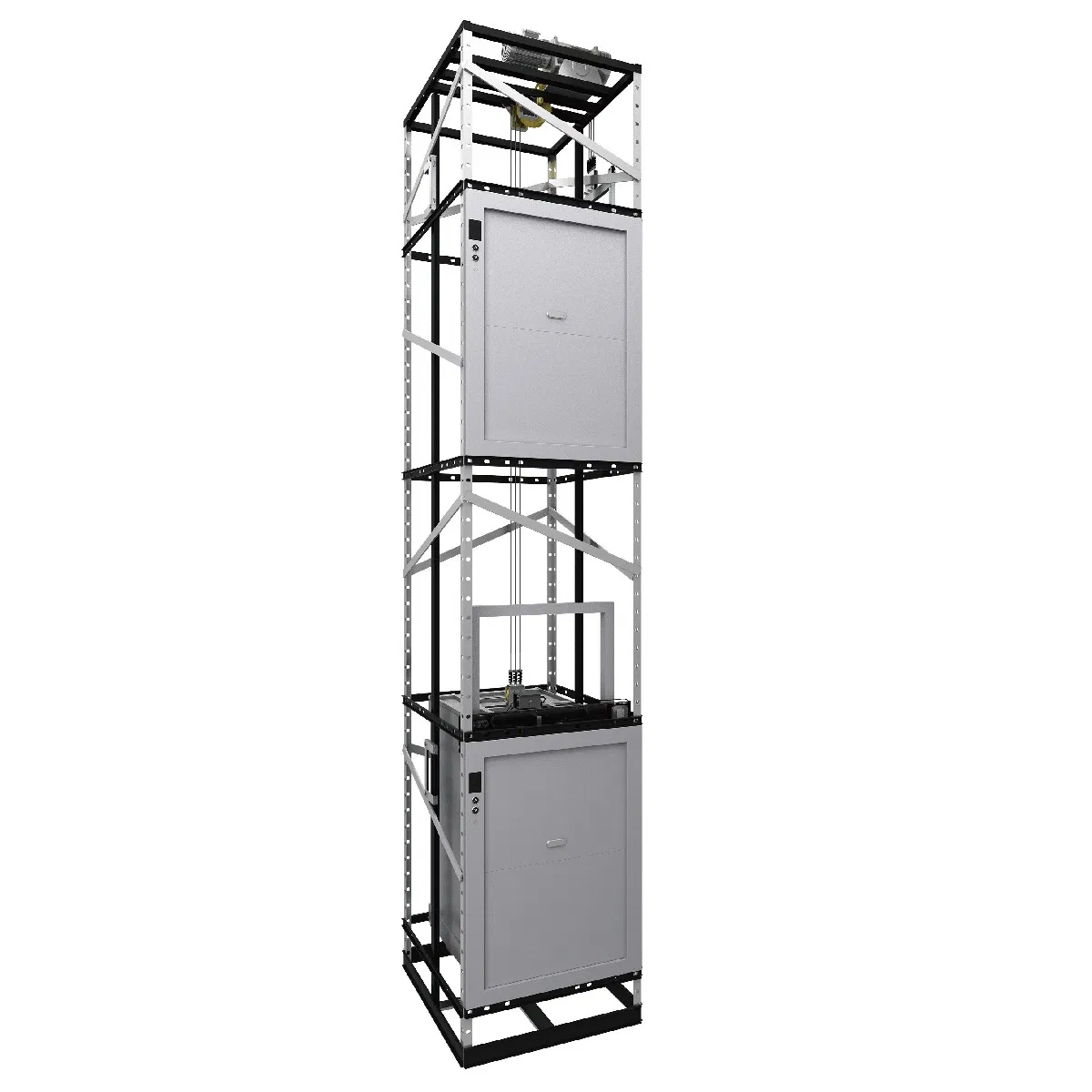

300kg Hairline Stainless Steel Restaurant Food Elevator Service Dumbwaiter Lift

Customization:	Available
After-sales Service:	by Factory or Local Agent
Warranty:	18 Months After Shipment

Basic Specifications

Model NO.

ZW001

Type

Wellhole

Load Capacity

300kg

Speed

0.40m/s

Drive Mode

AC

Lift Mechanism

Telescoping Lift

Control Type

Automatic

Main Power

AC 380V, 3 Phase 50Hz

Packing

Plywood Box

Specification

EN81, GB7588-2003

Product Description

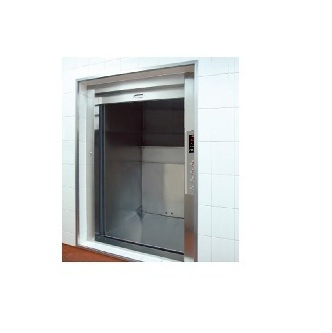

300kg Hairline Stainless Steel Dumbwaiter Lift

The dumbwaiter is the smallest member of the elevator family, often referred to as a food elevator or kitchen lift. It serves various industries silently, maximizing utility within the smallest possible space. Our solution redefines the dumbwaiter with a complete product series featuring both floor and window types, equipped with advanced opening methods and leading technology.

Key Advantages:

Small footprint, requiring minimal civil engineering.
Advanced PC control module for smooth leveling.
Humanized design for flexible operation.

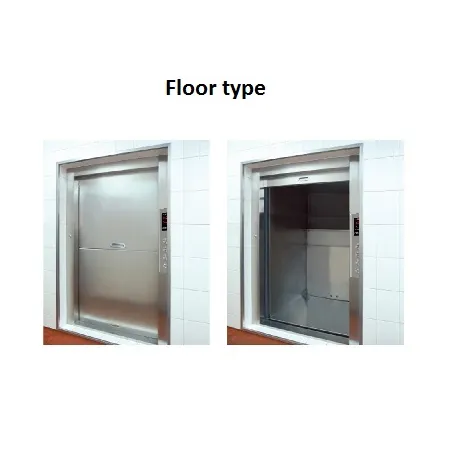

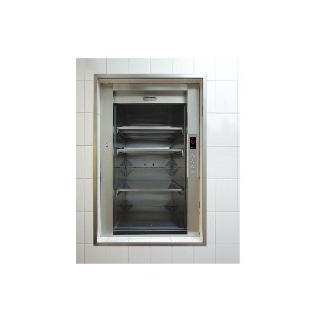

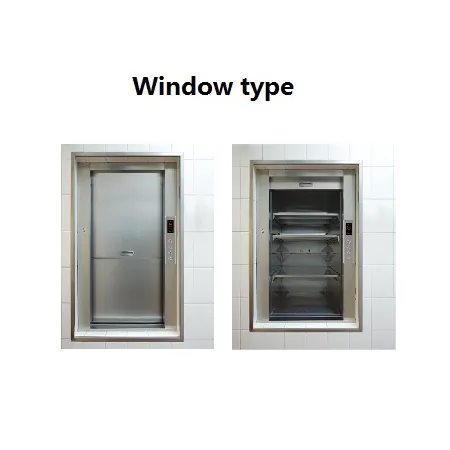

Available in window and floor types.
Safe, quiet, and easy to maintain.

Technical Parameters

Load (kg)	Speed (m/s)	Cabin Size (WxDxH)mm	Shaft Size (WxD)mm	Type
100	0.4	500x500x900	1000x800	Window Type
200	0.4	600x600x900	1100x900	Window Type
250	0.4	800x800x900	1300x1100	Window Type
300	0.4	900x900x900	1400x1200	Window Type
100	0.4	500x500x1000	1000x800	Floor Type
300	0.4	900x900x1000	1400x1200	Floor Type

Safety & Protection Functions

1. Motor overheat protect	2. Power phase fault detect	3. Inspection running
4. Emergency door opening key	5. Car door contact	6. Shaft emergency stop
7. Running direction indicator	8. Safety gear contact	9. Main power switch

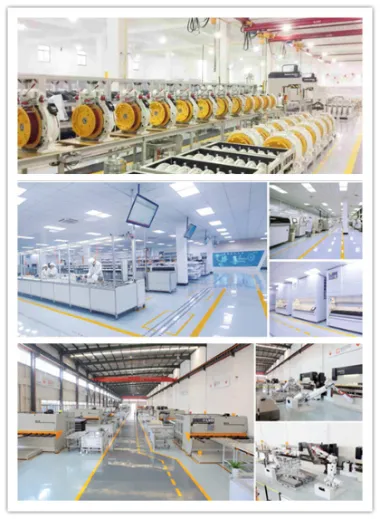

Manufacturing & Packing

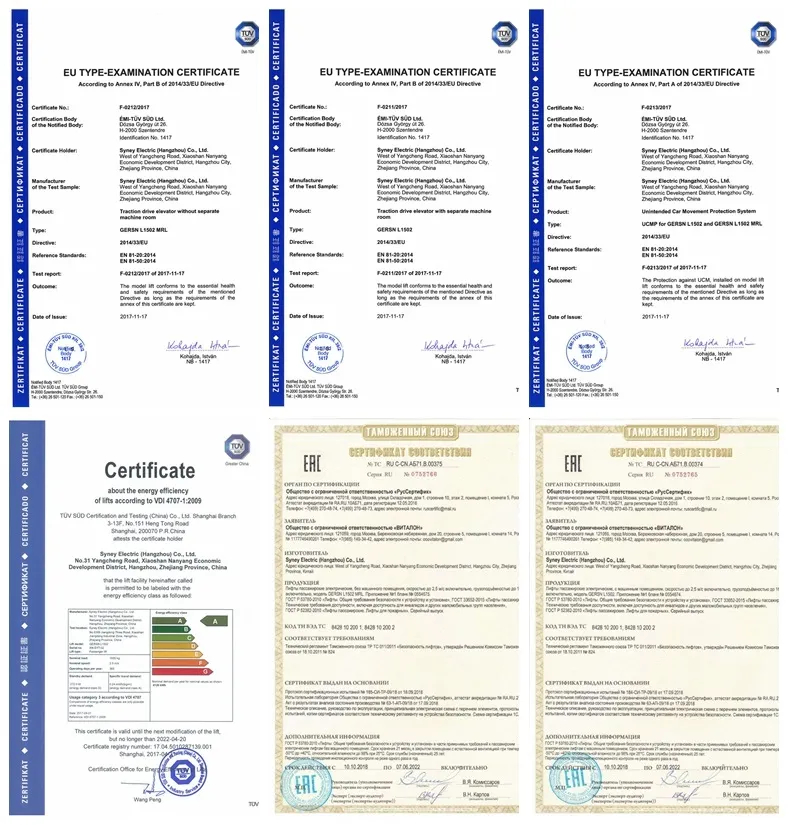

Global Certifications

Our products meet the highest international standards, including TUV SUD, which is widely recognized in Europe. This ensures our quality certification meets global requirements.
