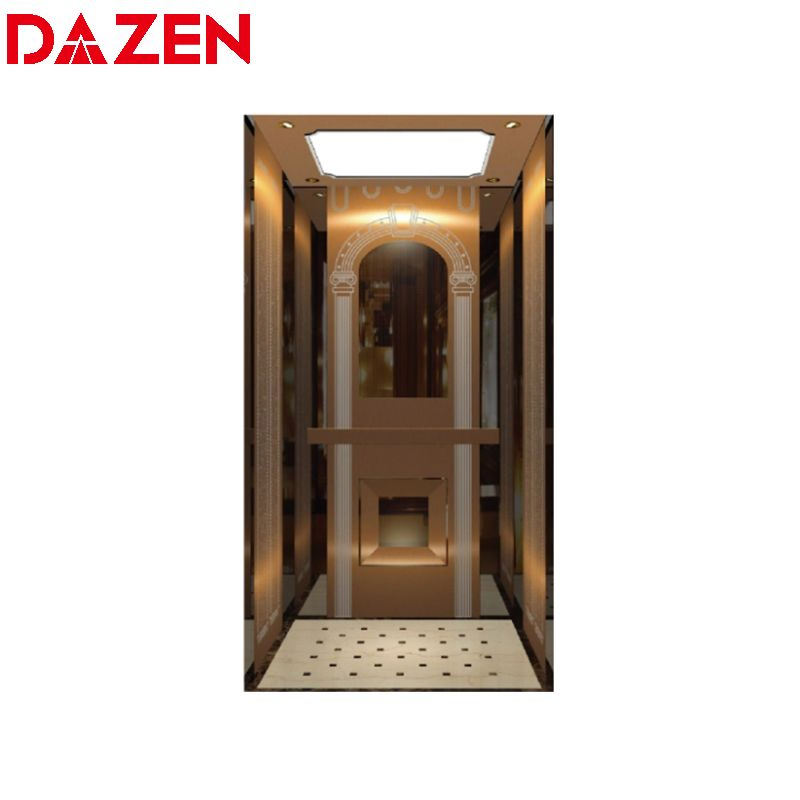

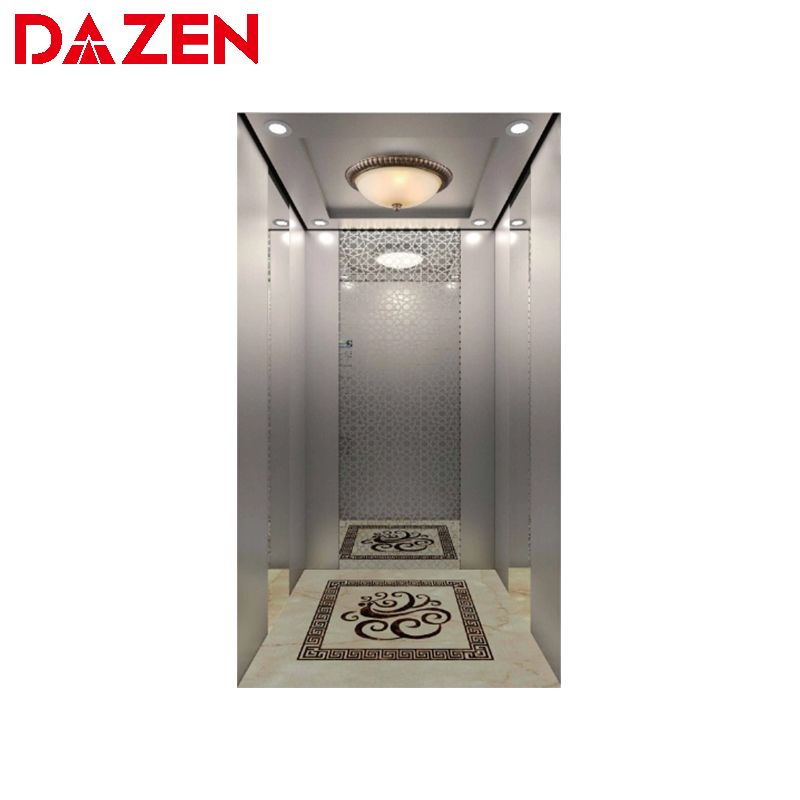

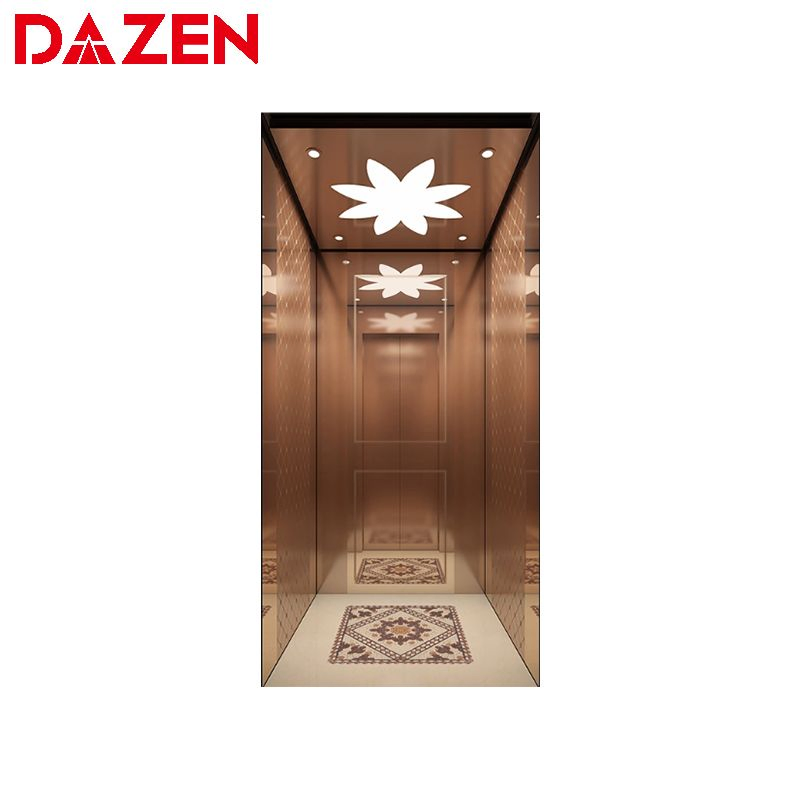

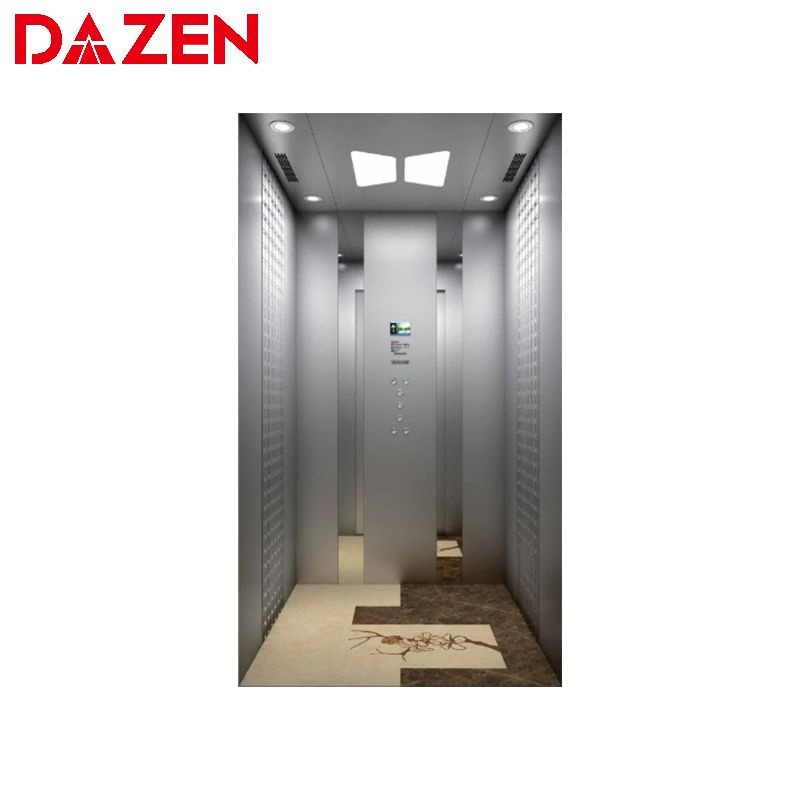

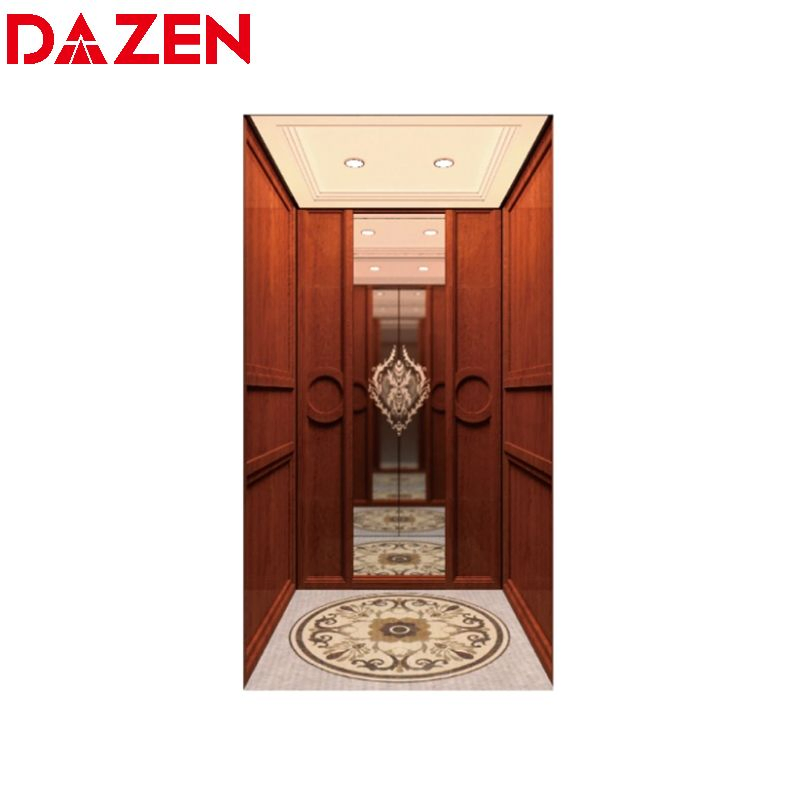

Cheap Small Home Passenger Residential Lift Elevator Price

Customization:	Available
After-sales Service:	2years
Warranty:	2years

Basic Specifications

Model NO.

DZ0242

Driving Type

AC Elevator

Capacity

450~1600kg

Persons

8~16 persons

Speed

1.0~3.0m/S

Control Mode

Integrated Control System

Computer Room

Up or Roomless

Elevator Door

Center Opening Door

Guarantee

2 Years

Certification

CE / EN81

Origin

China

Package

Wooden Packing

Key Features

★

2 Years Guarantee
Comprehensive free guarantee for 24 months.

★

Local Support
Installation teams and after-sales service available.

★

Premium Materials
Standard SS304 1.5mm stainless steel construction.

★

European Technology
Gearless motor with CE certification.

★

Small Shaft Expert
Professional solutions for limited shaft spaces.

★

Safety First
Equipped with VVVF door control and multiple protection lines.

Technical Parameters

Loading (Kg)	630	800	1000	1350	1600
Speed (m/s)	1.0/1.75	1.0/1.75/2.0	1.0/1.75/2.0	1.0/1.75/2.0/2.5	1.0/1.75/2.0/2.5
Opening Width (mm)	800*2100	800*2100	900*2100	1100*2100	1100*2100
Pit Depth (m)	1.5	1.5-1.7	1.5-1.8	1.8-2.0	1.8-2.0
Motor	European Gearless Motor
Power	380V, 220V, 50HZ/60HZ

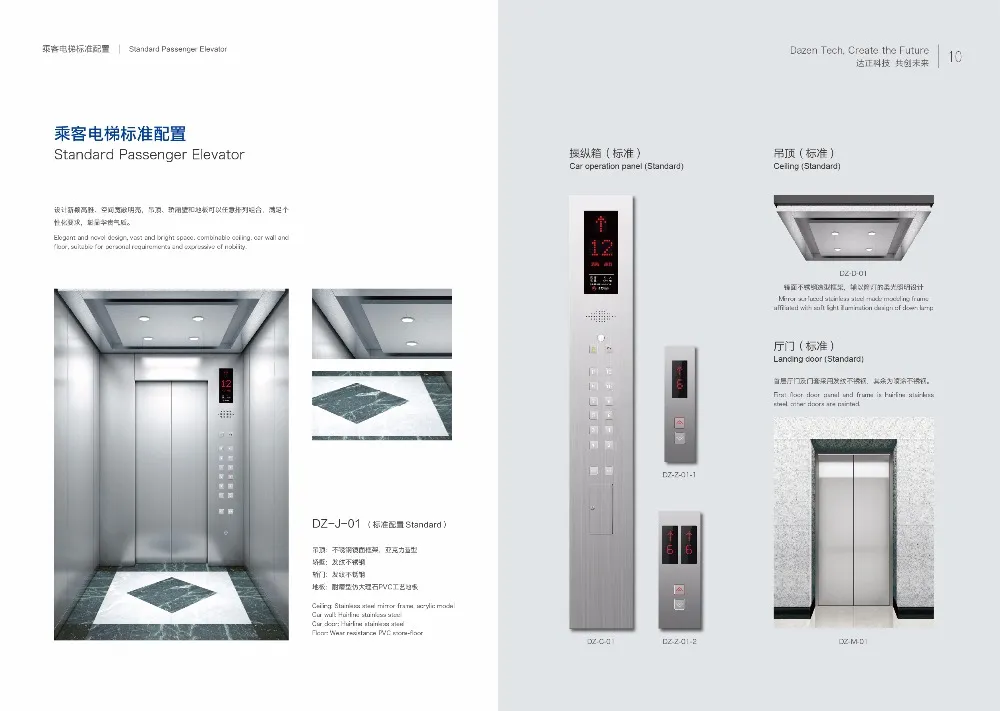

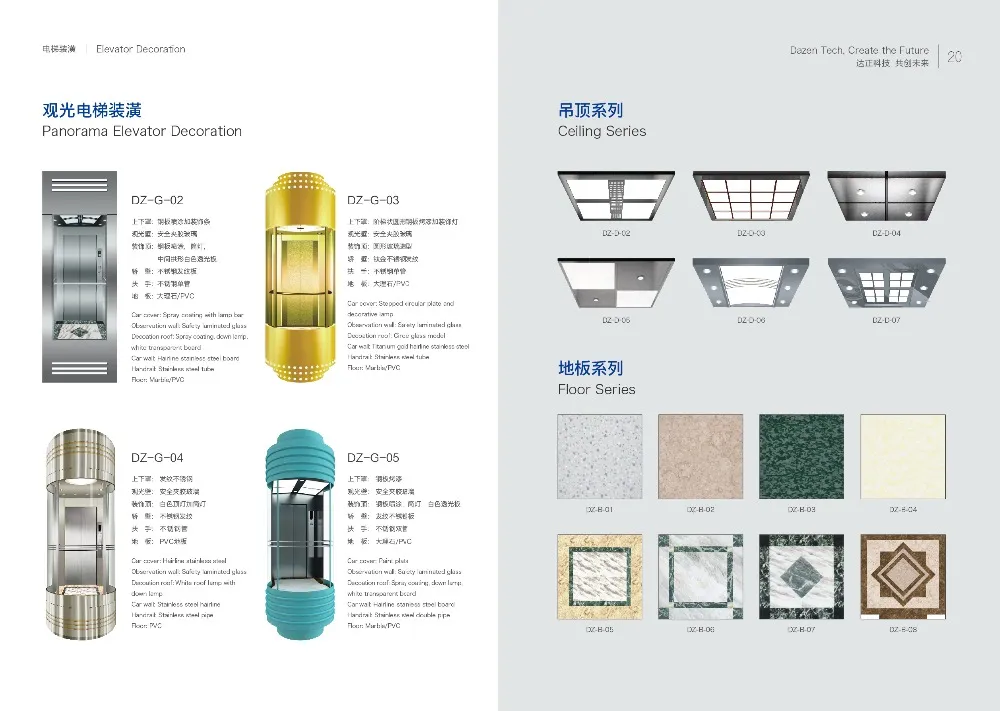

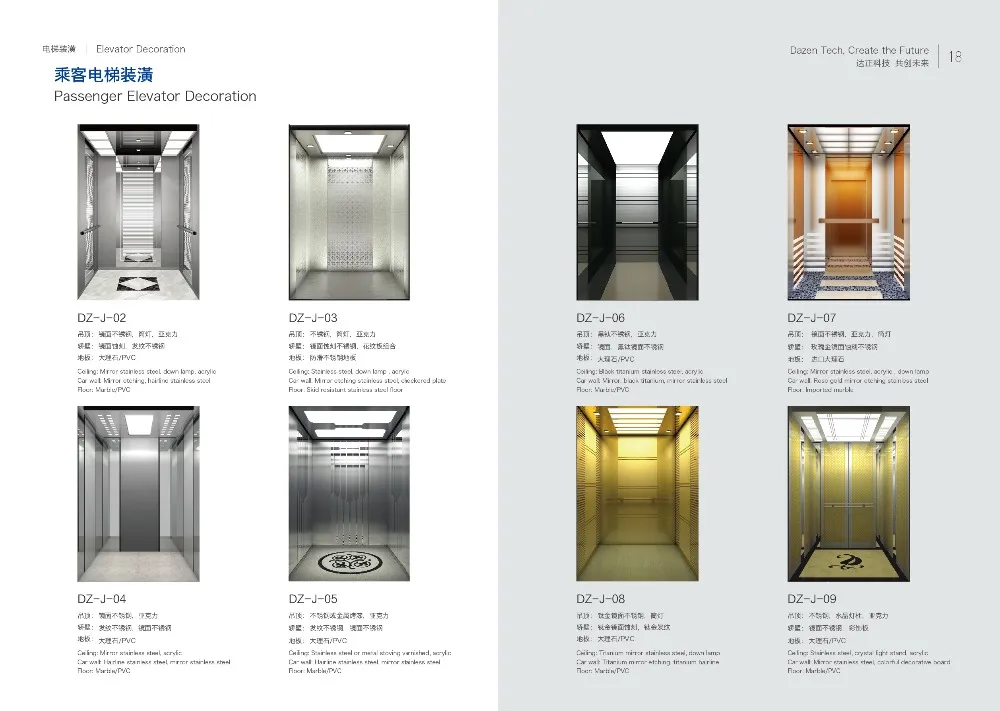

Visual Display

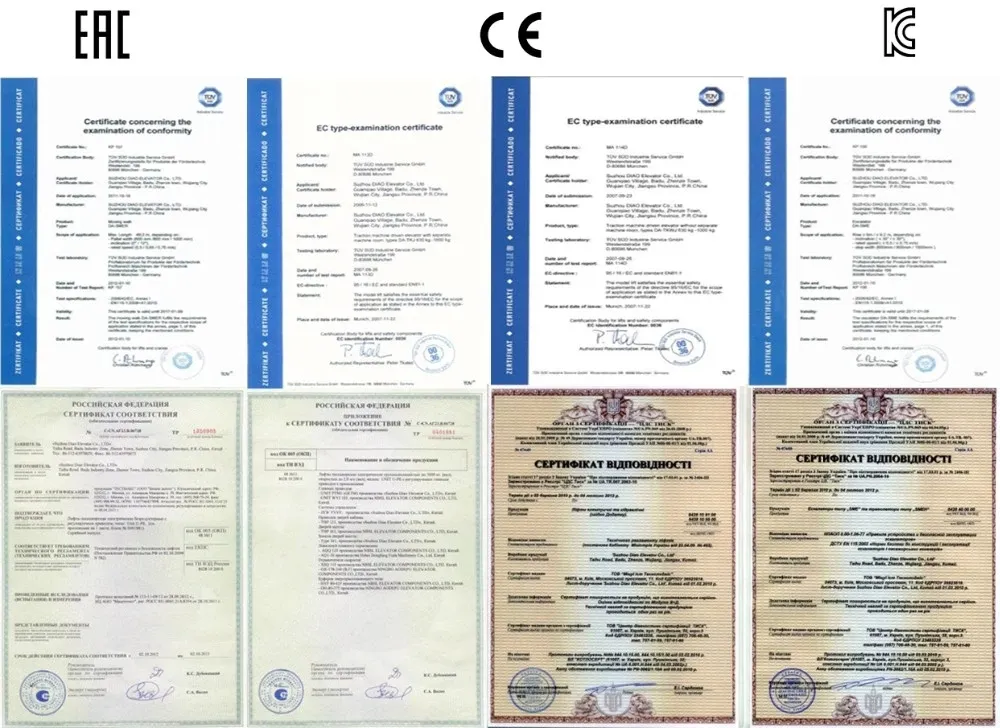

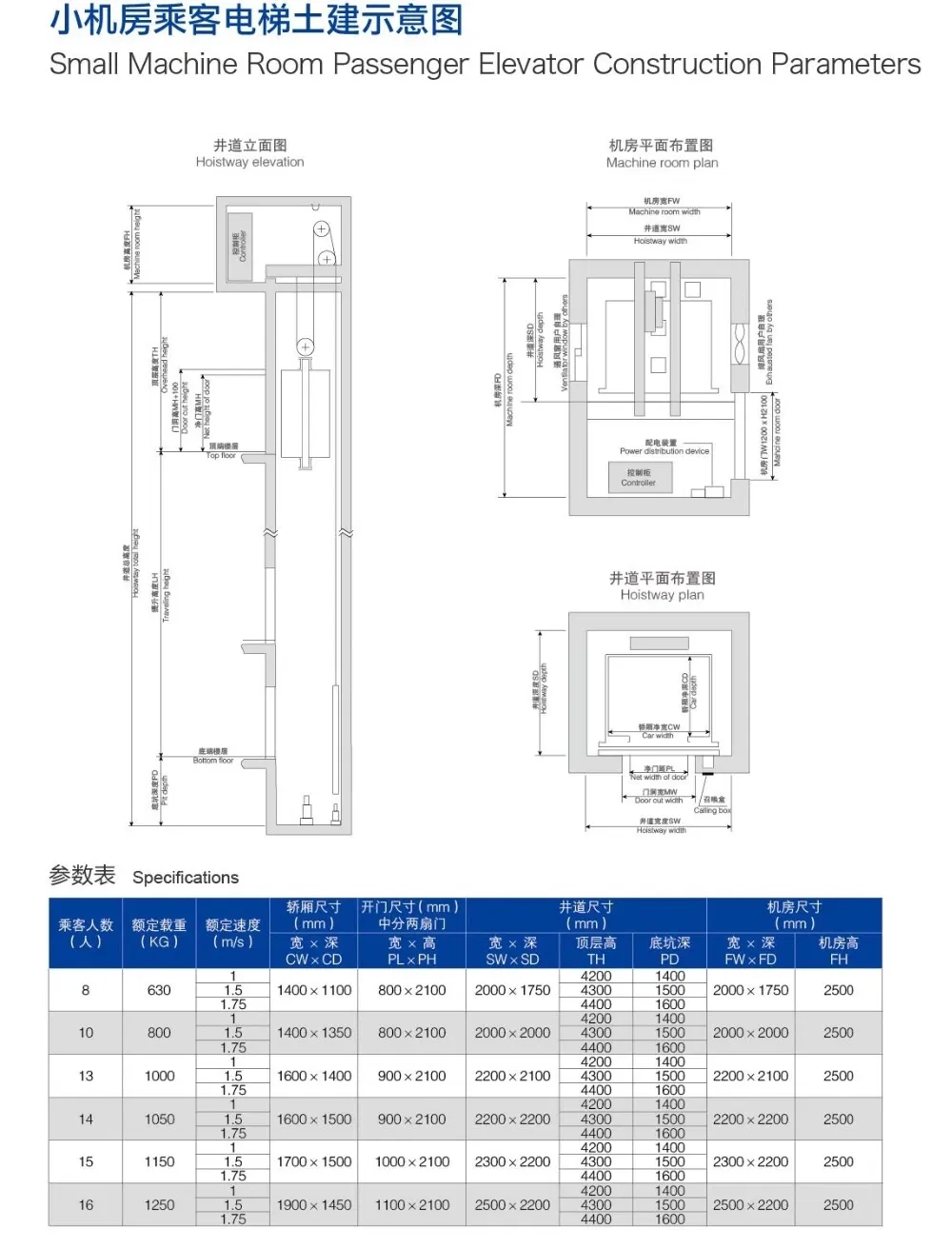

Technical Drawings & Certifications

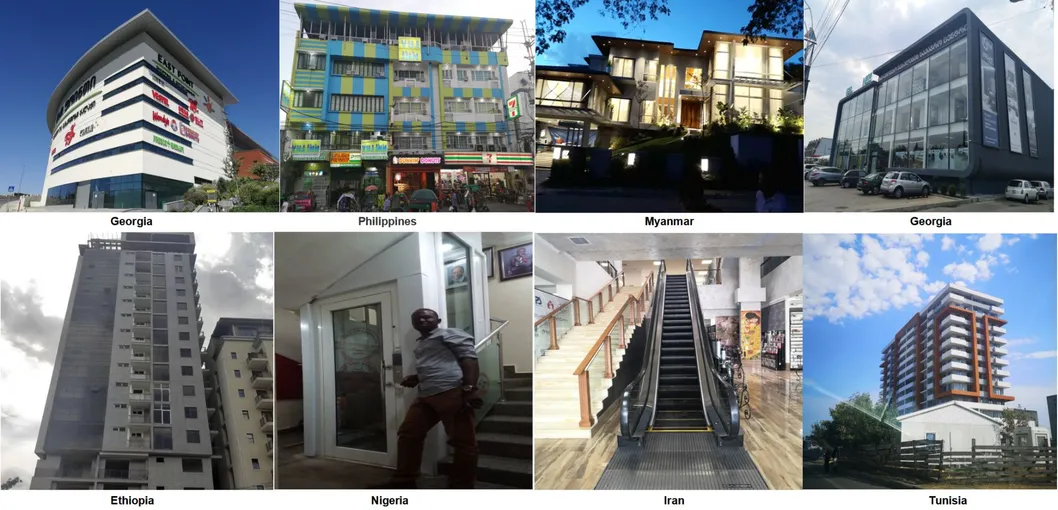

Projects & Exhibitions

Frequently Asked Questions

Q1: Is the elevator stable and safe for residential use?

Yes. With over 10 years of production experience and exports to 20+ countries, our products are qualified with ISO9001, CE/EN81, EAC, and KC standards using international premium brand parts.

Q2: How do I handle installation and maintenance?

We cooperate with professional elevator installation companies in over 20 countries. We ensure our customers enjoy high-quality local after-sales service and technical support.

Q3: What safety features prevent the elevator from dropping?

Our elevators feature 6 lines of protection across the machine room, doors, and shaft bottom. The automatic protection system activates immediately if any issue is detected.

Q4: What certifications do your elevator products hold?

We are fully qualified with CE/EN81, EAC/CU-TR, KC, and TUV certificates, ensuring full protection and compliance with international safety standards.

Q5: What materials are used for the cabin construction?

We use high-quality international standard SS304 stainless steel with a thickness of 1.5mm to ensure durability and a premium finish.

Q6: Can these elevators be installed in very small shafts?

Yes, we specialize in providing professional solutions for very small shafts, specifically designed for the overseas residential and commercial markets.
