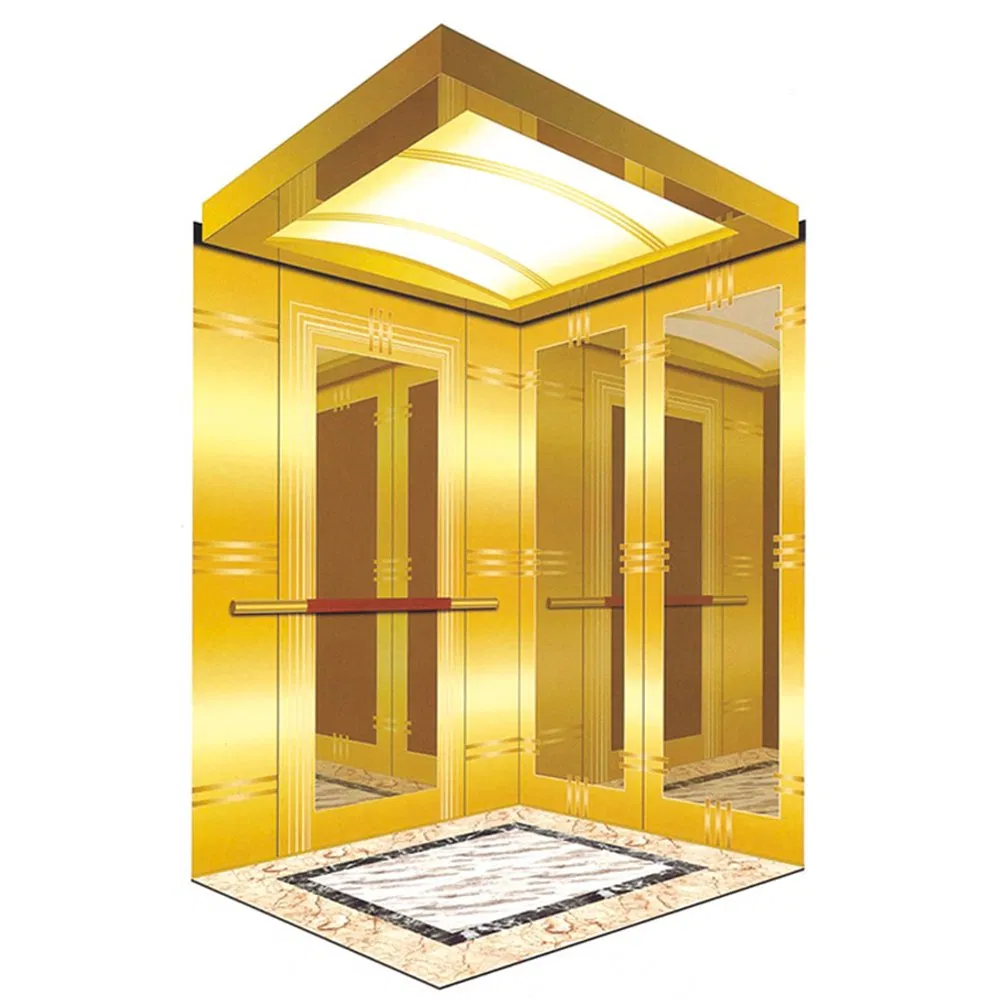

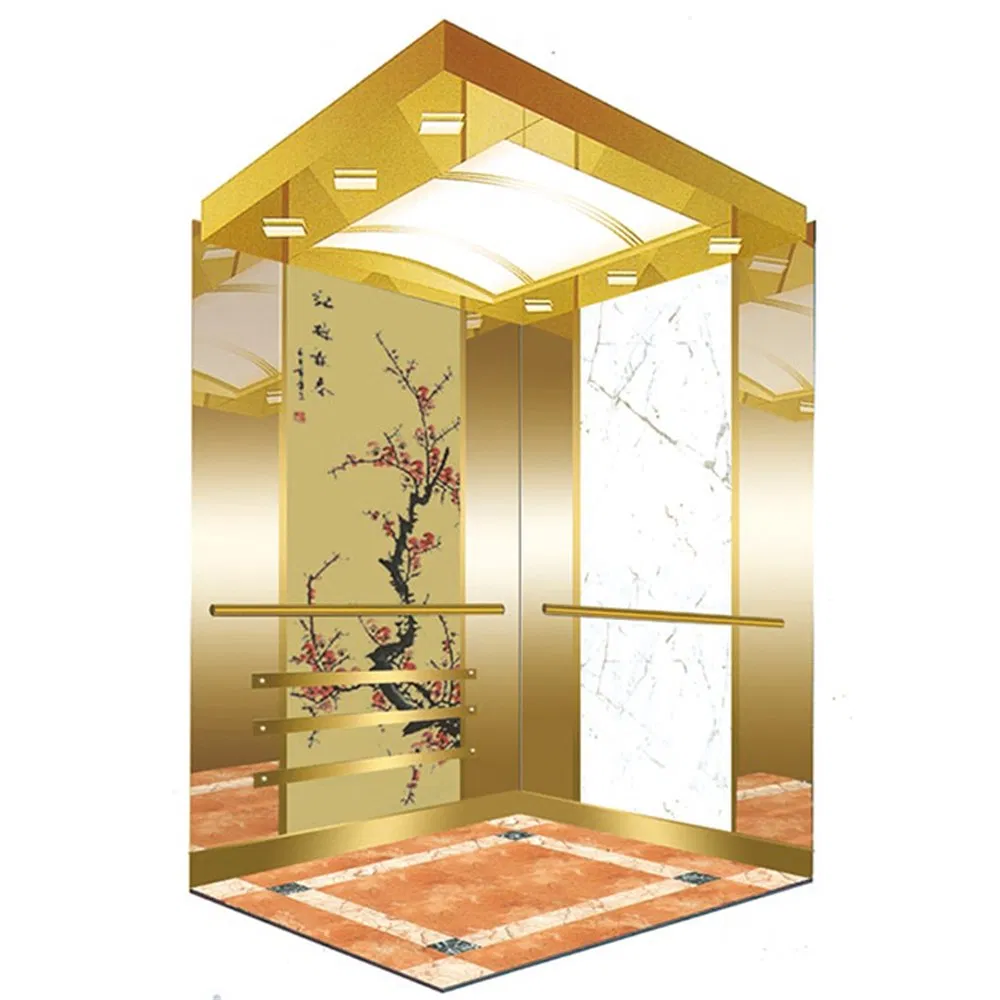

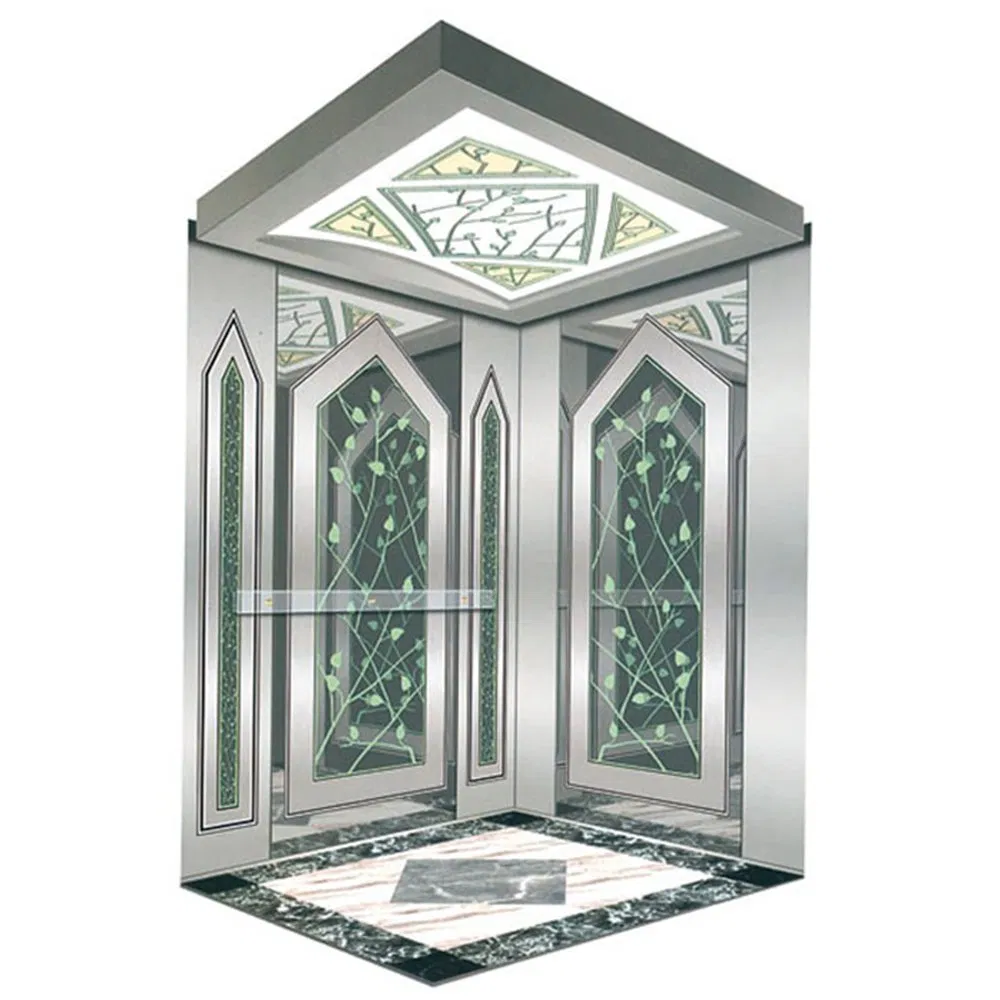

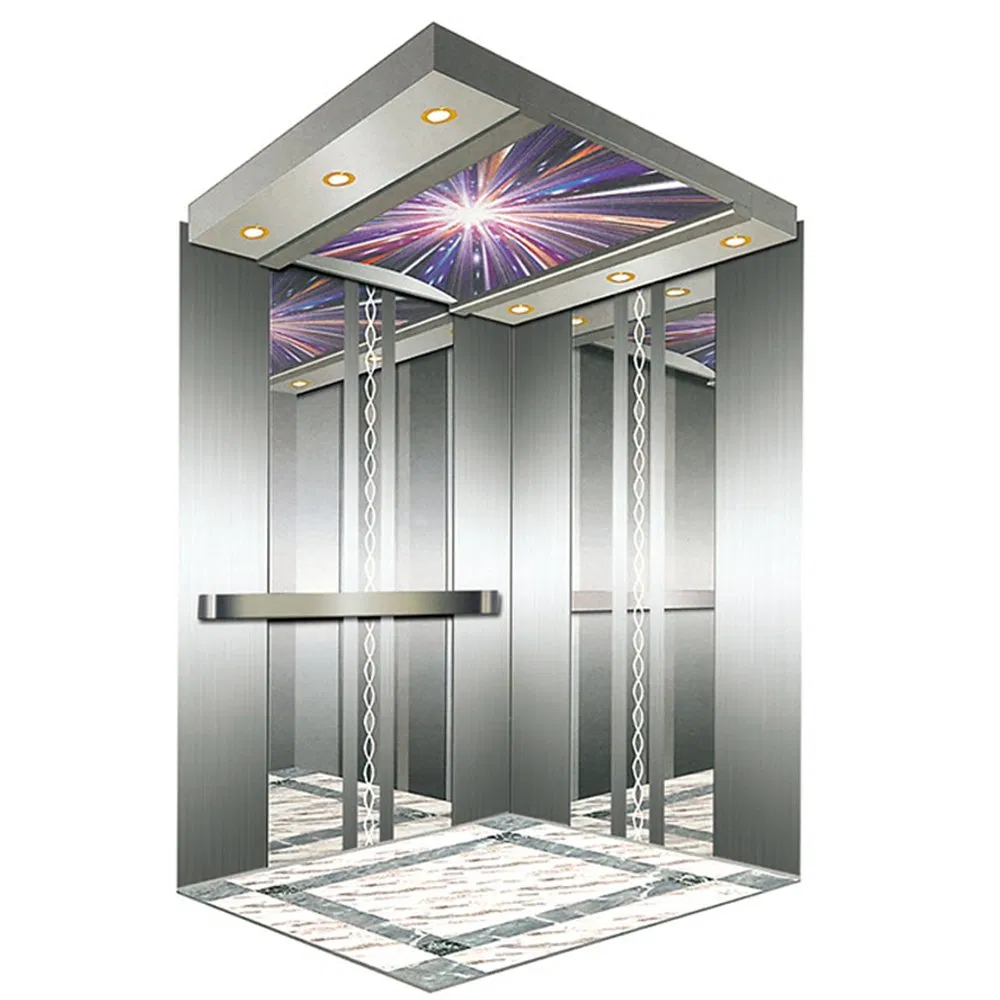

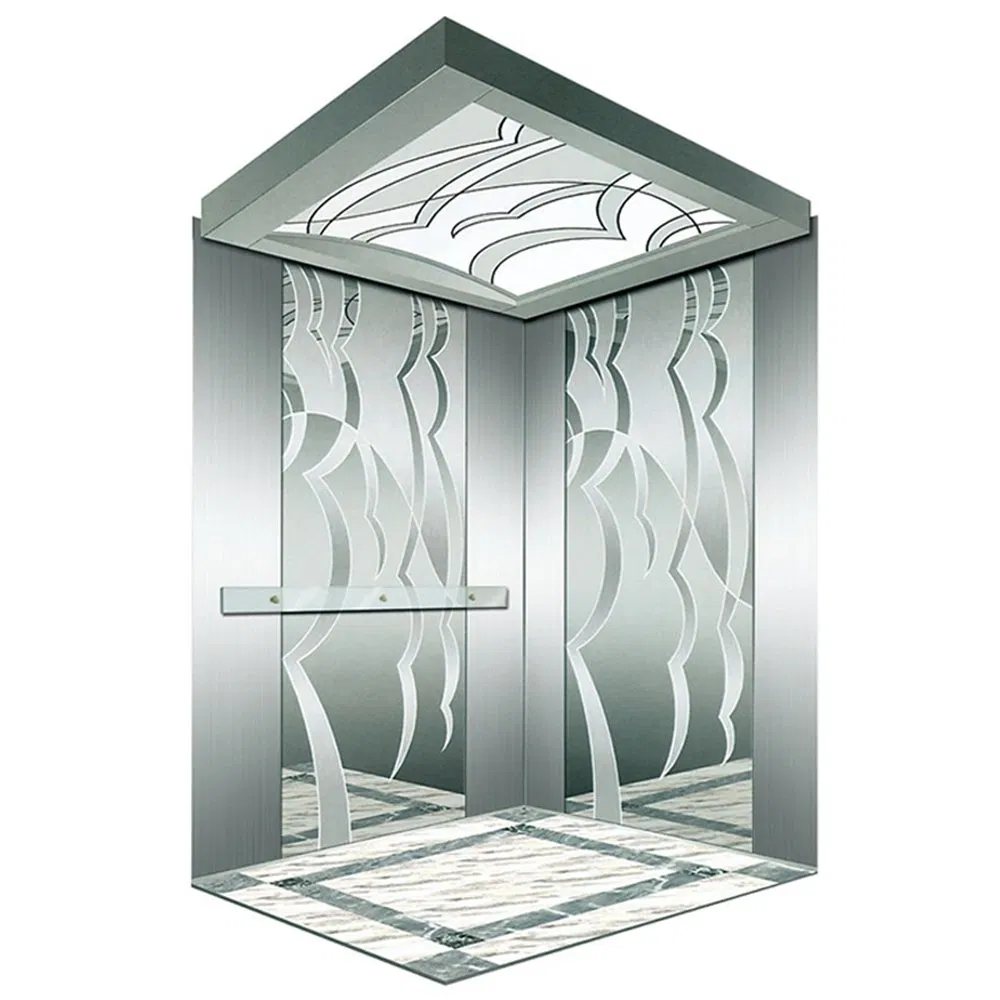

VVVF Control Residential Building Passenger Elevator
Less Space, More Intelligence. This elevator greatly saves building space and materials. Compared with traditional elevators, it efficiently controls machine room height while ensuring operational space as stipulated by national standards.
Less Space, More Intelligence. The machine roomless passenger elevator eliminates the need for a dedicated machine room, reducing the total area required for equipment and providing flexibility for effective space utilization. It offers a contemporary feel and a more aesthetic construction outline.
| Load (kg) | Speed (m/s) | Internal Car Size (mm) | Door Size (mm) | Hoistway (mm) | ||||
|---|---|---|---|---|---|---|---|---|
| C.W | C.D | C.H | D.W | D.H | H.W | H.D | ||
| 450 | 1 - 1.75 | 1100 | 1000 | 2500 | 800 | 2100 | 1850 | 1700 |
| 630 | 1 - 1.75 | 1400 | 1100 | 2500 | 800 | 2100 | 2000 | 1800 |
| 800 | 1 - 2.5 | 1400 | 1350 | 2500 | 800 | 2100 | 2000 | 2000 |
| 1000 | 1 - 2.5 | 1600 | 1500 | 2500 | 900 | 2100 | 2200 | 2200 |
| 1150 | 1 - 2.5 | 1800 | 1500 | 2500 | 1100 | 2100 | 2400 | 2200 |
