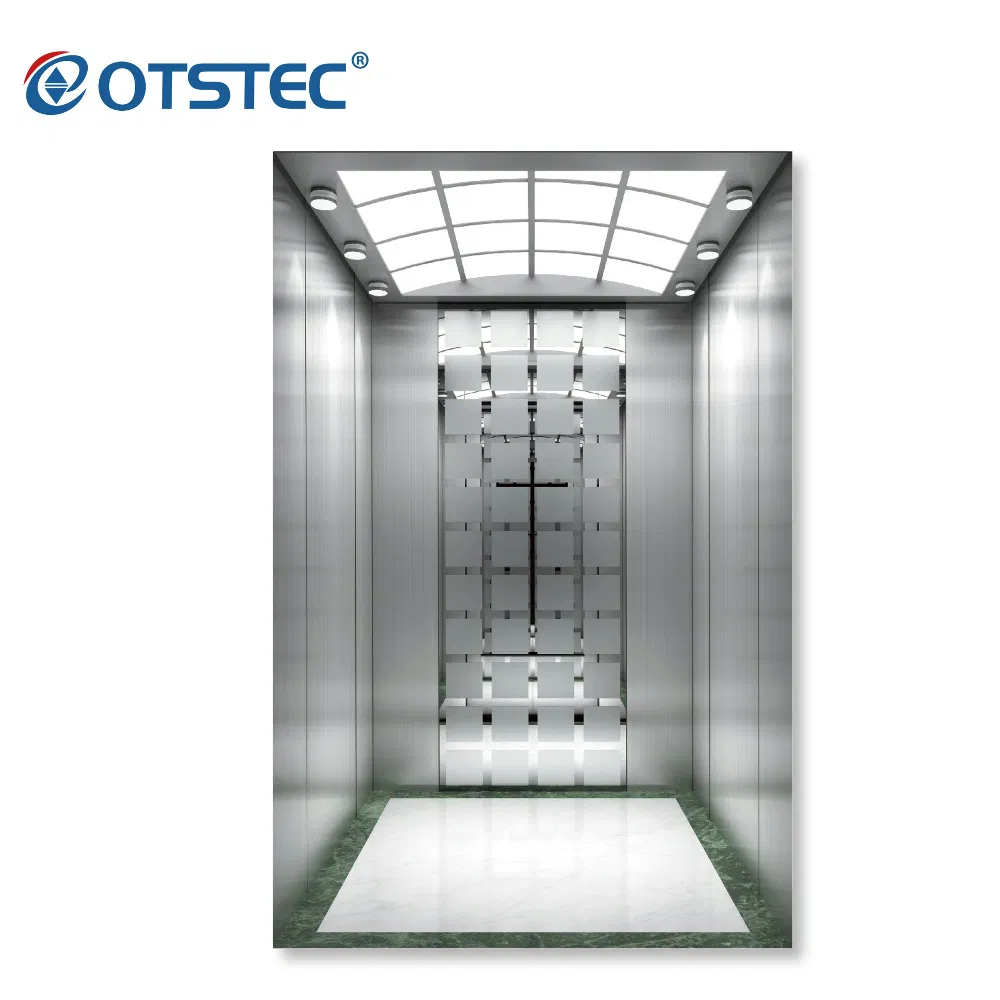

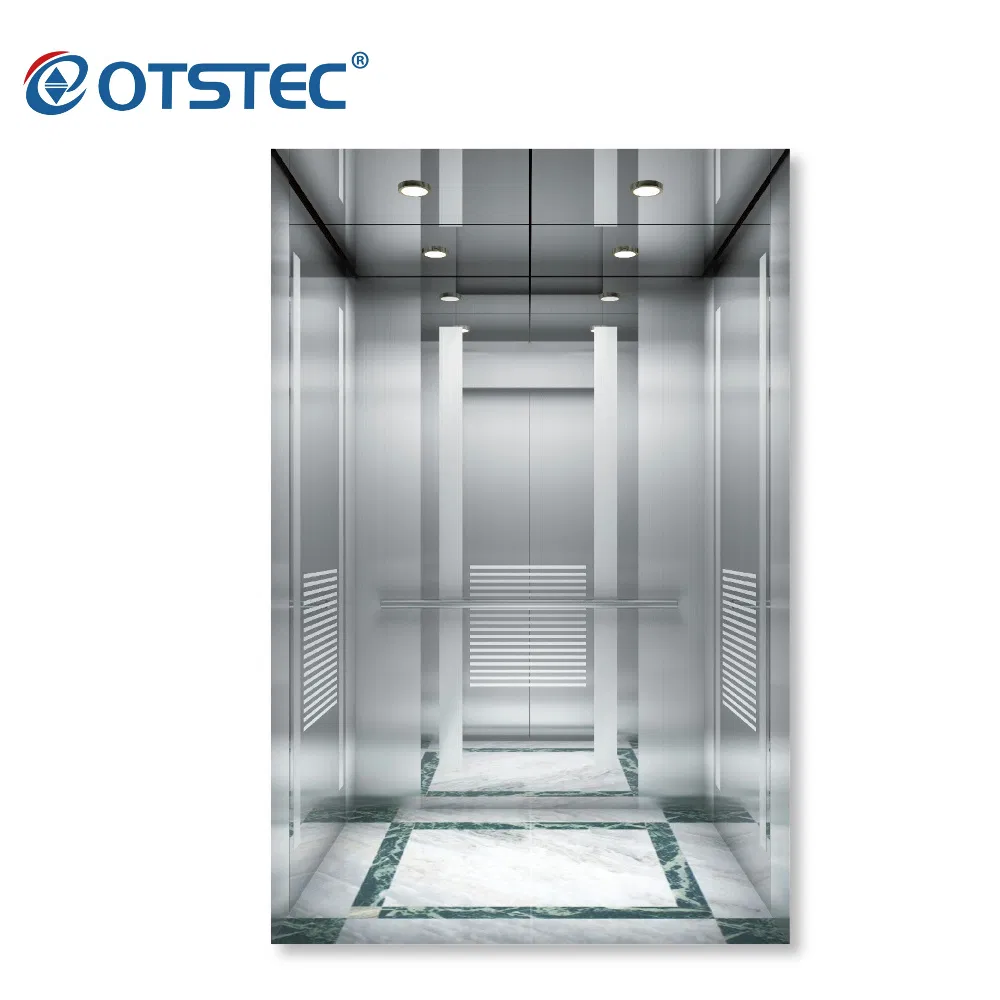

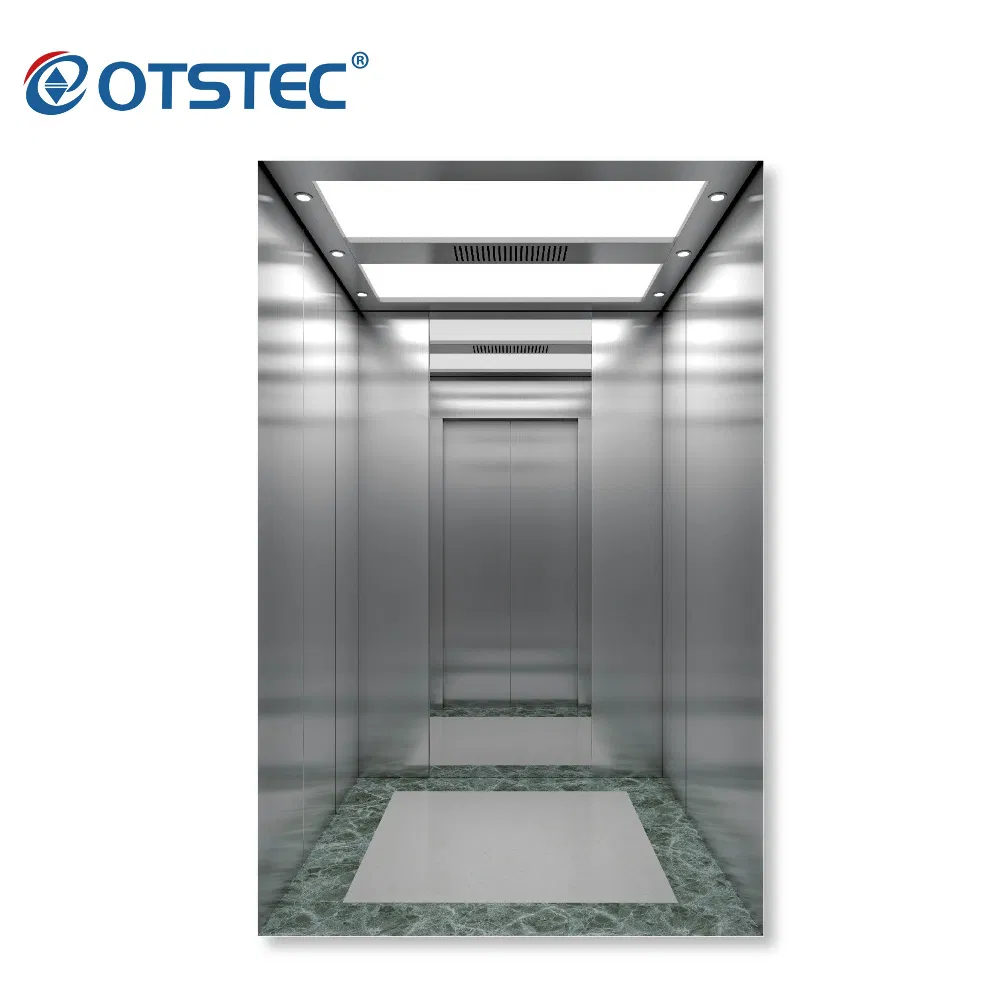

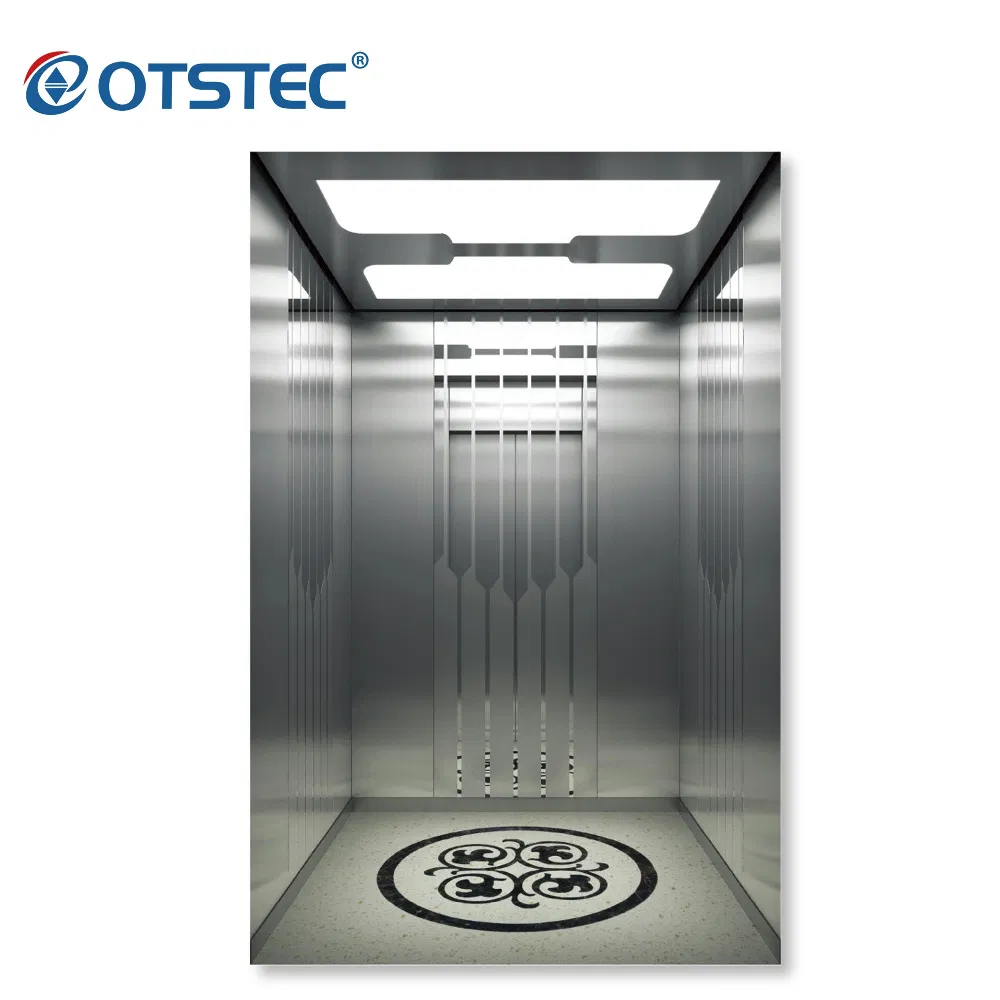

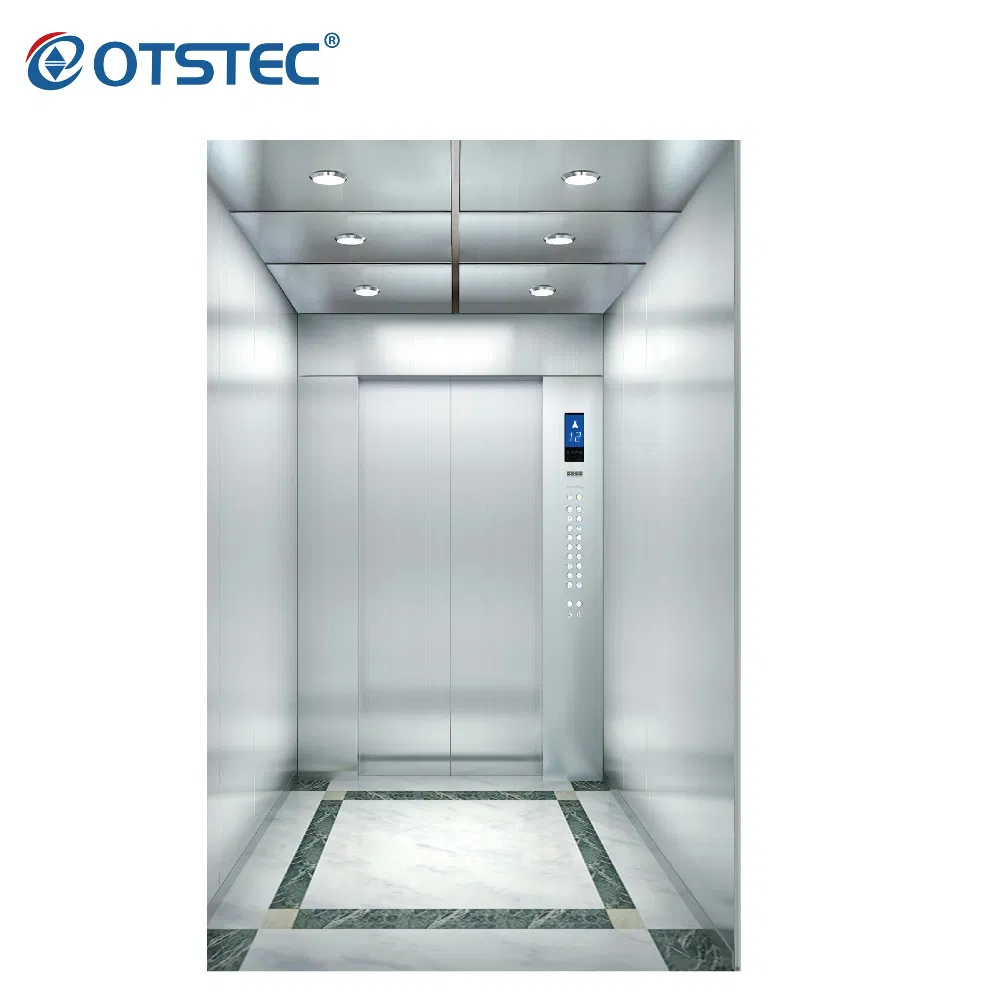

China Modern Lift Passenger Elevator with European Standard

i

Basic Specifications

Model NO.:OTN-30

Driving Type:Gearless Motor

Capacity:450kg-1600kg

Persons:6 - 10

Speed:0.4m/S-6.0m/S

Control Mode:Signal/Group Control

Computer Room:Up / Machine Roomless

Door Type:Center/Side Opening

Certification:ISO/CE/TUV/SGS

Control System:Monarch Vvvf Controller

Material:Stainless Steel 304 / Mirror Etching

Package:Solid Wooden Case

P

Product Gallery

T

Technical Parameters

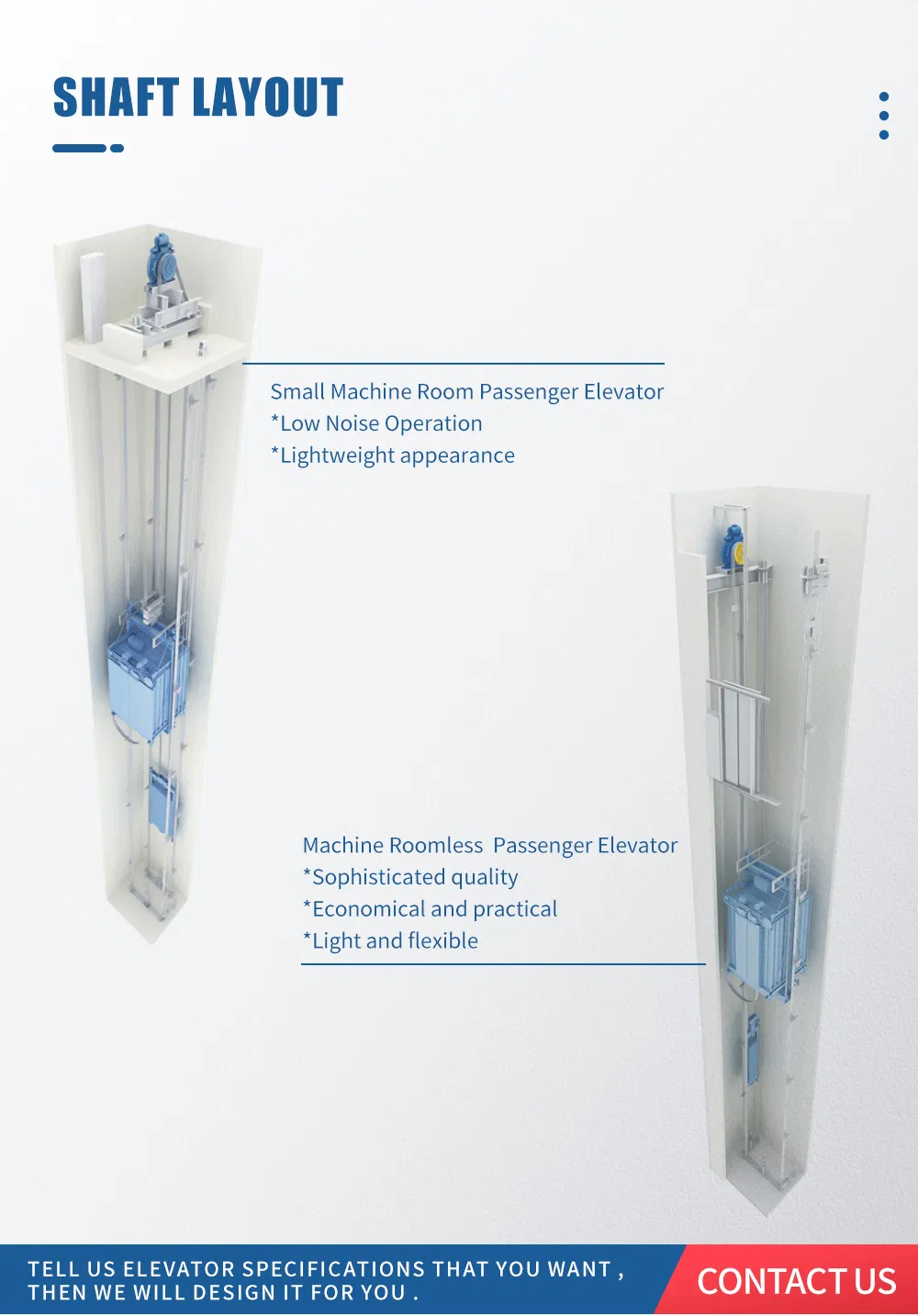

Small Machine Room Configuration
Passenger	Capacity (Kg)	Speed (m/s)	Car Size (WDH mm)	Shaft Min. (W*D mm)	Overhead Height (mm)	Max Rise (m)
6	450	1.0	110011002400	1700*1800	4500	45
8	630	1.0-1.75	140011002400	2000*1800	4500	95
10	800	1.0-2.5	140013002400	2000*2000	4500	120
13	1000	1.0-3.0	160015002400	2200*2200	4500	150
16	1250	1.0-4.0	195014002400	2600*2100	4500	180
21	1600	1.0-4.0	195017502400	2600*2450	4500	180

Machine Roomless Configuration
Passenger	Capacity (Kg)	Speed (m/s)	Car Size (WDH mm)	Shaft Min. (W*D mm)	Overhead Height (mm)	Max Rise (m)
6	450	1.0	110011002400	1900*1500	4500	45
8	630	1.0-1.75	140011002400	2200*1500	4500	95
10	800	1.0-2.5	140013002400	2200*1700	4500	120

W

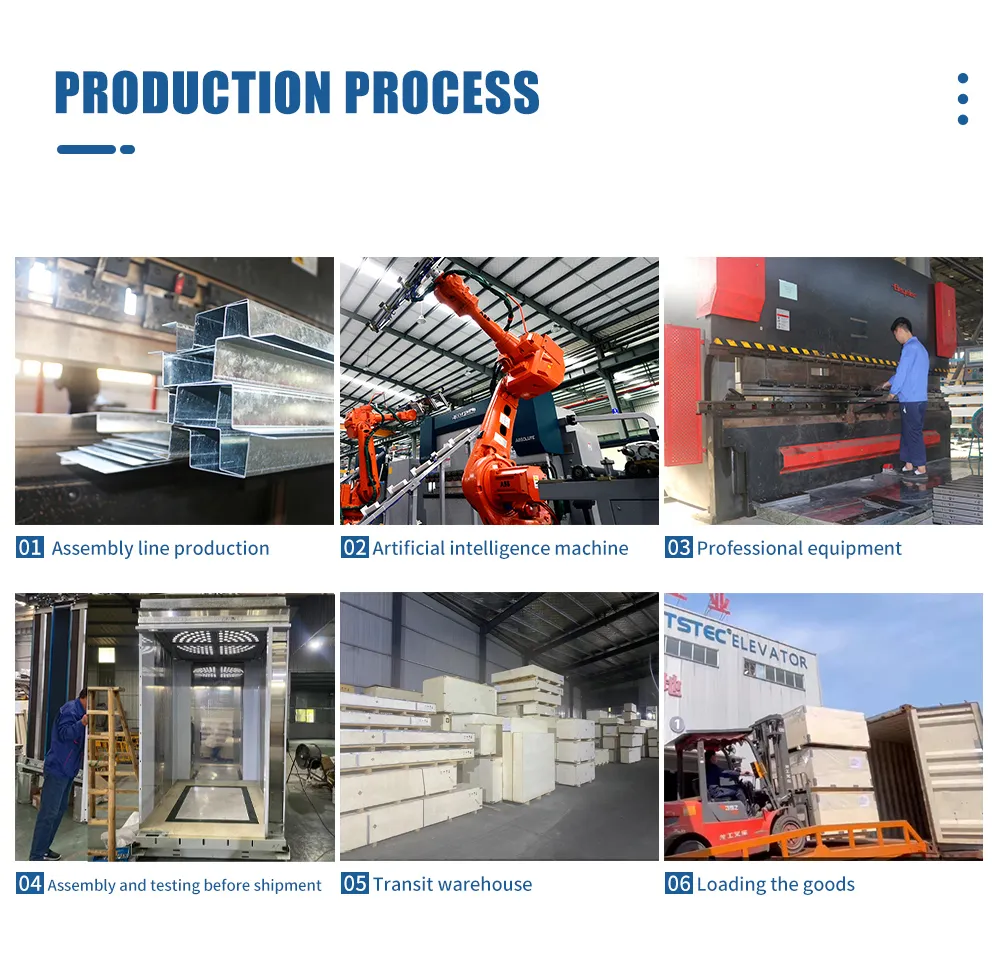

Workflow & Quality

C

Certifications & Global Presence

?

Frequently Asked Questions

What are your terms of packing?

Generally, we pack our goods in solid wooden cases. If you have a legally registered patent, we can pack the goods in your branded boxes after receiving your authorization letters.

What are the delivery terms and lead time?

We support EXW, FOB, CFR, and CIF. Lead time is generally 25 to 30 days after the elevator specification and drawings are confirmed and the advance payment is received.

Do you test all products before delivery?

Yes. For elevators, we assemble the cabin, frame, and door operator for pre-testing. For escalators, we perform a 72-hour continuous run test. Test photos and videos are provided to the customer.

What safety certifications do your elevators hold?

Our products are fully certified and compliant with international standards including ISO, CE, TUV, and SGS, ensuring high safety and reliability for global markets.

How do you maintain long-term business relationships?

We focus on maintaining superior quality and competitive pricing to ensure customer benefits. We treat every customer as a friend and provide dedicated technical support regardless of their location.

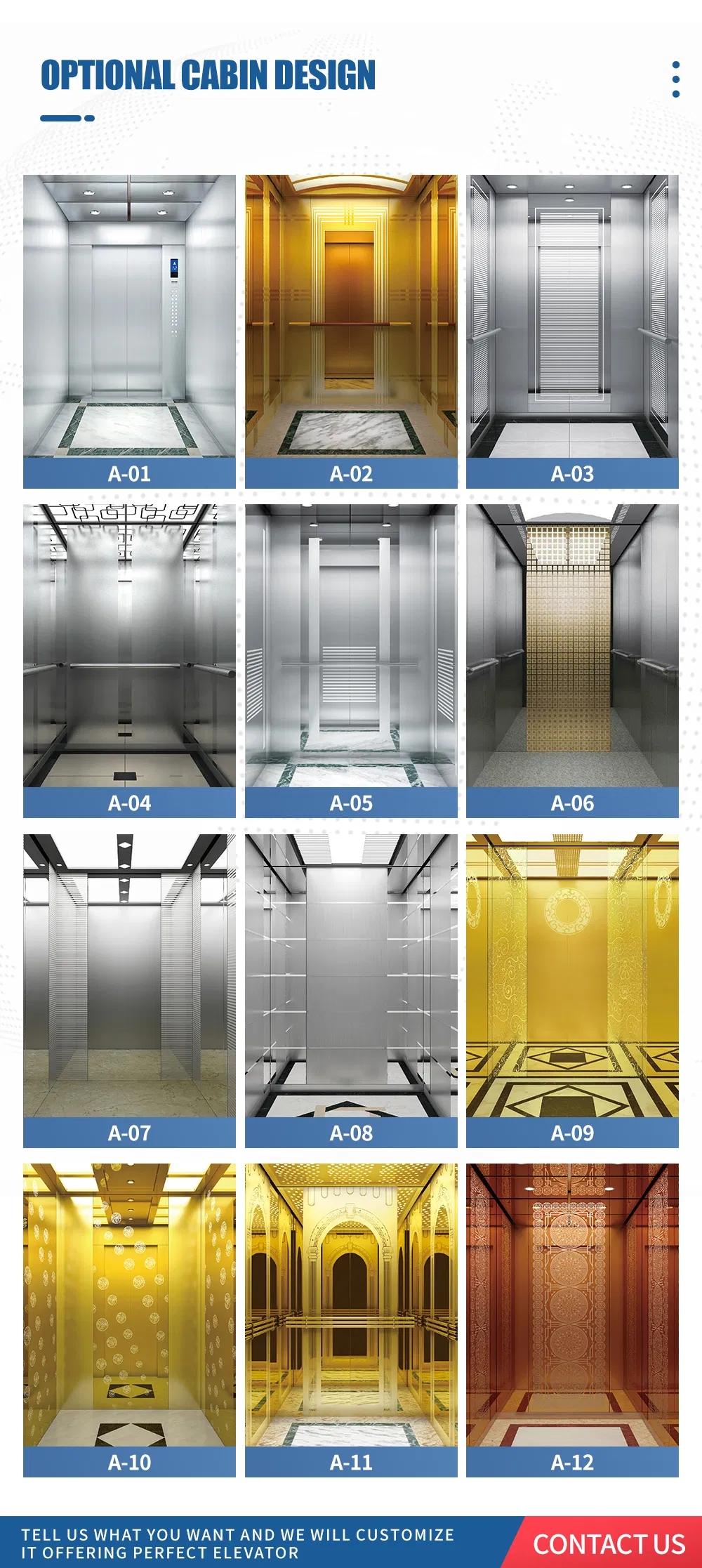

Can the elevator design be customized?

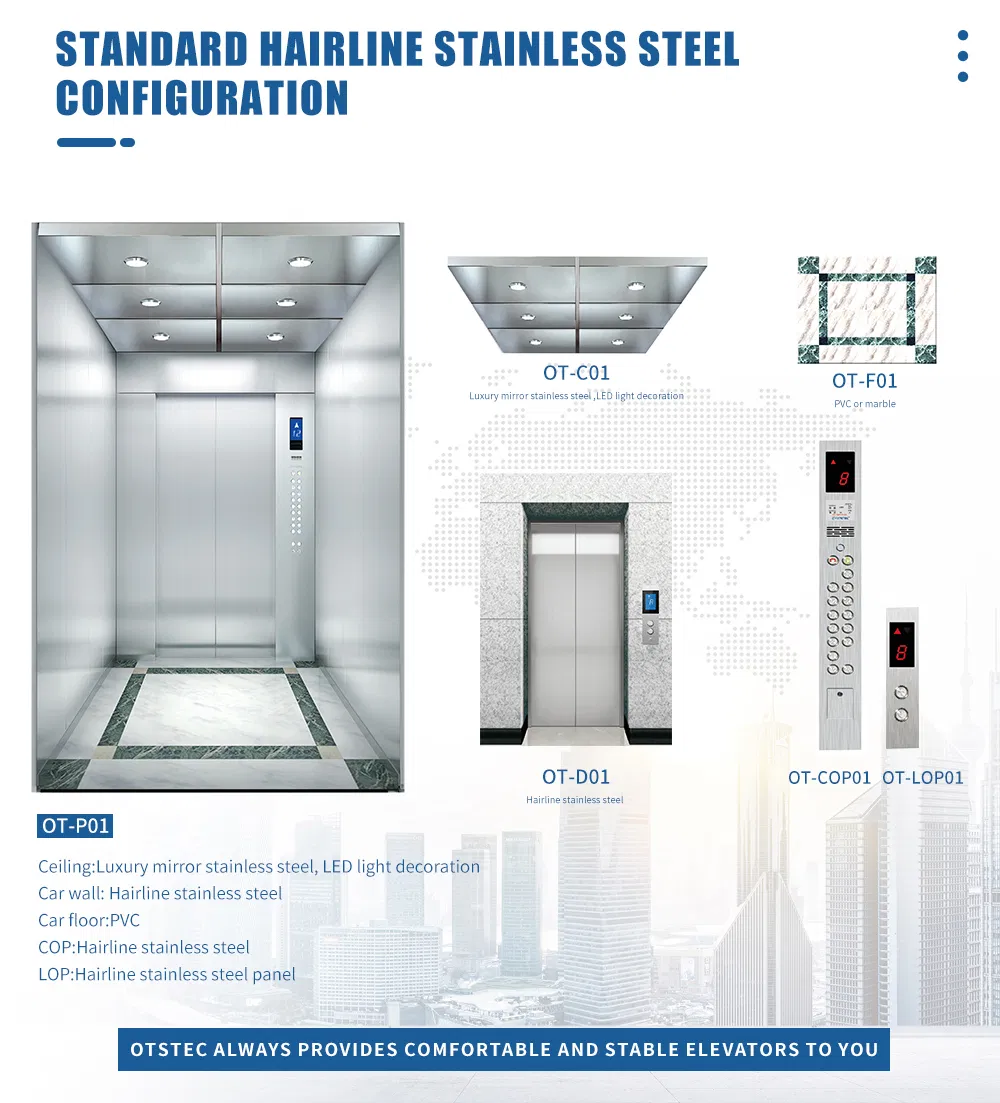

Absolutely. We offer various materials such as Hairline Stainless Steel 304 and Mirror Etching, along with optional functions like ARD, IC Card readers, and Remote Monitoring systems.
