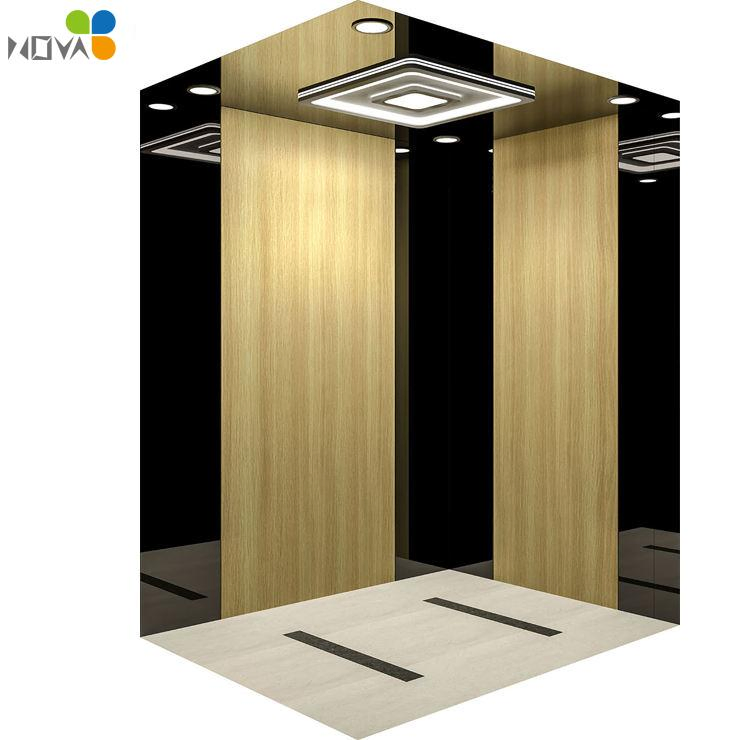

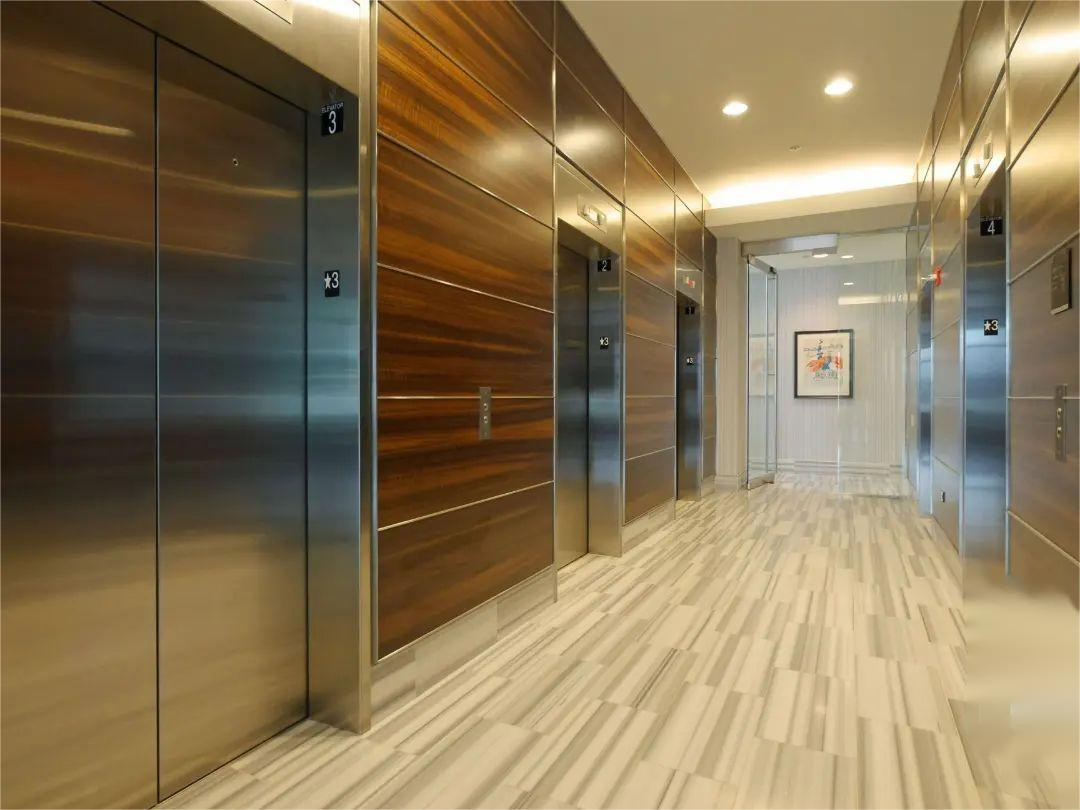

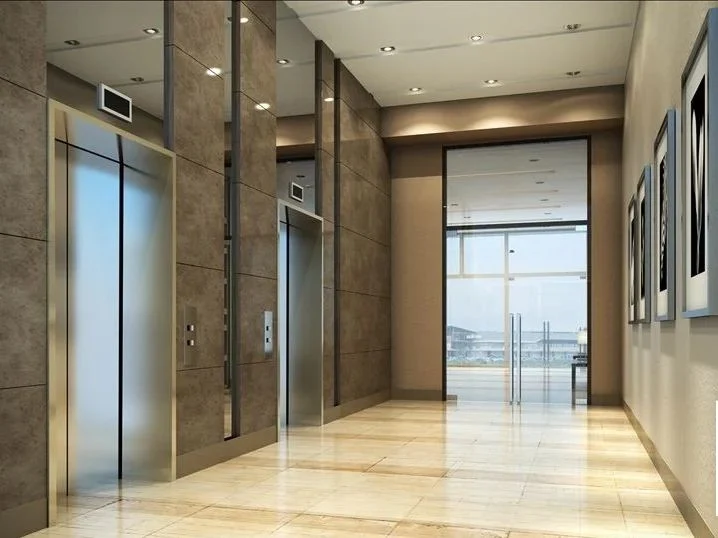

Large Space 400kg Silent Stainless Hot Sale Vvvf Control Lift Passenger Elevator

Customization: Available
After-sales Service: Online Technical Support
Warranty: One Year

Product Description

Overview & Basic Info

Model NO.
Passenger elevator
Driving Type
AC Elevator
Capacity
450-1600kgs
Persons
6-21
Speed
1.00-3.00m/S
Control Mode
VVVF
Computer Room
MR or MRL
Elevator Door
Automatic or Manual
Shaft
Concrete or Steel Structure
Material
Stainless Steel 304
Package Gross Weight
1560.000kg
Production Capacity
5600 Units Per Year

Product Description

Large Space 400kg Silent Stainless Hot Sale VVVF Control Lift Passenger Elevator

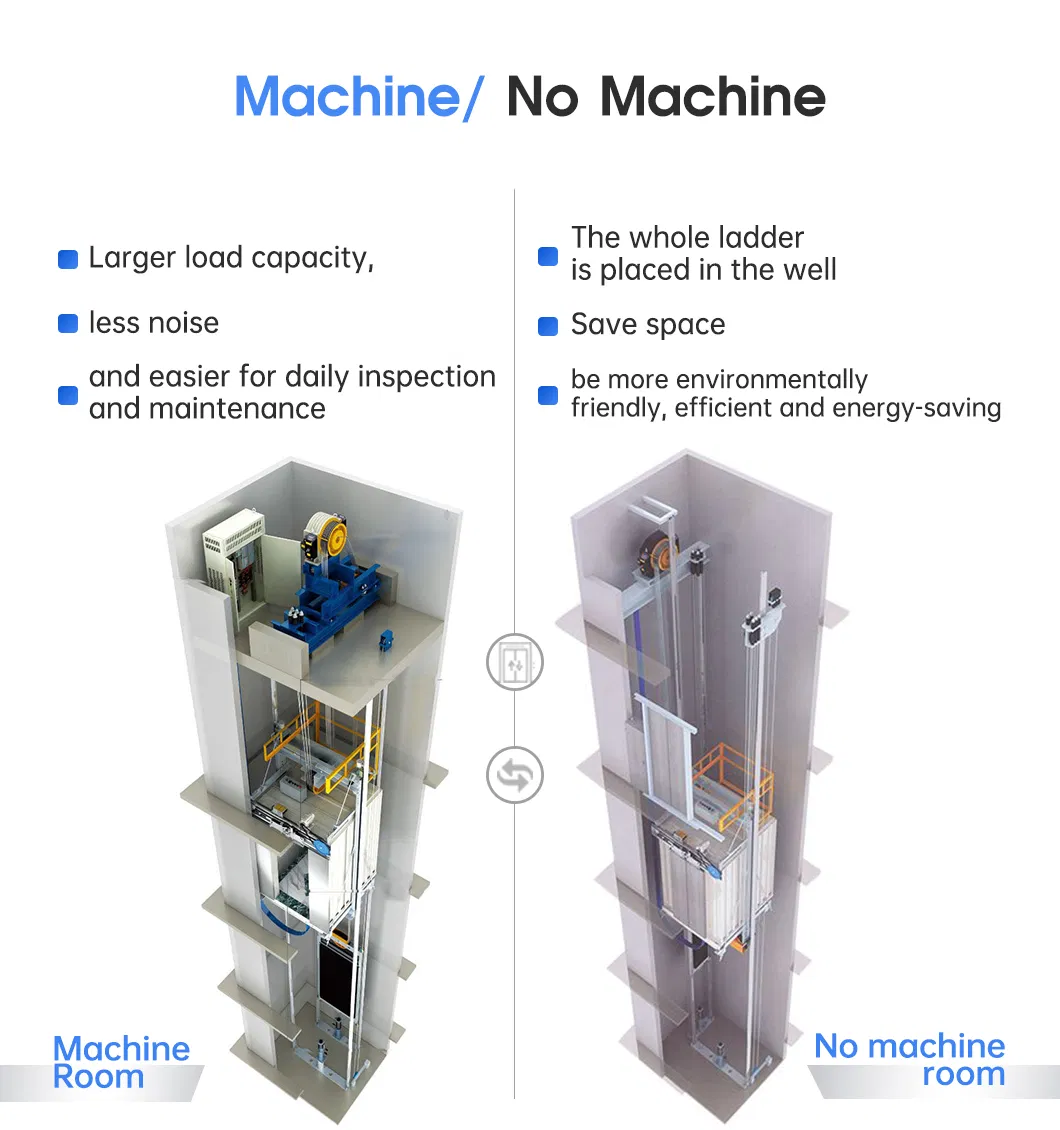

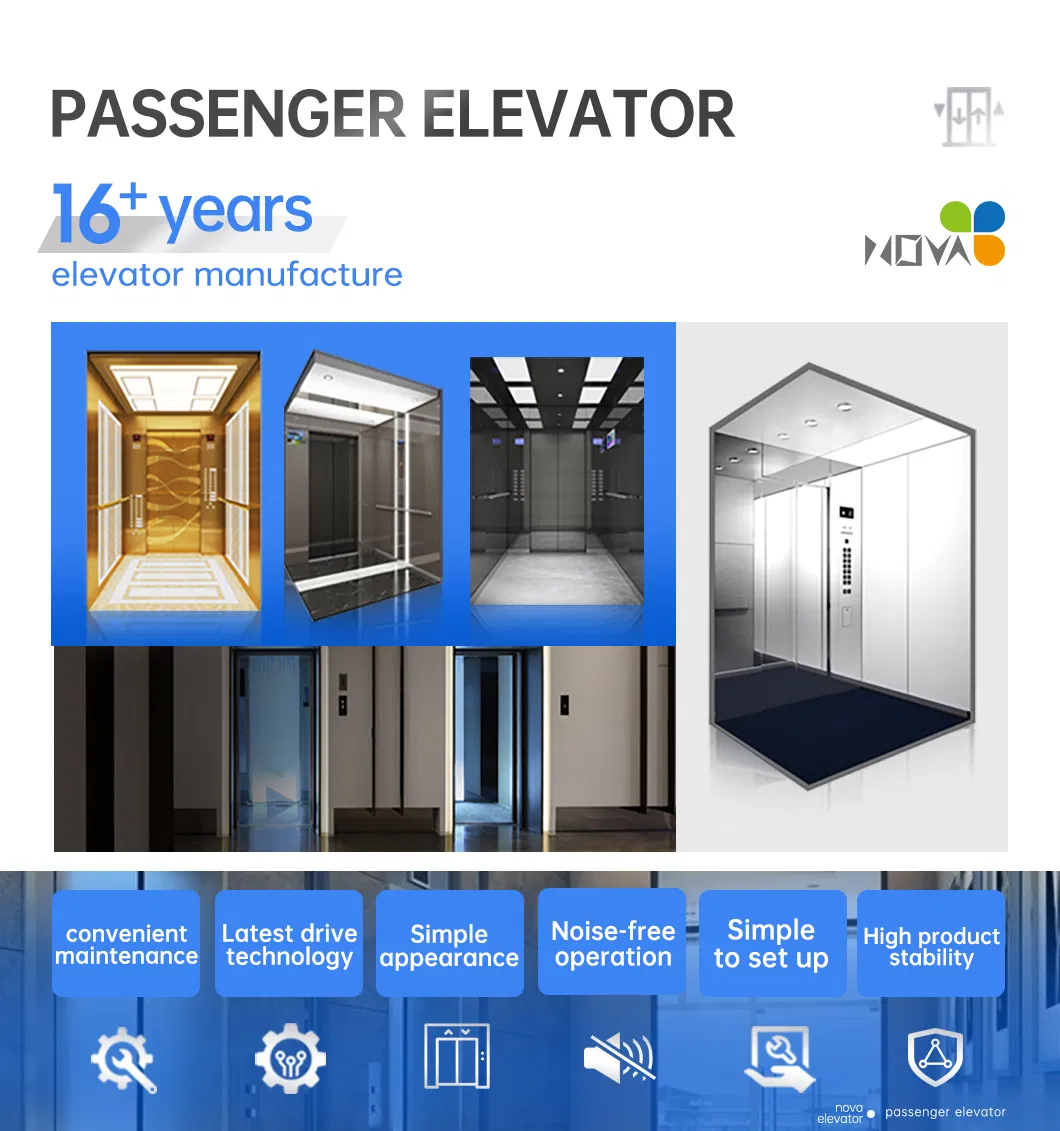

Passenger Elevator Product Layout

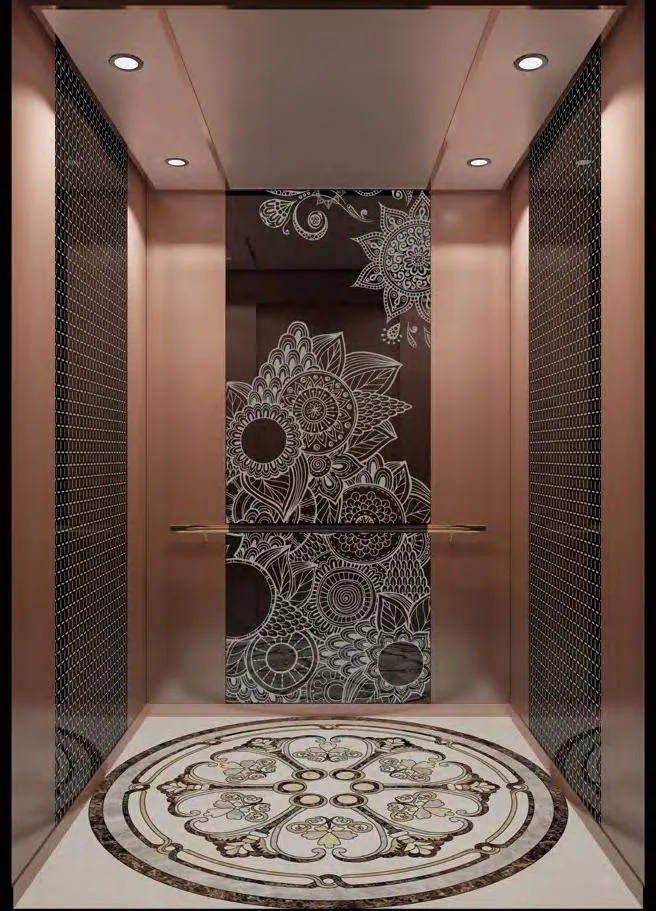

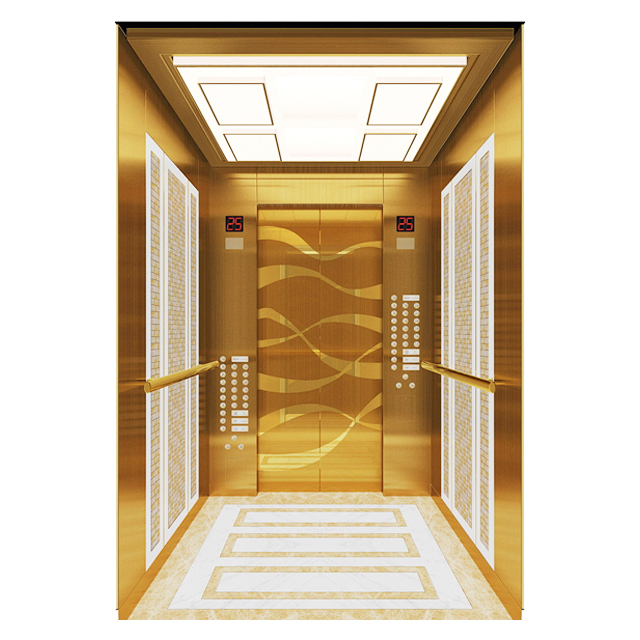

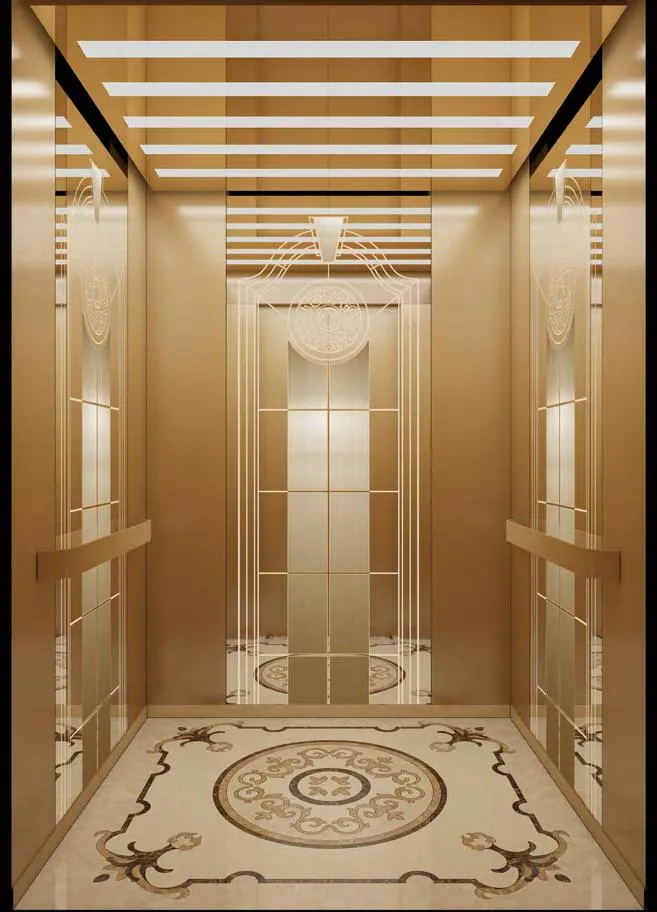

Elevator Interior 1 Elevator Interior 2

1. Small Machine Room Specifications

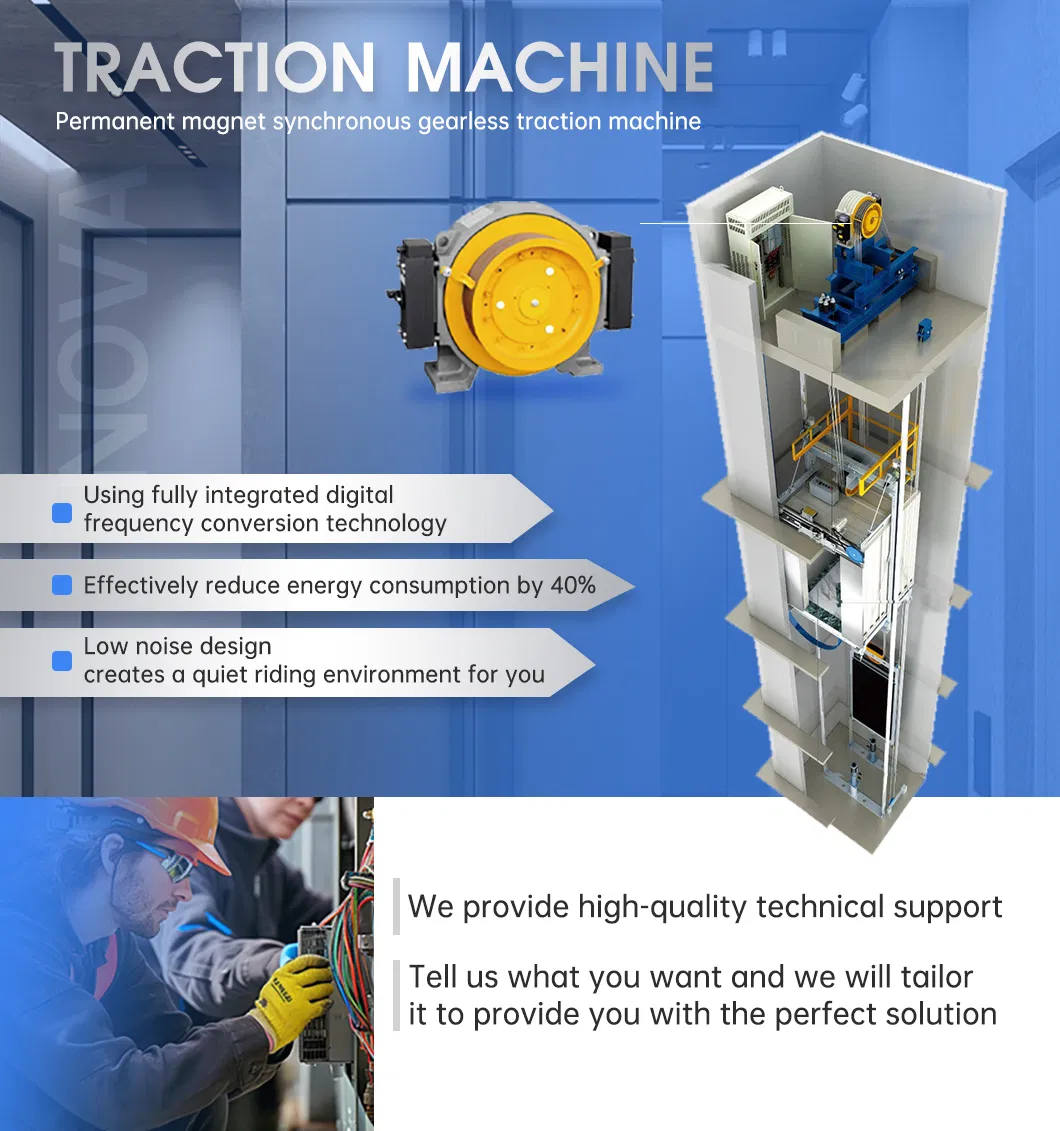

Machine Room Design
Loading (Kgs) Person Speed (m/s) Shaft Clear Inner Size (W*D mm) Car Inner Size (W*D*H mm) Door Open (W*H mm) Pit Depth
45061.00 - 1.751800 * 16501200 * 1000 * 2250800 * 2100≥1500
63081.00 - 1.752000 * 17501400 * 1100 * 2250800 * 2100≥1500
800101.00 - 1.752000 * 20001400 * 1350 * 2250800 * 2100≥1500
1000131.00 - 1.752200 * 20501600 * 1400 * 2250900 * 2100≥1500

2. Machine Roomless (MRL) Specifications

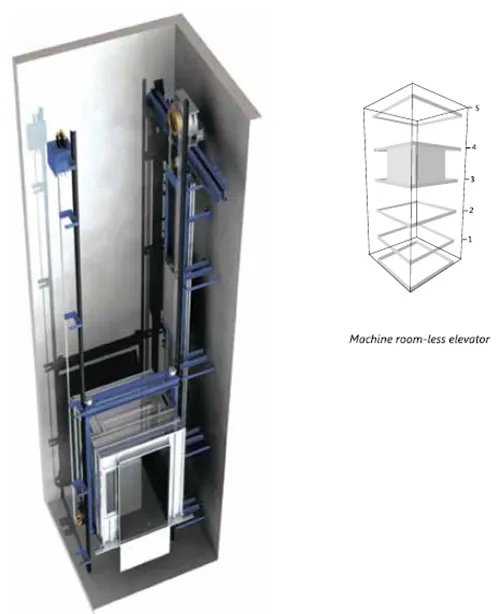

MRL Design
Loading (Kgs) Person Speed (m/s) Shaft Clear Inner Size (W*D mm) Car Inner Size (W*D*H mm) Door Open (W*H mm) Pit Depth
45061.00 - 1.751800 * 17001000 * 1200 * 2250800 * 2100≥1500
63081.00 - 1.752000 * 18001100 * 1400 * 2250800 * 2100≥1500
800101.00 - 1.752200 * 18001350 * 1400 * 2250800 * 2100≥1500
1000131.00 - 1.752250 * 20001400 * 1600 * 2250900 * 2100≥1500

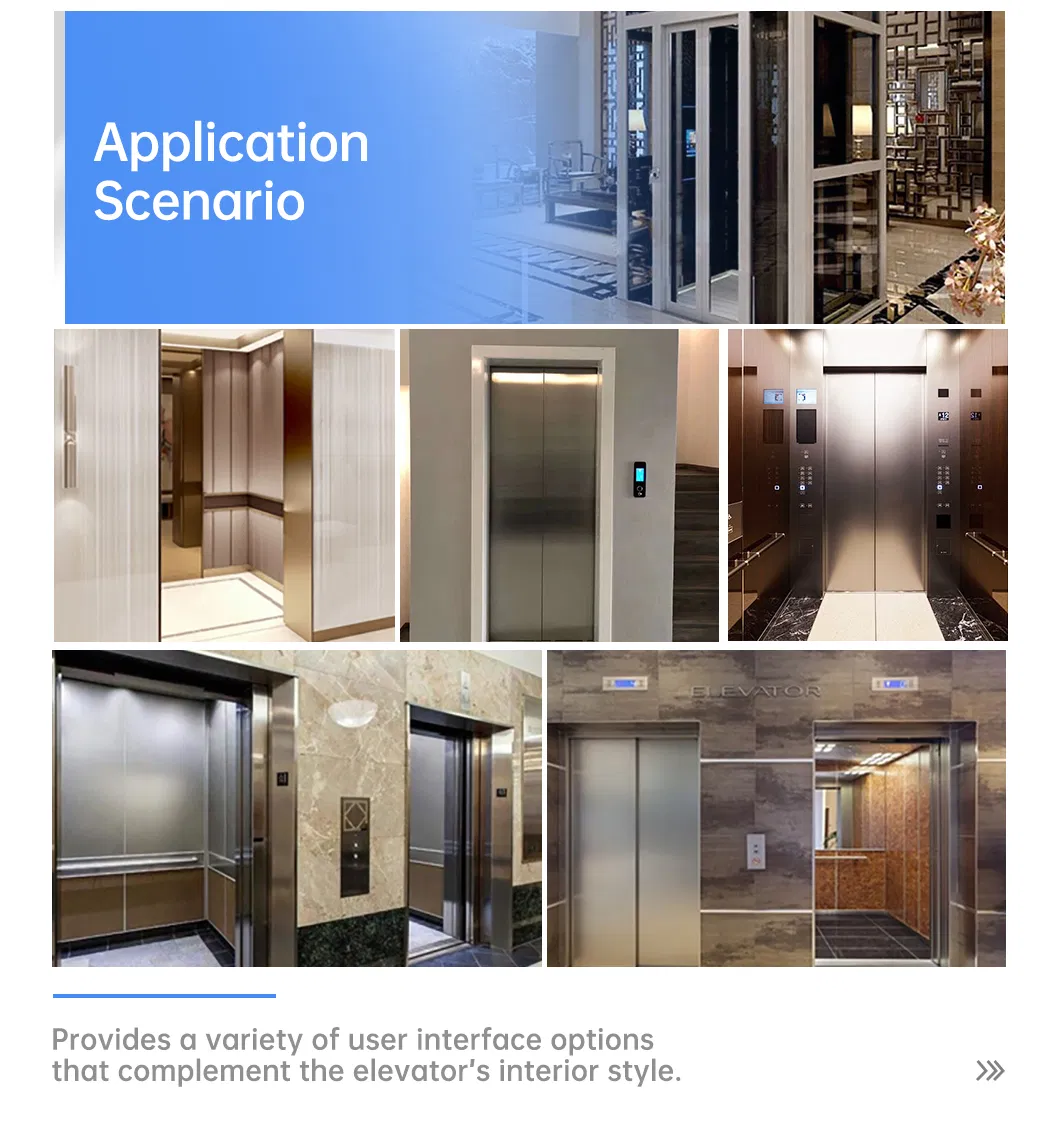

Product Optional & Catalog

Options Catalog

Global Presence & Quality

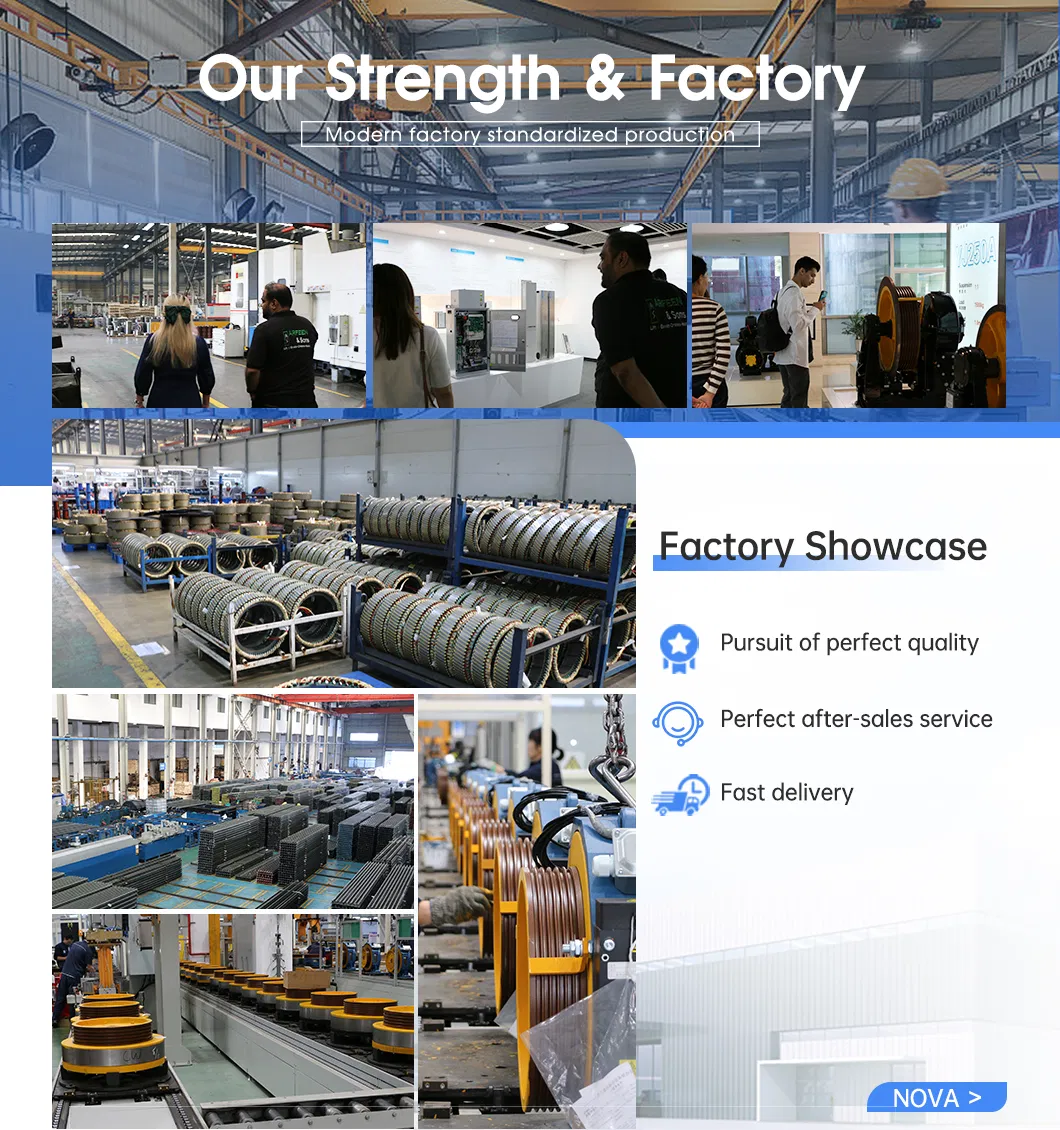

Factory Image 1 Factory Image 2
Production Line 1 Production Line 2 Production Line 3

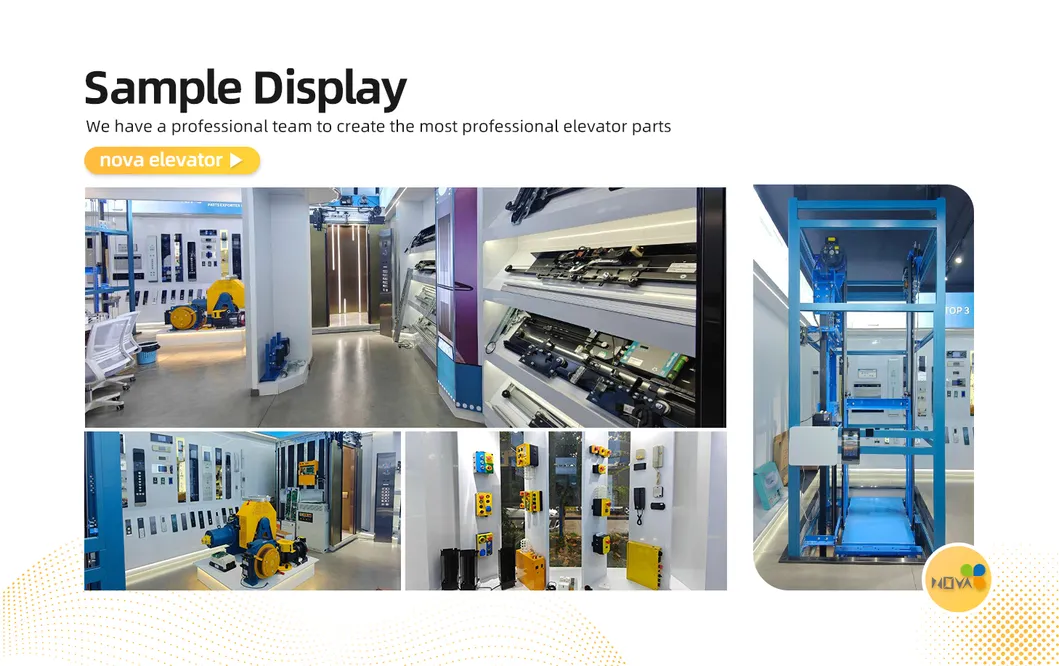

Exhibition 1 Exhibition 2 Exhibition 3

Packaging & Shipping

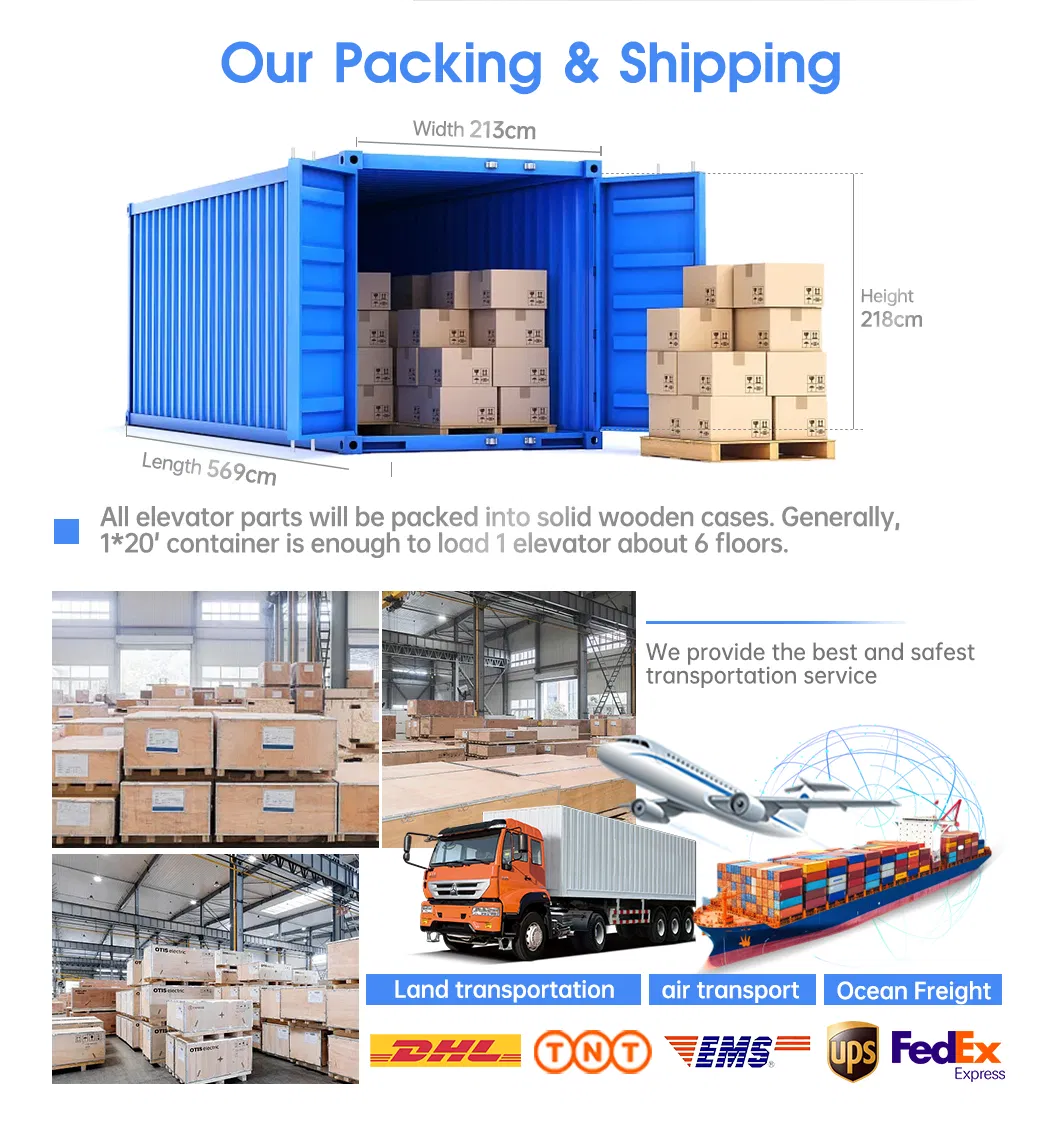

Shipping Standard
Package Detail 1 Package Detail 2

Frequently Asked Questions

What types of elevators do you specialize in?
We specialize in a wide range of lifting solutions, including passenger elevators (traction), household elevators, sightseeing lifts, freight elevators, and lifting platforms.
How do you ensure the quality of your elevators?
Quality is guaranteed through a rigorous process including pre-production sample evaluations and a final thorough inspection of all components before shipment.
What control systems are used in your lifts?
Our elevators primarily utilize advanced VVVF (Variable Voltage Variable Frequency) control systems, often featuring Monarch or Step integrated controllers for smooth and silent operation.
What are the options for machine rooms?
We offer both Small Machine Room (MR) and Machine Roomless (MRL) configurations to suit different architectural requirements and shaft spaces.
Which global markets do you serve?
Our products are exported worldwide, with a strong presence in Eastern and Northern Europe, South America, the Middle East, and Southern Europe.
What payment and delivery terms are available?
We support multiple delivery terms including FOB, CFR, CIF, and EXW. Accepted payment methods include T/T, L/C, and Credit Card in various currencies like USD, EUR, and GBP.
