Small Residential Villa Home Lift Elevator Home Lift Elevators Small Villa Glass Passenger Elevator

1 / 5

Small Residential Villa Home Lift Elevator Home Lift Elevators Small Villa Glass Passenger Elevator

Customization:	Available
After-sales Service:	One-Year Free Warranty
Warranty:	One Year

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

Passenger Elevator-XW-K05-1 (7)

Driving Type

AC Elevator

Capacity

500-1000kg

Persons

6 - 10

Speed

2.00 - 3.50m/s

Control Mode

Collective Selective Control

Computer Room

Without Computer Room

Elevator Door

Center Opening Door

Shaft

Concrete or Steel Structure

Door Panel

Painted, Stainless Steel

Package Size

140.00cm * 89.00cm * 61.00cm

Gross Weight

50.000kg

Product Description

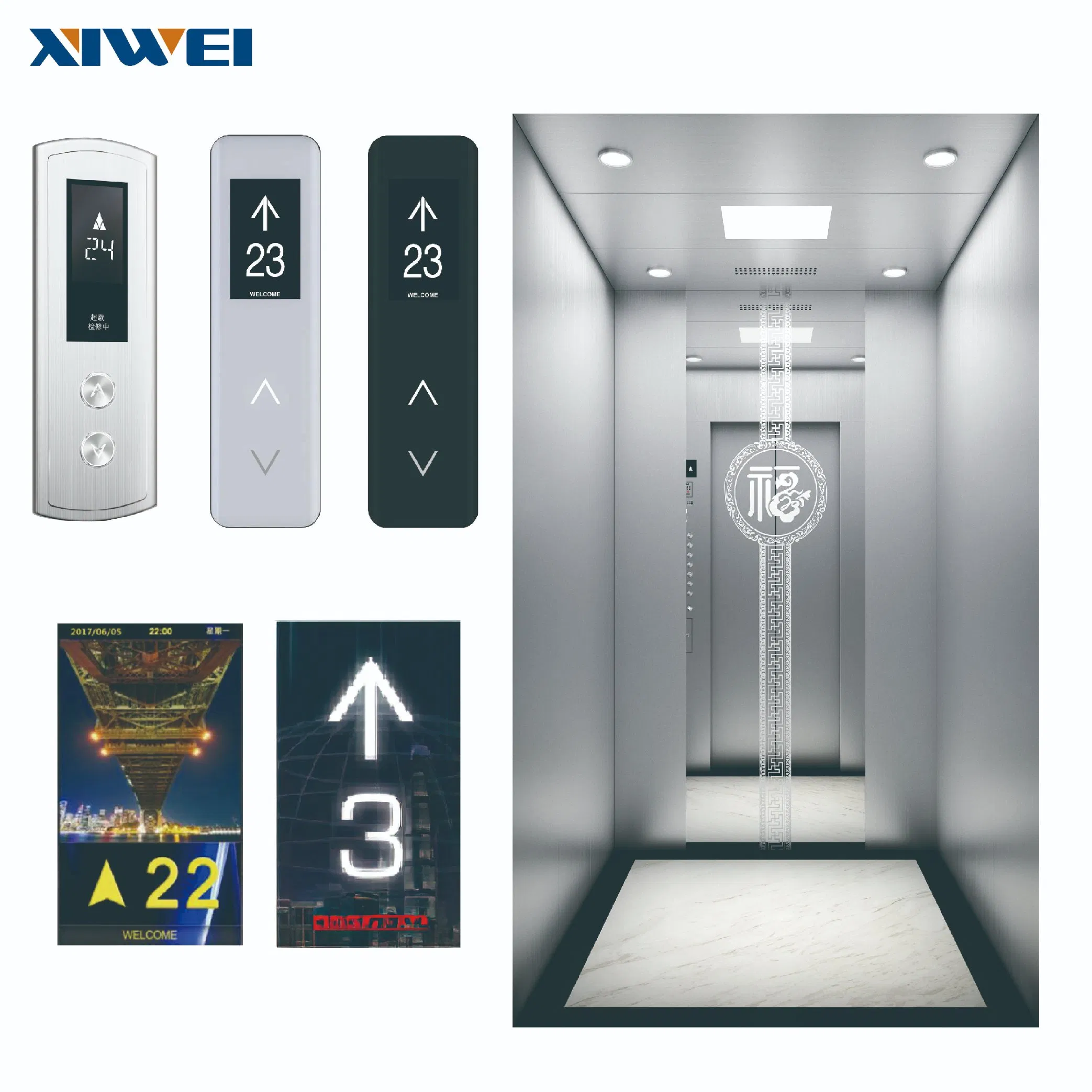

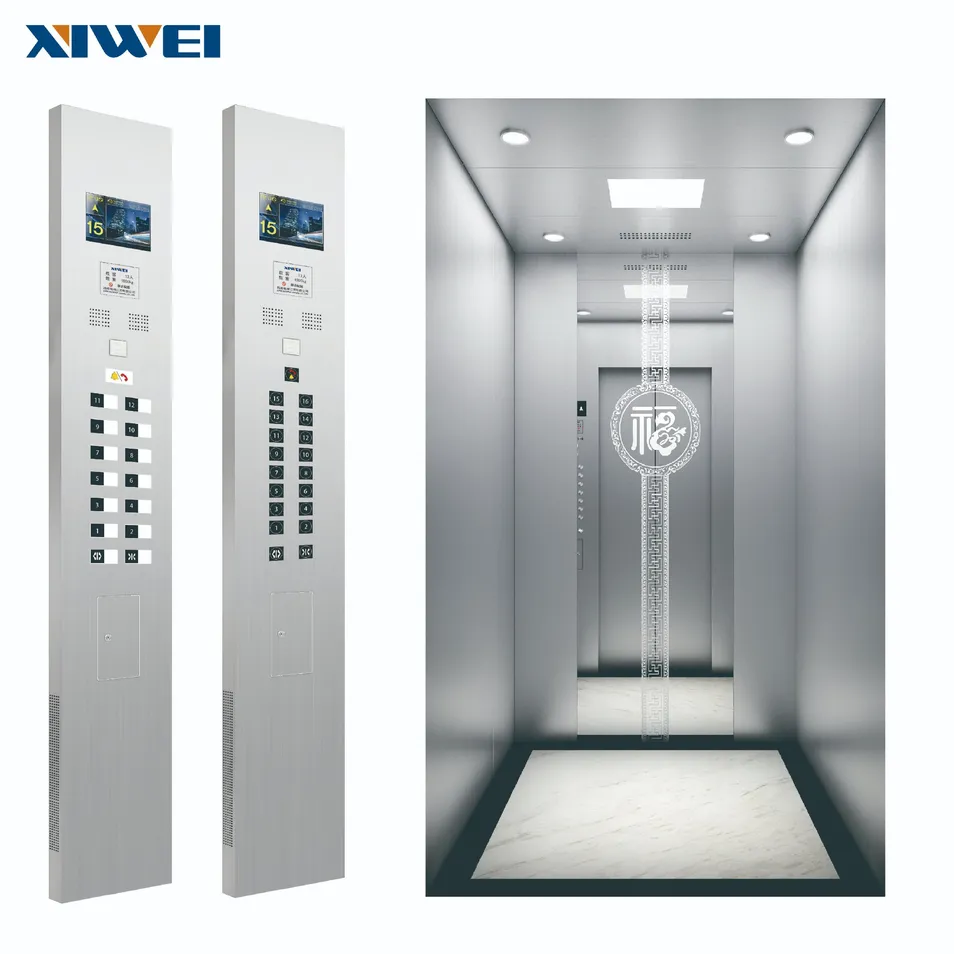

XW-K05-1 Configuration Details:

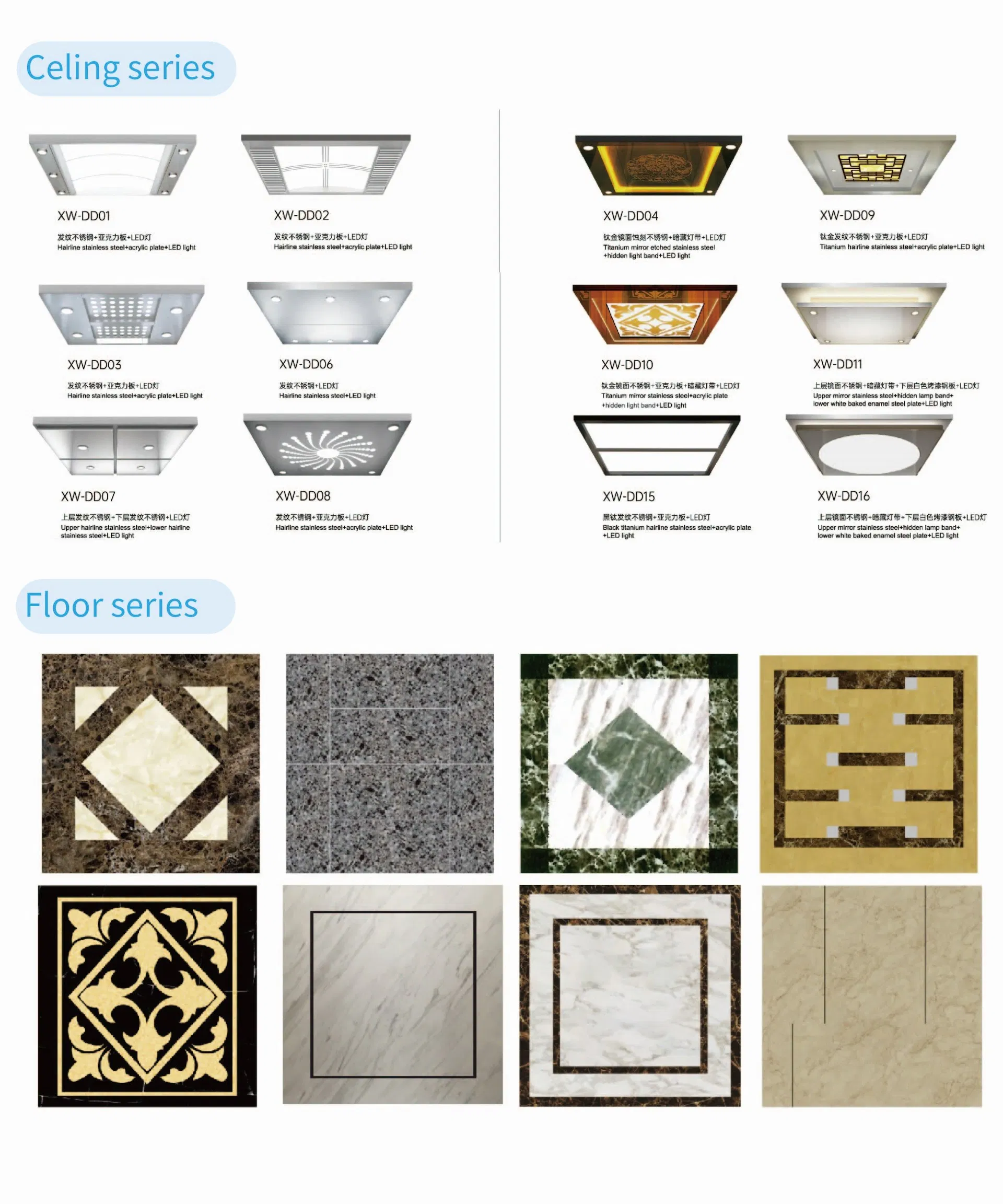

Split ceiling (XW-DD15): Hairline stainless steel + acrylic plate + energy saving light
Car wall: Hairline stainless steel + rear-wall center mirror etched
Front wall: Hairline stainless steel

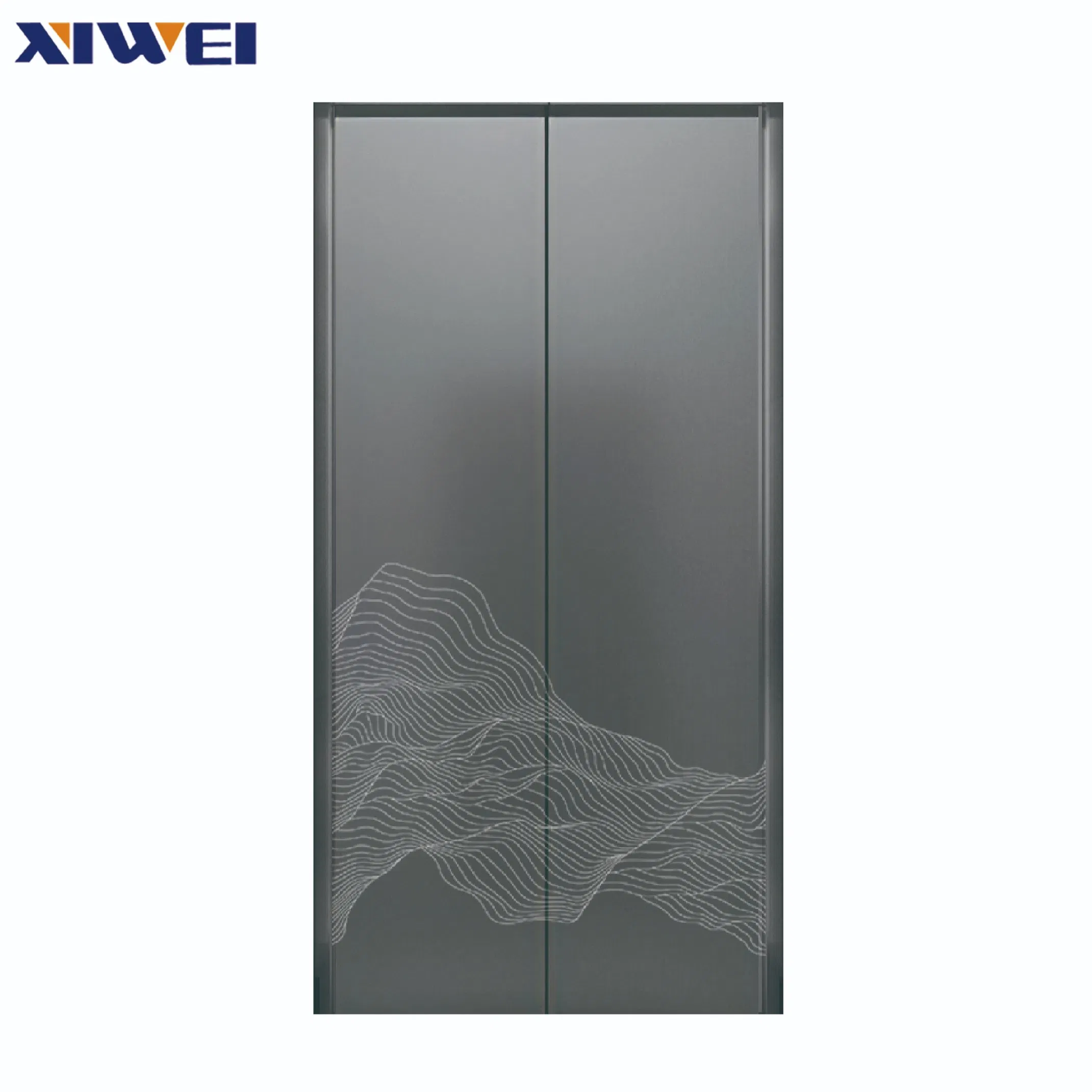

Car door: Hairline stainless steel

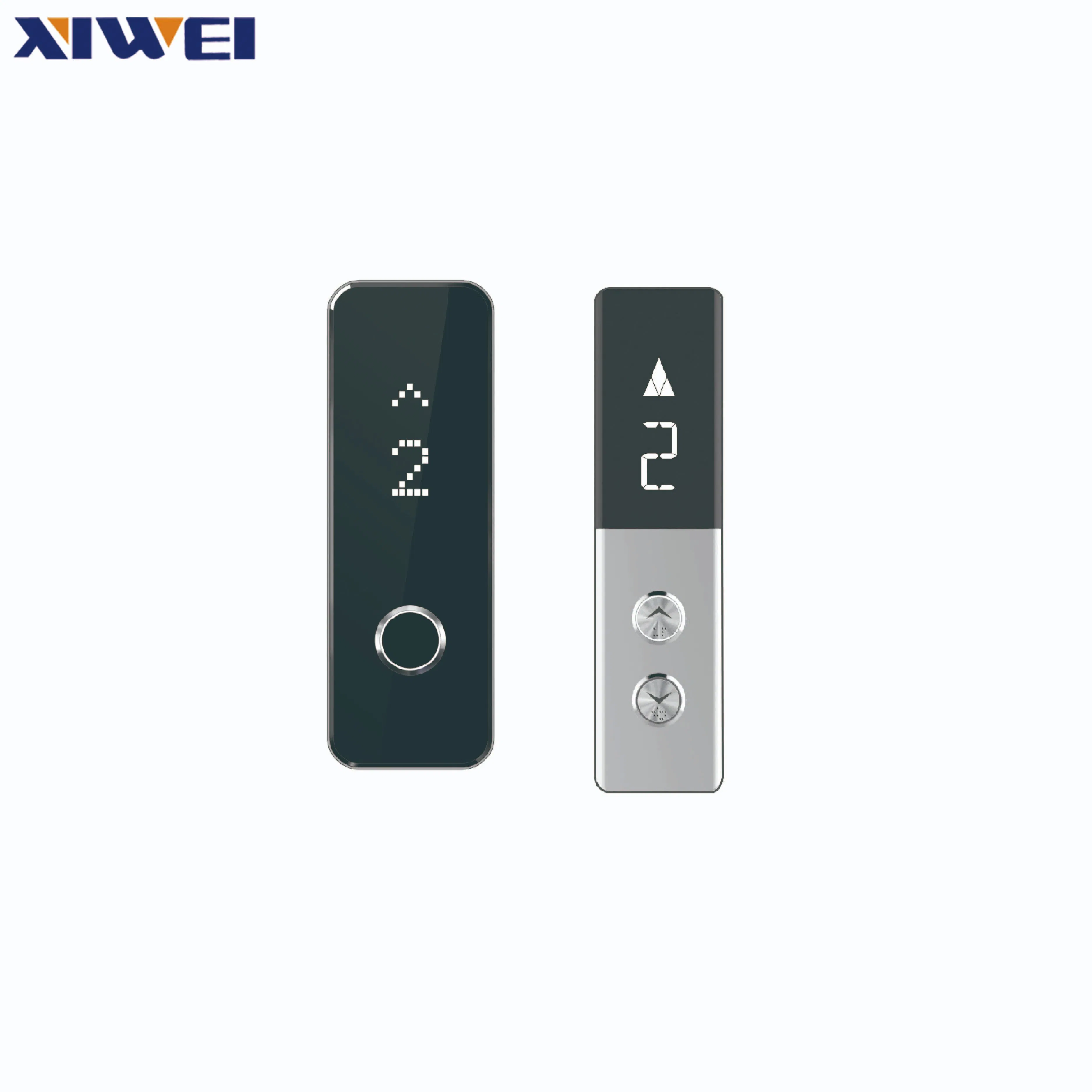

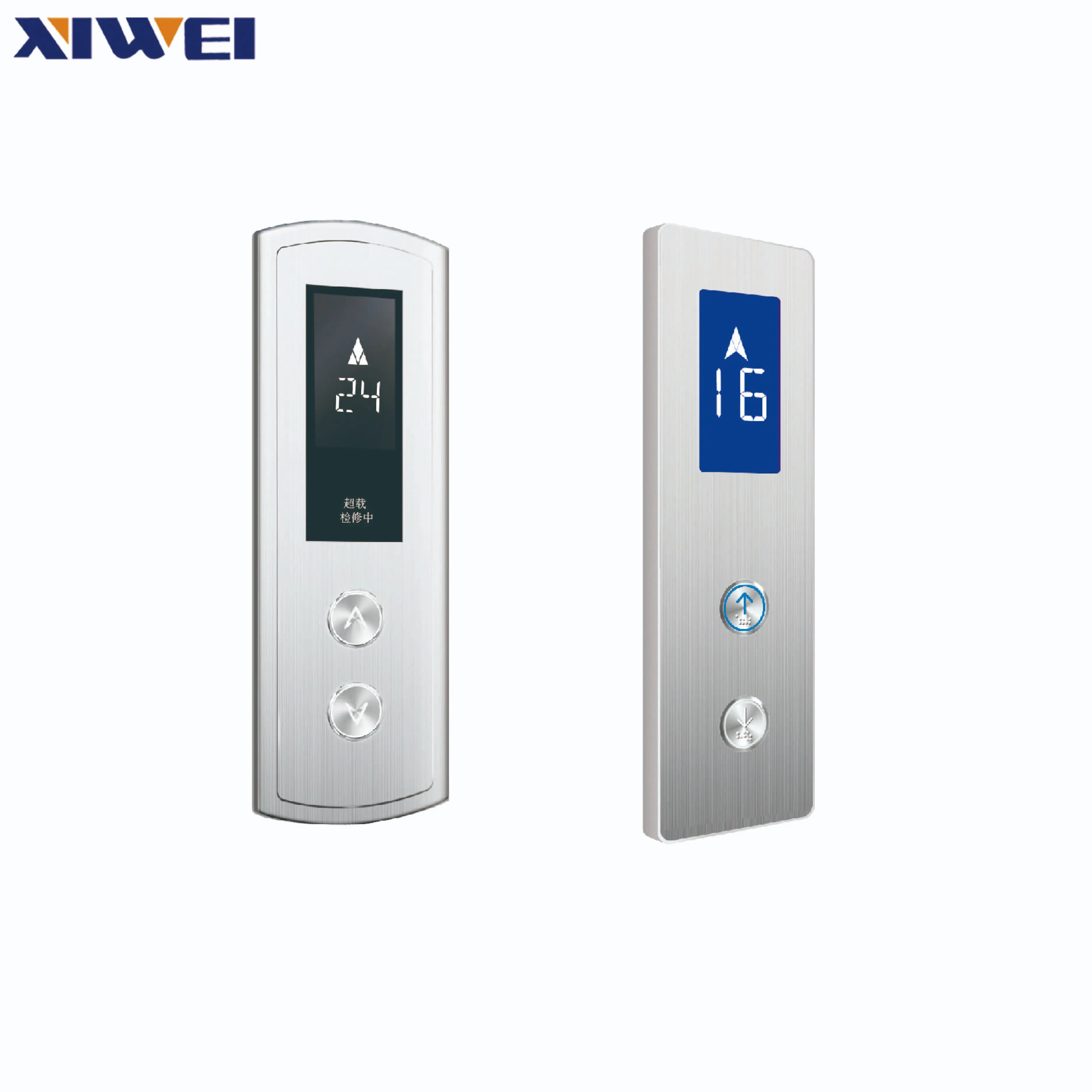

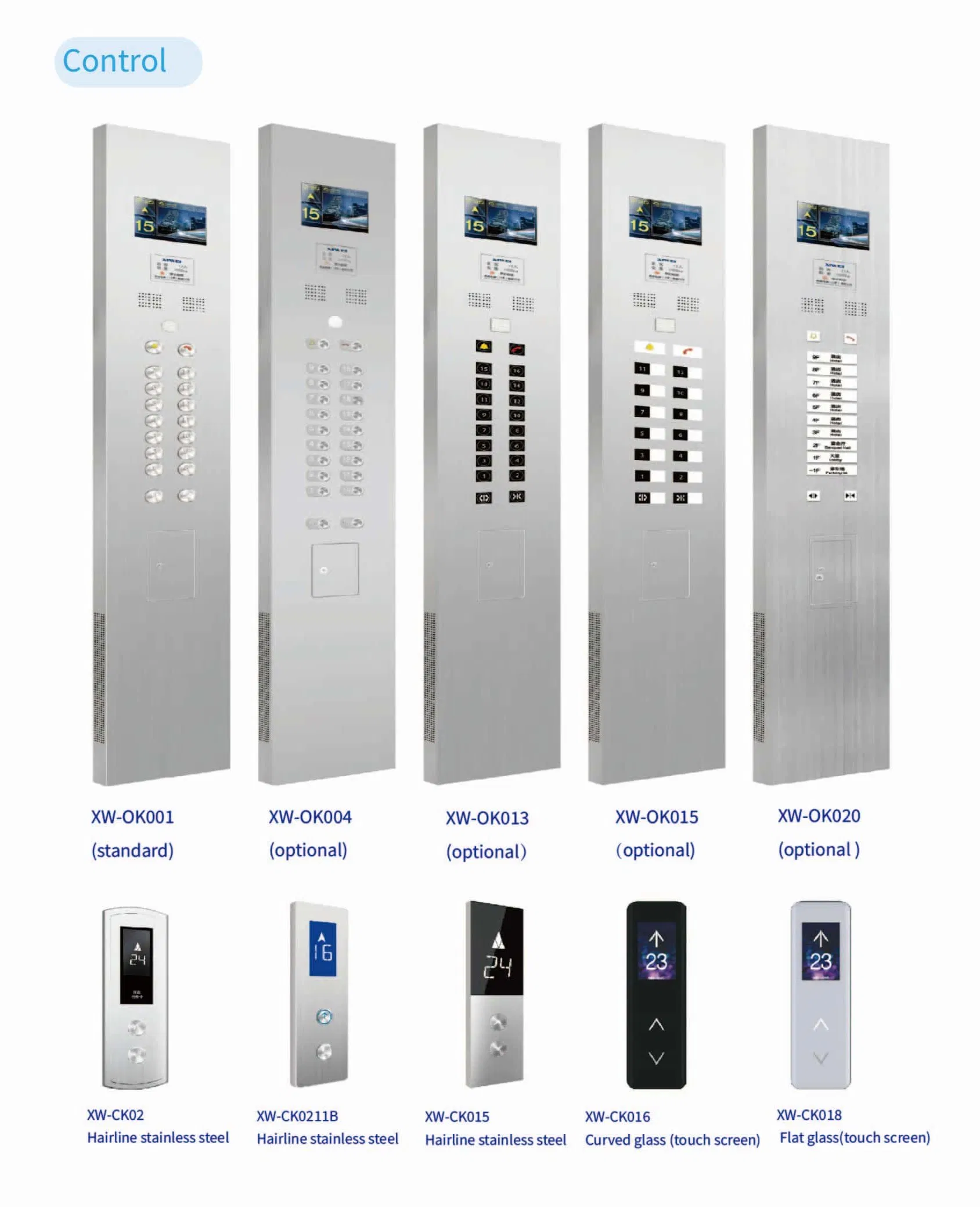

Operation panel: Integrated hairline stainless steel
Handrail (XW-F01): Stainless steel round handrail on the rear wall
Floor (XW-DB10): Full body brick or PVC

Applications: Combined with modern technology and fashion art, our passenger lift satisfies all needs of hotels, office buildings, shopping malls, etc., and provides a safe and comfortable riding experience.

Technical Specifications

Rated load (kg)	Rated speed (m/s)	Net car size (CWxCD)	Net door size (DWxPH)	Net hoistway size (HWxHD)	Pit Depth (PD)	Overhead (OH)
450	1.0 - 1.75	1100x1150	700x2100	1850x1600	1500-1700	4700-4900
630	1.0 - 1.75	1200x1300	800x2100	2000x1750	1500-1700	4700-4900
800	1.0 - 2.5	1400x1400	800x2100	2100x1800	1500-2100	4700-5300
1000	1.0 - 2.5	1600x1500	900x2100	2300x1900	1500-2100	4700-5300

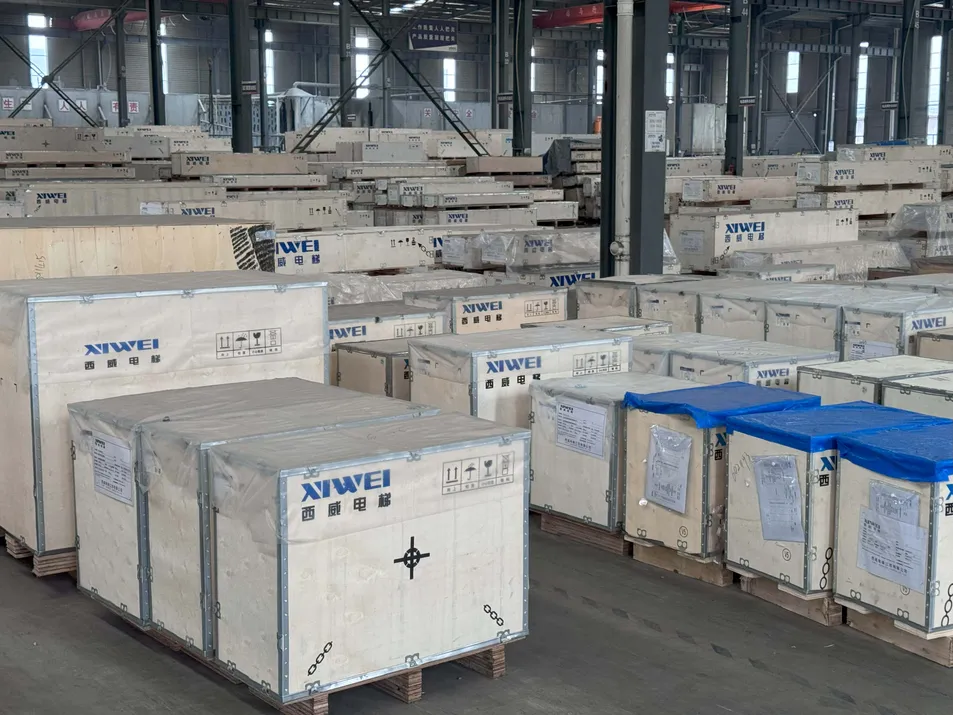

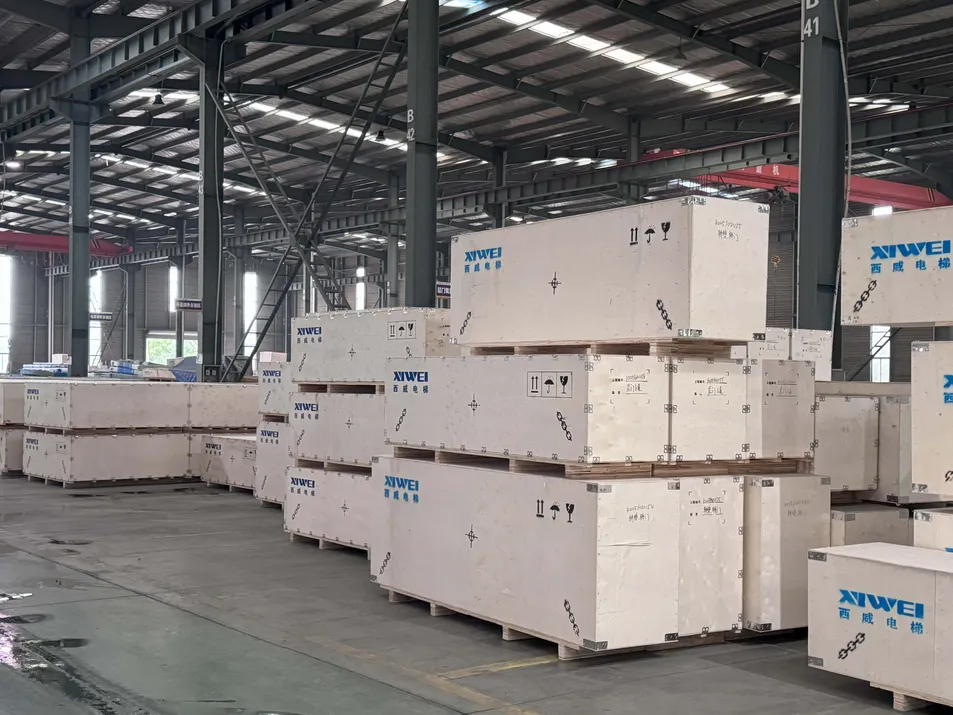

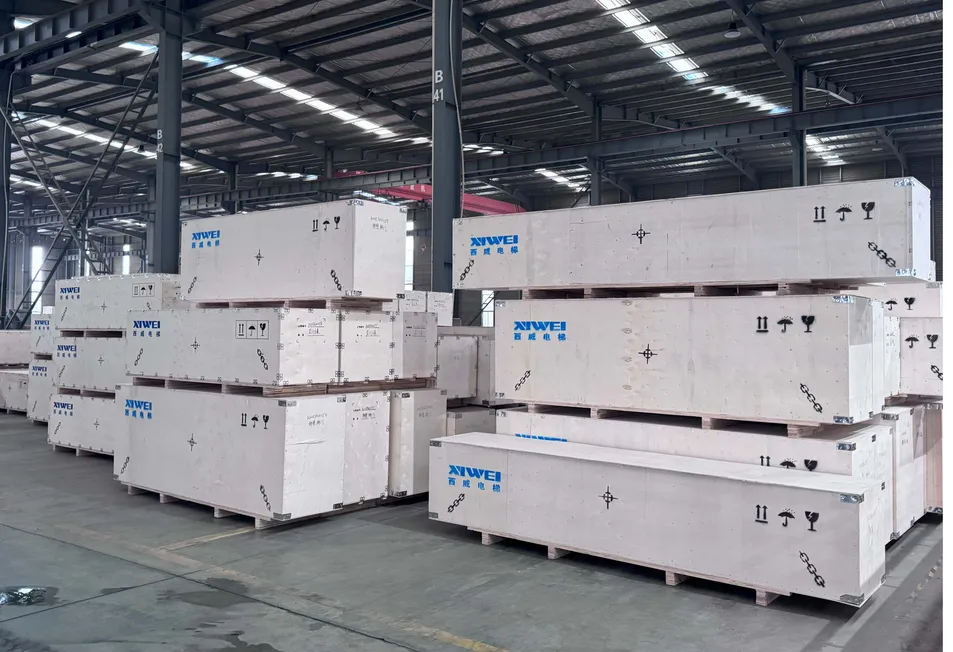

Packing & Delivery

Estimated Shipping Time:

DHL

3-5 working days

UPS / TNT

5-7 working days

FedEx

7-9 working days

Sea Freight

Depends on destination country

Certifications

Warranty & Service

Warranty Period: The overall warranty period is 1 year. Core components (traction machines, control cabinets, safety gears, and speed governors) are extended to 5 years.

Coverage: Includes manufacturing defects and installation issues. Costs for maintenance and component replacement during the warranty period are borne by us.

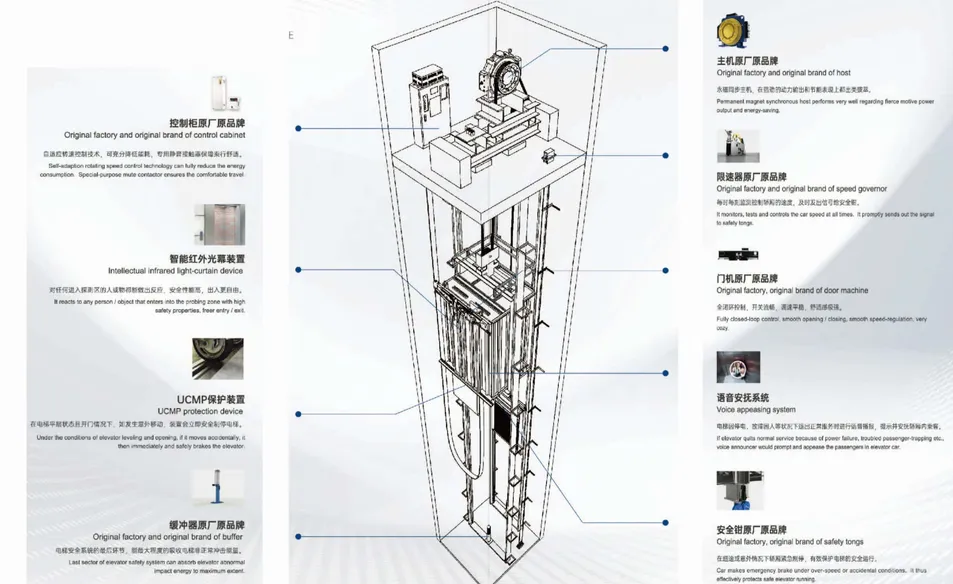

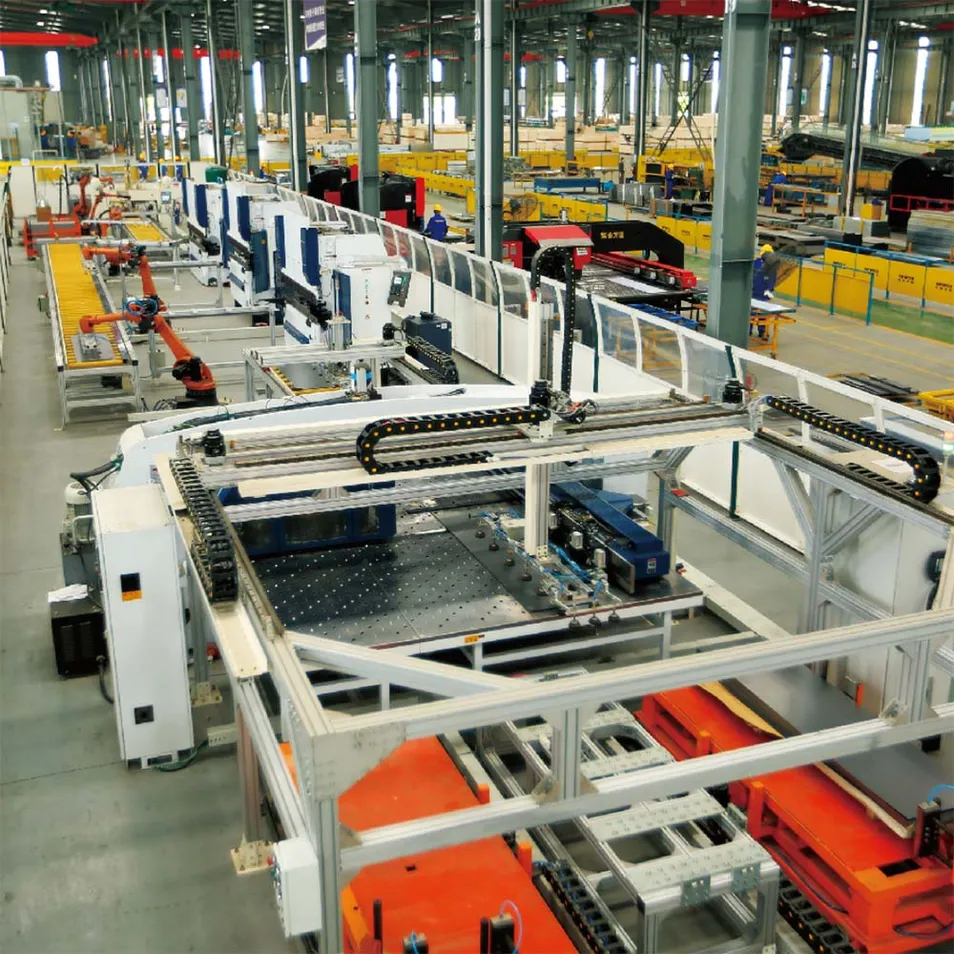

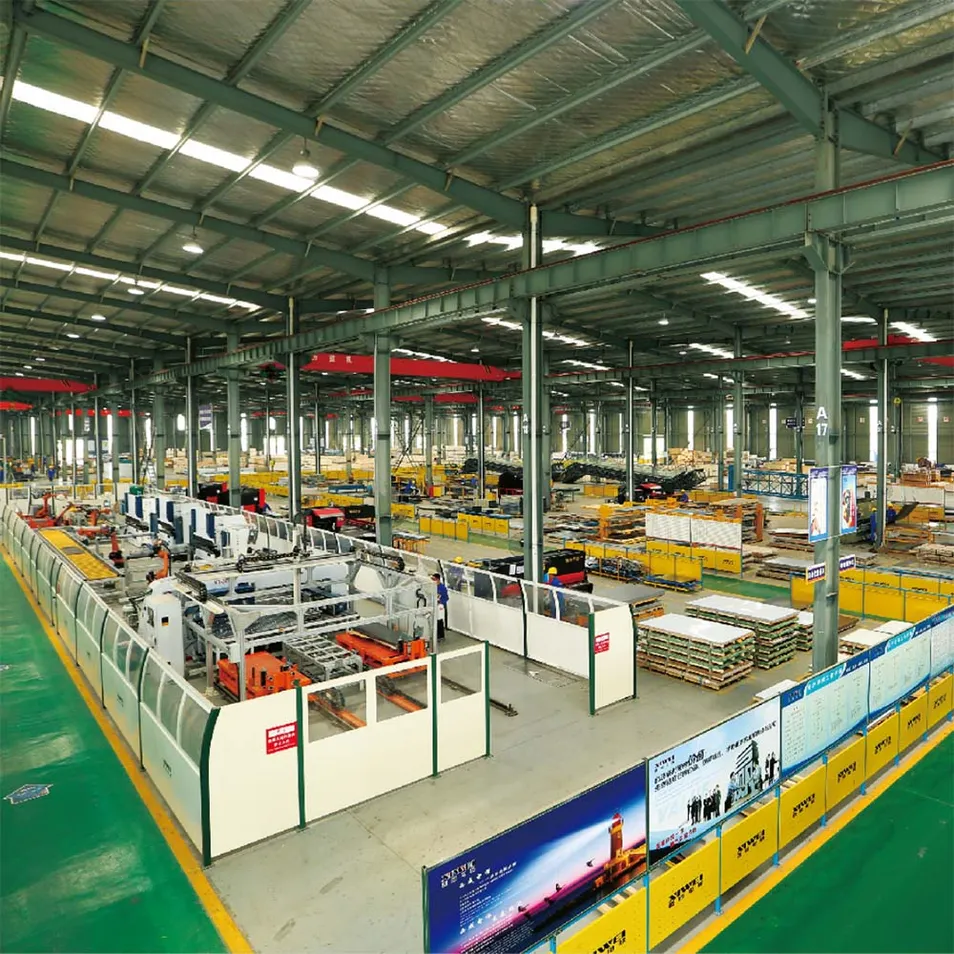

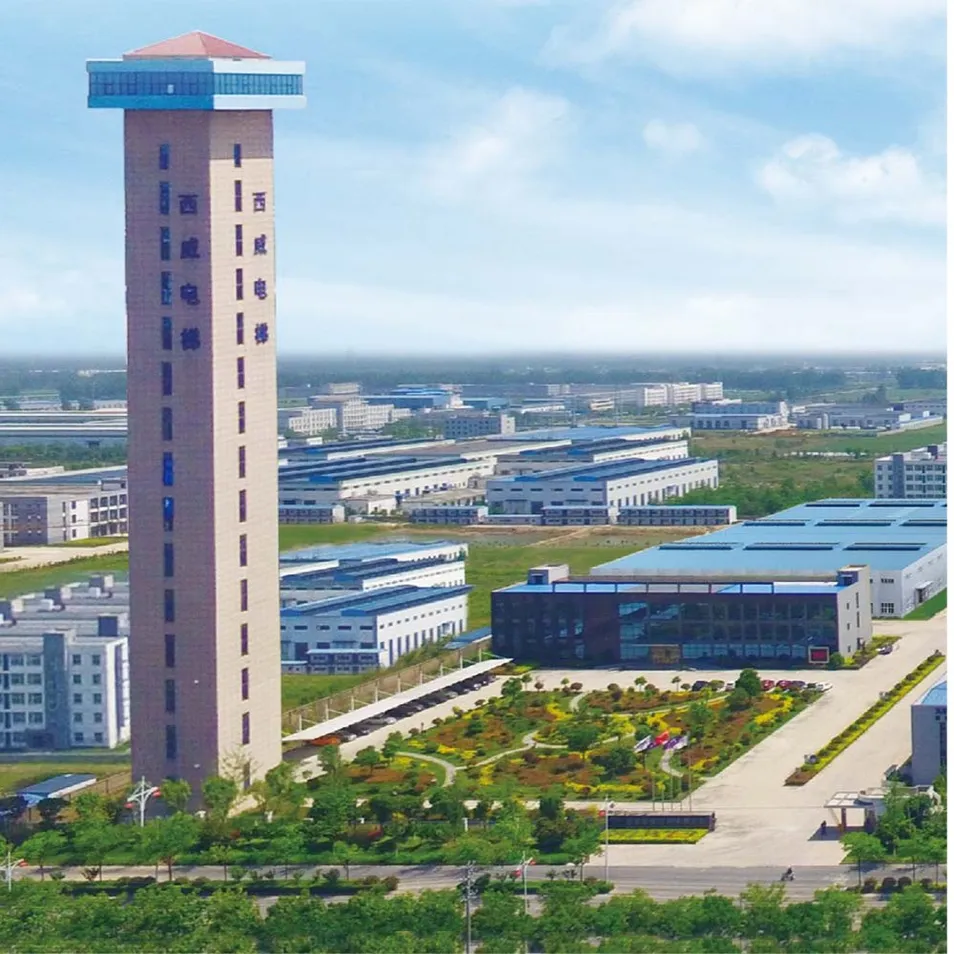

Factory & Systems

Frequently Asked Questions

Q: Are the elevator wire ropes durable?

A: Yes. The tensile strength of the wire rope is greater than the weight of the lift. Configuration includes a safety factor with more than four wire ropes, ensuring they won't break simultaneously.

Q: Is it dangerous if a power failure occurs suddenly?

A: No. The elevator will automatically stop due to electrical and mechanical safety devices. Brakes are automatically applied in case of power loss.

Q: Will passengers be hurt if doors close suddenly?

A: No. Elevators are equipped with anti-clamping switches and sensors. If someone touches the door, it will automatically reopen without danger.

Q: How does the elevator run?

A: Elevators are operated via a counterweight wire rope through a traction drive, moving up and down along a stable guide rail.

Q: Is escalator installation complicated?

A: Our escalators use an integrated structure. This precision design makes the equipment more efficient and allows for easier and more convenient commissioning.

Q: Do you have any certifications?

A: Yes, our products are fully certified with ISO9001, CCC, and CE Certificates to ensure global safety standards.
