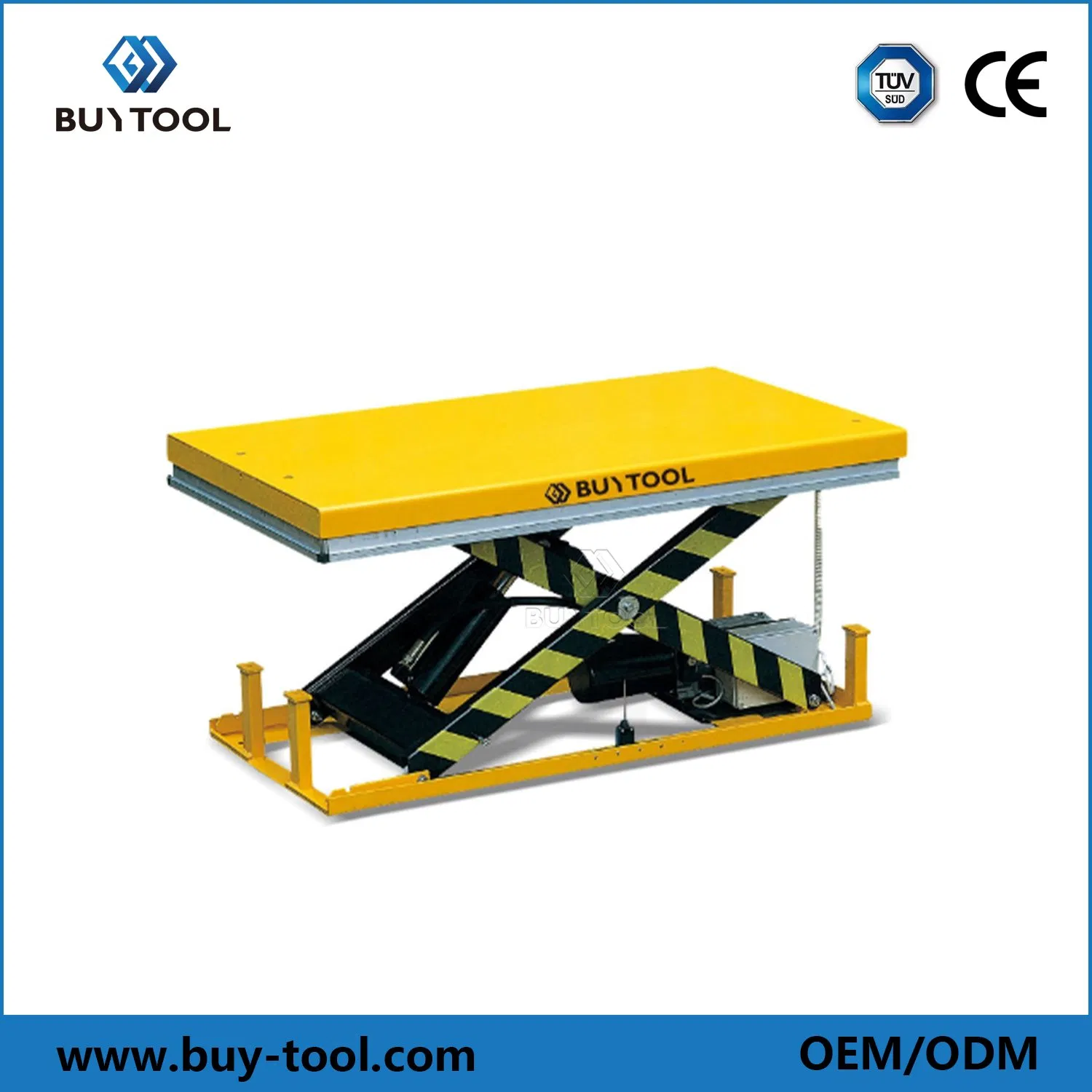

1ton Capacity 4 Ton Fixed Type Hydraulic Electric Scissor Lift Table

Customization:	Available
After-sales Service:	More Than Five Year
Warranty:	One Year

📋

Technical Overview

Model

HW1001, HW2001, HW4001

Mechanism

Scissor Lift

Capacity

1000kg - 4000kg

Min. Height

205-240mm

Max. Height

990-1300mm

Lift Time

20-25s

Certification

CE Approved

Driven Type

AC Power

HS Code

8427900000

🏗️

Product Description

Our heavy-duty 1-ton to 4-ton Fixed Type Hydraulic Electric Scissor Lift Table is engineered for high-intensity lifting environments. Designed with a robust safety focus, it features integrated safety guards and anti-explosion valves to ensure operator security during all workshop and warehouse operations.

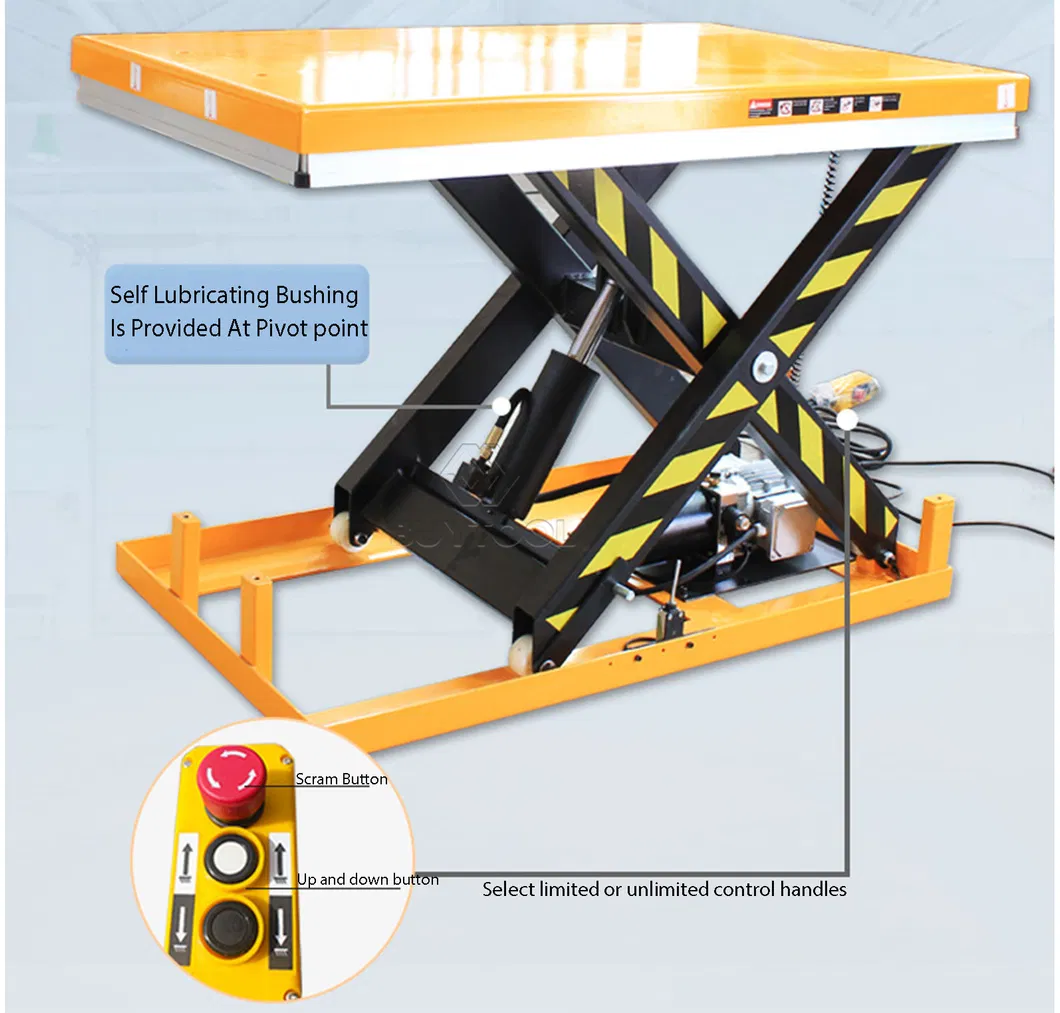

These lift tables fully comply with EN norm and ANSI/ASME safety standards, making them suitable for both above-floor and in-floor pit applications. With self-lubricating bushings at all pivot points, you can expect smooth, reliable operation with minimal maintenance requirements.

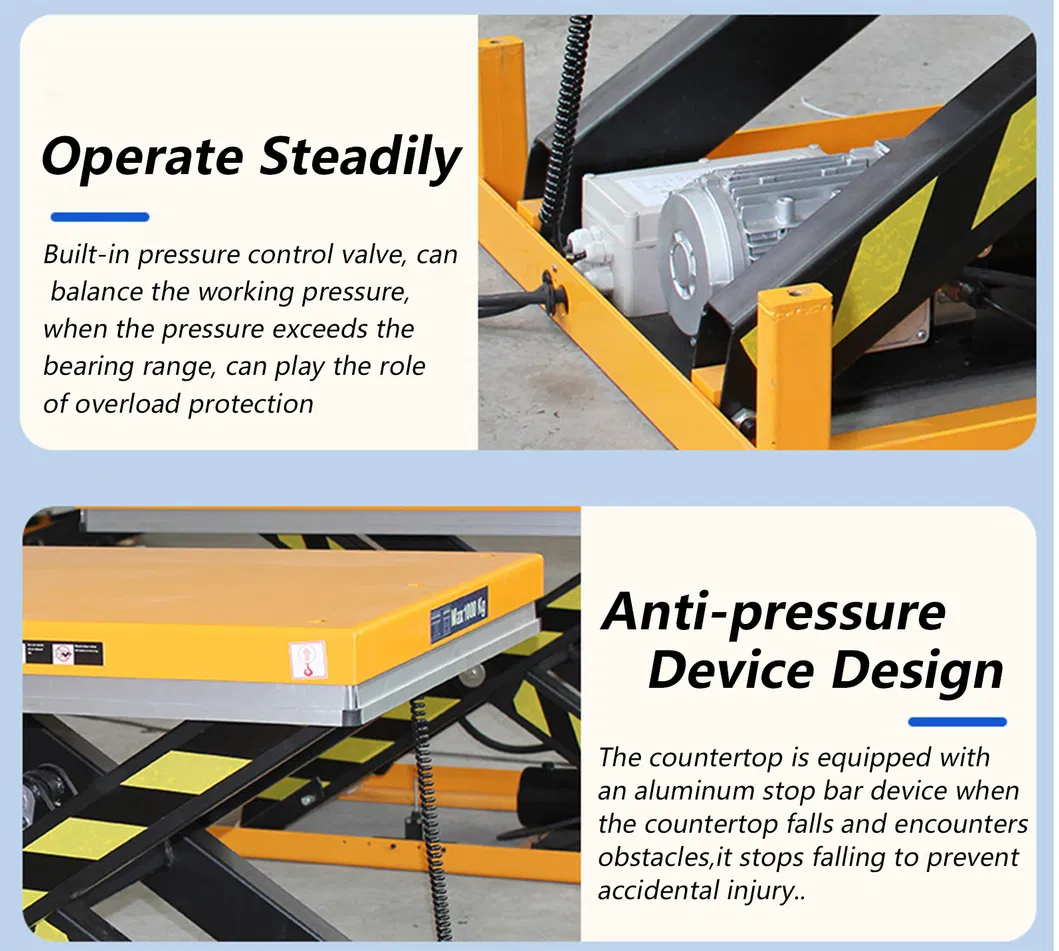

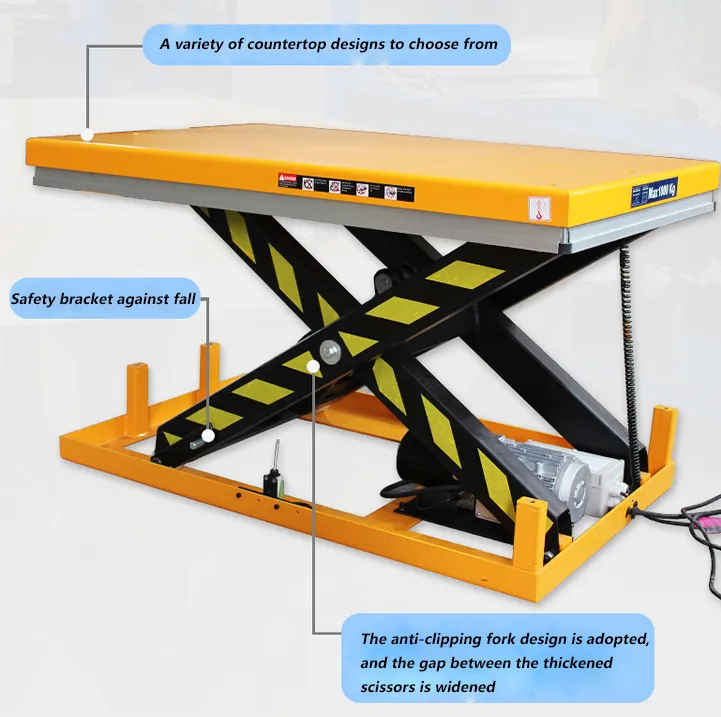

Upper platform with aluminum safety bar to prevent descent on obstruction contact.

Low-tension (24V) control box with simple up-down button operation.

Internal power pack with relief valve against overloading.

Compensated flow valve for precise, controlled lowering speeds.

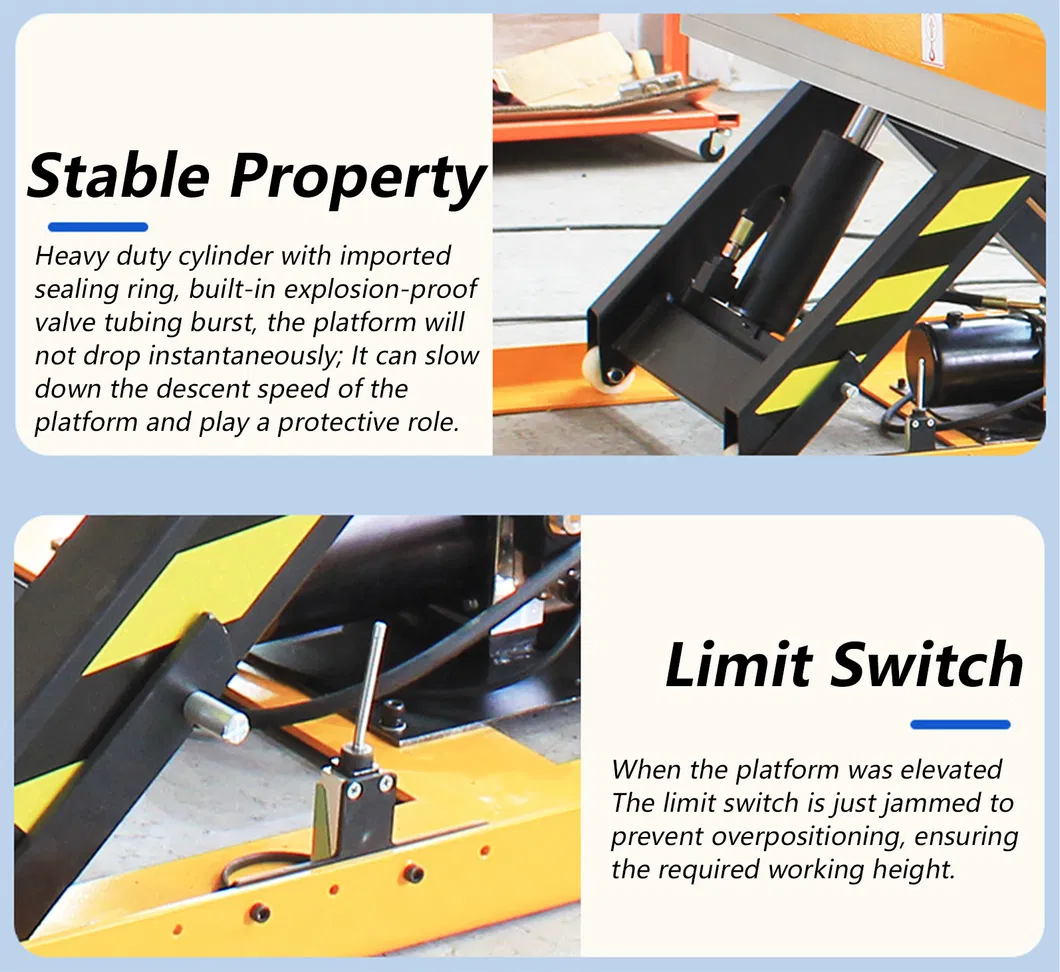

Heavy-duty cylinders with drainage systems and check valves for hose burst protection.

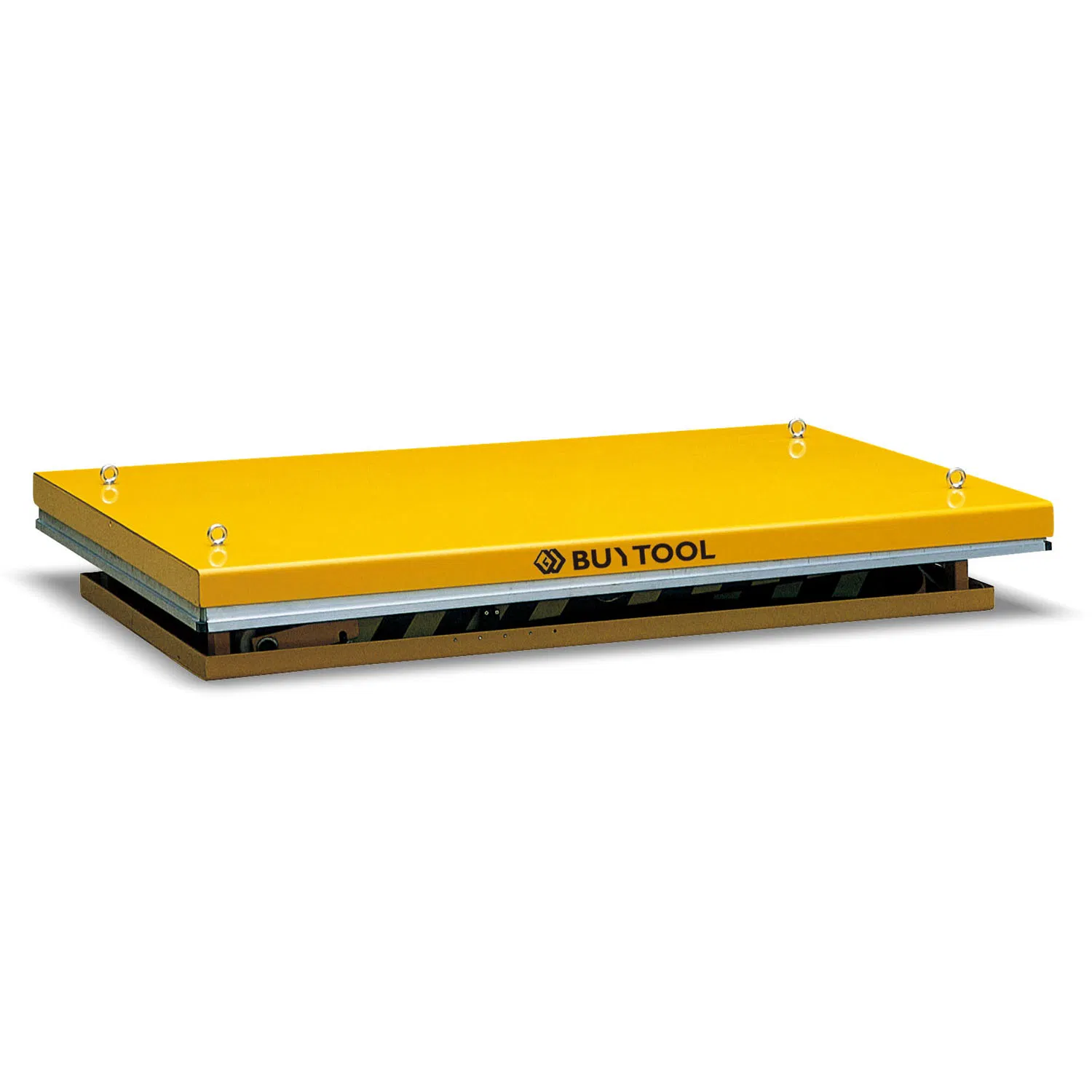

Removable lifting eyes for effortless handling and installation.

📊

Technical Parameters

Model	Capacity (kg)	Lowered H (mm)	Raised H (mm)	Platform Size (mm)	Lift Time (s)	Power Pack	Weight (kg)
HW1001	1000	205	990	820×1300	20-25	380v/50HZ, 1.1kw	160
HW1002	1000	205	990	1000×1600	20-25	380v/50HZ, 1.1kw	186
HW2001	2000	230	1000	850*1300	20-25	380v/50HZ, 2.2kw	235
HW2002	2000	230	1000	1000×1600	20-25	380v/50HZ, 2.2kw	268
HW4001	4000	240	1050	1200×1700	30-40	380v/50HZ, 2.2kw	375
HW4006	4000	300	1400	1200×2200	45-50	380v/50HZ, 2.2kw	505

🖼️

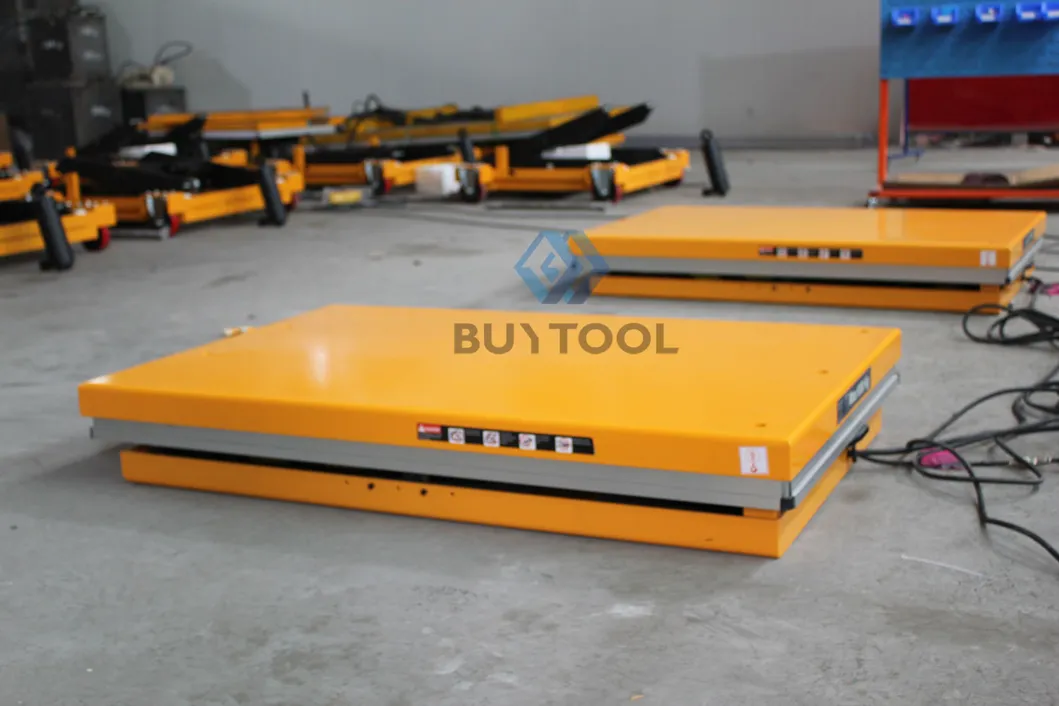

Product Gallery

📍

Range Of Application

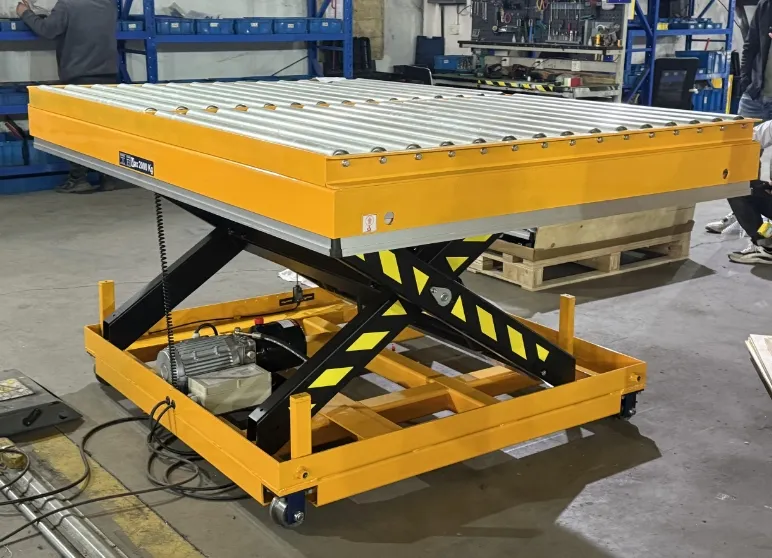

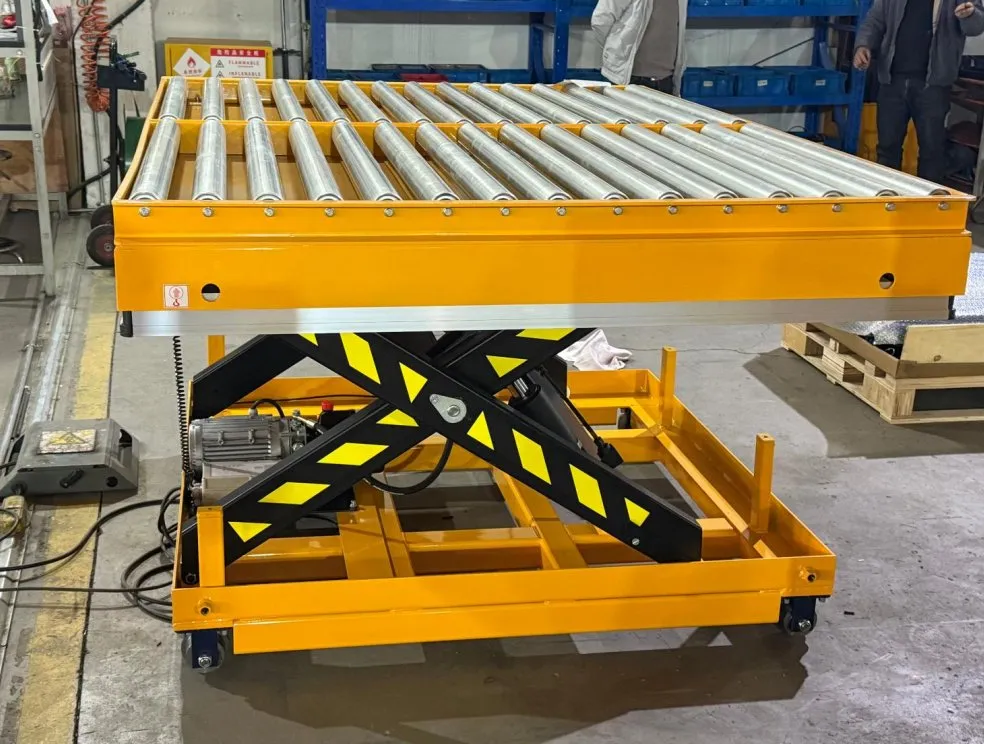

Ideal for use in various industrial sectors including workshop cranes, shipboard material handling, warehouse logistics, and building construction projects. These tables provide a stable and efficient platform for repetitive lifting tasks.

Frequently Asked Questions

Q: How is the quality of the scissor lift tables ensured?

A: Our products are CE approved with a 5-step inspection process: raw material check (ISO9001), production process monitoring, load limit testing after assembly, 100% pre-shipment inspection, and optional buyer inspection.

Q: What safety standards do these lift tables meet?

A: All HW series lift tables are manufactured to meet stringent EN norm and ANSI/ASME safety standards, ensuring global compliance and safety.

Q: What is the typical lead time for an order?

A: Standard lead time is 30 days. For single items in one container, it can be as short as 20 days, while mixed containers (5+ items) take approximately 45 days.

Q: Is there a warranty provided on the equipment?

A: Yes, we provide a full one-year quality guarantee on all our hydraulic electric lift tables.

Q: Can special requirements or customizations be accommodated?

A: Absolutely. We accept custom requirements regarding table size, color, and specific safety features to suit your unique application.

Q: How is the lift table handled during installation?

A: Each table comes with a removable lifting eye, making it easy to handle and position during the installation process, whether on the floor or in a pit.
