Model NO.
HW1001, HW2005, HW4008 series
Application
Workshop & Warehouse Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
1t, 2t, 4t
Certification
CE, ISO 9001
Lifting Height
205mm - 1300mm

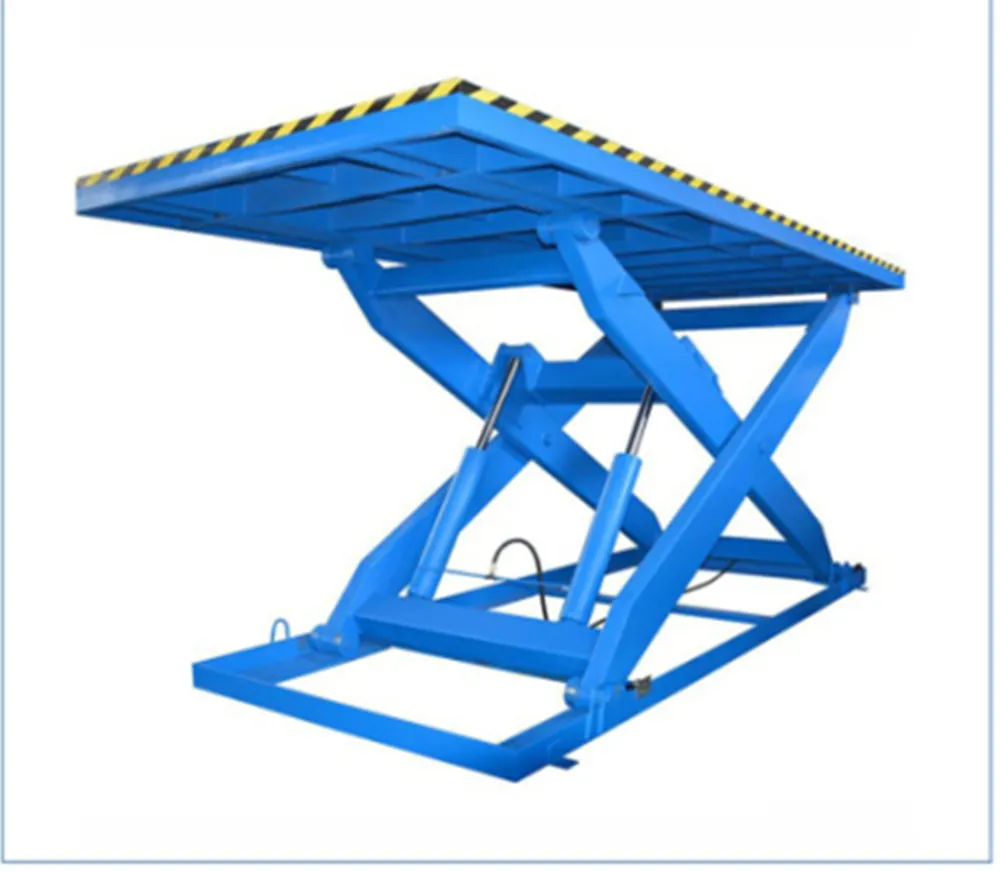

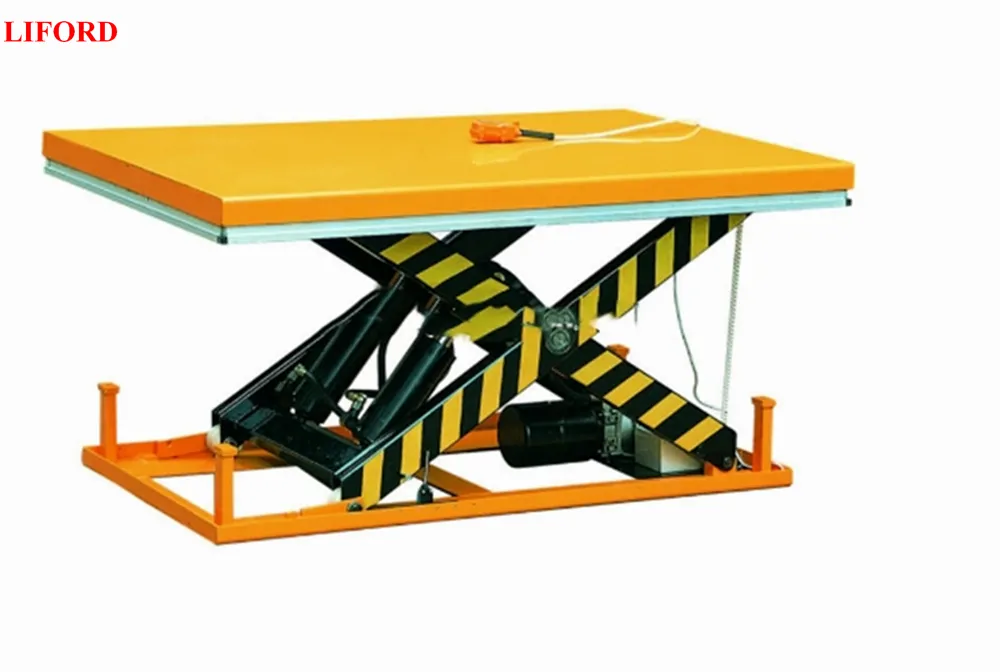

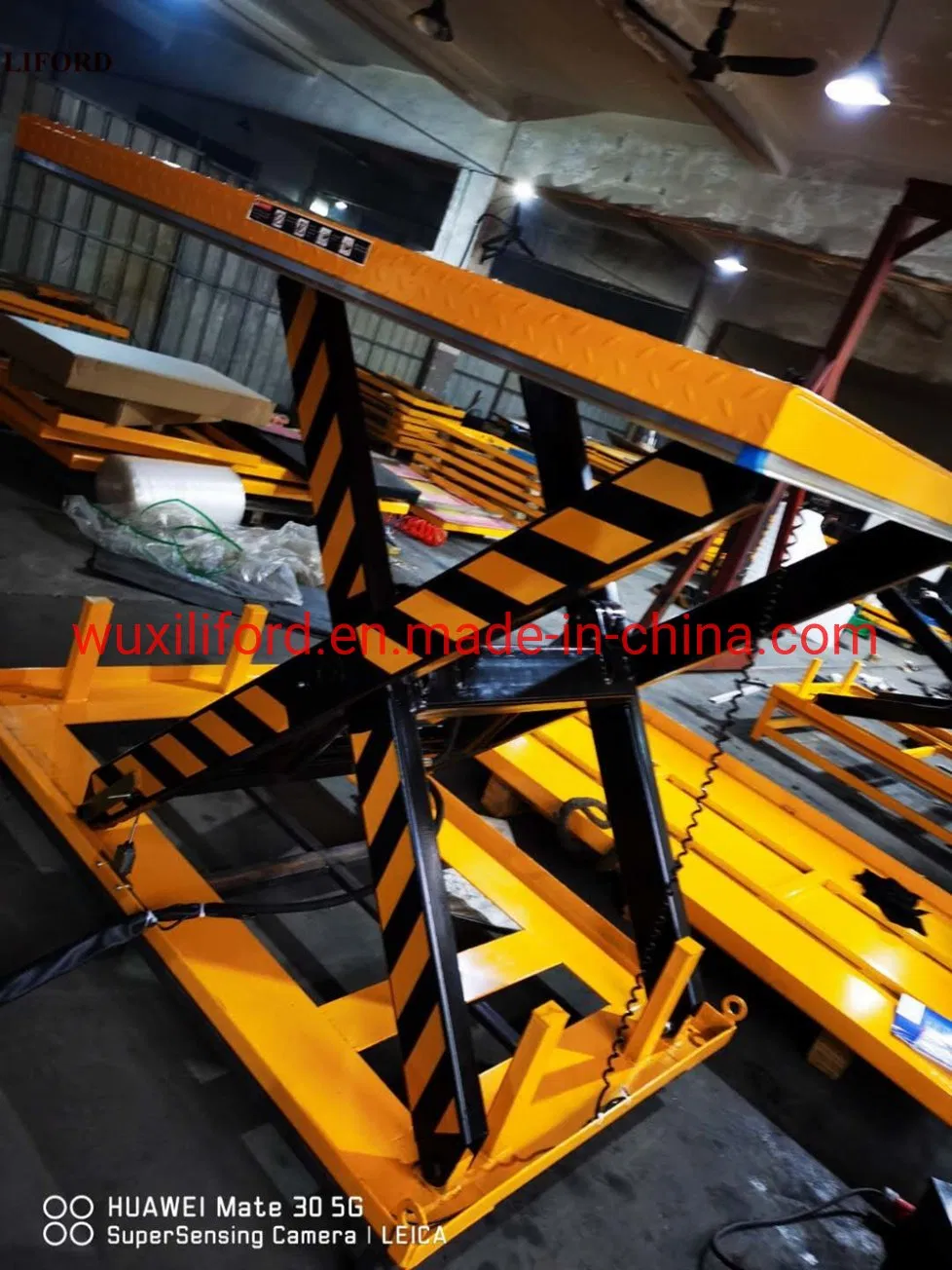

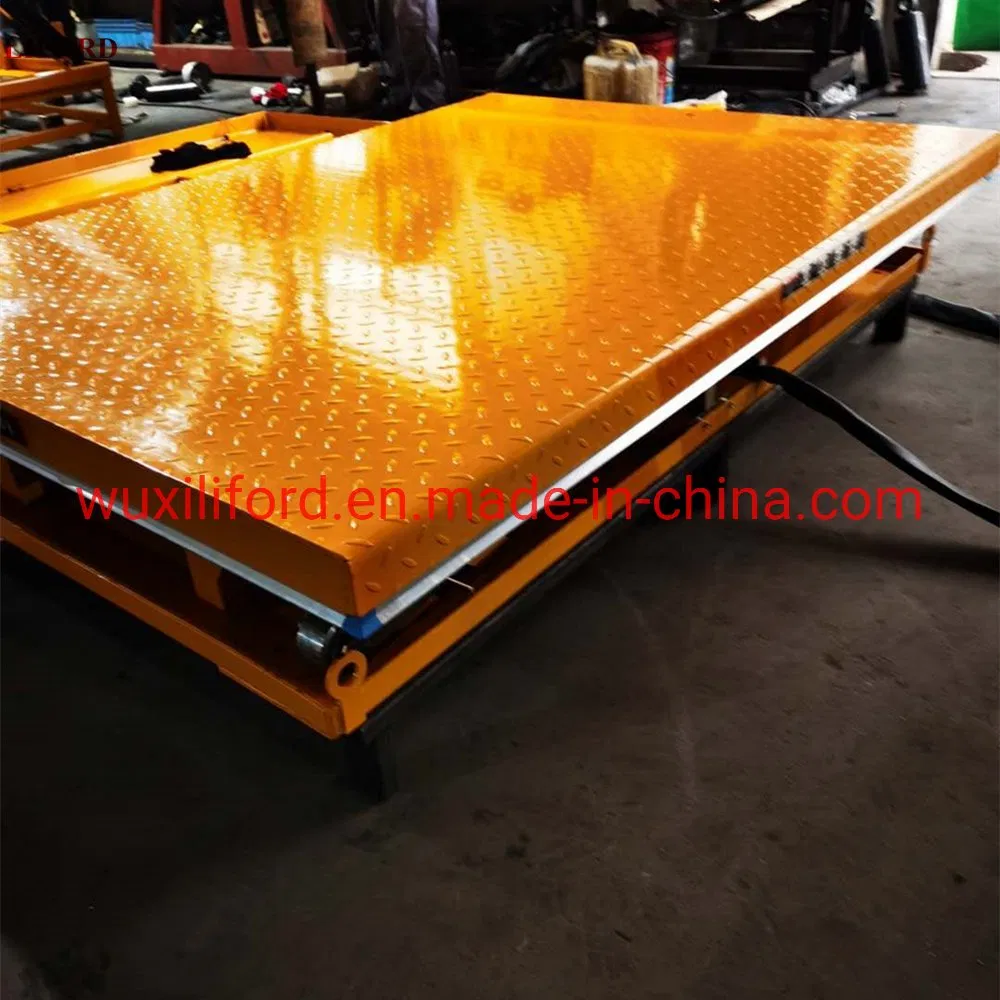

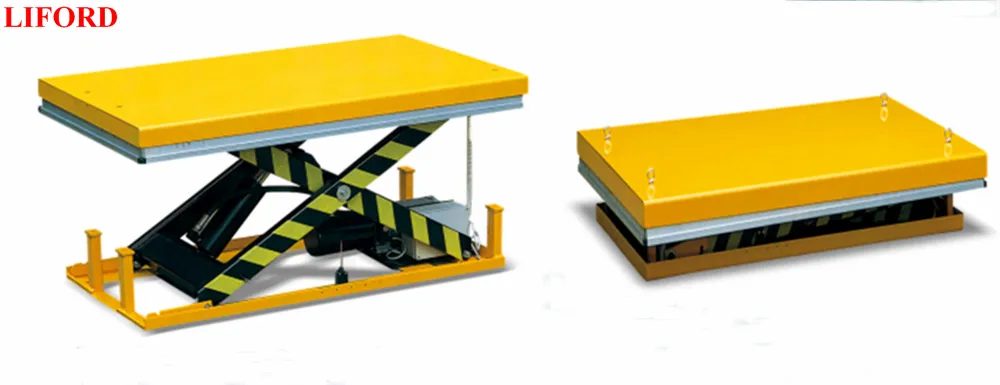

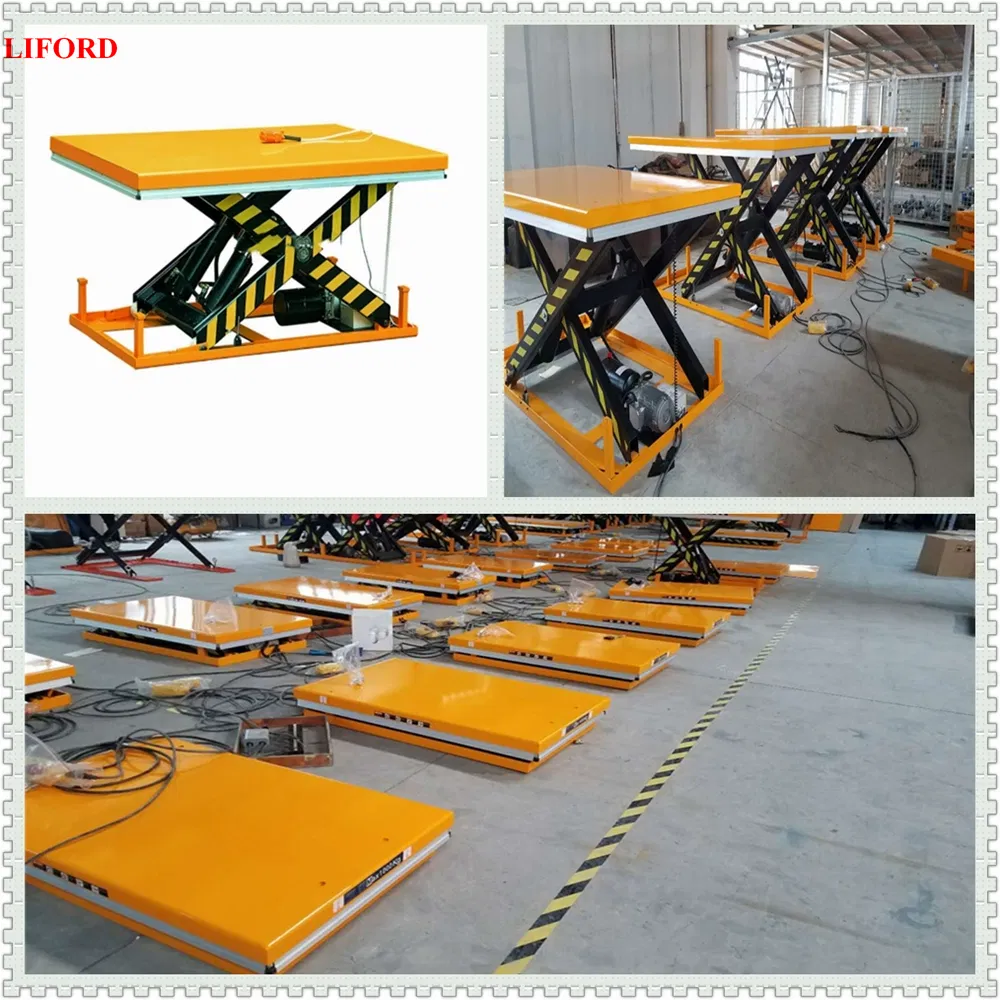

Electric Scissor Lift Table - Stationary Scissor Lifting Platform 2000kg
- Heavy duty design supporting 1000-4000kg with a strong and steady structure.
- High quality pump station ensuring smooth lifting performance.
- Equipped with anti-pinch and overload protection functions for enhanced safety.
- External power pack includes a relief valve against overloading and a compensated flow valve for speed control.
- Upper platform fitted with safety perimeter to prevent descent upon contact with obstructions.
| Model |
Capacity (kg) |
Platform Height Min/Max (mm) |
Platform Size (mm) |
Lift Time (s) |
Power (V/HZ) |
Net Weight (kg) |
| HW1001 | 1000 | 205/990 | 1300*820 | 20~25 | 380/50 | 160 |
| HW1003 | 1000 | 240/1300 | 1700*850 | 30~35 | 380/50 | 200 |
| HW2001 | 2000 | 230/1000 | 1300*850 | 20~25 | 380/50 | 235 |
| HW2005 | 2000 | 250/1300 | 2000*850 | 25~35 | 380/50 | 300 |
| HW4001 | 4000 | 240/1400 | 1700*1200 | 30~40 | 380/50 | 375 |
| HW4008 | 4000 | 350/1300 | 2200*1800 | 35~45 | 380/50 | 655 |
S

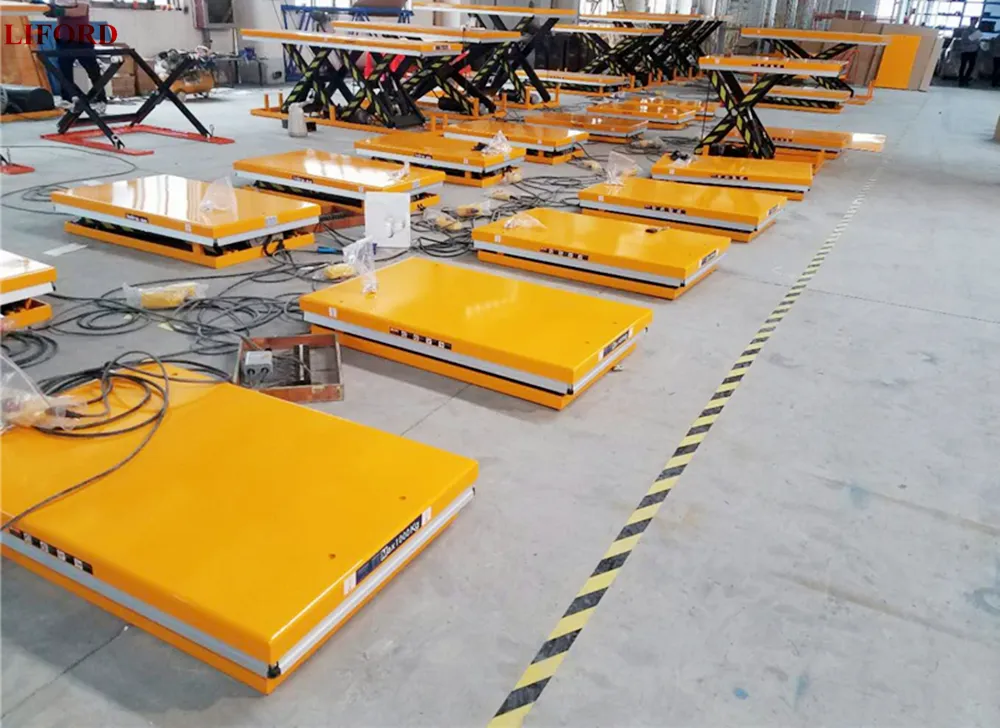

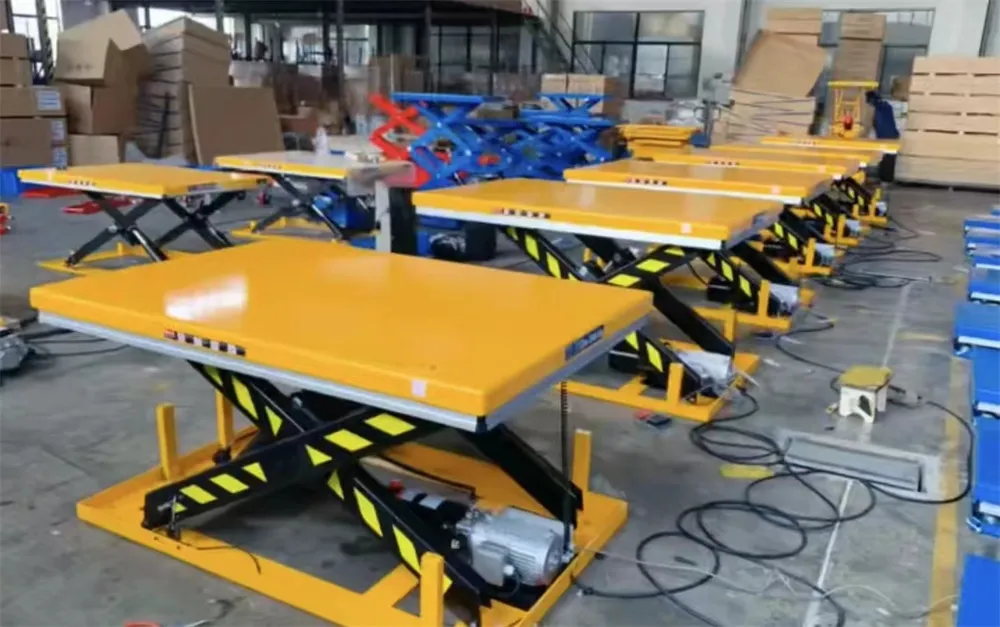

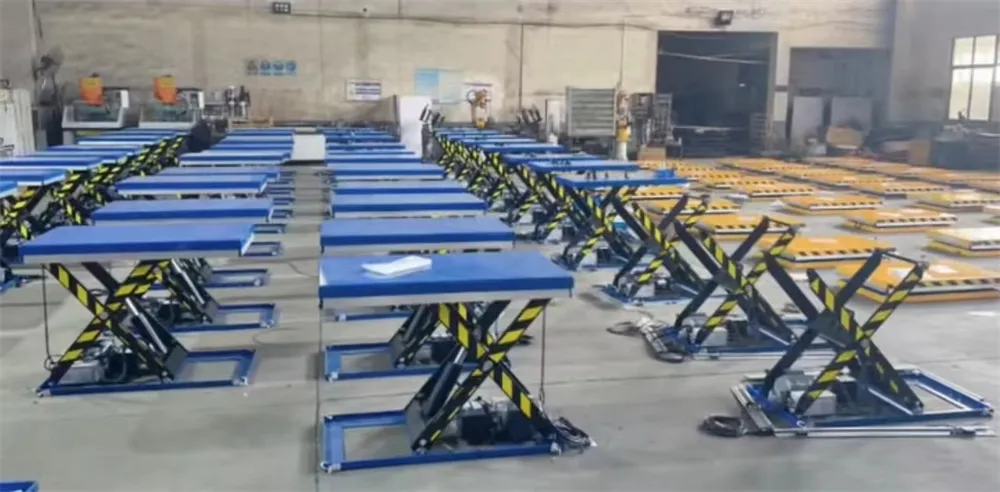

Packaging & Quality Control

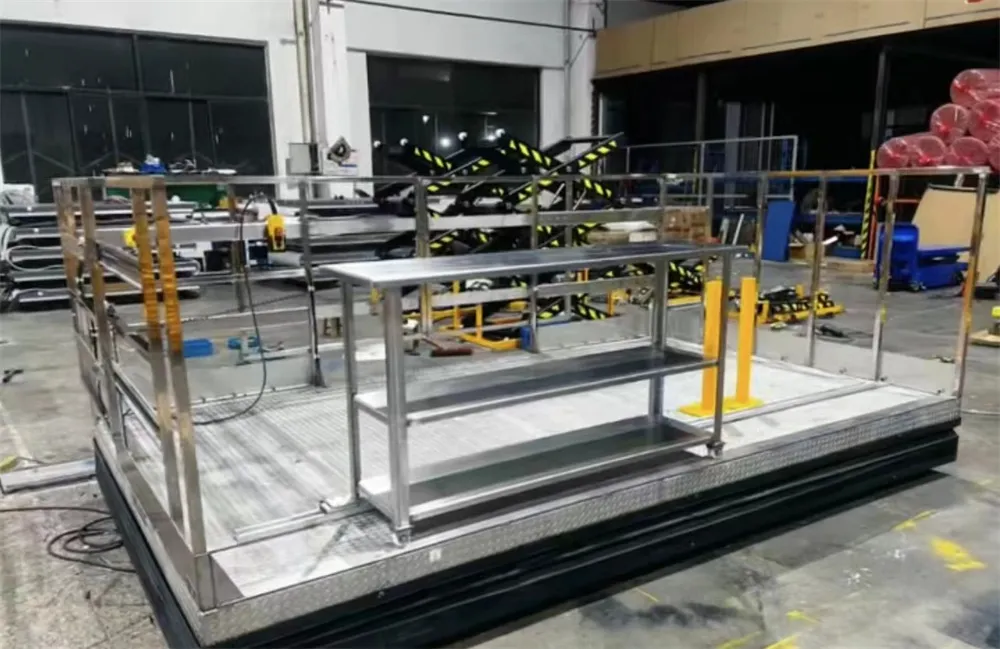

All finished products undergo 100% inspection before shipment. We provide robust packaging: strong cartons with belts for air delivery and reinforced pallets for sea delivery to ensure perfect condition upon receipt.
- Over 10 years of professional experience in material handling industry.
- Fast production and on-time delivery systems.
- One-stop custom service including OEM/ODM capabilities.
- Global reach with partners in more than 20 countries.
?
Frequently Asked Questions
What is the maximum capacity of these lift tables?
Our stationary scissor lift series offers a range of capacities including 1000kg (1t), 2000kg (2t), and up to 4000kg (4t).
What safety features are included in the design?
The units are equipped with anti-pinch functionality, overload protection, a safety perimeter on the upper platform, and compensated flow valves for controlled lowering.
Can the platform size be customized?
Yes, we offer OEM/ODM services and can design non-standard parts and platform sizes according to your specific project needs.
What is the standard power supply for these lifts?
The standard driven type is AC 380V/50Hz, which provides stable and powerful lifting for industrial environments.
Are the products certified for international trade?
Yes, our equipment is fully compliant with CE and ISO 9001 certifications, ensuring high quality and safety standards.
What are the primary applications for this equipment?
These lifts are ideal for workshop cranes, warehouse material handling, and stationary lifting platforms in production lines.
