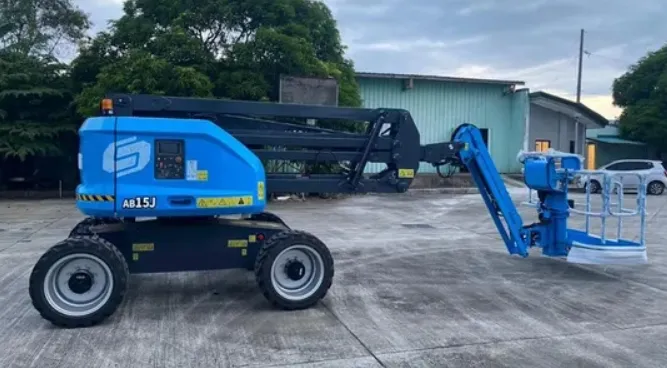

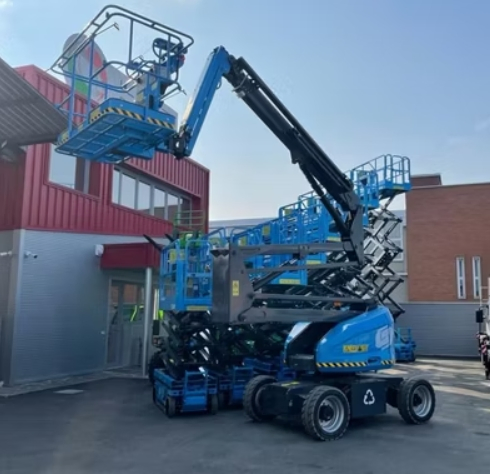

Narrow width with zero tail sweep allows for excellent maneuverability in confined areas.
The working platform can be lifted and lowered to any position without the need to operate the secondary arm, saving time.
Simple linkage mechanism design and hydraulic leveling ensure reliable performance during all operations.
Equipped with 3 joysticks with variable proportional control for high accuracy in reaching the operation target.
| Max Platform Height | 14.7 m (48'3") |
| Max Working Height | 16.7 m (54'9") |
| Max Horizontal Extension | 8.5 m (27'11") |
| Length-Stowed | 7.49 m (24'7") |
| Width-Stowed | 2.3 m (7'7") |
| Height-Stowed | 2.28 m (7'6") |
| Wheelbase | 2.3 m (7'7") |
| Ground Clearance | 0.35 m (1'2") |
| Platform Dimensions(L×W×H) | 1.83 m x 0.85 m x 1.1 m (6' x 2'9" x 3'7") |
| Platform Capacity | 300 kg (661 lbs) |
| Turntable Rotation | 360° / Continuous |
| Drive Speed-Stowed | 4.5 km/h (2.8 mph) |
| Gradeability | 40% |
| Tyres Type | 33×12D610 / foam-filled |
| Machine Weight | 7,700kg |
