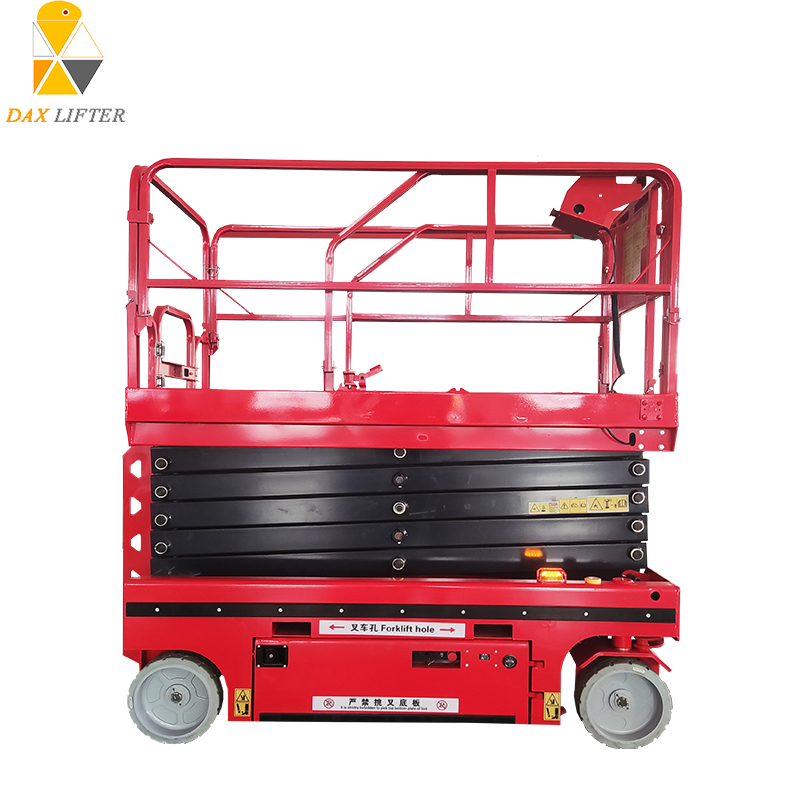

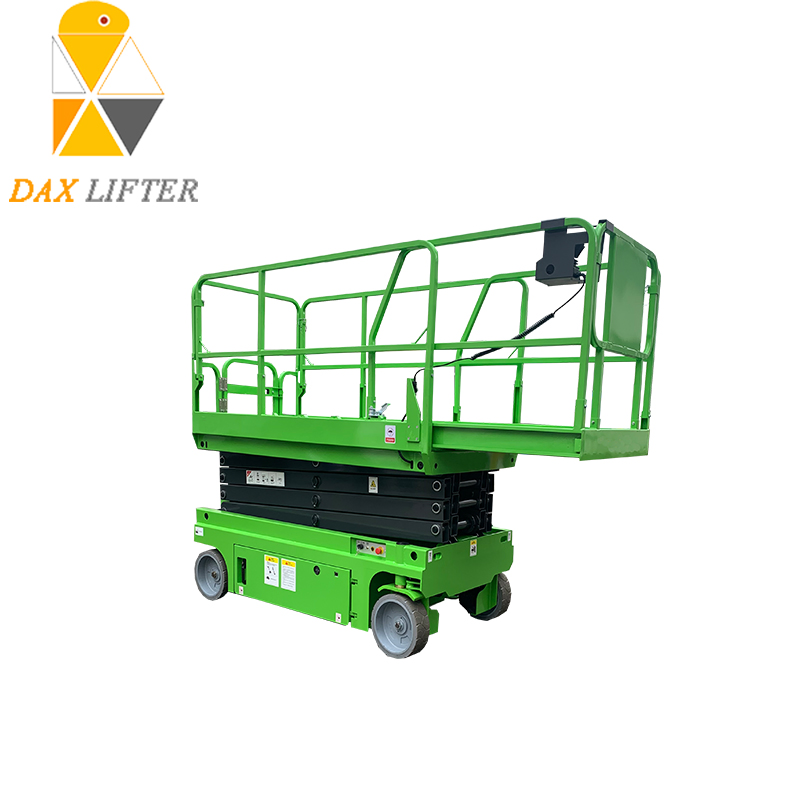

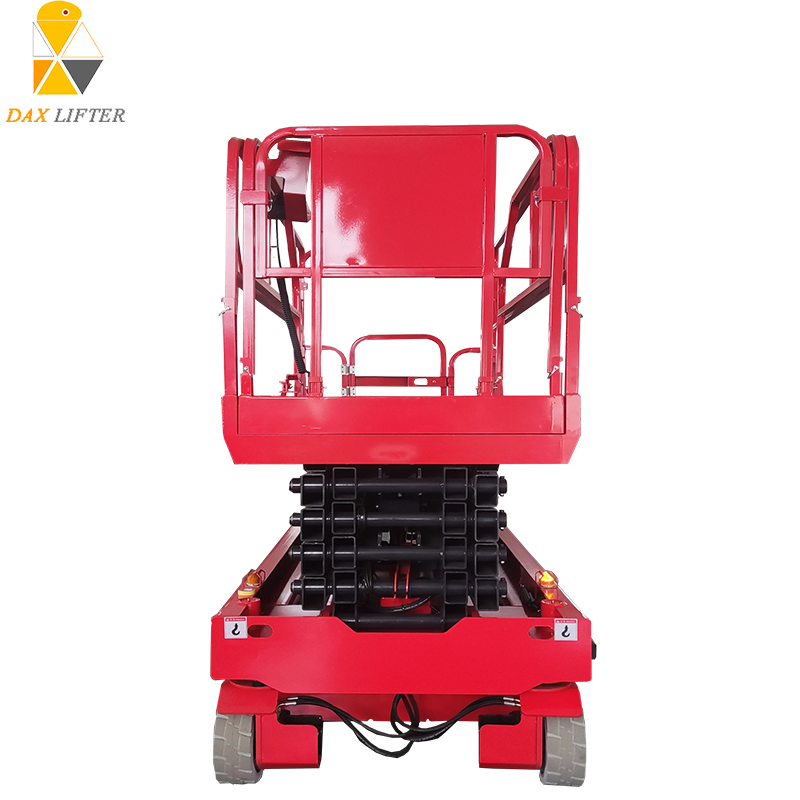

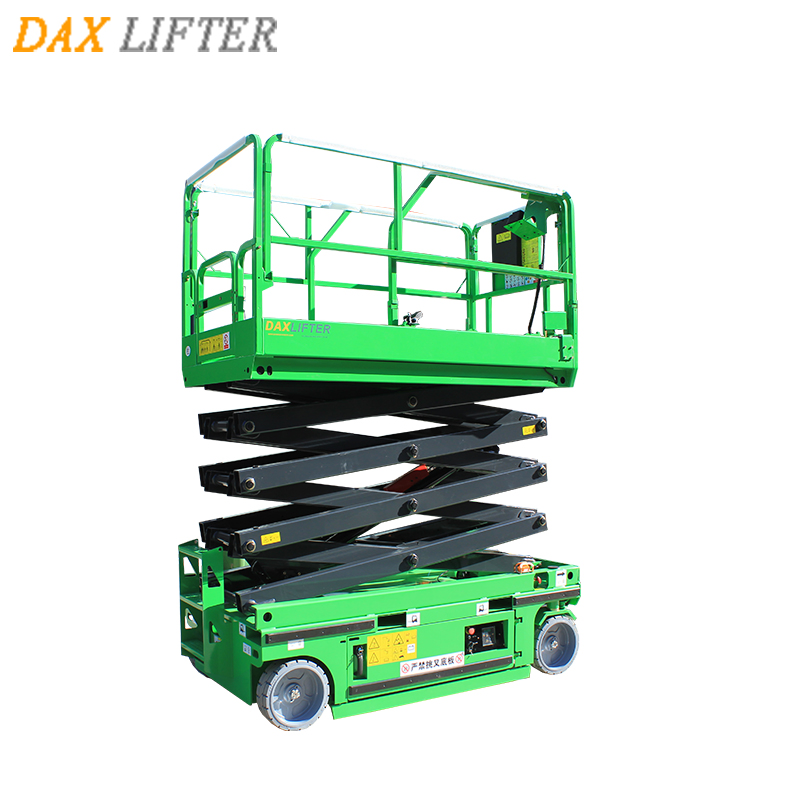

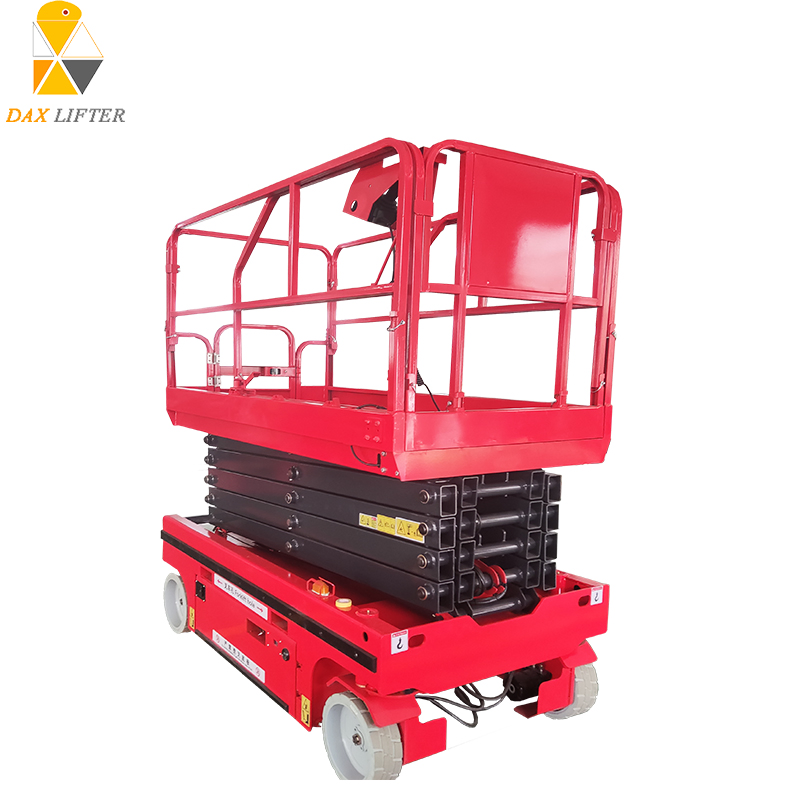

China Daxlifter Multiple 6-16m Hydraulic Self-Propelled Scissor Lift with CE Approved
China Daxlifter Multiple 6-16m Hydraulic Self-Propelled Scissor Lift with CE Approved
China Daxlifter Multiple 6-16m Hydraulic Self-Propelled Scissor Lift with CE Approved
China Daxlifter Multiple 6-16m Hydraulic Self-Propelled Scissor Lift with CE Approved
China Daxlifter Multiple 6-16m Hydraulic Self-Propelled Scissor Lift with CE Approved
1 / 5
China Daxlifter Multiple 6-16m Hydraulic Self-Propelled Scissor Lift with CE Approved
China Daxlifter Multiple 6-16m Hydraulic Self-Propelled Scissor Lift with CE Approved
China Daxlifter Multiple 6-16m Hydraulic Self-Propelled Scissor Lift with CE Approved
China Daxlifter Multiple 6-16m Hydraulic Self-Propelled Scissor Lift with CE Approved
China Daxlifter Multiple 6-16m Hydraulic Self-Propelled Scissor Lift with CE Approved

China Daxlifter Multiple 6-16m Hydraulic Self-Propelled Scissor Lift with CE Approved

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
DX
Application
Workshop, Shipboard, Warehouse, Building
Lift Mechanism
Scissor Lift
Moves
Self-propelled
Driven Type
DC
Certification
CE, ISO 9001
Height Range
6-12m
Capacity
320kg
HS Code
8428909090
Product Overview

6-14m Man Lift Aerial Working Self Propelled Scissor Lift With Extendable Platform

Self-propelled hydraulic drive scissor lift is widely used in the aerial work platform industry. These lifts are commonly utilized in factory operations, high-altitude installations, aviation industry, and high-altitude cleaning and maintenance work.

The primary advantage of the self-propelled scissor lift compared to manual mobile versions is the ability for workers to control movement directly from the top platform, significantly increasing operational convenience.

Technical Data
Model DX06 DX08 DX10 DX12 DX14
Max Platform Height 6m 8m 10m 12m 14m
Max Working Height 8m 10m 12m 14m 16m
Lifting Capacity 320kg 320kg 320kg 320kg 230kg
Platform Extend Length 900mm
Platform Size 2270*1110mm 2640*1100mm
Weight 2210kg 2310kg 2510kg 2650kg 3300kg
Product Display
Scissor Lift 1
Scissor Lift 2
Scissor Lift 3
Scissor Lift 4
Scissor Lift 5
Scissor Lift 6
Scissor Lift 7
Scissor Lift 8
Scissor Lift 9

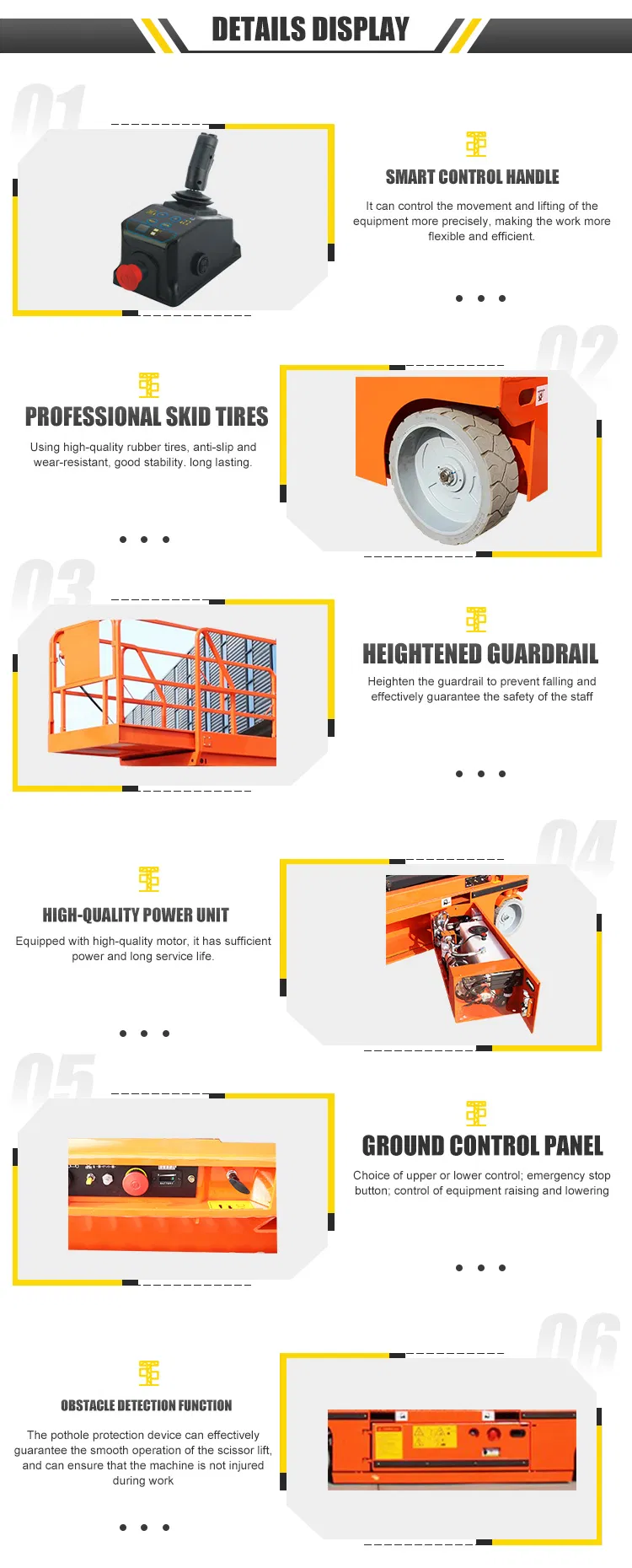

Key Advantages & Features
◈
Extendable Platform
The platform can be extended to widen the working site, allowing multiple workers to operate together.
◈
High-quality Hydraulic Structure
Reasonably designed system ensuring the oil cylinder remains free of impurities for easier maintenance.
◈
Removable Control Panel
The platform control panel is detachable to prevent theft or environmental damage when not in use.
◈
Emergency Lowering Valve
A safety valve that allows the platform to be lowered manually in case of power failure or emergencies.
◈
Self-propelled Function
Features a hydraulic drive for flexible movement without manual traction, ideal for indoor and outdoor use.
◈
DC Power
Adopts a DC power supply to reduce obstacles and power connection issues during movement.

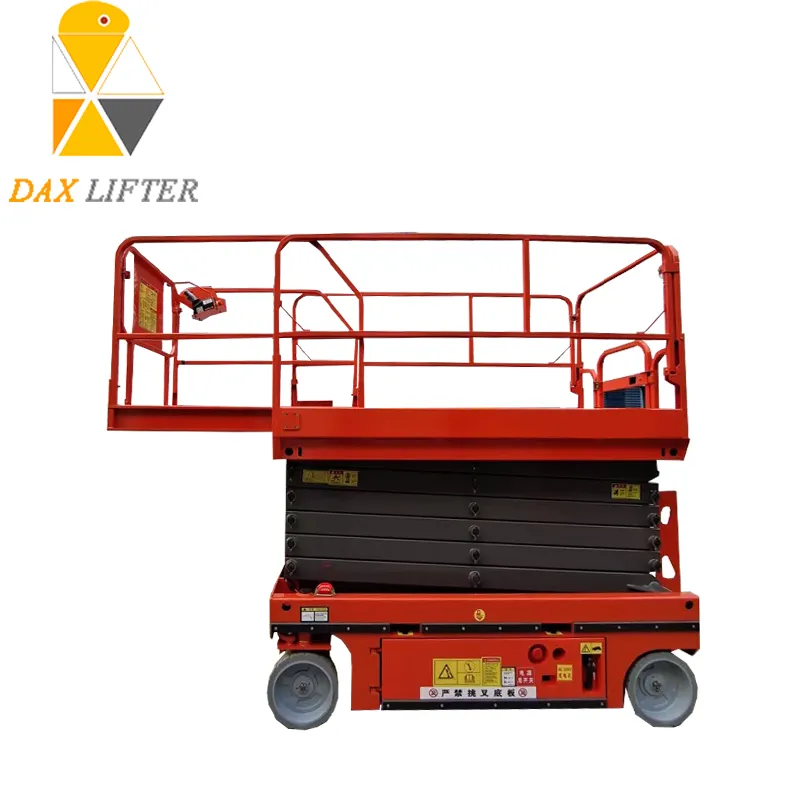

Core Configuration
Frequently Asked Questions
What is the maximum working height available?
The range of self-propelled scissor lifts offers maximum working heights from 8 meters up to 16 meters, depending on the specific model selected.
How much weight can the platform carry?
Standard models have a lifting capacity of 320kg. The DX14 model, which reaches a higher elevation, has a capacity of 230kg.
Is the platform size adjustable?
Yes, all models feature an extendable platform that adds 900mm to the working length, providing more space for workers and tools.
Can it be used outdoors?
Yes, the hydraulic self-propelled design allows the lift to move freely and operate effectively in both indoor and outdoor environments.
What happens if the power fails while the platform is raised?
The equipment is equipped with an emergency lowering valve, which allows operators to safely lower the platform even in the event of a power failure.
Does the machine require assembly upon delivery?
No, the product is shipped as complete equipment. It is ready to use immediately out of the warehouse without requiring user assembly.
