📦 Basic Info.
Model NO.
HW1001, HW2001, HW4001 series
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Certification
CE, ISO 9001
Lifting Height
205mm - 1300mm
📝 Product Description

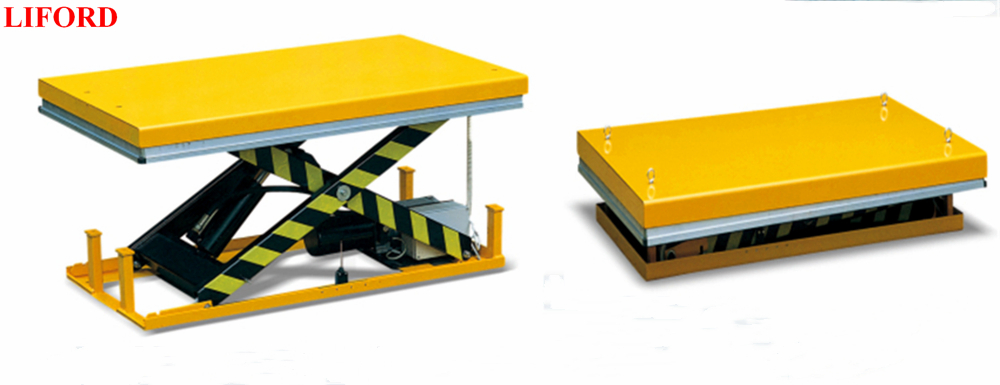

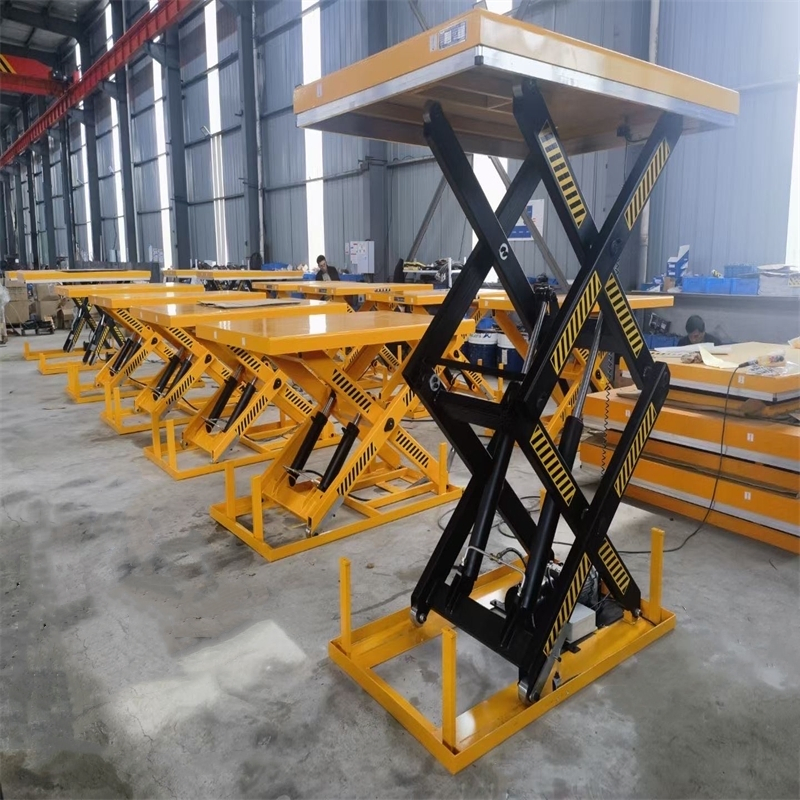

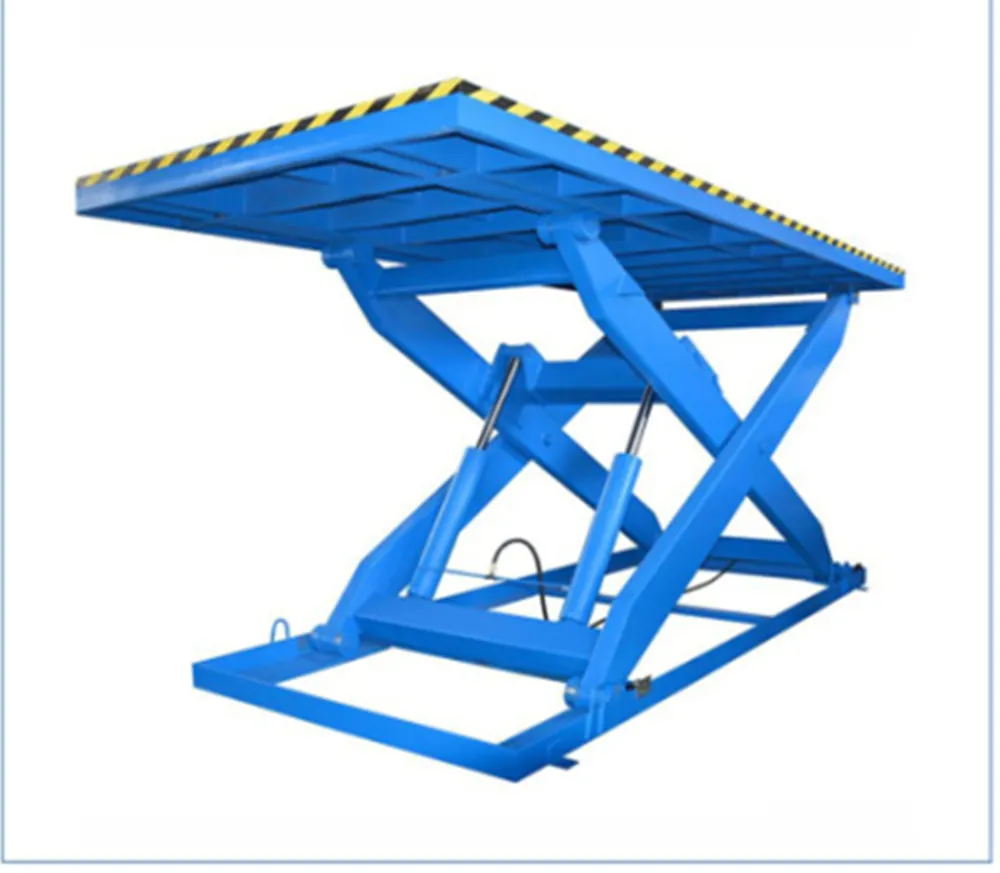

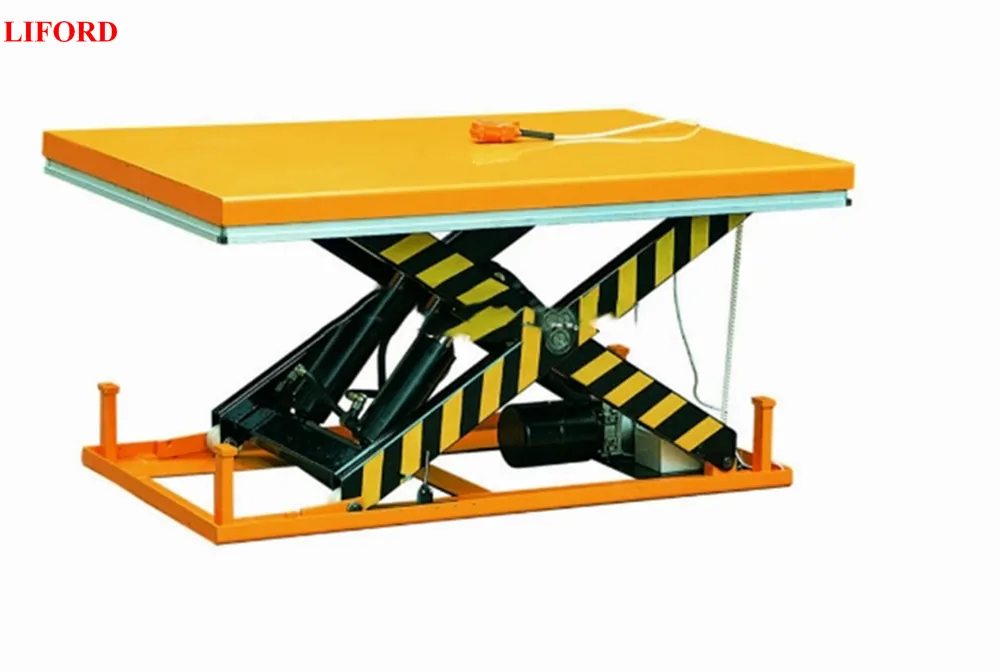

1000kg 2000kg 4000kg Stationary Electric Scissor Lift Table
⭐ Key Features
Heavy Duty Design: 1000-4000kg capacity with a strong structure for steady performance.
High-Quality Pump Station: Ensures smooth lifting and lowering operations.
Safety Functions: Equipped with anti-pinch and overload protection functions.
Flow Control: External power pack with a compensated flow valve for controlling lowering speed.
Perimeter Protection: Upper platform fitted with a safety perimeter to prevent descent on contact with obstructions.
📊 Technical Data
| Model |
Capacity (kg) |
Height Min/Max (mm) |
Platform Size (mm) |
Base Size (mm) |
Lift Time (s) |
Power (V/Hz) |
Weight (kg) |
| HW1001 | 1000 | 205/990 | 1300*820 | 1240*640 | 20~25 | 380/50 | 160 |
| HW1006 | 1000 | 240/1300 | 2000*1000 | 1580*640 | 30~35 | 380/50 | 223 |
| HW2001 | 2000 | 230/1000 | 1300*850 | 1220*785 | 20~25 | 380/50 | 235 |
| HW2006 | 2000 | 250/1300 | 2000*1000 | 1600*785 | 25~35 | 380/50 | 315 |
| HW4001 | 4000 | 250/1400 | 1700*1200 | 1600*900 | 30~40 | 380/50 | 375 |
| HW4008 | 4000 | 300/1400 | 2200*1800 | 1620*1400 | 35~45 | 380/50 | 655 |

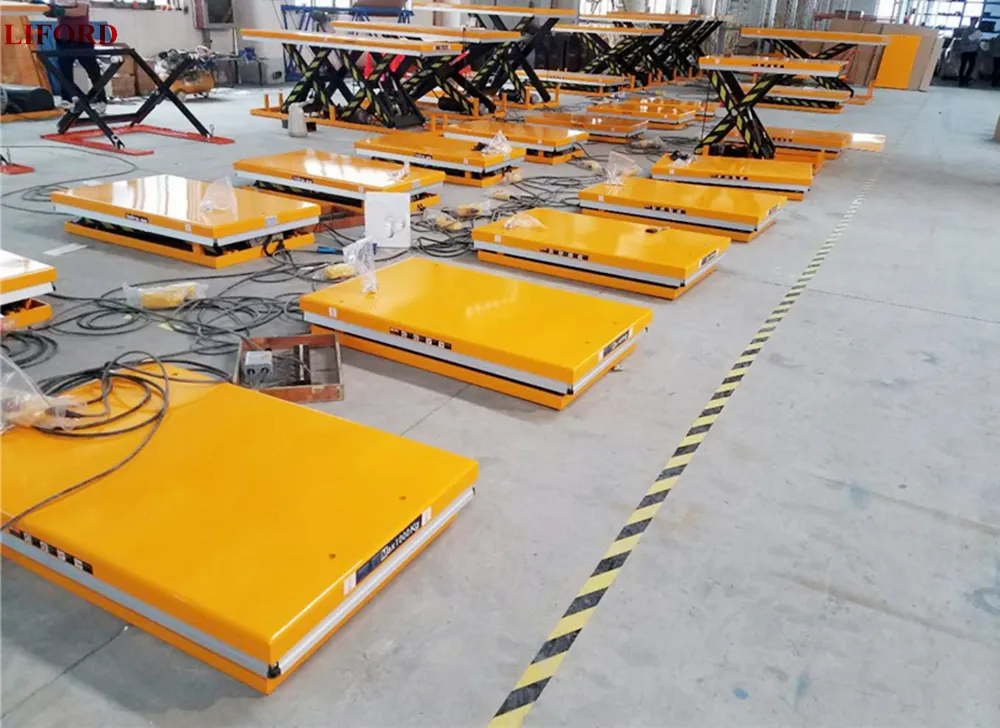

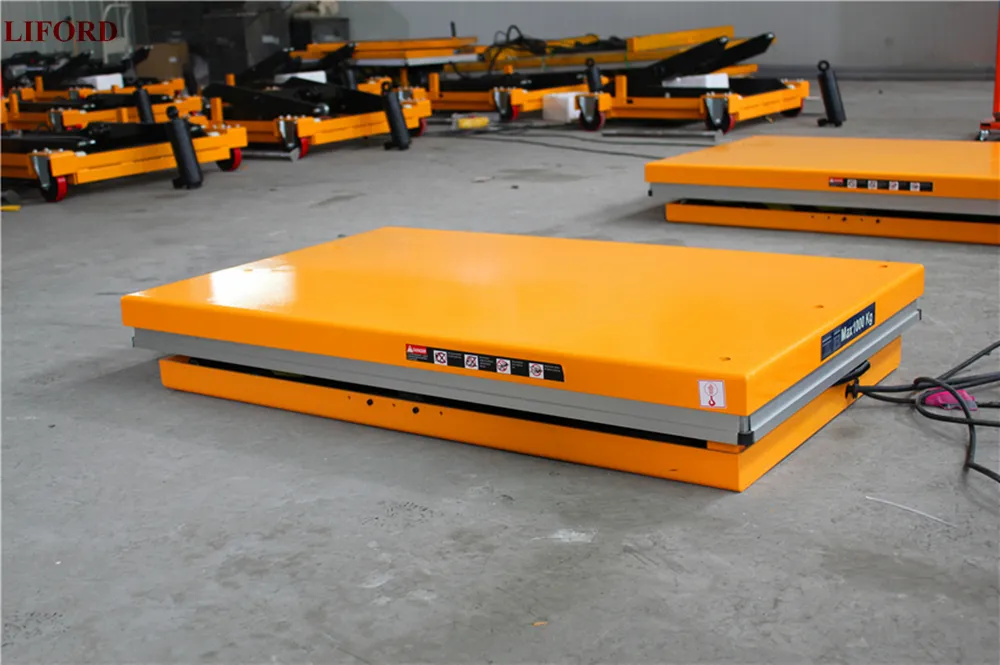

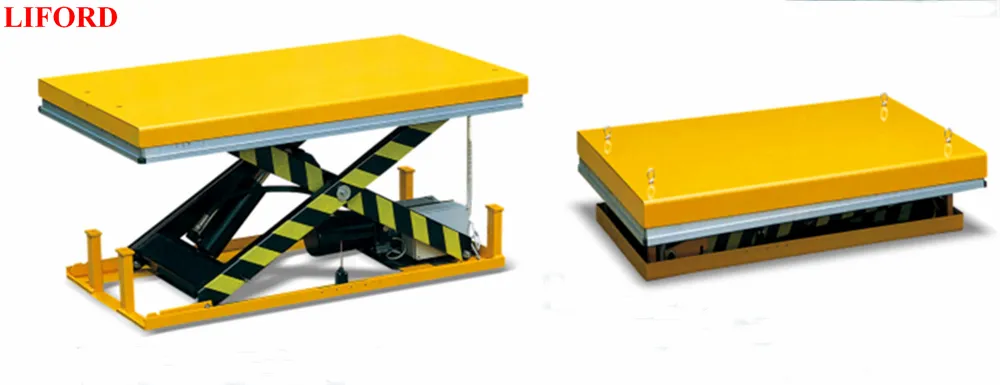

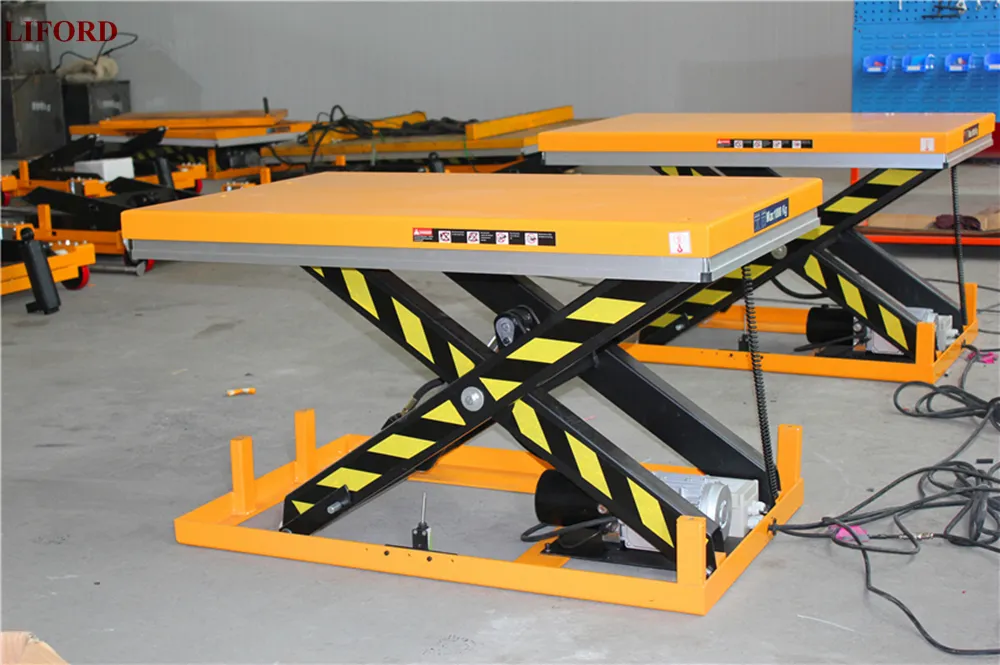

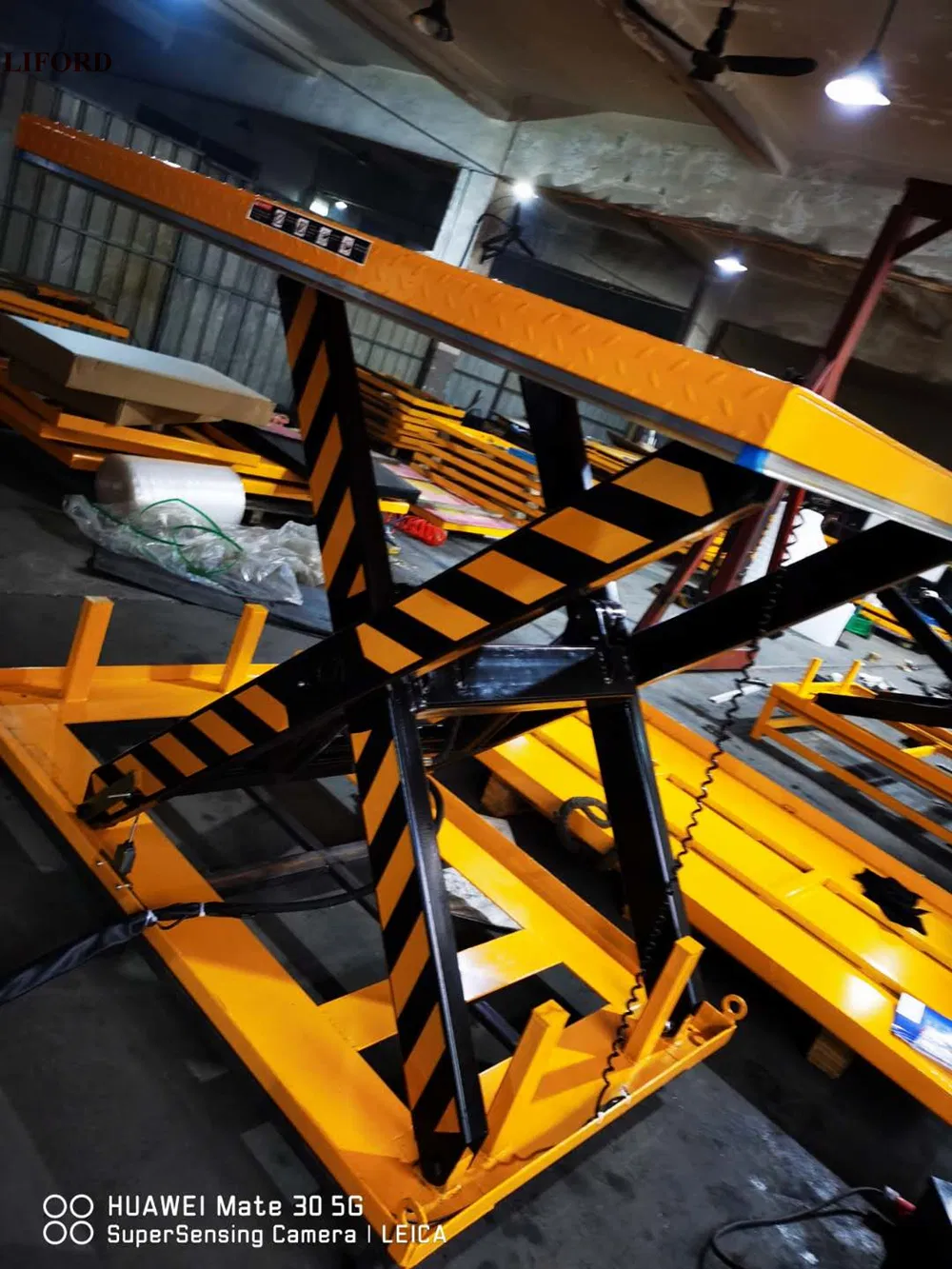

📸 Product Details
🏆 Why Choose Our Lifting Solutions?
- Professional Experience: Over 10 years of expertise in material handling industry.
- Quick Delivery: Fast production cycles to ensure your project stays on schedule.
- Custom Service: OEM/ODM services available for non-standard parts and specific requirements.
- Quality Inspection: 100% inspection of all finished products before shipment.
- Secure Packaging: Strong pallets and cartons used for sea and air delivery to ensure perfect condition upon arrival.

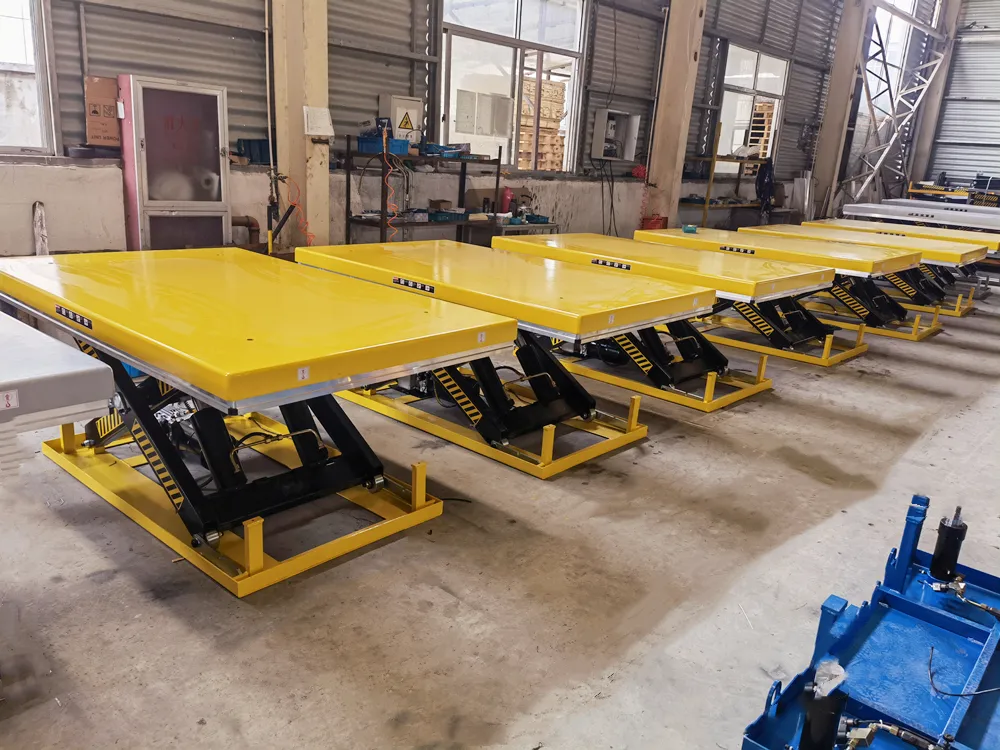

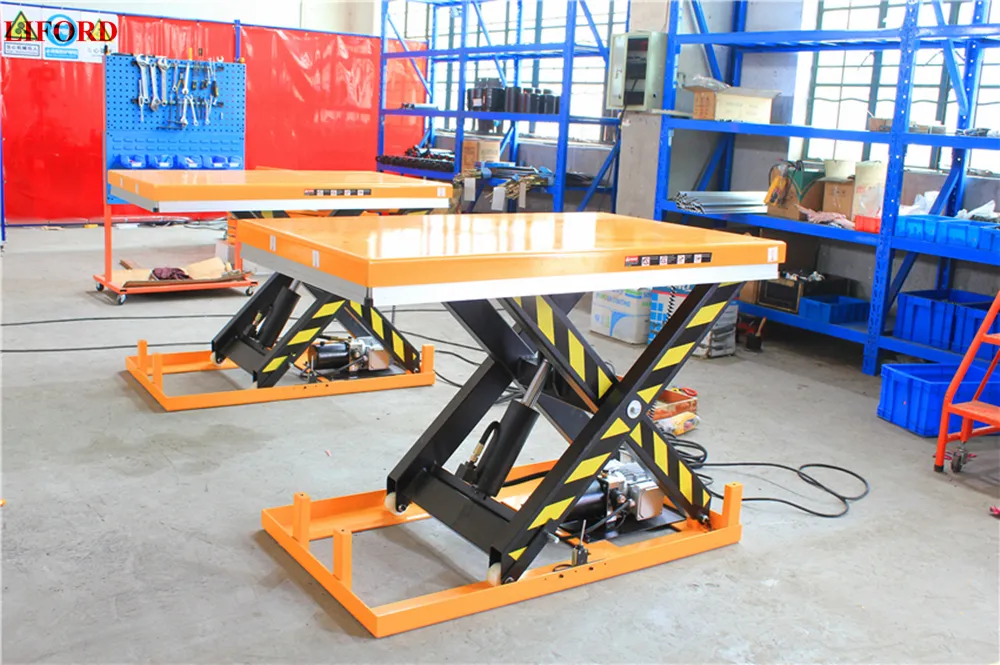

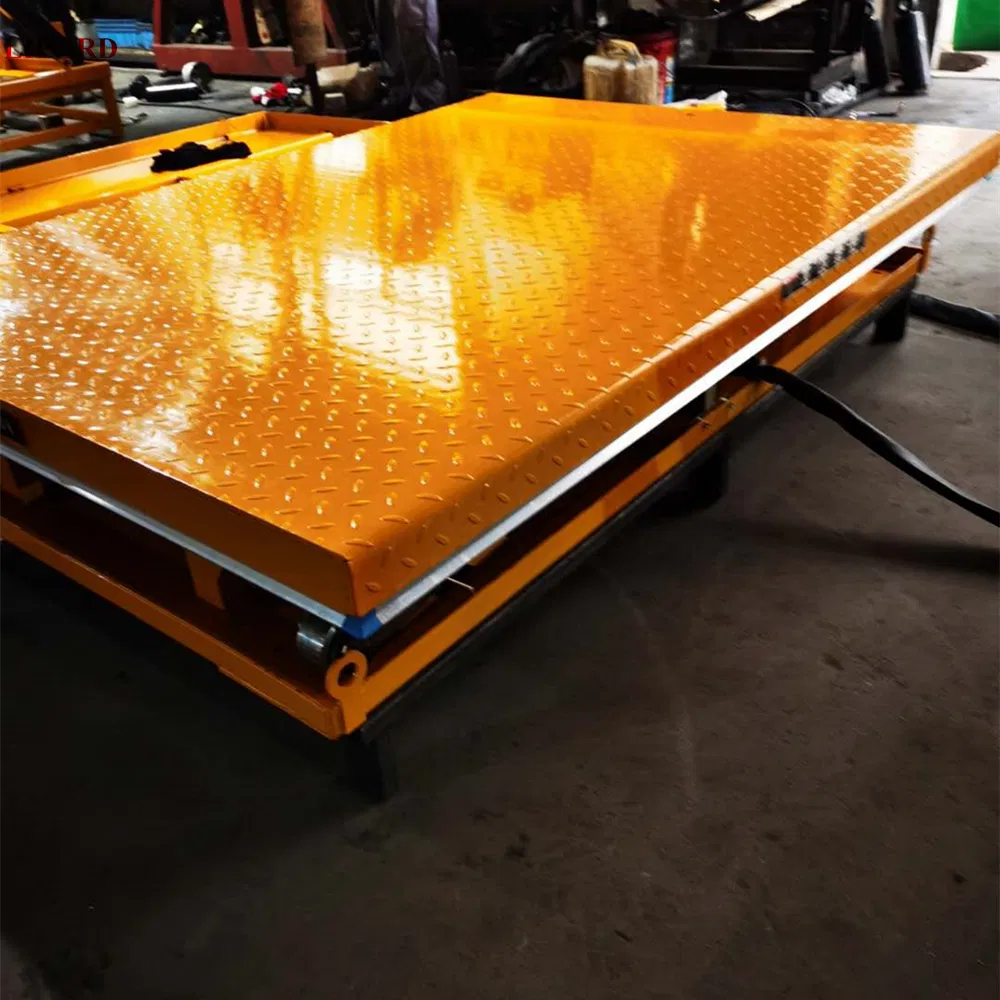

📦 Packaging & Feedback
💡 Frequently Asked Questions
What is the weight capacity range for these lift tables?
Our stationary lift tables are designed for heavy-duty applications, with load capacities ranging from 1000kg up to 4000kg.
What safety features are integrated into the scissor lift?
The equipment includes an anti-pinch function, overload protection, and a safety perimeter on the upper platform that stops descent if it contacts an obstruction.
What are the power requirements?
The standard driven type is AC 380V/50Hz. Custom power configurations may be available through our OEM services.
Can the lifting and lowering speed be controlled?
Yes, the external power pack is equipped with a compensated flow valve specifically for controlling and smoothing the lowering speed.
Are custom sizes or non-standard models available?
Absolutely. We offer comprehensive OEM/ODM services to design and produce non-standard lifting platforms based on your specific workplace needs.
How is the product protected during international shipping?
We use strong, reinforced packaging. For sea delivery, items are secured on robust pallets with stretch film or placed in heavy-duty cartons to ensure they arrive in perfect condition.
