Basic Information
Model NO.
HX500, HX1000, HX1500
Application
Workshop, Shipboard, Warehouse, Building
Lift Mechanism
Scissor Lift
Carrying Capacity
500kg-1500kg
Driven Type
Electric Motor
Certification
CE, ISO 9001
Lifting Height
Min 25mm / Max 800mm
Product Overview

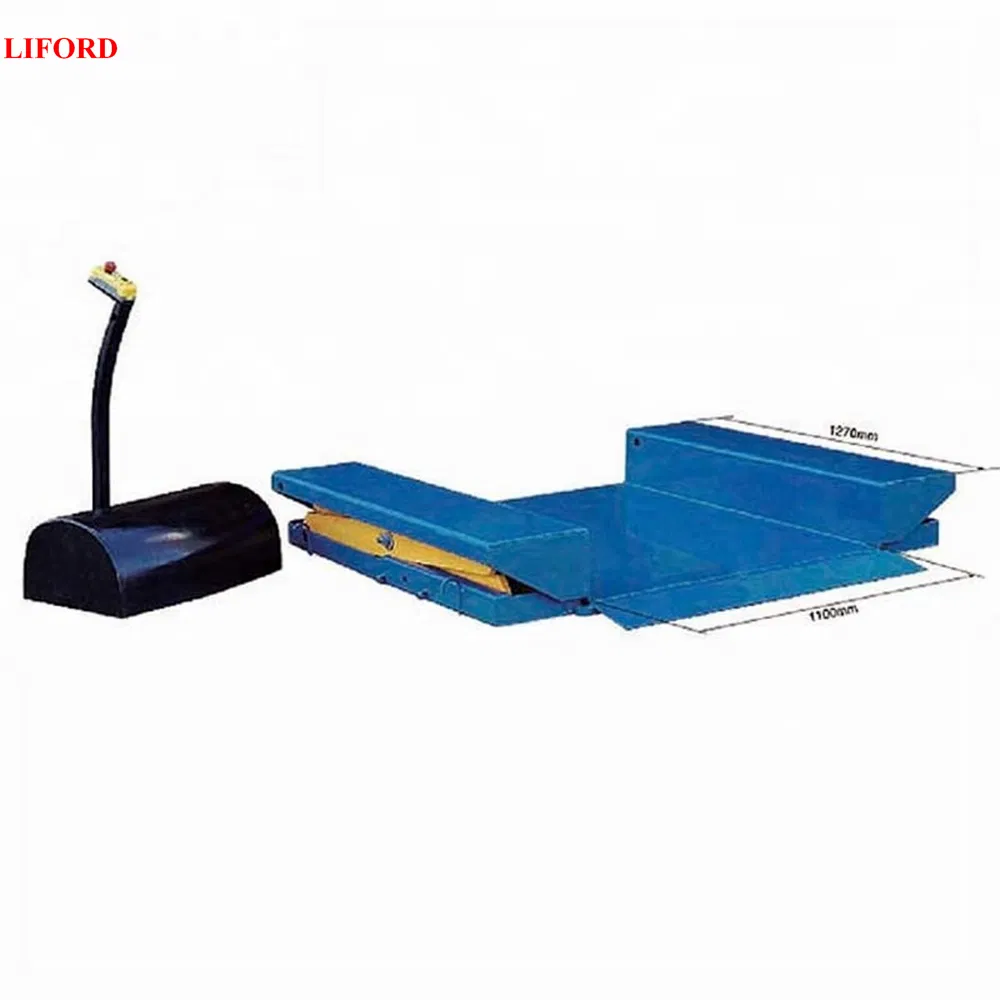

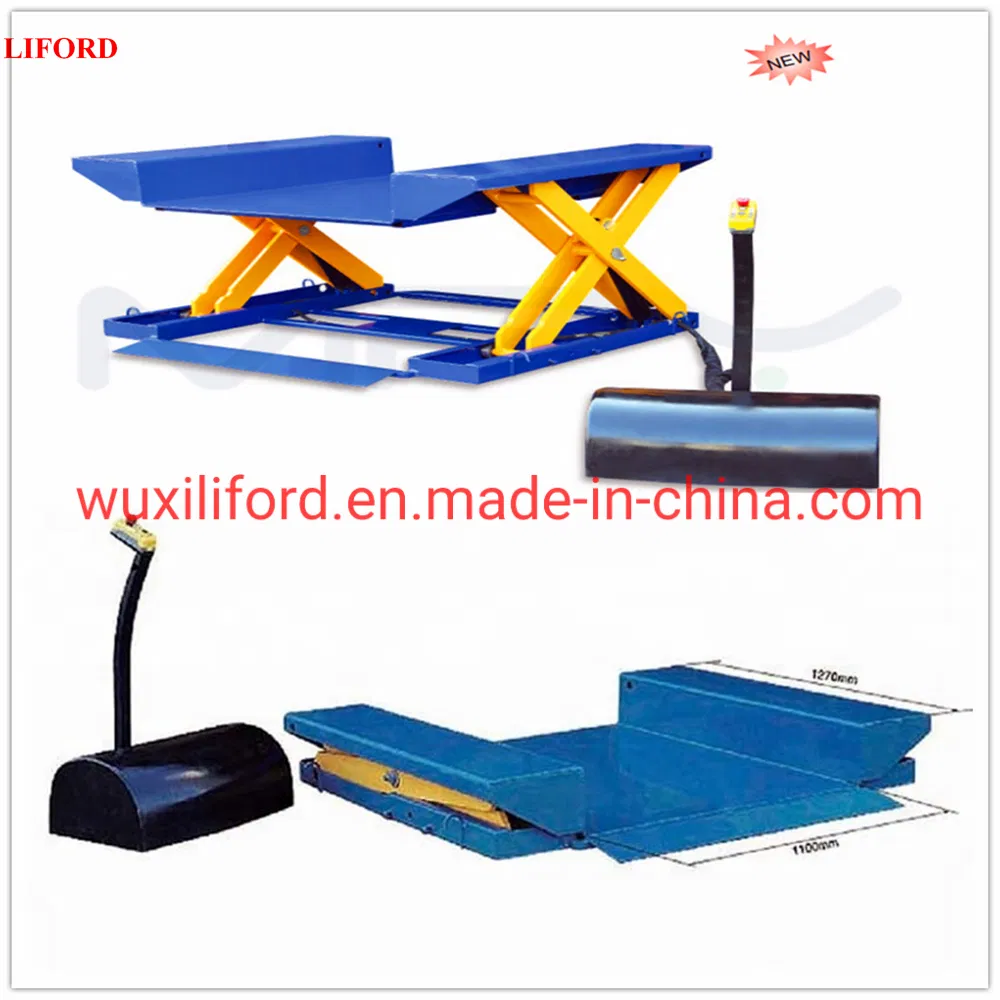

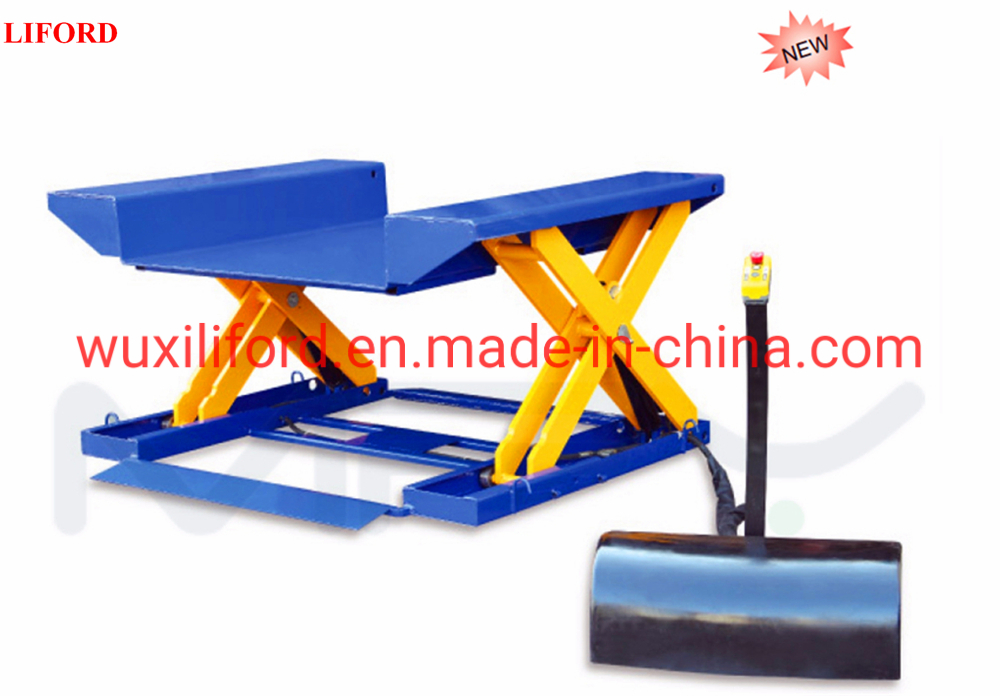

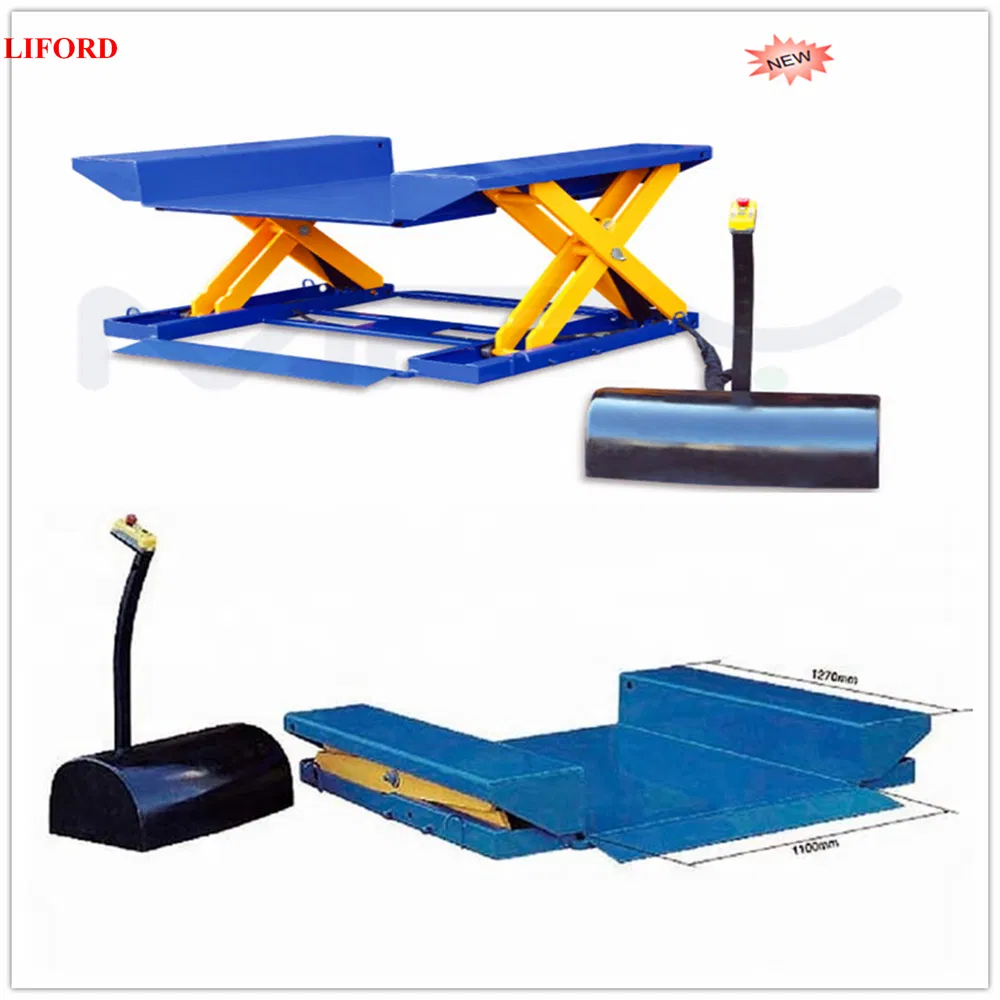

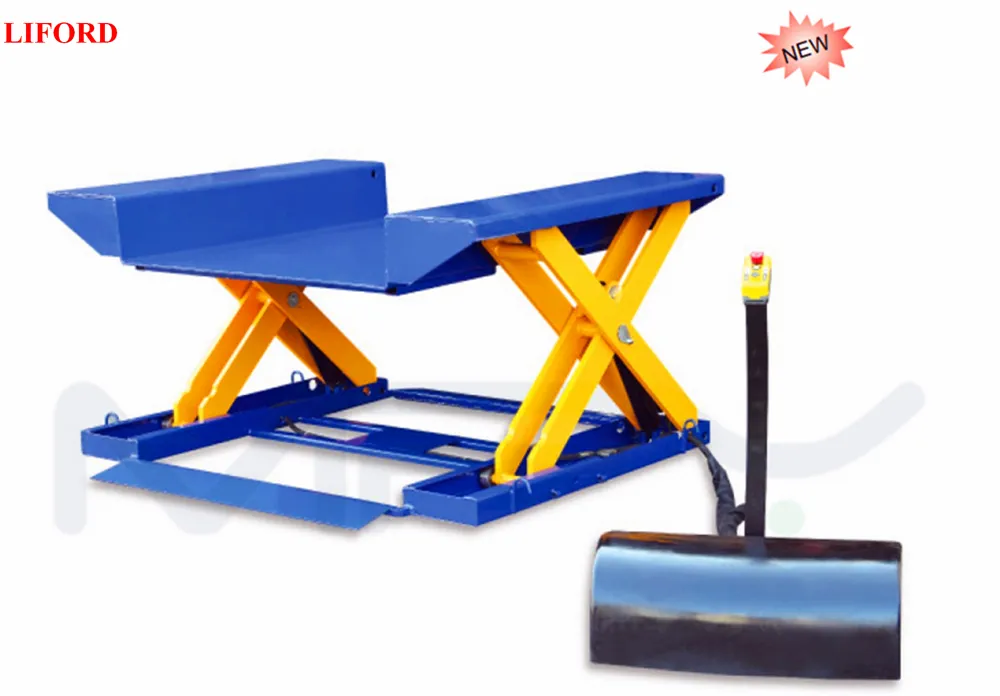

500kg - 1500kg Stationary Electric Scissor Lift Table / Zero Level Hydraulic Lifting Platform
Key Features
◈
Heavy Duty Design: 500-1500kg robust load capacity for industrial use.
◈

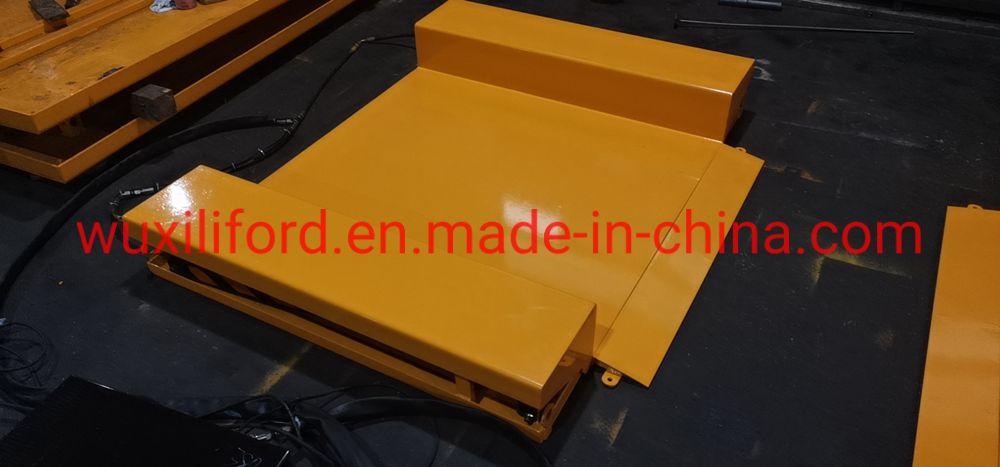

Super Low Concave Table: Equipped with front/rear lamp; can be installed directly on the ground without a pit.
◈
High-Quality Components: European standard AC power supply (IP54) - 380V/50HZ/3 phase.
◈
Precision Control: Anti-overload valve and flow compensated valve for accurate lowering speed.
◈
Safety First: Safety device beneath the table stops lowering if an obstacle is detected.
◈
Durability: Auto lubrication guide rings on pivot points to reduce friction and maintenance.

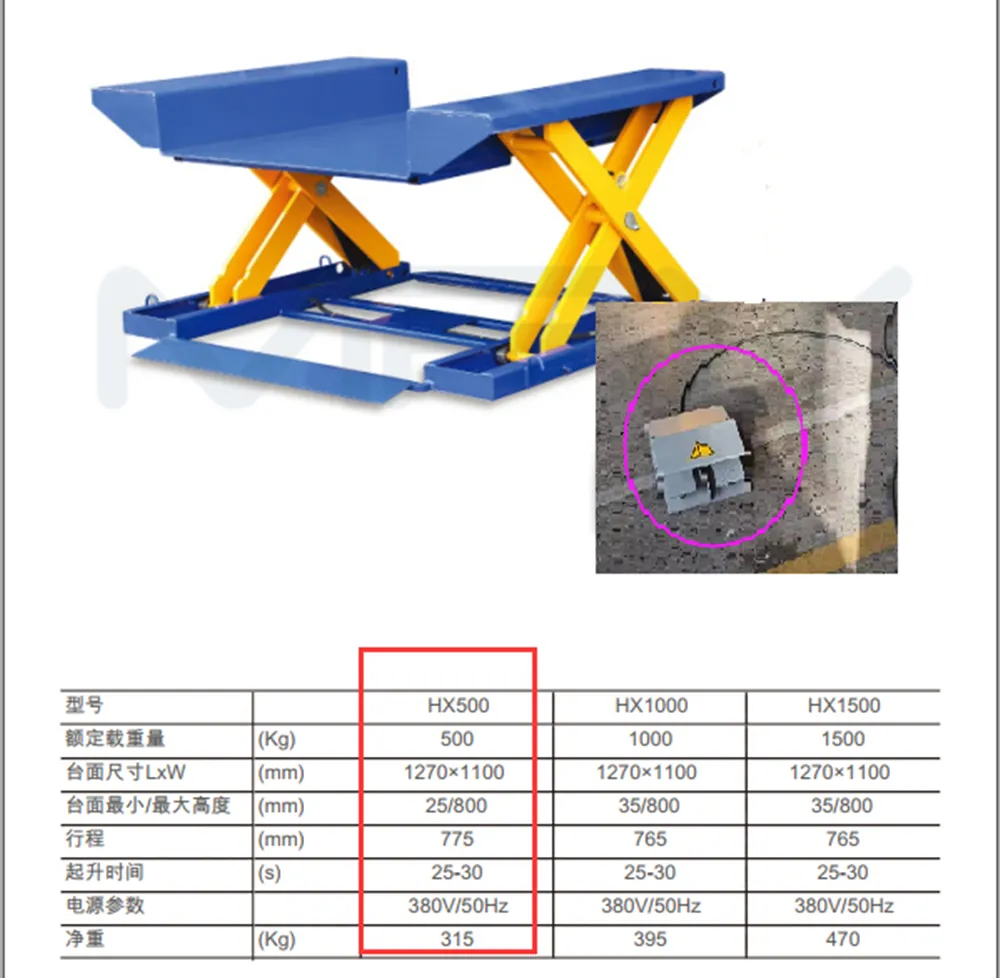

Technical Specifications
| Model |
Capacity (kg) |
Table Size (mm) |
Table Height (mm) |
Lifting Time (s) |
Net Weight (kg) |
| HX500 |
500 |
1270*1100 |
25-800 |
25-30 |
315 |
| HX1000 |
1000 |
1270*1100 |
35-800 |
25-30 |
395 |
| HX1500 |
1500 |
1270*1100 |
35-800 |
25-30 |
470 |
Why Choose Our Equipment?
- ✔ Over 10 years of professional experience in material handling solutions.
- ✔ Fast production and on-time delivery to keep your projects on schedule.
- ✔ OEM/ODM services available for non-standard parts and specific needs.
- ✔ 100% inspection of all finished products before shipment.
- ✔ Robust packaging: Strong cartons for air and reinforced pallets for sea delivery.
Frequently Asked Questions
What is the maximum weight capacity for these lift tables?
The series includes models capable of handling 500kg, 1000kg, and 1500kg loads depending on the specific model selected.
Do I need to dig a pit for installation?
No, the super low concave design allows these tables to be installed directly on the ground floor without the need for a dedicated foundation pit.
What safety features are integrated into the design?
Each table is equipped with a safety sensor bar underneath the platform that immediately stops the lowering process if it touches an obstacle, along with anti-overload valves.
What are the power requirements?
The standard configuration uses a European-quality AC power supply at 380V/50Hz/3 phase, with an IP54 protection grade.
Can the lifting and lowering speed be adjusted?
Yes, the system utilizes a flow-compensated valve which allows for the precise control of the lowering speed regardless of the load.
Are custom sizes or OEM services available?
Yes, we provide full OEM and ODM services to design and produce various non-standard lift tables according to your specific operational needs.
