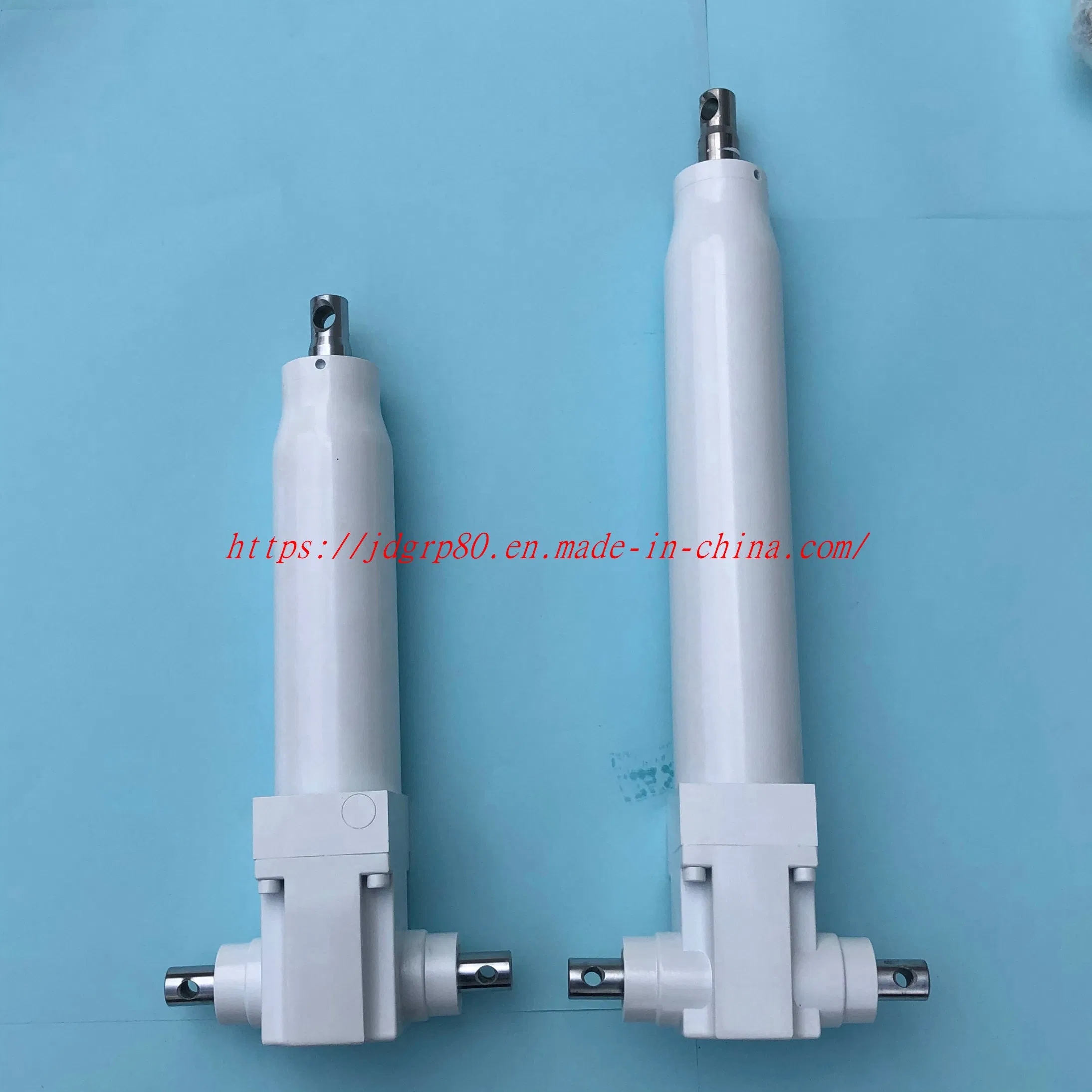

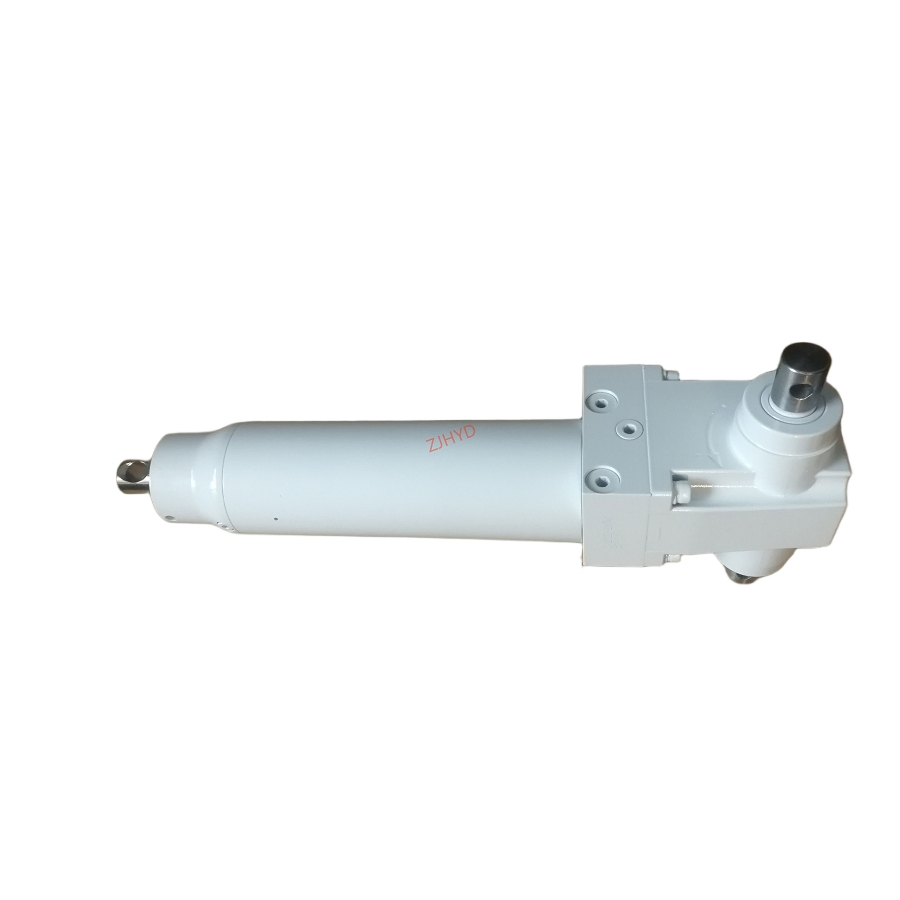

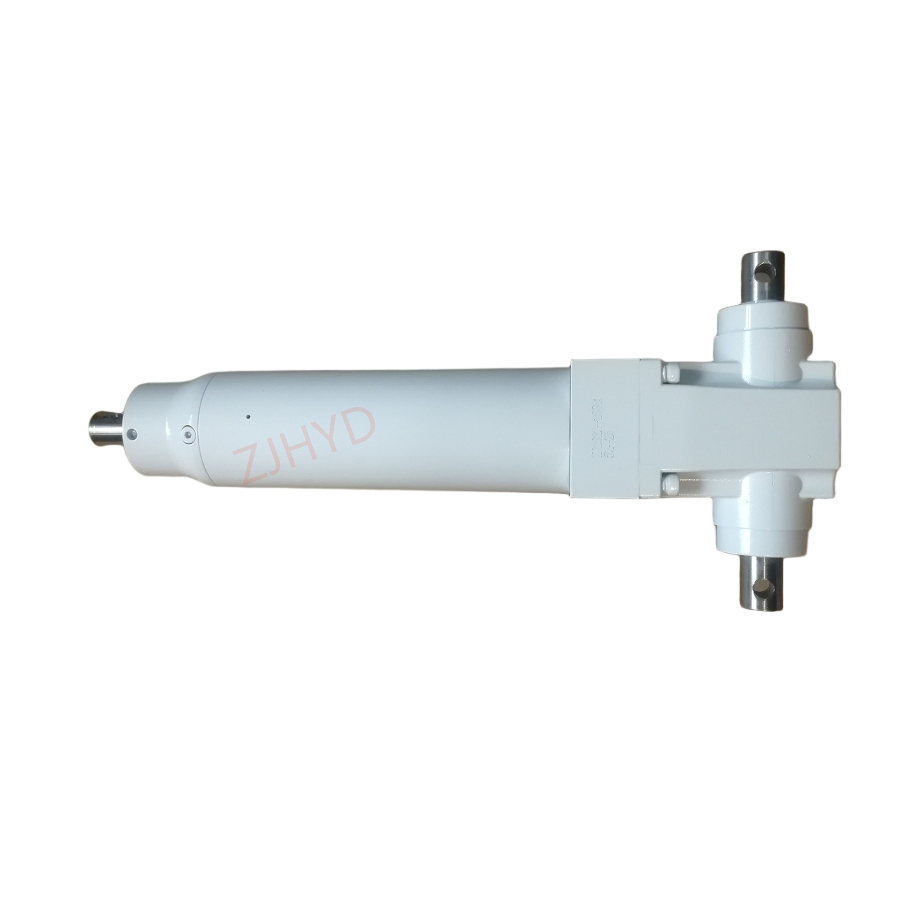

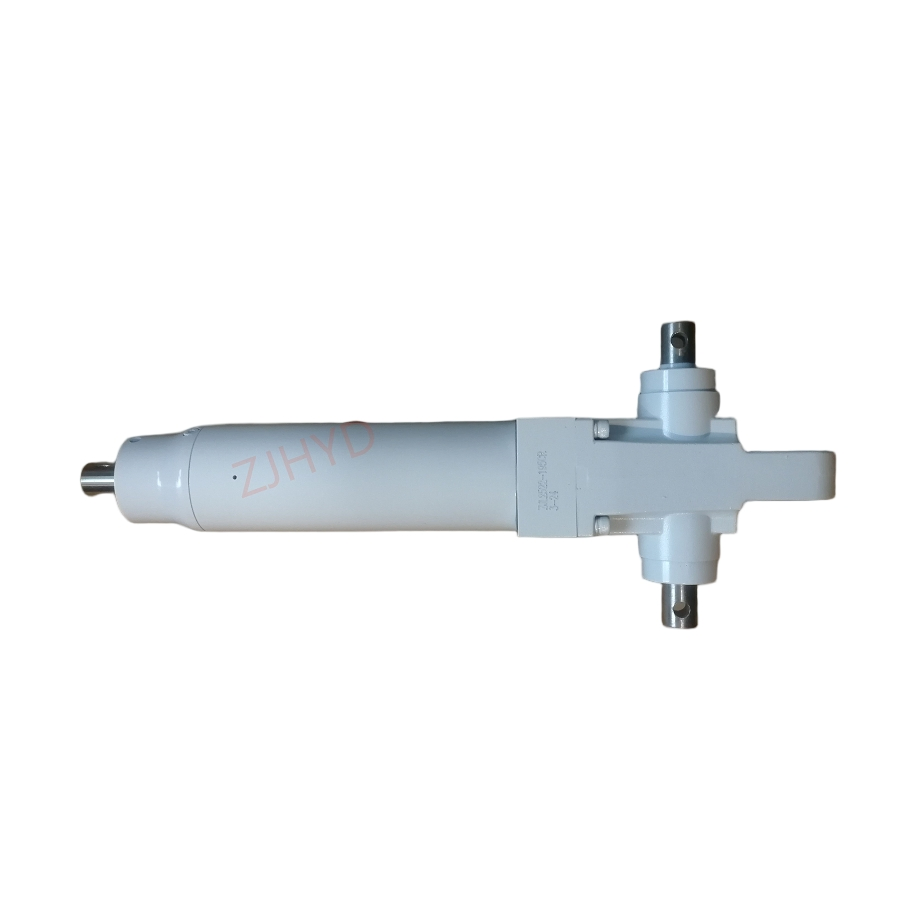

Hydraulic Pump for Hospital Medical Table Treatment Table Examination Massage Table Adjustable Surgical Lift Table
Hydraulic Pump for Hospital Medical Table Treatment Table Examination Massage Table Adjustable Surgical Lift Table
Hydraulic Pump for Hospital Medical Table Treatment Table Examination Massage Table Adjustable Surgical Lift Table
Hydraulic Pump for Hospital Medical Table Treatment Table Examination Massage Table Adjustable Surgical Lift Table
Hydraulic Pump for Hospital Medical Table Treatment Table Examination Massage Table Adjustable Surgical Lift Table
1 / 5
Hydraulic Pump for Hospital Medical Table Treatment Table Examination Massage Table Adjustable Surgical Lift Table
Hydraulic Pump for Hospital Medical Table Treatment Table Examination Massage Table Adjustable Surgical Lift Table
Hydraulic Pump for Hospital Medical Table Treatment Table Examination Massage Table Adjustable Surgical Lift Table
Hydraulic Pump for Hospital Medical Table Treatment Table Examination Massage Table Adjustable Surgical Lift Table
Hydraulic Pump for Hospital Medical Table Treatment Table Examination Massage Table Adjustable Surgical Lift Table

Hydraulic Pump for Hospital Medical Table Treatment Table Examination Massage Table Adjustable Surgical Lift Table

Material: OEM
Type: Hydraulic
Folded: as Required
Send Inquiry

Product Description

Basic Information
Model NO.
ZJ
Condition
New
Using Ambient
Hospital
Functions
As Required
Package
Plywood Case
Specification
OEM & ODM
Trademark
ZJ
HS Code
8412210000
Capacity
50,000 PCS / Year
Product Description

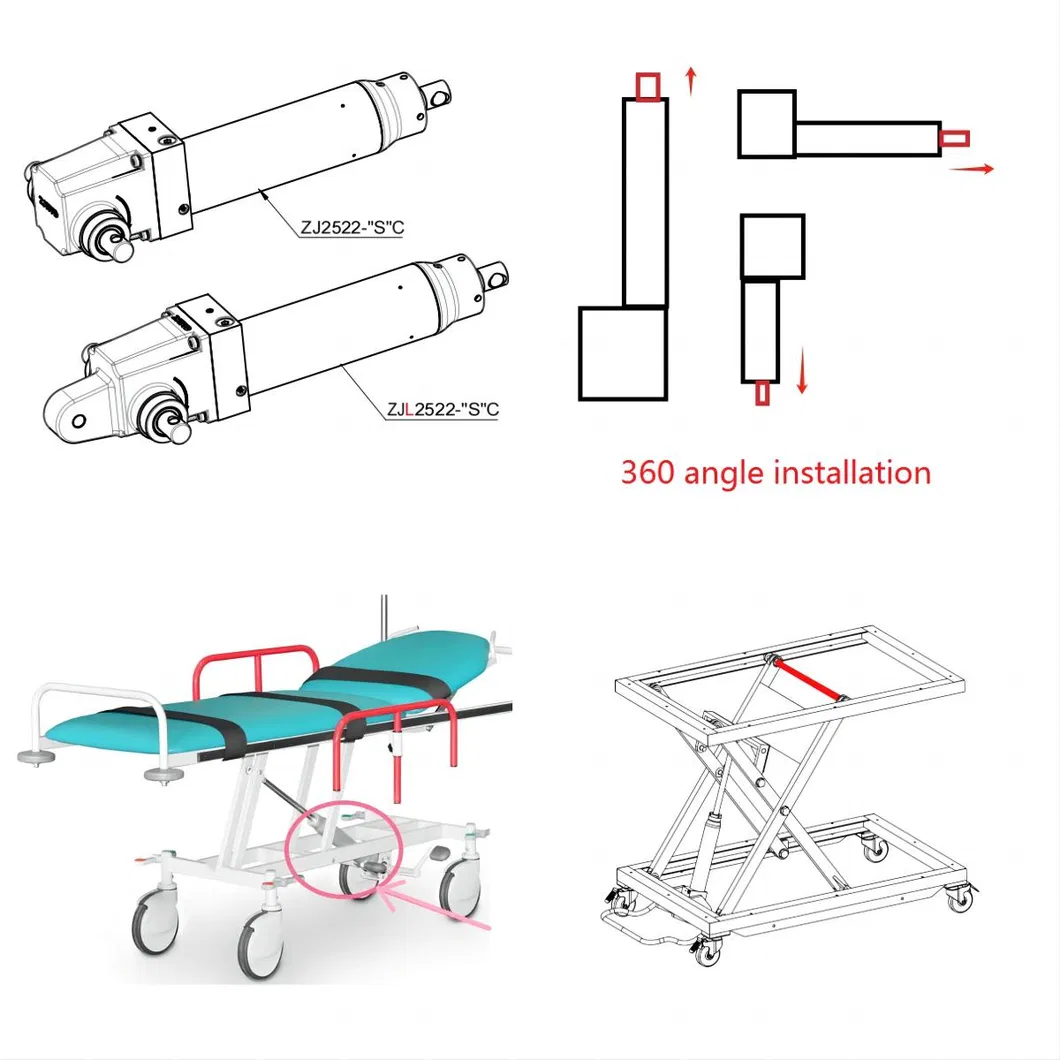

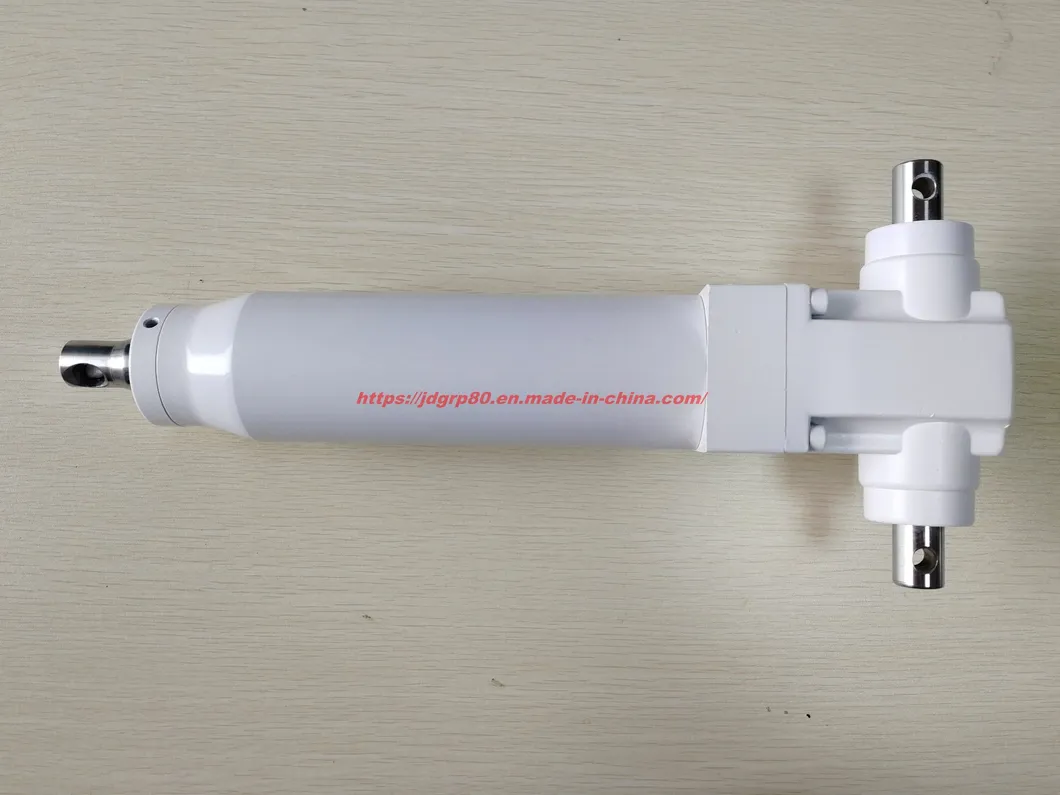

Hydraulic Cylinder for Hospital Bed / Medical Bed / Lifting Table

Hydraulic Pump for Hospital Bed
Technical Specifications
⚙Maximum work load: 600 Kg
⚙Maximum bearing load: 700 Kg
🛡Safety protection valve included
🔄360° Installation Position
⏳Service life > 50,000 times
📉Pressure relief velocity < 15mm/S
  • Minimum relief load: 20 Kg
  • Each stroke of pressure: 6mm
  • Release Stroke: 6°~10°
  • Free Stroke: 2°~5°
  • Pump Stroke: 31°~35°
Models Stroke (mm)
ZJ2522-100C / ZJL2522-100C100
ZJ2522-130C / ZJL2522-130C130
ZJ2522-140C / ZJL2522-140C140
ZJ2522-150C / ZJL2522-150C150
ZJ2522-180C / ZJL2522-180C180
ZJ2522-200C / ZJL2522-200C200
ZJ2522-250C / ZJL2522-250C250
ZJ2522-280C / ZJL2522-280C280
ZJ2522-300C / ZJL2522-300C300
Key Features

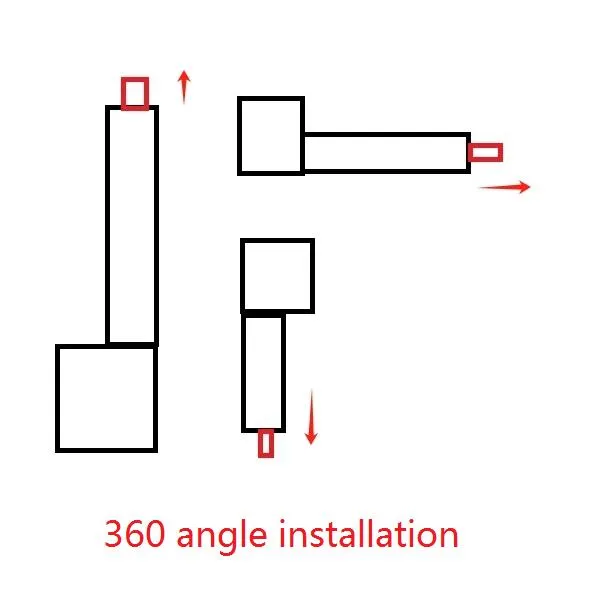

Patented 360° Working Position: Operates horizontally, or above/below the horizontal line.
360 Position Function
Overload Protection Function:

(1) Automatically prevents pressure from rising after full stroke to protect the cylinder.

(2) Relief valve triggers if platform weight exceeds the setting value (e.g., 600KGS).

High Quality Components: Includes Japan-imported springs for the relief valve.
Premium Materials: 304 stainless steel rod (hard chromed) and 304 stainless steel shaft.
Precision Engineering: CNC machined valve blocks for maximum accuracy.
Product Gallery
Frequently Asked Questions
Q: What is the maximum load capacity of this hydraulic cylinder? A: The maximum work load is 600 Kg, with a maximum bearing load of up to 700 Kg.
Q: Can this cylinder be installed in any orientation? A: Yes, it features a patented design that allows for 360-degree installation, including horizontal positions.
Q: How does the overload protection system work? A: It features a safety relief valve that prevents pressure from rising once the full stroke is reached or if the platform weight exceeds the set limit.
Q: What materials are used to ensure durability in hospital environments? A: The rod and shaft are made of 304 stainless steel, and the rod is hard chromed for extra protection and longevity.
Q: What is the expected service life of the product? A: The hydraulic cylinder is designed for high durability, with a service life exceeding 50,000 cycles.
Q: What are the available stroke lengths? A: We offer a variety of stroke lengths ranging from 100mm to 300mm to meet different medical equipment requirements.
