1 Basic Information
| Model NO. |
HY1001, HY1501, HY2001 |
Application |
Workshop, Shipboard, Warehouse, Building Crane |
| Lift Mechanism |
Scissor Lift |
Carrying Capacity |
1000-2000kg |
| Driven Type |
AC Power |
Certification |
CE, ISO 9001 |
| Min. Lifting Height |
85mm |
HS Code |
8427900000 |
2 Product Description

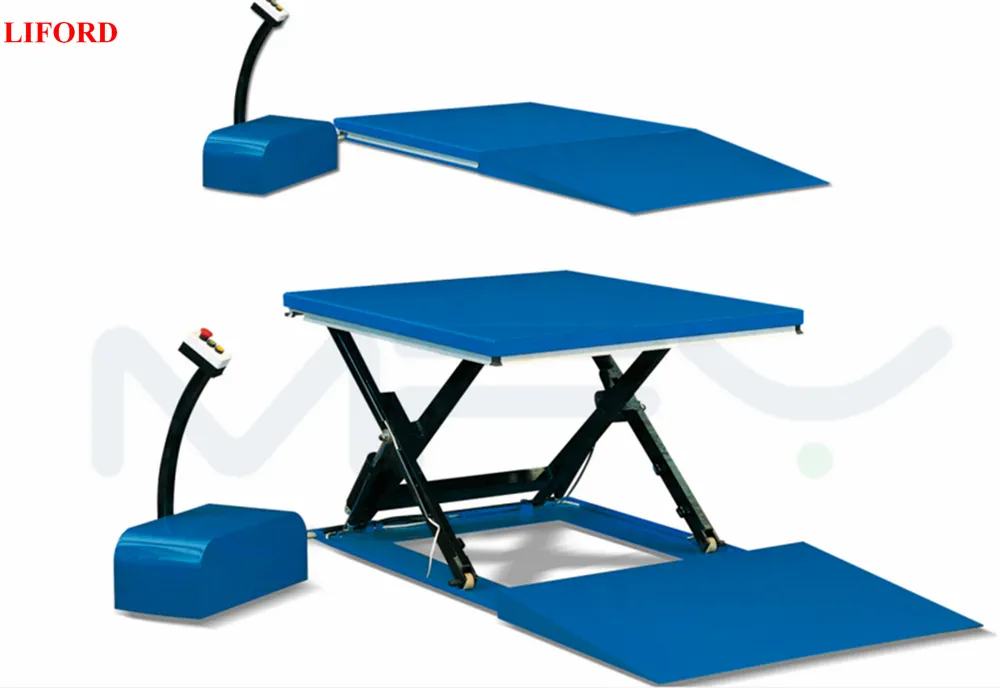

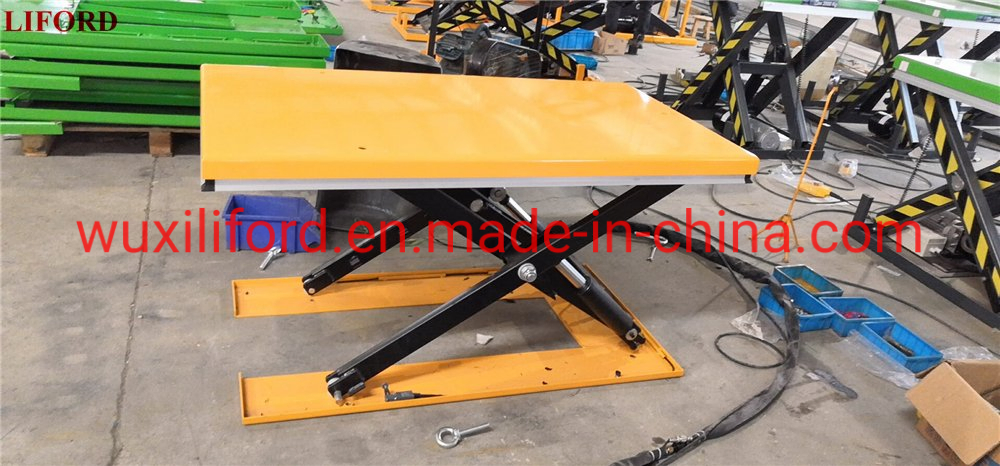

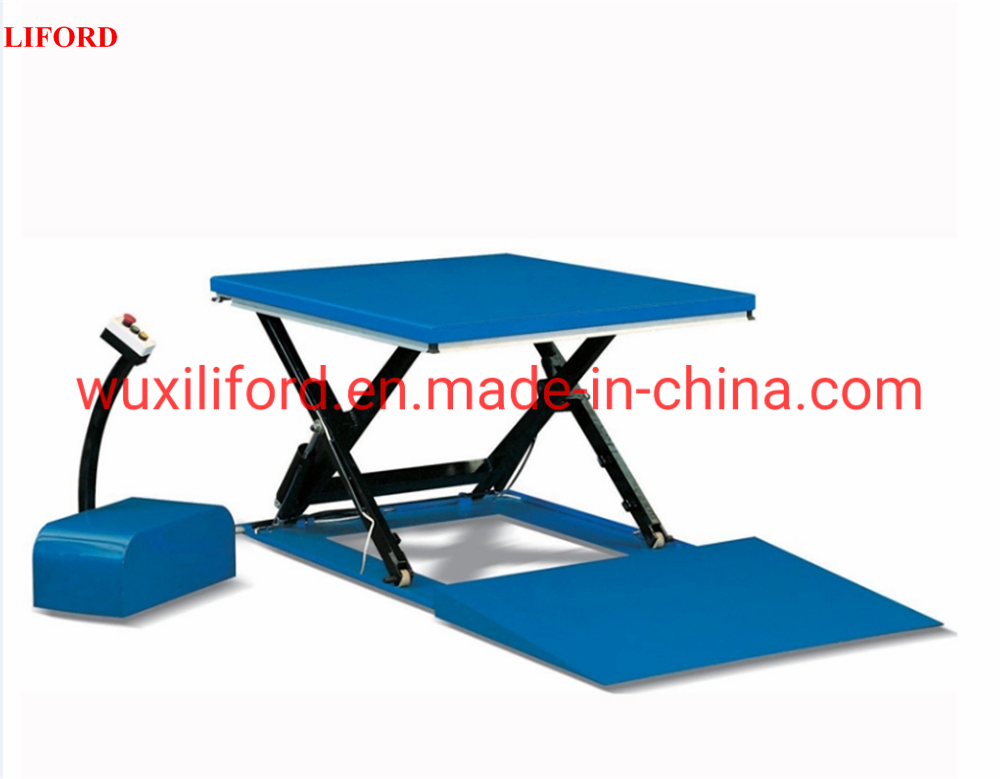

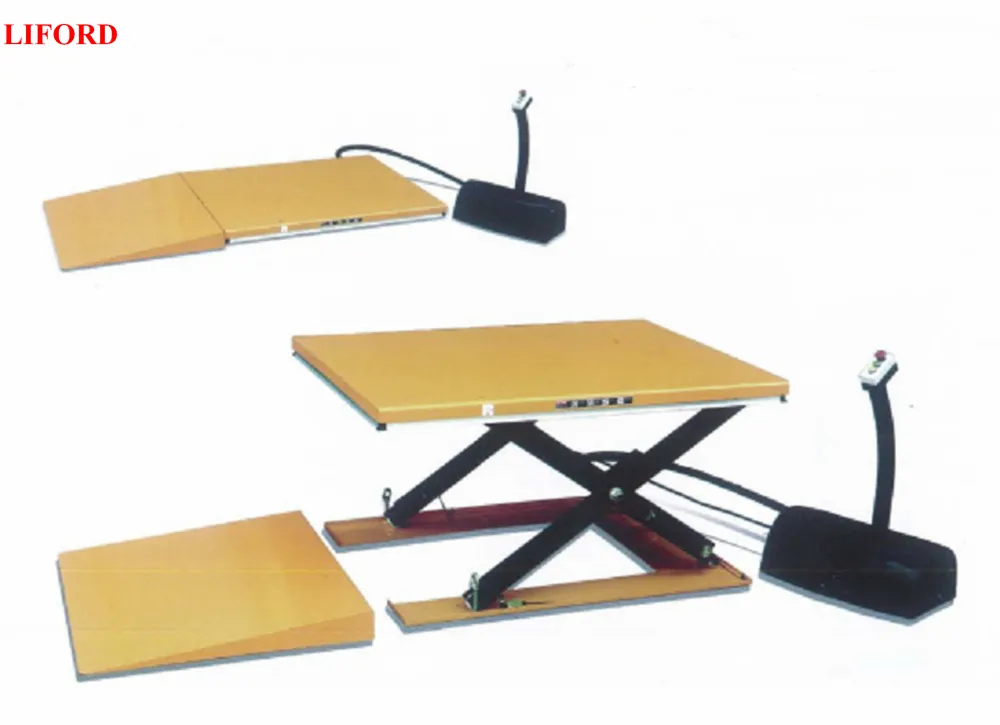

The Ultra Low Profile Electric Scissor Lift Tables are designed to achieve a super low closed height, effectively eliminating the need for pit installation. These stationary platforms are ideal for handling heavy cargo in workshops and warehouses.
3 Key Features

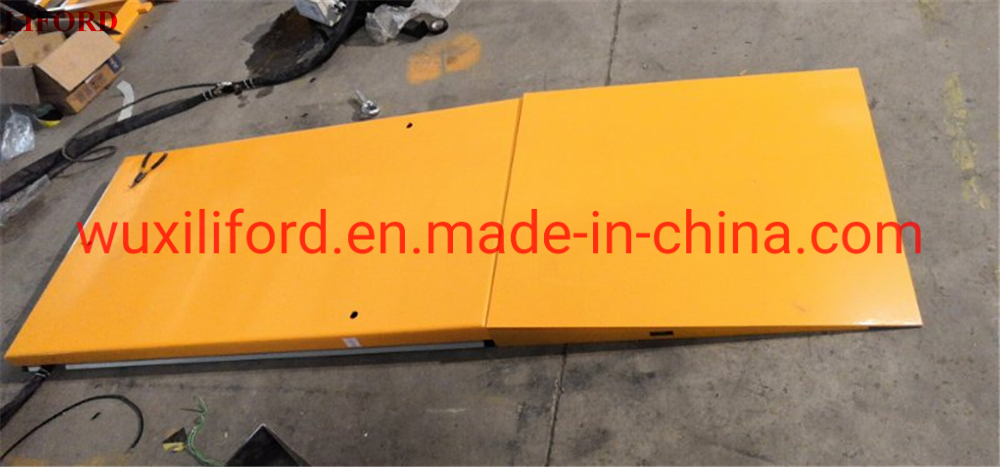

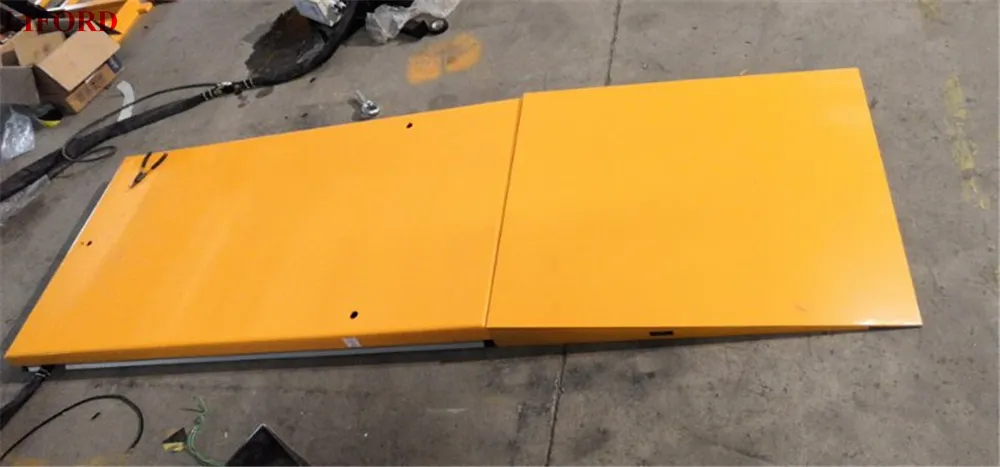

Ultra-Low Profile: Closed height only 85mm-105mm, removing the requirement for a ramp or pit.
Safety Standards: Fully meets EN1570 norm and ANSI/ASME safety standards.
Safety Perimeter: Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
Emergency Protection: Includes hose burst safety valve and 24V control box with emergency stop.
Remote Controls: Remote power pack with pedestal and controls, protected to IP54.
Easy Installation: Removable lifting hooks facilitate easy handling and installation.
4 Technical Specifications
| Model |
Capacity (kg) |
Min/Max Height (mm) |
Table Size (mm) |
Lifting Time (s) |
Power |
N.W. (kg) |
| HY1001 | 1000 | 85/860 | 1450*1140 | 25 | 380V/50Hz | 357 |
| HY1003 | 1000 | 85/860 | 1450*800 | 25 | 380V/50Hz | 326 |
| HY1501 | 1500 | 105/870 | 1600*800 | 30 | 380V/50Hz | 302 |
| HY1502 | 1500 | 105/870 | 1600*1000 | 30 | 380V/50Hz | 401 |
| HY2001 | 2000 | 105/870 | 1600*1180 | 35 | 380V/50Hz | 419 |
5 Why Choose Our Solutions?
- ✔ Professional Experience: Over 10 years in material handling industry.
- ✔ Quality Control: 100% inspection of finished products before shipment.
- ✔ Customization: OEM/ODM services available for non-standard requirements.
- ✔ Secure Packing: Strong pallet and carton packaging for sea and air delivery.
Frequently Asked Questions
Q1: What is the minimum height of the U-shape lift table?
The minimum height ranges from 85mm to 105mm depending on the model, allowing for easy pallet entry without a pit.
Q2: What are the primary safety features included?
Safety features include a safety perimeter frame to stop descent upon obstruction, a hose burst safety valve, and mechanical safety chocks for maintenance.
Q3: Does this lift table require special installation?
No, it is a stationary, low-profile design that does not require pit installation. It comes with removable lifting hooks for easy positioning.
Q4: What power supply is required for operation?
The standard power supply required is AC 380V/50Hz.
Q5: Can the lowering speed be controlled?
Yes, the external power pack is equipped with a compensated flow valve specifically for controlling the lowering speed.
Q6: What certifications do these lift tables have?
All models are CE certified and manufactured in compliance with ISO 9001 quality standards and EN1570 safety norms.
