Low Profile Mini Hydraulic Scissor Lift Table 1000kg

Customization:	Available
After-sales Service:	Twenty Hours Online Service
Warranty:	One Year

Send Inquiry

Product Description

Basic Information

Model NO.

HY1001, HY1005, HY1501, HY2001

Application

Workshop, Shipboard, Warehouse, Building

Lift Mechanism

Scissor Lift

Driven Type

Feature

Explosion-Proof

Capacity

1000kg, 1500kg, 2000kg

Min. Height

85-105mm

Max. Height

860-870mm

Table Size

1450*1140mm

Power

380V/50Hz

★

Product Description

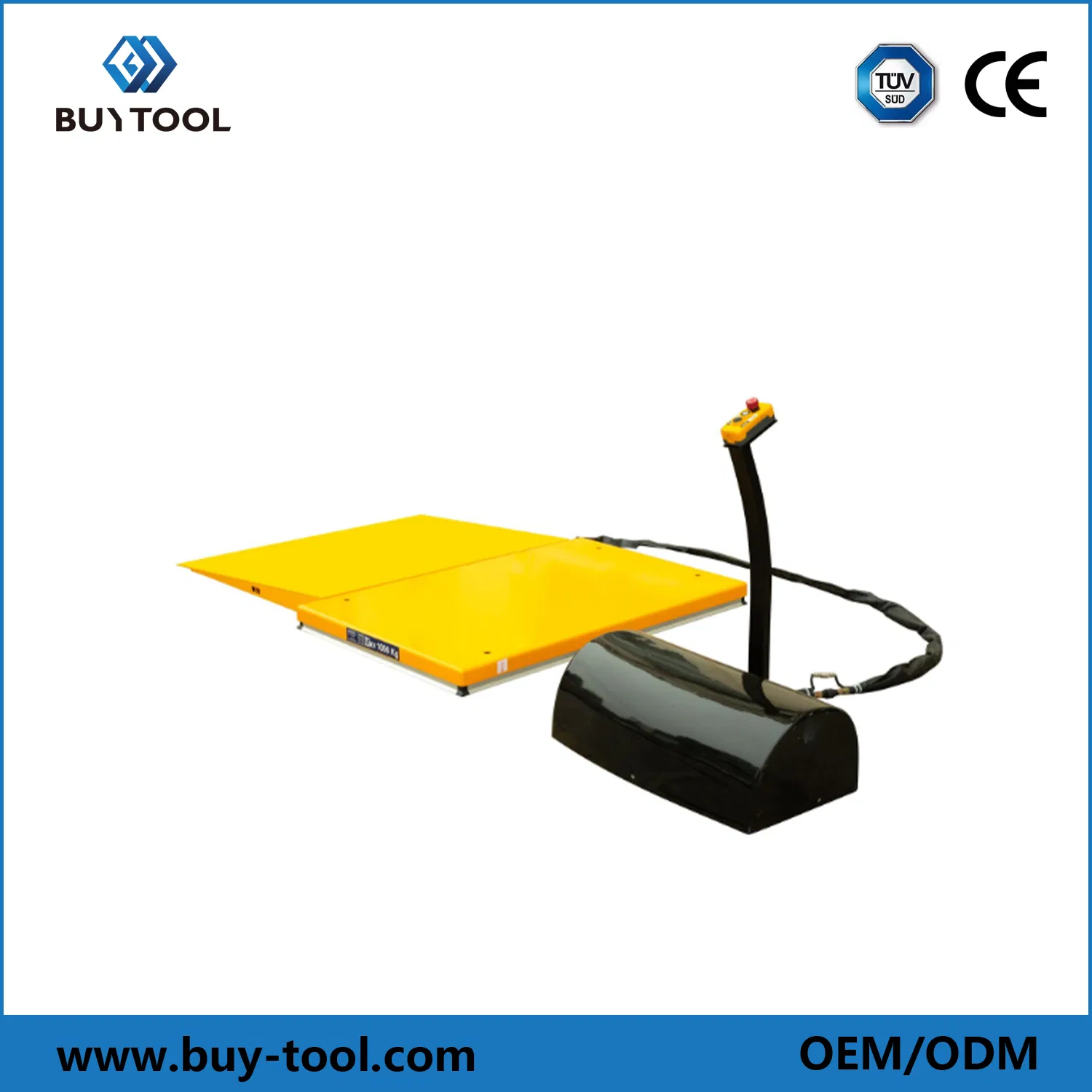

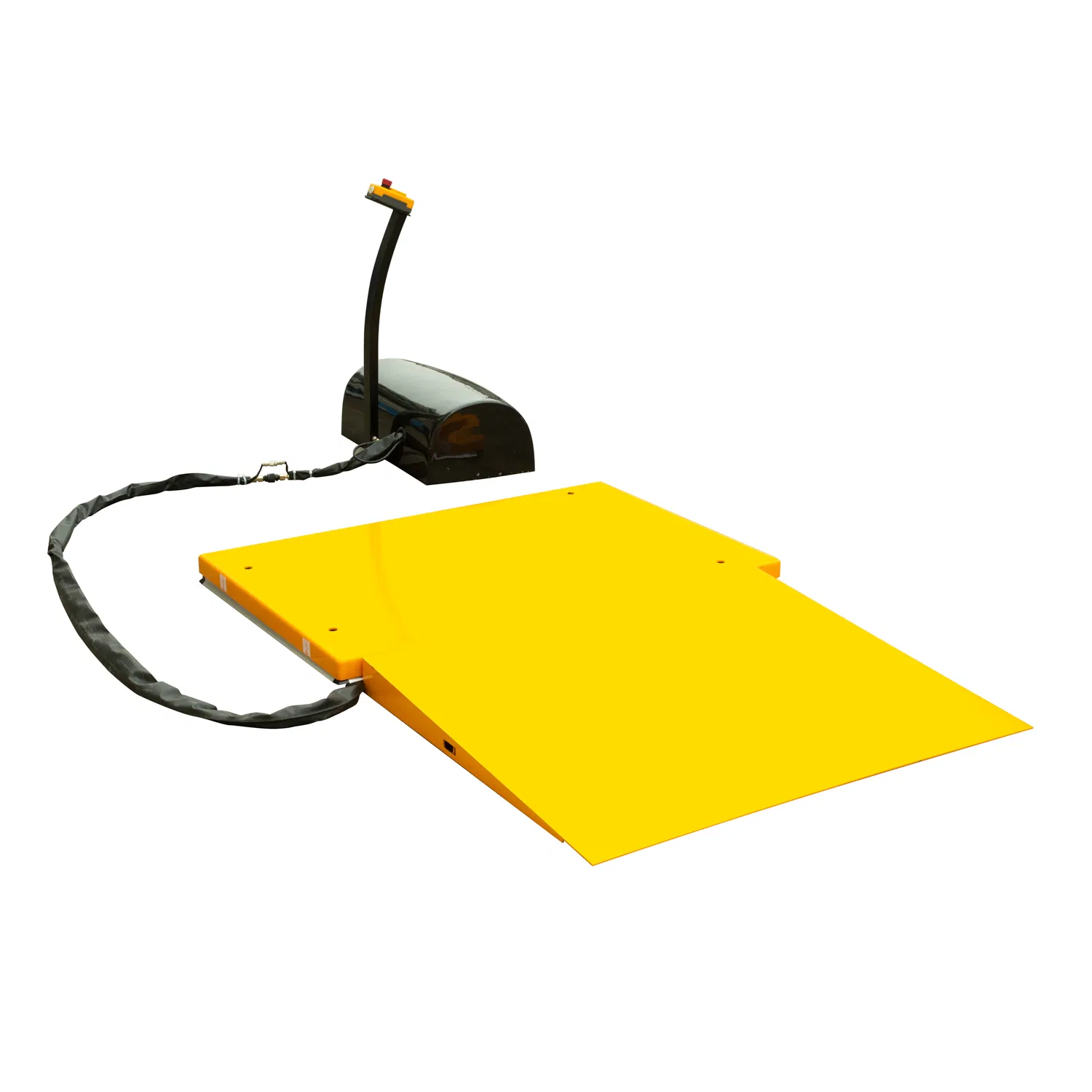

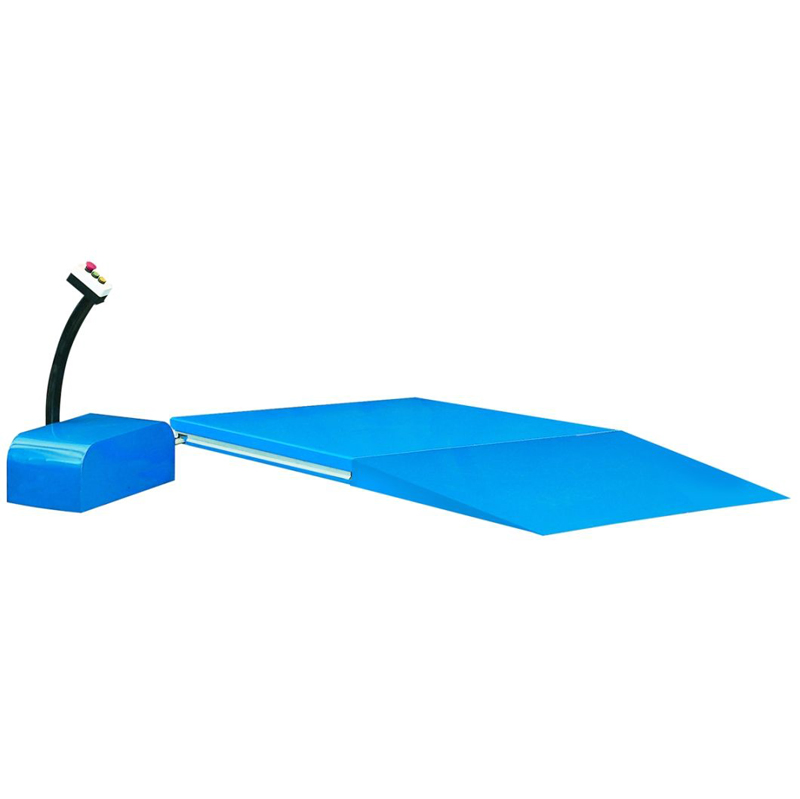

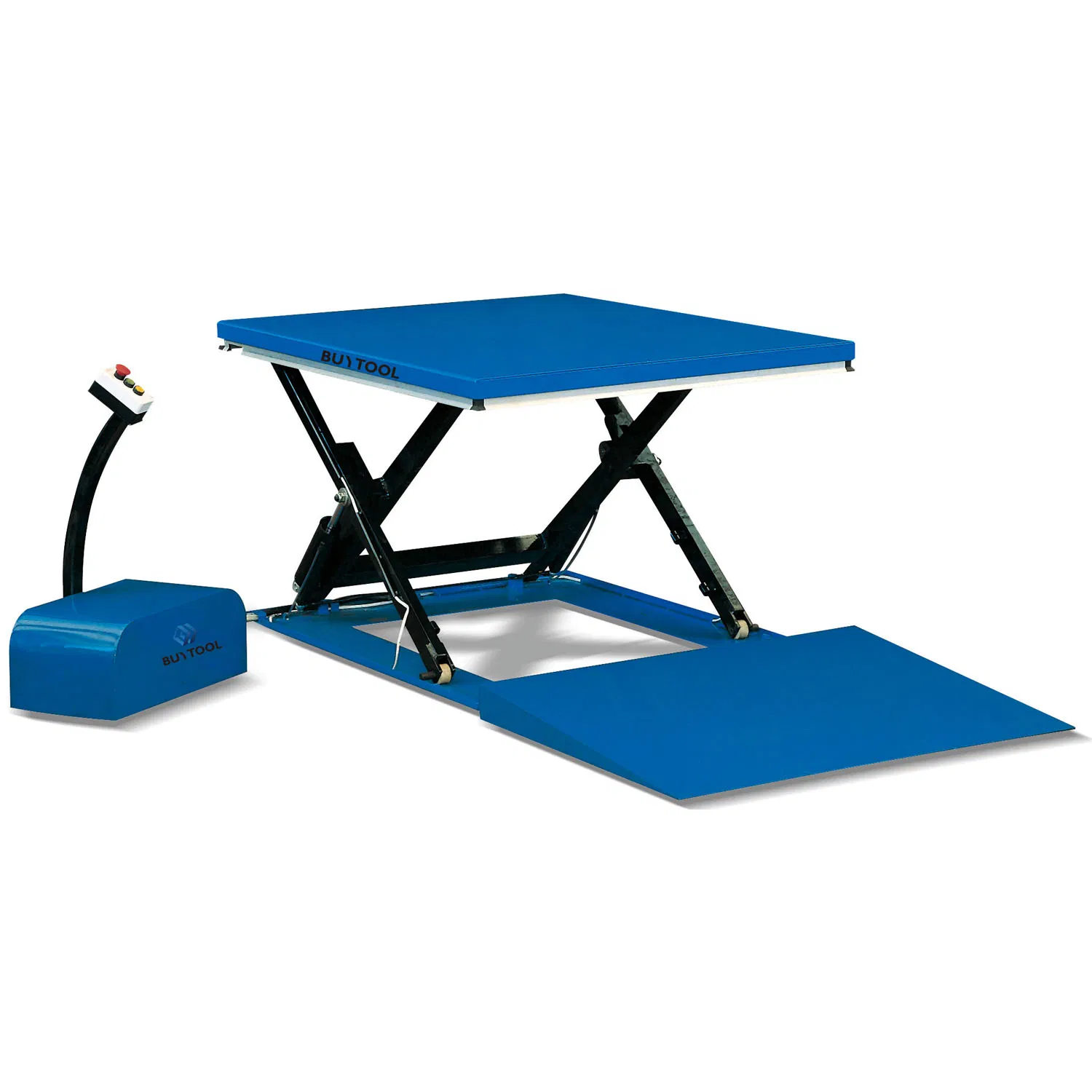

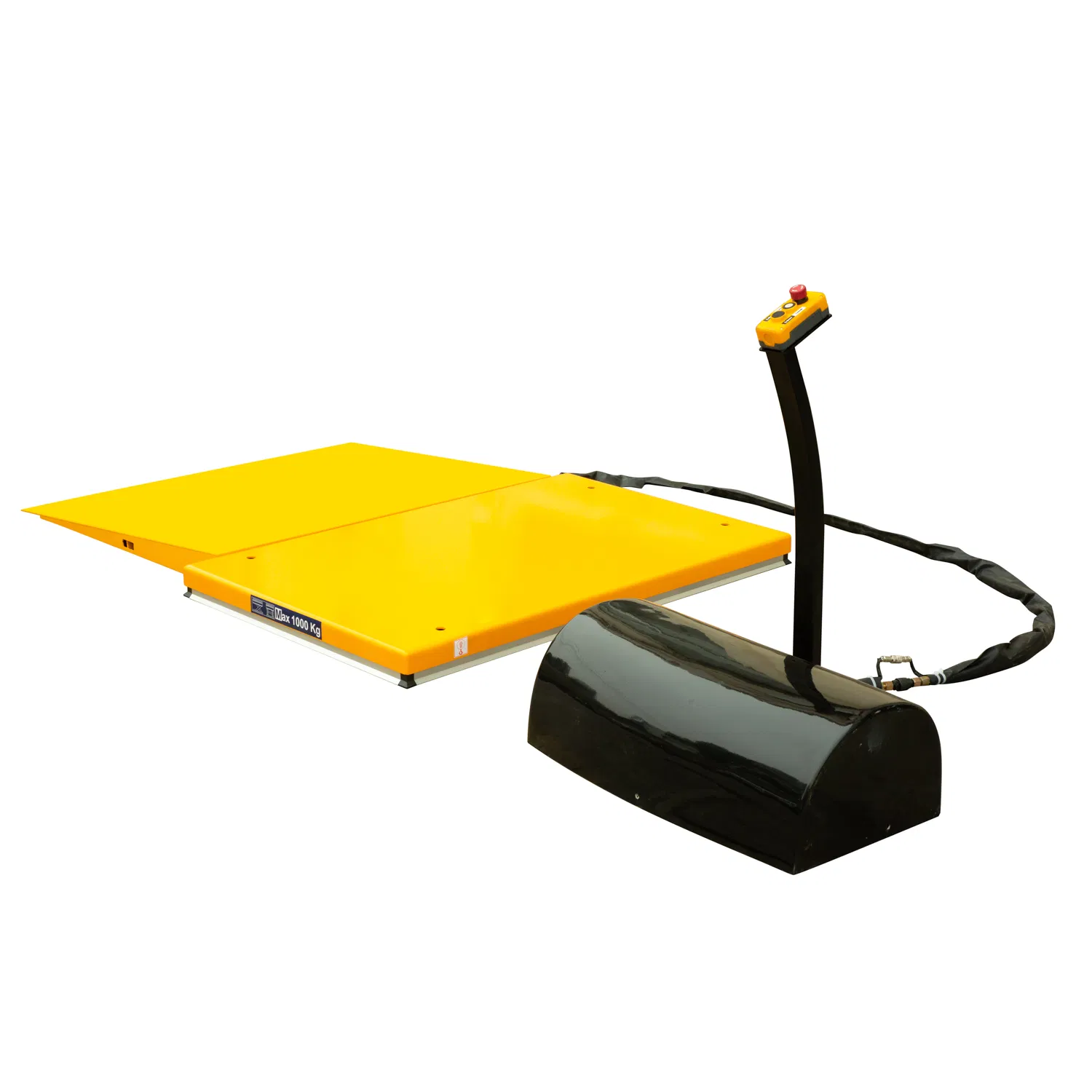

Low Profile Mini Hydraulic Scissor Lift Table 1000kg

Heavy duty design with larger platform including a standard loading ramp.

Low closed height design, eliminating the need for pit installation.

Oiless bushings on all pivot points for reduced maintenance.

Compliant with European safety standards including EN1570: 1999.

Remote power pack with pedestal and IP54 protected controls.

Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.

24V control box featuring UP/DOWN buttons and emergency stop.

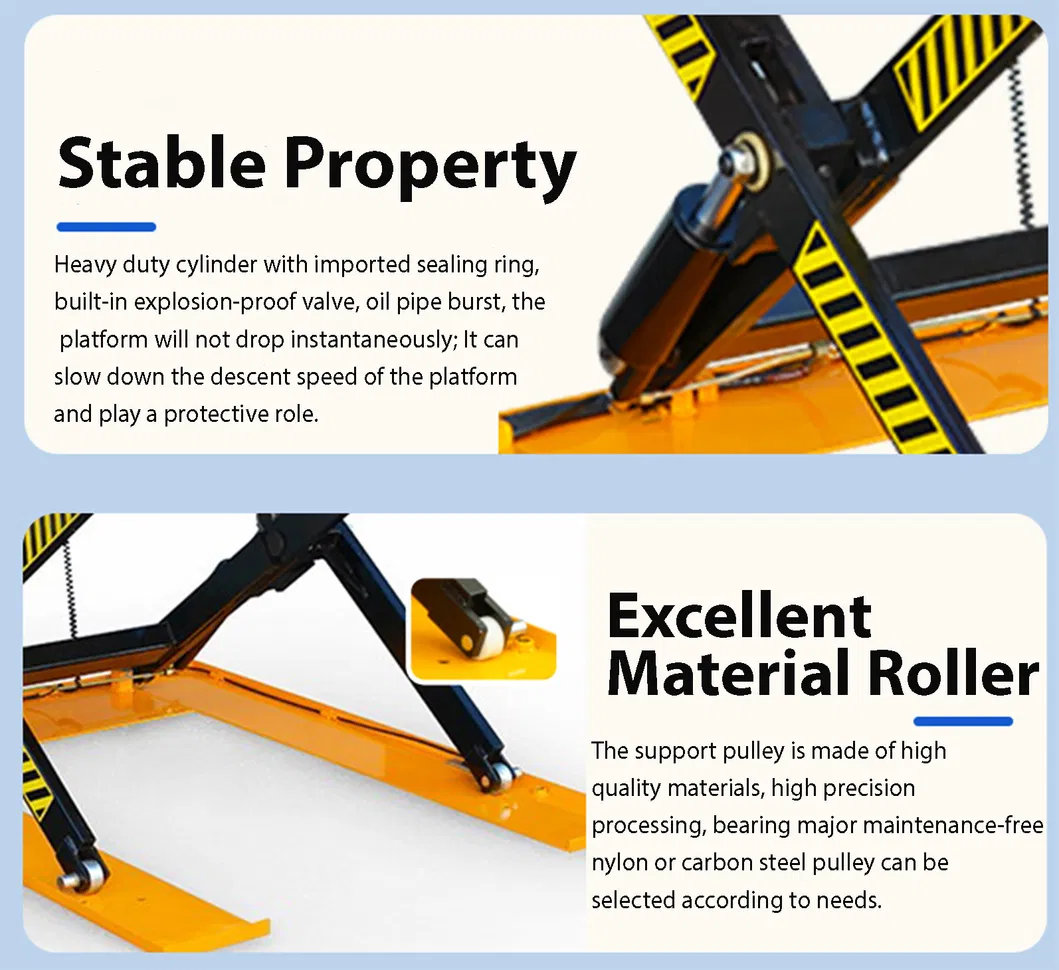

Safety features include hose burst valve and mechanical safety chocks for maintenance.

📋

Technical Parameters

Model	Capacity (kg)	Platform Size (mm)	Min.Height (mm)	Max.Height (mm)	Stroke (mm)	Lifting Time (s)	Power Pack	Net Weight (kg)
HY1001	1000	1450×1140	85	860	775	25	380V/50HZ, 0.75kw	357
HY1005	1000	1600×1000	85	860	775	25	380V/50HZ, 0.75kw	352
HY1501	1500	1600×800	105	870	775	30	380V/50HZ, 1.5kw	362
HY2001	2000	1600×1200	105	870	775	35	380V/50HZ, 2.2kw	419

📷

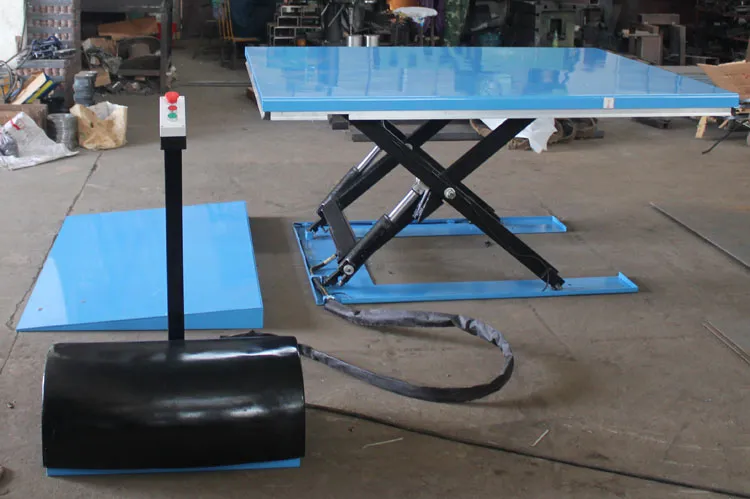

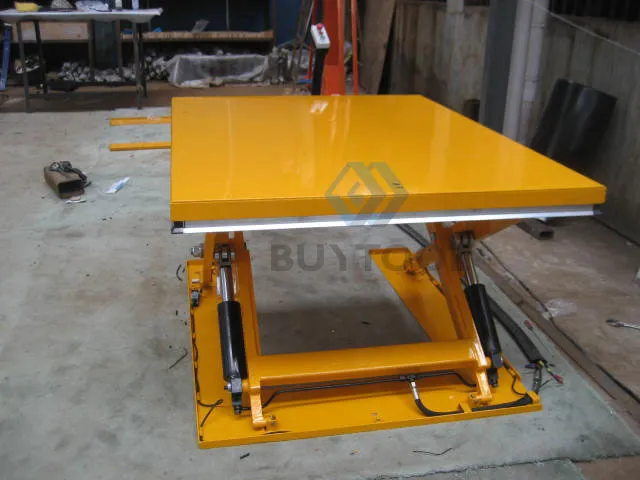

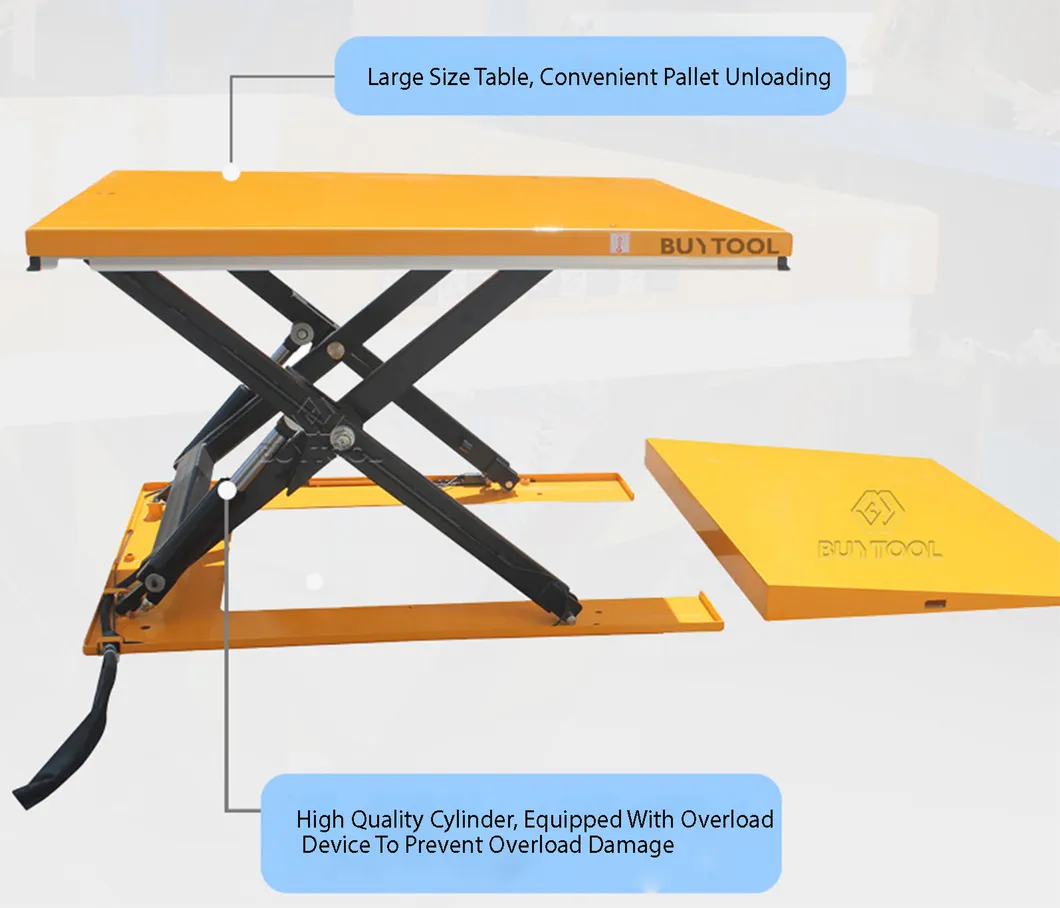

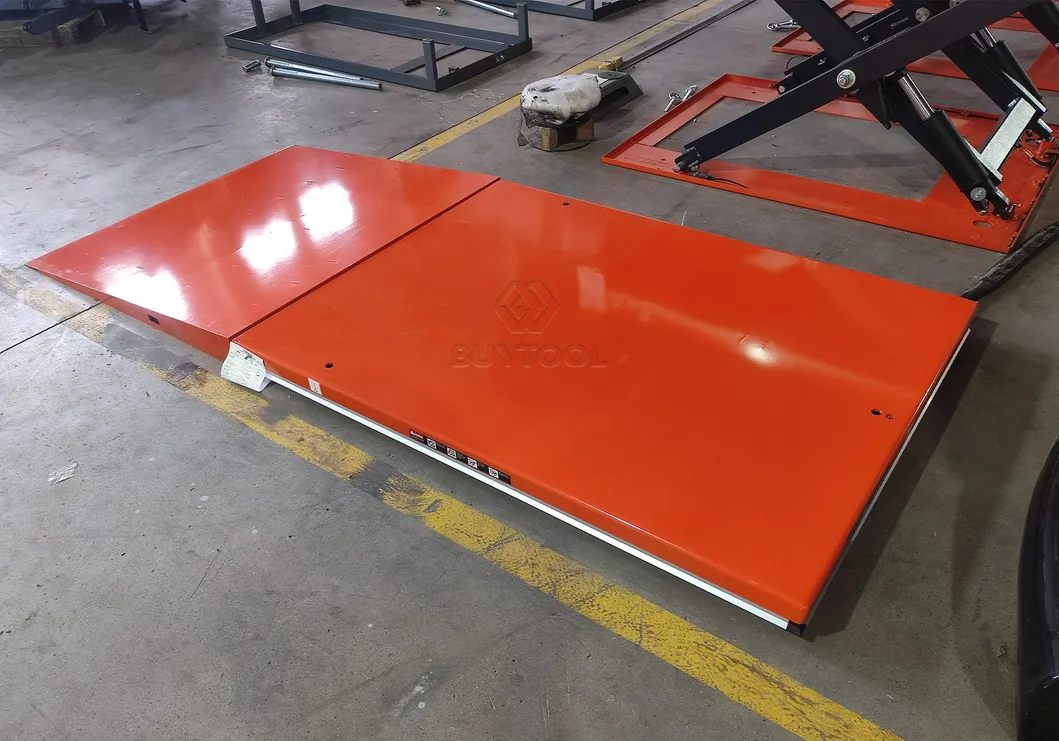

Detailed Photos

📦

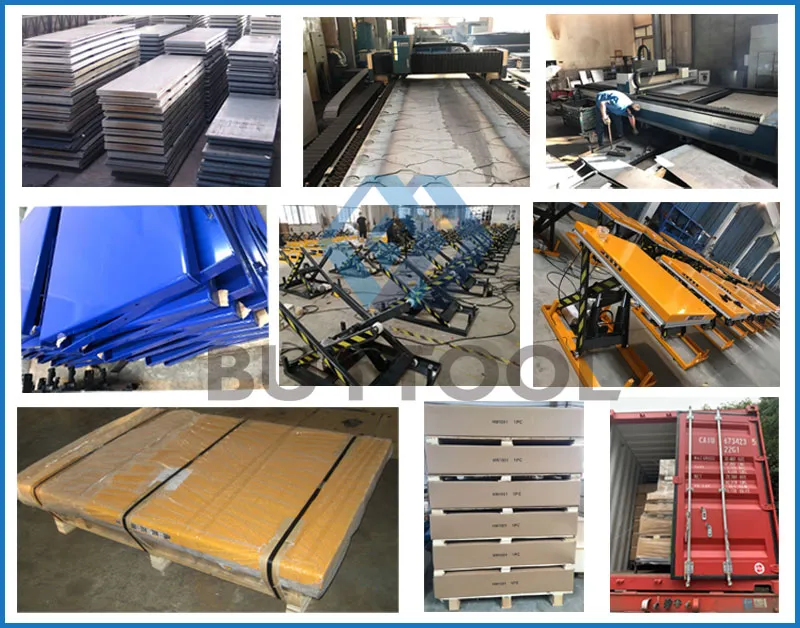

Application & Shipping

Frequently Asked Questions

How do you ensure the quality of the lift tables?

Our products are CE approved with five inspection stages: raw material inspection (ISO9001), strict production monitoring, load limit testing upon assembly, 100% pre-shipment inspection, and optional buyer inspections.

What is the standard warranty period?

All our products carry a comprehensive one-year quality guarantee.

What is the typical lead time for orders?

Normally 30 days. For single-item container orders, it can be as short as 20 days, while mixed container orders (5+ items) may take up to 45 days.

Does this lift table require a pit for installation?

No, these tables achieve a very low closed height (starting at 85mm), which eliminates the need for pit installation.

What safety standards do these products meet?

They are manufactured to meet all European safety standards, specifically EN1570: 1999.

What safety features are included for the operator?

Safety features include a safety perimeter to stop descent on contact with obstructions, a 24V control box with emergency stop, hose burst safety valves, and mechanical safety chocks for maintenance.
