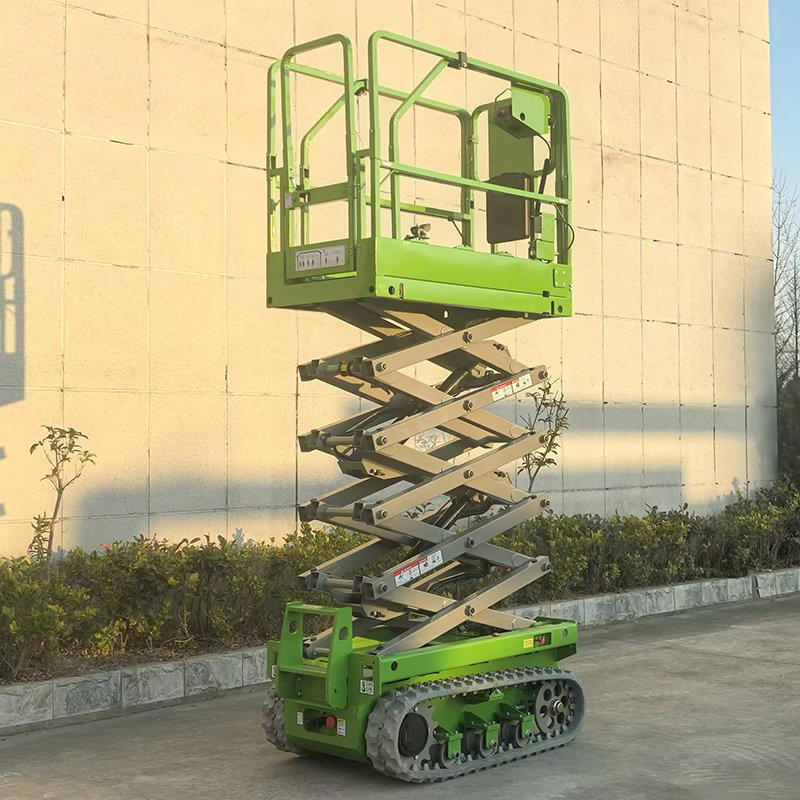

3m-16m Mobile Mini Manlift Automatic Aerial Work Platform Electric Self-Propelled Scissor Lift

1 / 5

3m-16m Mobile Mini Manlift Automatic Aerial Work Platform Electric Self-Propelled Scissor Lift

Customization:	Available
After-sales Service:	Online Support
Warranty:	1years

Send Inquiry

Product Description

Basic Information

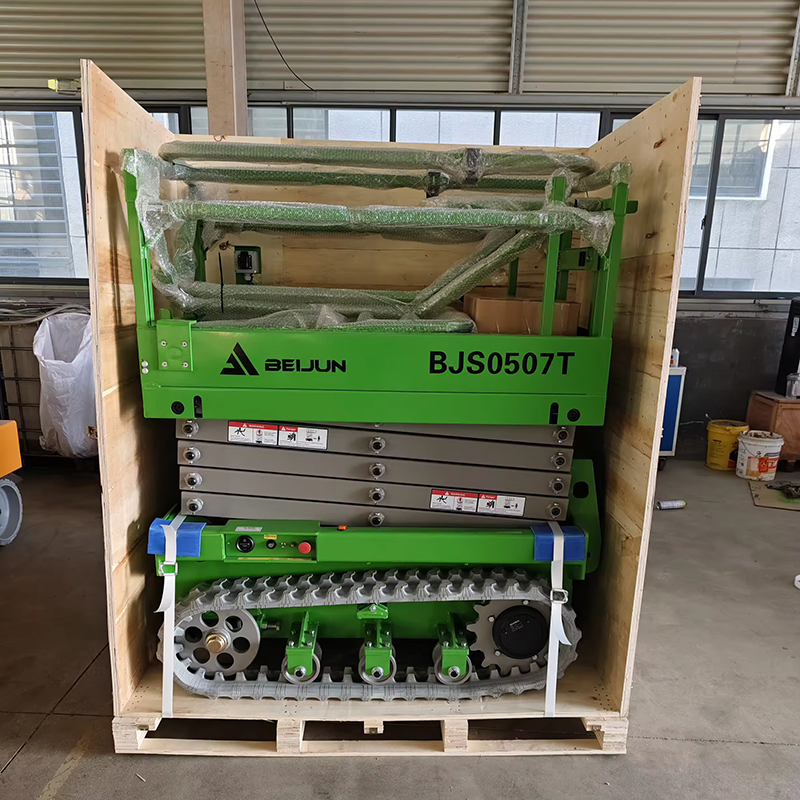

Model NO.BJ-0507T

ApplicationWorkshop, Warehouse, Building

Lift MechanismScissor Lift

Carrying Capacity230kg

MovesSelf-propelled

Driven TypeHydraulic

CertificationCE, ISO 9001

Electric Motor24V/2×1kw

Product Description

Technical Parameters

Model	BJS0507T	BJS0607T	BJS0610T	BJS0810T	BJS1012TL	BJS1212TL	BJS1416TL
Max operating height (m)	6.6	7.8	8.3	10.3	12	14	16
Max platform height (m)	4.6	5.8	6.3	8.3	10	12	14
Platform length (mm)	1400	1400	1800	1800	2270	2270	2670
Platform width (mm)	760	780	800	800	1120	1120	1120
Overall Height (folded) (mm)	1560	1750	1700	1800	2000	2000	2140
Rated load capacity (kg)	230	230	300	300	450	450	450
Max platform Occupancy	2	2	2	2	3	3	3
Up/down time (s)	36/37	36/37	36/37	36/37	62/42	62/42	95/65
Gradeability (%)	30	30	30	30	30	30	30
Weight (kg)	816	1055	1640	1745	3460	3760	4760

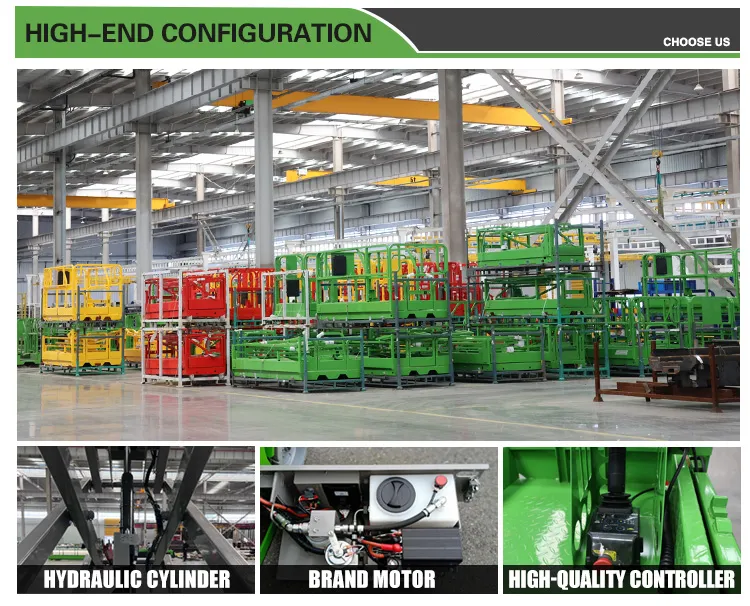

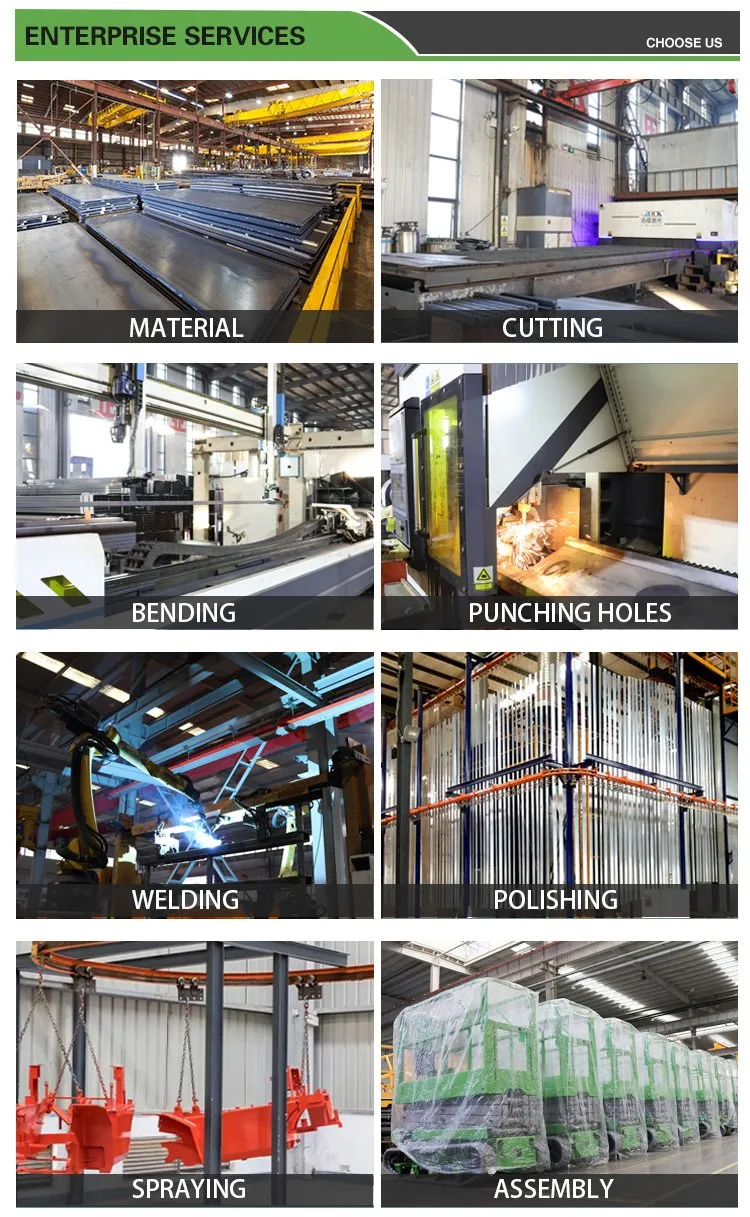

Manufacturing & Quality

Frequently Asked Questions

1. What is the maximum working height of these scissor lifts?

The series offers a wide range of working heights starting from 6.6 meters up to 16 meters to suit various industrial and construction needs.

2. What is the rated load capacity for the platform?

The load capacity varies by model, ranging from 230kg for compact models to 450kg for the larger TL series models.

3. Can these lifts operate on inclined surfaces?

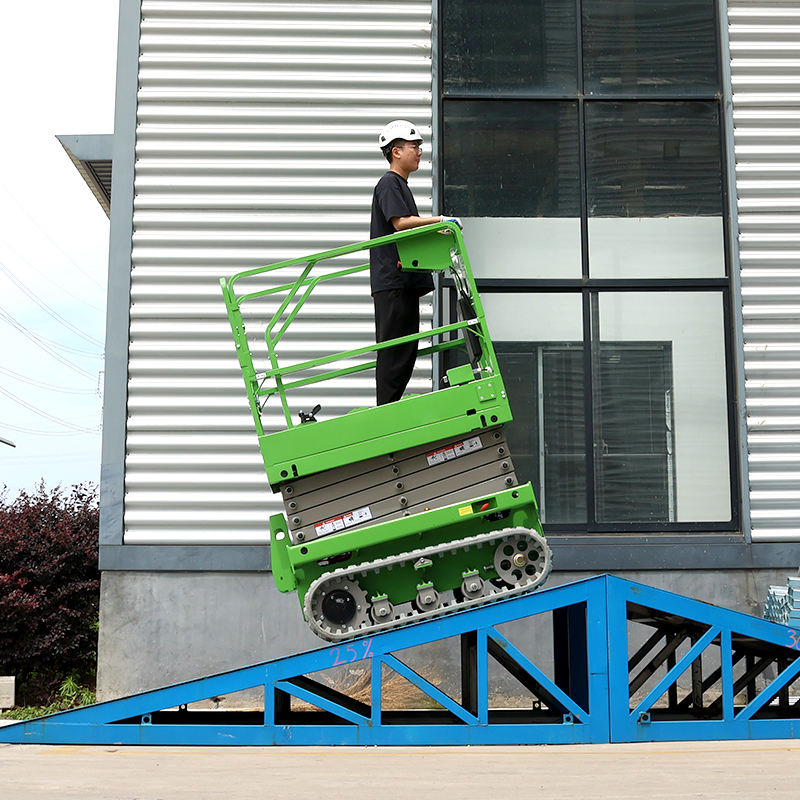

Yes, these lifts are designed with a gradeability of 30% and can handle maximum working inclination angles between 1.5° and 3° depending on the specific model.

4. What type of power source do these machines use?

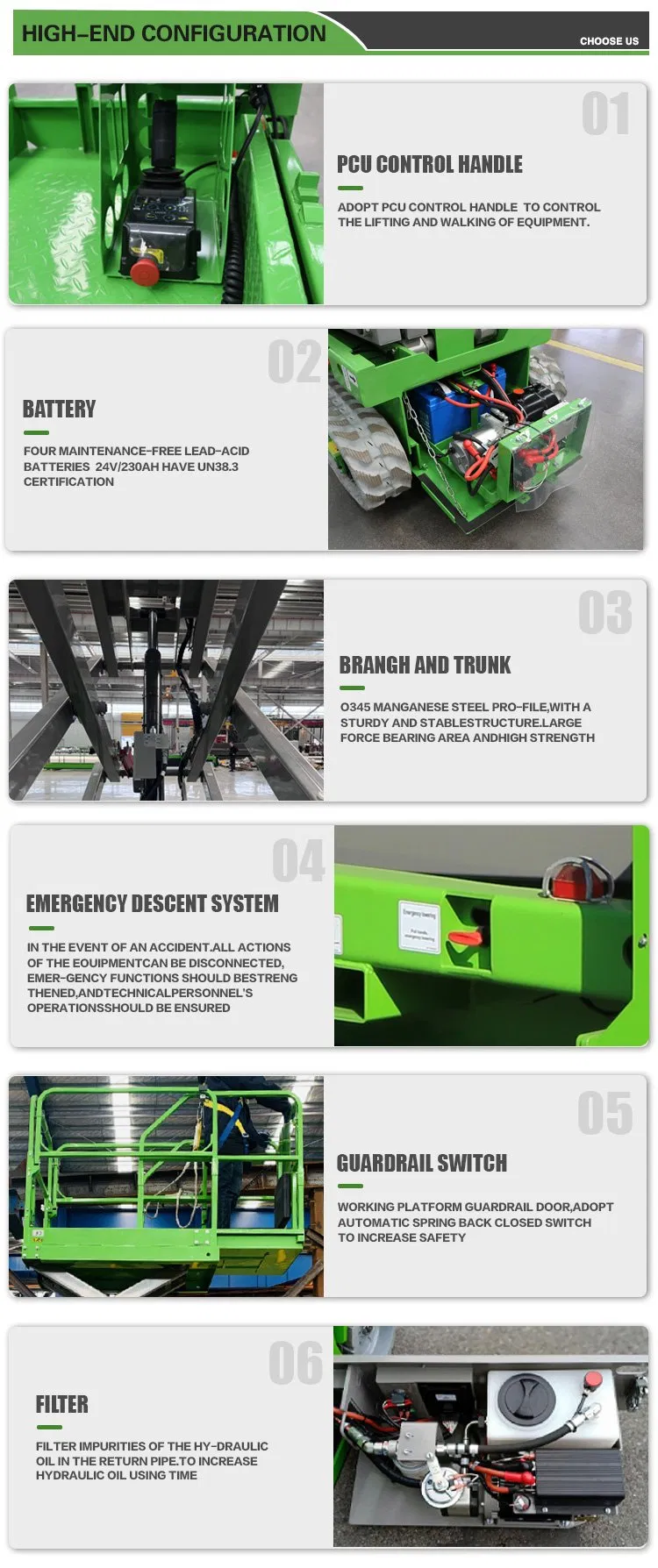

They are powered by maintenance-free lead-acid batteries (24V or 48V systems) and come equipped with dedicated chargers (18A to 30A) for easy recharging.

5. Are the tracks suitable for indoor workshop floors?

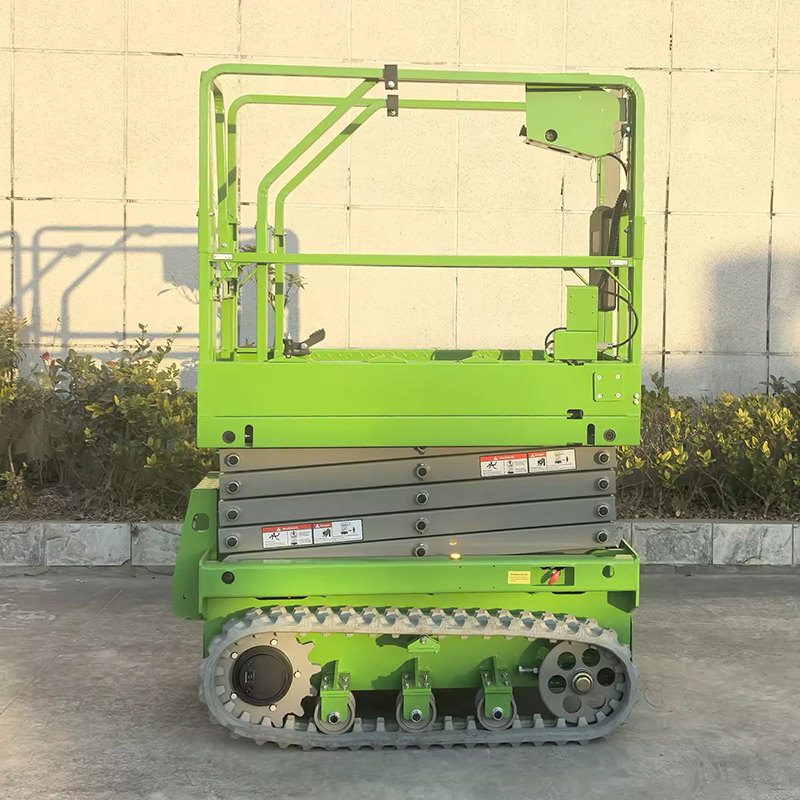

Yes, the smaller models use non-marking rubber tracks which are ideal for indoor workshops and warehouses to prevent floor damage.

6. What safety certifications do these products hold?

Our aerial work platforms are fully certified with CE and ISO 9001 standards, ensuring high safety and quality performance in various environments.
