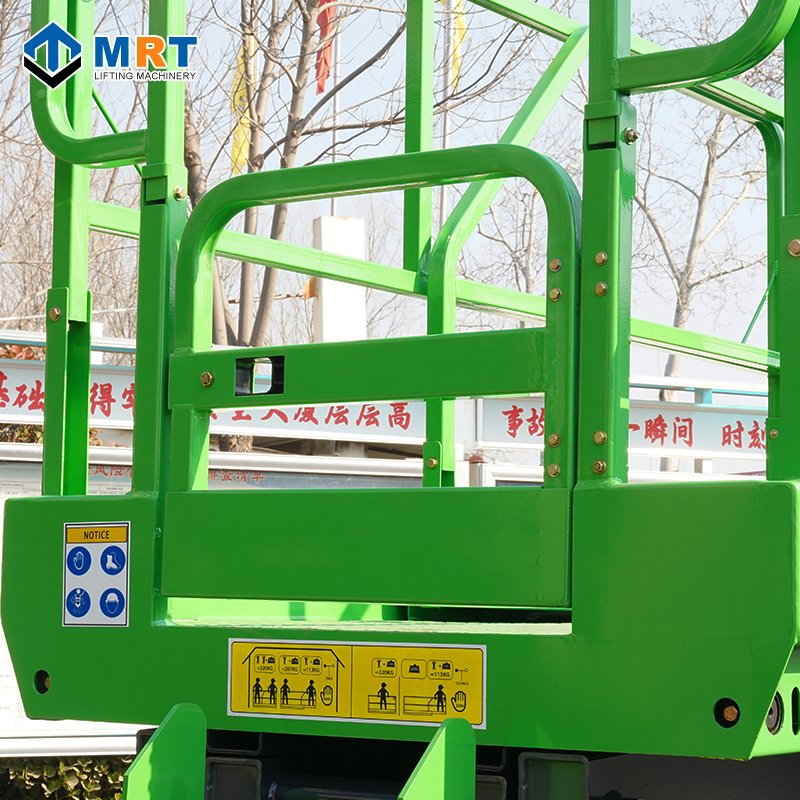

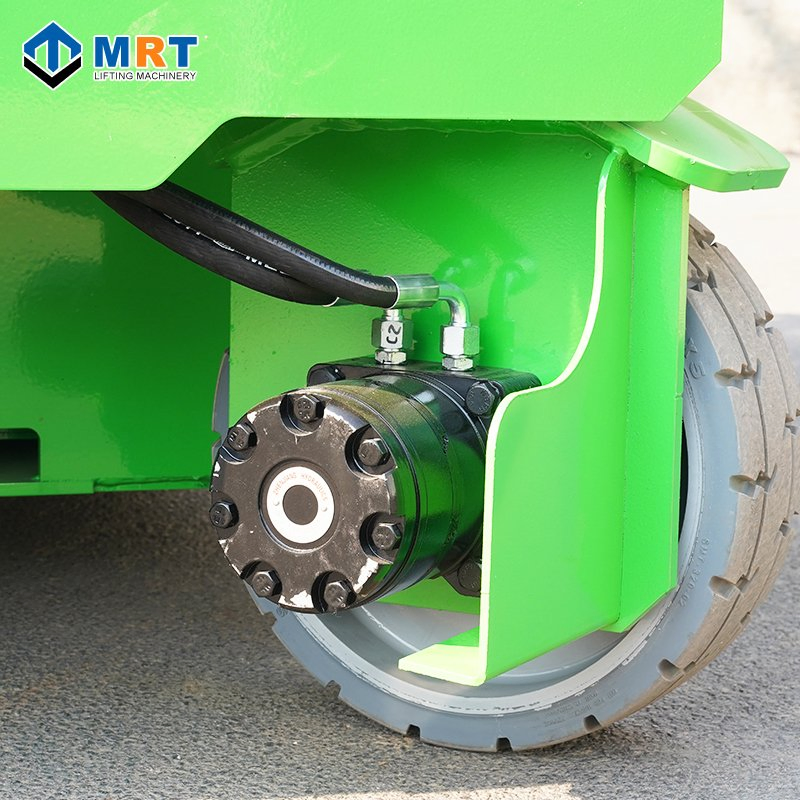

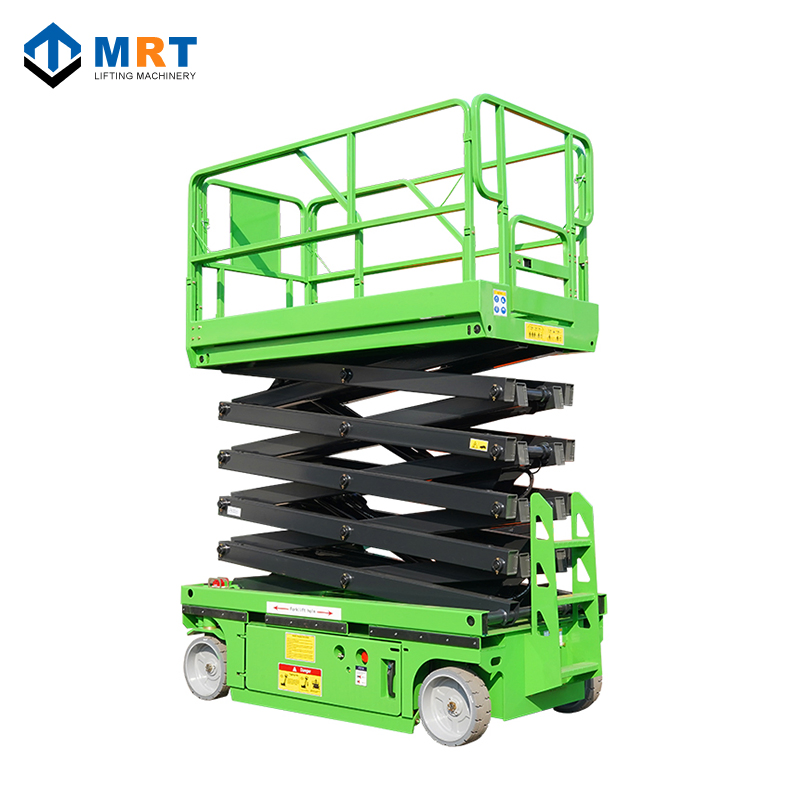

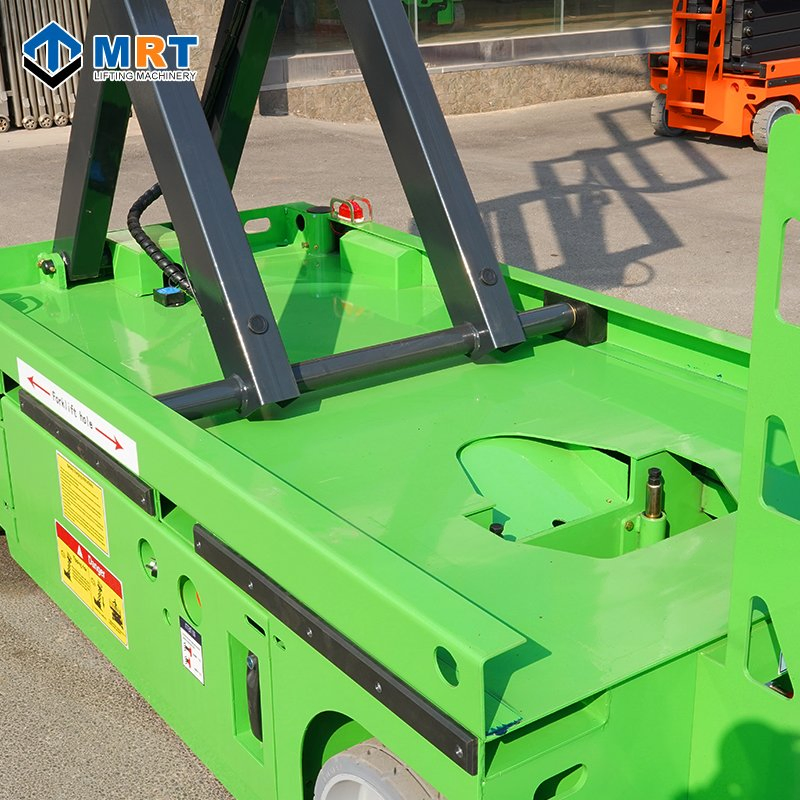

6m 8m 10m 12m 14m 16m Self-Propelled Electric Hydraulic Scissor Lift Platform
| Item | SS6 | SS8 | SS10 | SS12 | SS14 |
|---|---|---|---|---|---|
| Safe working load | 320Kg | 320Kg | 320Kg | 320Kg | 230Kg |
| Max. working height | 8m | 10m | 12m | 14m | 16m |
| Max. platform height | 5.8m | 7.8m | 9.8m | 11.8m | 13.8m |
| Overall length | 2470mm | 2470mm | 2470mm | 2470mm | 2855mm |
| Overall width | 1150mm | 1150mm | 1150mm | 1150mm | 1320mm |
| Working platform size | 2270x1110mm | 2270x1110mm | 2270x1110mm | 2270x1110mm | 2640*1100mm |
| Lifting motor | 24V/3.3KW | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW | 24V/4.5KW |
| Weight | 2000Kg | 2350Kg | 2600Kg | 2760Kg | 3370Kg |
• CE Mark: Compliance with international safety standards for global markets.
• ISO9001:2008: Strict control over quality management systems (GB/T 19001-2008).
• IQNET Certification: Advanced management and quality assurance recognition.
• Industry Recognition: Proven reliability and commitment to high-quality products.
