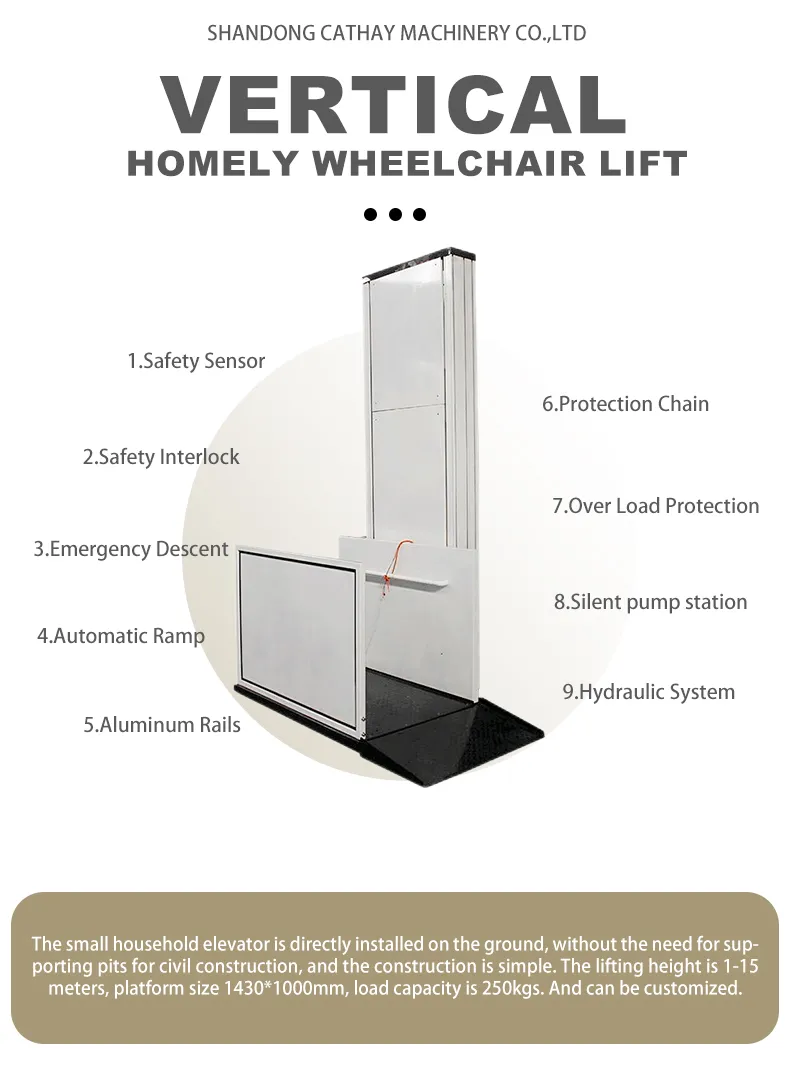

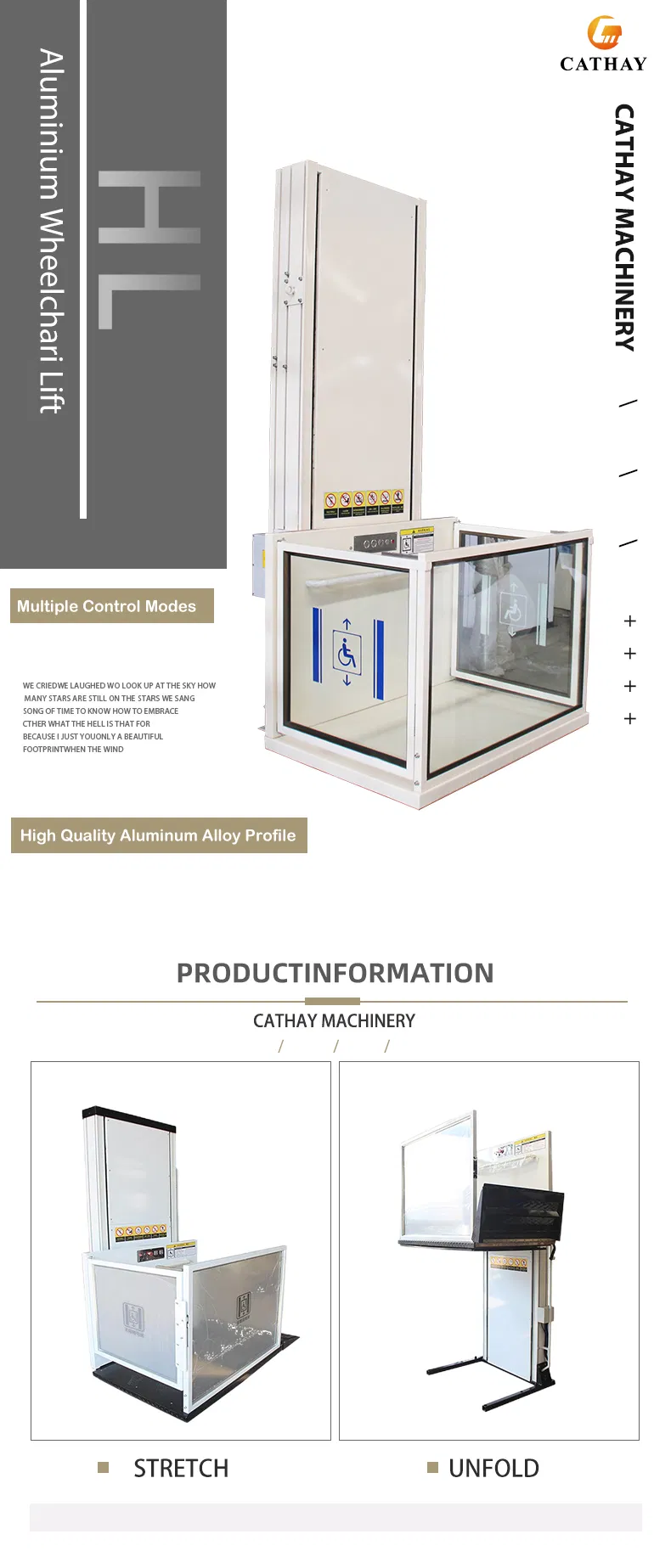

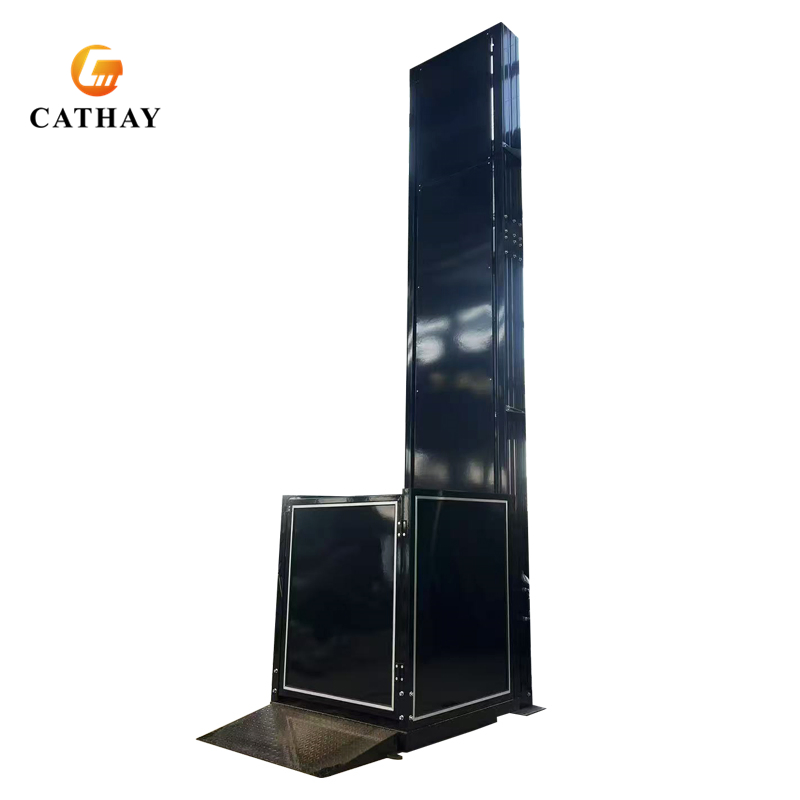

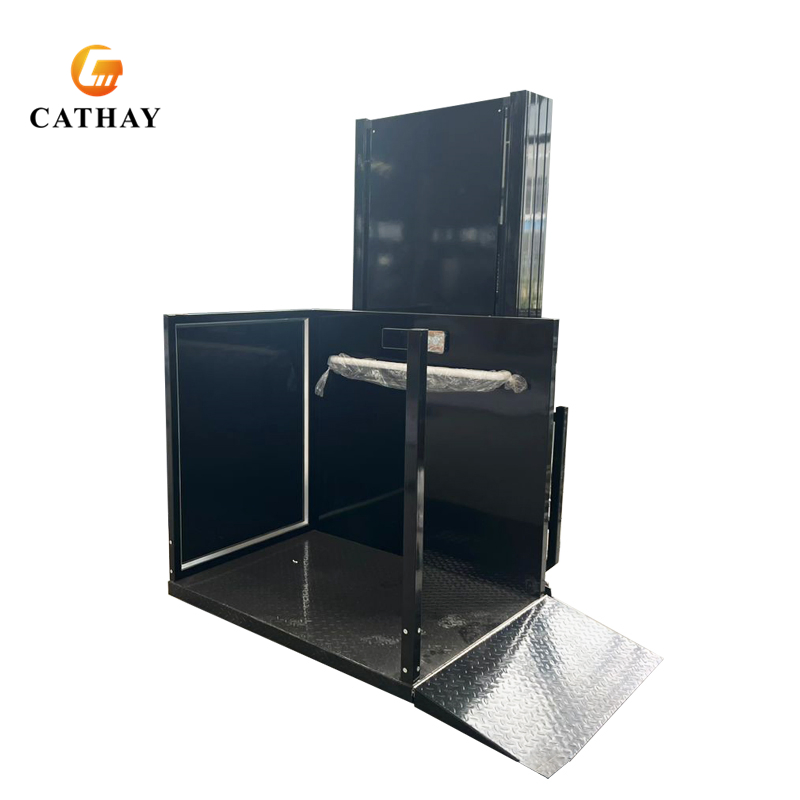

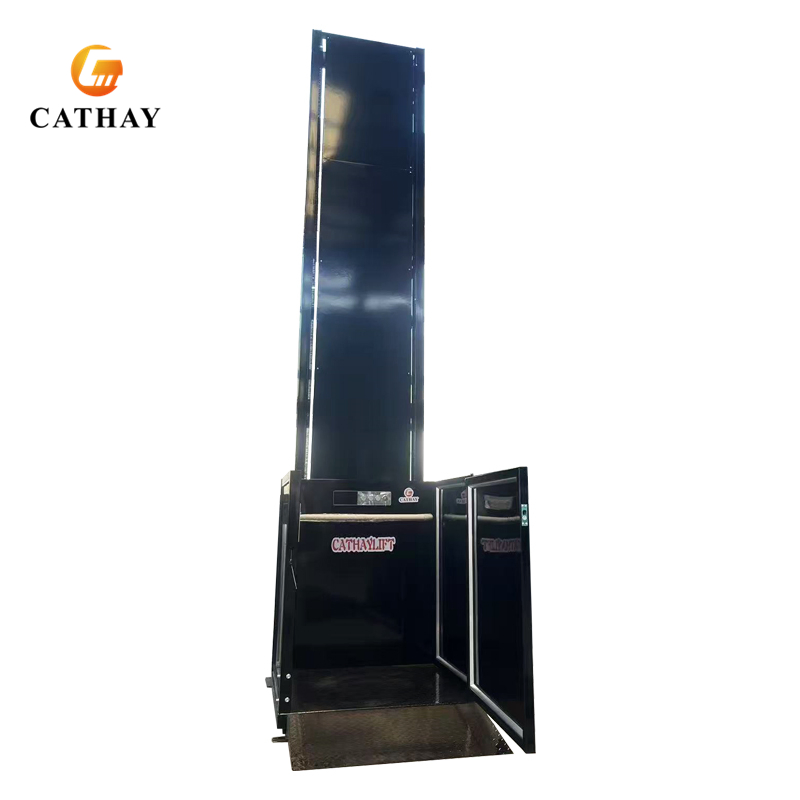

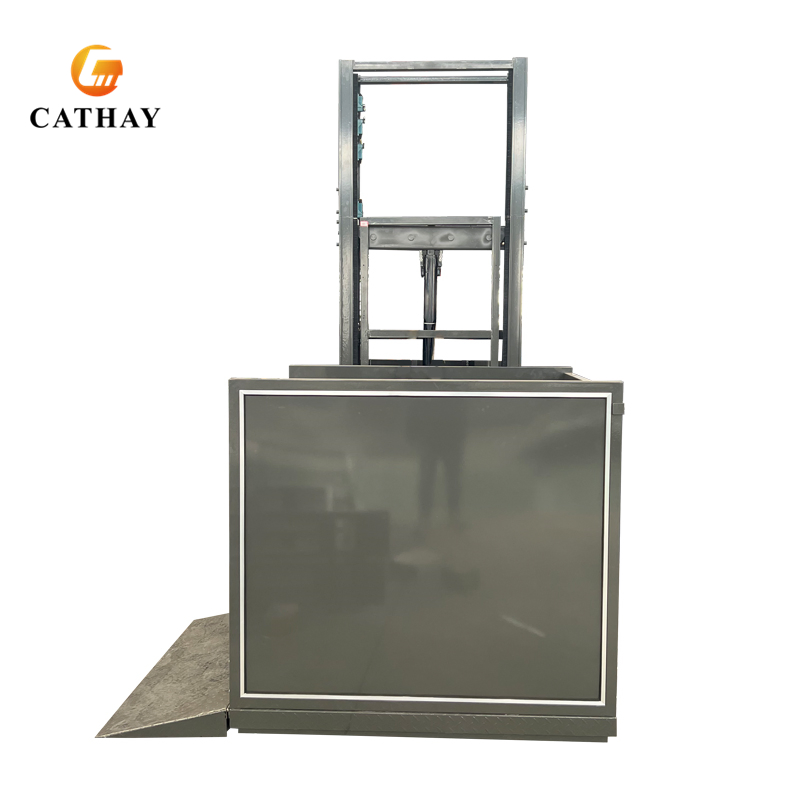

Electric Indoor Outdoor Hydraulic Wheelchair Home Platform Elevator Lift
The wheelchair home lift/elevator, with a lifting height range of 1~12 meters and a robust lifting capacity of 250kg~500kg, is engineered to meet diverse needs while ensuring stability and security. Its strong adaptability allows installation in harsh environments and general explosion-proof locations. Flexible configuration options enable customization of the platform and entry/exit orientation to match specific installation environments and user requirements.
| Model | HL10 | HL20 | HL30 | HL40 | HL50 | HL100 |
|---|---|---|---|---|---|---|
| Max Platform Height | 1000mm | 2000mm | 3000mm | 4000mm | 5000mm | 10000mm |
| Load Capacity | 250kg | 250kg | 250kg | 250kg | 250kg | 250kg |
| Machine Weight (kg) | 350 | 550 | 780 | 880 | 1000 | 1500 |
| Drive System | Hydraulic silent pump station and electric motor | |||||
| Control Voltage | 24V / DC | |||||
| Working Condition | Both indoors and outdoors (-20° ~ 70°C) | |||||
Note: Customization is available for table size, height, periphery, elevator car, and floor doors to suit specific user needs.

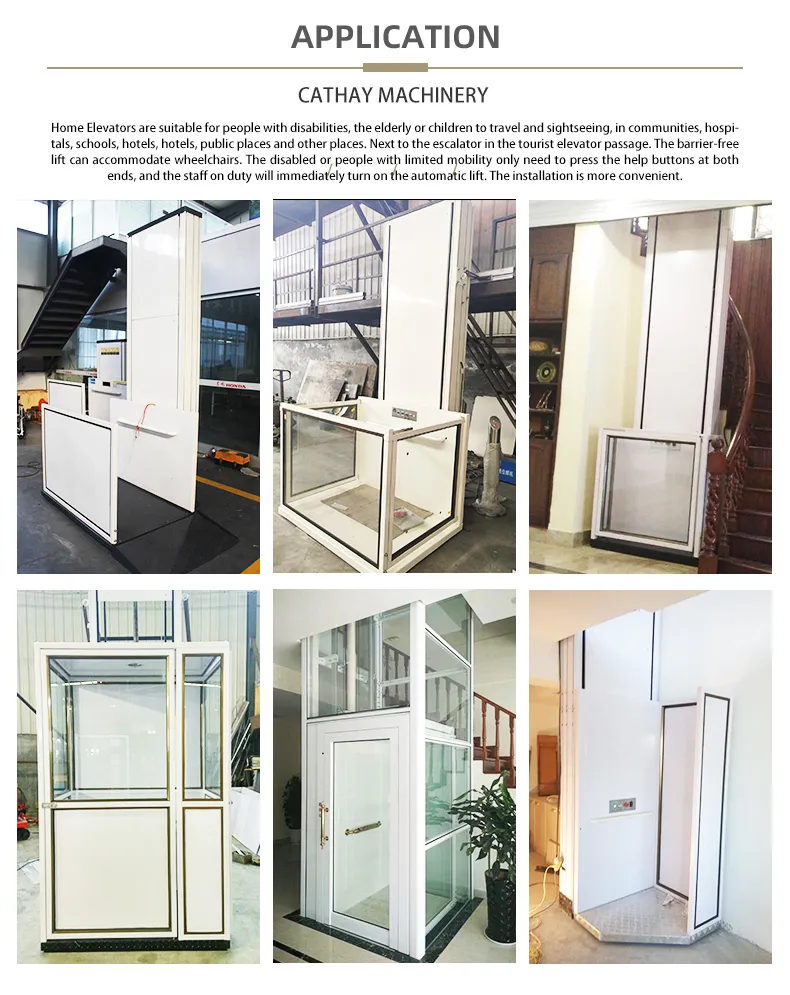

Hydraulic wheelchair home lifts provide an efficient way to move between floors in residential spaces. They are ideal for seniors, people with disabilities, and families with mobility challenges. Suitable for both new builds and retrofits, these lifts fit well in low-rise buildings, basements, and even rooftop decks, combining convenience with property value enhancement.
