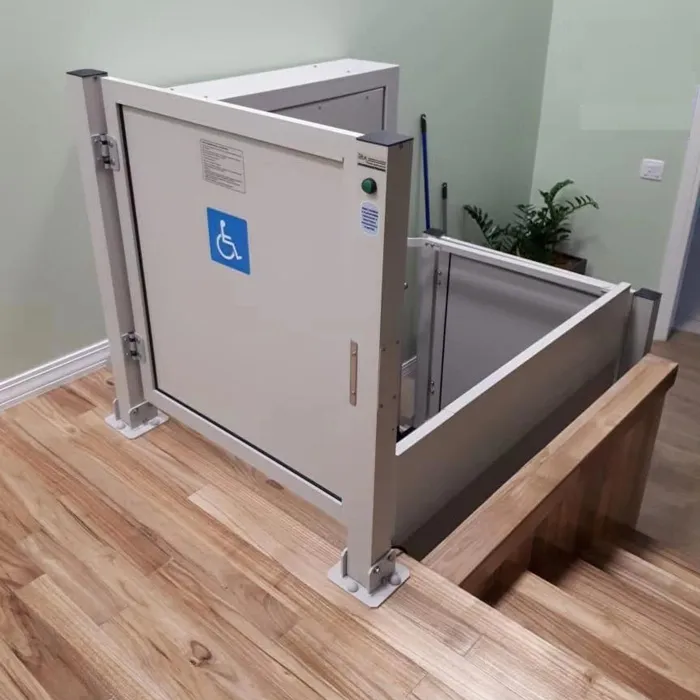

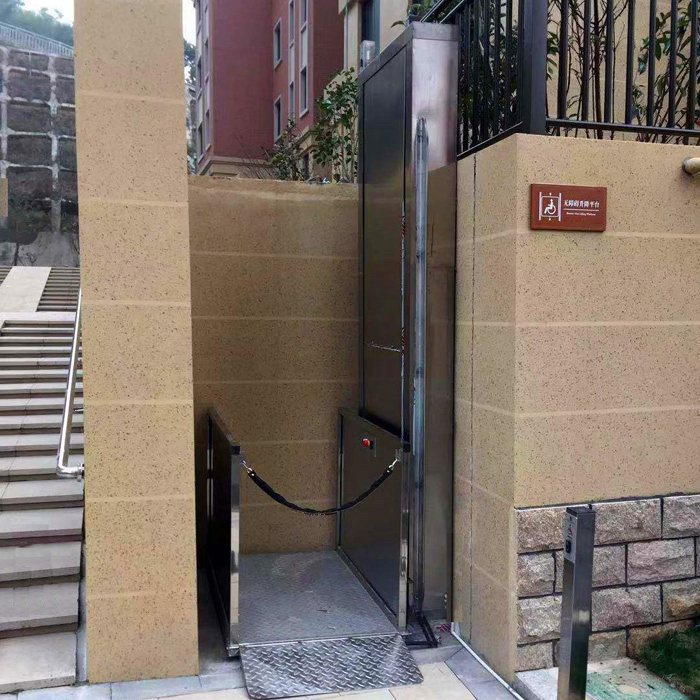

This wheelchair platform lift for home is a customized solution designed for lifting cargo or providing accessibility for disabled individuals. It effectively solves the challenge of navigating floor height differences, with a platform space designed to accommodate both wheelchairs and escorts.
Key features include smooth running speed, high safety standards, and easy installation. These units require minimal space and can be installed without existing pits.
| Parameter | Specification | |
|---|---|---|
| Voltage | 220V/50HZ or Customized | |

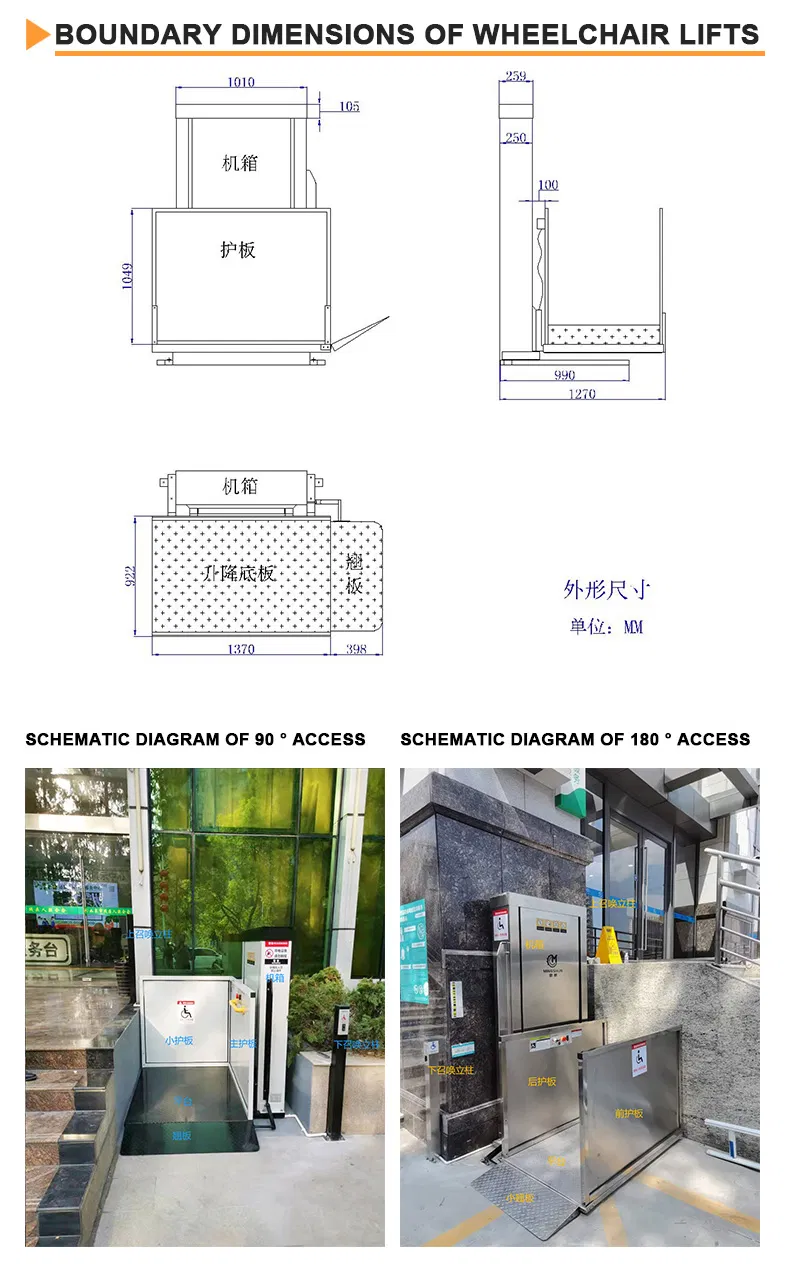

| Overall Dimensions | 1670mm(L)×1270mm(W)×(lifting height+550)mm(H) | |
| Lifting Height | 2000mm (Customizable) | |
| Min. Base Plate Height | 60mm from the ground | |
| Lifting Speed | 60mm/s (Inverter control, soft start/brake) | |
| Max Loading | 240kg | |
| Drive Type | Screw Drive | |
| Power | 2.2kw 220V/AC | |
| Environment | Indoor & Outdoor (-20°C to 60°C) | |
| Safety Equipment | Safety Rocker | Automatic tilt to prevent wheelchair sliding |
| Overload Protection | Does not operate when overloaded | |
| Emergency Stop | Manual emergency button control | |
| Emergency Descent | Electric emergency descent function | |
The L-150 screw-type barrier-free lifting platform utilizes a steel structure frame and precision screw drive. It is ideal for vertical lifting ranges up to 2000mm. Its pit-free design provides the convenience of an elevator without complex construction needs.

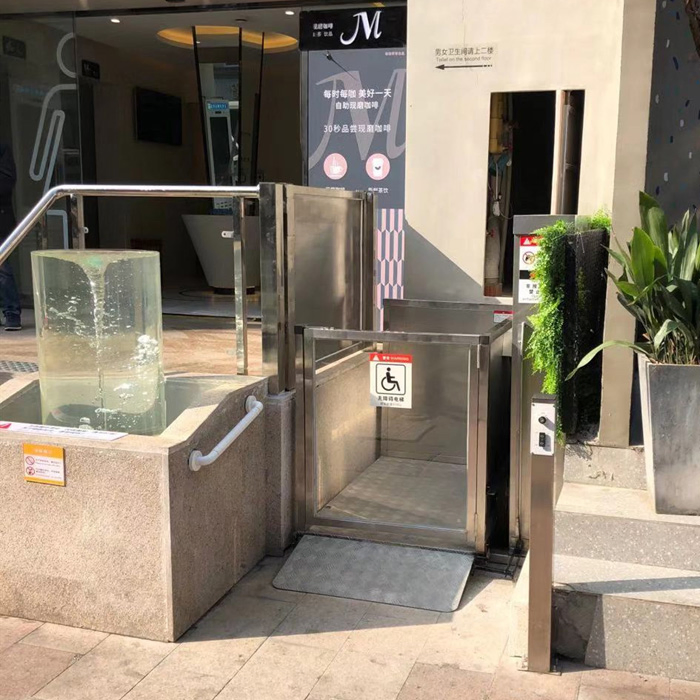

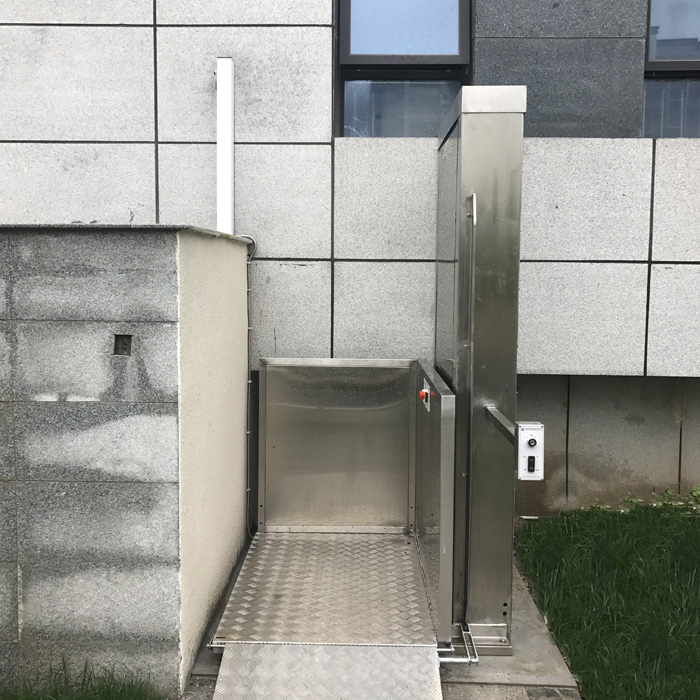

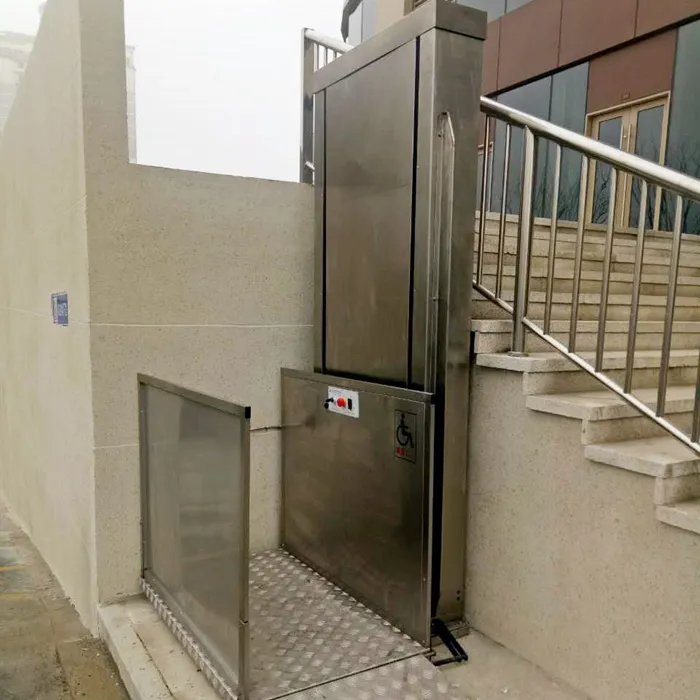

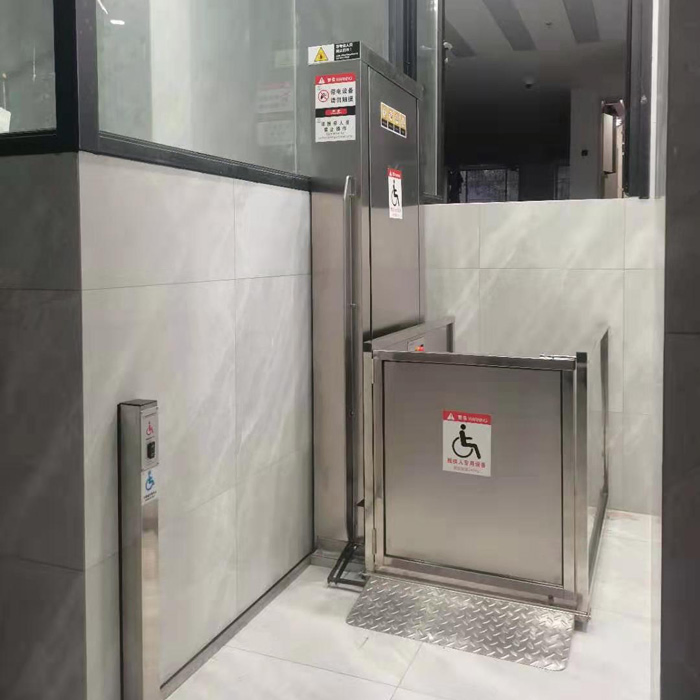

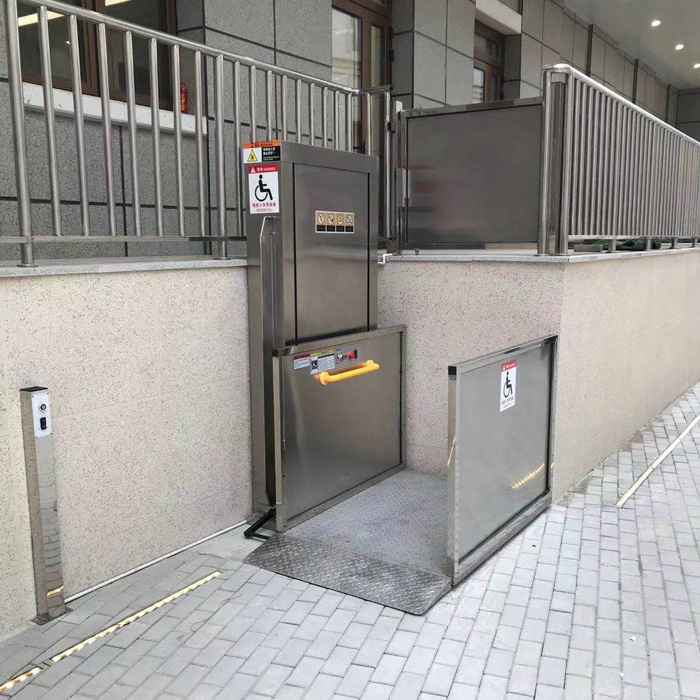

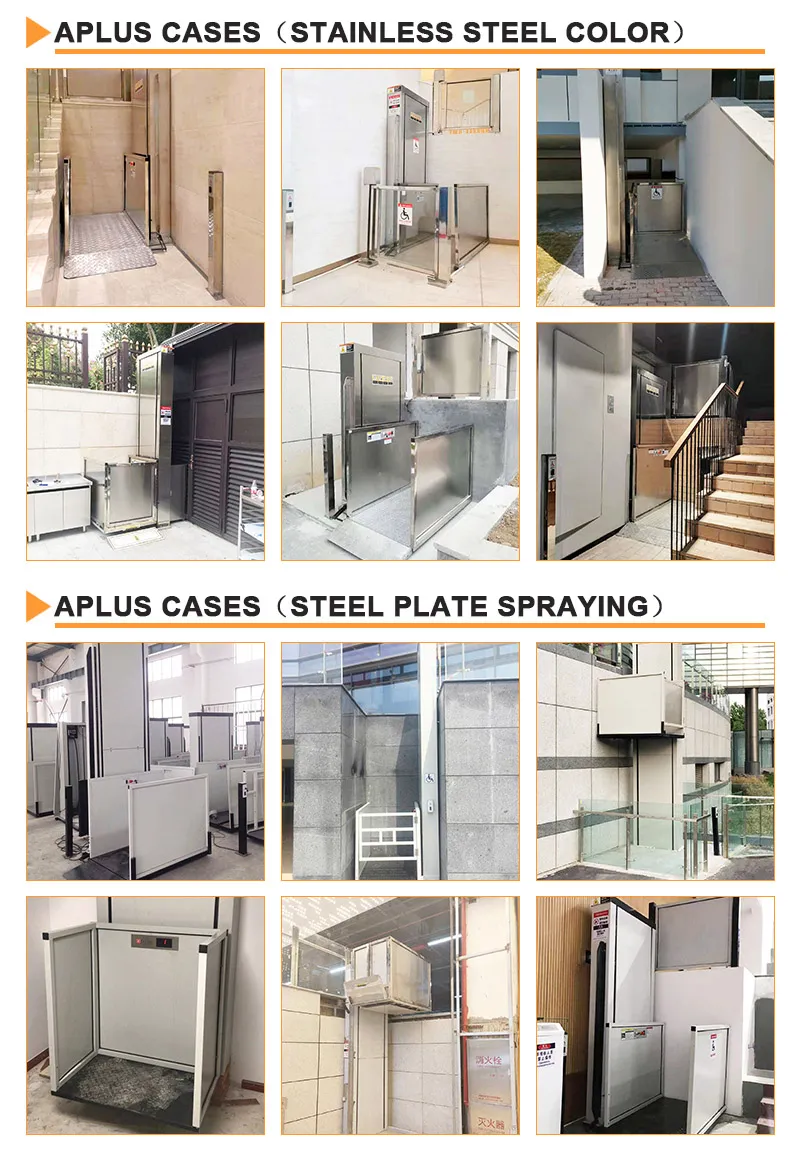

Common Applications: Residential areas, hotels, restaurants, office buildings, subways, banks, hospitals, and other public spaces. It features a novel design, low noise, and low-temperature resistance, complying with ASME A18-1 and CSA-B613 standards.
