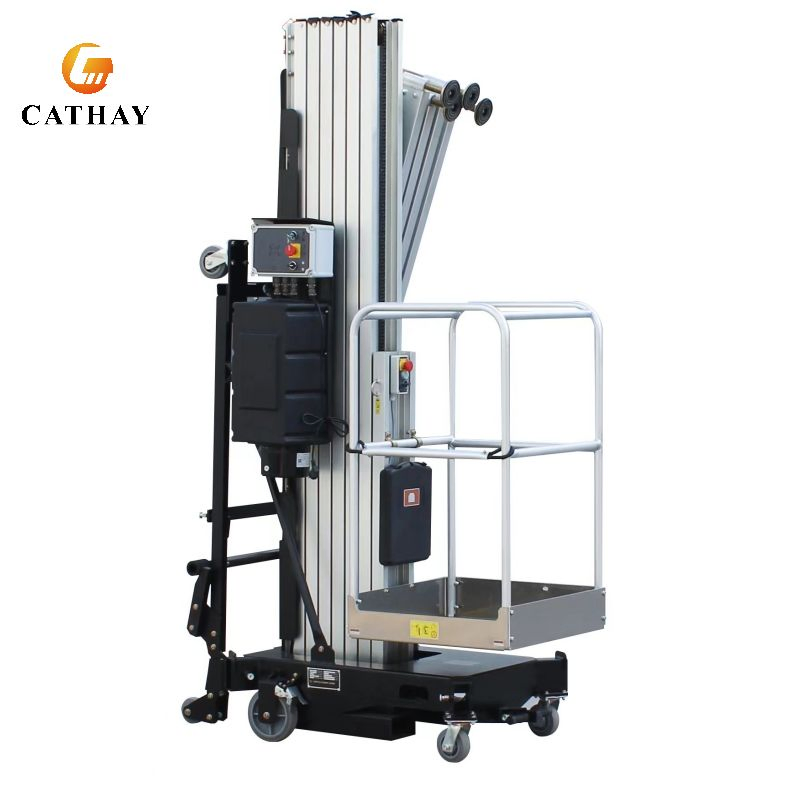

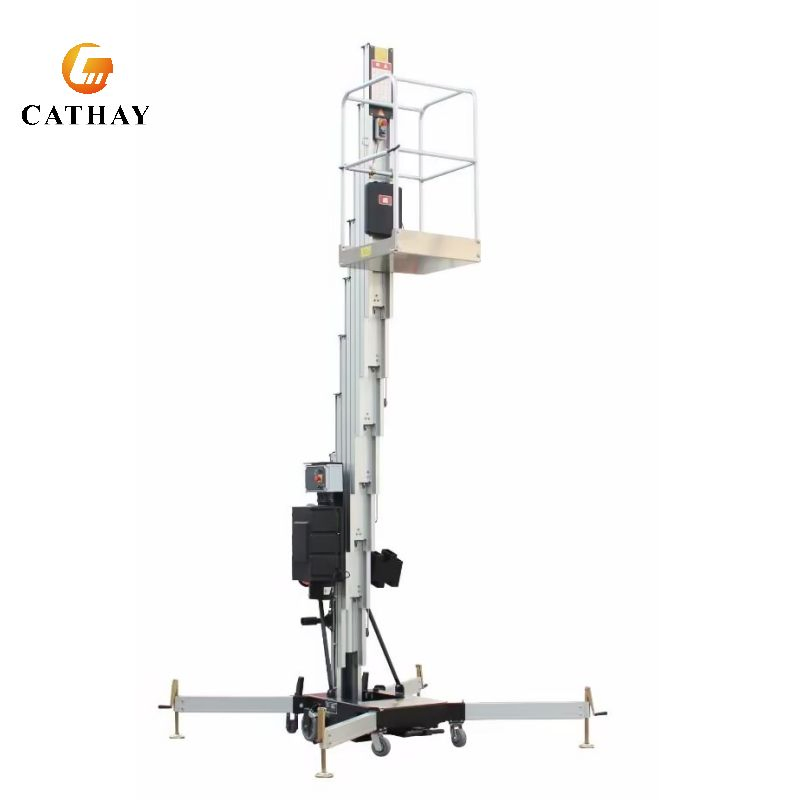

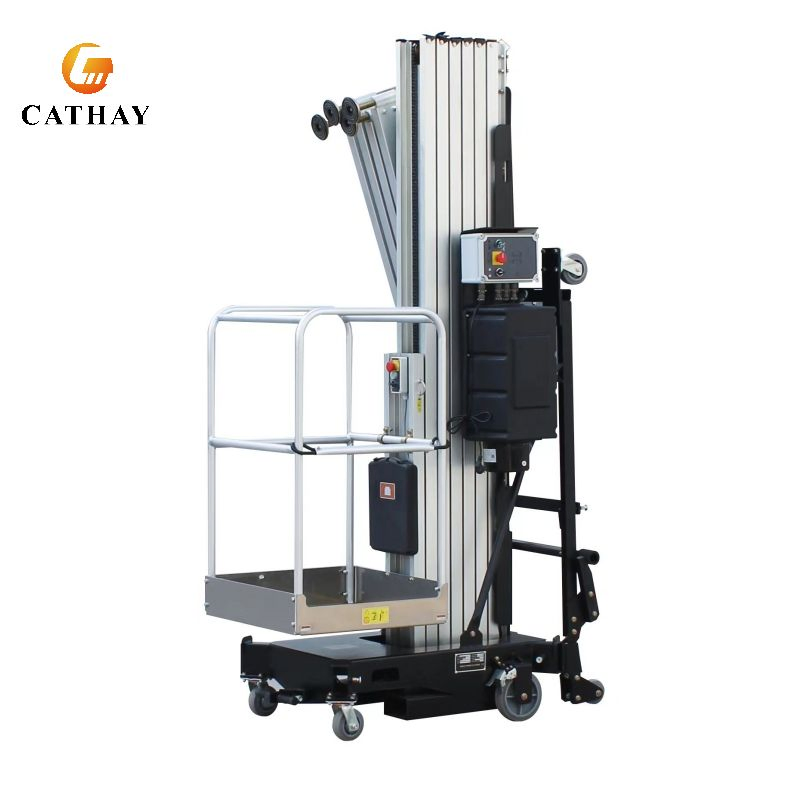

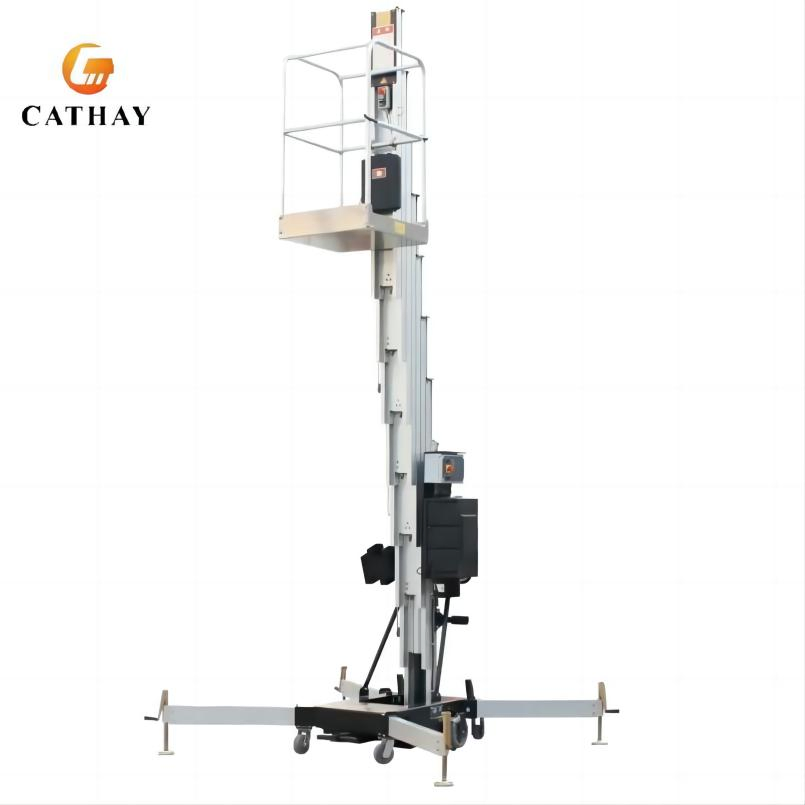

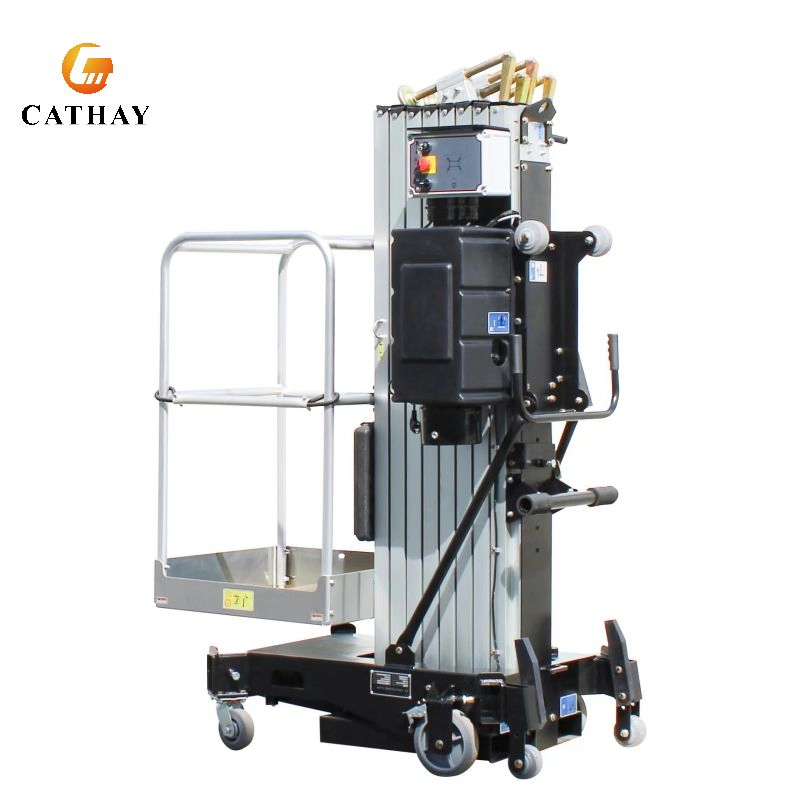

EU USA 5m 8m 10m Electric Small Aerial Working Platform Awp Single Genie One Man Vertical Mast Lift

Still deciding? Get samples of $ !
Order Sample

Product Description

⚡ Basic Information
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Mast Lift
Driven Type
AC/DC/AC+DC
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Load Capacity
150kg
Lifting Height
5~12m
Platform Size
0.67*0.66m
📦 Product Description

5~14m Electric Single Mast Push Around Vertical Mast Lift with CE

OEM & ODM & OBM Available

The push around vertical mast lift range from 5m to 14m is designed for all indoor aerial work projects. The compact size allows it to enter a variety of confined spaces, easily pass through doors, and adapt to elevators. It features extremely lightweight construction, non-marking tires, and stabilizers with rubber, allowing it to work on various fragile grounds. The lift can be easily loaded, moved, and set up by one person, or towed by a trailer or a van, requiring minimal maintenance.

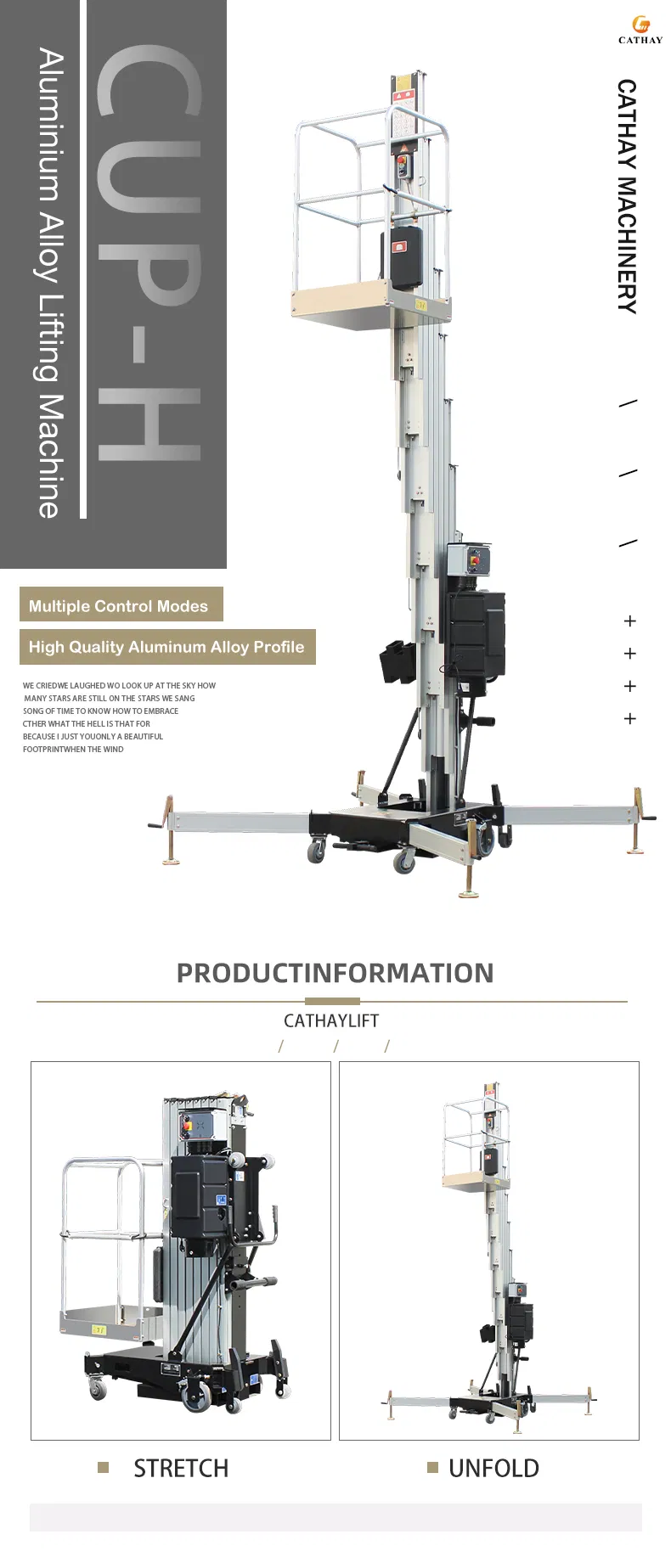

Electric Single Mast Vertical Lift
📊 Product Parameters
Model No. CUP-5H CUP-6H CUP-8H CUP-9H CUP-10H CUP-12H
Max. Platform Height 5m 6m 8m 9m 10m 12m
Max. Working Height 7m 8m 10m 11m 12m 14m
Load Capacity 150kg 150kg 150kg 150kg 136kg 120kg
Platform Size 0.67*0.66m
Occupants One person
Net Weight 300kg 320kg 345kg 365kg 385kg 460kg
Note: Standard model is AC powered. Battery power, assisted mobility, and remote control are available as options to match different work needs.
⭐ Product Advantages

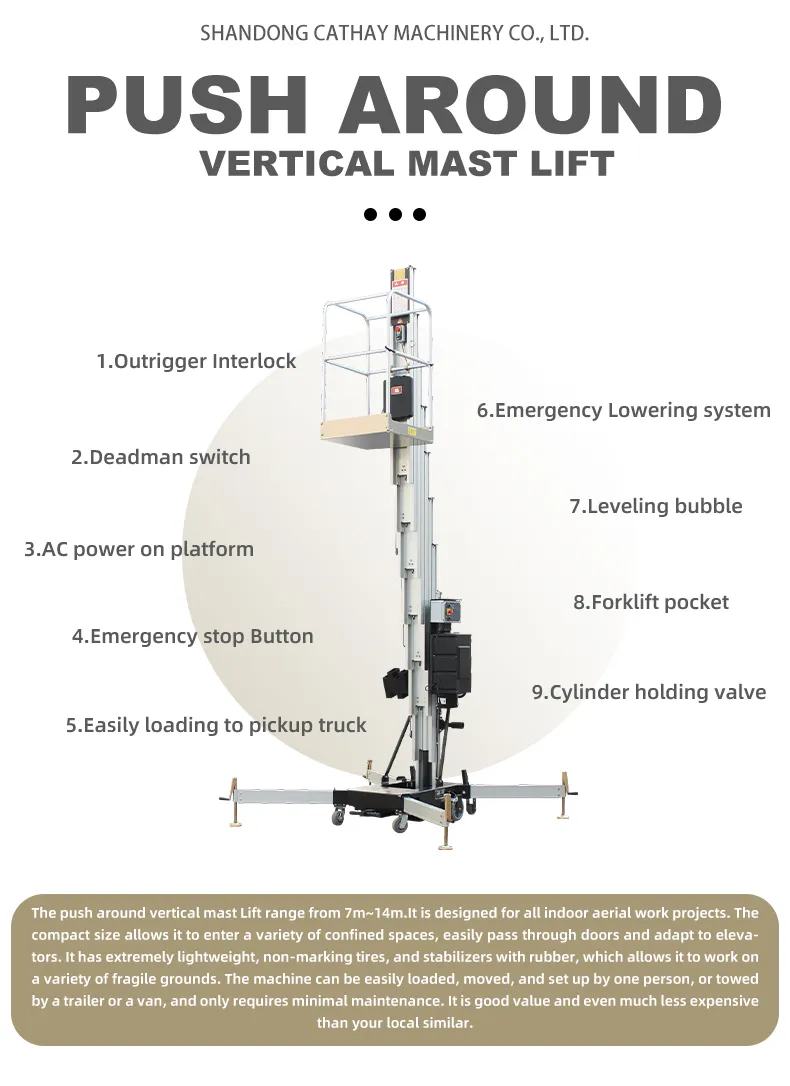

Vertical Mast Lift Advantages
  • Applied to various indoor and outdoor projects
  • Lightweight design suitable for delicate flooring
  • Compact dimensions for easy access to narrow aisles or elevators
  • Easy to transport via van or trailer
  • Simple installation and one-person operation
  • Equipped with 4 wheels and two side wheels for manual maneuvering
  • Minimal maintenance requirements with modular design
  • High value for investment with reliable performance

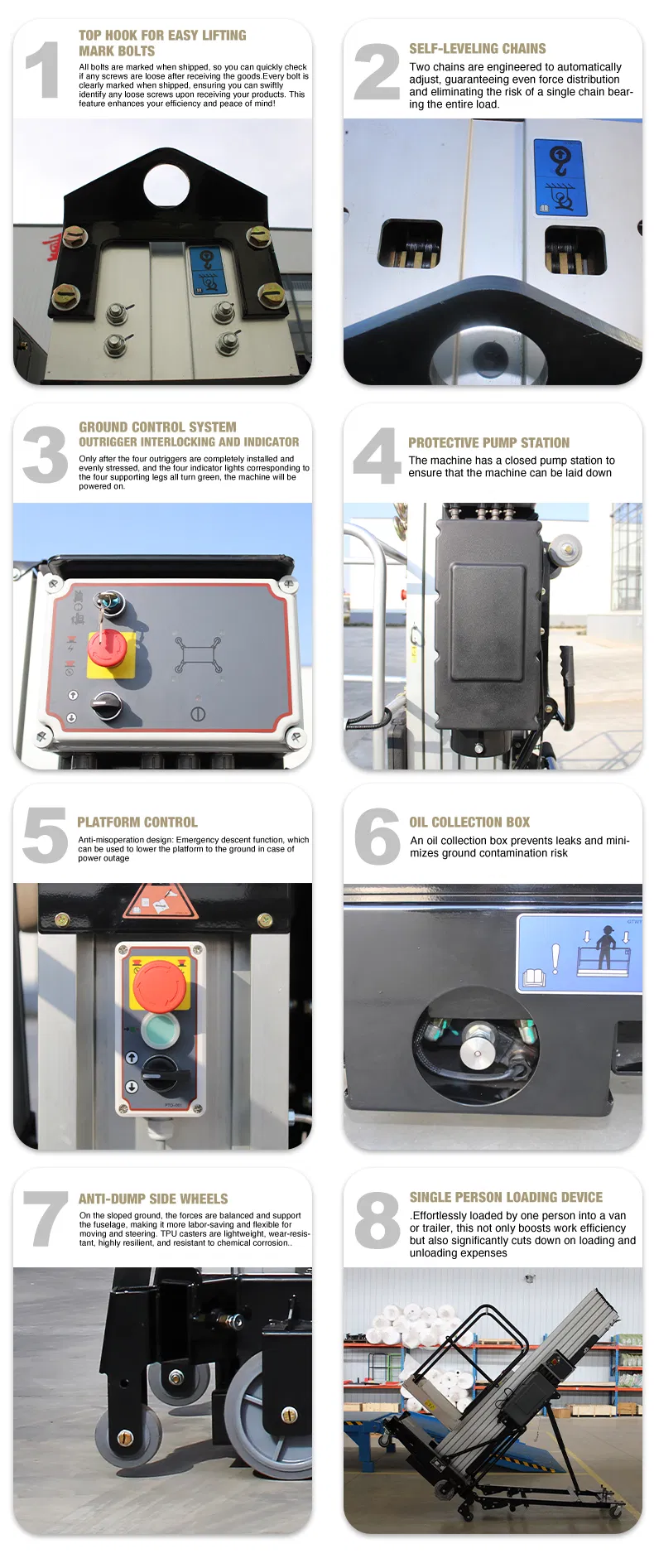

Outrigger Interlocking System: The lift is only powered once all four outriggers are fully deployed and evenly stressed, guaranteed by green indicator lights.

Aviation Plug & Cable: Equipped with aviation-grade connectors for fast maintenance and ultra-durable drag cables (flex life > 5 million cycles).

Safety Design: Dual-action safety setup with a red emergency stop button and a green public switch to prevent accidental activation.

Safety Control System

Upper Platform AC Power: IP66-rated socket on the platform allows use of power tools (drills/saws) in demanding environments.

Rear Forklift Access: Balanced entry points at the rear ensure secure handling and minimize tipping risks during transport.

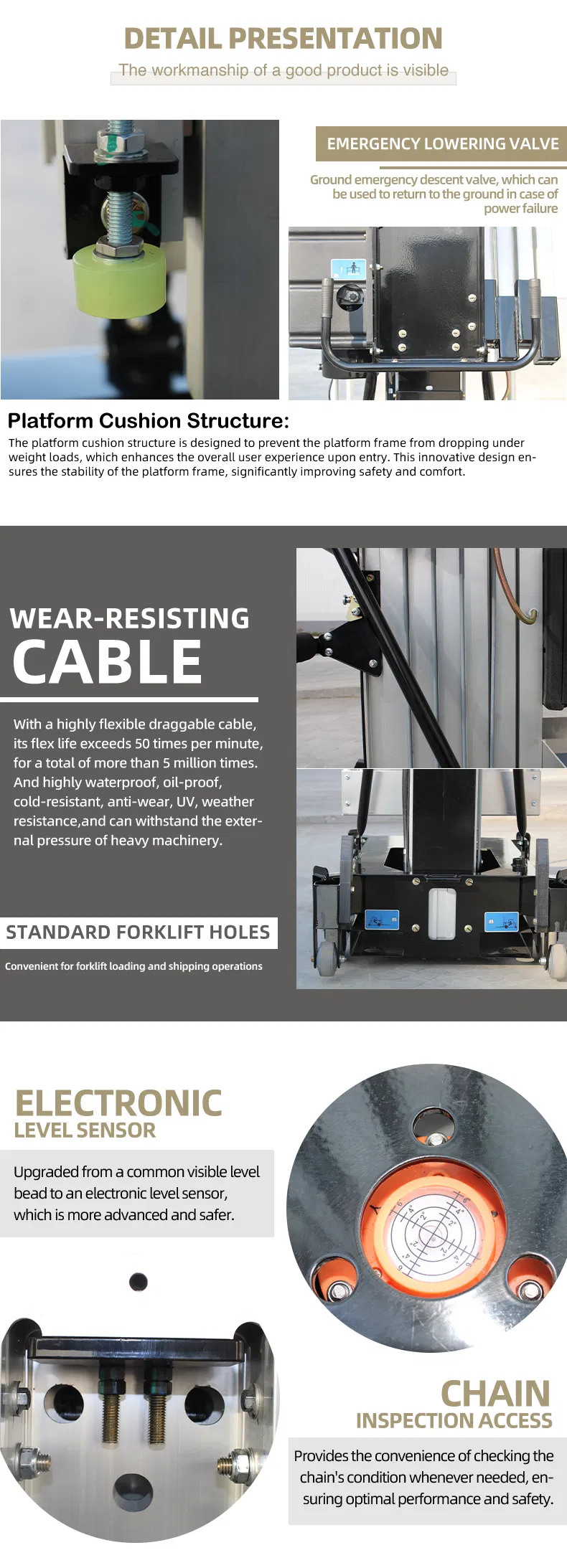

Functional Details
🏢 Applications

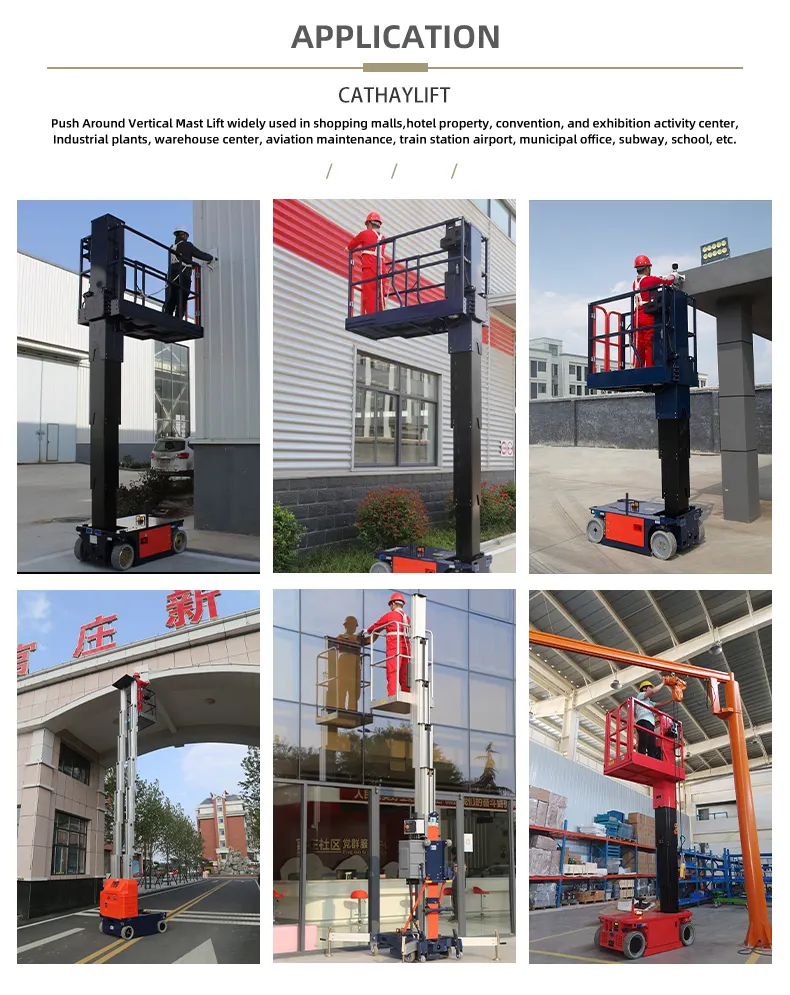

These aluminum push-around vertical mast lifts are ideal for a wide range of settings including shopping malls, hotels, exhibition centers, industrial plants, warehouses, airports, train stations, subways, schools, and government buildings. Their compact size is perfect for indoor maintenance, installations, and overhead tasks in areas with high pedestrian flow or limited access.

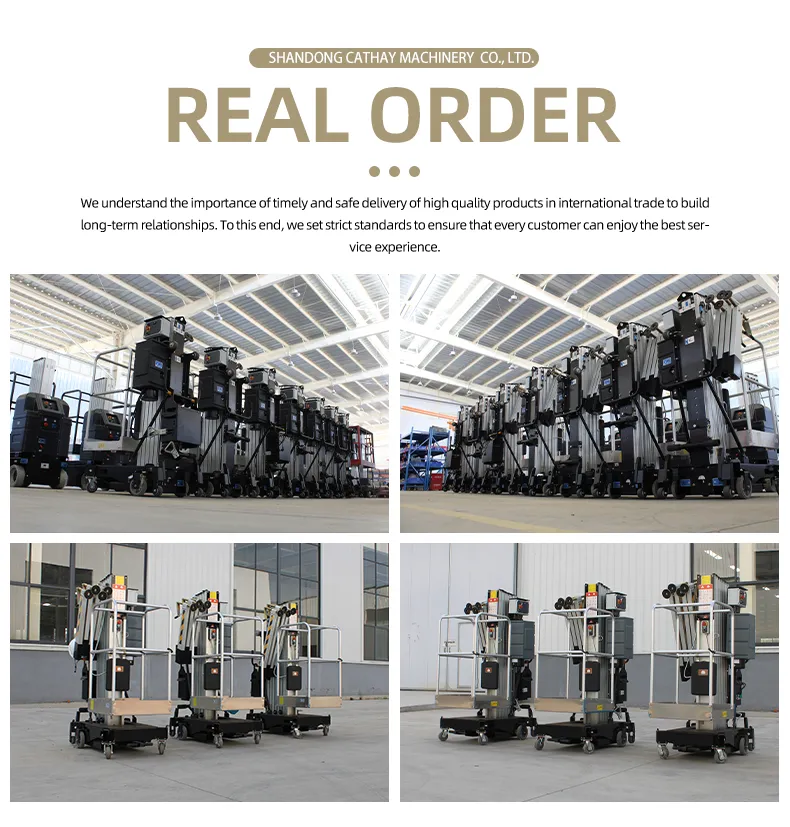

Application 1 Application 2
🔍 Technical Details & Gallery

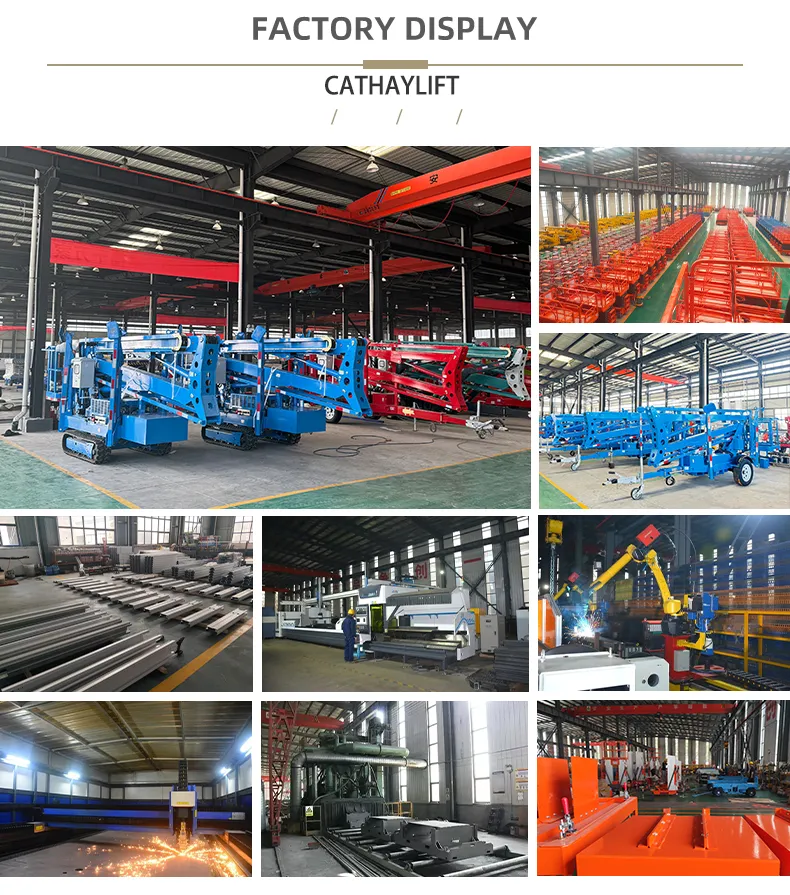

Technical View 1 Technical View 2 Certifications

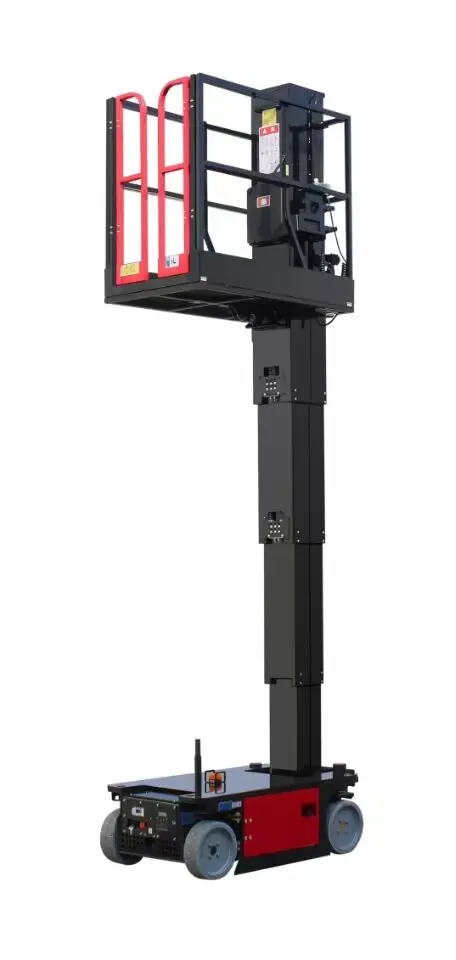

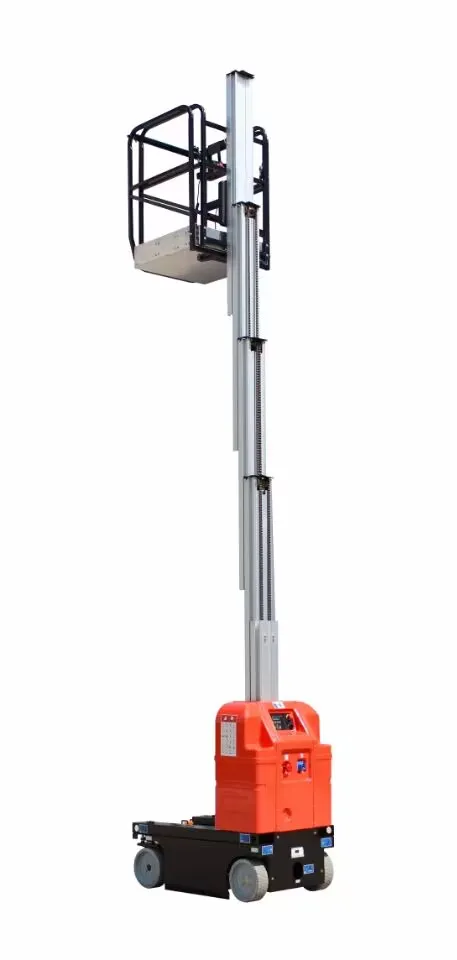

Side View Mast Detail Folded State
❓ Frequently Asked Questions
What is the maximum lifting height available?
The vertical mast lifts offer platform heights ranging from 5 meters to 12 meters, providing a maximum working height of up to 14 meters.
Is the machine easy to transport?
Yes, its compact design and lightweight aluminum construction allow it to be easily loaded into a van or trailer by a single person.
Can it be used on sensitive flooring?
Absolutely. The lift is equipped with non-marking tires and rubber-padded outriggers specifically designed for use on fragile or delicate indoor grounds.
What are the power options?
The standard model uses AC power. However, we offer optional DC battery power, as well as dual AC+DC configurations for maximum flexibility.
How does the outrigger safety system work?
The lift features an interlocking system that prevents operation unless all four outriggers are correctly deployed and the weight is evenly distributed, confirmed by green indicators.
Does the platform have a power source for tools?
Yes, the upper platform is equipped with an IP66-rated AC socket, allowing operators to use electric tools like drills and saws directly from the basket.
