Keg Lift
1 / 5
| Power | Worldwide voltage customization available |
| Lifting Height | 1500mm (Standard) / Customizable up to 9m |
| Platform Size | 1430mm(L) x 1000mm(W) |
| Speed | 40mm/s |
| Load Capacity | 300kg |
| In and Out Direction | 90° or 180° |
| Platform Type | Pattern non-slip metal plate |
| Net Weight | >400kg |
| Motor | 1.5KW 220V/AC or 110V/AC |
| Working Environment | Indoor and Outdoor |
| Temperature Range | -20°C to 60°C |
| Installation | No foundation pit required (Direct concrete fix) |
| Safety Control | Emergency stop button & Safety aluminum alloy bar |

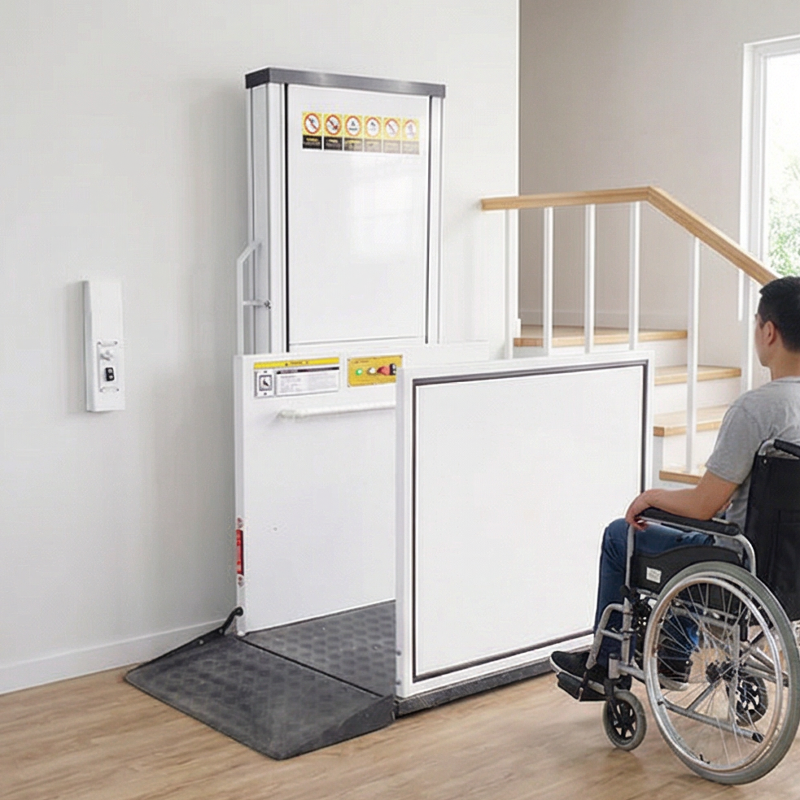

In terms of drive and operation, the vertical home wheelchair lift adopts a hydraulic or screw drive system. The hydraulic drive runs smoothly without jolts, with low noise and strong load-bearing capacity. The equipment adopts an overall vertical operation mode, with a running speed of up to 40mm/s. The lifting process is gentle and smooth, avoiding discomfort for users. The maximum lifting height can reach up to 9m, covering 1-3 storey residential buildings.

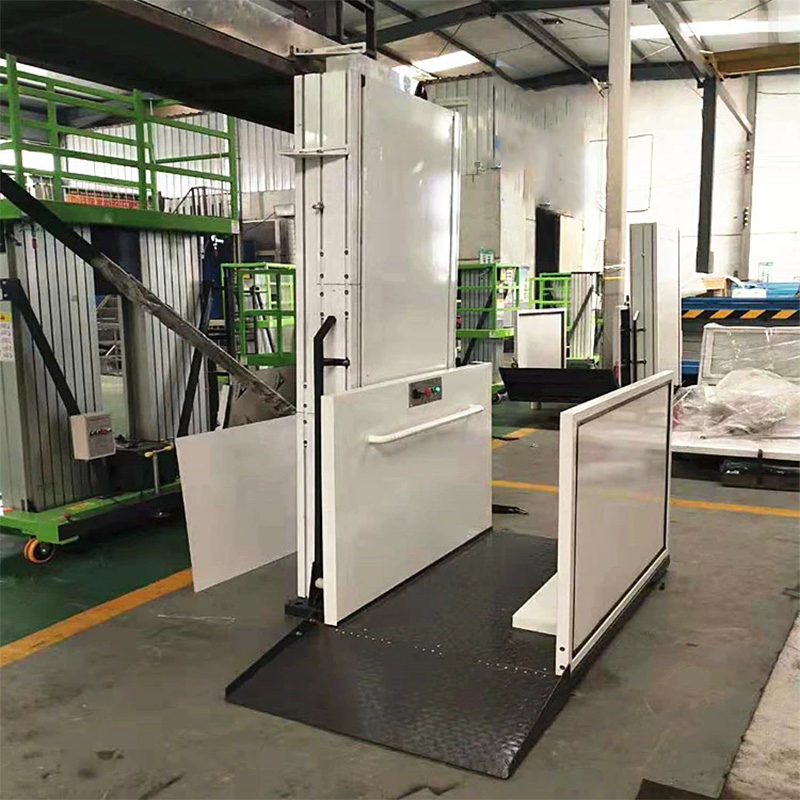

Easy installation without damaging the house structure is one of its core advantages. The equipment does not require complex renovation, can be directly fixed on the concrete floor, and adopts a pit-free installation design. It covers a small area and flexibly adapts to the indoor and outdoor scenarios of most families.

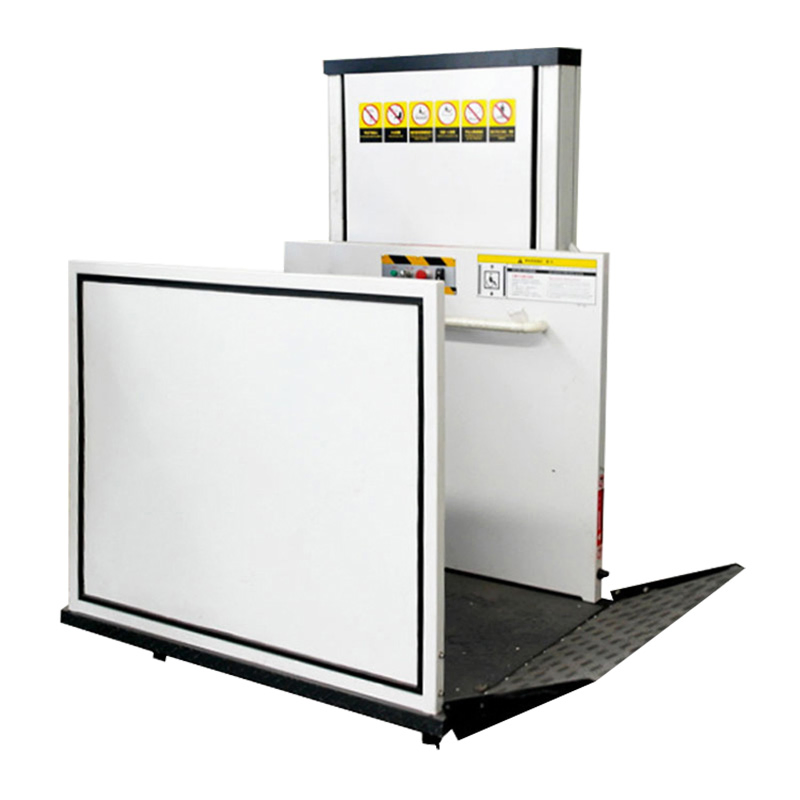

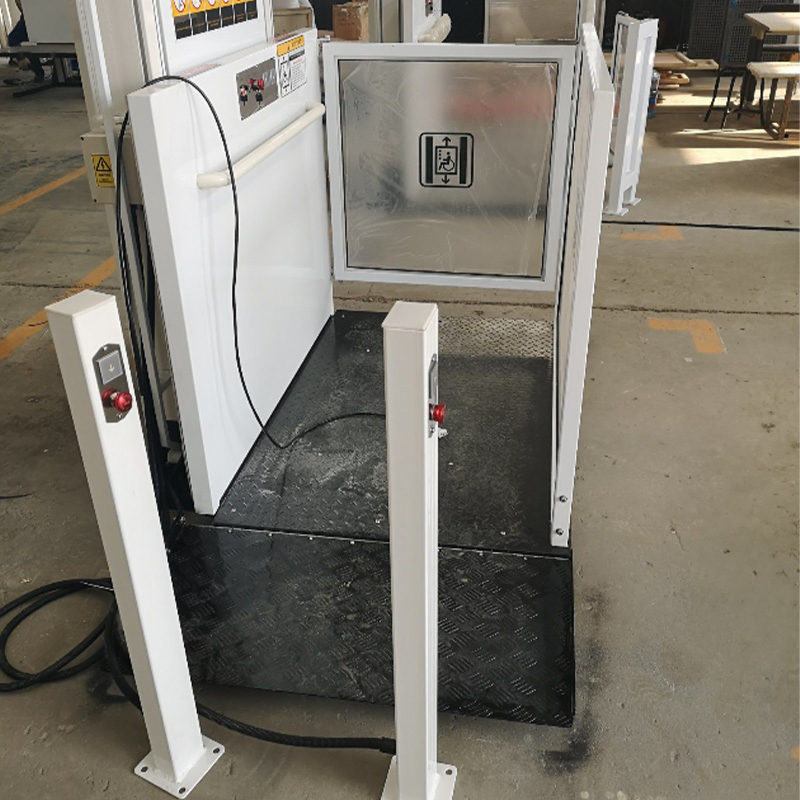

The equipment is equipped with a non-slip patterned platform to increase friction, effectively preventing the wheelchair from slipping. The standard size of the platform is 1430mm × 1000mm, adapting to different models of wheelchairs. The maximum load-bearing capacity can reach 300kg.
