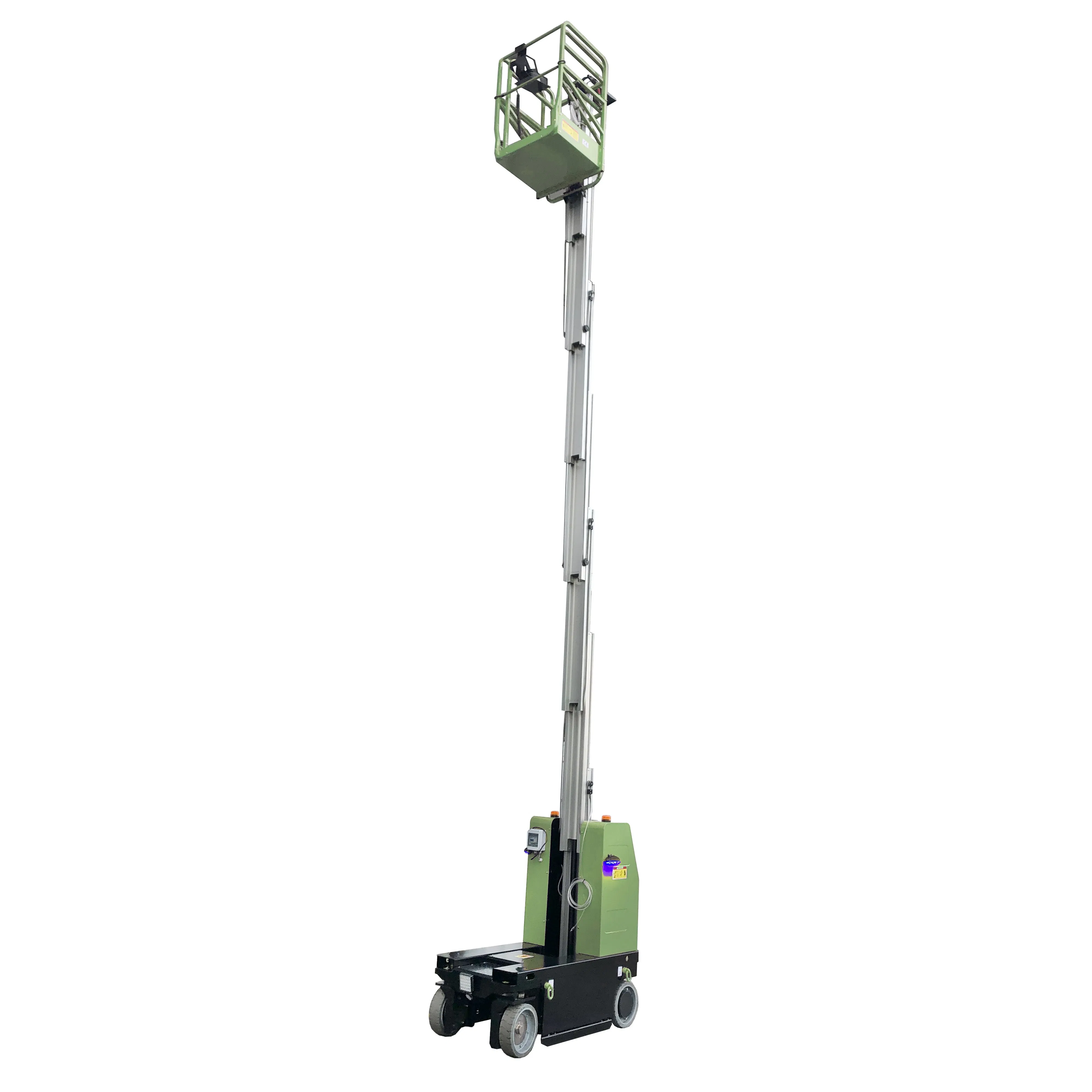

6m Single Mast Aluminum Aerial Lift Platform Electric Vertical Lift

Customization: Available
After-sales Service: Can Post Spare Parts Within 1 Week
Warranty: One Year

Product Description

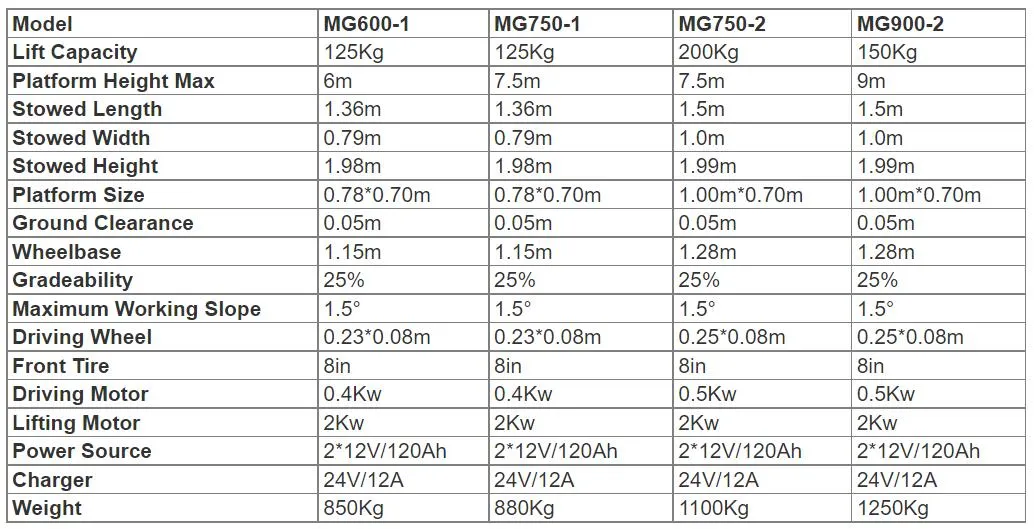

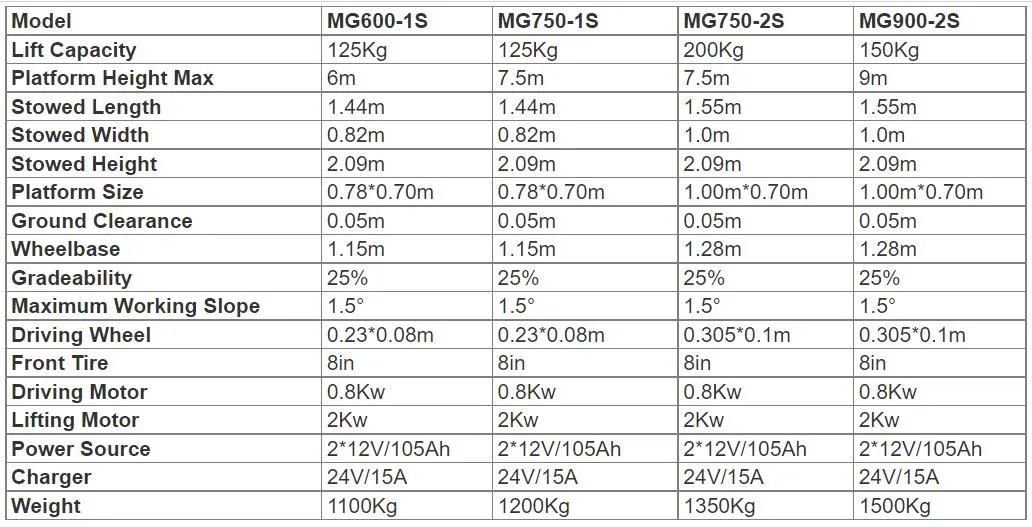

Basic Specifications
Model NO.
MG600-1S
Application
Workshop, Shipboard, Warehouse, Building
Lift Mechanism
Lift Chain
Carrying Capacity
Light Level
Driven Type
DC
Feature
Explosion-Proof, Insulating
Certification
CE, ISO 9001
Platform Height
6 M
Working Height
8 M
Loading Capacity
125kg
Platform Size
0.78*0.70m
Power Source
2*12V/115ah
Charger
24V/12A
Weight
1102kg
Origin
China
HS Code
8428909090
Product Description

Self-Propelled Economical Vertical Lift

The Self-Propelled Economical Vertical Lift is light and exquisite, convenient and flexible. It can pass through the general foyer, enter and exit elevators at will, save energy and electricity, and work without hurting the ground. It is ideally suited for wall-mounted work and exploration work, and is widely used in hotels, hospitals, stations, airports, warehouses, and other professional settings.

Safe and reliable operation performance is guaranteed; the base pothole protection device provides maximum peace of mind during operation.

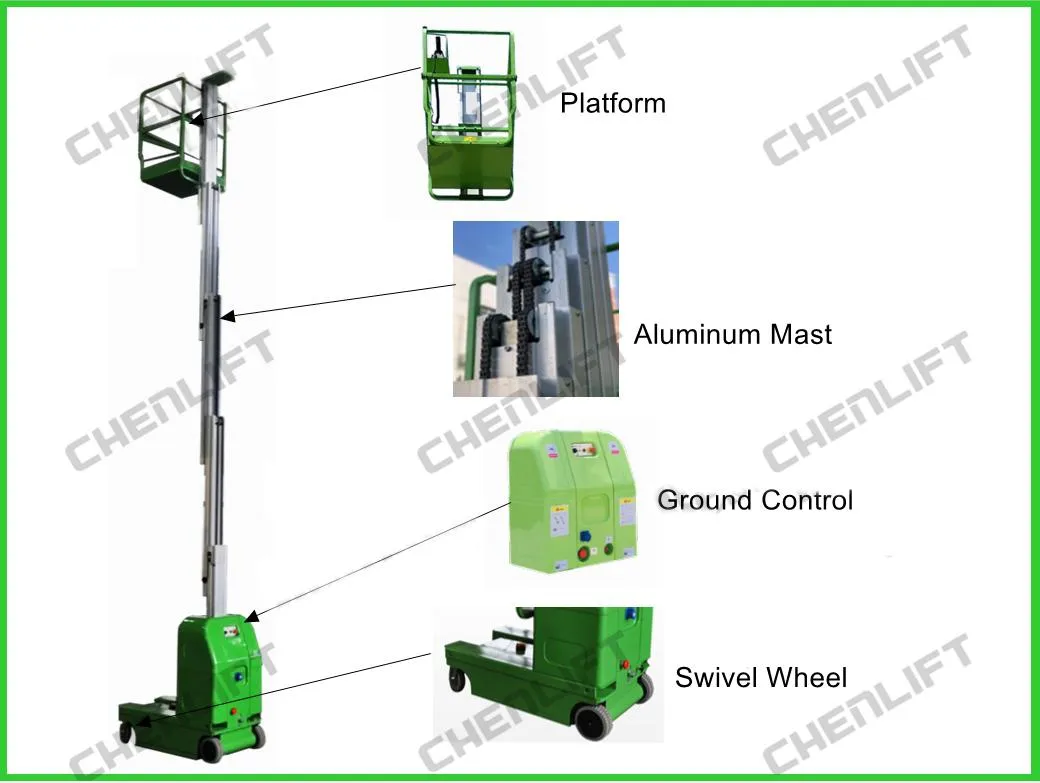

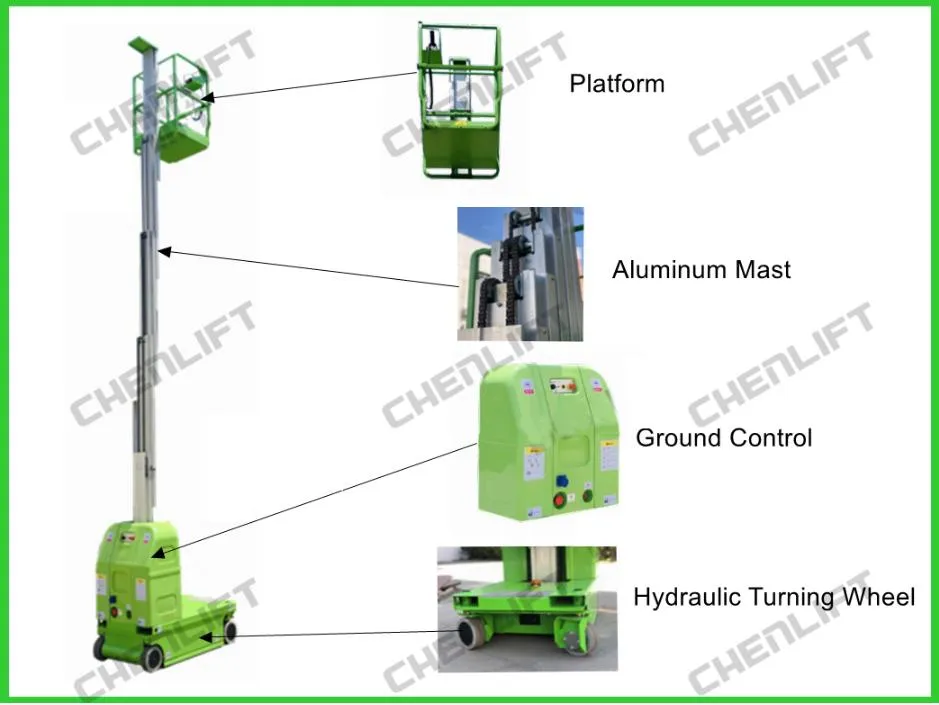

Turning System Details
Standard Configuration
Proportional controls
DC power supply
Drivable at full height
Beacon
Non marking tyre
2WD
Automatic braking system
Anti burst valve on cylinder
Emergency stop button
Auxiliary lowering
On board Diagnostic system
Tilt sensor with alarm
Forklift pockets
Charger protection
All motion alarm
Horn
Double wheel brake
Hydraulic braking release
Anti-dust cover on the mast
Powder coating painting
Optional Configuration
+ AC power to platform
+ Overload sensor with alarm
+ Platform working light
+ Air tube to the platform
+ Platform extension
+ Self-lock gate on platform
+ Hour meter
+ Machine Body cover
+ Wireless tracking
Handling & Storage

The Self-propelled Aerial Order Picker must be stored in a horizontal position to prevent oil and electrolyte overflow during transport and storage.

Storage areas must be kept clean, dry, and protected from adverse climates. The environmental temperature should not exceed 40ºC. If the battery is not used for a long period, it should be recharged timely to maintain its health.

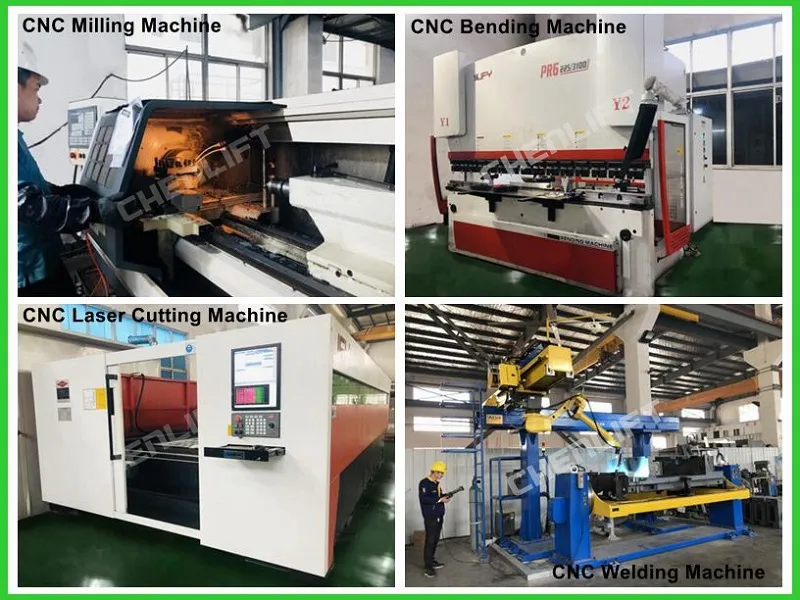

Quality Assurance & Facility
Frequently Asked Questions
1. What is the maximum working height of the MG600-1S?
The MG600-1S model has a maximum platform height of 6 meters, which provides an effective working height of approximately 8 meters.
2. Is this lift suitable for sensitive indoor flooring?
Yes, it comes equipped with non-marking tires as standard, allowing it to operate on finished floors without leaving marks or causing damage.
3. Can the lift be operated while the platform is fully raised?
Yes, the unit is designed to be drivable at its full height, providing efficient movement between work areas without needing to lower the platform.
4. What type of power source does the equipment use?
It is powered by a DC system featuring two 12V/115ah batteries, complemented by an on-board 24V/12A charger.
5. What safety features are included for operator protection?
Safety features include an emergency stop button, automatic braking system, tilt sensor with alarm, anti-burst valves on the cylinder, and a base pothole protection device.
6. Can this lift fit into standard elevators?
Yes, with a compact specification of 1.36*0.79*2.08m and a lightweight design, it is specifically built to pass through general foyers and standard elevators easily.

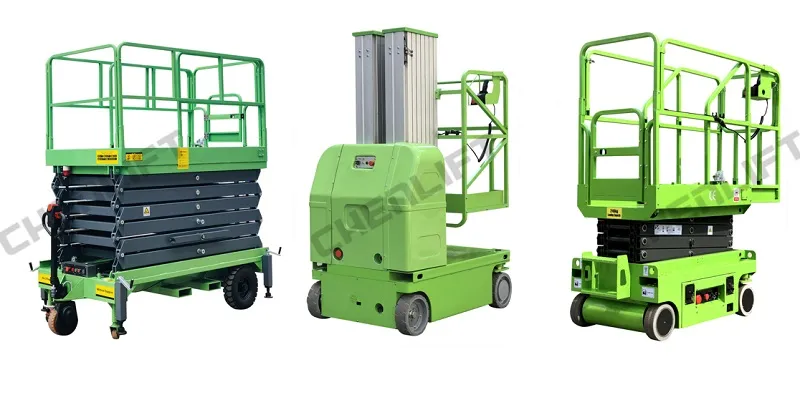

Related Products
