Keg Lift
1 / 5
| Model NO. | ZTVL |
| Application | Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane |
| Lift Mechanism | Lift Chain |
| Carrying Capacity | Light Level |
| Moves | Moving |
| Driven Type | AC |
| Running Mode | Moving |
| Feature | Explosion-Proof, Insulating |
| Certification | GS, CE, ISO 9001 |
| Material | Aluminum Alloy/ SS304 |
| Color | Customize |
| Entrance-Exit Way | 90° or 180° |
| Specification | 1400*1000*3000mm |
| Origin | China |
| HS Code | 8428909090 |

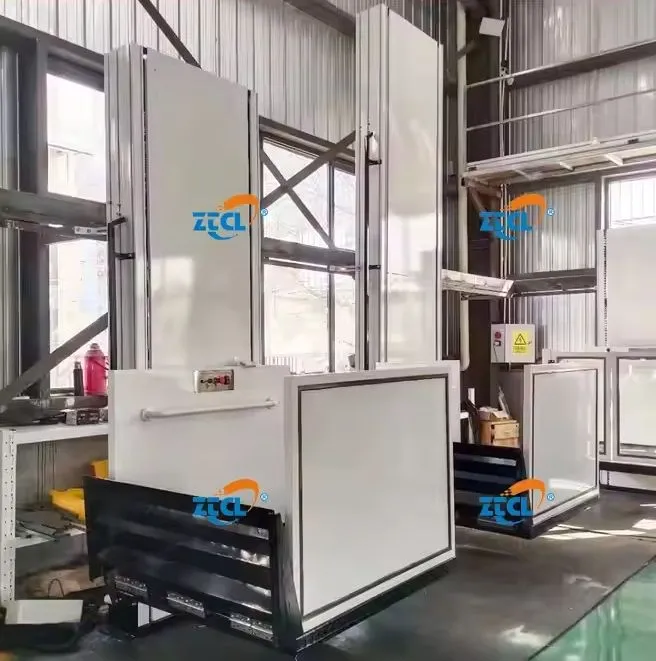

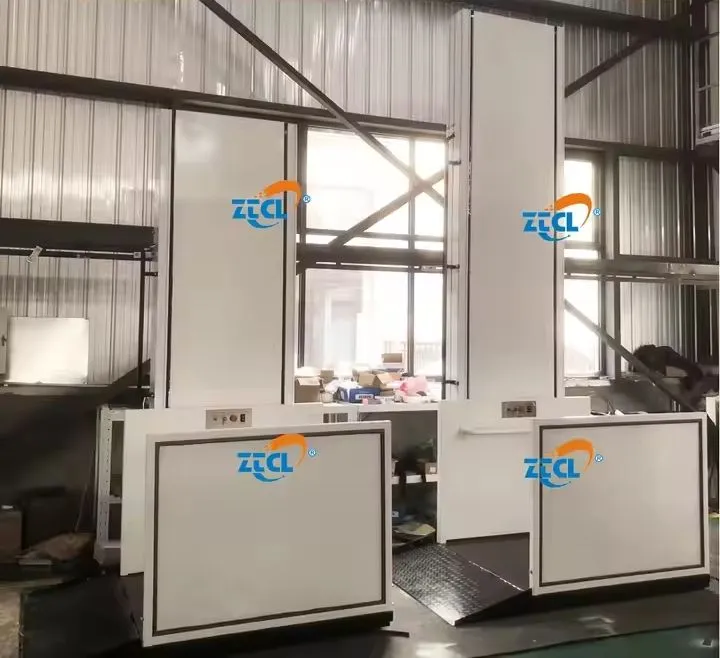

Aluminum Wheelchair Lifts are made with aluminum alloy guiderails which is lighter and more stable. No welding working, all parts can be assembled easily. Can be used indoors or outdoors and never rust because of its special material. Looks more beautiful than traditional steel plate.

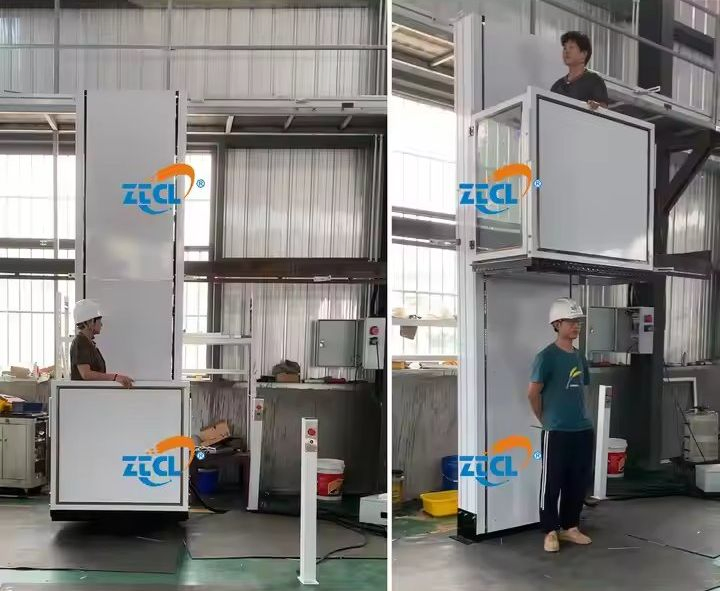

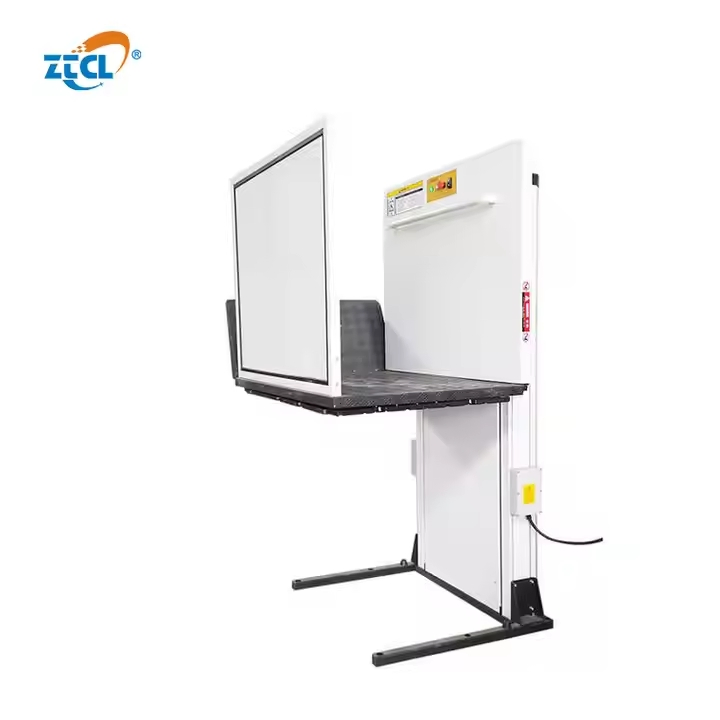

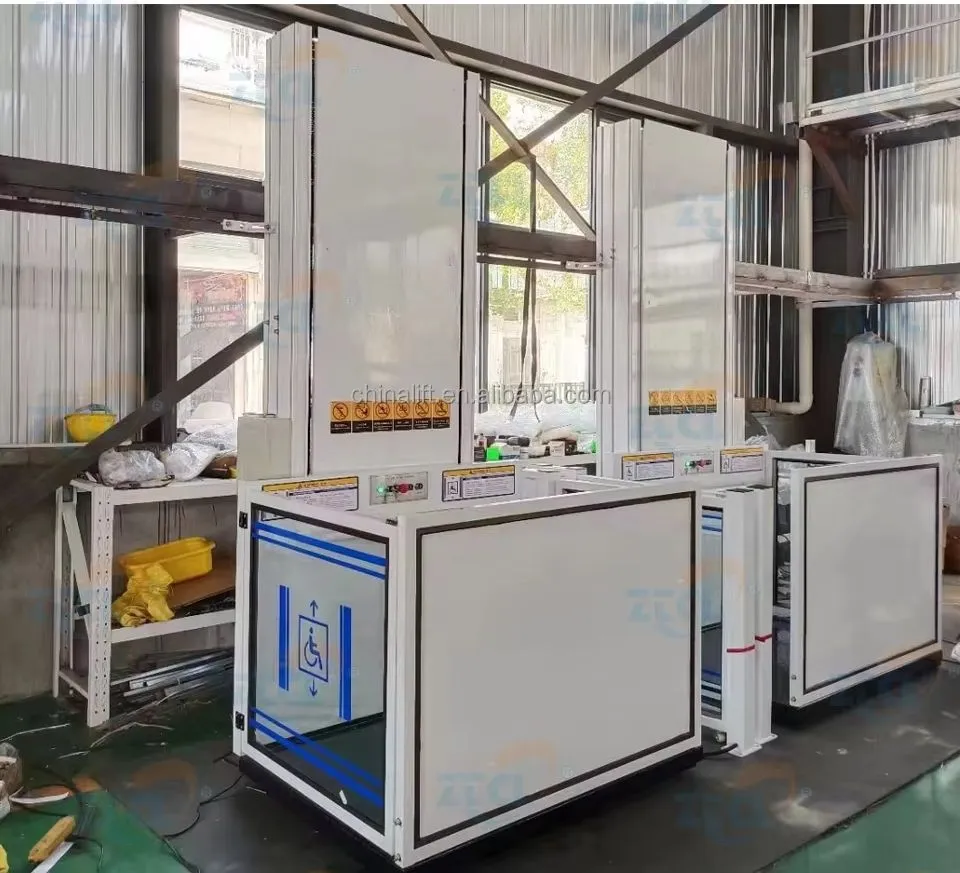

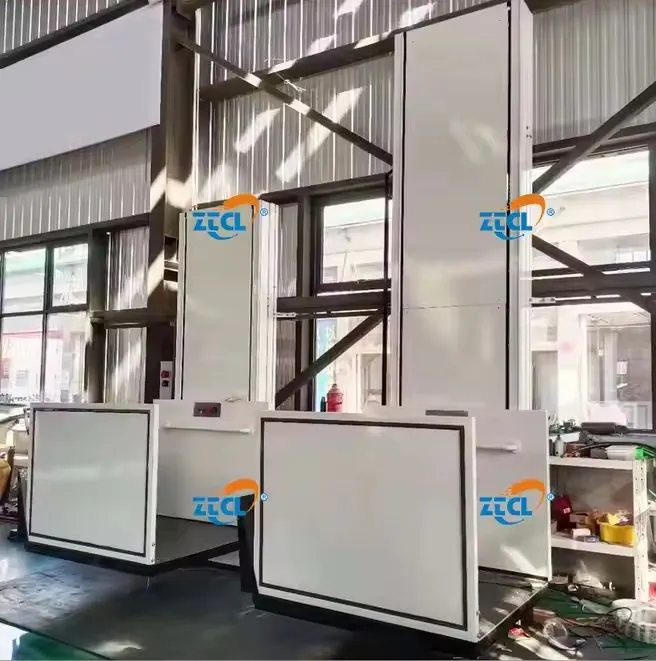

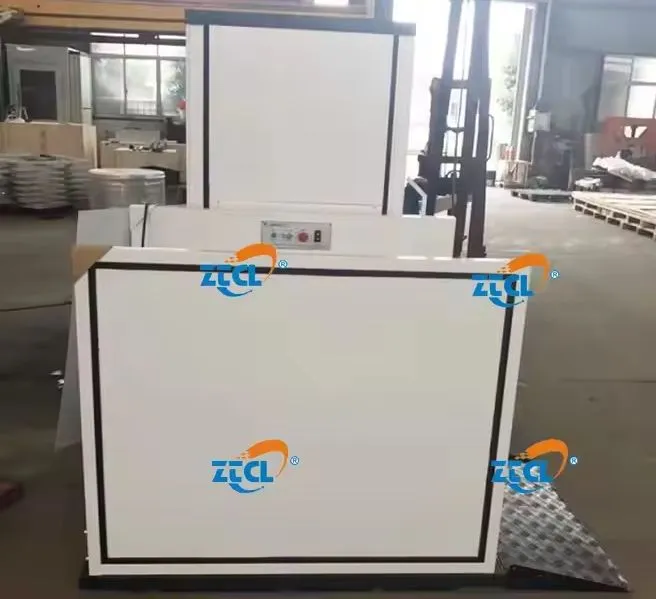

Vertical wheelchair platform lift is custom built lifts for the disabled and mobility impaired. These can range from one lower floor to another, also can delivery heavy goods. Our lifts are designed to suit the application and are custom built for home, indoor and outdoor of public building.
| Model | ZTVL Vertical home wheelchair lift table | |||
| Lift height (H) | 0.8--1.2m | 1.3--1.8m | 1.9--2.4m | 2.5--3.2m |
| Total height | H + 1.05m | H + 1.05m | H + 1.05m | H + 1.05m |
| Ground distance | 80mm | 80mm | 80mm | 80mm |
| Dimension | 1300*1400mm | |||
| Platform size | 1000 X 1200 mm (Customized) | |||
| Load capacity | 350 kg | 350 kg | 350 kg | 350 kg |
| Voltage | AC 50HZ 220V | |||
| Power | 1.1KW | 1.1KW | 1.1KW | 1.5KW |

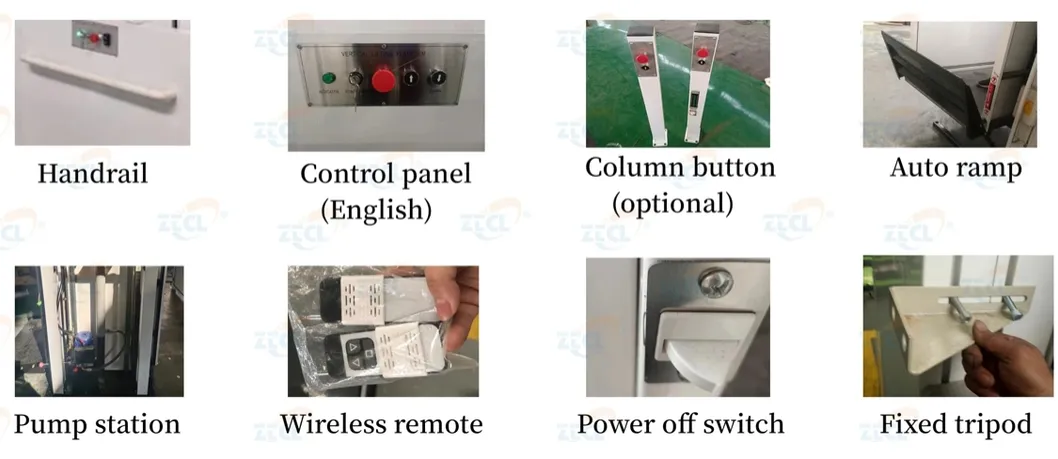

| Additional Note: Second floor door; Silent motor; platform door; Auto ramp; Max Lift Height: 10m | ||||
