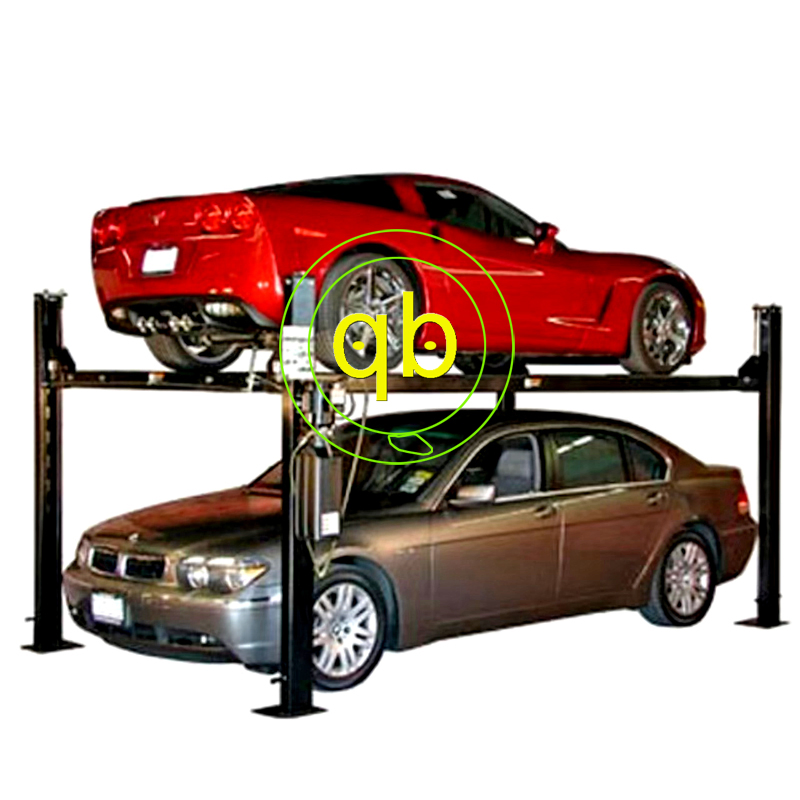

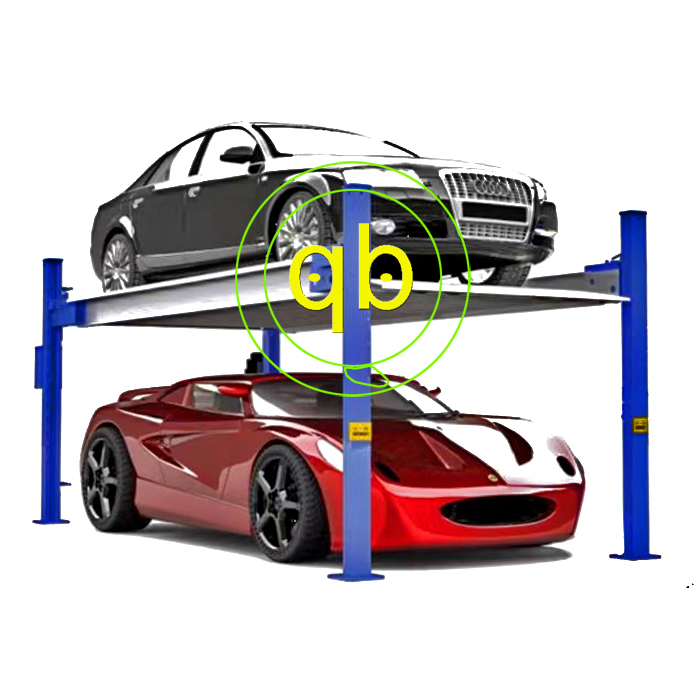

Four-Post Mechanical Car Parking Lift System Stacker Hydraulic Home Garage Hoist Devices 4-Pole Mechanical Vertical Storage Equipment Machine 2-Level Platform
Four-Post Mechanical Car Parking Lift System Stacker Hydraulic Home Garage Hoist Devices 4-Pole Mechanical Vertical Storage Equipment Machine 2-Level Platform
Four-Post Mechanical Car Parking Lift System Stacker Hydraulic Home Garage Hoist Devices 4-Pole Mechanical Vertical Storage Equipment Machine 2-Level Platform
Four-Post Mechanical Car Parking Lift System Stacker Hydraulic Home Garage Hoist Devices 4-Pole Mechanical Vertical Storage Equipment Machine 2-Level Platform
Four-Post Mechanical Car Parking Lift System Stacker Hydraulic Home Garage Hoist Devices 4-Pole Mechanical Vertical Storage Equipment Machine 2-Level Platform
1 / 5
Four-Post Mechanical Car Parking Lift System Stacker Hydraulic Home Garage Hoist Devices 4-Pole Mechanical Vertical Storage Equipment Machine 2-Level Platform
Four-Post Mechanical Car Parking Lift System Stacker Hydraulic Home Garage Hoist Devices 4-Pole Mechanical Vertical Storage Equipment Machine 2-Level Platform
Four-Post Mechanical Car Parking Lift System Stacker Hydraulic Home Garage Hoist Devices 4-Pole Mechanical Vertical Storage Equipment Machine 2-Level Platform
Four-Post Mechanical Car Parking Lift System Stacker Hydraulic Home Garage Hoist Devices 4-Pole Mechanical Vertical Storage Equipment Machine 2-Level Platform
Four-Post Mechanical Car Parking Lift System Stacker Hydraulic Home Garage Hoist Devices 4-Pole Mechanical Vertical Storage Equipment Machine 2-Level Platform

Four-Post Mechanical Car Parking Lift System Stacker Hydraulic Home Garage Hoist Devices 4-Pole Mechanical Vertical Storage Equipment Machine 2-Level Platform

Customization: Available
Parking Post: 2
Level: 2
Send Inquiry

Product Description

★

Basic Specifications

Model NO.FPP707/708
Capacity2000kgs
ColorAny Colour
InstallationIndoor & Outdoor
Lifting Height1800mm/1900mm
MaterialSteel
OperationManual
Safety FeaturesAuto Locks, Emergency Stop, Overload Protection
TypeFour Post Parking Lift
Vehicle TypeSedans, SUVs
Warranty12 Months
CertificationCE, ISO, CCC
Rise/Drop Time60s/50s
Power220V/380V, 2.2kw
Production3000 Units/Year
Package Size250cm * 240cm * 100cm
⚙

Product Description

Operating Principle: The transmission mode of the equipment is hydraulic. A high-pressure hydraulic pump outputs oil to push the hydraulic cylinder, driving the carrying board up or down for parking and retrieving. When the carrying board reaches the designated position, the vehicle can be safely driven in or out.

Four Post Parking Lift Main View

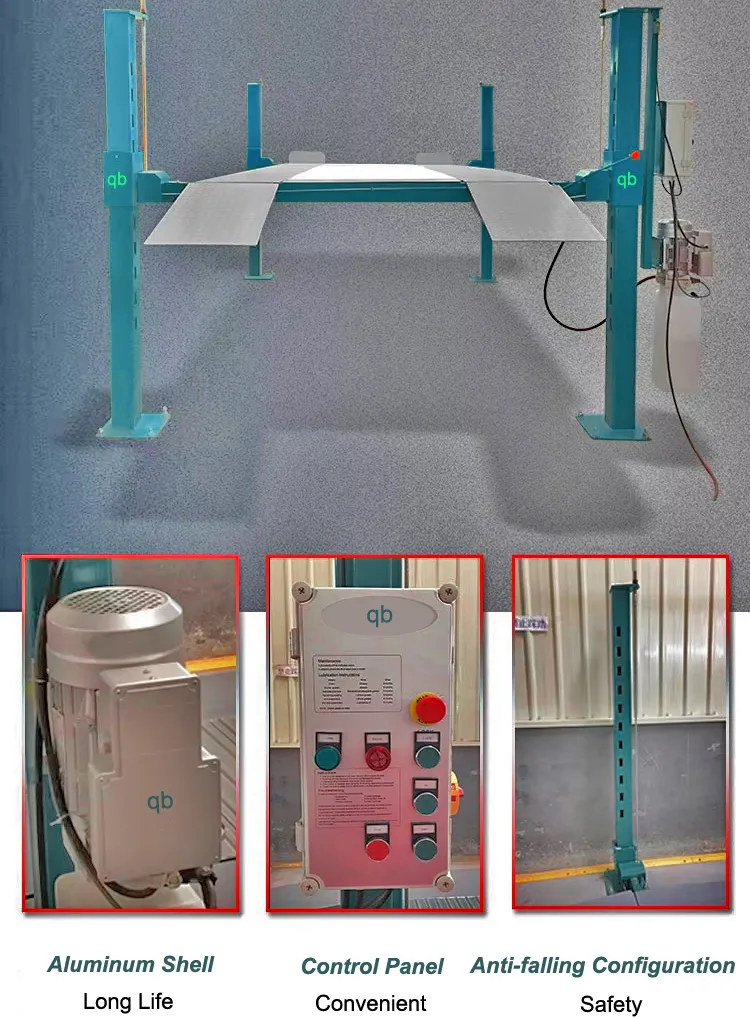

Lift Structure Detail
Hydraulic System View

Key Features

  • Single hydraulic pump drives to rise up wire rope.
  • The system is locked and unlocked automatically.
  • Anti-dropping metal blocks in columns for enhanced safety.
  • Collecting oil structure prevents oil dripping under the car.
  • Self-lubricated bearings ensure safety at any height.
  • Anti-skid design and traction plate for driver safety.
📋

Technical Parameters

Parameter Item Model FPP707 Model FPP708
Lifting Capacity7000lbs / 3200kgs8000lbs / 3800kgs
Lifting Height1800mm1900mm
Overall Height2086mm2138mm
Width Between Posts2353mm2353mm
Width Between Boards949.5mm949.5mm
Rated Oil Pressure18Mpa
Rise/Drop Time60s / 50s
Voltage/Power220v, 380v / 2.2kw
🖼

Product Gallery

Parking Lift Dimensions
Safety Mechanism
Platform Details
Column Base
Control System
Hydraulic Cylinder
Finished Installation
Secondary Level
Mechanical Locks
Tilting Option
?

Frequently Asked Questions

Are you a professional factory for these lifts?
Yes, our factory has over 30 years of manufacturing and design experience specializing in parking machinery.
Can the parking system be customized to my needs?
Absolutely. The parking system can be customized according to your specific site dimensions and requirements.
Is this system compatible with SUVs?
Yes, the system is designed to accommodate both sedans and SUVs. We can customize the dimensions to ensure a perfect fit for your vehicle types.
Can these lifts be installed outdoors?
Yes. The steel structure is galvanized or painted for waterproof protection. Extra covers can also be installed to protect against snow, rain, and heavy wind.
What are the electrical requirements?
The system supports both 220V and 380V options. We can customize the voltage configuration to match your local power supply.
What safety features are included in the 4-post lift?
The lift includes automatic safety locks, anti-dropping metal blocks in every column, emergency stop buttons, and overload protection for maximum security.
