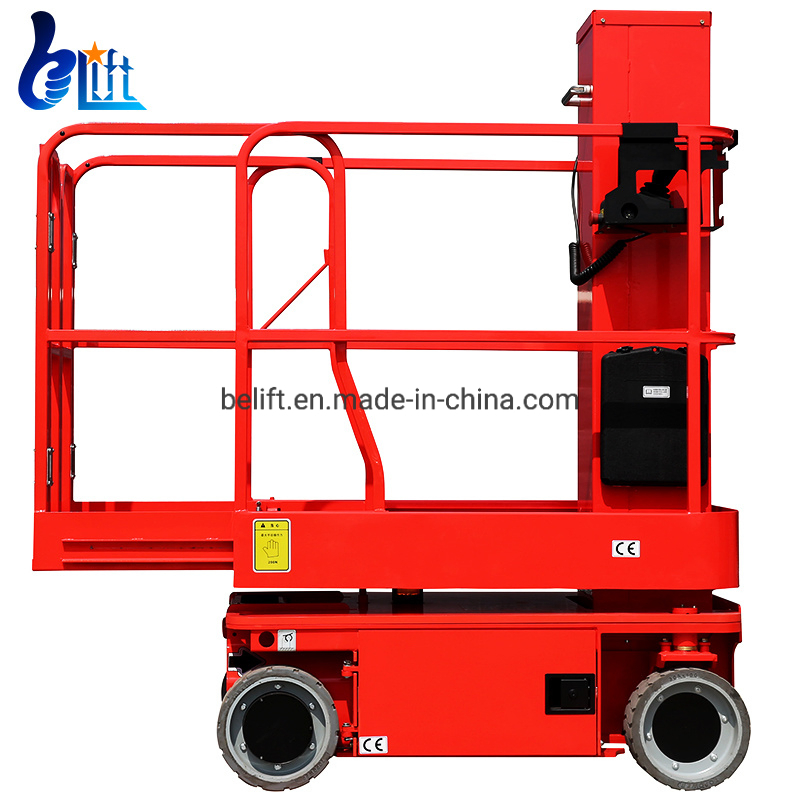

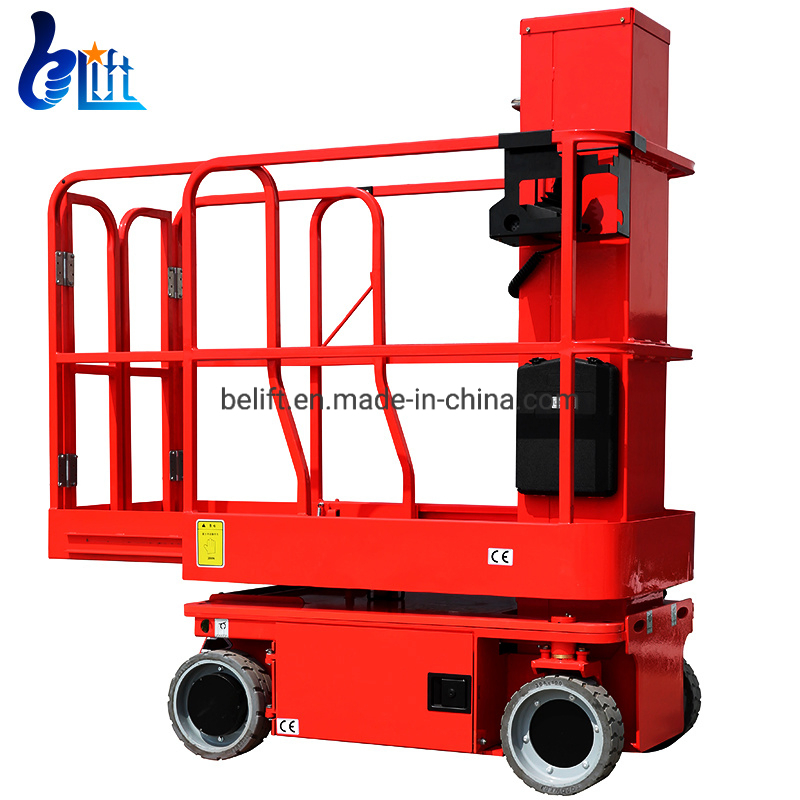

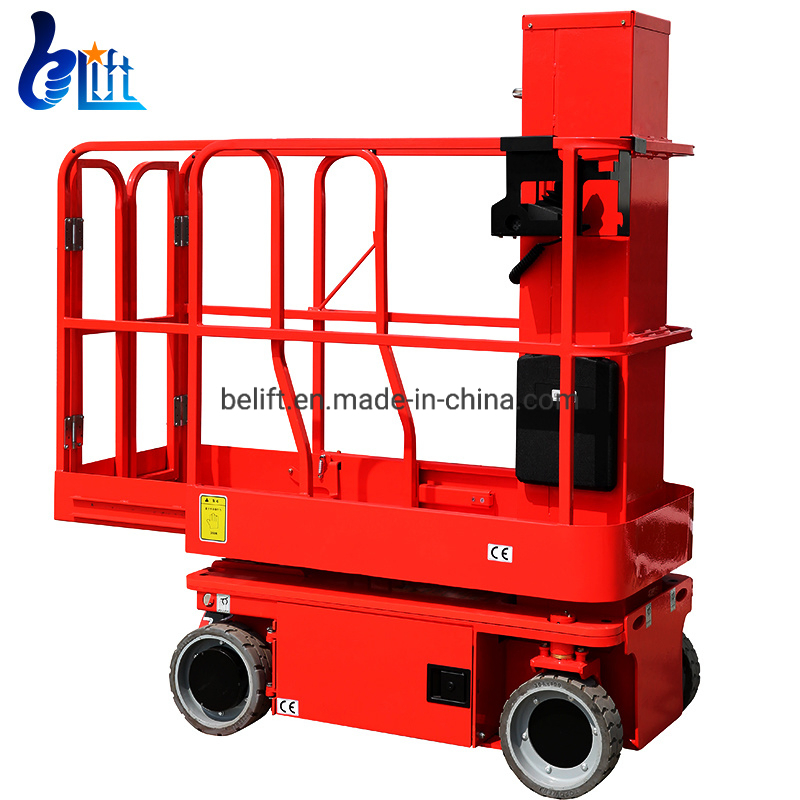

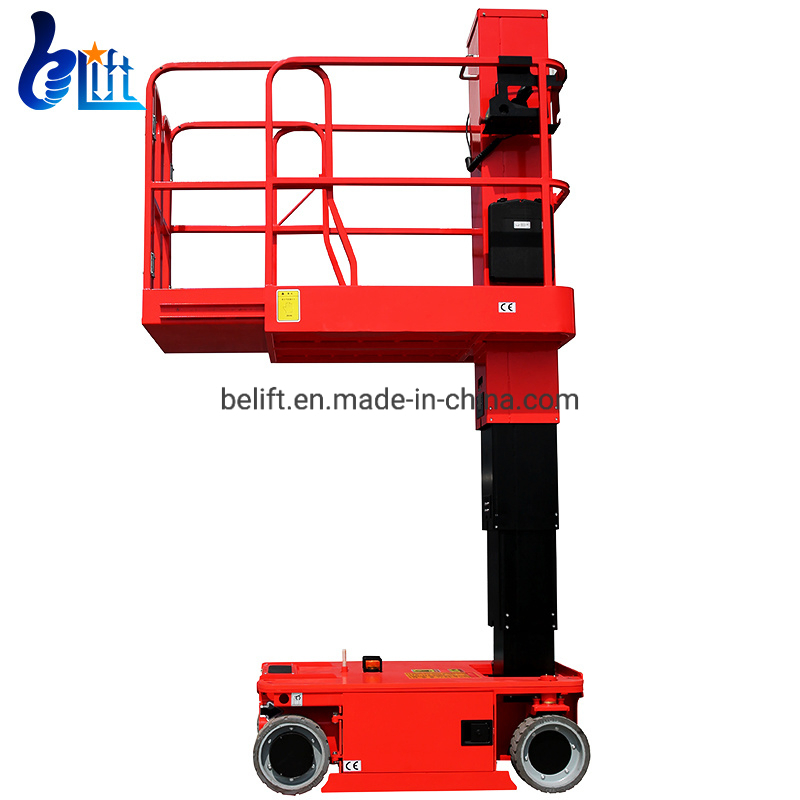

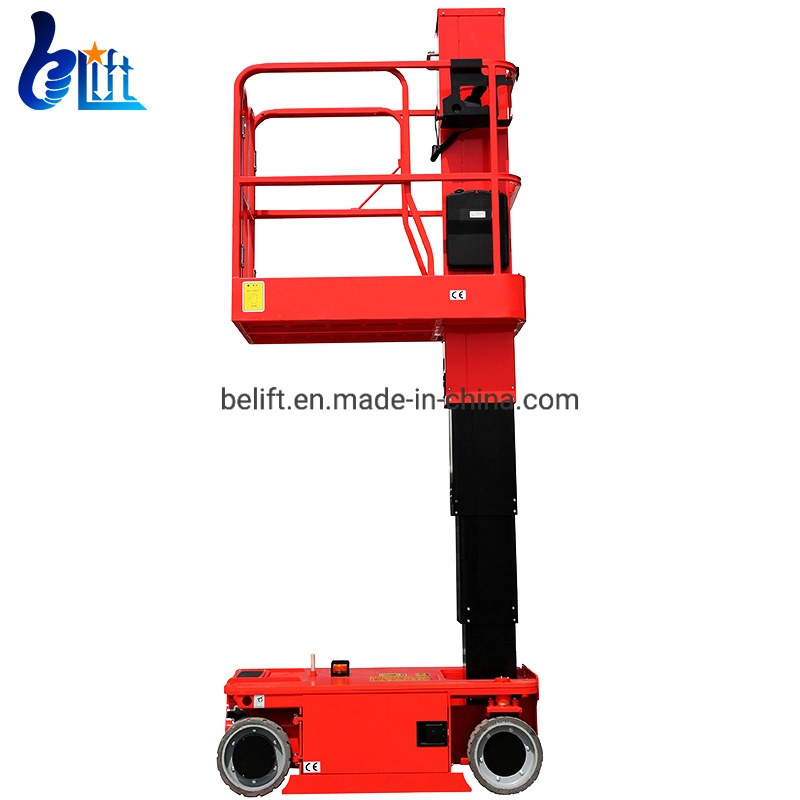

3.6-6m Hydraulic Aerial Man Construction Work Platform Telescopic Electric Vertical Mast Lift

Still deciding? Get samples of $ !
Order Sample

Product Description

i
Basic Specifications
Model NO.
ASWP
Application
Workshop, Shipboard, Warehouse, Building
Lift Mechanism
Lift Chain
Carrying Capacity
Middle-Level
Moves
Self-propelled
Driven Type
DC
Certification
GS, CE, RoHS, ISO 9001
Max. Height
3.6m / 4.6m
Lifting Capacity
227kg
Platform Size
1300 x 700 mm
Battery
24V / 100Ah
Weight
810kg / 980kg
Product Description

Self-propelled vertical mast lifts are high-end low-level access machines featuring automatic walking, turning, and lifting functions. Specifically designed for indoor and outdoor aerial tasks, they excel in environments with restricted height and narrow spaces.

These lifts are drivable at full height, making them ideal for supermarkets, warehouses, workshops, and stadiums for daily maintenance and inventory management.

Features & Advantages
Drivable at full height for maximum efficiency.
Equipped with Emergency decline valve and Emergency button.
Proportional controls for smooth operation.
Automatic brake system and Cylinder holding valve for safety.
Non-marking tyres to protect sensitive indoor flooring.
High strengthened steel structures with anti-corrosion finish.
Technical Parameters
Model No. ASWP-3.6 ASWP-4.8 ASWP-6.0
Max platform height3.6m4.8m6.0m
Max working height5.6m6.8m8.0m
Loading capacity227kg227kg159kg
Extendable capacity114kg114kg114kg
Overall Dimensions1.36x0.76x1.98m1.36x0.76x1.98m1.36x0.82x1.98m
Travel Speed (Stowed)4km/h4km/h4km/h
Gradeability25%25%25%
Weight810kg980kg1060kg
📷

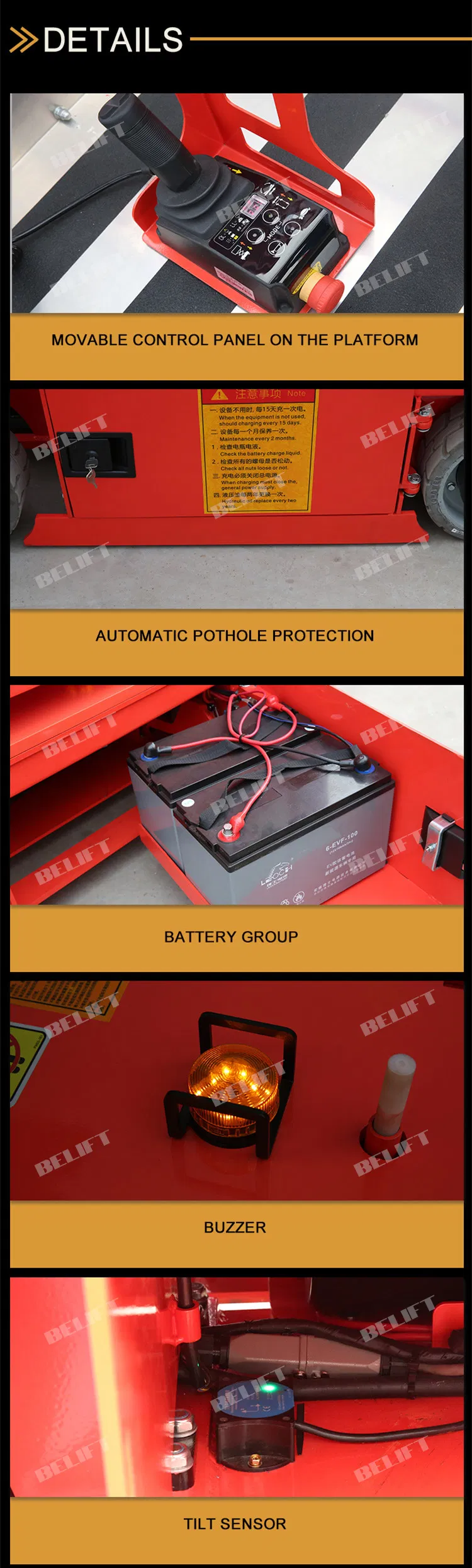

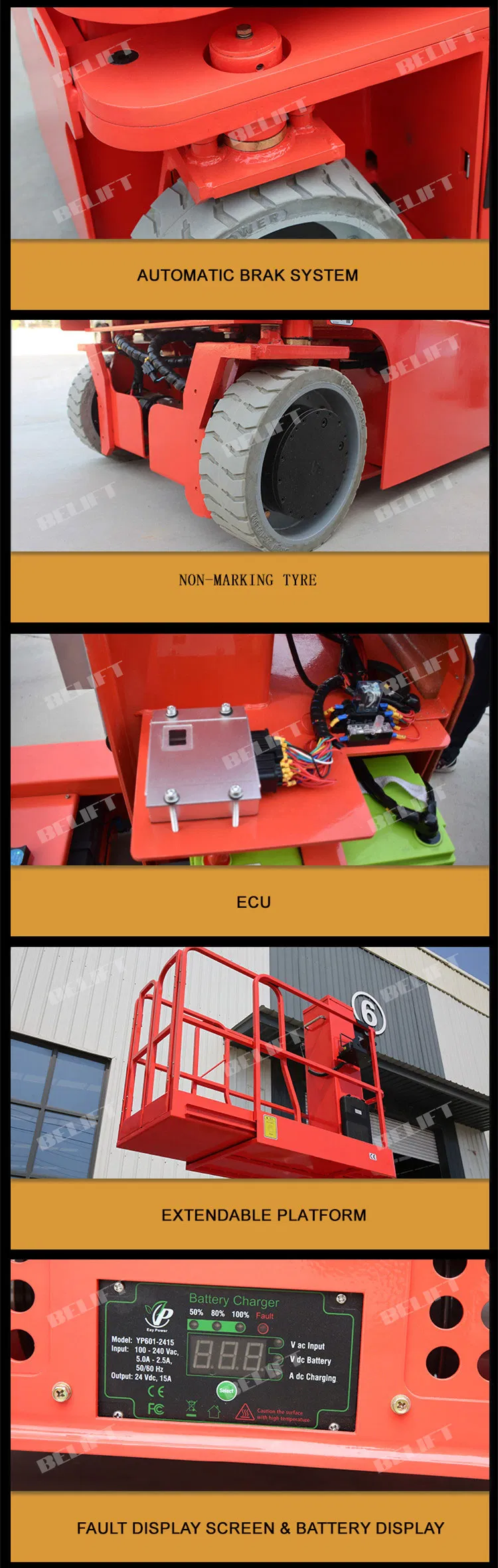

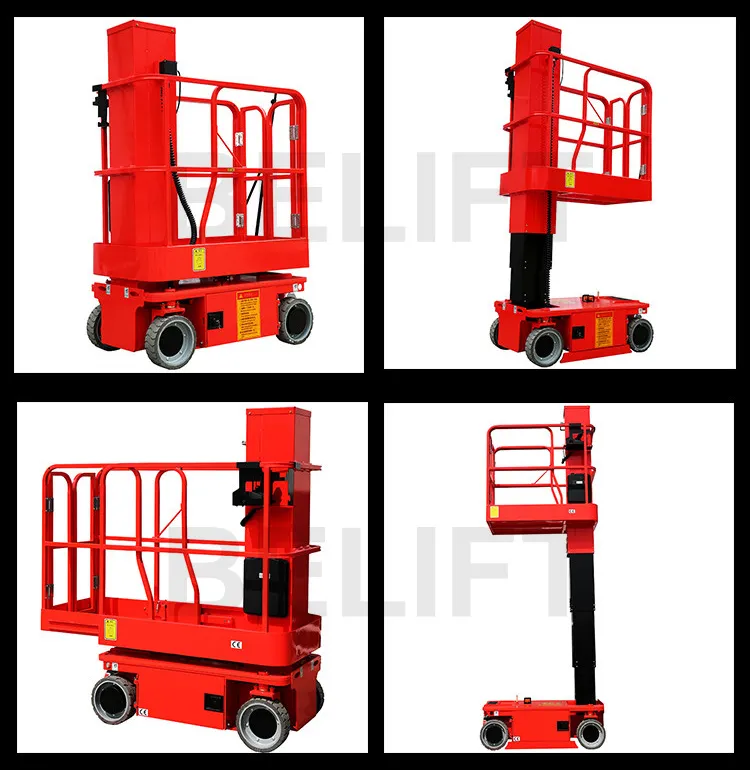

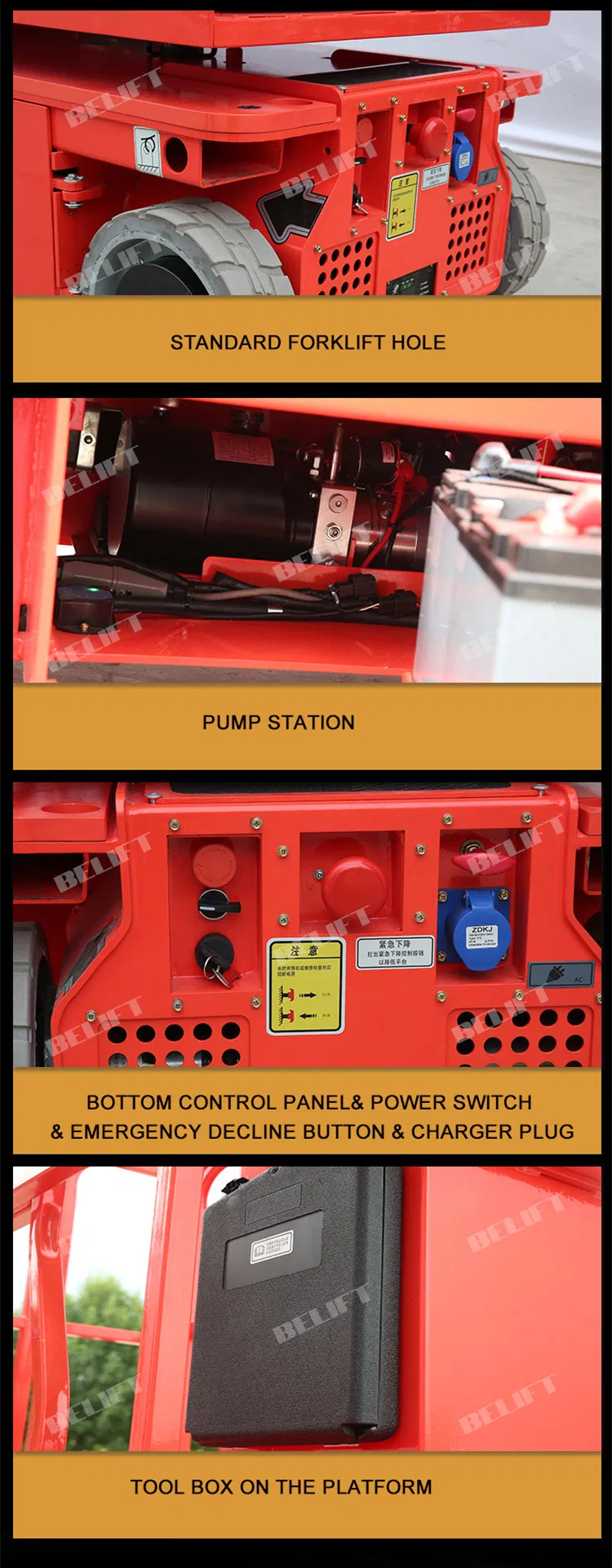

Detailed Photos
🏭

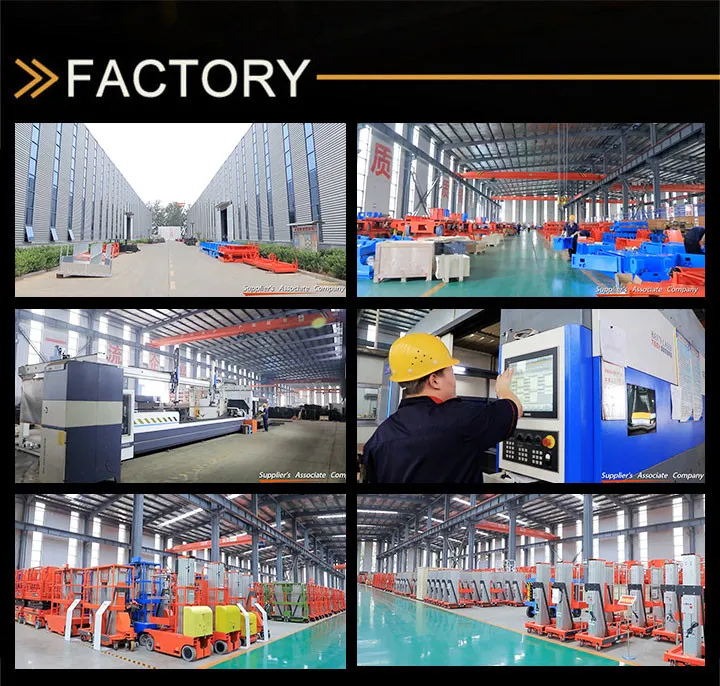

Manufacturing & Quality

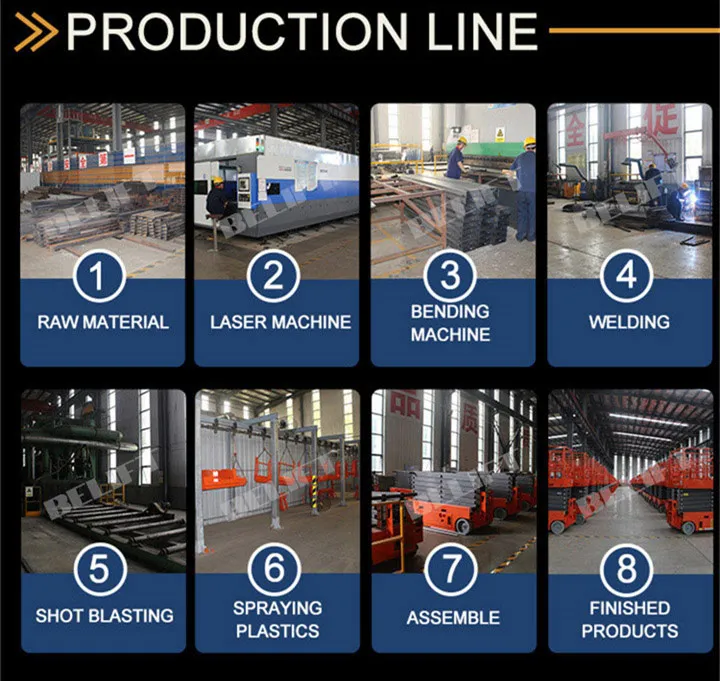

Products are manufactured using automatic production lines, ensuring high quality and consistency. We utilize advanced shot blasting treatments and anti-corrosion paint spraying for a superior appearance and longevity. Certificates include CE, ROHS, SGS, and ISO.

?
Frequently Asked Questions
How can I purchase replacement parts?
The self-propelled vertical mast lift uses common hardware parts. You can easily find these at local hardware markets or forklift parts stores.
How is maintenance or repair handled?
The equipment has an extremely low failure rate. If an issue arises, we provide detailed video guides and technical instructions to assist your team in repairs.
What is the warranty period for this lift?
We offer a one-year quality guarantee. If any components fail within the first year due to manufacturing defects, replacement parts are provided free of charge.
Is the platform height customizable?
We offer standard heights of 3.6m, 4.8m, and 6.0m. For specific requirements, please check the parameter table for the model that best fits your needs.
What power source does the machine use?
The system is powered by a 24V DC battery (typically 2x12V/100Ah), suitable for indoor use with no emissions.
Can it be used on slopes?
The machine has a gradeability of 25%, allowing it to handle moderate inclines while in the stowed position.
